Wood Stone WS-FD-9690 Series User manual

FIRE DECK
WS-FD-9690-CL
WS-FD-11275-CL
WS-FD-11290-CL
Installation and
Operation Manual
woodstone-corp.com
Revised March 2015
Doc no: M0045.02
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
SPECIALITY OVENS
Stone Hearth Oven
Coal-Fired Models

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
TABLE OF CONTENTS
TABLE OF CONTENTS
COAL-FIRED OVENS� � � � � � � � � � � � � � � � � � �3
CAUTIONS AND WARNINGS � � � � � � � � � � � � �4
9690-CL SPECIFICATIONS � � � � � � � � � � � � � �6
11275-CL SPECIFICATIONS � � � � � � � � � � � � �7
11290-CL SPECIFICATIONS � � � � � � � � � � � � �8
CASTER REMOVAL� � � � � � � � � � � � � � � � � � � �9

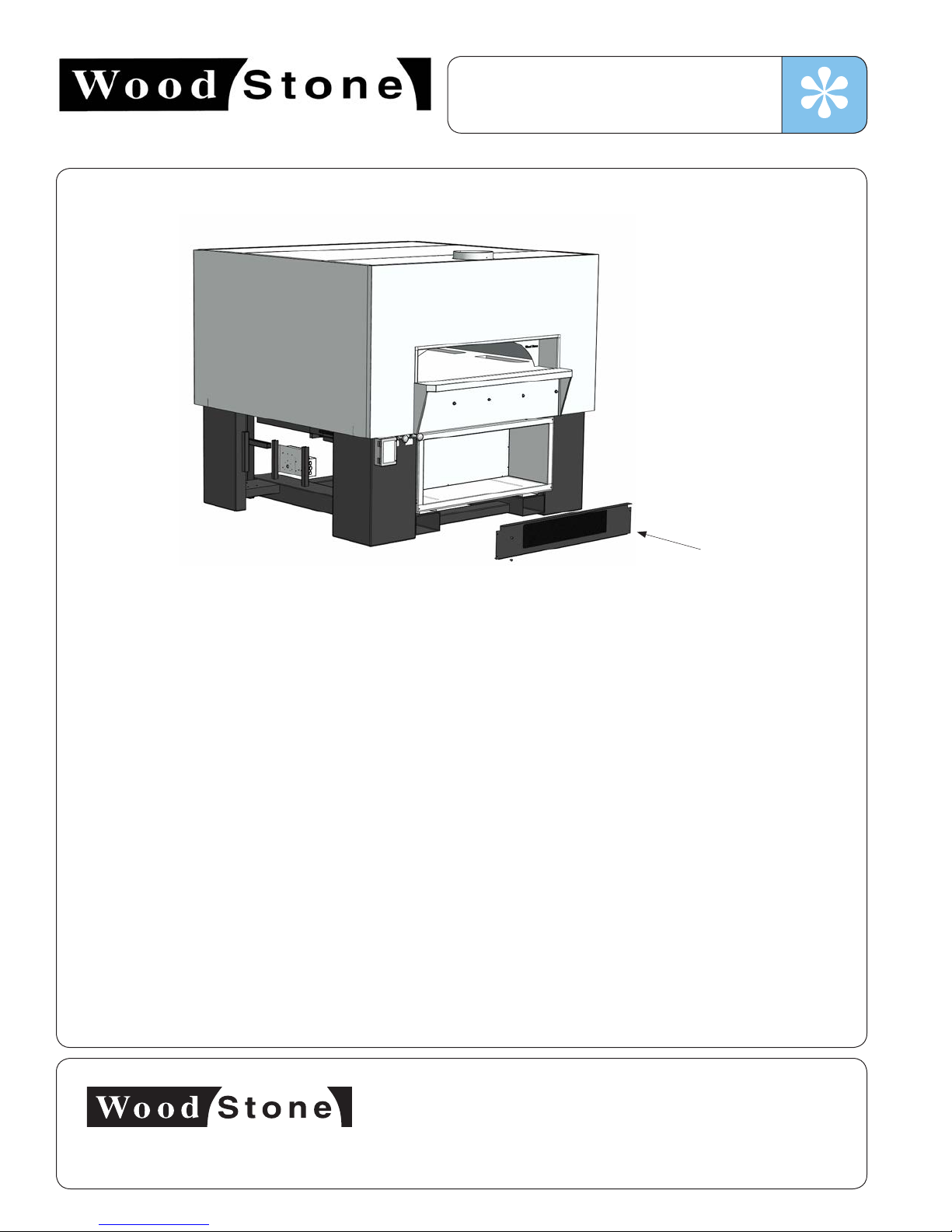

TOE KICK INSTALLATION � � � � � � � � � � � � � �10
UNLOADING AND MOVING � � � � � � � � � � � � �11

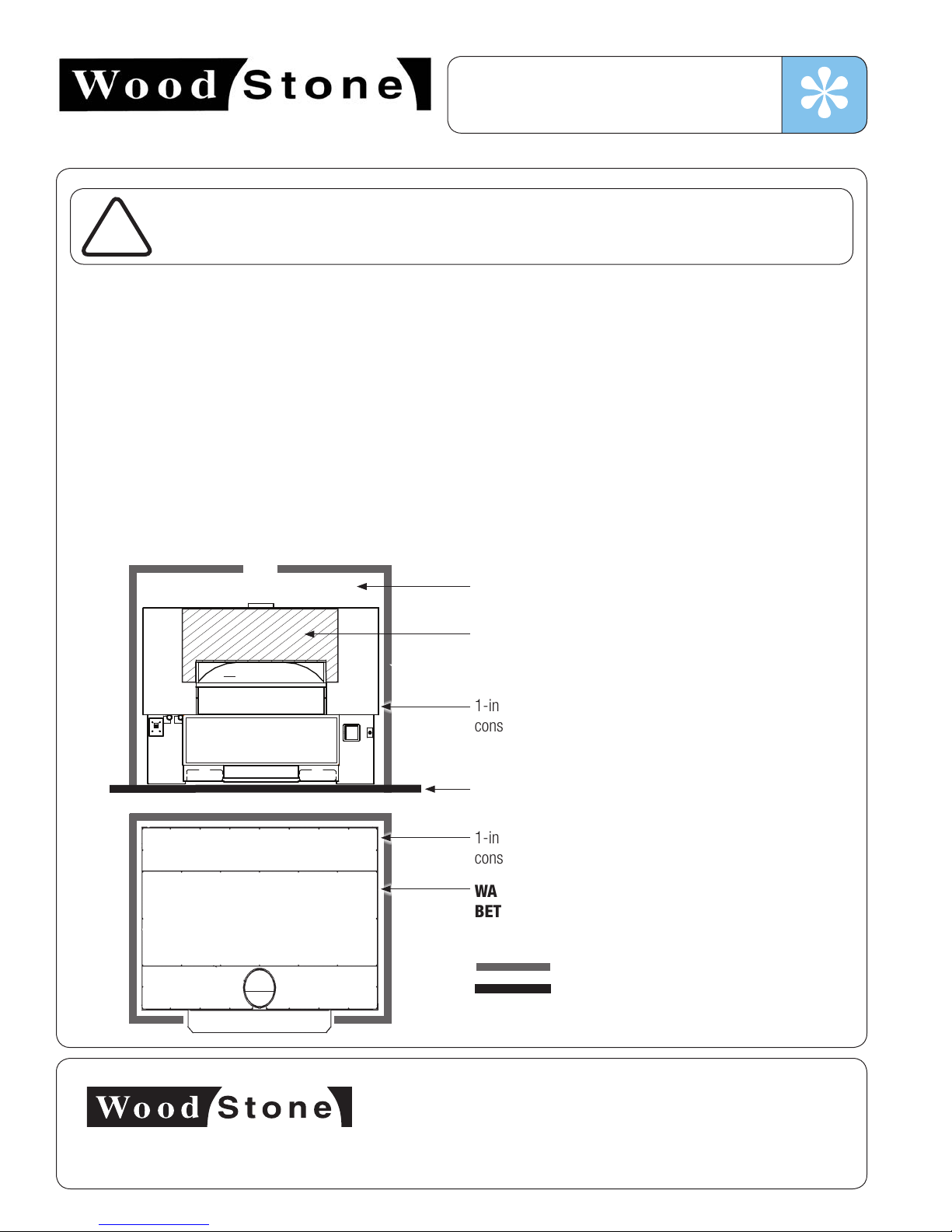

INSTALLATION CLEARANCES � � � � � � � � � � �12
VENTING � � � � � � � � � � � � � � � � � � � � � � � � � �14
WOOD STONE HOODS � � � � � � � � � � � � � � � �15
GAS SPECIFICATIONS� � � � � � � � � � � � � � � � �17
CONTROLLER � � � � � � � � � � � � � � � � � � � � � �19
INITIAL START-UP � � � � � � � � � � � � � � � � � � �21
DAILY OVEN OPERATION� � � � � � � � � � � � � � �22
USE OF COAL OVERVIEW � � � � � � � � � � � � � �23
DAILY MAINTENANCE� � � � � � � � � � � � � � � � �28
PERIODIC THERMAL CLEANING � � � � � � � � �29
TROUBLESHOOTING� � � � � � � � � � � � � � � � � �30
ELECTRICAL DIAGRAMS� � � � � � � � � � � � � � �31
INTERLOCK DIAGRAM � � � � � � � � � � � � � � � �34
LIMITED WARRANTY � � � � � � � � � � � � � � � � �35
2
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
COAL-FIRED OVENS
INSTALLATION AND OPERATION MANUAL FOR THE
WOOD STONE FIRE DECK COAL-FIRED OVEN
STONE HEARTH COOKING EQUIPMENT
FIRE DECK COAL-FIRED OVEN
WS-FD-9690-(L,R,LL,RR)-IR-CL,
WS-FD-11290-(L,R,LL,RR) CL AND
WS-FD-11275-(L,R,LL,RR)-IR-CL
ADDITIONAL MANUAL COPIES AVAILABLE UPON REQUEST
Shown: Model FD-9690-LL-IR-CL
3
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02

RETAIN THIS MANUAL FOR FUTURE REFERENCE
Additional copies of this manual at woodstone-corp�com�
For prompt responses to service/maintenance questions, call us at @ 1-800-988-8103�
9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
CAUTIONS AND WARNINGS
4
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
INSTALLATION AND OPERATION MANUAL FOR THE
WOOD STONE FIRE DECK OVEN
STONE HEARTH COOKING EQUIPMENT
WS-FD-9690, WS-FD-11275 AND WS-FD-11290 MODELS EQUIPPED FOR COAL BURNING
READ ALL INSTRUCTIONS BEFORE INSTALLING AND USING THIS APPLIANCE
Please read this entire manual before you install the oven. Failure to follow instructions may result in
property damage, bodily injury or even death. Contact your local building or fire officials about restrictions
and installation inspection in your area.
WARNING: Improper installation, adjustment, alteration, service or maintenance can result in property
damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before
installing or servicing this equipment.
IF THIS OVEN IS NOT PROPERLY INSTALLED A FIRE MAY RESULT. TO REDUCE THE RISK OF FIRE, FOLLOW
THESE INSTALLATION INSTRUCTIONS. A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN
REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS OF THE UTMOST IMPORTANCE
THAT THIS OVEN BE INSTALLED ONLY IN ACCORDANCE WITH THESE INSTRUCTIONS.
COAL FUEL - TO ENSURE CLEANEST EMISSIONS POSSIBLE, USE ONLY ANTHRACITE COAL. MANY VARIETIES
OF COAL CONTAIN CHEMICAL IMPURITIES THAT CAN DAMAGE THE OVEN CERAMIC. USING ANTHRACITE
COAL MINIMIZES THE CHANCE OF CHEMICAL DAMAGE TO THE OVEN CERAMIC. USE OF ANY COAL OTHER
THAN ANTHRACITE COAL WILL VOID THE WARRANTY ON THE OVEN CERAMIC AND MAY LEAD TO INCREASED
PARTICULATE AND OTHER EMISSIONS FROM THE OVEN WHEN COAL IS USED.

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
CAUTIONS AND WARNINGS
5
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
Wood Stone ovens have been tested and approved by Intertek Testing Services and ETL Listed to ANSI
Z83.11b-2009, CSA 1.8b-2009, UL 737, ULC -S627-00, UL Subject 2162, and to ANSI/NSF Standard 4.
SAVE THE INSTRUCTIONS
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this
or any other appliance. Also, always keep the area under and around this appliance free and clear of any
and all combustible materials.
It is recommended that this oven be installed, maintained and
serviced by authorized professionals.
WARNING: This product must be installed by a licensed plumber or gas fitter when installed within the
Commonwealth of Massachusetts.
FOR YOUR SAFETY: Consult your local gas supplier for a statement outlining a procedure to be followed
in the event you smell gas. Post the statement in a prominent location.
CAUTION: DISCONNECT POWER TO THE OVEN BEFORE SERVICING OR CLEANING.
CAUTION: Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter fluid or similar liquids
to start or freshen up a fire in this oven. Keep all such liquids well away from this oven when in use.
WARNING: In the event of a power failure, no attempt should be made to operate this appliance.
ANSI Z83.11b-2009
CSA 1.8b-2009 ANSI/NSF STD 4

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
Front viewSide view
Plan view
9690-CL SPECIFICATIONS
l
UTILITY SPECIFICATIONS
Gas: 1" FNPT gas inlet
347,000 BTU/hr Natural Gas (NG)
OR
369,000 BTU/hr Propane (LP)
Decorative flame adds
15,000 BTU/hr to total rated output
Venting
This oven may be vented with a Listed Type 1 exhaust hood OR directly connected at the
12-inch O�D� oven flue collar to a power-ventilated, grease-rated chimney OR an exhaust
hood constructed in accordance with NFPA 96 and all relevant local and national codes�
The oven must be vented in accordance with all relevant local and national codes, and in
a manner acceptable to the authority having jurisdiction�
IMPORTANT: This model must be vented as a solid fuel appliance�
Electrical
120 VAC, 4 A, 50/60 Hz
Utility connections made
on left side of oven as
shown�
VERY IMPORTANT!
Oven is shipped with casters
which add 1-1/2"� Height with
casters to the top of the flue
collar is 87 ¾"� Once the oven
is in place the casters must be
removed�
Utility connections are made
underneath the oven; they
are shown on the plan view to
illustrate geographic location only�
6
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
Unit weight:
10,000 lbs.
REV:
LEGEND:
PART #:
001-509690-CL-R
9690 Coal Burner
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-9690-CL_General_Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
59 3/4"
1520mm
96 1/4"
2450mm
9 3/4"
250mm
24 1/2"
620mm
9 1/2"
240mm
36 1/2"
930mm
92"
2330mm
48 1/4"
1230mm
31 3/4"
810mm
58 3/4"
1490mm
84 1/4"
2140mm
33 1/4"
840mm
20 3/4"
530mm
15"
380mm
18"
460mm 86"
2180mm
1 3/4"
50mm 2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
12"
300mm OD
1 1/2"
40mm
REV:
LEGEND:
PART #:
001-509690-CL-R
9690 Coal Burner
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-9690-CL_General_Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
59 3/4"
1520mm
96 1/4"
2450mm
9 3/4"
250mm
24 1/2"
620mm
9 1/2"
240mm
36 1/2"
930mm
92"
2330mm
48 1/4"
1230mm
31 3/4"
810mm
58 3/4"
1490mm
84 1/4"
2140mm
33 1/4"
840mm
20 3/4"
530mm
15"
380mm
18"
460mm 86"
2180mm
1 3/4"
50mm 2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
12"
300mm OD
1 1/2"
40mm
REV:
LEGEND:
PART #:
001-509690-CL-R
9690 Coal Burner
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-9690-CL_General_Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
59 3/4"
1520mm
96 1/4"
2450mm
9 3/4"
250mm
24 1/2"
620mm
9 1/2"
240mm
36 1/2"
930mm
92"
2330mm
48 1/4"
1230mm
31 3/4"
810mm
58 3/4"
1490mm
84 1/4"
2140mm
33 1/4"
840mm
20 3/4"
530mm
15"
380mm
18"
460mm 86"
2180mm
1 3/4"
50mm 2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
12"
300mm OD
1 1/2"
40mm
Air intake: Do not
facade or cover over
Must be left
removable for service

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
11275-CL SPECIFICATIONS
l
Front view
Side view
Plan view
UTILITIES REQUIRED
Gas: 1" FNPT gas inlet
315,000 BTU/hr Natural Gas (NG)
OR
310,000 BTU/hr Propane (LP)
Decorative flame adds
15,000 BTU/hr
Venting
This oven may be vented with a Listed Type 1 exhaust hood OR directly connected at the
12-inch O�D� oven flue collar to a power-ventilated, grease-rated chimney OR an exhaust
hood constructed in accordance with NFPA 96 and all relevant local and national codes�
The oven must be vented in accordance with all relevant local and national codes, and in
a manner acceptable to the authority having jurisdiction�
IMPORTANT: This model must be vented as a solid fuel appliance�
Electrical
120 VAC, 4 A, 50/60 Hz
Utility connections made
on back of oven
Unit weight:
9,500 lbs.
VERY IMPORTANT!
Oven is shipped with casters
which add 1-1/2"� Height with
casters to the top of the flue
collar is 87 ¾"� Once the oven
is in place the casters must be
removed�
Utility connections are made
underneath the oven; they
are shown on the plan view to
illustrate geographic location
only�
REV:
LEGEND:
PART #:
001-5011275-CL-R
11275 Fire Deck - Coal Right
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11275-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
295,000 BTU, NG
282,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
9 3/4"
250mm
59 3/4"
1520mm
112 1/4"
2850mm
108"
2740mm
17 1/2"
440mm 36 3/4" 940mm
74 3/4"
1900mm
82 1/2"
2100mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
2 1/4"
50mm 2 1/4"
60mm
48 1/4"
1230mm
31 3/4"
810mm
18"
460mm 70 3/4"
1800mm
15"
380mm
20 3/4"
530mm
33"
840mm
84"
2130mm
12"
300mm OD
1 1/2"
40mm
REV:
LEGEND:
PART #:
001-5011275-CL-R
11275 Fire Deck - Coal Right
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11275-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
295,000 BTU, NG
282,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
9 3/4"
250mm
59 3/4"
1520mm
112 1/4"
2850mm
108"
2740mm
17 1/2"
440mm 36 3/4" 940mm
74 3/4"
1900mm
82 1/2"
2100mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
2 1/4"
50mm 2 1/4"
60mm
48 1/4"
1230mm
31 3/4"
810mm
18"
460mm 70 3/4"
1800mm
15"
380mm
20 3/4"
530mm
33"
840mm
84"
2130mm
12"
300mm OD
1 1/2"
40mm
Air intake: Do not
facade or cover over
Must be left
removable for service
7
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
REV:
LEGEND:
PART #:
001-5011275-CL-R
11275 Fire Deck - Coal Right
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11275-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
295,000 BTU, NG
282,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
9 3/4"
250mm
59 3/4"
1520mm
112 1/4"
2850mm
108"
2740mm
17 1/2"
440mm 36 3/4" 940mm
74 3/4"
1900mm
82 1/2"
2100mm
7 1/2"
190mm
62 1/4"
1580mm
8 1/4"
210mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
2 1/4"
50mm 2 1/4"
60mm
48 1/4"
1230mm
31 3/4"
810mm
18"
460mm 70 3/4"
1800mm
15"
380mm
20 3/4"
530mm
33"
840mm
84"
2130mm
12"
300mm OD
1 1/2"
40mm

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
Front view
Plan view
Side view
11290-CL SPECIFICATIONS
UTILITIES REQUIRED
Gas: 1" FNPT gas inlet
347,000 BTU/hr Natural Gas (NG)
OR
369,000 BTU/hr Propane (LP)
Decorative flame adds
15,000 BTU/hr to total rated output
Venting
This oven may be vented with a Listed Type 1 exhaust hood OR directly connected at the
12-inch O�D� oven flue collar to a power-ventilated, grease-rated chimney OR an exhaust
hood constructed in accordance with NFPA 96 and all relevant local and national codes�
The oven must be vented in accordance with all relevant local and national codes, and in
a manner acceptable to the authority having jurisdiction�
IMPORTANT: This model must be vented as a solid fuel appliance�
Electrical
120 VAC, 4 A, 50/60 Hz
Utility connections made
on left side of oven as
shown�
VERY IMPORTANT!
Oven is shipped with casters which
add 1-1/2"� Height with casters to the
top of the flue collar is 87 ¾"� Once
the oven is in place the casters must
be removed�
Utility connections are made
underneath the oven; they are
shown on the plan view to illustrate
geographic location only�
REV:
LEGEND:
PART #:
001-5011290
11290 Fire Deck
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11290-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
17 1/4"
440mm
36 3/4"
930mm 74 3/4"
1900mm
24"
610mm
9 3/4"
250mm
59 3/4"
1520mm
108"
2740mm
112 1/4"
2850mm
84"
2130mm
33"
840mm
20 3/4"
530mm
15"
380mm 18"
460mm 85 3/4"
2180mm
48 1/4"
1230mm
31 3/4"
810mm
2 1/4"
50mm
2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
12"
300mm OD
62 1/4"
1580mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
1 1/2"
40mm
REV:
LEGEND:
PART #:
001-5011290
11290 Fire Deck
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11290-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
17 1/4"
440mm
36 3/4"
930mm 74 3/4"
1900mm
24"
610mm
9 3/4"
250mm
59 3/4"
1520mm
108"
2740mm
112 1/4"
2850mm
84"
2130mm
33"
840mm
20 3/4"
530mm
15"
380mm 18"
460mm 85 3/4"
2180mm
48 1/4"
1230mm
31 3/4"
810mm
2 1/4"
50mm
2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
12"
300mm OD
62 1/4"
1580mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
1 1/2"
40mm
REV:
LEGEND:
PART #:
001-5011290
11290 Fire Deck
General Arrangement
5/23/2014 bena
1
DWN BY:
SHEET:
Bellingham, WA 360/650-1111 www.woodstone-corp.com
DIMENSIONS ARE IN INCHES
TOLERANCES: LINEAR ±1/2 [±10mm], ANGULAR ±2°
UNLESS NOTED OTHERWISE
\\woodstone.net\dfs\CAD\0 Pn\WS Top Level\FD-Fire_Deck\FD-11290-CL_General Arrangement-1.dft
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF WOOD STONE CORPORATION
ANY REPRODUCTION OR USE IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF WOOD STONE IS
PROHIBITED
AN ONGOING PROGRAM OF PRODUCT IMPROVEMENT
MAY REQUIRE US TO CHANGE SPECIFICATIONS
WITHOUT NOTICE.
DATE:
G
120VAC, 4A
GAS INLET: 1" NPT
347,000 BTU, NG
369,000 BTU, LP
1 of 1
AIR INTAKE
AIR INTAKE
G
G
87 3/4"
2230mm
17 1/4"
440mm
36 3/4"
930mm 74 3/4"
1900mm
24"
610mm
9 3/4"
250mm
59 3/4"
1520mm
108"
2740mm
112 1/4"
2850mm
84"
2130mm
33"
840mm
20 3/4"
530mm
15"
380mm 18"
460mm 85 3/4"
2180mm
48 1/4"
1230mm
31 3/4"
810mm
2 1/4"
50mm
2 1/4"
60mm
97 1/2"
2480mm
7 1/2"
190mm
12"
300mm OD
62 1/4"
1580mm
20"
510mm
27"
690mm
4"
100mm
20"
510mm
1 1/2"
40mm
8
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
Unit weight:
11,500 lbs.
Air intake: Do not
facade or cover over
Must be left
removable for service

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
Position a scissor jack under the oven
frame near the caster to be removed�
Use the jack to raise the caster so that it
clears the floor slightly (1/4" should be
sufficient)� Remove the nuts and bolts
retaining the caster to the oven frame�
Rotate the caster in the direction of the
fork legs to remove from oven, then
lower the jack and proceed to the next
caster and repeat procedure�
TO MAINTAIN THE OVEN WARRANTY, SHIPPING CASTERS MUST BE REMOVED WHEN THE OVEN IS INSTALLED.
The oven should be installed on a flat level surface� The weight of the oven is carried by the full perimeter of the oven stand� If it
is necessary to shim the oven for leveling purposes, it is critical that the shim material be metal, and that the shims are installed
in such a way that the full perimeter of the stand is solidly supported� Any gaps created by shimming between the oven and the
floor must be sealed to prevent airflow issues beneath the oven� Failure to solidly support the full perimeter of the oven
stand can result in costly damage to the oven and will void the warranty.
The floor design and construction must be adequate to handle the weight of the oven�
Please see woodstone-corp.com/resources/downloads/loads-footprints for floor loading information�
IMPORTANT: DO NOT JACK THE FRAME ANY HIGHER THAN THE MINIMUM NECESSARY TO REMOVE THE CASTER.
CASTER REMOVAL
9
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
TOE KICK INSTALLATION
Toe Kick
Once the oven is in place, the toe kick must be installed along the front of the oven using the screws provided� Additionally, the side
fork pocket covers must be installed over the fork pockets� The area under the oven must be enclosed in order to prevent pests
from entering this space�
If the front of the oven is shipped facade ready, the toe kick will not be included� If the sides and/or rear of the oven is shipped
facade ready, the fork pocket covers will not be included� Pre-cut blocks of Durock®or other facade material will be shipped instead
of the fork pocket covers� The blocks must be inserted into the fork pockets before the oven facade is put in place�
TOE KICK AND FORK POCKET COVERS
Oven shown with
optional Storage
Box installed.
10
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
UNLOADING AND MOVING
11
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
IF YOU ARE PLANNING TO USE A CRANE TO UNLOAD
THE OVEN, SPECIFY A FLATBED TRUCK DELIVERY!
FORKLIFT REQUIREMENTS
Fork length must be at least 8 feet, employing fork extensions if necessary so the forks extend the full length of the fork pockets�
When using a forklift, always use the forklift pockets; lifting the oven any other way will result in damage�The fork pockets accommodate
forks up to 9 inches wide� Fork pockets are located only at the front and back of the oven� The oven may be rolled across a flat surface
on casters�
Moving a Wood Stone Fire Deck oven can present challenges to even the most experienced riggers� Make sure to secure the proper
equipment and make safety your first priority� Please don’t hesitate to call the factory for technical support at 1�800�988�8103�
DO NOT DROP THIS OVEN ABRUPTLY. ALWAYS USE A FORKLIFT OR CRANE TO LIFT THIS OVEN.
DO NOT ATTEMPT TO USE A LEVER OF ANY TYPE TO RAISE THIS OVEN.
8 ft.
minimum
fork
length
Note: Remove the
mantle before
lifting the oven
with a crane.
Oven Mantle
THE OVEN IS BUILT WITH TEMPORARY SHIPPING CASTERS AND MAY BE ROLLED ACROSS A FLAT SURFACE ONLY.
CASTERS MUST BE REMOVED WHEN OVEN IS IN PLACE.
DELIVERY NOTE: The customer will receive an Oven Shipping Notification when the oven leaves the Wood Stone factory� This
will include a PRO# and a trucking company contact number� Wood Stone recommends that you confirm the delivery date/
time with the trucking company before committing to heavy equipment and/or labor� Our goal is a smooth and safe delivery�
Model
Shipping Weight
(lbs)
Required Forklift
Capacity (lbs)
Minimum Fork
Length (ft)
FD-9690-CL 10,000 20,000 7-8'
FD-11275-CL 9,500 20,000 7-8'
FD-11290-CL 11,500 25,000 8'
CRANING THE OVEN: A properly equipped rigging company may be able to lift the oven using a crane� Suitable lifting straps can
be run through the fork lift pockets on the oven� Use spreader bars to prevent damage to the oven�
DANGER: THE OVEN IS EXTREMELY TOP HEAVY. DO NOT ATTEMPT TO MOVE THE OVEN
IN THIS MANNER WITHOUT THE PROPER EQUIPMENT AND EXPERIENCE. BE SAFE.

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
INSTALLATION CLEARANCES
12
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
1-inch clearance to combustible
construction on all sides�
WARNING: DO NOT PACK THE AIRSPACE
BETWEEN THE ENCLOSURE AND THE OVEN
WITH INSULATION OR OTHER MATERIAL.
Combustible construction
Non-combustible construction
14-inch top clearance to combustible
construction
1-inch side clearance to combustible
construction
Install only on a non-combustible floor surface
which extends 36 inches in front of, and 30
inches to either side of the doorway opening
Any facade construction 6 inches to either side of
the doorway opening and above must be non-
combustible
1. The Wood Stone Fire Deck 9690, 11275 and 11290 ovens must have a minimum 1-inch clearance to combustibles from all
sides, and 14-inch clearance to combustibles from the top (see figures below)� Any construction 6 inches to either side of the
doorway opening and above must be non-combustible� If building a facade that will contact the oven, use completely non-
combustible materials*� Please note that standard Drywall (or Sheetrock) is considered a combustible� If sealing an opening
between the enclosure and the oven, use non-combustible building materials�
2. Install this oven on a non-combustible floor surface which extends at least 36 inches in front of, and 30 inches to either side
of the doorway opening�
3. Any combustibles within 3 feet of the oven doorway should be protected in a manner acceptable to the authority having
jurisdiction�
* When non-combustible building materials contact the body of the oven, the respective clearances are transferred to those
non-combustibles�
!WARNING: Do not pack required air space (clearance) with insulation or other materials. When non-
combustible building materials contact the body of the oven, the clearances to combustibles are
transferred to those non-combustibles.
Front
View
Plan
View

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
INSTALLATION CLEARANCES
Area which MUST be left accessible for servicing the oven�
Area which MUST be left UNOBSTRUCTED to allow proper intake ventilation for the gas
burners and/or the coal air plenum assembly�
Areas which MUST be left open for normal operation of critical oven controls (Oven Controller,
Flame Height Control Knob(s)s, Coal Blower Fan Control and Ash Chutes)�
INSTALLATION CLEARANCES
OPERATIONAL ACCESS, SERVICE ACCESS AND CRITICAL AIR INTAKE VENTILATION
13
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
VENTING
14
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
It is never appropriate to use “B vent” in any part of an exhaust system connected to this oven� The venting system must be
inspected and cleaned at least every 3 months or as necessary, and at least monthly with solid fuel applications. Wood Stone
ovens with model numbers containing a suffix “-CL” must be vented as a solid fuel appliance (in accordance with NFPA 96)� All
combustion products and cooking vapors from the Wood Stone Fire Deck 9690 and the Fire Deck 11290 vent through a 12-inch
O�D� flue collar located on the top of the oven, above the doorway�
THE FOLLOWING ARE THE MANUFACTURER’S RECOMMENDATIONS FOR VENTING THE
FIRE DECK 9690, 11275 AND 11290 OVENS WITH THE COAL BURNING OPTION.
THERE ARE TWO OPTIONS SHOWN BELOW.
1. A Listed building heating appliance chimney, also listed as a grease duct, connected directly to the oven flue collar and
provided with a power ventilator listed for restaurant appliance exhaust and rated for operation at a minimum of 450 °F� Use a
stack or curb mounted fan� Wood Stone does not recommend the use of an in-line fan� A field built grease duct installed and
constructed according to the requirements spelled out in NFPA 96, the Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, or the International Mechanical Code may also be used�
A static pressure of -0�14 inches water column is necessary at the oven flue collar to ensure that gas temperatures do not
exceed 450 °F� Use the fan inlet� This measurement may be taken by inserting the probe of the magnahelic gauge through the
oven doorway, upwards to the oven flue collar� The cubic feet per minute (CFM) required to attain this static pressure will be
approximately 750 CFM�
If using direct connect, it must be on its own duct system� Do not tie a duct direct connected to an oven into a duct system
serving hoods due to balancing and potential code issues� Also note that if fire suppression is required, a Type 1 hood should
be used due to the higher flue temperatures associated with the direct connect type of install�
OR
2. A Listed Type 1 exhaust hood or one that is constructed and installed in accordance with NFPA 96, and all relevant local and/
or national codes� The hood must be connected to a 450 °F rated power ventilator listed for restaurant exhaust�
REFER TO THE EXHAUST HOOD MANUFACTURER’S INSTRUCTIONS FOR INSPECTION, MAINTENANCE AND CLEANING
RECOMMENDATIONS.
FIRE SUPPRESSION: COAL-FIRED OVENS
Check with your local code officials to see if fire suppression is required in your area� If fire suppression is required, you must vent
the oven using a Type 1 hood constructed and installed in accordance with NFPA 96� The fusible link in the hood must be rated at
450 °F minimum� Wood Stone offers Listed exhaust hoods for our ovens that are pre-piped for ANSUL R-102 fire suppression� All
installations are subject to the approval of the local authority having jurisdiction�

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
WOOD STONE HOODS
Wood Stone Hoods by Gaylord Specifications
Required CFM: 1050 CFM
Static Pressure: 0.80" W.C.
Duct Collar: 9" x 9" I.D.
15
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
FD-9690 / 11275 / 11290 HOOD - TOP VIEW

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
WOOD STONE HOODS
16
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
FD-9690 / 11275 / 11290 HOOD - SIDE VIEW
24
48
7'-5"
MTG. HT.
GREASE CUP
1 1/2" MOUNTING FLANGE
19
OVEN FLUE
1.7516
12
37
(OPTIONAL CURVED FRONT)
33
(FLAT FRONT)
9
1.5
18.5
7'-0"
EQ. HT.
1.5
U.L. LISTED S/S FILTERS
(2) 12Hx20W, (2) 12Hx16W
1/2"
TIGHT
HEM
FUSE LINK BRACKET
Wood Stone Hoods by Gaylord Specifications
Required CFM: 1050 CFM
Static Pressure: 0.80" W.C.
Duct Collar: 9" x 9" I.D.

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
GAS SPECIFICATIONS
17
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
GAS SPECIFICATIONS
The Fire Deck 9690, 11275 and 11290 are equipped with a 1-inch FNPT gas connection� Have a licensed gas installer provide the
hook-up and test all fittings and pipe connections for leaks� Use approved gas leak detectors (soap solutions or equivalent) over and
around the fittings and pipe connections� DO NOT USE A FLAME to test for leaks!
SV-1 is the gas control valve that operates the under-floor, infrared burner� SV-2 is the gas control valve that operates the interior
radiant flame burner� The burner manifold pressures have been adjusted and tested at the factory� A variety of factors can influence
these pressures, so be sure to test the individual burner manifold pressures and adjust the valves as necessary to achieve the
required pressures� NOTE: The gas valves are shipped in the ON position�
Wood Stone recommends that the Fire Deck be equipped with a manual, individual shutoff valve, located between the oven and
the main gas supply, and that this shutoff valve (supplied by others) be left readily accessible� Wood Stone also recommends that
inspection and maintenance of the burners and gas piping connections of this appliance be performed at regularly scheduled
intervals and only by professional gas appliance service agencies�
FACTORY SPECIFIED VALVE OUTLET PRESSURE:
IR BURNER (SV-1)
Natural Gas (NG): 3�5" W�C�
Propane (LP): 9�2 inches W�C�
FD-11275 models only: Propane (LP): 9" W.C.
RADIANT BURNER (SV-2)
Natural Gas (NG): 4�6" W�C�
Propane (LP): 9�5" W�C�
RADIANT BURNER (SV-3) (OPTIONAL)
Natural Gas (NG): 4�6" W�C�
Propane (LP): 9�5" W�C�
GAS CODE LIMITATIONS
The installation of this appliance must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,
ANSI Z223�1 or the Natural Gas Installation Code CAN/CGA-B149�1, as applicable including:
The appliance and its individual shutoff valve (supplied by others) must be disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in excess of 1/2 psi (3�45 kPa)�
The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve (supplied by others)
during any pressure testing of the gas supply piping system at test pressure, equal to or less than 1/2 psi (3�45 kPa)�

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
OVEN VENTING
18
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
VERY IMPORTANT! WOOD STONE RECOMMENDS THAT YOU SUBMIT VENTING PLANS TO LOCAL CODE
AUTHORITIES BEFORE PROCEEDING WITH INSTALLATION.
FIRE DECK VENTING
Fire Deck model numbers containing a “-CL” must be vented in accordance with codes concerning solid fuel appliances (NFPA
96)� Due to the dangers of creosote buildup and sparks entering the duct, these models must be vented separately from all other
kitchen equipment and in a manner acceptable to the authority having jurisdiction� The Wood Stone customer support staff is
available to answer any questions concerning installation and venting of the oven� Call 800�988�8103 for assistance and technical
support�
Solid fuel exhaust contains creosote and other substances that accumulate in ducting, creating a risk of fire�The rate of accumulation
will vary� Frequent, regularly scheduled, thorough flue cleaning is the best way to minimize the risk of flue fires�
VENTILATION SYSTEM: CREOSOTE AND FLY ASH
When solid fuel is burned slowly, it produces tar and other organic vapors, which combine with expelled moisture to form creosote�
The creosote vapors condense in the relatively cool oven flue of a slow-burning fire� As a result, creosote residue accumulates in
the duct� When ignited, this creosote makes an extremely hot fire� The duct serving this oven should be inspected at least twice a
month during the first two months of operation to establish the rate of creosote (and fly ash—see below) buildup and the necessary
cleaning schedule� If creosote or soot has accumulated, it should be removed to reduce the risk of a flue fire� The interior floor and
dome of the oven do not require creosote or soot removal� The oven flue and exhaust system will require inspection and cleaning�
The exhaust system should be inspected and cleaned per the manufacturer’s and or local code official's recommendations�
While coal burning generally produces very little creosote, it does produce fly ash which will accumulate in the duct system� If
allowed to accumulate the fly ash can block the air flow through the duct� It can also harden over time making removal much
more difficult� Because of the acidic nature of the fly ash and the combustion products produced from coal burning, the entire duct
system must be cleaned and inspected on a regular basis to ensure safe operation of the ventilation system�
WOOD STONE RECOMMENDS THAT YOU SUBMIT YOUR VENTING PLANS TO THE AUTHORITY
HAVING JURISDICTION BEFORE PROCEEDING WITH INSTALLATION OF ANY GAS AND/OR
SOLID FUEL BURNING APPLIANCE.

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
CONTROLLER
19
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
CONTROLLER FUNCTIONS
1-800-988-8103 www.woodstone-corp.com
HEARTH SET POINT
HEARTH
TEMPERATURE
F
C
OFF
ON
POWER DOME HEARTH
FLAME HEAT
Push ON/OFF
button to turn
burners off.
Presser le bouton
ON/OFF pour
arreter le bruleur.
Push ON/OFF
button to light
burners.
Presser le bouton
ON/OFF pour
allumer le bruleur.
WAIT 5 MINUTES BEFORE RELIGHTING
ATTENDRE 5 MINUTES AVANT DE RÉALLUMER
On/Off button
Press to turn oven on/off
Hearth Set Point display
Indicates set point
temperature of
underfloor IR burner
Hearth Temperature display
Displays temperature of
oven floor (hearth)� Sensor is
embedded 1" below hearth
surface� Arrow buttons
Pressing appropriate
directional arrow to
adjusts Hearth Set Point
temperature up or down�
Temperature unit selector
Toggles between Fahrenheit
and Celsius temperature
scales in display screens
Power indicator light
Indicates the oven is
turned ON�
Dome Flame
indicator light
Indicates the pilot
for the radiant flame
has lit�
Hearth Heat indicator light
Indicates that the pilot for the
infrared Underfloor Infrared (IR)
Burner is lit� This light will go off
whenever the hearth temperature
is above the Hearth Set Point�

9690, 11275 & 11290 Fire Deck Coal-Fired
Oven Installation and Operation Manual
[email protected] or visit woodstone-corp.com
wood stone corporation
1801 w. bakerview rd.
bellingham, wa 98226 usa
tf. 800.988.8103
t. 360.650.1111
f. 360.650.1166
GAS AND ELECTRICAL
20
An ongoing program of product improvement may require us to change
specifications without notice. FD-(9690, 11275, 11290)-CL,
Revised March 2015. Doc no: M0045.02
ELECTRICAL
POWER CONNECTION TO THE OVEN
Provide a 120 VAC, 15 A circuit to the terminal strip, located in the transformer junction box located beneath the oven (Note: These
models are open beneath the oven)� The terminal strip is labeled L, N and G (Line, Neutral and Ground, respectively�)
Electrical diagrams are shown in the ELECTRICAL DIAGRAMS section of this manual� They can also be found beneath the oven on
the transformer plate�
ELECTRICAL CODE LIMITATIONS
Electrical Grounding: This appliance must be electrically grounded in accordance with local codes, or in the absence of local
codes, with the National Electrical code, ANSI/NFPA 70 or the Canadian Electrical Code, CSA C22�1 as applicable�
GAS REQUIREMENTS FOR 9690, 11275 AND 11290
GAS / COAL-FIRED MODELS
Note: “L” or “R” in model number reflects the location of the radiant flame burner� Coal will burn on the opposite side�
Models Underfloor Infrared (IR) Burner Radiant Flame Burner(s) Natural Gas (NG) Liquid Propane (LP)
Maximum
Gas
BTU/hr
Input
Valve Outlet
Pressure
(W.C.)
SV-1 SV-2 SV-3
WS-FD-(9690 and 11290)-RFG-(L or R)-IR-CL (Coal) 1 1 NG 220,000 3�5" 4�6" n/a
LP 225,000 9�2" 9�5" n/a
WS-FD-11275-RFG-(L or R)-IR-CL (Coal) 1 1 NG 207,000 3�5" 4�6" n/a
LP 205,000 9" 9�5" n/a
WS-FD-(9690 and 11290)-RFG-(LL or RR)-IR-CL (Coal) 1 2 NG 347,000 3�5" 4�6" 4�6"
LP 369,000 9�2" 9�5" 9�5"
WS-FD-11275-RFG-(LL or RR)-IR-CL (Coal) 1 2 NG 315,000 3�5" 4�6" 4�6"
LP 310,000 9" 9�5" 9�5"
