woodmizer TRB-S Guide

Surge Brake Trailer
Safety, Operation, Maintenance
& Parts Manual
TRB-S 1992 Model Sawmills
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
February 1999
Form #710

Table of Contents Section-Page
ii SB92doc041614 Table of Contents
SECTION 1 SAFETY & GENERAL
INFORMATION 1-1
SECTION 2 SURGE BRAKE HITCH OPERATION 2-1
SECTION 3 SURGE BRAKE HITCH MAINTENANCE 3-1
SECTION 4 PARTS LISTS 4-1
4.1 Trailer Hitch Assembly (LT25/LT30 Surge Brake).................................................. 4-1
4.2 Trailer Hitch Assembly (LT40/30HD/40HD Surge Brake) ...................................... 4-3
4.3 Trailer Axle Assembly (Surge Brake)....................................................................... 4-5
4.4 Outrigger Assembly (Long) ...................................................................................... 4-7
4.5 Outrigger Assembly (Short Front)............................................................................. 4-9
4.6 Outrigger Assembly (LT25/LT30/LT40 Short Rear).............................................. 4-11
4.7 Outrigger Assembly (LT30HD/LT40HD Short Rear) ............................................ 4-13
4.8 Outrigger Assembly (LT25L/LT40 /LT40HD Rear) .............................................. 4-15
4.9 Trailer Lights (Clip-on Tail Light Lens) ................................................................. 4-17
4.10 Log Loading Ramps (LT25/LT30/LT40)................................................................ 4-19
4.11 Outrigger Pin Hardware (3/4” Dia.) ........................................................................ 4-20
TOC

Safety & General Information
Safety & General Information SB92doc041614 1-1
1
SECTION 1 SAFETY & GENERAL
INFORMATION
This symbol calls your attention to instructions
concerning your personal safety. Be sure to
observe and follow these instructions. This
symbol accompanies a signal word. The word
DANGER refers to hazards that can cause
death or serious, irreversible personal injury.
The word WARNING suggests a safety hazard
that can cause personal injury. CAUTION
refers to hazards that can cause damage to the
equipment or property only.
Read all safety instructions before operating
this equipment and observe all safety warnings!
DANGER! Make sure hitch bracket is securely
fastened around ball before towing the sawmill.
Ball should be completely engaged by the hitch
bracket and securely locked in place.
DANGER! Do not use eyebolts for safety chain
hook-up. Safety chains should be hooked to
bumper of vehicle so that each chain would pull
the railer equally in the event the hitch became
disengaged.
DANGER! Be sure that the hitch and safety
chains are secure before towing the sawmill.
Check all lights and signals for correct opera-
tion. Check to see tires are properly inflated and
surge brakes are working before towing the
sawmill.
WARNING! Always check trailer tires for
proper inflation before towing sawmill.
CAUTION! Always keep away from tailer axle
to avoid being caught between the axle and
moving saw carriage.
IMPORTANT! It is always the owner's respon-
sibility to comply with all applicable federal,
state and local laws, rules and regulations
regarding the ownership, operation and towing
of your Wood-Mizer sawmill. All Wood-Mizer
mill owners are encouraged to become thor-
oughly familiar with these applicable laws and
comply with them fully while using or towing
the mill.

2-1 SBdoc041614 Surge Brake Hitch Operation
Surge Brake Hitch Operation
2
SECTION 2 SURGE BRAKE
HITCH OPERATION
1. Pull the mill behind the towing vehicle and
place the hitch over a 2" ball on your vehicle.
The hitch ball should be solid (not two-piece)
with a rating of at least 3500 pounds (1588 kg).
The hitch should be correctly mounted to the
towing vehicle so that it will be able to pull this
type of load.
2. Flip the locking handle upward, being sure the
bracket underneath firmly clamps around the
ball.
DANGER! Make sure hitch bracket is securely
fastened around ball before towing the sawmill.
Ball should be completely engaged by the hitch
bracket and securely locked in place.
See Figure 2-1.
3. Cross the safety chains underneath the hitch and
hook to the vehicle. The chains should be con-
nected so that there is still slack in the chains
when the vehicle is turned sharply in either
direction.
DANGER! Do not use eyebolts for safety chain
hook-up. Safety chains should be hooked to
bumper of vehicle so that each chain would pull
the trailer equally in the event the hitch became
disengaged.
4. Connect the surge brake activator cable to the
vehicle. This cable should be connected in case
the hitch becomes unhooked and the safety
chains fail. The surge brake activator cable
would then activate the braking mechanism.
There should be enough slack in the brake cable
that the brake won't engage until the safety
chains are stretched tight.
5. Connect the vehicle running lights to the saw-
mill pigtail. Check signals and brake lights.
6. Raise the front outrigger. Recheck that all loose
items are removed or secured (such as Resaw
Option, Shingle/Lapsiding Option, cant hooks,
etc.).
7. The hitch on the mill is adjustable. It should be
raised or lowered to let the mill travel horizontal
to ground level. Adjust by removing the two
mounting bolts. Then slide the hitch tube up or
down to new set of holes. Replace bolts and
nuts.
DANGER! Be sure that the hitch and safety
chains are secure before towing the sawmill.
Check all lights and signals for correct opera-
tion. Check to see tires are properly inflated and
surge brakes are working before towing the
sawmill.

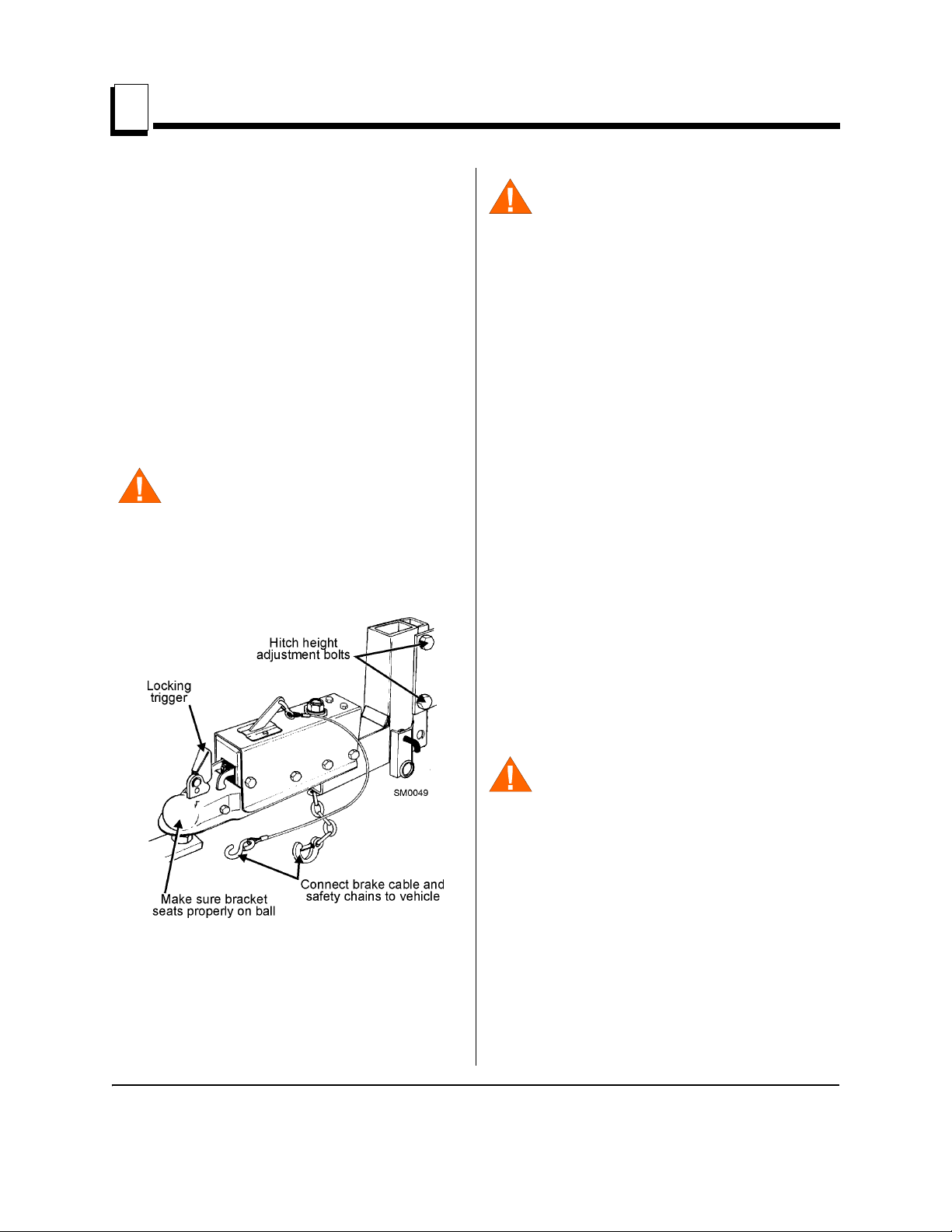

FIG. 2-1

Surge Brake Hitch Maintenance
Surge Brake Hitch Maintenance SBdoc041614 3-1
3
SECTION 3 SURGE BRAKE
HITCH
MAINTENANCE
1. Clean and repack the trailer axle wheel bearings
with lithium grease every 12 months or 12,000
miles (19,308 km), whichever comes first.
2. Make sure that the trailer tires are correctly
inflated to the pressure shown on the tire.
WARNING! Always check trailer tires for
proper inflation before towing sawmill.
3. Surge Brakes
Check the brakes before towing the sawmill.
Jack up the outriggers so that the trailer wheels
do not touch the ground. Spin each wheel by
hand. The wheel should spin with a slight
amount of drag against the brake drums. If the
wheel spins freely, the brakes should be
adjusted.
See Figure 3-1. To adjust the brakes, remove
the oval shaped plug from the access hole on the
inside of each wheel.
Place a standard screwdriver through the access
hole and underneath the adjustment sprocket.
Catch the bottom of the sprocket with the
screwdriver and pry upward to turn the
sprocket. Remove the screwdriver and spin the
wheel. Adjust the sprocket until the wheel just
starts to drag against the brake drum. Replace
the plug. Repeat for the other wheel.

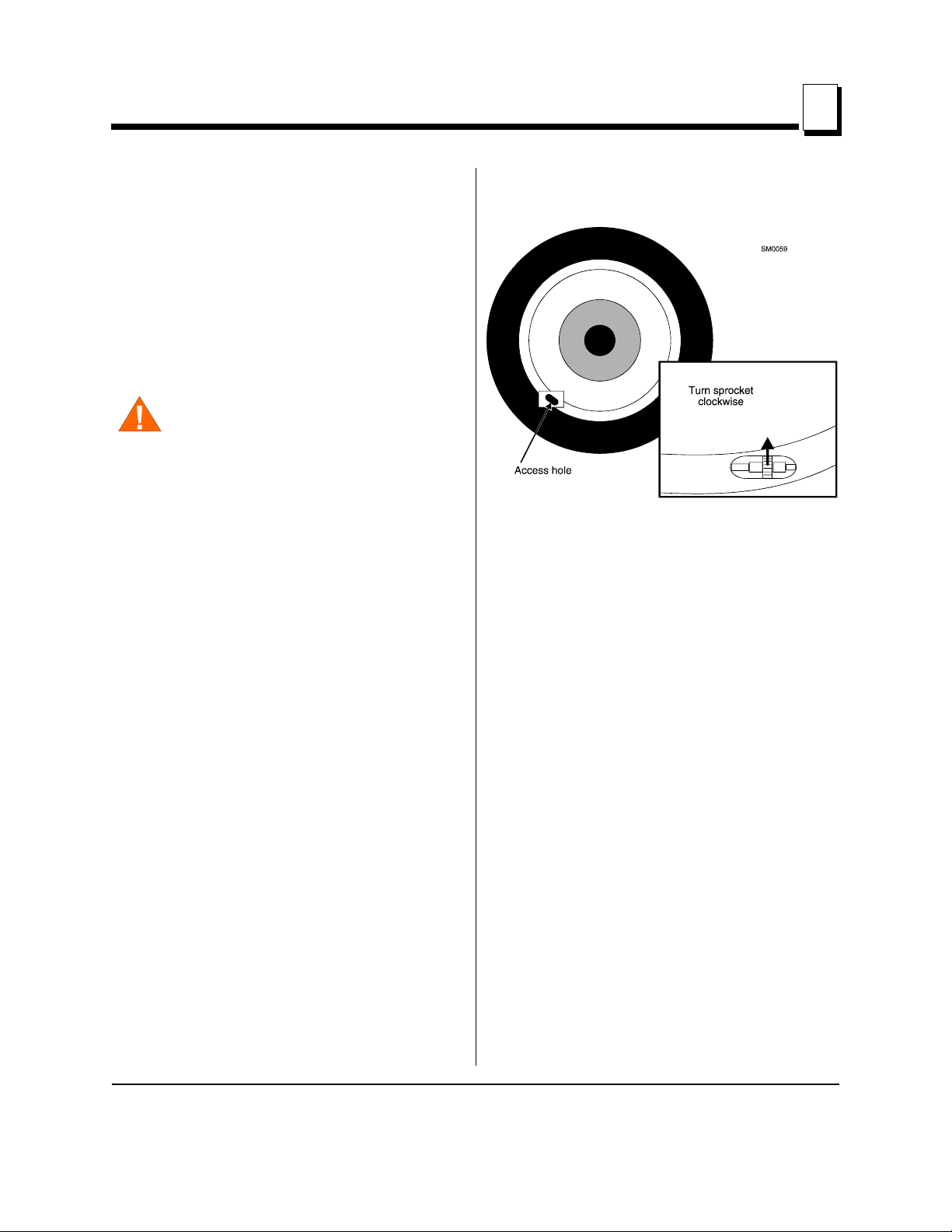

FIG. 3-1

4-1 SB92doc041614 Parts Lists
Parts Lists
Trailer Hitch Assembly (LT25/LT30 Surge Brake)
4
SECTION 4 PARTS LISTS
4.1 Trailer Hitch Assembly (LT25/LT30 Surge Brake)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
HITCH ASSEMBLY,SURGE BRAKE TRAILER A10405 1
1Hitch Mount (W/O Spacer Blocks), Surge Brake Trailer W09828 1
Hitch Mount (With Spacer Blocks), Surge Brake Trailer W10404 1
2Actuator, Dico Surge Brake Hitch P09840 1
Bolt, Surge Brake Latch P10119 1
Bracket, Surge Bracke Latch (Lever Hitch) P12816 1
Bracket, Surge Brake Latch (Wheel Hitch) P10121 1
Spring, Surge Brake Latch (Lever Hitch) P12814 1
Spring, Surge Brake Latch (Wheel Hitch) P10122 1
3Cable Assembly, Surge Brake Safety (Lever Hitch) P12815 1
Cable Assembly, Surge Brake Safety (Wheel Hitch) P10117 1
4Hook, Surge Brake Safety Cable P10118 1
Damper, Surge Brake P10124 1
Fitting, Surge Brake Hitch Line P10370 1
5Bolt, 1/2-13 X 4 1/2" Hex Head Grade 5 F05008-35 2
6Nut, 1/2-13 Hex Nylon Lock F05010-8 2
7 BOLT, 1/2-13 X 5 1/2" HEX HEAD GRADE 5 F05009-11 2
8 NUT, 1/2-13 HEX LOCK F05010-4 2
TOWING EXTENSION KIT (NOT SHOWN, OPTIONAL) K12571 1
Bolt, 5/8-11 x 2 1/2" Hex Head Grade 5 F05009-20 2 
Washer, 5/8" Split Lock F05011-27 2
Washer, 5/8" SAE Flat F05011-5 2
Bracket, Safety Chain Bumper S12289-N 2 
Nut, 5/8-11 Free Hex F05010-5 2

Parts Lists
Trailer Hitch Assembly (LT25/LT30 Surge Brake)
Parts Lists SB92doc041614 4-2
4
FIG. 4-1

4-3 SB92doc041614 Parts Lists
Parts Lists
Trailer Hitch Assembly (LT40/30HD/40HD Surge Brake)
4
4.2 Trailer Hitch Assembly (LT40/30HD/40HD Surge Brake)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
HITCH KIT, SURGE BRAKE TRAILER K10403 1
1Hitch Mount (W/O Spacer Blocks), Surge Brake Trailer W09827 1
Hitch Mount (With Spacer Blocks), Surge Brake Trailer W10401 1
2Actuator, Dico Surge Brake Hitch P09840 1
Bolt, Surge Brake Latch P10119 1
Bracket, Surge Bracke Latch (Lever Hitch) P12816 1
Bracket, Surge Brake Latch (Wheel Hitch) P10121 1
Spring, Surge Brake Latch (Lever Hitch) P12814 1
Spring, Surge Brake Latch (Wheel Hitch) P10122 1
3Cable Assembly, Surge Brake Safety (Lever Hitch) P12815 1
Cable Assembly, Surge Brake Safety (Wheel Hitch) P10117 1
4Hook, Surge Brake Safety Cable P10118 1
Damper, Surge Brake P10124 1
Fitting, Surge Brake Hitch Line P10370 1
5Bolt, 1/2-13 X 4 1/2" Hex Head Grade 5 F05008-35 2
6Nut, 1/2-13 Hex Nylon Lock F05010-8 2
7Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Hitch assembly includes updated outrig-
ger pin parts (See Section 4.11).
1
8Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
9Pin, Outrigger Pull S12261 11
10 Pin, 5/16" x 2 1/2" Roll F05012-47 11
11 Pin, 1/8" x 1" Cotter F05012-1 11
12 LEG, OUTRIGGER W07537 1
13 Cap, Outrigger Leg P09926 1
14 BOLT, 1/2-13 X 5 1/2" HEX HEAD GRADE 5 F05009-11 2
15 NUT, 1/2-13 HEX LOCK F05010-4 2
TOWING EXTENSION KIT (NOT SHOWN, OPTIONAL) K12571 1
Bolt, 5/8-11 x 2 1/2" Hex Head Grade 5 F05009-20 2 
Washer, 5/8" Split Lock F05011-27 2
Washer, 5/8" SAE Flat F05011-5 2
Bracket, Safety Chain Bumper S12289-N 2 
Nut, 5/8-11 Free Hex F05010-5 2

Parts Lists
Trailer Hitch Assembly (LT40/30HD/40HD Surge Brake)
Parts Lists SB92doc041614 4-4
4
FIG. 4-2

4-5 SB92doc070517 Parts Lists
Parts Lists
Trailer Axle Assembly (Surge Brake)
4
4.3 Trailer Axle Assembly (Surge Brake)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
AXLE ASSEMBLY, 3500# NON-BRAKE 014684 1
1Frame, Trailer Axle W09751 1 
Mount Bracket, Trailer Fender W09784 2
2Axle, 3500 Lb With Springs And Surge Brakes P09772 1
3Spring, 2000lb Dexter Leaf Idle Side Rpl P09612 1
4Spring, 2500lb Dexter Leaf Drive Side 014586 1
Bearing Kit, Sawmill Axle Spindle K07549 1
5Bearing Cone Assembly, Small (L44649) P22573-1 1 
6Bearing Cone Assembly, Large (L68149) P22572-1 1 
7Bearing Cup, Large (L68111) P22572-2 1 
8Bearing Cup, Small (L44610) P22573-2 1
9Seal, 13" Wheel Bearing Dust P07554 1
Kit, Brake Shoe Surge 10" X 2 1/4" 010180 2
10 Cap, Trailer Axle Dust P04493 2
11 Tire/Wheel Assembly, ST215/75R14 015987 1
1 Use for LT25 Rev. C6.00, LT30 Rev. G3.00 and LT40 Rev. G4.00 and later.
2
Tire/Wheel Assembly, LT185R14 D Tire 014677 2
2 Use for mills prior to LT25 Rev. C6.00, LT30 Rev. G3.00 and LT40 Rev. G4.00 or upgrade both wheel assemblies to
015987 to ensure proper mill tracking (the wheel types have slightly different diameters).
2
12 Plate, Axle Shackle Link Ptd M07528 4
13 Bolt, 9/16-18 P04644 6
14 Nut, 9/16-18 Lock P04643 6
15 Nut, 1/2-20 Lug P04646 10
16 BOLT, 1/2-13X4 HEX HEAD F05008-26 4
17 WASHER, 1/2 STAR ET F05011-39 4
18 WASHER, 1/2" SAE FLAT F05011-2 4
19 NUT, 1/2-13 HEX NYLON LOCK F05010-8 4
20 FENDER, TRAILER WHEEL W11452 2
21 DECAL, FENDER DAMAGE CAUTION S11761 2
22 PIN, 5/16X1 DETAINING F05012-45 2

Parts Lists
Trailer Axle Assembly (Surge Brake)
Parts Lists SB92doc070517 4-6
4
FIG. 4-3
SM0083F
1
8
14
2
9
15
20
21
4
10
16
3
11
17
5
12
18
6
13
19
7
22

4-7 SB92doc041614 Parts Lists
Parts Lists

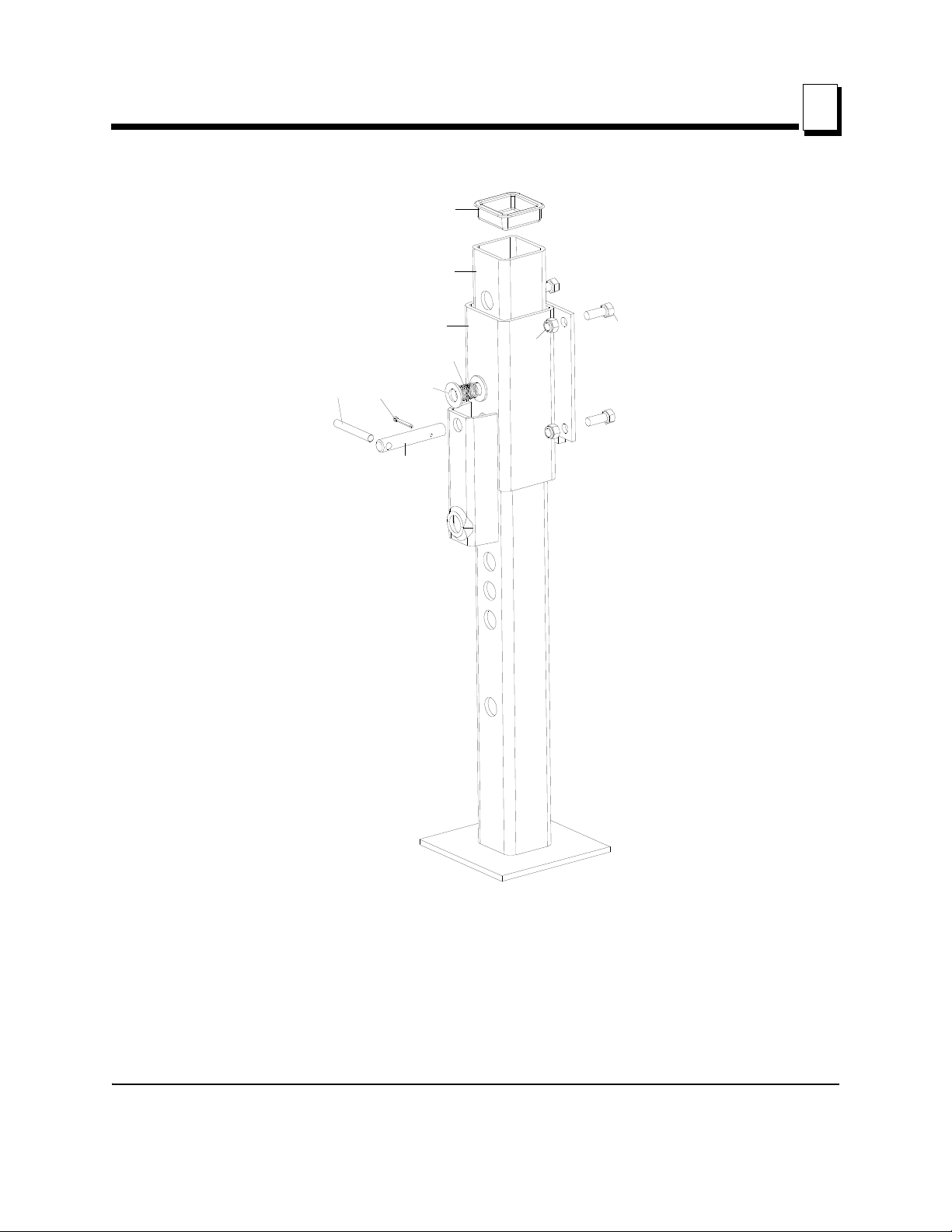

Outrigger Assembly (Long)
4
4.4 Outrigger Assembly (Long)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
OUTRIGGER ASSEMBLY, LONG A04287 2
1Guide, Long Outrigger Guide W09011 1
2Leg, Outrigger W07537 1
3Cap, Outrigger Leg P09926 1
4Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Outrigger assembly includes updated
outrigger pin parts (See Section 4.11).
1
5Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
6Pin, Outrigger Pull S12261 11
7Pin, 5/16" x 2 1/2" Roll F05012-47 11
8Pin, 1/8" x 1" Cotter F05012-1 11
9 BOLT, 3/8-16 X 5" HEX HEAD GRADE 2 F05007-5 8
10 NUT, 3/8-16 HEX NYLON LOCK F05010-10 8

Parts Lists
Outrigger Assembly (Long)
Parts Lists SB92doc041614 4-8
4
FIG. 4-4

4-9 SB92doc041614 Parts Lists
Parts Lists

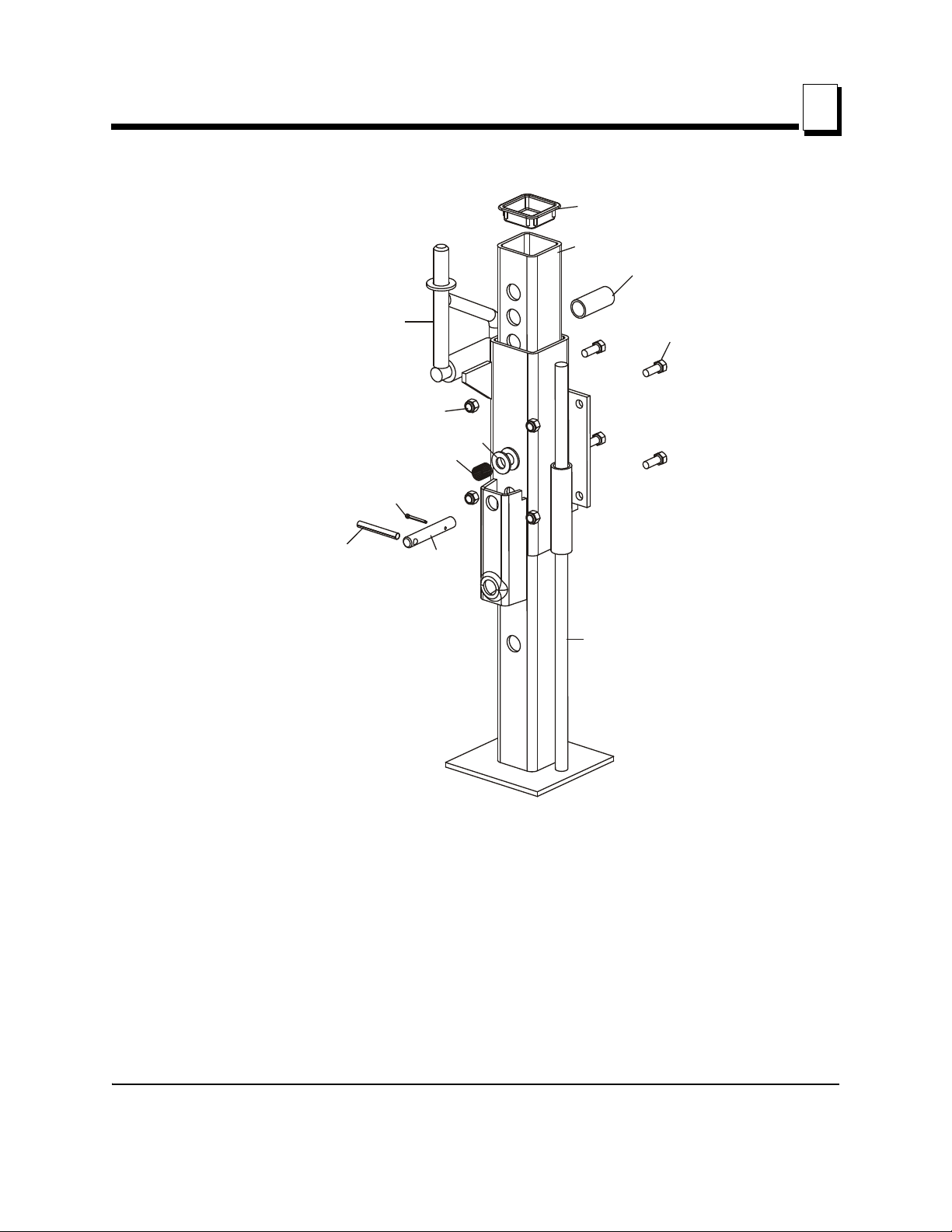

Outrigger Assembly (Short Front)
4
4.5 Outrigger Assembly (Short Front)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
OUTRIGGER ASSEMBLY, SHORT FRONT A04278 1
1Guide, Short Front Outrigger Guide W09012 1
2Leg, Outrigger W07537 1
3Cap, Outrigger Leg P09926 1
4Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Outrigger assembly includes updated
outrigger pin parts (See Section 4.11).
1
5Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
6Pin, Outrigger Pull S12261 11
7Pin, 5/16" x 2 1/2" Roll F05012-47 11
8Pin, 1/8" x 1" Cotter F05012-1 11
9 BOLT, 3/8-16 X 1" HEX HEAD GRADE 2 F05007-7 4
10 NUT, 3/8-16 HEX NYLON LOCK F05010-10 4

Parts Lists
Outrigger Assembly (Short Front)
Parts Lists SB92doc041614 4-10
4
FIG. 4-5
1
2
3
4
5
6
78
9
10
SM0087B

4-11 SB92doc041614 Parts Lists
Parts Lists

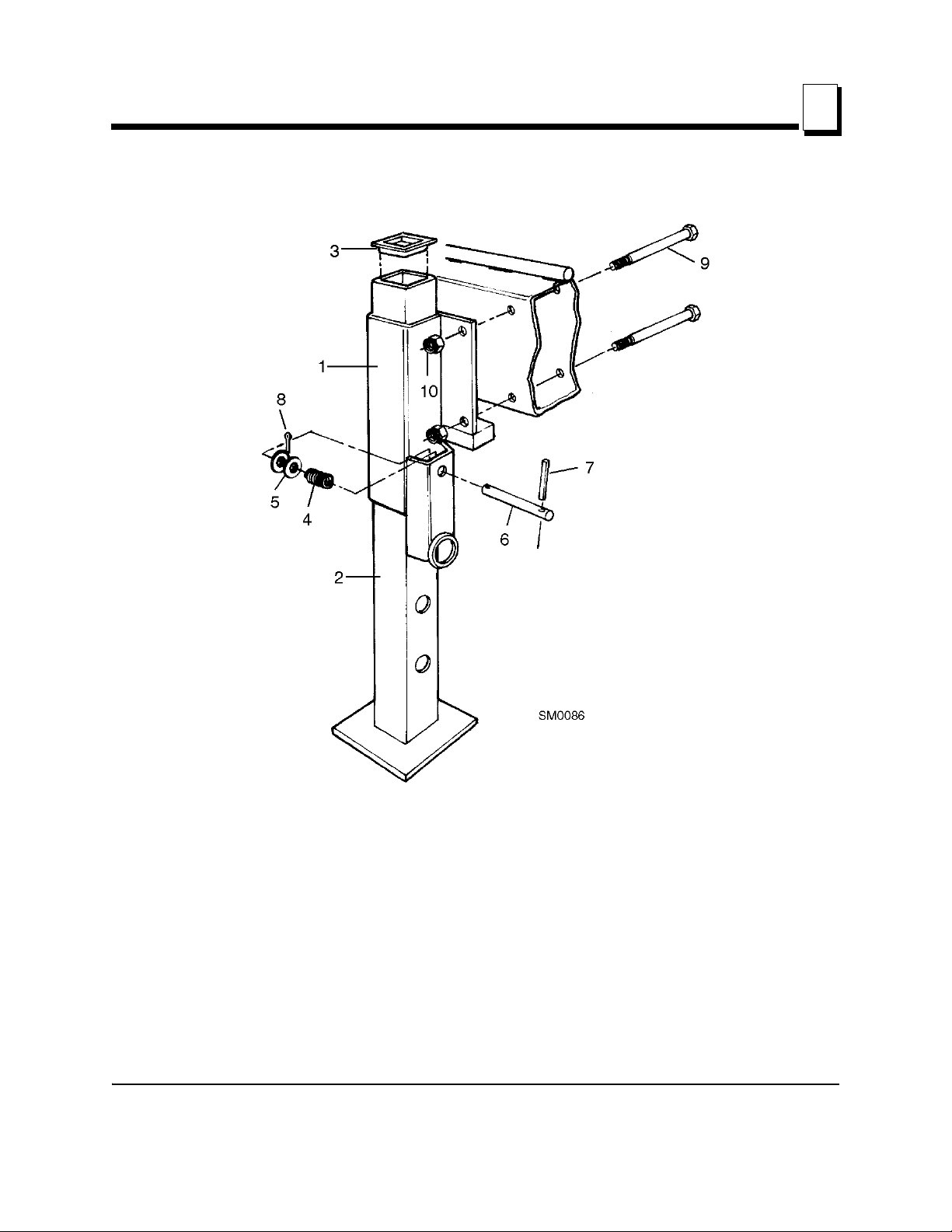

Outrigger Assembly (LT25/LT30/LT40 Short Rear)
4
4.6 Outrigger Assembly (LT25/LT30/LT40 Short Rear)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
OUTRIGGER ASSEMBLY, SHORT REAR A09475 1
1Guide, Short Rear Outrigger Guide W09474 1
2Leg, Outrigger W07537 1
3Cap, Outrigger Leg P09926 1
4Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Outrigger assembly includes updated
outrigger pin parts (See Section 4.11).
1
5Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
6Pin, Outrigger Pull S12261 11
7Pin, 5/16" x 2 1/2" Roll F05012-47 11
8Pin, 1/8" x 1" Cotter F05012-1 11
9 BOLT, 3/8-16 X 1" HEX HEAD GRADE 2 F05007-7 4
10 NUT, 3/8-16 HEX NYLON LOCK F05010-10 4
11 HANDLE, OUTRIGGER LIFT S04827 1

Parts Lists
Outrigger Assembly (LT25/LT30/LT40 Short Rear)
Parts Lists SB92doc041614 4-12
4
FIG. 4-6
1
2
3
4
5
6
7
8
9
10
11
SM0088B

4-13 SB92doc041614 Parts Lists
Parts Lists
Outrigger Assembly (LT30HD/LT40HD Short Rear)
4
4.7 Outrigger Assembly (LT30HD/LT40HD Short Rear)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
OUTRIGGER GUIDE ASSEMBLY, HD SHORT REAR A09276 1
1Guide Weldment, Outrigger Leg w/Saw Head Rest Pin W09275 1 
2Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Outrigger assembly includes updated
outrigger pin parts (See Section 4.11).
1
3Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
4Pin, Outrigger Pull S12261 11
5Pin, 5/16" x 2 1/2" Roll F05012-47 11
6Pin, 1/8" x 1" Cotter F05012-1 11
7Leg, Outrigger W07537 1
8Cap, Outrigger Leg P09926 1
9 BOLT, 3/8-16 X 1" HEX HEAD GRADE 2 F05007-7 4
10 NUT, 3/8-16 HEX NYLON LOCK F05010-10 4
11 HANDLE, OUTRIGGER LIFT S04827 1
12 SPRING, REST PIN P09557 1

Parts Lists
Outrigger Assembly (LT30HD/LT40HD Short Rear)
Parts Lists SB92doc041614 4-14
4
FIG. 4-7
1
23
4
5
6
7
8
9
10
11
12
HD0044-1

4-15 SB92doc041614 Parts Lists
Parts Lists
Outrigger Assembly (LT25L/LT40 /LT40HD Rear)
4
4.8 Outrigger Assembly (LT25L/LT40 /LT40HD Rear)
REF DESCRIPTION (Indicates Parts Available In Assemblies Only) PART # QTY.
OUTRIGGER ASSEMBLY, LT40 REAR A12083 1
1Guide, Short Rear Outrigger Guide W12082 1
2Leg, Outrigger W07537 1
3Cap, Outrigger Leg P09926 1
4Spring, Outrigger Pin P04282 1
1 Outrigger pin and hardware replaced with 3/4” diameter pin and hardware 10/98. Outrigger assembly includes updated
outrigger pin parts (See Section 4.11).
1
5Washer, 9/16" SAE Flat F05011-8 12
Pin Kit, Outrigger Pull A12232 11
6Pin, Outrigger Pull S12261 11
7Pin, 5/16" x 2 1/2" Roll F05012-47 11
8Pin, 1/8" x 1" Cotter F05012-1 11
9 BOLT, 3/8-16 X 1" HEX HEAD GRADE 2 F05007-7 4
10 NUT, 3/8-16 HEX NYLON LOCK F05010-10 4
