woodmizer E10 Guide

E10 Motor
Safety, Operation, Maintenance
& Parts Manual
LT15 rev. E2.00 - E8.13
LT15W rev. A1.00 - A1.14
Safety is our #1 concern! Read and understand
all safety information and instructions before oper-
ating, setting up or maintaining this machine.
April 2010
Form #1100

©2019
Printed in the United States of America, all rights reserved. No part of this manual may be
reproduced in any form by any photographic, electronic, mechanical or other means or used in
any information storage and retrieval system without written permission from
Wood-Mizer
8180 West 10th Street
Indianapolis, Indiana 46214
&DOLIRUQLD
3URSRVLWLRQ:DUQLQJ
:$51,1*%UHDWKLQJJDVGLHVHOHQJLQHH[KDXVWH[SRVHV\RXWRFKHPLFDOVNQRZQWR
WKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHUDQGELUWKGHIHFWVRURWKHUUHSURGXFWLYHKDUP
$OZD\VVWDUWDQGRSHUDWHWKHHQJLQHLQDZHOOYHQWLODWHGDUHD
,ILQDQHQFORVHGDUHDYHQWWKHH[KDXVWWRWKHRXWVLGH
'RQRWPRGLI\RUWDPSHUZLWKWKHH[KDXVWV\VWHP
'RQRWLGOHWKHHQJLQHH[FHSWDVQHFHVVDU\
)RUPRUHLQIRUPDWLRQJRWRZZZ3ZDUQLQJVFDJRY
:$51,1*'ULOOLQJVDZLQJVDQGLQJRUPDFKLQLQJZRRGSURGXFWVFDQH[SRVH\RXWR
ZRRGGXVWDVXEVWDQFHNQRZQWRWKH6WDWHRI&DOLIRUQLDWRFDXVHFDQFHU$YRLGLQKDOLQJ
ZRRGGXVWRUXVHDGXVWPDVNRURWKHUVDIHJXDUGVIRUSHUVRQDOSURWHFWLRQ
)RUPRUHLQIRUPDWLRQJRWRZZZ3:DUQLQJVFDJRYZRRG

Table of Contents Section-Page
Table of Contents WMdoc072619 iii
TOC
SECTION 1 ABOUT THIS MANUAL 1-1
SECTION 2 OPERATION 2-1
2.1 Starting The Motor .................................................................................2-1
SECTION 3 MAINTENANCE 3-1
3.1 Safety......................................................................................................3-1
SECTION 4 REPLACEMENT PARTS 4-1
4.1 Motor Starter Assembly .........................................................................4-1
LT15 Rev. E6.06+
4.2 Motor Starter Assembly .........................................................................4-3
LT15 Rev. E6.00 - E6.05
4.3 Motor Starter Assembly .........................................................................4-5
LT15 Rev. E2.00 - E5.00

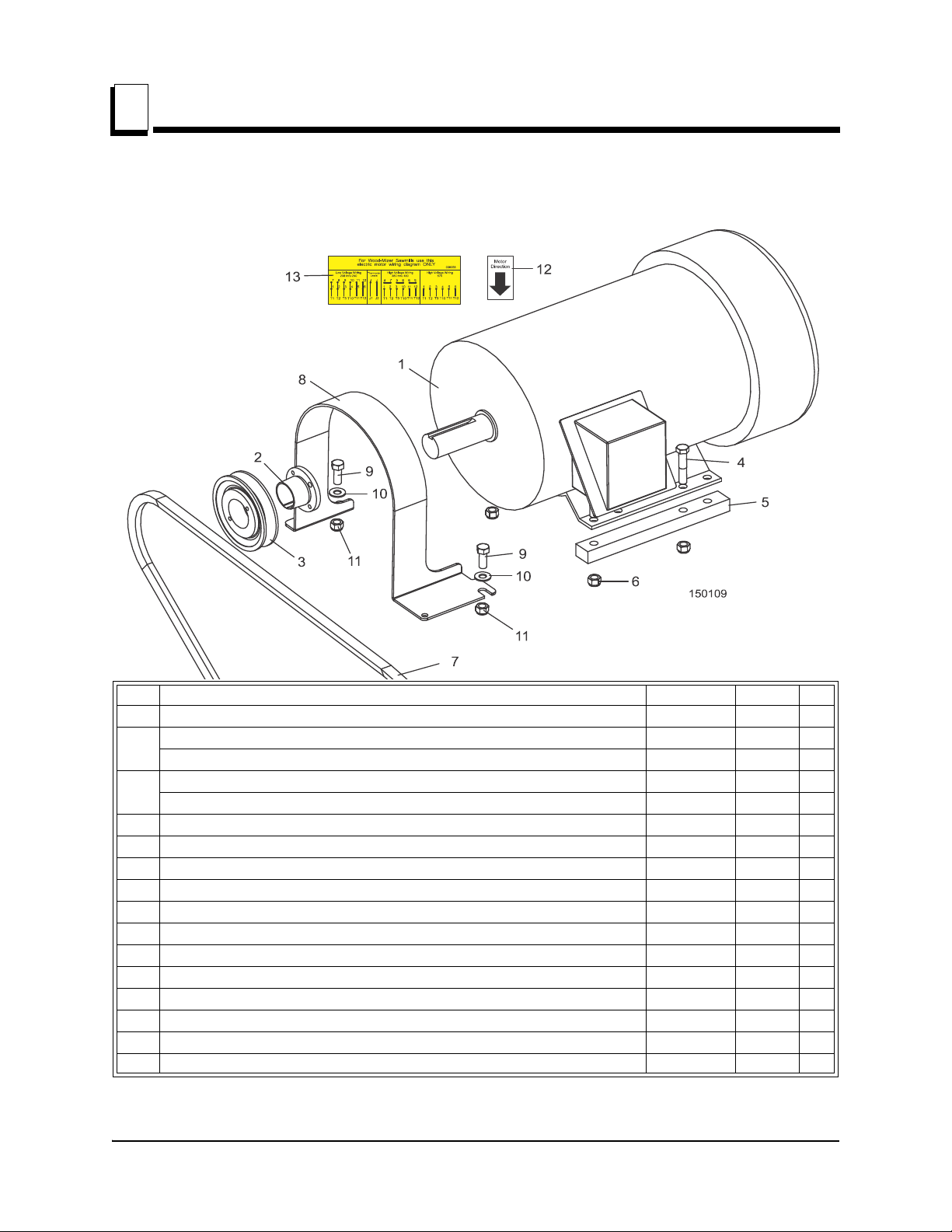

4.4 Motor Assembly .....................................................................................4-7
4.5 Throttle/Clutch Assembly ......................................................................4-8
LT15 E10 Rev. E1.00+
INDEX I

About This Manual
1
1-1 WMdoc072619 About This Manual
SECTION 1 ABOUT THIS MANUAL
This manual is provided as a supplement to the equipment manufacturer’s manuals. This
manual provides information specific to the use of this equipment on the Wood-Mizer®
sawmill. Refer to the sawmill operator’s manual and manufacturer's manual before
attempting to operate this equipment.
IMPORTANT! Read the sawmill operator’s manual and engine manu-
facturer’s manual for instructions and safety precautions before oper-
ating this equipment.
The information and instructions given in this manual do not amend or extend the limited
warranties for the equipment given at the time of purchase.

Operation
Starting The Motor
Operation WMdoc072619 2-1
2
SECTION 2 OPERATION
2.1 Starting The Motor
DANGER! Ensure the blade is disengaged and all persons are out of
the path of the blade before starting. Failure to do so will result in death
or serious injury.
Turn the main switch on the starter box to the ON position.
Press the green START button located on the starter box to start the motor.
MOTOR SHUTOFF
Press the red STOP button on the starter box to stop the motor.
Turn the main switch to the OFF position.

Maintenance
Safety
3
3-1 WMdoc072619 Maintenance
SECTION 3 MAINTENANCE
Refer to the manufacturer’s manual for maintenance intervals and procedures unless oth-
erwise instructed in this manual. Follow the manufacturer’s recommendations for dusty
conditions.
IMPORTANT! This manual only provides information about additional
procedures or procedures to be performed at different time intervals
than found in the manufacturer's manuals. Refer to the manufacturer's
manual for complete maintenance instructions.
WARNING! Clean sawdust from all guards, vents, control
boxes, or any area where sawdust may gather after every
shift. Failure to do so may result in fire, causing death or
serious injury.
3.1 Safety
Use caution when performing maintenance or service to the motor.
DANGER! Always be aware of and take proper protective measures
against rotating shafts, pulleys, fans, etc. Always stay a safe distance
from rotating members and make sure that loose clothing or long hair
does not engage rotating members resulting in possible injury.
DANGER! Make sure all electrical installation, service and/or mainte-
nance work is performed by a qualified electrician and is in accordance
with applicable electrical codes.
DANGER! Hazardous voltage inside the electric sawmill disconnect
box, starter box, and at the motor can cause shock, burns, or death.
Disconnect and lock out power supply before servicing! Keep all elec-
trical component covers closed and securely fastened during mill oper-
ation.
WARNING! Remove the blade before performing any engine service.
Failure to do so may result in serious injury.
WARNING! Always wear proper and necessary safety equipment
when performing service functions. Proper safety equipment includes
eye protection, breathing protection, hand protection and foot protec-
tion.

Maintenance
Safety
Maintenance WMdoc072619 3-2
3
This symbol identifies the interval (hours of operation) at which each maintenance pro-
cedure should be performed. "AR" signifies maintenance procedures which should be
performed as required.
0

Replacement Parts
Motor Starter Assembly
4
3-1 E1001doc072619 Replacement Parts
E10
SECTION 4 REPLACEMENT PARTS

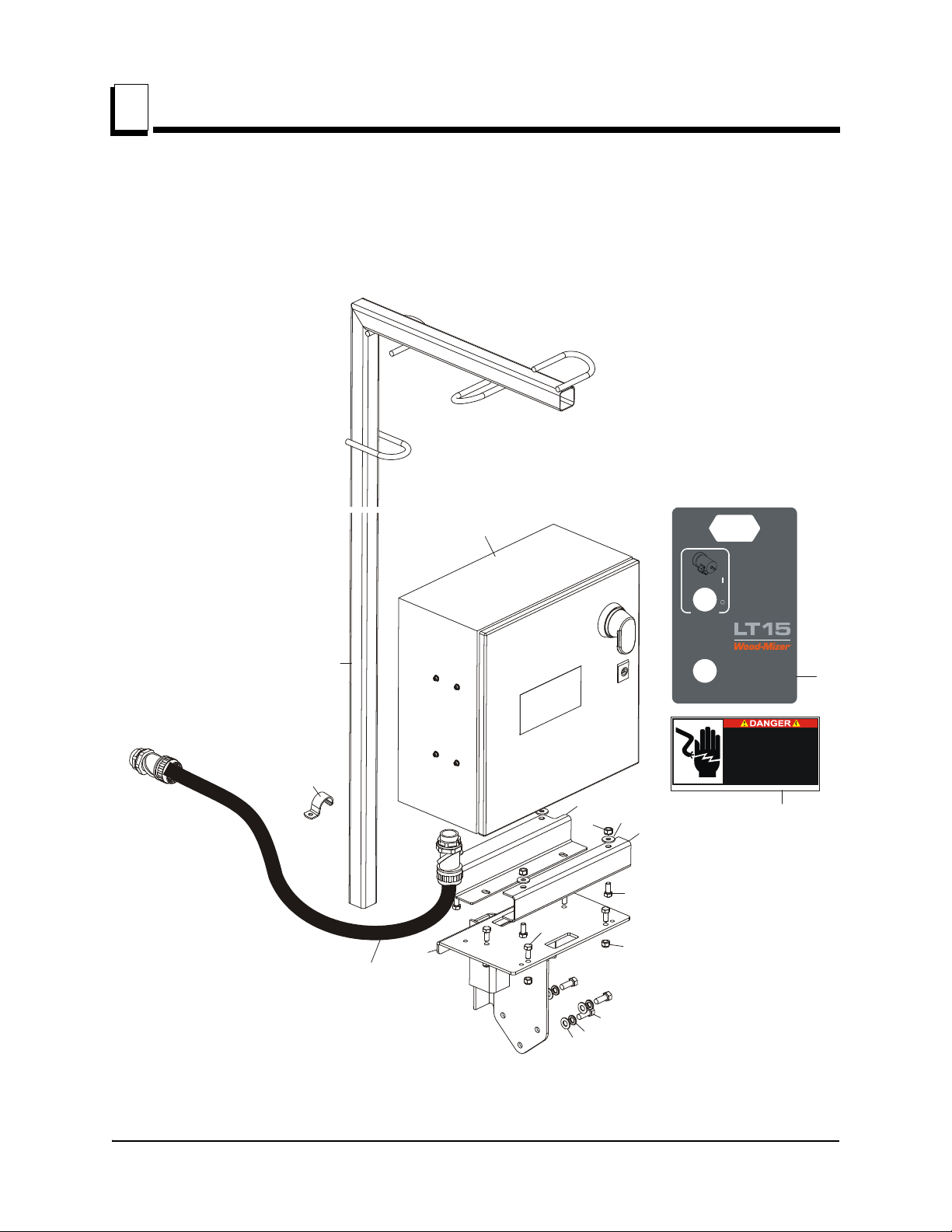

4.1 Motor Starter Assembly
LT15 Rev. E6.06+
HAZARDOUS VOLTAGE
Hazardous voltage inside disconnect box,
starter box, and at electric motor can cause
shock, burns, or death. Disconnect and lock
out power supply before servicing! Keep all
electrical component covers closed and
securely fastened during machine
operation.
Failure to do so will result in severe
personal injury.
Wood-Mizer Products, Inc.
800-525-8100 Reorder #S20061
1
14
15
16
7
13
11
2
5
6
4
10
8
150178-1
3
9
12
17

Replacement Parts
Motor Starter Assembly
Replacement Parts E1001doc072619 3-2
4
E10
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
MOTOR MODULE, 10HP 3-PHASE 208-240V ELECTRIC MOTOR 017954 1
MOTOR MODULE, 10HP 3-PHASE 380-500V ELECTRIC MOTOR 017955 1
Motor Parts (See Section 4.4)
Control Assembly, LT15 E10 3-Phase 240V 053713 1
Control Assembly, LT15 E10 3-Phase 460V 053738 1
1Bolt, 5/16-18 x 3/4 Hex Head F05006-5 4
2Bracket, Front Electric Motor Mount 035991 1
3Bracket, Rear Electric Motor Mount 035992 1
4Enclosure, 16” x 16” x 8” Custom 053584 1
LT15E10L Electrical Components (See Component List)
LT15E10H Electrical Components (See Component List)
5Washer, 5/16 Flat F05011-16 4
6Nut, 5/16-18 Keps F05010-20 4
7Harness Assembly, LT15E10L Blade Motor (3-Phase 240V) 053714 1
Harness Assembly, LT15E10H Blade Motor (3-Phase 460V) 053739 1
8Decal, Electrical Hazard Danger S20061 1
9Decal, LT15E10 Control Cabinet 069362 1
10 TUBE WELDMENT, WIRE HANGER LT15E 034906 1
11 MOUNT WELDMENT, BATTERY/CONTROL BOX 034899 1
12 BOLT, 5/16-18 X 3/4” HEX HEAD F05006-102 4
13 NUT, 5/16-18 NYLON LOCK F05010-58 4
14 BOLT, 3/8-16 X 1” HEX HEAD F05007-7 3
15 WASHER, 3/8” SPLIT LOCK F05011-4 3
16 WASHER, 3/8” SAE FLAT F05011-3 3
17 CLAMP, 1” EMT P05436 1

Replacement Parts
Motor Starter Assembly
4
3-3 E1001doc072619 Replacement Parts
E10
4.2 Motor Starter Assembly
LT15 Rev. E6.00 - E6.05
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
1 MOUNT WELDMENT, BATTERY/CONTROL BOX 034899 1
2 WASHER, 3/8 FLAT F05011-3 3
3 WASHER, 3/8 SPLIT LOCK F05011-4 3
4 BOLT, 3/8-16 X 1 HEX HEAD F05007-7 3
5 BOLT, 5/16-18 X 3/4 HEX HEAD F05006-102 4
HAZARDOUS VOLTAGE
Hazardous voltage inside disconnect box,
starter box, and at electric motor can cause
shock, burns, or death. Disconnect and lock
out power supply before servicing! Keep all
electrical component covers closed and
securely fastened during machine
operation.
Failure to do so will result in severe
personal injury.
Wood-Mizer Products, Inc.
800-525-8100 Reorder #S20061
STOP!
Read and understand operator’s
manual and all safety
instructions before setting up,
operating or maintaining this
machine.
Failure to do so may result in
injury, death or equipment
damage.
Wood-Mi zer Products , Inc.
800-525-8100 Reorder #016402
STOP!
Always wear eye, ear,
respiration and foot
protection when
operating this machine.
Failure to do so may
result i n injury.
Wood-Mizer Products, Inc.
800-525-8100 Reorder #S11753
1
23
4
5
6
7
8
9
10
11
12
16
13
14
15
150150-2

Replacement Parts
Motor Starter Assembly
Replacement Parts E1001doc072619 3-4
4
E10
6 NUT, 5/16-18 NYLON LOCK F05010-58 4
CONTROL ASSEMBLY, LT15 E10 3-PHASE 230V 052816 1
CONTROL ASSEMBLY, LT15 E10 3-PHASE 460V 052817 1
CONTROL ASSEMBLY, LT15 E10 3-PHASE 575V 052818 1
Electrical Components (See Component List)
7Bracket, Control Mount 038911 2
8Bolt, 5/16-18 x 1” Hex Head F05006-1 4
9Washer, 5/16” Split Lock F05011-13 4
10 Washer, 5/16” SAE Flat F05011-17 8
11 Nut, 5/16-18 Self-Locking Hex F05010-20 4
12 Enclosure, LT15 Control Box 055348 1
13 Decal, Eye/Ear Protection Warning S11753 1
14 Decal, Read Manual Warning 016402 1
15 Decal, Electrical Hazard Danger S20061 1
CLAMP, 1 EMT P05436 1
16 TUBE WELDMENT, WIRE HANGER LT15E 034906 1

Replacement Parts
Motor Starter Assembly
4
3-5 E1001doc072619 Replacement Parts
E10
4.3 Motor Starter Assembly
LT15 Rev. E2.00 - E5.00
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
STARTER ASSEMBLY, 10HP 3-PHASE 50/60HZ ELECTRIC MOTOR 088280-4 1
1Bolt, M8 x 20-8.8 Hex Head F81002-4 4
2Bracket, Electric Motor Starter N/A 2
3Box, Electric Motor Starter Enclosure N/A 1
Timer, Y-Delta 084037 1
1
2
3
4
5
6
7
8
9
10
11
9
12
13
14
15
16
18
17
19
22
20
24
21
23
150112

Replacement Parts
Motor Starter Assembly
Replacement Parts E1001doc072619 3-6
4
E10
Contactor, LC1 D09 B7 084305 1
Contactor, LC1 D18 B7 084306 1
Switch, Modular 088278 1
Transformer, LT15 090562 1
4Washer, 8.4mm Flat F81054-1 4
5Nut, M8-8 Hex F81032-2 4
6Switch, Electric Motor Starter Main 088265-1 1
7Latch, Starter Box Door N/A 1
8Bolt, M5 x 25 8.8 Socket Head F81000-7 4
9Washer, 5.3mm Flat F81052-1 8
10 Conn Plug, 60A 3P Watertight 050942 1
Conn Socket, 60A 3P Watertight 050943 1
11 Nut, M5-8 Hex F81030-2 4
12 Switch, Emergency Stop 086556 1
13 Decal, Emergency Stop Switch 086561 1
14 Membrane, Start-Stop Switch 090462 1
15 Switch, Start/Stop 24V 090452 1
16 Light, White LED Control 090448 1
STARTER, MANUAL MOTOR 24-32A (LT15E10L) 088264 1
STARTER, MANUAL MOTOR 13-18A (LT15E10H) 090561 1
STARTER, MANUAL MOTOR 9-14A (LT15E10C) 090430 1
17 DECAL, ELECTRICAL HAZARD DANGER S20061 1
18 TUBE WELDMENT, WIRE HANGER LT15E 034906 1
19 MOUNT WELDMENT, BATTERY/CONTROL BOX 034899 1
20 BOLT, 5/16-18 X 3/4 HEX HEAD F05006-102 4
21 NUT, 5/16-18 NYLON LOCK F05010-58 4
22 BOLT, 3/8-16 X 1 HEX HEAD F05007-7 3
23 WASHER, 3/8 SPLIT LOCK F05011-4 3
24 WASHER, 3/8 FLAT F05011-3 3
CLAMP, 1 EMT P05436 1

Replacement Parts
Motor Assembly
4
4-7 E1001doc072619 Replacement Parts
E10
4.4 Motor Assembly
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
COVER, ENGINE P12393 1
MOTOR ASSEMBLY, LT15 10HP 3-PHASE ELECTRIC 034812 1
MOTOR ASSEMBLY, LT15 10HP 575 VOLT ELECTRIC 017957 1
1Motor, 10HP 3-phase Lincoln 034903 1 
Motor, 10HP 3-phase 575V Lincoln 034907 1
2Bushing, 1 3/8 Split Taper P04864 1
3Sheave, BK45QT 036057 1
4 BOLT, 3/8-16 X 1 3/4” HEX HEAD GRADE 5 F05007-129 4
5 SPACER, MOTOR LT15E 034807 2
6 NUT, 3/8-16 HEX NYLON LOCK F05010-10 4
7 BELT, BX85 DRIVE P25301 1
8 GUARD, MOTOR SHAFT LT15E 034904 1
9 SCREW, 3/8-16 X 1 HEX HEAD F05007-7 2
10 WASHER, 3/8 FLAT SAE F05011-3 2
11 NUT, 3/8-16 HEX NYLON LOCK F05010-10 2
12 DECAL, MOTOR DIRECTION S20097 1
13 DECAL, E10 ELECTRIC MOTOR WIRING 036058 1

Replacement Parts
Throttle/Clutch Assembly
Replacement Parts E1001doc072619 4-8
4
E10
4.5 Throttle/Clutch Assembly
LT15 E10 Rev. E1.00+
REF DESCRIPTION ( Indicates Parts Available In Assemblies Only) PART # QTY.
1 KNOB, 5/8-11 BALL P04211 1
2 HANDLE, LT15 CLUTCH 016487 1 1
3 BUSHING, 5/8 ID X 7/8 OD X 1 1/8 LONG FL BRONZE 016486 3
4 COLLAR, 5/8 ID LOCK P05035 1
5 BLOCK WELDMENT, LINKAGE CLUTCH/BRAKE 065572 2 1
6 PIN, 3/16 X 1 1/4 ROLL F05012-16 1
7 LINKAGE ASSEMBLY, W/BEARING 034605 1
8 NUT, 1/2-13 FREE HEX, ZINC F05010-35 1
9 WASHER, 1/2 SPLIT LOCK F05011-9 1
10 NUT, 1/2-13 JAM F05010-31 1
11 PIVOT WELDMENT, CLUTCH/BRAKE 034608 1
12 BUSHING, 1 X 1 1/4 X 3/4 FLANGE BRONZE P737 2
BRAKE/CLUTCH ASSEMBLY, LT15 065874 3 1
13 Arm Weldment, Clutch/Brake LT15 065873 1
150111G
1
2
3
3
3
4
56
7
9
8
10
12
11
12
13
14
27 28
15
16 17
18
19 20
21 21
22
23
24
25
26

Replacement Parts
Throttle/Clutch Assembly
4
4-9 E1001doc072619 Replacement Parts
E10
14 Bolt, 3/8-16 x 2 Hex Head Gr5 F05007-124 1
15 Nut, 3/8-16 Hex Nylon Lock F05010-10 1
16 Block, LT15 Brake 016488 2
17 Screw, 10-24 x 1 Socket Head F05004-2 4 4
18 Nut, #10-24 Keps F05010-14 8
19 Idler, 4" O.D. x 3/8 Bore 034602 1
20 Bolt, 3/8-16 x 2-3/4” Hex Head Gr5 Full Thread F05007-230 3 1
21 Washer, 3/8 Flat F05011-3 2
22 Nut, 3/8-16 Swaged Lock F05010-25 2
23 Spring, Idler Arm LT15/D/E/G 034810 1
24 Screw, 10-24 x 5/8” FSHC F05004-282 4
25 Plate, Brake Adjustment 065872 2
26 Washer, #10 SAE Flat F05011-18 4
1 Clutch Handle 016487 modified Rev. E6.01 to eliminate possible pinch point with feed rope pulley with saw head at certain heights.
2 Replaces 034612 to make clutch pivot stop adjustable Rev. E6.10.
3 Replaces Brake/Clutch Assembly 034603 to improve durability (Rev. E7.01). Brake/Clutch Assembly 034603 (including Clutch/Brake
Arm Weldment 034613) modified 9/10. Spring mount hardware changed to provide more freedom of movement and prevent binding
point in spring.
4 Replaces F05004-50 originally supplied before 4/03 (duplicate part numbers).

Index E1001doc072619 i
M
maintenance 3-1
P
parts list 4-1
motor assembly 4-7
motor starter assembly 4-1, 4-3, 4-5
throttle/clutch 4-8
S
starting 2-1
INDEX
