Worx WG583 User manual

P03
P13
P22
Cordless Blower/Vac/Mulcher EN
F
ES
WG583 WG583.9

2
Cordless Blower/Vac/Mulcher EN
PRODUCT SAFETY
WARNING: Some dust created by power
sanding, sawing, grinding, drilling and
other construction activities contains
chemicals known to the State of California to
cause cancer, birth defects or other
reproductive harm. Some examples of these
chemicals are:
• Lead from lead-based paints;
• Crystalline silica from bricks and cement
and other masonry products;
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
WARNING: This product can expose you
to chemicals including lead and
Di(2-ethylhexyl)phthalate (DEHP) which are
known to the State of California to cause
cancer and birth defects or other reproductive
harm. For more information go to www.
P65Warnings.ca.gov.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING: Read all safety warnings and
instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
FOR ALL APPLIANCES:
1) Avoid Dangerous Environment - Don’t use
appliances in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept
at a distance from work area.
4) Dress Properly - Do not wear loose clothing or
jewelry. They can be caught in moving parts.
Use of rubber gloves and substantial footwear
is recommended when working outdoors. Wear
protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust
mask if operation is dusty.
6) Use Right Appliance - Do not use appliance for
any job except that for which it is intended.
7) Don’t Force Appliance - It will do the job better
and with less likelihood of a risk of injury at
the rate for which it was designed.
8) Don’t Overreach - Keep proper footing and
balance at all times.
9) Stay Alert - Watch what you are doing. Use
common sense. Do not operate appliance
when you are tired.
10) Store Idle Appliances Indoors - When not in use,
appliances should be stored indoors in
dry, and high or locked-up place - out of reach of
children.
11) Maintain Appliance With Care - Follow
instructions for lubricating and changing
accessories. Keep handles dry, clean, and free
from oil and grease.
12) Check Damaged Parts - Before further use of the
appliance, a guard or other part that is damaged
should be carefully checked to determine that it
will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other condition that may
affect its operation. A guard or other part that
is damaged should be properly repaired or
replaced by an authorized service center unless
indicated elsewhere in this manual.
FOR ALL BATTERY –
OPERATED GARDENING
APPLIANCES:
1. Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to battery
pack, picking up or carrying the appliance.
Carrying the appliance with your finger on the
switch or energizing appliance that have the
switch on invites accidents.
2. Disconnect the battery pack from the appliance
before making any adjustments, changing
accessories, or storing appliance. Such
preventive safety measures reduce the risk of
starting the appliance accidentally.
3. Recharge only with the charger specified by the
manufacturer .A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack.
4. Use appliances only with specifically designated
battery packs. Use of any other battery packs
may create a risk of injury and fire.
5. When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects,
that can make a connection from one terminal to
another. Shorting the battery terminals together
may cause burns or a fire.
6. Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause
irritation or burns.
7. Do not use a battery pack or appliance that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury.
8. Do not expose a battery pack or appliance to

3
Cordless Blower/Vac/Mulcher EN
fire or excessive temperature. Exposure to fire
or temperature above 130°C ( 265°F) may cause
explosion.
9. Follow all charging instructions and do not
charge the battery pack or appliance outside
of the temperature range specified in the
instructions. Charging improperly or at
temperatures outside of the specified range may
damage the battery and increase the risk of fire.
10. Have servicing performed by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the product is
maintained.
11. Do not modify or attempt to repair the appliance
or the battery pack (as applicable) except as
indicated in the instructions for use and care.
ADDITIONAL SAFETY
WARNINGS
IMPORTANT
SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL
INSTRUCTIONS
BEFORE
USING THIS
APPLIANCE
WARNING – To reduce the risk of
fire, electric shock, or injury:
1. To reduce the risk of electric shock –
Do not use on wet surfaces. Do not
expose to rain. Store indoors.
2. Do not allow to be used as a toy.
Close attention is necessary when
used by or near children.
3. Use only as described in this
manual. Use only manufacture’s
recommended attachments.
4. If appliance is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water,
return it to a service center.
5. Keep hair, loose clothing, fingers, and
all parts of body away form openings
and moving parts.
6. Do not charge the unit outdoors.
7. Use only the charger supplied by the
manufacturer to recharge.
8. Do not incinerate the appliance
even if it is severely damaged.The
batteries can explode in a fire.
9. Do not put any object into openings.
Do not use with any opening blocked;
keep free of dust, lint, hair, and
anything that may reduce air flow.
10.Do not handle plug or appliance with
wet hands.
11. Do not leave appliance when plugged
in. Unplug from outlet when not in
use and before servicing.
12.Turn off all controls before
unplugging.
13.Use extra care when cleaning on
stairs.
14.Do not use to pick up flammable or
combustible liquids, such as gasoline,
or use in areas where they may be
present.
15.Do not pick up anything that
is burning or smoking, such as
cigarettes, matches, or hot ashes.
16.Do not use without dust bag and/or
filters in place.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred battery
pack.
b) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box
or drawer where they may short-circuit
each other or be short-circuited by other
metal objects. When battery pack is not in use,
keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from
one terminal to another. Shorting the battery

4
Cordless Blower/Vac/Mulcher EN
terminals together may cause burns or fire.
d) Do not remove battery pack from its
original packaging until required for use.
e) Do not subject battery pack to mechanical
shock.
f) In the event of battery leaking, do not
allow the liquid to come in contact with
the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical advice.
g) Observe the plus (+) and minus (–) marks
on the battery back and equipment and
ensure correct use.
h) Do not use any battery pack which is not
designed for use with the equipment.
i) Keep battery pack out of the reach of
children.
j) Seek medical advice immediately if a cell
or battery has been swallowed.
k) Always purchase the battery pack
recommended by the device manufacturer
for the equipment.
l) Keep battery pack clean and dry.
m) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
n) Battery pack needs to be charged before
use. Always use the correct charger and
refer to the manufacturer’s instructions
or equipment manual for proper charging
instructions.
o) Do not leave battery pack on prolonged
charge when not in use.
p) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
q) Battery pack gives its best performance
when it is operated at normal room
temperature (20 °C ± 5 °C).
r) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
s) Recharge only with the charger specified
by Worx. Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
t) Retain the original product literature for
future reference.
u) Use only the battery pack in the
application for which it was intended.
v) Remove the battery pack from the
equipment when not in use.
w) Dispose of properly.
SAVE THESE
INSTRUCTIONS
SYMBOL
To reduce the risk of injury,
user must read instruction
manual
Wear ear protection
Wear eye protection
Keep bystanders away
Warning of hazard
Do not expose to rain
Remove battery from the
socket before carrying out
any adjustment, servicing or
maintenance.
Batteries may enter water cycle if
disposed improperly, which can
be hazardous for ecosystem. Do
not dispose of waste batteries as
unsorted municipal waste.
Do not burn

5
Cordless Blower/Vac/Mulcher EN
Li-Ion battery, battery must
be recycled
POSITEC Inc. has established
a partnership with the RBRC
Corporation to recycle any
Positec batteries with the
RBRC-call2recycle seal. For
environmental protection,
please do not discard
batteries in the trash. After
the batteries’ life cycle is
ended, then please call 1-800-
822-8837 for a free service
that will properly dispose of
the battery.
Blow mode
Vacuum mode
Impeller continues to rotate after
the machine is switched off. Wait
until all machine components
have completely stopped before
touching them.

6
Cordless Blower/Vac/Mulcher EN
1
5
9
10
8
11 12
4
7
2
3
13
6

7
Cordless Blower/Vac/Mulcher EN
COMPONENT LIST
1. HANDLE
2. ON/OFF SWITCH
3. HIGH/LOW SPEED CONTROL BUTTON
4. TUBE RELEASE BUTTON
5. BLOWER TUBE
6. BLOWER TUBE NOZZLE
7. BATTERY PACKS*
8. ANTI-STATIC STRIP
9. UPPER VACUUM TUBE
10. LOWER VACUUM TUBE
11. WHEELS
12. LEAF COLLECTION BAG
13. FAN HOUSING COVER
14. BATTERY PACK RELEASE BUTTON*(SEE
FIG. C)
15. BATTERY INDICATOR LIGHT (SEE FIG.D)
*Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
WG583 WG583.9
Rated voltage 40 V MAX (2x20 V MAX) **
Air speed Low: 116 mph
High: 185 mph
Air volume Low: 200 cfm
High: 350 cfm
Mulching ratio to be decided
Collection bag
capacity: 1.0 bushel
Battery type Lithium-ion
/
Battery capacity 4.0 Ah (WA3578)
/
Charger model WA3884
/
Charger rating Input:
120V~60Hz
Output : 20 V
/
Charging cur-
rent
4 A /
Charging time
(approx.)
Battery pack:
4.0 Ah (1 pc)
4.0 Ah (2 pcs)
1hr
2hr /
Machine weight 8.4 lbs (Blow)
11.5 lbs (Vac)
5.5 lbs (Blow)
8.6 lbs (Vac)
**Voltage measured without workload. Initial
battery voltage reaches maximum of 20 volts.
Nominal voltage is 18 volts.
ACCESSORIES
WG583 WG583.9
Battery pack 2 (WA3578) /
Charger
1 (WA3884) /
Only use the appropriate accessories intended for
this tool. Accessory information can be found on
the product packaging, at a Worx dealer or on our
website at www.worx.com.

100%
0%
Click!/Cliquez!/
¡Clic!
Click!/Cliquez!/
¡Clic!
15
14
E1 E2
A B
D
C

1
Click!/Cliquez!/
¡Clic!
Click!/Cliquez!/
¡Clic!
2
4
3
D
D
E3
F G
IH

2
1
3
4
Click!/Cliquez!/
¡Clic!
Click!/Cliquez!/
¡Clic!
Click!/Cliquez!/
¡Clic!
Click!/Cliquez!/
¡Clic!
3
5
4
1
2
J1
I
J2

3
2
4
15
M1 M2
N
L2
IK
L1

3
2
4
15
M1 M2
N
L2
IK
L1

13
Cordless Blower/Vac/Mulcher EN
OPERATION
INTENDED USE
The blower & Vac is intended for residential use only.
Use the blower outdoors to move or vacuum yard
debris as needed.
ASSEMBLY AND OPERATION
ACTION FIGURE
BEFORE OPERATION
Checking the battery condition
Note: Fig. A only applies for the
battery pack with battery indicator
light.
See Fig. A
Charging the battery pack
Note:
• The batteries are shipped
uncharged. Each battery must
be fully charged before the
first use.
• Always fully charge the two
batteries at same time. More
details can be found in char-
ger’s manual.
WARNING! The charger
and battery pack are
specially designed to work
together, so do not attempt to
use any other devices. Never
insert or allow metallic objects
into your charger or battery
pack connections because of
an electrical failure and hazard
will occur.
See Fig. B
Installing and Removing the bat-
tery pack
Note:
• This machine will only run
when 2 batteries are in-
stalled. It is recommended
to use the same two bat-
teries and charge the two
batteries at the same time.
• When you use two batteries
with different power, the
machine will only run to the
level of the lowest charged
battery.
See Fig.C
Battery indicator light
See details in BATTERY STATUS
part
IMPORTANT:
When only one light is
illuminated, your battery is
overly discharged, even though
the machine may still be capable
to work. Continuing to operate
your machine with the battery
in this discharged condition may
reduce the life and performance
of your battery.
When no light is illuminated,
at least one battery is not fully
installed or battery may be
defective, please double check
the batteries are fully seated into
position.
See Fig. D
OPERATION
Blow mode
Assembling the blower tube and
fan housing cover
See Fig.
E1,E2,E3
On/Off Switch
WARNING! The tool runs
for a few seconds after it
has been switched off.
Let the motor come to a com-
plete standstill before setting
the tool down.
See Fig. F
Using the Blower
USER TIPS
• Hold the blow tube approxi-
mately 8” above the ground
when operating the tool.
• Use a sweeping motion
from side to side. Advance
slowly keeping the ac-
cumulated debris/leaves in
front of you.
Caution!Do not blow hard
objects such as nails,
bolts, or rocks.

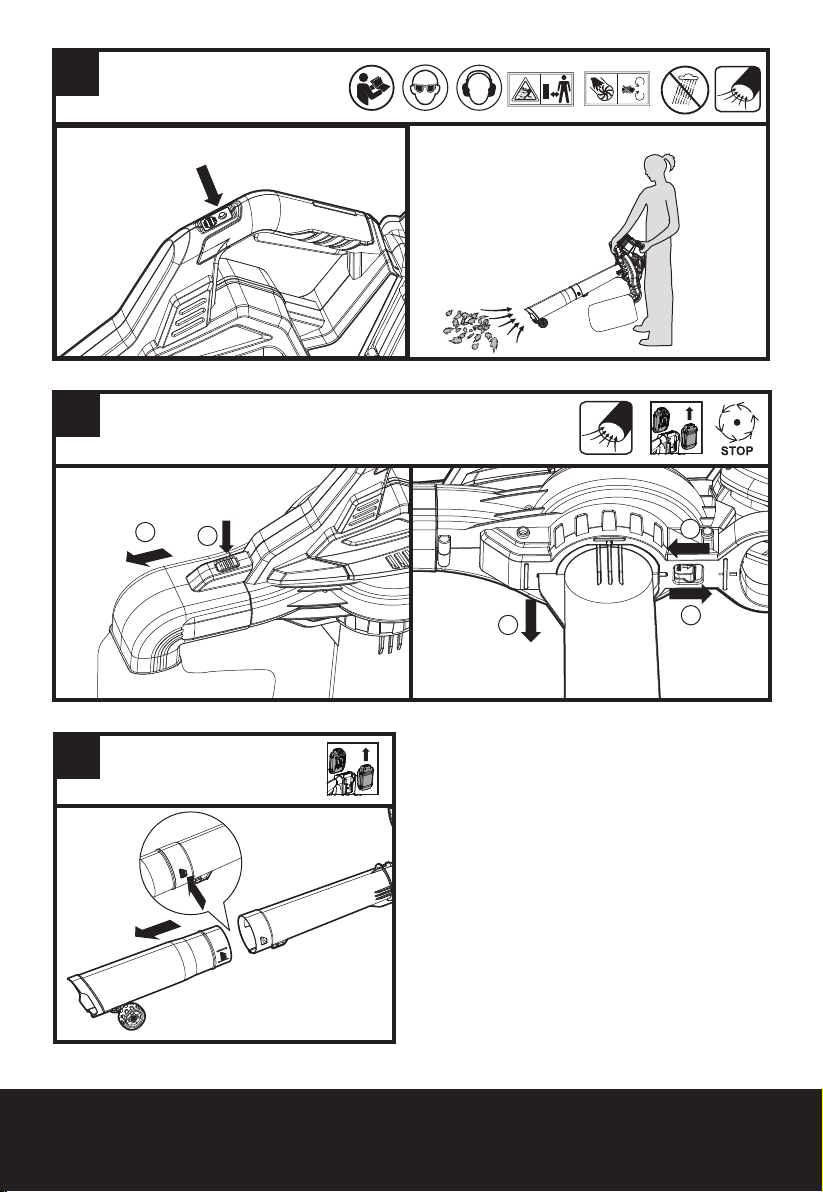

See Fig.G
Adjust blowing speed
Note: the speed your tool keeps
each time you turn it on is the
speed when you turned it off last
time. If necessary, please readjust
the speed.
See Fig.H

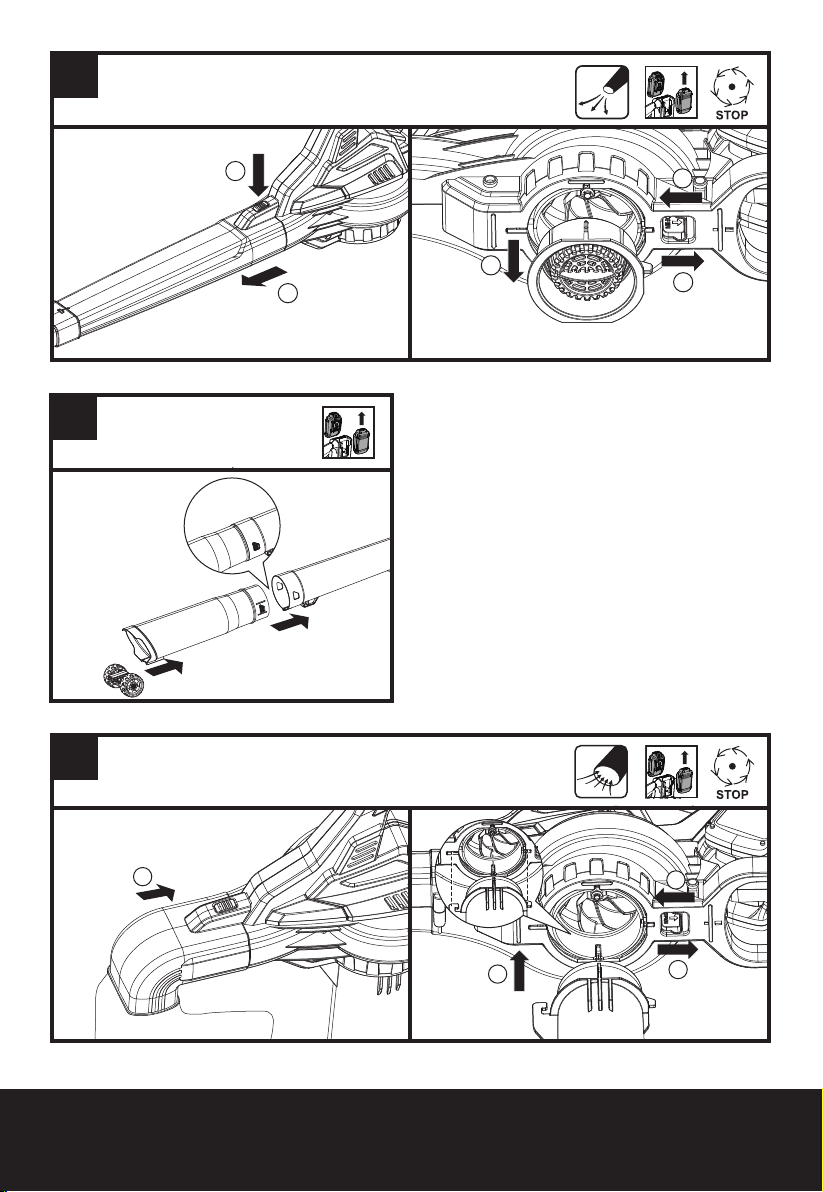

Vacuum mode
Disassembling the blower tube
and fan housing cover
See Fig. I
Assembling the vacuum tube ,the
leaf collection bag and wheel
See Fig.
J1,J2

14
Cordless Blower/Vac/Mulcher EN
On/Off Switch
WARNING! The tool runs
for a few seconds after it
has been switched off.
Let the motor come to a com-
plete standstill before setting
the tool down.
See Fig.F
Using the Vacuum
Note: Before use, please adjust
the speed to the high speed level.
See Fig. K
Disassembling the vacuumTube
and the leaf collection bag
See Fig.
L1,L2

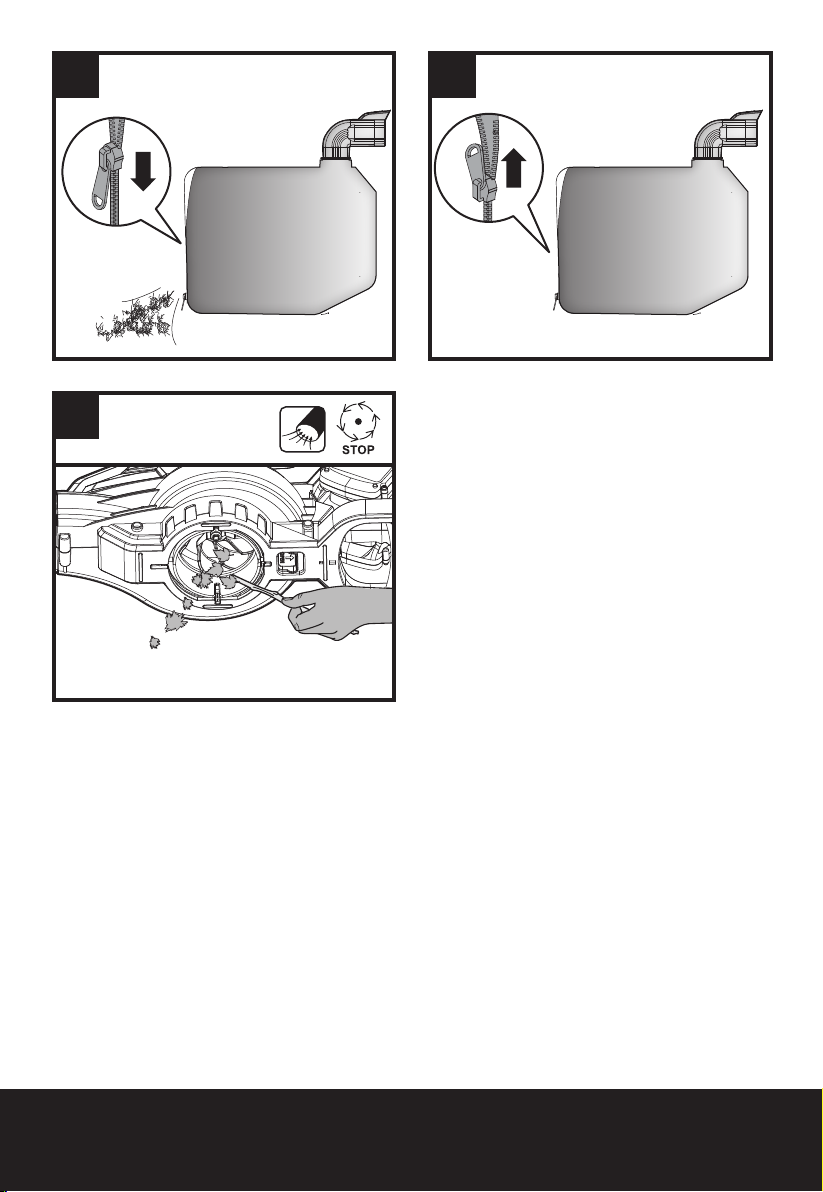

Emptying the leaf collection bag See Fig.
M1,M2
Removing clogged debris from the
Impeller(no tool included)
Note: Ensure to remove the bat-
teries before attempting to clear
any debris.
See Fig. N
BATTERY STATUS (See Fig. D)
• Before starting or after use, press the button
beside the power indicator light on the machine
to check the battery capacity.
• During operation, the battery capacity will be
indicated automatically by the battery power
indicator.The indicator constantly senses and
displays the battery condition as follows.
• For the machine with 2 battery packs with
different power, the power indicator light
displays the battery condition with the lower one
of the two batteries.
Battery indicator
light status
Battery condition
Five green lights
( ) are
illuminated.
The two batteries are in a
highly charged condition.
Two, three or four
green lights are
illuminated.
The two batteries have a re-
maining charge.The more
lights are illuminated, the
more battery capacity.
Only one green
light ( ) is
illuminated.
The battery level of at
least one battery pack is
very low. Please check and
charge the battery pack.
No light is illumi-
nated.
At least one battery is not
fully installed or battery
may be defective.
Only one light is
flashing twice per
cycle.
At least one battery is over
discharged (please refer to
the battery charge condi-
tion), please recharge the
two batteries at once before
use again or storage.
Only one light is
flashing three times
per cycle.
At least one battery is hot,
wait for them cool down
before start again.
Only one light is
flashing four times
per cycle.
The machine is over load.
Remove tool from blowing
area and try again.
STORAGE
Store the Blower/Vacuum indoors, in a cool dry
location, out of reach of children and animals.
FOR BATTERY TOOLS
The ambient temperature range for the use and
storage of tool and battery is 0oC-45oC(32oF - 113oF).
The recommended ambient temperature range
for the charging system during charging is 0oC-
40oC(32oF - 104oF).
CLEANING THE TOOL
Clean the tool regularly.
Warning! Keep your product dry. Under
no circumstances spray with water.
- To clean the tool, use only mild soap and a
damp cloth.
- Do not use any type of detergent, cleaner
or solvent which may contain chemicals
that could seriously damage the plastic.
