Worx Sonicrafter WX693 User manual

WX693 WX693.9
Oscillating Tool
Oszillationswerkzeug
Outil oscillant
Attrezzo ad oscillazione
Herramienta oscilante
Trillende machine
Narzędzie oscylacyjne
Oszcilláló szerszám
Instrument oscilant
Oscilační nástroj
Vibračný nástroj
Ferramenta oscilante
Oscillerande verktyg
Oscilacijsko orodje
P05
P10
P15
P20
P25
P30
P35
P40
P45
P50
P55
P60
P65
P70
EN
D
F
I
ES
NL
PL
HU
RO
CZ
SK
PT
SV
SL

Original instructions EN
Übersetzung der Originalanleitung D
Traduction des instructions initiales F
Traduzione delle istruzioni originali I
Traducción de las instrucciones originales ES
Vertaling van de oorspronkelijke instructies NL
Tłumaczenie oryginalnych instrukcji PL
Eredeti használati utasítás fordítása HU
Traducerea instrucţiunilor iniţiale RO
Překlad původních pokynů CZ
Preklad pôvodných pokynov SK
Tradução das instruções originais PT
Översättning av originalinstruktionerna SV
Prevod izvirna navodila SL

2
3
1
2
1
1
- - -
- - -
=
2
ON
OFF
AB
CD
EF
GH
12
3
4
5
6
7

2
3
1
2
1
1
- - -
- - -
=
2
ON
OFF
AB
CD
EF
GH

5
Oscillating Tool EN
1. HYPERLOCK™ ACCESSORY CLAMPING LEVER
2. ON/OFF SWITCH
3. VARIABLE SPEED DIAL
4. VENTING SLOTS
5. UNIVERSAL-FIT
™ ACCESSORY INTERFACE*
6. SMALLER FLANGE (FOR OTHER BRANDS’
SANDING PADS)
7. FLANGE
* Works with other oscillating tool brands’ accessories.
The following compatible brands are trademarks
owned by third parties which may be registered by
their respective owners: Black & Decker®, Bosch®,
Chicago Electric®, Craftsman®, Dremel®, Fein®,
Genesis®, Makita®, Mastercraft®, Milwaukee®,
Performax®, Porter Cable®, Ridgid®, Ryobi®, Skil®, and
Tool Shop®.
Not all the accessories illustrated or described
are included in standard delivery.
TECHNICAL DATA
Type WX693 WX693.9 (6-designation of
machinery, representative of high frequency
oscillation tool)
WX693 WX693.9
Voltage 20V Max**
Oscillations speed 8000-18000 /min
Oscillation angle 4°
Battery capacity 2.0Ah
Charging time 1hr /
Machine weight 1.3kg 1.0kg
Charger 1 (WA3860) /
Battery pack 1 (WA3551.1) /
** Voltage measured without workload. Initial battery
voltage reaches Maximum of 20 volts. Nominal
voltage is 18 volts.
NOISE INFORMATION
A weighted sound pressure LpA: 76dB(A)
A weighted sound power LwA: 87dB(A)
KpA&KwA 3.0dB(A)
Wear ear protection when sound
pressure is over 80dB(A)
VIBRATION INFORMATION
Vibration total values (triax vector sum) deter-
mined according to EN 62841:
Typical weighted
vibration
Vibration emission value
ah = 3,57m/s2
Uncertainty K = 1.5m/s²
The declared vibration total value and the declared
noise emission value have been measured in
accordance with a standard test method and may be
used for comparing one tool with another.
The declared vibration total value and the declared
noise emission value may also be used in a
preliminary assessment of exposure.
WARNING: The vibration and noise
emissions during actual use of the power tool
can differ from the declared value depending on the
ways in which the tool is used especially what kind of
workpiece is processed dependant on the following
examples and other variations on how the tool is
used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well
maintained.
The use of the correct accessory for the tool and
ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any
anti vibration and noise accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
WARNING: To be accurate, an estimation of
exposure level in the actual conditions of use
should also take account of all parts of the operating
cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the
job.This may significantly reduce the exposure level
over the total working period.
Helping to minimise your vibration and noise
exposure risk.
Always use sharp chisels, drills and blades.
Maintain this tool in accordance with these
instructions and keep well lubricated (where
appropriate).
If the tool is to be used regularly then invest in anti
vibration and noise accessories.
Plan your work schedule to spread any high vibration
tool use across a number of days.

6
Oscillating Tool EN
SAFETY INSTRUCTION FOR
CUTTING
Hold power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like paper
clips, coins, keys, nails, screws or other small
metal objects, that can make a connection from
one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not
allow the liquid to come into contact
with the skin or eyes. If contact has been
made, wash the affected area with copious
amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
i) Battery pack needs to be charged before
use. Always refer to this instruction and
use the correct charging procedure.
j) Do not maintain battery pack on charge
when not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance
when it is operated at normal room
temperature (20°C ± 5°C).
m) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
n) Recharge only with the charger specified
by WORX. Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
o) Do not use any battery pack which is not
designed for use with the equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature for
future reference.
r) Remove the battery from the equipment
when not in use.
s) Dispose of properly.

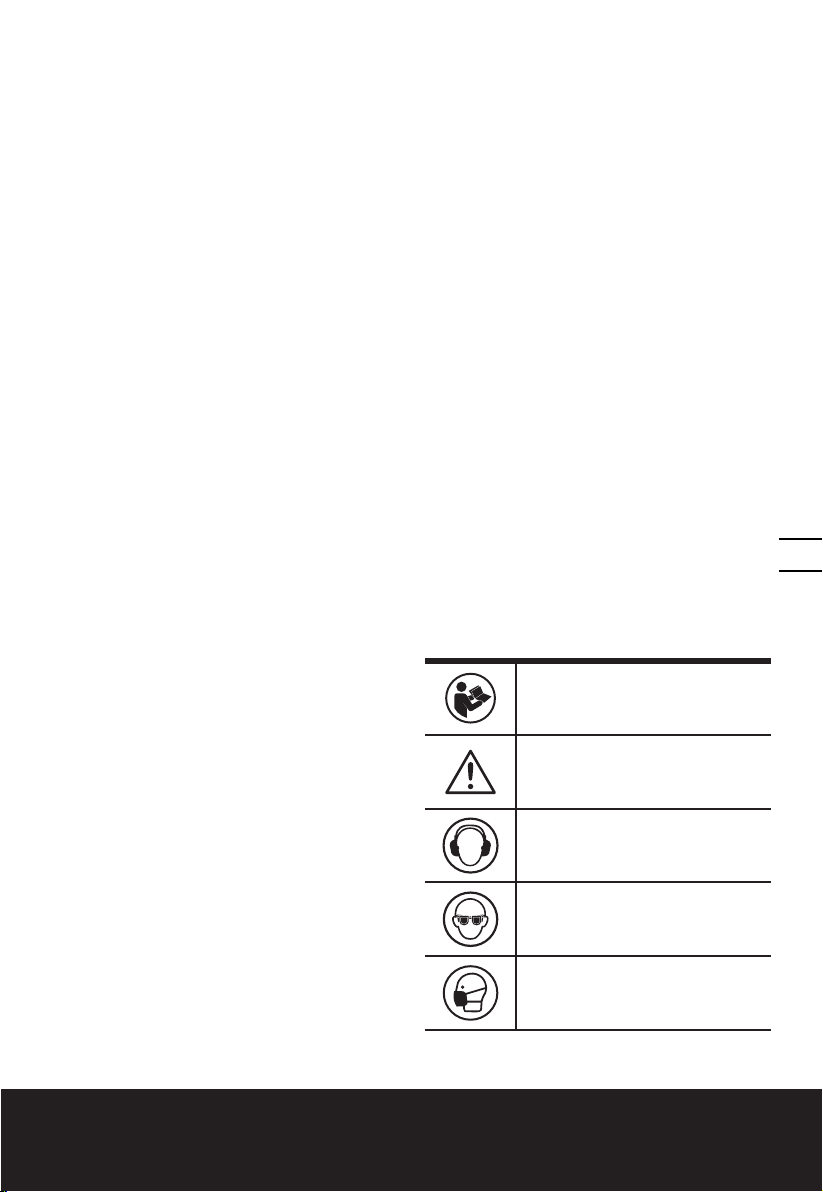

SYMBOLS
To reduce the risk of injury, user
must read instruction manual
Warning
Wear ear protection
Wear eye protection
Wear dust mask
Do not dispose of batteries.
Return exhausted batteries to your
local collection or
recycling point.
Do not expose to rain or water
Do not burn
Avoid danger of injury from the
sharp edges of the accessories.

7
Oscillating Tool EN
Accessories can become very hot
while working, presenting danger
of burns!
Make sure the battery is
removed prior to changing
accessories.
Wear protective gloves
High oscillation frequency.
Low oscillation frequency.
- - -
- - -
=
LED light is a battery capacity
indicator and will flash when power
gets low .
Waste electrical products should
not be disposed of with household
waste. Please recycle where fa-
cilities exist. Check with your Local
Authority or retailer for recycling
advice.
xINR18/65-y: Cylindrical lithium Ion battery
cells with max diameter of 18mm and max
height of 65mm; “x” represents a number cells
serial connected, blank if 1; “-y” represents a
number of cells paralleled connected, blank if 1.
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.
INTENDED USE:
The power tool is intended for sawing and
remodelling wooden materials, plastic, plaster, non-
ferrous metals and fasteners (e.g. nails and clamps)
as well as for working on soft wall tiles and for dry
grinding of small surfaces. It is especially suitable for
working close to edges and for flush cutting.
ASSEMBLY AND OPERATION
Action Figure
Mounting accessories See Fig. A-C
Mounting the sanding sheet See Fig. D
Operating the on/off switch See Fig. E
Using the variable speed dial See Fig. F
Remove or install battery pack See Fig. G
LED Light See Fig. H
The Variable Speed Dial can be used to set the
optimum oscillating frequency according to the
accessories used and the respective application.
Oscillation
frequency Application
High oscillation
frequency:
Sanding, Sawing, Rasping
and Polishing Stone and
Metal.
Low oscillation
frequency: Scraping, Polishing Varnishes.

8
Oscillating Tool EN
APPLICATION
WARNING: The sawing teeth are very sharp. Do not touch during mounting and application.
The workpiece must be clamped tightly before it is cut.
Pic Description Application
Sawing
Universal Metal/Wood End Cut
Blade
Wood, plastic, fiberglass, nails,
non-ferrous metals, thin sheet
metal, hardened fillers
Standard Wood End Cut Blade Wood, plastic, drywall
Precision Wood Cut Blade Wood, soft plastics
HSS Semicircle Saw Blade
Thin wood, plastic, fiberglass,
non-ferrous metals, thin sheet
metal, hardened fillers, window
glazing
Sanding
Sanding Pad (Perforated) Wood, plastic, hardened fillers
Sanding Finger Pad Wood, plastic, hardened fillers
Rasping
Triangular Carbide Grit Rasp Wood, hardened adhesives, thin
set, masonry
Carbide Rasp (Finger Shaped) Wood, hardened adhesives, thin
set, masonry
Removing
grout
Carbide Grit Semicircle Saw Blade Grout, porous concrete, masonry
Diamond-Coated Semicircle Saw
Blade Ceramic and stone tile, backerboard
Scraping
Rigid Scraper Blade Old paint, hardened adhesives,
caulk, carpet
Flexible Scraper Blade Elastic sealants, paint, adhesive
residues, carpet
We recommend that you purchase your accessories listed in the above list from the same store that sold you the
tool. Refer to the accessory packaging for further details. Store personnel can assist you and offer advice.

9
Oscillating Tool EN
NOTE: When plunging and sawing use a slight
pendulum motion, to allow sufficient chip removal.
The saw blade lasts longer if the wear is distributed
evenly.
To ensure an even distribution, loosen the saw blade,
rotate it and retighten firmly.
Cut/Sand with a constant movement and light pressure.
Heavy pressure does not increase the cut/removal rate
– the accessory merely wears faster.
WORKING HINTS FOR YOUR
TOOL
If your power tool becomes too hot, especially when
used at low speed, set the speed to maximum and run
it with no load for 2-3 minutes to cool the motor. Avoid
prolonged usage at very low speeds. Always keep the
blade sharp.
Always ensure the workpiece is firmly held or clamped
to prevent movement.
Any movement of the material may affect the quality
of the cutting or sanding finish.
Start your tool before working and turn it off only after
you stop working.
Do not start sanding without having the sandpaper
fitted.
Do not allow the sandpaper to wear away , it will
damage the sanding pad.The guarantee does not
cover sanding pad wear and tear.
Use coarse grit paper to sand rough surfaces, medium
grit for smooth surfaces and fine grit for finishing
surfaces. If necessary, first make a test run on scrap
material.
Excessive force will reduce the working efficiency
and cause motor overload. Replacing the accessory
regularly will maintain optimum working efficiency.
MAINTAIN TOOLS WITH
CARE
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts in
your power tool. Never use water or chemical cleaners
to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry place. Keep
the motor ventilation slots clean. Keep all working
controls free of dust.
The ambient temperature range for tool and battery
use and storage is 0
o
C-45
o
C.
The recommended ambient temperature range for the
charging system during charging is 0
o
C-40
o
C.
ENVIRONMENTAL
PROTECTION
Waste electrical products should not be
disposed of with household waste. Please
recycle where facilities exist. Check with your
Local Authority or retailer for recycling advice.
DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH Konrad-Adenauer-Ufer 37
50668 Köln
Declare that the product,
Description WORX Sonicrafter®
Type WX693 WX693.9 (6-designation of
machinery, representative of high frequency
oscillation tool)
Function Sanding, sawing, rasping, scraping,
polishing
Complies with the following Directives,
2006/42/EC
2011/65/EU
2014/30/EU
Standards conform to
EN 62841-1
EN 62841-2-4
EN 55014-1
EN 55014-2
The person authorized to compile the technical file,
Name Russell Nicholson
Address Positec Power Tools (Europe)Ltd, PO
Box 6242 Newbury RG14 9LT UK
Suzhou 2017/03/30
Allen Ding
Deputy Chief Engineer,Testing & Certification

Oszillationswerkzeug D
1110
1. HYPERLOCK™ ZUSATZ-SPANNHEBEL
2. EIN/AUS-SCHALTER
3. VARIABLER GESCHWINDIGKEIT
4. LÜFTUNGSSCHLITZE
5. UNIVERSAL FIT ZUBEHÖRSCHNITTSTELLE*
6. KLEINER FLANSCH (FÜR SCHLEIFPADS
ANDERER MARKEN)
7. FLANSCH
* Funktioniert mit dem Zubehör von anderen
oszillierenden Markenwerkzeugen
Die folgenden kompatiblen Marken sind
Warenzeichen, die im Eigentum Dritter stehen und
von den jeweiligen Eigentümern eingetragen sein
können: Black & Decker®, Bosch®, Chicago Electric®,
Craftsman®, Dremel®, Fein®, Genesis®, Makita®,
Mastercraft®, Milwaukee®, Performax®, Porter Cable®,
Ridgid®, Ryobi®, Skil®, andTool Shop®.
Abgebildetes oder beschriebenes Zubehör
gehört teilweise nicht zum Lieferumfang.
TECHNISCHE DATEN
Typ WX693 WX693.9 (6- Bezeichnung der
Maschine, Repräsentant des Hochfrequenz-
Multifunktionswerkzeug )
WX693 WX693.9
Nennspannung 20V Max**
Schwingfrequenz 8000-18000/min
Schwingwinkel 4°
Akkukapazität 2.0Ah
Aufladezeit 1hr /
Gewicht 1.3kg 1.0kg
Ladegerät 1 (WA3860) /
Akkupack 1 (WA3551.1) /
** Spannung ohne Arbeitslast gemessen.
Anfangsakkuspannung erreicht maximal 20 Volt.
Nennspannung ist 18 Volt.
INFORMATIONEN ÜBER LÄRM
Gewichteter Schalldruck: LpA: 76dB(A)
Gewichtete Schallleistung: LwA: 87dB(A)
KpA&KwA 3.0dB(A)
Tragen Sie bei einem Schalldruck
über einen Gehörschutz 80dB(A)
INFORMATIONEN ÜBER
VIBRATIONEN
Vibrationsgesamtmesswertermittlung gemäß
EN 62841:
Typischer gewichteter
Vibrationswert
Vibrationsemissionswert
ah= 3,57m/s2
Unsicherheit K = 1.5m/s²
Der angegebene Vibrationsgesamtwert kann und der
angegebene Vibrationsemissionswert wurden gemäß
Standardprüfverfahren gemessen und können zum
Vergleichen einesWerkzeug mit einem anderen
verwendet werden.
Der angegebene Vibrationsgesamtwert und der
angegebene Vibrationsemissionswert können auch
für eine anfängliche Beurteilung der Beeinträchtigung
verwendet werden.
WARNUNG: Die Vibrations- und
Lärmemissionen bei der eigentlichen Nutzung
des Elektrowerkzeugs können vom angegebenen
Wert abweichen, je nachdem, wie dasWerkzeug
verwendet wird und insbesondere abhängig davon,
welcher Werkstücktyp verarbeitet wird, und abhängig
von folgenden Beispielen und verschiedenen
Einsatzmöglichkeiten des Werkzeugs:
Wie das Werkzeug verwendet wird und Materialen
geschnitten oder angebohrt werden.
Das Werkzeug ist in gutem Zustand und gut gepflegt
Verwendung des richtigen Zubehörs für das Werkzeug
und Gewährleistung seiner Schärfe und seines guten
Zustands.
Die Festigkeit des Griffs auf den Handgriffen und, falls
Antivibrations- und Lärmschutzzubehör verwendet
wird.
Und ob das verwendete Werkzeug dem Design und
diesen Anweisungen entsprechend verwendet wird.
Wird dieses Werkzeug nicht anemessen
gehandhabt, kann es ein Hand-Arm-
Vibrationssyndrom erzeugen.
WARNUNG: Um genau zu sein, sollte ein
Abschätzung des Belastungsgrades aller
Arbeitsabschnitte während tatsächlicherVerwendung
berücksichtigt werden, z.B. die Zeiten, wenn das
Werkzeug ausgeschaltet ist, und wenn es sich im
Leerlauf befindet und eigentlich nicht eingesetzt wird.
Auf diese Weise kann der Belastungsgrad während
der gesamten Arbeitszeit wesentlich gemindert
werden.
Hilft dabei, das Risiko derVibrations- und
Lärmbelastung zu minimieren.
