2-in-1 Grass Trimmer/Edger EN
9
ORIGINAL INSTRUCTIONS
PRODUCT SAFETY
GENERAL SAFETY WARNINGS
WARNING: Read all
safety warnings and all
instructions. Failure to follow
the warnings and instructions
may result in electric shock, fire
and/or serious injury.
Save all warnings and
instructions for future
reference.
The appliance is only to be used
with the power supply unit
provided with the appliance.
IMPORTANT
READ CAREFULLY BEFORE
USE
KEEP FOR FUTURE
REFERENCE
SAFE OPERATING
PRACTICES
1. TRAINING
a) Read the instructions
carefully. Be familiar with
the controls and the correct
use of the machine.
b) Never allow children,
persons with reduced
physical, sensory or mental
capabilities or lack of
experience and knowledge
or people unfamiliar with
these instructions to use the
machine, local regulations
may restrict the age of the
operator.
c) Keep in mind that the
operator or user is
responsible for accidents or
hazards occurring to other
people or their property.
2. PREPARATION
a) Before use, always visually
inspect the machine for
damaged, missing or
misplaced guards or shields.
b) Never operate the machine
while people, especially
children, or pets are nearby.
3. OPERATION
a) Wear eye protection, long
trousers and stout shoes at
all times while operating the
machine.
b) Avoid using the machine
in bad weather conditions
especially when there is a
risk of lightning.
c) Use the machine only in
daylight or good artificial
light.
d) Never operate the machine
with damaged guards or
shields or without guards or
shields in place.

2-in-1 Grass Trimmer/Edger EN
10
e) Switch on the motor only
when the hands and feet
are away from the cutting
means.
f) Always disconnect the
machine from the power
supply (e.g. remove the
battery pack from the
machine)
1) whenever the machine is
left unattended;
2) before clearing a
blockage;
3) before checking, cleaning
or working on the machine;
4) after striking a foreign
object;
5) whenever the machine
starts vibrating abnormally.
g) Take care against injury to
feet and hands from the
cutting means. h) Always
ensure that the ventilation
openings are kept clear of
debris.
i) Never fit metal cutting
elements.
j) Always be sure of your
footing on slopes.
k) Walk, never run.
l) Not overreach and keep the
balance at all times.
m)
Not to touch moving
hazardous parts before
removing the battery pack
from the machine and the
moving hazardous parts have
come to a complete stop.
4. MAINTENANCE AND
STORAGE
a) Disconnect the machine
from the power supply (e.g.
remove the battery pack
from the machine) before
carrying out maintenance or
cleaning work.
b) Use only the manufacturer’s
recommended replacement
parts and accessories.
c) Inspect and maintain the
machine regularly. Have the
machine repaired only by an
authorized repairer.
d) When not in use, store the
machine out of the reach of
children.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open
or shred cells or battery
pack.
b) Do not short-circuit a
battery pack. Do not
store battery packs
haphazardly in a box or
drawer where they may
short-circuit each other
or be short-circuited by
conductive materials.
When battery pack is not

2-in-1 Grass Trimmer/Edger EN
11
in use, keep it away from
other metal objects, like
paper clips, coins, keys,
nails, screws or other small
metal objects, that can make
a connection from one
terminal to another. Shorting
the battery terminals
together may cause burns or
a fire.
c) Do not expose battery
pack to heat or fire.
Avoid storage in direct
sunlight.
d) Do not subject battery
pack to mechanical
shock.
e) In the event of battery
leaking, do not allow
the liquid to come into
contact with the skin or
eyes. If contact has been
made, wash the affected
area with copious
amounts of water and
seek medical advice.
f) Seek medical advice
immediately if a cell or
battery pack has been
swallowed.
g) Keep battery pack clean
and dry.
h) Wipe the battery pack
terminals with a clean
dry cloth if they become
dirty.
i) Battery pack needs to
be charged before use.
Always refer to this
instruction and use
the correct charging
procedure.
j)
Do not maintain battery
pack on charge when not
in use.
k) After extended periods
of storage, it may be
necessary to charge and
discharge the battery
pack several times
to obtain maximum
performance.
l) Battery pack gives its
best performance when
it is operated at normal
room temperature (20°C
± 5°C).
m)When disposing of
battery packs, keep
battery packs of different
electrochemical systems
separate from each
other.
n) Recharge only with the
charger specified by
WORX. Do not use any
charger other than that
specifically provided for
use with the equipment.
A charger that is suitable for
one type of battery pack may
create a risk of fire when

2-in-1 Grass Trimmer/Edger EN
12
used with another battery
pack.
o) Do not use any battery
pack which is not
designed for use with
the equipment.
p) Keep battery pack out of
the reach of children.
q) Retain the original
product literature for
future reference.
r) Remove the battery from
the equipment when not
in use.
s) Dispose of properly.
SYMBOL
Read operator’s manual
Do not expose to rain or water
Do not burn
Wear eye and ear protection
Keep bystanders away
Do not expose to rain
Wear protective gloves
Waste electrical products
must not be disposed of with
household waste. Please recycle
where facilities exist. Check with
your local authorities or retailer
for recycling advice.
Edging
Trimming
Make sure the battery is removed
prior to changing accessories.
Lock
Unlock
Do not dispose of batteries,
Return exhausted batteries to
your local collection or recycling
point.

2-in-1 Grass Trimmer/Edger EN
13

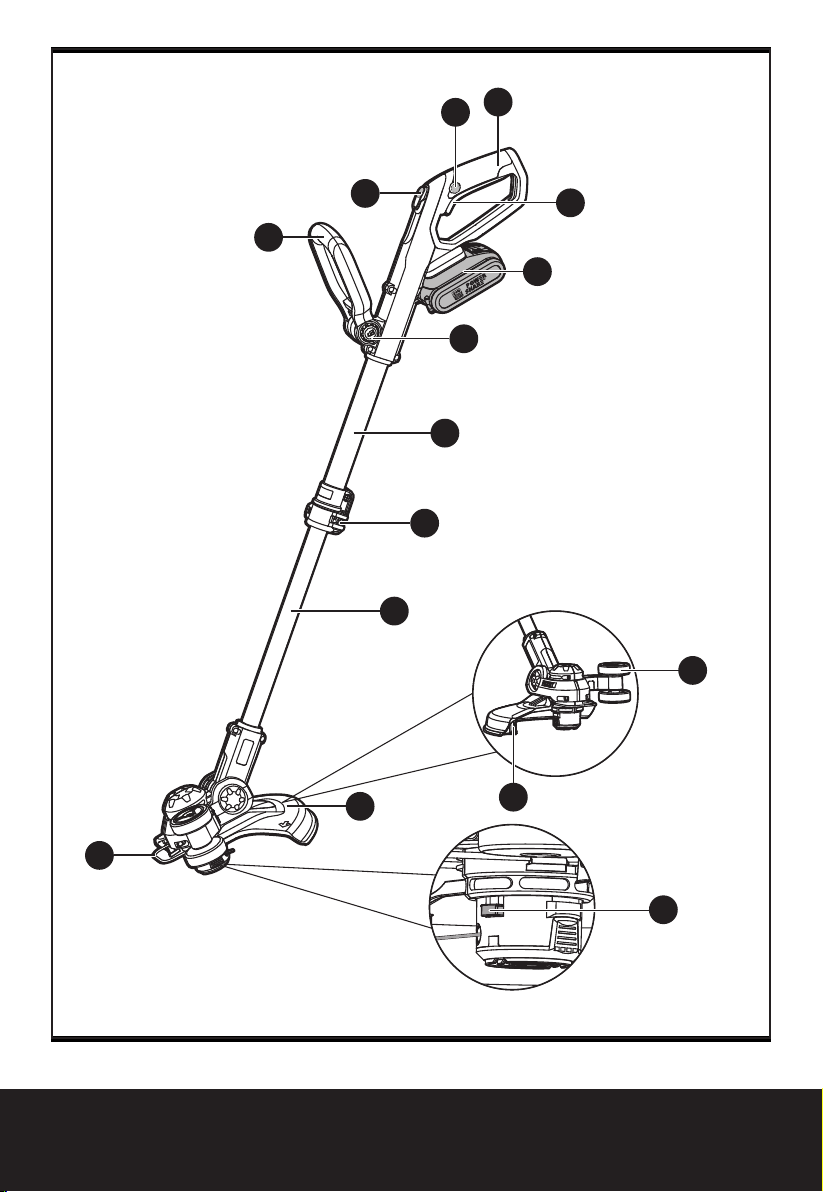

1. LOCK OFF BUTTON
2. REAR HANDLE
3. ON/OFF SWITCH
4. BATTERY PACK *
5. HANDLE UNLOCK BUTTON
6. UPPER SHAFT
7. LOCKING COLLAR
8. LOWER SHAFT
9. SAFETY GUARD
10. FLOWER GUARD
11. AUXILIARY HANDLE
12. COMMAND FEED BUTTON
13. EDGER WHEEL
14. LINE FEED BUTTON
15. LINE CUTTER
* Not all the accessories illustrated or
described are included in standard delivery.
TECHNICAL DATA
Type WG163E WG163E.1 WG163E.9
(1-designation of machinery, representative of
Battery- powered Lawn Trimmer)
WG163E
WG163E.1 WG163E.9
Voltage 20V MAX**
No load speed 7600/min
Cutting diameter 30cm
Line diameter 1.65mm
Charging time 5hr /
Machine weight 2.4kg 2kg
**Voltage measured without workload. Initial battery
voltage reaches maximum of 20 volts. Nominal
voltage is 18 volts.
NOISE DATA
A weighted sound pressure LpA = 74dB(A)
KpA 3.0dB(A)
A weighted sound power LwA = 90dB(A)
Wear ear protection
VIBRATION INFORMATION
Vibration emission value ah<1.8m/s²
Uncertainty K = 1.5m/s²
The declared vibration total value may be used for
comparing one tool with another, and may also be
used in a preliminary assessment of exposure.
WARNING! The vibration emission value
during actual use of the power tool can differ
from the declared value depending on the ways in
which the tool is used dependant on the following
examples and other variations on how the tool is used:
How the tool is used and the materials being cut or
drilled.
The tool being in good condition and well maintained.
The use the correct accessory for the tool and ensuring
it is sharp and in good condition.
The tightness of the grip on the handles and if any anti
vibration accessories are used.
And the tool is being used as intended by its design
and these instructions.
This tool may cause hand-arm vibration
syndrome if its use is not adequately managed.
WARNING! To be accurate, an estimation of
exposure level in the actual conditions of use
should also take account of all parts of the operating
cycle such as the times when the tool is switched off
and when it is running idle but not actually doing the
job.This may significantly reduce the exposure level
over the total working period.
Helping to minimize your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades.
Maintain this tool in accordance with these instructions
and keep well lubricated (where appropriate).
If the tool is to be used regularly then invest in anti
vibration accessories.
Plan your work schedule to spread any high vibration
tool use across a number of days.

2-in-1 Grass Trimmer/Edger EN
14
ACCESSORIES
WG163E WG163E.1 WG163E.9
Flower guard 1 1 1
Charger 1
(WA3760)
1
(WA3760) /
Battery pack 2
(WA3551.1)
1
(WA3551) /
Spool (WA0004) 1 1 1
Safety guard 1 1 1
Edger wheel 1 1 1
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to
the accessory packaging for further details. Store
personnel can assist you and offer advice.
ASSEMBLY AND OPERATION
NOTE: Before using the tool, read the
instruction book carefully.
Intended Use
The machine is intended for the cutting of grass and
weeds under bushes, as well as on slopes and edges
that can not be reached with the lawn mower.
WARNING!The charger and battery pack are
specially designed to work together so do not
attempt to use any other devices. Never insert or
allow metallic objects into your charger or battery
pack connections because of an electrical failure and
hazard will occur.
WARNING! Always wear the eye protection.
Never lean over the trimmer head. Rocks or
debris can ricochet or be thrown into eyes and face
and cause blindness or other serious injury. When
operating unit, check for the following:
Wear eye protection and heavy clothing. Hold front
handle with one hand and auxiliary handle with
the other hand. Keep unit below waist level. Work
only from your right to your left to ensure debris is
thrown away from you. Without bending over, keep
line near and parallel to the ground (perpendicular
when edging) and not crowded into material being
cut.
WARNING! Make sure that line is fed out
before operation. Make sure motor is up
to full speed before trimming or edging.
WARNING! Only use 1.65mm diameter
cutting line. Other sizes of line will not feed
properly and will result in improper cutting head
function or can cause serious injury. Do not use other
material such as wire, string, rope, etc. Wire can
break off during cutting and become a dangerous
projectile that can cause serious injury.
ASSEMBLY & OPERATION
Action Figure
Assembly
Assembling the Safety Guard See Fig. A1, A2
Mounting the Edger Wheel
WARNING: Make Sure
the ON/OFF Switch
is Locked Off to Prevent
Accidental Starting.
See Fig. B
Installing and Removing the
Battery Pack See Fig. C
Charging the battery pack
More details can be found in
charger’s manual
See Fig. D1
Checking the battery condition
(Only for WG163E.1 ) See Fig. D2
Operation
Safety ON/OFF Switch
WARNING! The cutting
head continues to rotate
after the trimmer has been
switched off; wait until it has
completely stopped then lay down
the tool.
See Fig. E
Trimming
- Adjusting the Shaft
WARNING! Make Sure the
ON/OFF Switch is Locked
Off to Prevent Accidental Starting.
See Fig. F
- Adjusting theTrimmer Head See Fig. G1, G2
- Adjusting the Auxiliary handle See Fig. H
-Trimming See Fig. I1
- Using the Flower Guard See Fig. I2
Edging
- Changing the tool into the
Edging mode See Fig. J1, J2
- Edging See Fig. K
Command feeding the line See Fig. L
Manually feeding the line See Fig. M

2-in-1 Grass Trimmer/Edger EN
15

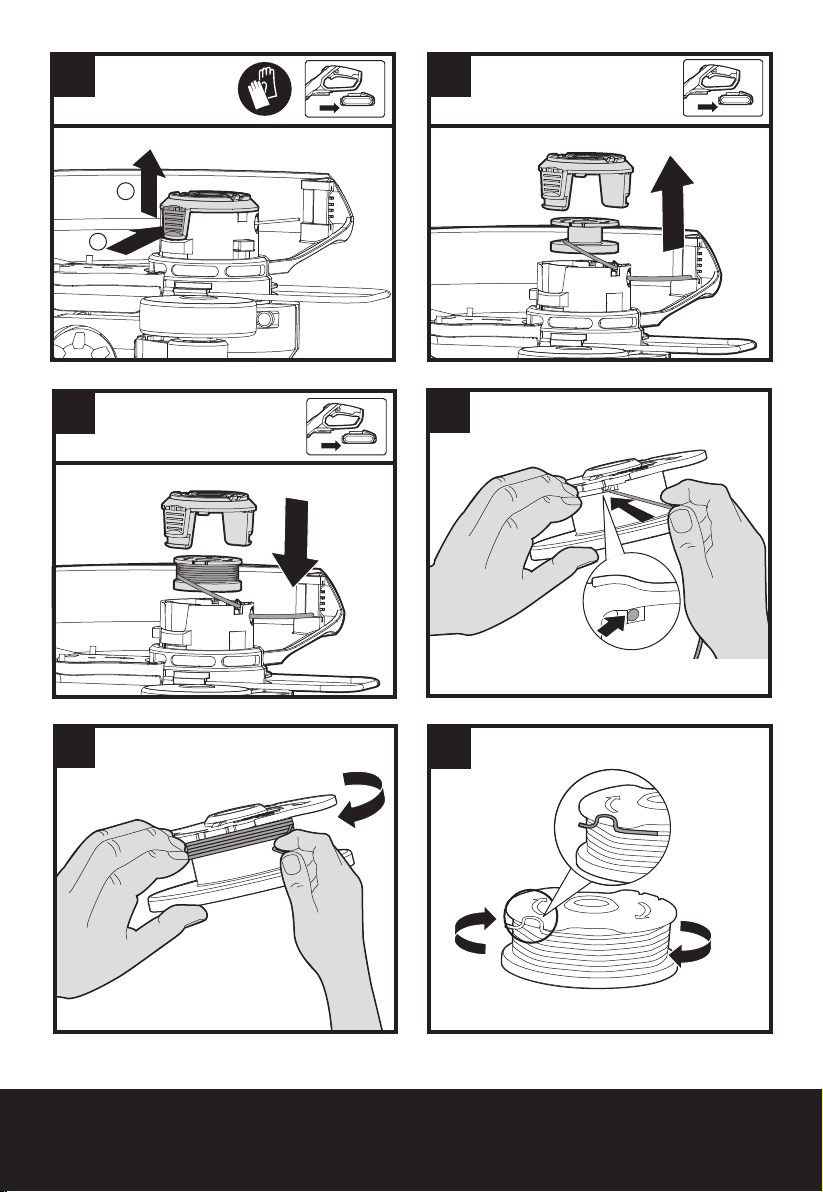

Replacing the trimmer Spool See Fig. N1, N2,
N3
Manually winding the line See Fig. O1, O2,
O3, O4
WORKING HINTS
1. AUTOMATIC LINE FEED SYSTEM
When initially switching on the trimmer, a small
length of line is fed out.
A ‘clattering’ noise will be heard when the lines hit
the Line Cutter. DO NOT BE ALARMED.This is quite
normal. After about 5 seconds the line will be cut to
the correct length and the noise will reduce as the
motor gains full speed.
If the noise of the line being cut can’t be heard, more
line will need to be fed out.
To feed more line, it is first necessary to allow the
trimmer to stop completely; it must come to a
complete rest, then restart, allowing the motor to
reach full speed.
Repeat above until you hear the line hitting against
the Line Cutter.
2. (See Fig. L)
Your grass trimmer is equipped with a Command
Feed System. Just press the button while the
machine is running, new line will feed out and then
stop when you hear the ‘clattering’ noise of the
new line being cut.The motor stops briefly when
the Command Feed button is pressed, and restarts
when released.This process enables the machine to
automatically feed out new line.
3. MANUALLY FEEDING THE LINE (See Fig. M)
Press and release manual line feed button (14), whilst
gently pull out the lines until the lines reaches the
line cutter.
If the line extends past the line cutter, too much line
has been fed out.
If too much line is fed out, remove the cutting head
cover and rotate the spool anti-clockwise until the
line is at the desired length.
MAINTENANCE
After use, disconnect the battery from the tool and
check for damage.
Your power tool requires no additional lubrication
or maintenance.There are no user serviceable parts
in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a
dry cloth. Always store your power tool in a dry room
temperature location. Keep the motor ventilation
slots clean. Keep all working controls free of dust.
ENVIRONMENTAL
PROTECTION
Waste electrical products must not be disposed
of with household waste. Please recycle where
facilities exist. Check with your local authorities
or retailer for recycling advice.

2-in-1 Grass Trimmer/Edger EN
16
TROUBLESHOOTING
The following table gives problems and actions that you can perform if your machine does not operate
correctly.
WARNING: Switch the machine off and remove the battery prior to any troubleshooting.
Problems Possible Causes Corrective Action
Trimmer fails to
operate.
Battery discharged.
Battery too hot/cold.
Motor is broken.
Internal wiring of machine damaged.
Recharge battery; also see
the content in charger manual.
Allow to cool/warm.
Contact Service Agent.
Contact Service Agent.
Trimmer runs
intermittently.
Motor is broken.
Battery not fully charged.
On/Off switch defective.
Contact Service Agent.
Recharge battery.
Contact Service Agent.
Excessive vibrations/
noise.
Machine defective.
Line spool is not wound well.
Contact Service Agent.
Rewind the line. See “MANUALLY
WINDINGTHE LINE” (Fig. O1, O2,
O3, O4).
Cutting time per
battery charge too
short.
Battery has not been used for long
period or only charged for short term.
Grass too high.
Battery defective.
Recharge battery; also see
the content in charger manual.
Cut in stages.
Replace the battery.
Machine does not cut. Line broken.
Battery not fully charged.
Motor is broken (speed is too low).
Grass entangled around cutting head.
Replace the line.
Recharge battery; also see
the content in charger manual.
Contact Service Agent.
Remove grass.
Continuous lighting
of the battery charge
indicator.No charging
procedure possible.
Battery not (properly) inserted.
Battery contacts contaminated.
Battery defective.
Properly insert battery into battery
charger.
Clean the battery contacts or replace
the battery.
Replace the battery.
Battery charge
indicator does not
light up.
Plug of battery charger not plugged in
(properly).
Socket outlet, mains cable or battery
charger defective.
Insert mains plug (fully) into the
socket outlet.
Check the mains voltage; have
the battery charger checked by an
authorized after-sales service agent.
Auto Feed/Command
feed does not work
Cutting line is not wound well.
The line is tangled.
Line is used up.
Manually feed the line, if still cannot
feed out, remove the Spool out and
rewind the line.
Replace with a new spool of line.

2-in-1 Grass Trimmer/Edger EN
17
DECLARATION OF
CONFORMITY
We,
POSITEC Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
Declare that the product
Description Battery-powered Grass Trimmer
Type WG163E WG163E.1 WG163E.9
(1-designation of machinery, representative of
Battery- powered Lawn Trimmer)
Function Cutting grass and similar soft
vegetation and for trimming grass edges
Complies with the following Directives:
2006/42/EC, 2014/30/EU, 2011/65/EU,
2000/14/EC amended by 2005/88/EC
2000/14/EC amended by 2005/88/EC:
- Conformity Assessment Procedure as per
Annex VI
- Measured Sound Power Level 86dB(A)
- Declared Guaranteed Sound Power Level 90dB(A)
The notified body involved
Name: Intertek Testing & Certification Ltd
(notified body 0359)
Address: Davy Avenue, Knowlhill, Milton
Keynes, MK5 8NL
Standards conform to
EN 60335-1
EN 50636-2-91
EN 62233
EN ISO 3744
EN 55014-1
EN 55014-2
The person authorized to compile the technical file,
Name Marcel Filz
Address Positec Germany GmbH
Grüner Weg 10, 50825 Cologne, Germany
2018/01/10
Allen Ding
Deputy Chief Engineer,Testing & Certification
PositecTechnology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

18
 RU
Д
ОРИГИНАЛЬНЫХ










Невыполнение всех
нижеприведенных инструкций
и рекомендаций может
привести к поражению
электрическим током, пожару и
серьезным травмам.


Данное изделие должно
использоваться только с
входящим в комплект поставки
блоком питания.















a) Внимательно прочитайте
инструкцию. Ознакомьтесь
с регуляторами
и правильным
использованием
оборудования
b) Не позволяйте детям,
лицам с ограниченными
физическими или
умственными
способностями, лицам с
недостаточным опытом и
знаниями, а также лицам,
не ознакомленным с этой
инструкцией, пользоваться
этим устройством; кроме
того, местные законы могут
ограничивать возраст
оператора.
c) Оператор или пользователь
ответственен за несчастные
случаи и ущерб,
нанесенный другим лицам
или их имуществу.

a) Перед использованием
всегда визуально
проверьте оборудование
на предмет повреждений,
отсутствующих или
защитных кожухов или
щитков.

19
 RU
b) Никогда не пользуйтесь
триммером, если
поблизости находятся
другие люди, в особенности
дети, или домашние
животные.

a) В процессе работы с
оборудованием надевайте
защиту для глаз, длинные
брюки и прочную обувь.
b) Не работайте с триммером
при плохих погодных
условиях, в частности,
когда собирается гроза.
c) Работайте только при
дневном освещении или
хорошем искусственном
освещении.
d) Никогда не работайте
с триммером, если
отсутствуют или
повреждены крышки или
защитные приспособления
или если они неправильно
установлены.
e) Включайте садовый
инструмент, только когда
Ваши руки и ноги находятся
на достаточном расстоянии
от режущих ножей.
f) Всегда отключайте
оборудование от источника
электропитания (т. е.
вытащите вилку из розетки)
1) Всегда перед тем,
как оставить садовый
инструмент без присмотра;
2) Перед устранением
засорений;
3) Перед очисткой или
работами на триммере;
4) После столкновения с
посторонним предметом;
5) Если оборудование
начинает необычно
вибрировать.
g) Примите меры по
предотвращению травм
ног и рук режущими
устройствами.
h) Постоянно следите за
чистотой вентиляционных
шлицев.
i) Никогда не используйте
металлические режущие
элементы для этого
триммера.
j) Будьте осторожны на
склонах.
k) Не бегайте с триммером
l) Всегда сохраняйте
устойчивое положение
и равновесие. Не
перенапрягайтесь.
m) Не прикасайтесь к опасным
движущимся частям до
того, как оборудование
будет отключено от
источника электропитания и
опасные движущиеся части

20
 RU
полностью не остановятся.


a) Перед тем, как проводить
техническое обслуживание
или чистку оборудования,
отключайте его от
источника электропитания
(т. е. вытаскивайте вилку из
розетки).
b) Используйте только
рекомендованные
производителем запасные
части и принадлежности.
c) Регулярно проверяйте
триммер и выполняйте
работы по его
техобслуживанию.
Отдавайте триммер
в ремонт только в
авторизированные
сервисные мастерские.
d) Если Вы не пользуетесь
триммером, храните его
в недоступном для детей
месте.























Если
аккумуляторная батарея
не используется,
держите ее подальше от
металлических предметов,
таких как зажимы, монеты,
гвозди, винты и прочие
металлические предметы
небольшого размера,
которые могут соединить
клеммы друг с другом.
Короткое замыкание
клемм батареи может
стать причиной ожогов или
пожара.




