WowWee ROBORAPTOR X User manual

USER MANUAL
ITEM NO.: 8395
8+

1
TABLE OF CONTENTS
Roboraptor X™ Overview................................................................................................................................................................. 2
Controller Index ............................................................................................................................................................................... 3
Battery Details.................................................................................................................................................................................. 4
Basic Operation............................................................................................................................................................................... 5
Advanced Operation........................................................................................................................................................................ 6
Free-Roam & Guard Modes ................................................................................................................................................... 6
Controlling Roboraptor X™’s moods ....................................................................................................................................... 7
Touch Sensors ....................................................................................................................................................................... 7
Sound & Vision Sensors......................................................................................................................................................... 8
Obstacle Avoidance .............................................................................................................................................................. 9
Understanding your Roboraptor X™.................................................................................................................................................. 9
IR Dongle ........................................................................................................................................................................................ 9
Warranty ...................................................................................................................................................................................... 10

OFF
ON
2
ROBORAPTOR X™ OVERVIEW
RObORapTOR X
™
Tail Touch Sensors
Stereo Sound Sensors
Chin Touch
Sensor
Mouth Touch
Sensor
Infrared Vision
Sensors
bOTTOM VIEw
Battery
Compartment
Press once to turn
power ON

3

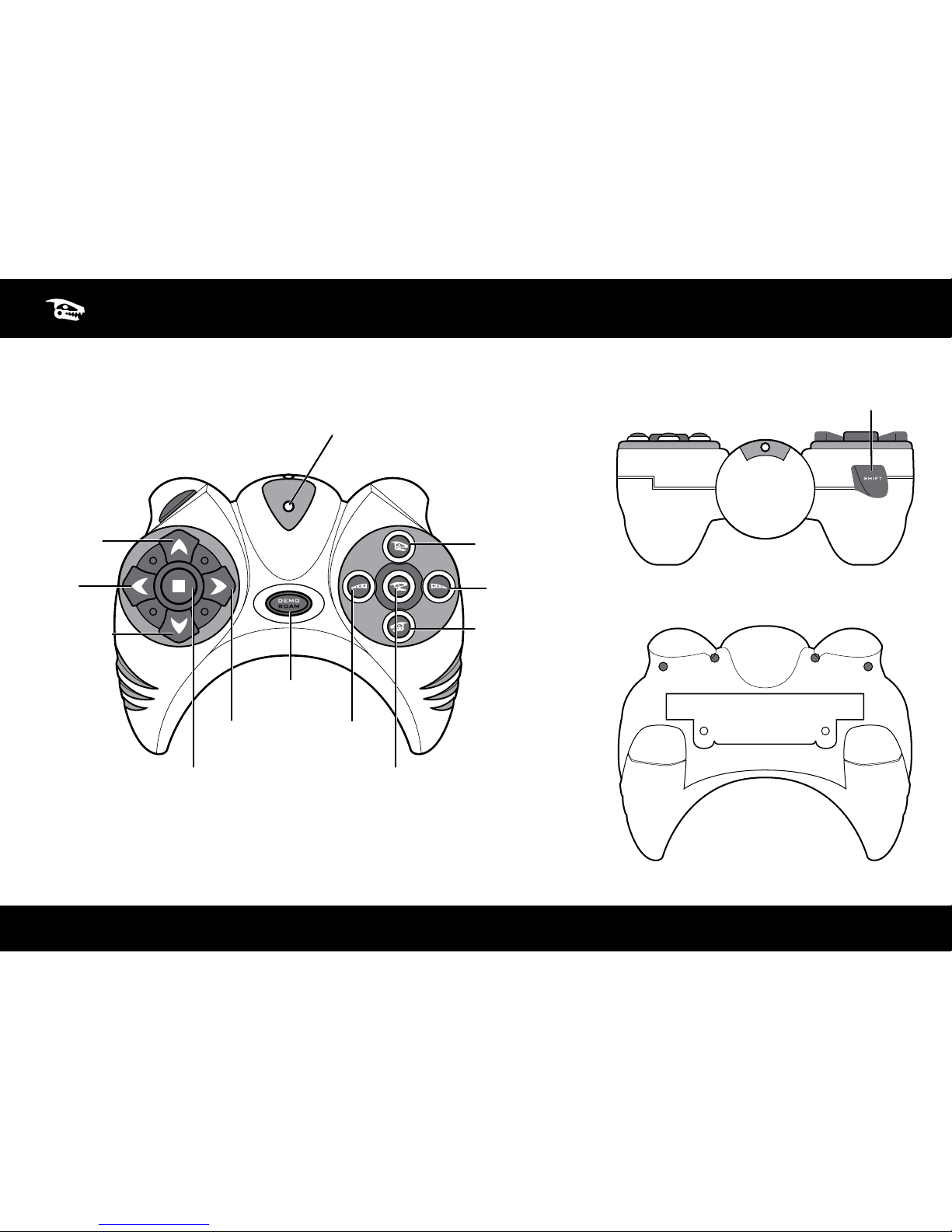

CONTROLLER INDEX
REMOTE
CONTROllER
Shift
TOp VIEw
FRONT VIEw
Forward
Backward
Turn
Left
Demo/
Roam
Turn
Right
Tail Left/
Cautious Mood
baCk VIEw
Battery
Compartment
Stop
Head Clockwise/
Hunting Mood
Tail Right/
Playful Mood
Head
Counterclockwise
Bite/
Guard Mode
Signal Indicator Light

1.5V LR03
UM4 “AAA”
1.5V LR03
UM4 “AAA”
1.5V LR03
UM4 “AAA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
1.5V LR6 UM3 “AA” 1.5V LR6 UM3 “AA”
4
BATTERY DETAILS
baTTERy REquIREMENTs:
Your Roboraptor X™ is powered by 6 x “AA” size batteries (not included).
Your Remote Controller is powered by 3 x “AAA” size batteries (not included).
Your Infra-red Dongle is powered by 3 x “LR44” batteries (included).

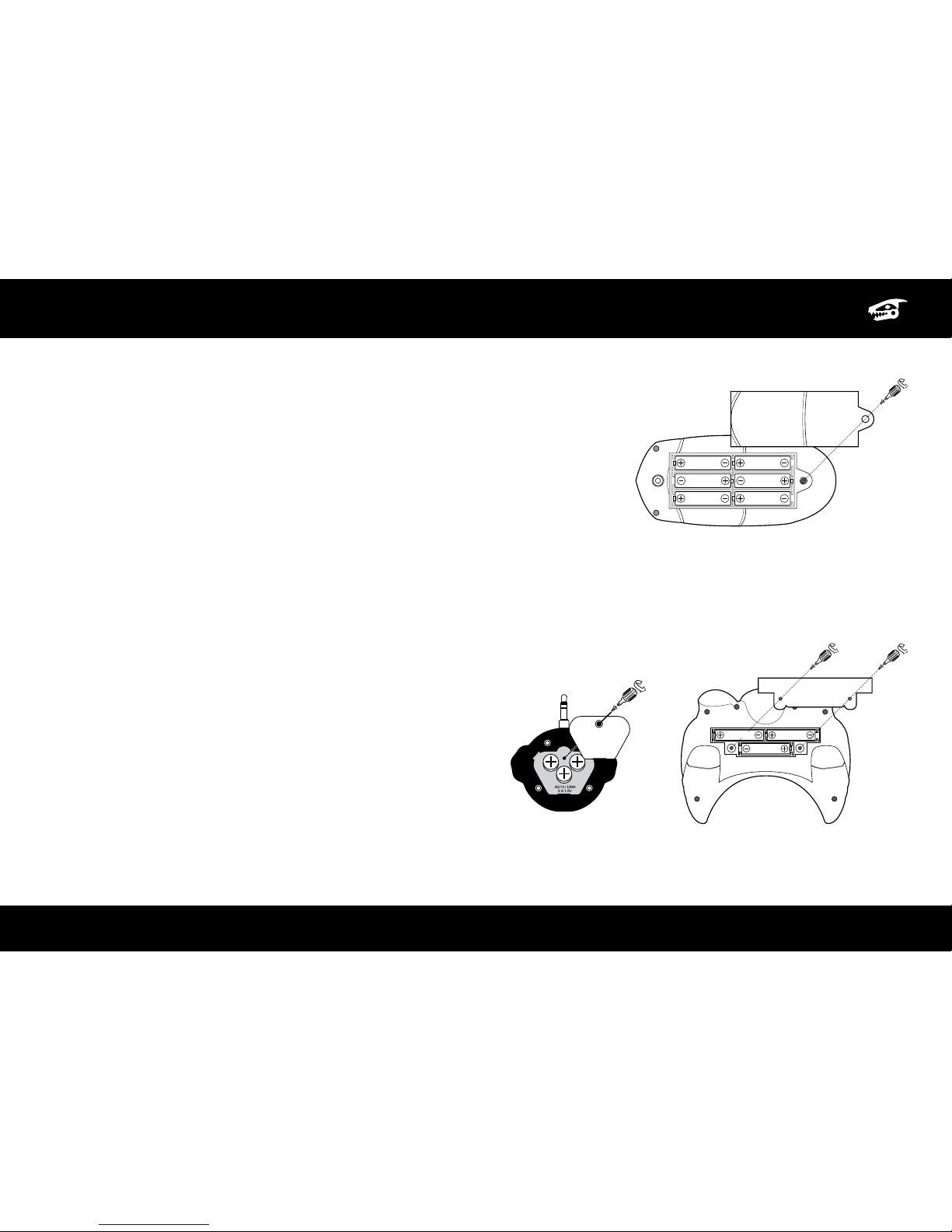

baTTERy INsTallaTION:
1. Before installing or changing batteries, ensure the Roboraptor X™’s ON/OFF button
is in the OFF position.
2. Remove the battery compartment covers using a Phillips or crosshead screwdriver
(not included).
3. Insert batteries (not included) into the Roboraptor X™ and controller as shown in
the diagrams.
4. Replace the battery compartment covers and the screws.
aTTENTION: IMpORTaNT baTTERy INFORMaTION
• Use only fresh batteries of the required size and recommended type.
• Do not mix old and new batteries, different types of batteries (Standard (Carbon zinc),
alkaline, or rechargeable), or rechargeable batteries of different capacities.
• Remove rechargeable batteries from the toy before recharging them.
• Rechargeable batteries are only to be charged under adult supervision.
• Please respect the correct polarity, (+) and (-).
• Do not try to charge non-rechargeable batteries.
• Do not dipose of batteries into re.
• Replace all batteries of the same type/brand at the same time.
• The supply terminals are not to be short-circuited.
• Remove exhausted batteries from the toy.
• Batteries should be replaced by adults because of small parts.
• Remove batteries if the toy is not going to be played with for some time.
• The packaging has to be kept since it contains important information.
baCk VIEw
OF ThE REMOTE CONTROllER
INFRa-REd dONglE
bOTTOM VIEw
OF ThE RObORapTOR X™

5
BASIC OPERATION
Turn on Roboraptor X™ using the On/Off button (Refer to page 2 “Roboraptor X™ Overview”). Roboraptor X™ can then be controlled directly
using the buttons on the remote controller.
These instructions assume that you and the Roboraptor X™ are facing each other.
• Hunting Gait x1: Push “Forward” once to make RoboraptorX™
move forward using his slow predatory hunting walk.
• Walking Gait x2: While Roboraptor X™ is moving forward
in his hunting gait, push “Forward” again to make Roboraptor X™
move forward using his normal walking speed.
• Running Gait x3: While Roboraptor X™ is moving forward in
his walking gait, push “Forward” again to make Roboraptor X™
move forward using his running top speed.
• Backward x1: Push “Backward” to make Roboraptor X™
move backward.
• Turn Left x1: Push “Turn Left” once to make Roboraptor X™
turn left in place (from your point of view).
• Turn Right x1: Push “Turn Right” once to make Roboraptor X™
turn right in place (from your point of view).
• Walk Left x2: While Roboraptor X™ is turning left, push “Turn
left” again to make Roboraptor X™ walk a wide arc to the left
(from your point of view).
• Walk Right x2: While Roboraptor X™ is turning right, push
“Turn Right” again to make Roboraptor X™ walk a wide arc to the
right (from your point of view).
• Stop : Push “Stop” to make Roboraptor X™ stop whatever
he is doing.
• Head Clockwise : Push “Head Clockwise” to make
RoboraptorX™ rotate his head in a clockwise direction (from your
point of view). Press the button four times to complete a full rotation.
• Head Counterclockwise : Push “Head Counterclockwise”
to make Roboraptor X™ rotate his head in a counterclockwise
direction (from your point of view). Press the button four times to
complete a full head rotation.
• Tail Left : Push “Tail Left” to make Roboraptor X™ move his
head and tail to the left (from your point of view).
• Tail Right : Push “Tail Right” to make Roboraptor X™ move his
head and tail to the right (from your point of view).
• Bite : Push “Bite / Guard Mode” to make Roboraptor X™
perform a bite.
• Demo DEMO
ROAM : Push “Demo / Roam” to make Roboraptor X™
perform a demo sequence.

6
ADVANCED OPERATION
FREE-ROaM MOdE
Roboraptor X™ will start to explore his environment autonomously in Free-Roam Mode if left
alone for more than three minutes. You can also put Roboraptor X™ into Free-Roam Mode
manually by pressing “Shift”
SHIFT
and “Demo / Roam” DEMO
ROAM . While Roboraptor X™ is in Free-
Roam Mode he will avoid obstacles using his Infrared Vision Sensors. Occasionally he will stop
moving to see if he can hear any sharp, loud sounds. (See “Stereo sound sensors” on page 8)
If you trigger any of Roboraptor X™’s touch sensors or press a button on the controller,
Roboraptor X™ will exit from Free-Roaxm Mode. After 5 to 10 minutes of exploration
RoboraptorX™ will power down. To wake him up press the On/Off button twice.
Note: Shift will not stop Roboraptor X™ from it’s Free-Roam Mode.
Caution: Do not put him near the edge of a table since he could fall off when he
becomes animated.
guaRd MOdE
Press “Shift”
SHIFT
and “Bite / Guard” Mode to put Roboraptor X™ into Guard
Mode.
Roboraptor X™ will perform a head rotation to conrm that he is in Guard Mode.
In Guard Mode Roboraptor X™ is using his Infrared Vision Sensors and Stereo
Sound Sensors to guard the area immediately around him. If he hears a sound
or sees movement he will react with a roar and become animated. Occasionally
RoboraptorX™ will turn his head and sniff. After 30 minutes Roboraptor X™ will
power down.
Caution: Although Roboraptor X™ will not take any steps while he is in Guard
Mode, do not put him near the edge of a table since he could fall off when he
becomes animated.

7
ADVANCED OPERATION
CONTROllINg RObORapTOR X™’sMOOds
Roboraptor X™ has three different moods, Hunting, Cautious and Playful. To change Roboraptor X™’s moods use the “Shift” SHIFT button.
• Hunting Mood: Press “Shift”
SHIFT
and “Head Clockwise / Hunting Mood” to put Roboraptor X™ into Hunting Mood. This mood is the
default mood that Roboraptor X™ is in when turned on.
• Playful Mood: Press “Shift” SHIFT and “Tail Right / Playful Mood” to put Roboraptor X™ into playful mood.
• Cautious Mood: Press “Shift”
SHIFT
and “Tail Left / Cautious Mood” to put Roboraptor X™ into cautious Mood.
The moods determine the way Roboraptor X™ reacts to some of his sensors, (see “Roboraptor X™’s sensors” page 7-8).

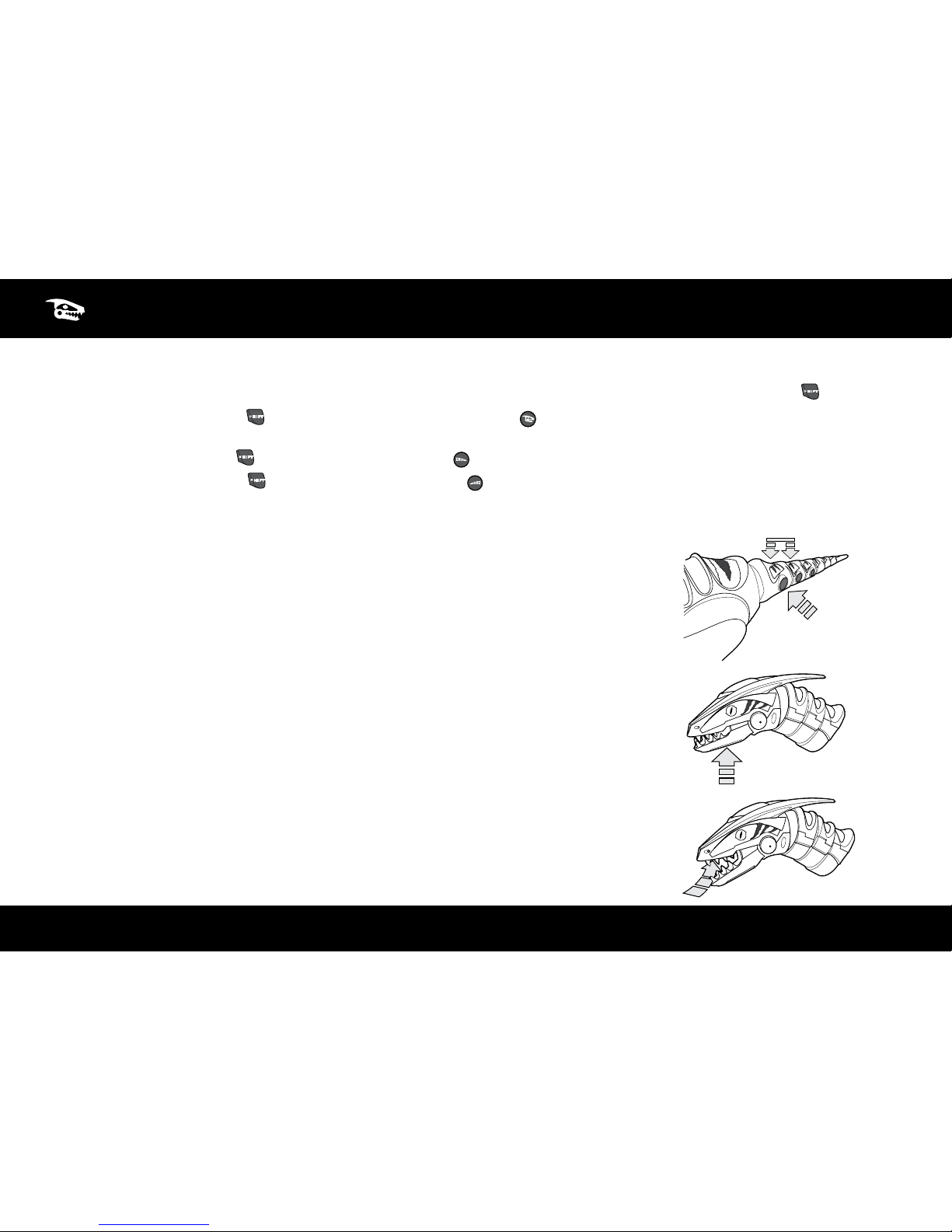

TOuCh sENsORs
Roboraptor X™ has multiple sensors which allow him to explore his environment and respond to
human interaction.
Tail Touch Sensors: Press the sensors on Roboraptor X™’s tail to see his reaction. The reaction varies
depending on his mood.
Chin Touch Sensor: Press the sensor under Roboraptor X™’s chin to see his reaction. The reaction
varies depending on his mood.
Mouth Touch Sensor: There is a touch sensor on the roof of Roboraptor X™’s mouth. In Hunting Mood,
touching this sensor will trigger a biting and tearing animation. In Cautious and Playful Moods,
Roboraptor X™ will play a tug-of-war with whatever is in his mouth.

8
ADVANCED OPERATION
Top View

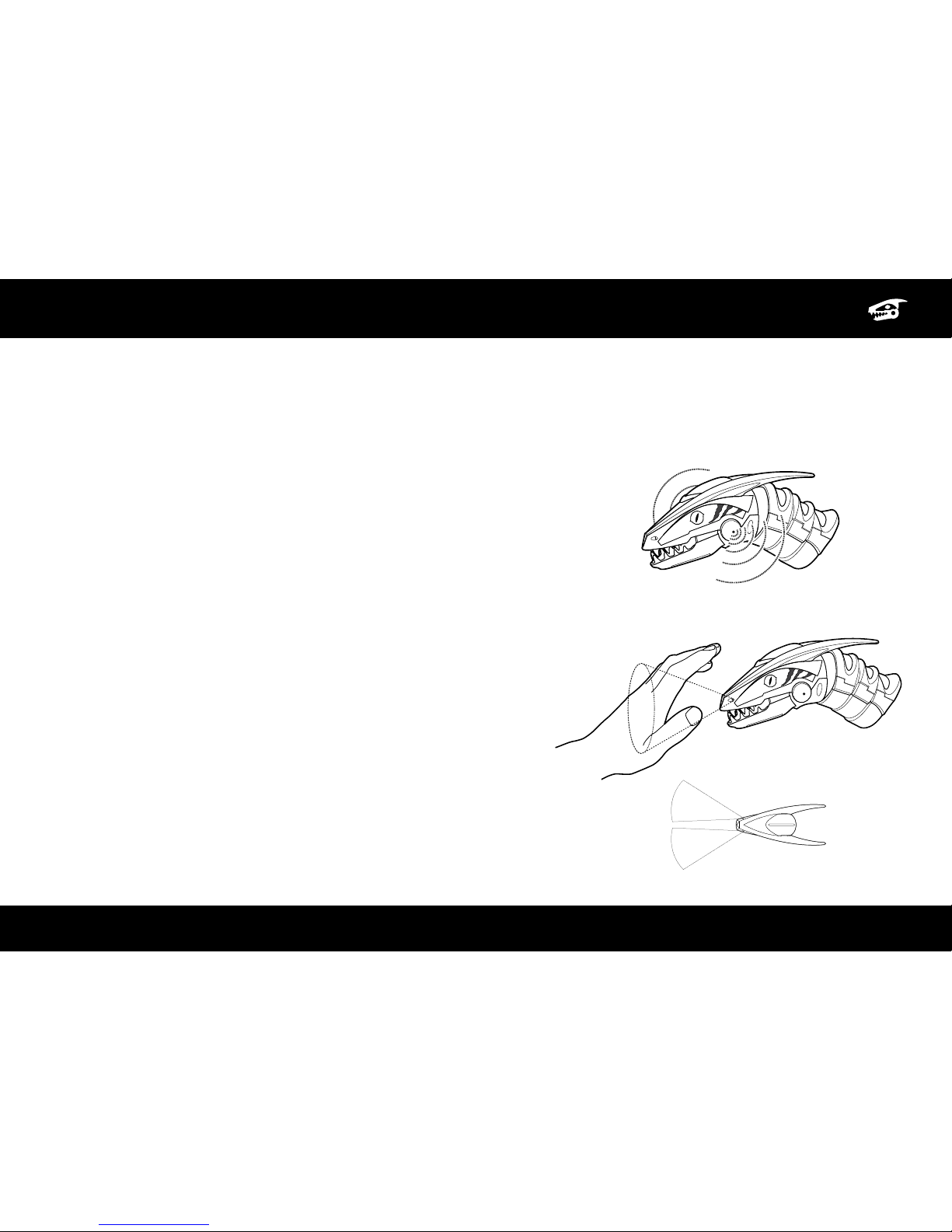

sTEREO sOuNd sENsORs
Roboraptor X™ can detect sharp, loud sounds (like a clap) to his left, his right and directly ahead. He only listens when he is not moving or
making a noise.
Hunting Mood
When he hears a sharp sound to his side he will turn his head to look at the source.
If he hears another sharp sound from the same direction he will turn his body towards the source.
If he hears a sharp sound directly in front of him he will take a few steps toward the source.
Cautious Mood
When he hears a sharp sound to his side he will turn his head to look at the source.
If he hears a sound straight ahead he will walk away from it.
Playful Mood
When he hears a sharp sound to his side he will turn his head to look at the source.
If he hears a sound straight ahead, he will take a few steps backward, then take a few
steps forward.
INFRaREd VIsION sENsORs
Roboraptor X™ has Infrared Vision Sensors that enable him to detect movement
to either side of him. The sensors react best to movement in the area just in front
of his nose as shown.
In Playful Mood Roboraptor X™ will nuzzle your hand if you approach from the side.
In Cautious Mood, Roboraptor X™ will turn his head away from movement to the side.
In Hunting Mood, his reactions are much less friendly!

9
ADVANCED OPERATION
If you trigger the Vision Sensor on one side more than three times in a row,
Roboraptor X™ will get frustrated and will turn away from you. This will also happen if
you leave him standing with his head facing a wall.
ObsTaClE aVOIdaNCE
Roboraptor X™ uses his Vision Sensors to avoid obstacles while wandering around.
While walking he will not be able to detect movement so he will react to you as if you are
an obstacle. Press the “Stop” button before trying to interact with him. Roboraptor X™’s
Infrared Vision System is based on reection. This means that he can see highly reective
surfaces like white walls or mirrors more easily and at greater distances.
uNdERsTaNdINg yOuR RObORapTOR X™
Roboraptor X™ walks best on smooth surfaces. Use the two faster walking speeds on rough surfaces like carpets.
Roboraptor X™ responds to remote control commands more easily when you are in front of him. He will not see as well
if the controller is behind him.
Note: infrared functions can be affected by bright sunlight, uorescent and electronically dimmed lighting.
Upon activation Roboraptor X™ will be sensitive to sound, vision and touch.
INFRa-REd dONglE INsTRuCTIONs
The Roboraptor X™ Infra-red Dongle is compatible with iPhone®, iPad®, iPod touch®and Android™
devices. To start, plug the Infra-red Dongle into the 3.5mm headphone jack on your smart device.
Then, download the free application to your device using the instructions below:
iPhone®, iPad®, and iPod Touch®– Visit the App StoreSM on your device and search for “WowWee Robo
Remote”, or use the following link: AppStore.com/wowweeroboremote. Click on install, and then start
the application.
Android™ – Visit the Google Play™ store on your device and search for “WowWee Robo Remote”. Click
on install, and then start the application.
Instructions on how to use your smart device to control Robosapien X™ are included in the app tutorial.
Remove the battery pull
out tab before using

10
WARRANTY
WowWee™ 90-Day Limited Warranty
WowWee’s warranty obligations for Roboraptor X™ (this “Product”) are limited to the terms set forth below.
WowWee Group Limited (“WowWee”) warrants to the original end-user purchaser that this Product will be free from defects in materials and workmanship under normal use for a period of
90 days from the date of retail purchase (the “Warranty Period”). This warranty is extended only to the original end-user purchaser of a new product that was not sold “as is”.
If a defect arises:
(1) you may within 30 days from the date of retail purchase (or such other period specied by the return policies of the place of purchase) return this Product to the place of purchase, together
with the original proof of purchase and either the original box or the UPC code label from the box, and this Product will be replaced or, in the event that a replacement for this Product is not
available at the place of purchase, either a refund of the purchase price for this Product or a store credit of equivalent retail value will be provided; or
(2) you may after the day that is 30 days from the date of retail purchase (or such other period specied by the return policies of the place of purchase) and within the Warranty Period
contact WowWee Customer Support to arrange for the replacement of this Product. In the event that a replacement for this Product is not available this Product will be replaced by WowWee
with a product of equivalent or greater retail value.
Notwithstanding the foregoing terms of this warranty, WowWee reserves the right at all times, at its sole option and discretion, to refund to you the purchase price paid by you for this Product
in full and nal settlement of WowWee’s obligations under this warranty.
A purchase receipt or other proof of the date of retail purchase and purchase price is required in order to claim the benet of this warranty.
If this Product is replaced, the replacement product becomes your property and the replaced Product becomes WowWee’s property. If the place of purchase refunds the purchase price of this
Product or issues a store credit of equivalent retail value, this Product must be returned to the place of purchase and becomes WowWee’s property. If WowWee refunds the purchase price of
this Product, this Product must be returned to WowWee and becomes WowWee’s property.
EXCLUSIONS AND LIMITATIONS
This warranty covers the normal and intended use of this Product. This warranty does not apply: (a) to damage caused by accident, abuse, unreasonable use, improper handling and care or
other external causes not arising out of defects in materials or workmanship; (b) to damage caused by service performed by anyone who is not an authorized representative of WowWee; (c)
to any hardware, software or other add-on components installed by the end-user; (d) if this Product has been disassembled or modied in any way; (e) to cosmetic damage, including but not
limited to scratches, dents or broken plastic, or normal wear and tear.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MIGHT ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. WOWWEE’S RESPONSIBILITY FOR PRODUCT
DEFECTS IS LIMITED TO THE REPLACEMENT OF THIS PRODUCT OR THE REFUND OF THE PURCHASE PRICE FOR THIS PRODUCT. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING
BUT NOT LIMITED TO ANY IMPLIED WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS
LIMITED WARRANTY. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE EXPIRATION OF THE LIMITED WARRANTY PERIOD. If any term of this warranty is held to
be illegal or unenforceable, the legality or enforceability of the remaining terms shall not be affected or impaired.
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE EXTENT PERMITTED BY LAW, WOWWEE IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES HOWSOEVER CAUSED RESULTING FROM BREACH OF WARRANTY OR CONDITION OR UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF
USE. THE FOREGOING LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS
AND/OR OMISSIONS.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS,
SO THESE LIMITATIONS MIGHT NOT APPLY TO YOU.
Valid only in U.S.A.

www.wowwee.com
8395US01FLA_IML
Manufactured and distributed by
© 2013 WowWee Group Limited.
Product names, designations, and logos
are trademarks or registered trademarks of
WowWee Group Limited. All rights reserved.
Customer Service website:
www.wowweezone.com
We recommend that you retain our address for
future reference.
Product and colors may vary.
Packaging printed in China.
WARNING! This product is not suitable for
children under 3 years because of small parts -
choking hazard.
Apple, the Apple logo, iPhone, iPad, and iPod
touch are trademarks of Apple Inc. Registered
in the U.S. and other countries. App Store is a
service mark of Apple Inc.
Android and Google Play are trademarks of
Google Inc.
MADE IN CHINA.
CAUTION
Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.
WowWee Group Limited
Energy Plaza, 3/F, 301A-C
92 Granville Road
T.S.T. East, Hong Kong
WowWee Canada Inc.
3700 Rue Saint-Patrick
Suite 206
Montréal
QC H4E 1A1 Canada
• Connect the equipment into an outlet on a
circuit different from that to which the receiver
is connected
• Consult the dealer or experienced radio/TV
technician for help
This Device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) This device must
accept any interference received, including
interference that may cause undesired
operation.
For these purposes, the party responsible is:
WowWee USA Inc.
875 Prospect S
uite #202,
La Jolla, CA 92037
1-800-310-3033
NOTE
This equipment has been tested and found
to comply with the limits for a class B digital
device, pursuant to part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference in
a residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference
will not occur in a particular Installation. If this
equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try and correct
the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment
and receiver
WARNING! This equipment may experience difculty and/or memory loss when subjected to any
electrostatic discharge, radio frequency interference, or sudden power surge/interruption. The user
is encouraged to reset the equipment should any of these occur.
