Wyrestorm SW-0201-4K User manual

2x1 HDMI/VGA Smart Switch
with CEC Control
SW-0201-4K Quickstart Guide
In the Box
1x SW-0201-4K Smart Switch
1x 12V DC 0.5A Power Supply (US/UK/EU)
2x 3-pin Screw Down Phoenix Connector
1x 5-pin Screw Down Phoenix Connector
2x Mounting Brackets
1x Quickstart Guide (this document)
Basic Wiring Diagram
KEY
HDMI/Digital Video RS-232
Power Analog Video Analog Audio
HDMI from Source
RS-232 to
Control
System
Analog Video Analog Audio
HDMI Source
HDMI Display
VGA Source
HDMI to
Display
Keypad Source Button
Keypad Source LED
12 DC 0.5A
Power Supply
IMPORTANT!
Do not connect or disconnect (hot plug) the HDMI, or HDBaseT
connections while the transmitter or receiver is powered on. Doing so
may cause damage to the units or connected devices.
Additional Information
This Quickstart Guide provides the basic steps for the common uses of
this product. Refer to the Installation Guide and other documentation on
the product page for additional information.
Installation
Before Beginning
Verify that all items are included in the packaging per the In The Box list.
Pre Wire
1. (Optional) If using VGA with Audio, run the wire and terminate per
the Audio In Wiring section.
2. (Optional) If using RS-232 to control the switcher, run the wire and
terminate per the RS-232 Wiring section.
3. (Optional) If using a keypad or panel switch to control the switcher,
run the wire and terminate per the Source Contact Closure Wiring
section.
4. (Optional) If using a keypad or panel switch to turn CEC On/Off, run
the wire and terminate per the CEC Contact Closure Wiring section.
Installation
1. Connect an HDMI source to the HDMI In on the transmitter using
an HDMI cable from a high quality brand such as WyreStorm
Express. Refer to the HDMI Wiring section for important HDMI
wiring guidelines.
2. (Optional) Connect the VGA Out from a VGA source to a VGA In on
the switcher. Connect the audio out for the VGA source to the Audio
In using the cable created in Pre Wire step 1.
3. (Optional) Connect the 3-pin connector to the RS-232 port on the
switcher and the opposite end to a port on a control system using
the cable created in Pre Wire step 2.
4. (Optional) Connect the 5-pin connector to the Source port on the
switcher and the opposite end to a keypad or panel switch using the
cable created in Pre Wire step 3.
5. (Optional) Connect the 3-pin connector to the CEC Link port on the
switcher and the opposite end to a keypad or panel switch using the
cable created in Pre Wire step 4.
6. Connect the included 12V DC 0.5A power supply to the DC 12V
input.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
SW-0201-4K Quickstart Guide | 151222
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
1 of 4
WyreStorm recommends reading through this document in its entirety to become familiar with the product’s features prior to starting the
installation process.
Compact device to switch a VGA or HDMI source to a single HDMI output. CEC-Link ensures the sink device is powered on during use.

Front Panel Rear Panel
VGA In
15-pin VGA VESA (D-SUB 15):
Connect to D-SUB 15 VGA output of a device
such as a computer.
15-pin VGA cable is required.
Audio In
3.5mm (1/8in) Stereo Jack
Connect to the analog audio output of a
device to send audio over HDBaseT.
HDMI In
19-pin type A HDMI female digital video/
audio: Supports HDMI and DVI/D (requires
adapter-not included). Limited to 297MHz
pixel clock
Source
Press VGA to select the VGA source.
Press HDMI to select the HDMI source.
LED next to source will illuminate when
selected.
CEC Link
On: Enables CEC to be used to control power
of a connected display device.
Off: Disables CEC from being used to control
power of a connected display device.
Power In
5.5mm Male Barrel Jack
Connect to the included 12V DC 0.5A power
supply.
RS-232
3-pin Screw Down Phoenix Connector
Used to send and receive RS-232 signals to/
from the source location via HDBaseT and
UPZDUHXSGDWHVSee RS-232 Wiring.
Power LED Solid: The transmitter is powered On
Off: The transmitter is powered Off
HDMI Out
19-pin type A HDMI female digital video/
audio: Supports HDMI and DVI/D (requires
adapter-not included). Limited to 297MHz
pixel clock
Source Contact
Closure
5-pin Screw Down Phoenix Connector
Connect to a remote I/O control device such
as a keypad or panel switch for selecting
inputs remotely. See Source Contact Closure
Wiring.
CEC Link Relay
5-pin Screw Down Phoenix Connector
Connect to a remote I/O control device such
as a keypad or panel switch for turning a
CEC-compatible display device On or Off
remotely.
See CEC Contact Closure Wiring.
Switching
Auto: Enables auto switching between inputs
based on source power state. HDMI has
priority over VGA.
Man: Enables auto switching and enables
manual selection using front panel buttons
and source relay via remote keypad or panel
switch.
CEC Link
Auto: Enables automatic CEC power control
of the connected display device.
Man: Enables manual CEC power control
of the connected display device using front
panel buttons and CEC relay via remote
keypad or panel switch.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
SW-0201-4K Quickstart Guide | 151222
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
2 of 4

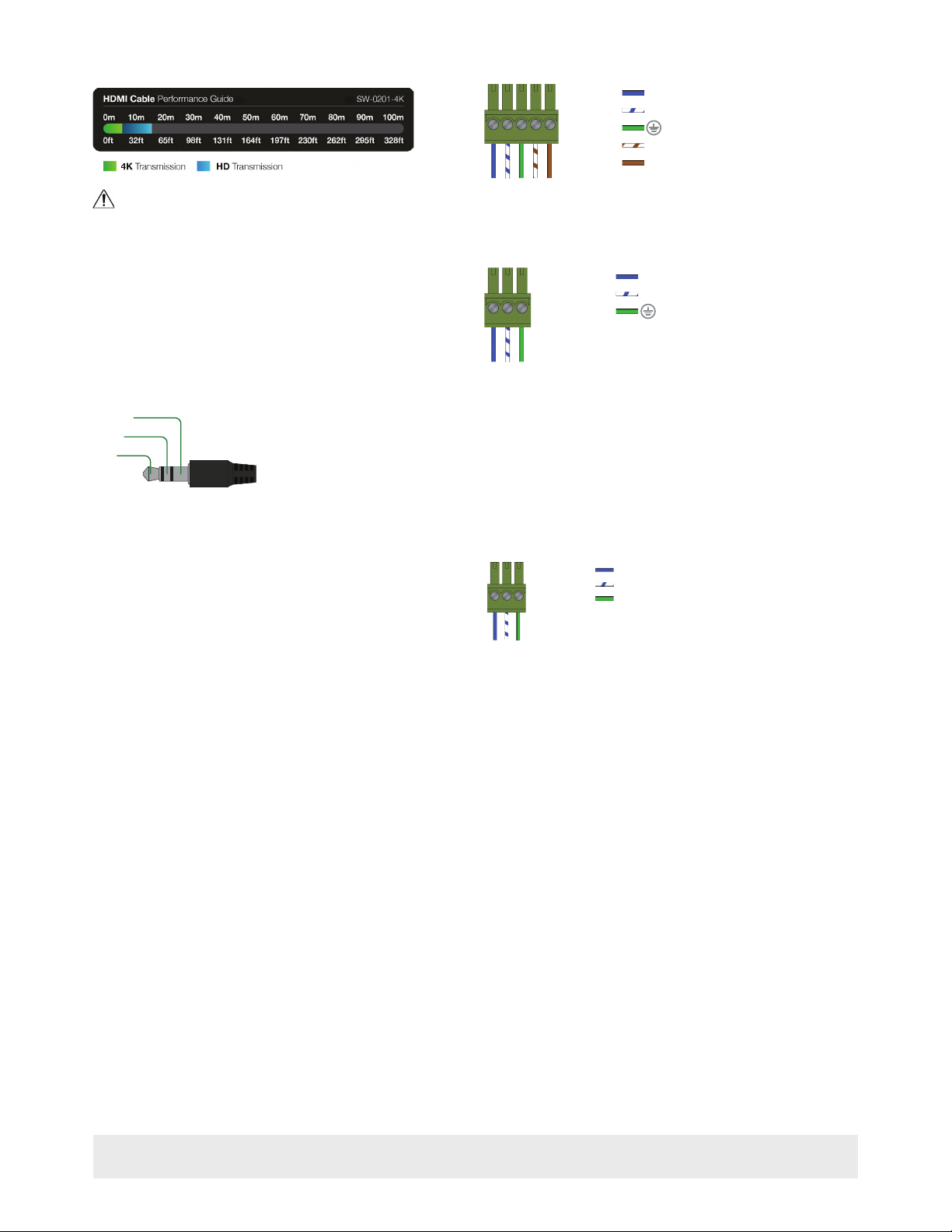

HDMI Wiring
IMPORTANT! Wiring Guidelines
• In order to transmit 4K@60Hz, the HDMI In cable can be no longer
than 3m/9.8ft and the HDMI Out no longer than 5m/ 16.4ft.
• The use of patch panels, wall plates, cable extenders, kinks in cables,
and electrical or environmental interference can have an adverse effect
on HDMI transmission limiting performance. Steps should be taken to
minimize these factors (or remove completely) during installation for
best results.
Audio In Wiring
Connection for Audio In uses a 3.5mm (1/8in) stereo connector.
Tip:Tip
Ring:
Left Channel
Right Channel
Sleeve:
Ring
Sleeve Ground (GND)
Source Contact Closure Wiring
Pin 1:
Pin 2:
VGA Button + (Positive)
HDMI Button + (Positive)
Pin 3:
Pin 4: VGA LED + (Positive)
Pin 5: HDMI LED + (Positive)
Wire colors shown are for pin identification only
and do not represent any wiring standard.
Ground (GND)
12345
CEC Contact Closure Wiring
Pin 1:
Pin 2:
CEC On
CEC Off
Pin 3: Ground (GND)
Wire colors shown are for pin identification only
and do not represent any wiring standard.
123
RS-232 Wiring
RS-232 Connection Guidelines
The following wiring diagram shows the pinouts for the Transmitter.
While not shown, connect the TX (transmit) to RX (receive) pins at the
control system or PC side of the cable.
Most control systems and computers are DTE where pin 2 is RX, this can
vary from device to device. Refer to the documentation for the connected
device for pin functionally to ensure that the correct connections can be
made.
Wire colors shown follow EIA-561 standard.
Pin 1:
Pin 2:
TX (Transmit)
RX (Receive)
Pin 3: Ground (GND)
123
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
SW-0201-4K Quickstart Guide | 151222
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
3 of 4

Warranty Information
This product is covered by a 2 year limited parts and labor warranty. During this period there will be no charge for unit
repair, component replacement or complete product replacement in the event of malfunction. The decision to repair
or replace will be made by the manufacturer. This limited warranty only covers defects in materials or workmanship
and excludes normal wear and tear or cosmetic damage.
Visit the product page located at wyrestorm.com for additional information on this product including important
technical information not provided in this document and warranty terms & conditions.
6SHFLFDWLRQV
Audio and Video
Audio Formats 2ch analog and Up to 7.1 DTS Master HD
and Dolby True HD
Maximum Video
Resolution
HDMI:
1920x1080@60Hz (1080p60)
4096x2160@60Hz 4:2:0 (4K)
VGA:
1920x1200@60Hz
3D Support Blu-ray: Frame packing/sequential
Satellite/Cable: Interlaced stereoscopic
Color Depth VGA: 8bit | 1080p: 12bit | 4K: 8bit
Maximum Pixel Clock HDMI: 340MHz
VGA: 165MHz
Communication and Control
HDMI HDCP | EDID | CEC
DVI/D supported with adapter (not
included)
CEC Power Management for display
connected via HDMI
RS-232 Switcher Control | Firmware Updates
Contact Closure Switcher Input Selection with LED
Feedback
Front Panel Buttons Switcher Input Selection with LED
Feedback
Power
Power Supply Input: 100~240V AC 50/60Hz
Output: 12V DC 0.5A
Max Power Consumption 1.5W
Environmental
Operating Temperature 32°F ~ 113°F (0°C ~ 45°C)
10% ~ 90%, non-condensing
Storage Temperature -4°F ~ 140°F (-20°C ~ 70°C)
10% ~ 90%, non-condensing
Dimensions and Weight
Height 20mm / 0.79in
Width 177.8mm / 7in
Depth 64.2mm / 2.53in
Weight 0.28kg / 0.62lbs
Regulatory
Safety and Emission CE | FCC | RoHS
Troubleshooting
No or Poor Quality Picture (snow or noisy image)
• Verify that power is being supplied to the switcher and that it is
powered On.
• Verify that the display supports the output resolution of the source.
• Verify that all source and display connections are not loose and are
functioning properly.
Troubleshooting Tips:
• WyreStorm recommends using a cable tester or connecting the cable
to other devices to verify functionality.
Copyright © 2015 WyreStorm Technologies | wyrestorm.com
SW-0201-4K Quickstart Guide | 151222
North America: 518-289-1294 | EMEA/ROW: 44 (0) 1793 230 343
[email protected]
4 of 4

2x1 HDMI/VGA Smart Switch with CEC Control
SW-0201-4K
The SW-0201-4K is a compact dual input device for manually or automatically switching a connected HDMI or VGA + audio source to
a single HDMI output with CEC-Link ensuring the display device is powered on during use.
'HVLJQHGIRUVPDOORIFHKRPHRIFH62+2RUFODVVURRPHQYLURQPHQWVWKH6:.HQDEOHVWKHFRQQHFWLRQDQGORFDO
GLVWULEXWLRQRIERWK9*$DQG+'0,VRXUFHGHYLFHVWRDVLQJOH+'0,LQSXWGHYLFHVXFKDVDPRQLWRURUSURMHFWRU6ZLWFKLQJEHWZHHQ
VRXUFHVDG&(&FDQEHVHWWRPDQXDOZLWKVHOHFWLRQYLDWKHIURQWSDQHOEXWWRQVRUDXWRPDWLFRQGHWHFWLRQRIDFRQQHFWHGVRXUFHDQG
DFRPSDWLEOHVLQNZLWK&(&OLQNWHFKQRORJ\WULJJHUHGWRSRZHU2QZKHQWKHVRXUFHLVLQXVH
1x SW-0201-4K Switcher
[9'&$3RZHU6XSSO\868.(8
2x 3-pin Screw Down Phoenix Connector
1x 5-pin Screw Down Phoenix Connector
2x Mounting Brackets
1x Quickstart Guide
In the Box
WYRESTORM PRODUCT SPECIFICATION SHEET
Key Features
$GGLWLRQDO)HDWXUHV%HQHWV
• HDCP 2.2 compliant
• 3D supported
• 6XSSRUWVWUDQVPLVVLRQVXSWR.#+]+'0,
• 6XSSRUWV+'UHVROXWLRQVXSWR[9*$
• $XWRVZLWFKLQJWUDQVPLWWHUGHWHFWVDQGVHOHFWV9*$DXGLR
and HDMI devices as soon as the source is connected
• RS-232 support for leading control systems including
WyreStorm Enado
• $XGLRHPEHGIRU9*$YLDPPMDFN
• &DEOHWHUPLQDWLRQIROORZV,(((%VWDQGDUGV
• LED indication for power supply to unit and source selection
• 7KUHDGHGEXVKLQJVDOORZXVHRIERWKVWDQGDUGDQGORFNLQJ'&
power plugs
• (QHUJ\HIFLHQWXQLYHUVDOSRZHUVXSSO\LQFOXGHG
• 0RXQWLQJEUDFNHWVLQFOXGHG
• 2 year warranty
US OFFICE:
TEL: [phone]
EMEA OFFICE:
TEL: + 44 (0) 1793 230 343
• Provides automatic or manual switching of connected HDMI and VGA + audio sources
• &(&/LQNDOORZVIRUFRQQHFWHG&(&FRPSDWLEOHGLVSOD\GHYLFHVWREHSRZHUHG2QDXWRPDWLFDOO\ZKHQVRXUFHLVLQXVH
• &RQWDFWFORVXUHFRQWUROYLDZLUHGGHVNRUZDOOSODWHIRUVRXUFHVDQG&(&DOORZIRUVZLWFKHUWREHLQVWDOOHGRXWRIVLJKW
• Supports 4K content from HDMI sources and 1920x1200p from VGA
• &RPSDFWFKDVVLVFDQEHGHVNPRXQWHGIRUXQREWUXVLYHLQVWDOODWLRQ

WYRESTORM PRODUCT SPECIFICATION SHEET
For additional product information visit wyrestorm.com
For technical support contact: North America: +1 844-280-WYRE (9973) EMEA/ROW: [phone]
6SHFLFDWLRQ
Power
Power Supply ,QSXWa9$&+]
2XWSXWY'&$
Max Power Consumption 1.5W
Environmental
Operating Temperature r)ar)r&ar&
aQRQFRQGHQVLQJ
Storage Temperature r)WRar)r&ar&
aQRQFRQGHQVLQJ
Max BTU %78KU
Dimensions and Weight
Height PPLQ
Width PPLQ
Depth PPLQ
Weight NJOEV
Regulatory
Safety and Emission CE | FCC | RoHS
160420
Audio and Video
Inputs 1x HDMI 19-pin type A female
1x VGA 15-pin female
Outputs 1x HDMI 19-pin type A female
Audio Formats FKDQDORJDQG8SWR'760DVWHU+'
DQG'ROE\7UXH+'
Video Resolution
+'0,8SWR[#+].
[K]S
9*$8SWR[#+]
Color Depth ELW
Maximum Pixel Clock HDMI: 340MHz
VGA: 165MHz
Communication and Control
HDMI +'&3_(','_&(&_'9,'VXSSRUWHG
ZLWKDGDSWHUQRWLQFOXGHG
CEC Power management for display
connected via HDMI
Contact Closure Switcher input selection with LED
IHHGEDFN
Front Panel Buttons Switcher input selection with LED
IHHGEDFN
RS-232 Control of input selection
Basic Wiring Diagram
KEY
HDMI
Analog Video
Analog Audio
56&RQWDFW&ORVXUH
Power
HDMI from source
SW-0201-4K Switcher
RS-232 to
Control
System
Analog Video Analog Audio
HDMI Source
HDMI Display
VGA Source
HDMI to
Display
Keypad Source Button
Keypad Source LED
12 DC 0.5A
Power Supply
