XAG V40 User manual
User Manual
V40 Agricultural UAS
EN
Version 1.2
To User
Dear user, thank you for choosing XAG products.
For safety purposes and better user experience, it is highly recommended that you read this manual
carefully and strictly follow the instructions hereof.
Contact Us
If you have any questions about this document, please contact our Technical Support team via email:
www.xa.com/en 1
Safety Guidelines
• Please make sure that the drone operator has passed the drone operation training programme and
obtained a drone pilot certicate prescribed by laws and regulations where the product is used in
advance. Never operate the drone without permission unless otherwise provided.
• Observe the surroundings, ensure a safe distance from the obstacles and the crowd as well
as eliminate unsafe conditions including environmental factors like bad weather and extreme
temperatures before operation.
• NEVER operate while drowsy, drunk or in a poor mental state so as to prevent accidents.
• Keep the product away from heat to avoid damage to the electronic device and other components.
• Instead of operating alone, the beginner should seek help from a veteran beforehand and operate the
drone accompanied by the veteran.
• Please operate within maximum takeo weight to avoid dangers caused by overload.
• It is a MUST to do the pre-ight inspection and eliminate co-frequency interference prior to operation.
• Stay away from the operating machine. Do NOT touch the spinning propellers with your body or other
components. Loose clothing is NEVER allowed as it should get caught in the spinning propellers easily
and cause injury.
• For safety purposes, it is NOT recommended to install the propellers until nishing the trial run of the
drone and inspections of the remote control devices, motors and other modules.
• NEVER install/remove any module or insert/extract circuit while the power is on.
• NEVER take the human body or animal, whether still or moving, as an obstacle for the obstacle
avoidance experiment.
• NEVER impede, intervene or impact the drone with the human body, animal or any other object.
• Should there be adverse weather conditions like a strong wind, rain, snow and hail, hover the drone
and return to home as soon as possible. Weather not permitting, hover the drone and y towards a
nearby safe place.
• Drone operator shall strictly comply with relevant laws and regulations where the product is used,
including but not limited to the ight height, ight area and visual line of sight.
www.xa.com/en
2

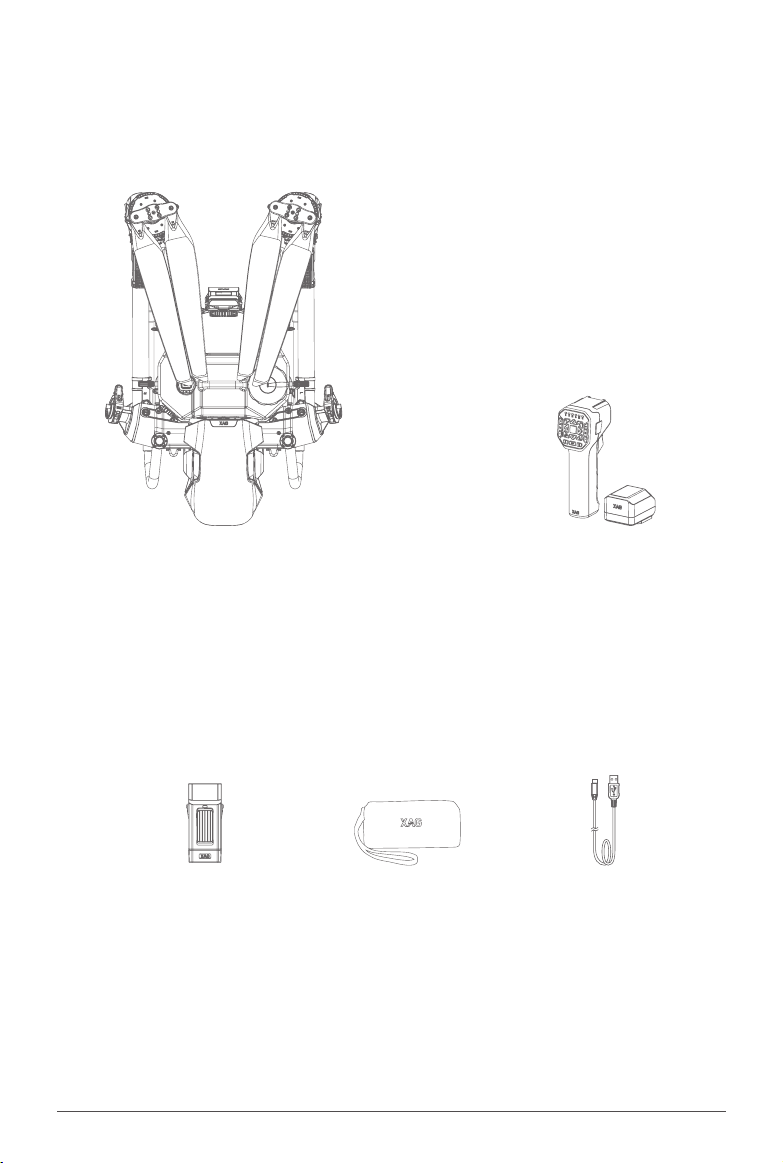

List of Items
Please check that the following items are all present when unpacking the box. Should there be any
item missed, please contact your dealer.
Airframe (including Liquid Tank)
×1
Tool Kit
×1
RealTerra（optional）
×1
ACS2(B) ControlStick (X4 RTK Ver.)
×1
[1]：ACS2(B) ControlStick namely ACS2(B) Remote Control
[1]
USB-Type-C Cable
×1
www.xa.com/en 3
①
⑬
⑭
⑮
⑫
⑪
⑩
⑨
⑧
②
③
④
⑤
⑥
⑦
① Head Cover
② Propeller
③ Arm
④ PSL Camera
⑤ Dynamic Radar
⑥ Terrain Sensor
⑦ Searchlight
⑧ Nozzle
Inside of the drone Rear view
⑨ Smart Battery
⑩ RealTerra
⑪ Peristaltic Pump
⑫ Airframe Nameplate
⑬ 2.4GHz Antenna
⑭ Arm Fastener
⑮ RTK Antenna
⑯ ESC (Electronic Speed Controller)
⑰ Spraying Status Indicator
⑱ SuperX4 Intelligent Control System
⑲ ESC Hub
⑳ Spraying Hub
㉑ Flight Status Indicator

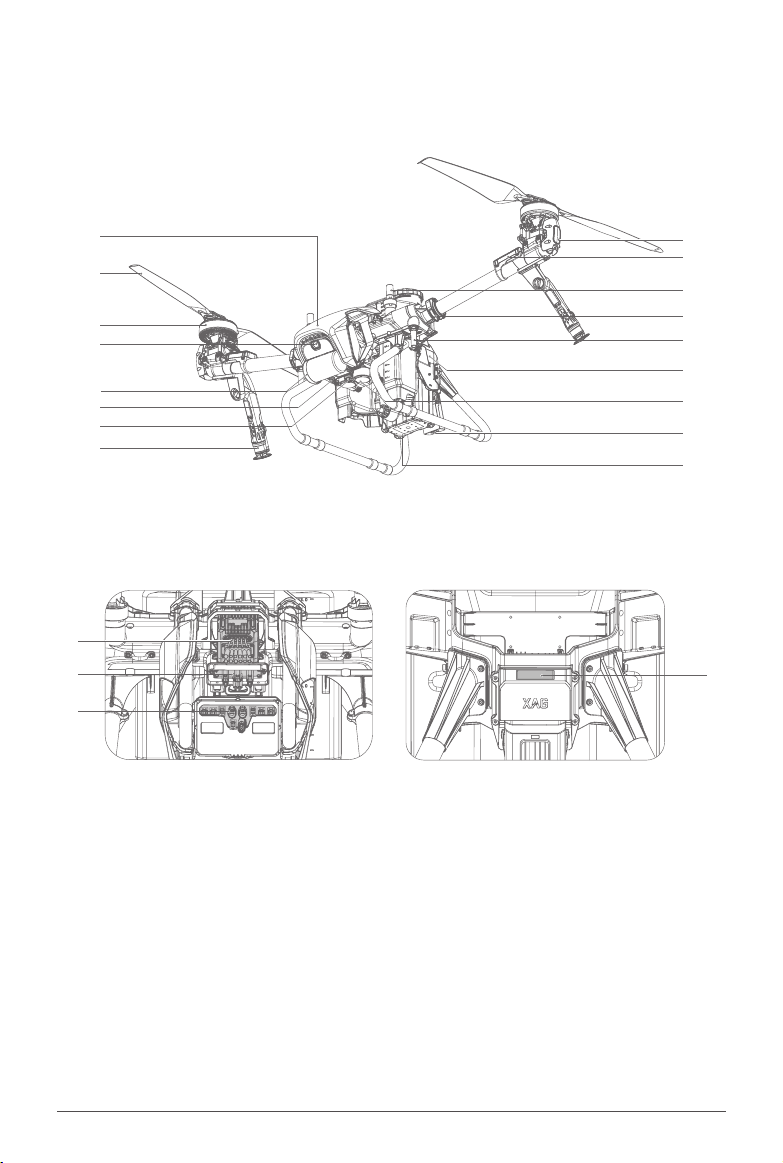

Structure
The main components of V40 Agricultural UAV are as follows：
⑱
⑲
⑳
㉑
⑯
⑰
www.xa.com/en
4
Pre-ight Preparation
Unfold Arms
Spread out the arms from the folded position before operation.
Unlock the arm fasteners and pull them up. Then put them down and leave them at the lowest limit
positions.
Spread out the left and right arms frontward (take the left arm as an example) and securely lock the
fasteners.
www.xa.com/en 5
Please see that the fasteners are securely tightened and locked while fastening the arms.
Warning
www.xa.com/en
6

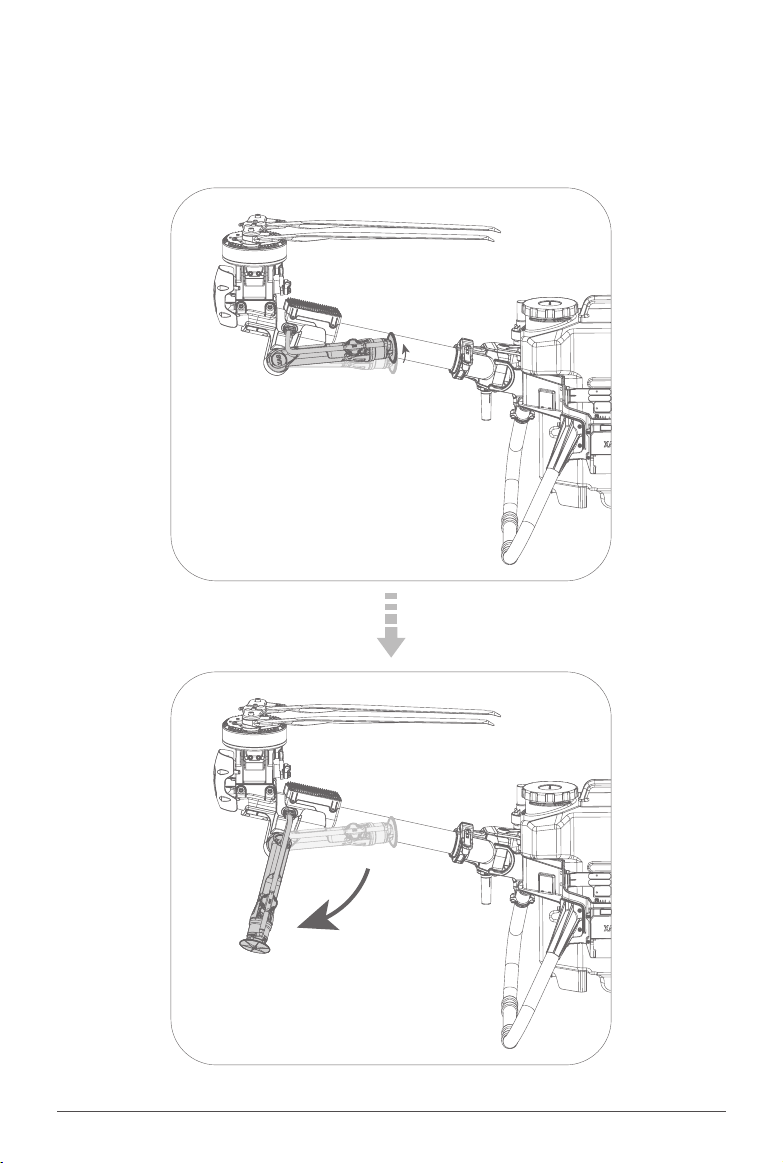

Unfold Nozzles
To spread out the nozzle (take the left nozzle for example), slightly lift it inward and then rotate it
outward.
www.xa.com/en 7
Unfold Propellers
Spread out the left and right propellers (take the left propeller as an example). It is fully unfolded when
you hear a clicking sound.
Please see that the spring plunger of the propeller has securely snapped into the base of the clamp after
spreading out the propeller.
Fold up the propeller by pushing down the base and rotating the propeller.
Warning
Base
Spring Plunger
www.xa.com/en
8

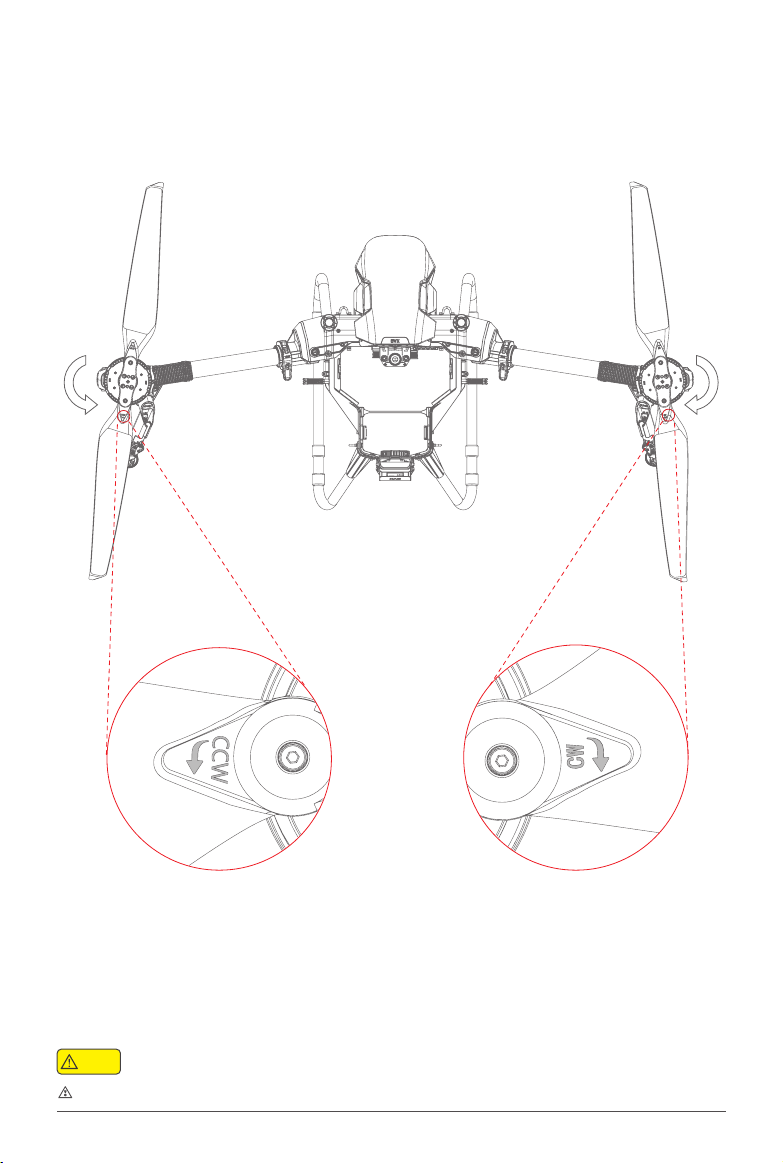

CCW Propeller - Left Arm CW Propeller - Right Arm
After spreading out the propeller, see that the model of the propeller, which can be found between the
blade and the clamp, matches the corresponding arm. Specically, CCW propeller corresponds to the
left arm while CW propeller corresponds to the right arm.
Note
Never swap the CW and CCW propeller, as incorrect installation will cause ight accidents.
www.xa.com/en 9
Install RealTerra
Insert RealTerra into the slot until hearing a clicking sound.
www.xa.com/en
10
Power ON / OFF
Long press twice to power ON/OFF - upon connection with the drone or the charger, long-press the power
button for at least 1 second until all the battery level indicators ash simultaneously, followed by the other
long-press for at least 1 second until the battery beeps and all the status indicators are on/o.

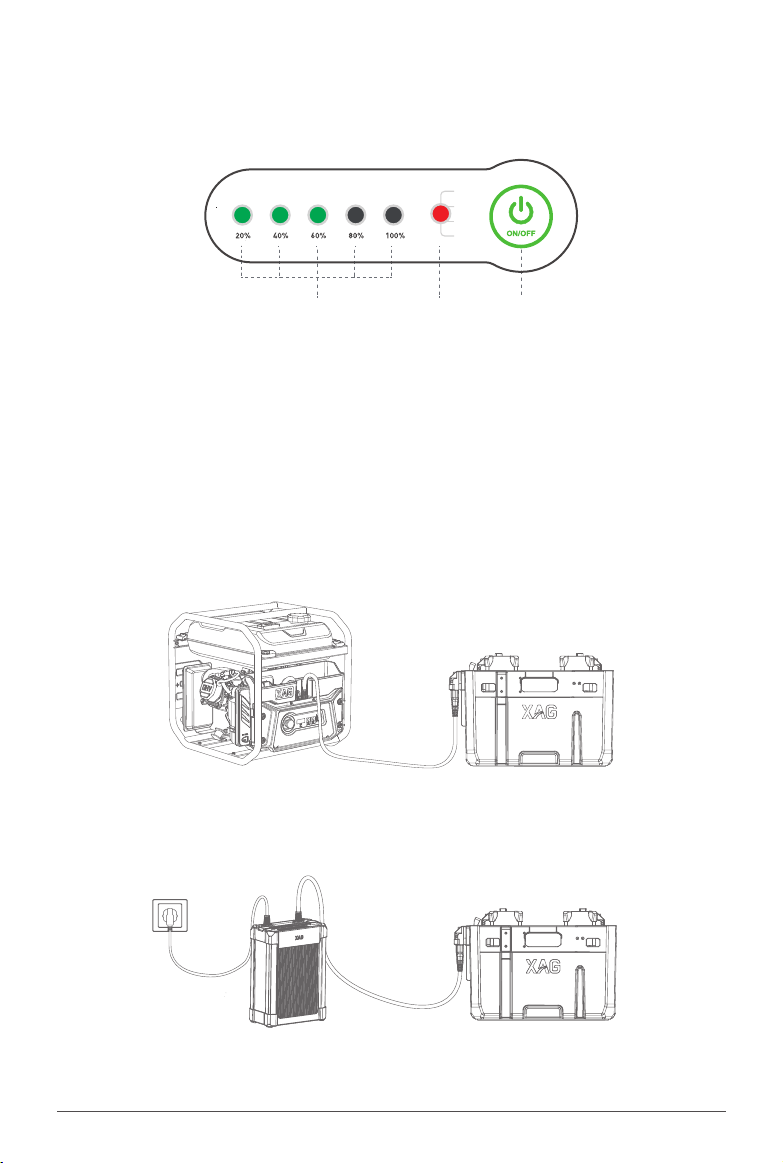

Charge with Auto SuperCharge Station
Charge Smart Battery
Charge the Smart Battery with GC4000+ Auto SuperCharge Station or Intelligent SuperCharger. Upon
reaching full charge, the Auto SuperCharge Station or the Intelligent SuperCharger will stop charging
and the battery will power o automatically.
Charge with Intelligent SuperCharger
Smart Battery
Indicators / Buttons
There is 1 power button and 6 indicators on the smart battery screen.
Solid: Normal
Slow Flash:
Overcooled
Fast Flash:
Overheated
Double Flash:
Error
Battery Level Indicator Battery Status Indicator Power Button
www.xa.com/en 11

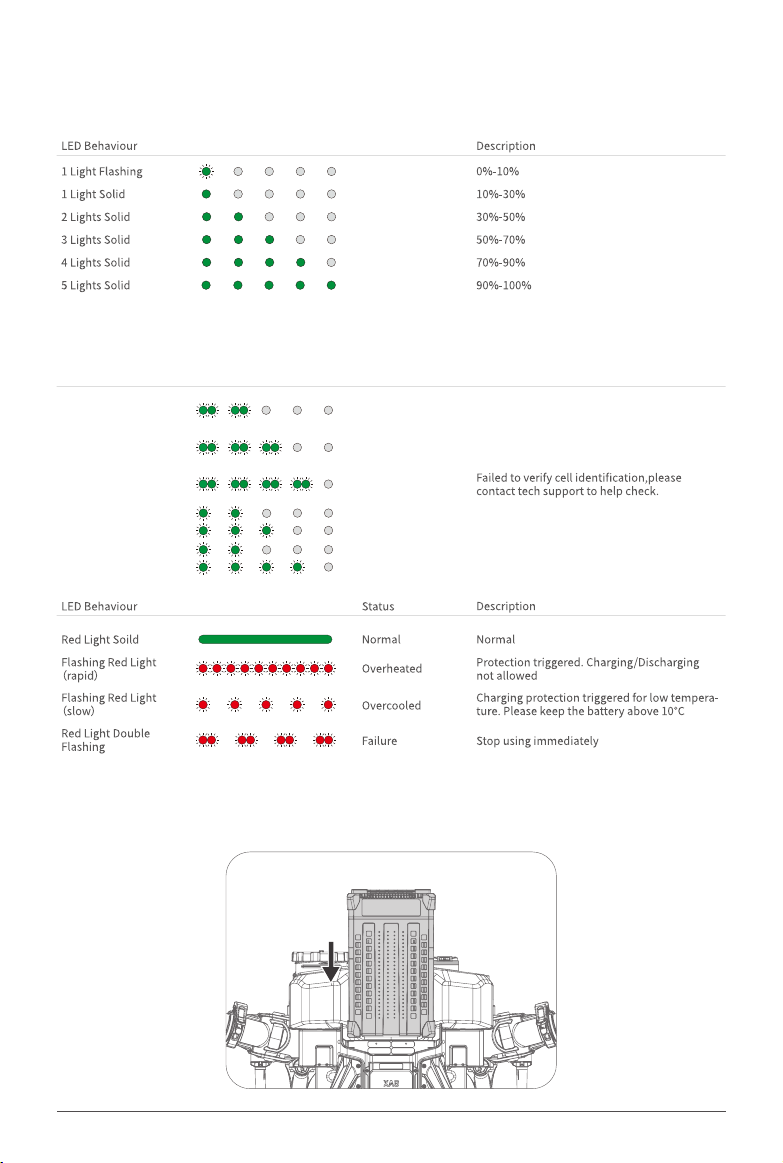

Check Battery Level
When the battery is OFF, short press once to check the battery level.
When the battery is ON, the Battery Level Indicators keep solid.
Check Battery Status
When the battery is on, check the battery status on the screen.

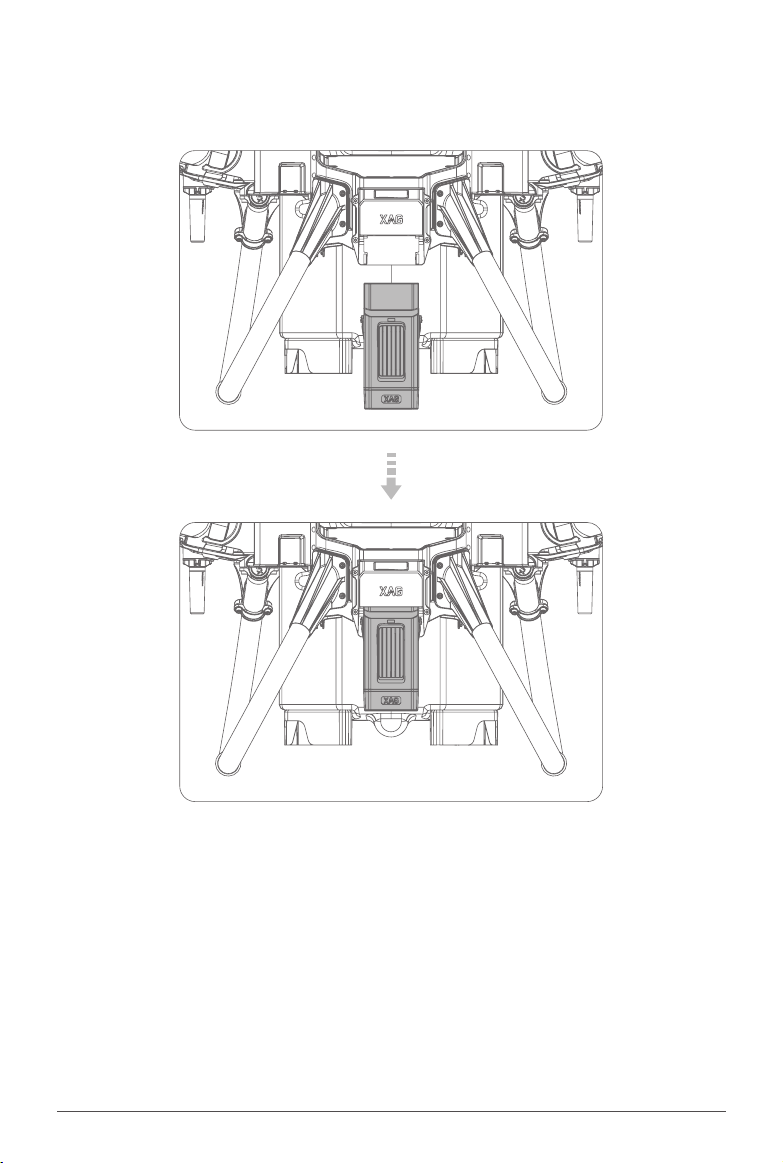

Install Battery
Insert the battery into the battery compartment cautiously until hearing a clicking sound.
Description
LED Behaviour
2 Lights Double Flash
Status
Fault Lock Battery locked for the low battery,please
contact tech support to unlock the device.
Battery locked remotely,please contact
tech support to unlock the device.
Protection triggered by overcurrent,please
contact tech support to unlock the device.
Dual-battery power on disable,voltages of both
batteries should be roughly equal before use.
Remote Lock
3 Lights Double Flashing
2/4 Alternate Flashing
Lights
2/3 Alternate Flashing
Lights
Anti-dismantling
Lock
Over current
Protection
Dual-battery
Power on Disabled
4 Lights Double Flashing
www.xa.com/en
12
Precautions for Battery Use
• Smart battery should be fully charged and used in strict accordance with instructions preceding operation.
• NEVER insert/remove the battery when it is ON, or it may cause damage to the interface.
• It is a MUST to check and update to the latest battery firmware and software version preceding
operation. Loss caused by failing to do so shall be borne by the user.
• An optimal ambient temperature range for the battery is from 10 ℃ to 45 ℃ . Chances are that re,
even explosions will happen at a temperature over 45℃ .
• NEVER connect the cathode and anode with a wire or other metals, as this will cause a short circuit.
• For heat dissipation, the battery should be immersed into pure water instead of corrosive liquids
within the maximum and minimum level indicated for NO more than 60min, or else the battery will
get damaged for having water leak inside.
• Please always keep the interface clean and clean the liquid or foreign matters off it promptly.
Otherwise, it will cause poor contact, contributing to energy loss or failure to charge.
• Please handle the battery with care and do NOT take it apart, pierce the housing or apply pressure
to it, including but not limited to behaviours such as sitting/standing on the battery, stacking heavy
items on it and the like.
• Please regularly check the components like the battery interface and the plug before use. NEVER
clean the charging device with alcohol or other combustible liquids. NEVER use the damaged
charging device.
• Please place the battery and charging device on even ground with no combustible materials around
while charging. NEVER leave the battery unattended while charging in case of an accident.
• For your safety, keep a minimum of 30cm distance between the battery and the charger, and between
two batteries, lest too much heat lead to the charger or battery failure, even causing dreadful
consequences like a re.
• Please make sure the battery is fully charged prior to each operation. NEVER operate at full capacity
preceding completion of charging.
• NEVER use batteries provided by manufacturers other than XAG, or to dismantle/replace the battery
without permission. If necessary, please contact XAG or the authorized dealer. For the battery
incidents, technical faults or other accidents caused by using a battery or accessories provided by
non-XAG manufacturers, the user shall be held responsible for all the consequences arising therefrom.
• If one green light ashes at the end of the operation, please charge the battery to 40%~60% before
storage. Failing to do so may damage the battery or impact battery life. Fully discharge and recharge
the battery every 90 days to maintain battery health.
• Battery should be charged with the charging device specied by XAG. Otherwise, user shall assume
all the economic and legal responsibilities arising therefrom.
• The Intelligent SuperCharger needs to be purchased separately. If necessary, please contact your local
dealer.
• The battery should be stored at 10~30℃ in a dry place instead of a wet or moist environment.
• Avoid moisture while charging the battery. Warranty does NOT cover any damage caused by problems
not attributable to the product quality like damaged battery housing.
• The battery is waterproof and splashproof under controlled experiment. However, rather than being
permanent eective, the protection may get weaker due to wear and tear.
• Please STOP using the batter swollen, leaking, deformed or with appearance damage instantly and
contact XAG or the dealer without hesitation.
www.xa.com/en 13
Liquid Tank
Infusion
Twist the cap counterclockwise to open the tank. Upon
infusion, turn the cap clockwise till it is tight.
Removal / Installation
Afrer installing the Liquid Tank, wire up the Liquid Tank Signal Cable and insert it into the cable holder.
Unwire the Liquid Tank Signal Cable before removing the Liquid Tank.
Please DO handle the tank with pesticide inside with care.
It is highly recommended to empty liquid tank/granule container beforehand to enhance the
eciency of aerial mapping.
A drone with RealTerra installed is unable to spray or spread.
Note
To protect components from chemical splash damage,
direct pesticide infusion is NOT allowed when the tank is
installed on the drone.
Note
• The liquid inside the battery is highly corrosive. In case of contact with skin or eyes, ush with fresh
water and seek medical attention instantly.
• To protect our environment, please properly dispose of the battery as required by the local laws and
regulations.
Liquid Tank Signal Cable
www.xa.com/en
14

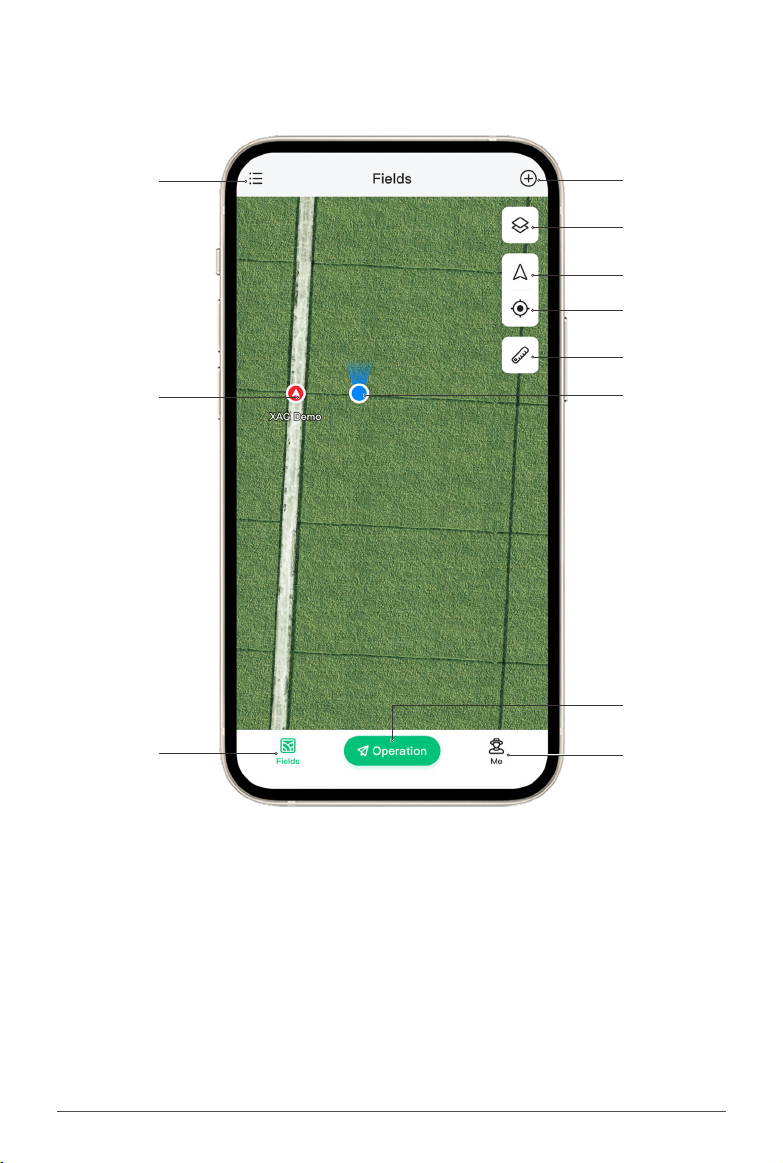

APP Interface Introduction
"Field" Tab (Main)
Device List
Operator
"Field" Tab
Functions
Map Layers
Focus on Aircraft
Focus on Operator
Measure
Aircraft
"My Account" Tab
"Operation" Tab
Device List: Full device list
Operator: Operator's location
"Field" Tab: Main eld options tab
Functions: New elds, New elds group,
New HDMap, Import data, Bind
devices
Map Layers: Select map type
Focus on Aircraft: Centre screen on aircraft
Focus on Operator: Centre screen on
operator
Measure: Measure distance
Aircraft: Aircraft's location
"Operation" Tab: Main operation options
tab
"My Account" Tab: Main account options tab
www.xa.com/en 15
"Operation"Tab
Tap on “Operation” tab to view the operation options.
Return: Return to “Field” Tab (Main)
Operation Area: Area of selected eld
Spraying Settings: Spraying settings
Start Operation: Start operation
Volume Required: Estimated volume required
for current operation
Flights Required: Estimated ights required
for current operation
FPV: First-person-view camera
Flight Settings: Flight settings
Return
Aircraft
Operation Area
Spraying Settings
Start Operation
Map Layers
Focus on Aircraft
Focus on Operator
Measure
Operator
Flights Required
FPV
Flight Settings
Volume Required
www.xa.com/en
16
Appendix

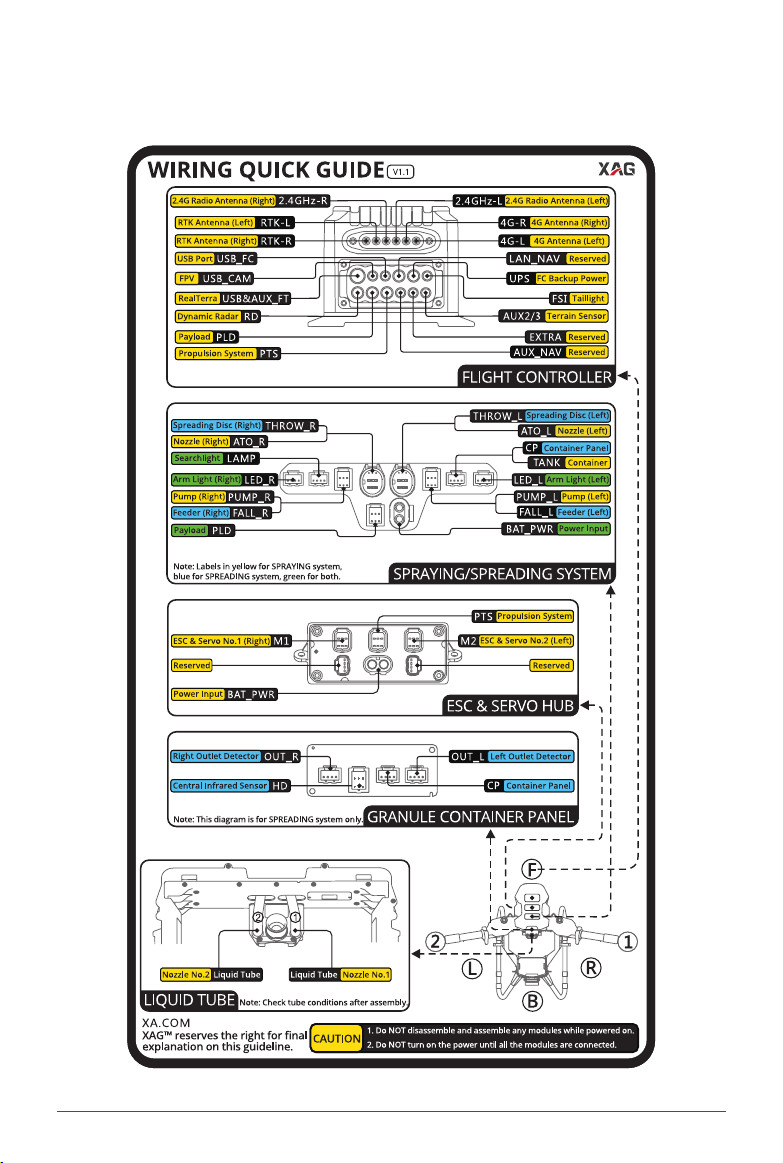

Wiring Quick Guide
www.xa.com/en 17
Description of Status Indicator
Super X4 Intelligent Control System Indicator
Get to know the current status of the drone by checking Super X4 Intelligent Control System Indicator.
Details are as follows:
Solid Red Light
Red/Green Light
Alternate Flashing(slow)
Red/Green Light
Alternate Flashing(rapid)
Not searching for satellites, not positioning,
no output from board
RTK Indicator
Flashing Green Light
(slow)
Description
Normal
Flashing Green Light
(rapid)
Flashing Red Light
(slow) RTK timeout exceeding 10s
Flashing Red Light
(rapid)
Firmware Update
www.xa.com/en
18
Flight Indicator
There are one Flight Indicatoron the side of each motor mount, Details are as follows.
Flight Status Indicator
Get to know the current status of the drone by checking the Flight Status Indicators (Tail Lights).
Details are as follows.
Solid Red Light
Flashing Purple Light(rapid)
Powered on, Flight Control initialization
incomplete or heating up
Tail Lights
Red/Green Light
Alternate Flashing(slow)
Description
Weak GPS signal
Double Flashing Green
Light Strong GPS signal
Flashing Blue Light(rapid)
Flashing Red Light(rapid)
Flashing White Light(rapid)
Triple Flashing Green
Light GPS route mode
Flashing Red Light(slow) Fly in safe mode
Flight Control formatted or parameter
anomalous
Propulsion system detected as anomalous
Sensors (excluding IMU) anomalous, GPS
malfunction or low heading accuracy
IMU failure
Low voltage alert
Triple Flashing Red Light
Other manuals for V40
1
This manual suits for next models
2
Table of contents
Other XAG Drone manuals
