XCHARGE NZS Series User manual

Installation and Operation ManualV1.1SeriesNZSCopyright | NZS Installation and Operation ManualXcharge reserves all rights to this document and to the information and topics contained in it. This also applies to any possible claims to copyright or patents. Forwarding and/or the duplicating of this document without the express permission of XCHARGE is forbidden.

All the information in this document is the property of XCHARGE Tech Co., Ltd. No part of this document could be reproduced in any way for business use. Internal use is allowed. XCHARGE Tech Co., Ltd. makes no representations or warranties express or implied, con-cerning this document or any of the equipment and/or software it may describe, including (with no limitation) any implied warranties of utility, merchantability, or fitness for any particular purpose. All such representations or warranties are expressly disclaimed. Neither XCHARGE Tech Co., Ltd. nor its distributors or dealers shall be liable for any indirect, incidental, or conse-quential damages under any circumstances. The exclusion of implied warranties may not apply in all cases under some statutes, and thus the above exclusion may not apply. This document does not replace and is not intended to replace any local, state, provincial, federal, or national laws, regulations, or codes applicable to the installation, electrical safety, and use of the battery system. XCHARGE Tech Co., Ltd. assumes no responsibility for the compliance or noncompliance with such laws or codes in connection with the installation of the battery system. Specifications are subject to change without notice. Every effort has been made to make this document complete, accurate, and up-to-date. However, XCHARGE Tech Co., Ltd. may need to make some improvements under certain circumstances without advance notice. XCHARGE Tech Co., Ltd. shall not be responsible for any loss caused by this docu-ment, including, but not limited to, omissions errors, typographical errors, arithmetical errors, or listing errors in this document. All trademarks are recognized. Legal Provisions

Contents1.0 /Information and safety................................................................................................12.0 /Product description ...................................................................................................63.0 /Package and Transportation....................................................................................134.0 /Installation..................................................................................................................145.0 /Conmissioning ..........................................................................................................316.0 /User interface ...........................................................................................................367.0 /Maintenance ..............................................................................................................44

Copyright | NZS Installation and Operation Manual 1This document is valid for Net Zero Series Products.This manual describes the features and functions as well as safety information and instructions, scope of delivery, system overview, installation, electrical connection, com-missioning, troubleshooting, maintenance and storage, and technical data of the XCHARGE Net Zero Series facility.This product is made to meet the future energy storage demand. Different from the current charging logic, this product is integrated with energy storage system and more flexible in application of in peak and valley power consumption as well as lack of grid power capacity. NZS enables optimized energy supply and demands among grid, batteries and EVs and demonstrates its advantages in high-Charging -Power with less input. Due to the high technical modularity and the different customer requirements, there are different variants which differ in the maximum output power, the installed cables and con-nectors. The components shown in this manual are all example graphics. The illustrations and explanations refer to a typical device design. The design of your device may differ from the description in the manual. Please read this document carefully before using the device for the first time.Only the charged energy in kWh may be billed in accordance with calibration law.1.1 PrefaceThis document is intended for :·Customers who have purchased or are ordering a NZS model and would like to learn more about installation and maintenance.·Contractors who are responsible for site preparation and/or installation of NZS.·Contractors who are qualified electricians performing installation, commissioning, maintenance or repair of the XCHARGE NZS Models.·XCHARGE employees and after-sales service personnel who are responsible for NZS Models.The instructions in this document may only be performed by qualified persons who must have the following skills:·Knowledge of how batteries work and are operated·Knowledge of, and adherence to the locally applicable connection requirements, standards, and directives1.2 Target Group/ Introduction and Safety1.0

2 Copyright | NZS Installation and Operation ManualPlease use personal protective equipment to avoid such hazards. And emergency personnel should respond appropriately to possible incidents at power generation by standard operating procedures.If the smoke detection alarm or other heat signs are reported, the responder should remain within the safety zone until it is safe to enter the site according to the emergency plan.Please do not operate in cloudy, rainy weather or similar conditions as this may lead to possible electrical issue. Do not install or use the charging station near flammable, explosive materials or steam.This product contains the following hazardous chemicals: battery electrolyte, refrigerant, ethylene glycol antifreeze. If the battery modules leak electrolytes, contact with the leaking liquid or gas should be avoided. All wiring of this product requires qualified electricians to complete, and confirm the wiring harness is in good condition. The shutdown sequence only isolates the battery and associated hazardous voltages. Personnel must be extreme care and wear appro-priate PPE at all times. Always consult site-specific schematics and manuals to ensure proper isolation of electrical equipment.Do not attempt to open, disassemble or modify the charging station without qualified personnel.·Knowledge of, and adherence to this document and the associated system documentation, including all safety instructions·Knowledge of the relevant safety and accident prevention regulations.·Ability to recognize risks and avoid dangers·Training in dealing with the hazards associated with the installation and operation of electrical equipment and batteries·Training in the installation and commissioning of electrical equipmentIn case of loss or damage due to improper use or unauthorized modification of the prod-uct, XCHARGE shall not be liable for the product, the purchaser or any third party. The same also applies if the maintenance provided by XCHARGE is not strictly observed.1、2、3、45、6、1.3 Important Safety InstructionsDANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

1、2、3、1、2、3、4、5、6、7、 Copyright | NZS Installation and Operation Manual 3All personnel operating Net Zero Series shall be properly trained and qualified. Personnel should read and understand all manuals and project documentation and comply with the requirements and instructions contained therein.The long period of the shutdown of thermal management and communication systems may result in equipment damage and failure to detect and communicate faults.Transport and lift the battery module carefully. Take the weight and off-COG of the Energy Storage System into account.Wear suitable personal protective equipment for all work on the battery system.Disconnecting the contactor under load may damage the Net Zero Series. Please usethe emergency stop button only in a situation emergency. Please do not start operation until the system has been fully commissioned and checked by XCHARGE technicians or until all required scheduled maintenance has been carried out. Before installing or cleaning the charging station, disconnect the power supply.Please use the charging station within the parameter range as defined in the specification. Do not use the charging station for non-charging purposes or for vehicles that do not support the on Screen showed charging standards.In the event of any defects such as cracks, wear and tear, malfunctioning parts or other damage, stop using the charging station immediately and call for service.Do not start or drive your electric vehicle if the socket is still connected. The user is liable for damage to the electric vehicle and the charging station caused by the case addressed earlier.Please transport the charging station carefully. Avoid strong external shocks. Do not pull, twist or step on the charging station to avoid damage to parts. Avoid and prevent damage to the charging station by moisture, liquids and foreign objects at all times. Do not use if water is present or if you suspect that the station is damaged or corrosive. Do not touch the charging station, charging cable and charging plug with wires, tools or other sharp objects.WARNING
Indicates a hazardous situation that, if not avoided, could result in serious injury.Indicates a hazardous situation that, could result in minor or moderate injury.CAUTION

4 Copyright | NZS Installation and Operation Manual1.4 SignsThese signs below are also used on the nameplate of NZS:SignsDescriptionEarthingConnect an earth terminal to earthGeneral Warning SignIdentify a hazard that may result in damage to the operator, machinery, other equipment and / or contamination.Electricity HazardWarning of electrical voltageCrushing of Hands Touching the device may result in hand injuriesNo access for people with active implanted cardiac devicesSignsDescriptionPay attention to documentationObserve all documentation supplied with the product.WEEE SymbolDo not dispose of the product with household waste. Please observe the applicable disposal regulations at the place of installation for electronic waste.CE-symbol

Copyright | NZS Installation and Operation Manual 5AC BMSBCUBICBMUBOL BOPCOGDMCDCEMCUERPESSFATHMIHVACLFPNZSOCPDPPESATSOPSPDSOCAlternating CurrentBattery Management SystemBattery Control UnitBattery Information CollectorBattery Management UnitBeginning of LifeBalance of PlantCenter of GravityDistribution Management CabinetDirect Current Energy Management Control Unit Emergency Response PlanEnergy Storage SystemFactory Acceptance TestHuman Machine InterfaceHeating Ventilation Air ConditioningLithium Iron PhosphateNet Zero SeriesOver-current Protection DevicePersonnel Protective EquipmentSite Acceptance TestStandard Operating ProceduresSurge Protection DeviceState of Charge1.5 Designation in the Document

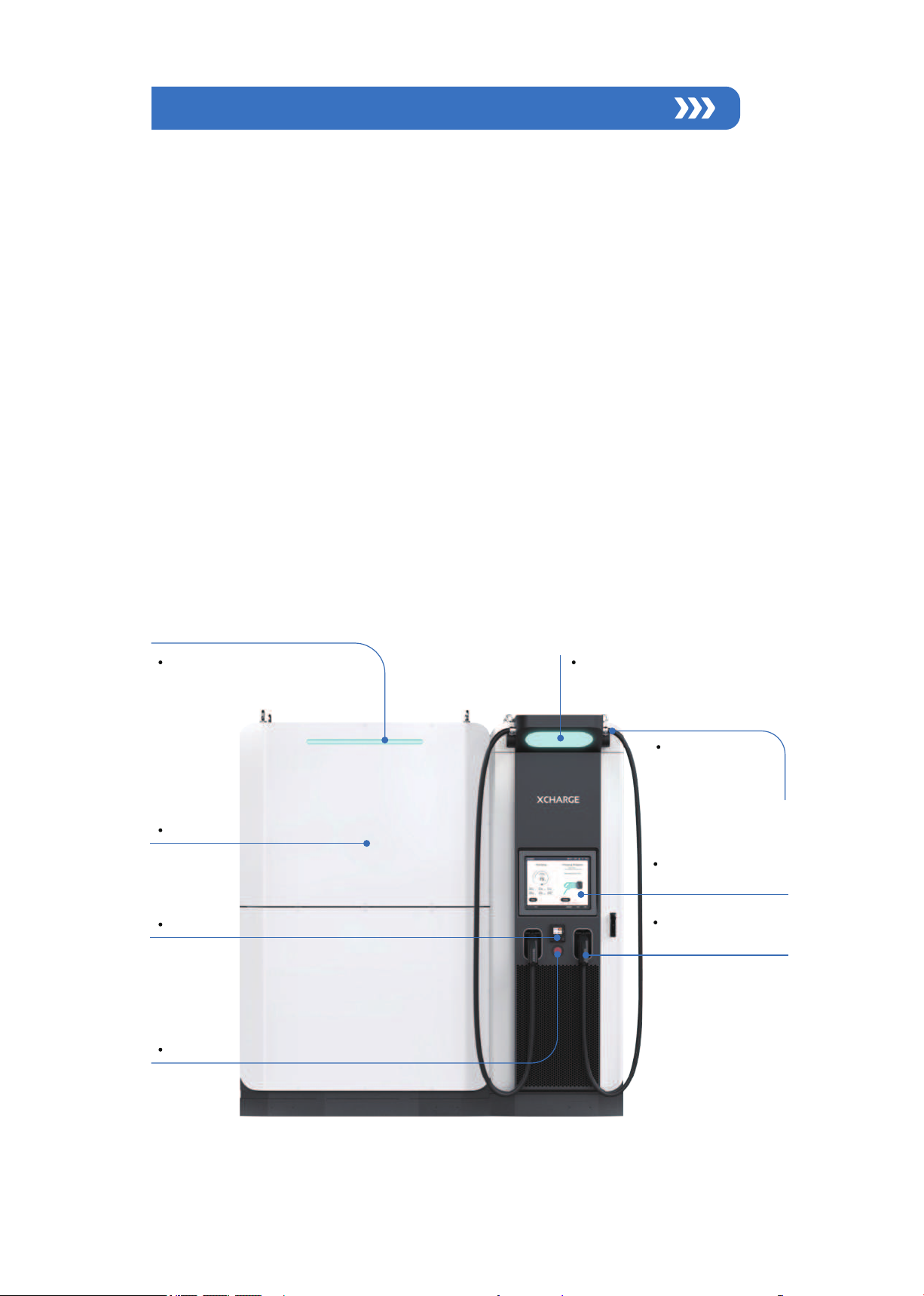

6 Copyright | NZS Installation and Operation Manual/ Product Description2.02.1 Product IntroductionLED indicator of SOC stateLFP BatteryPayment Terminal (POS or NFC)HMI using 19-inchtouchscreenLED IlluminationEmergency-Stop buttonConnectors forchargingCablemanagementsystemXCHARGE Net Zero Series Product integrates Energy-storage-system (ESS), including Lithi-um Iron Phosphate Battery. NZS offers the synergy of energy storage and fast charging expe-rience to shape the future of carbon neutral transition. Designed with the essence of XCHARGE, this disruptive technology applies a completely new modular upgrade and intelli-gent software system for the whole E-mobility market. It is a significant proof point to cut carbon emissions in our entire product portfolio and make EV charging green. A complete charging system consists of a ESS and an EV Charger. The EV Charger features a human-machine interface, two fixed charging connectors (can be configured with cable management system if needed), an industrial socket for cable connection, and support for multiple payment methods.

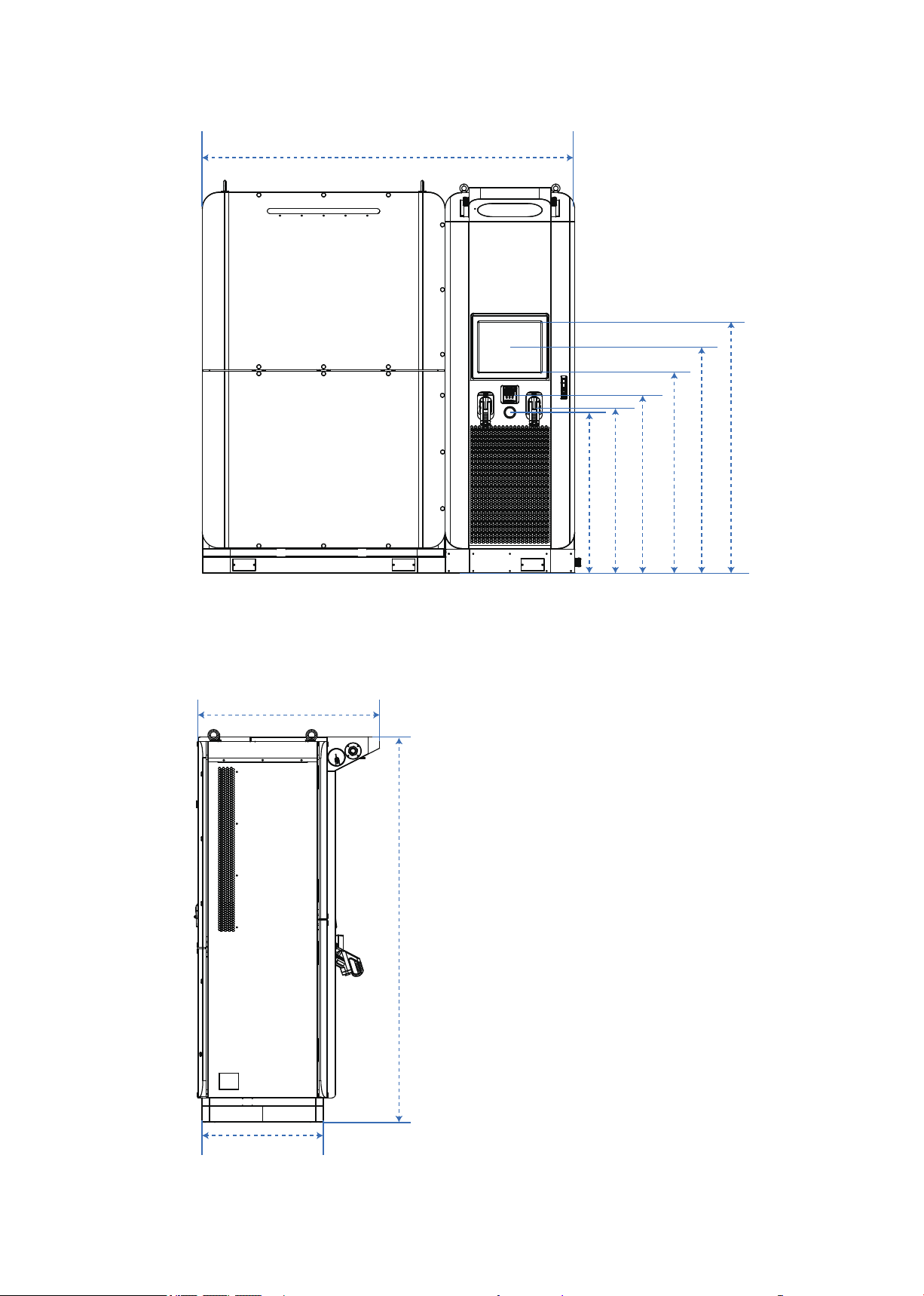

Copyright | NZS Installation and Operation Manual 7Electricity meterIndustrial socketinstallation areaHVAC system for batterycooling/heatingAir outlet forcharger unitMounting positionfor NameplateNZS charger can be configured with one or two ESS: NZS/233Battery Volume: 233kWh(1 ESS left)or 466kWh(2 ESS one for each side)Net Zero Series

2380
2300
1548139512421096.51017.75991.5
11237508 Copyright | NZS Installation and Operation Manual

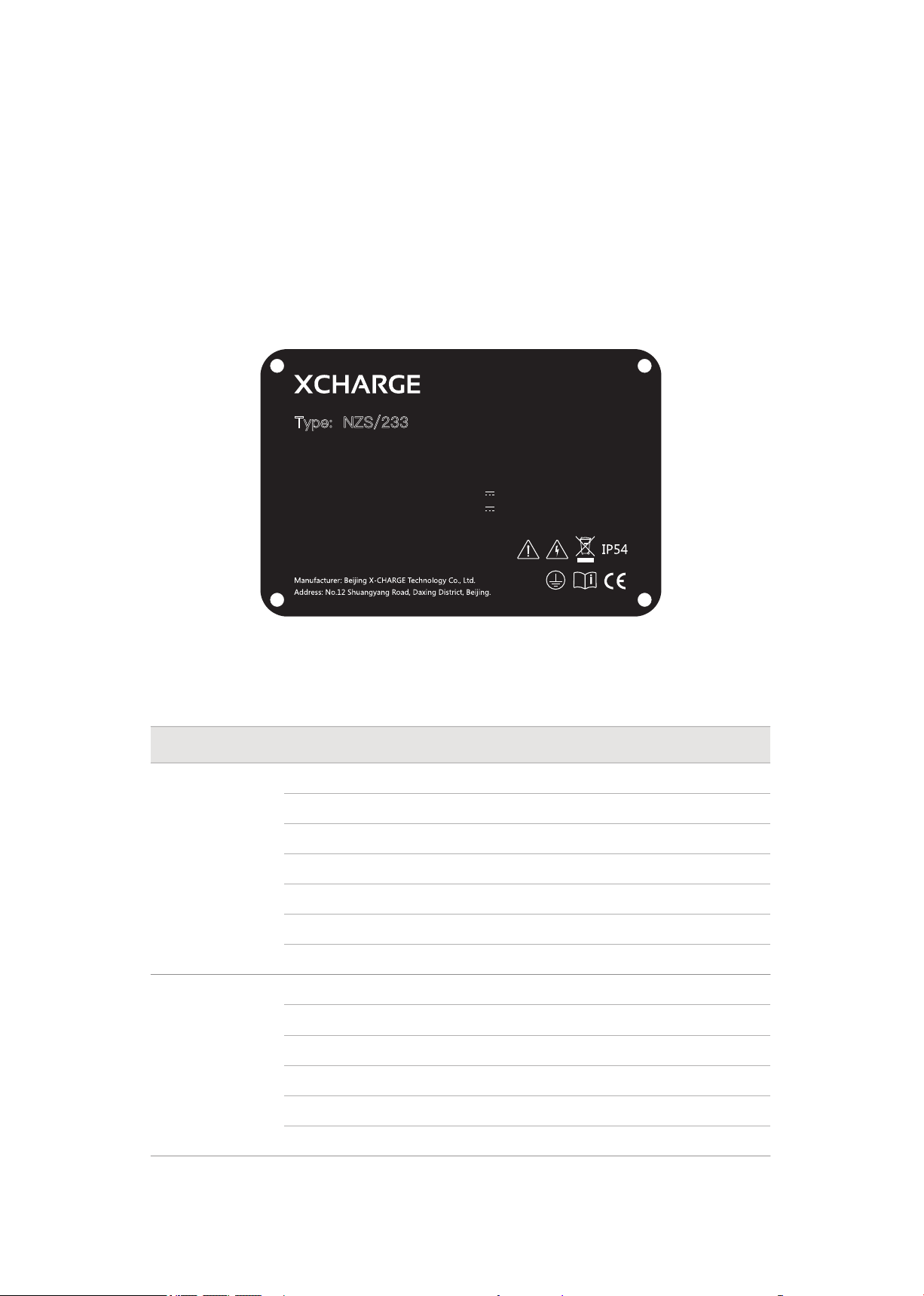

2.2 Technical ParametersNameplateTo ensure safe installation and usage of NZS, the nameplate should be checked, as compli-ance with CE certification and output input parameters are shown on nameplate. The name-plate is mounted on the left lower corner of back side of the charging station as introduced in product picture. It contains type of charger, input/output, battery capacity, manufacture date and address, part number, serial number and safety signs. DC Output 150V – 1000V 0A – 250A 210kW(CCS2)Type: NZS/233Battery Capacity 233kWh Usable Energy 208kWhManufacture date：08/2022AC Input 400V 3P+N+PE ～ 99A 68kW 50Hz150V – 1000V 0A – 250A 210kW(CCS2)S/N：C8A233SXXXXXXXXXXP/N：C8A/601540-YRCCDS-ANYEURE2208Importer: XCHARGE Europe GmbHBorsteler Bogen 27B, 22453 HamburgTypeBattery CapacityUsable Energy (SAT)Max. recharge PowerBattery charging RateBattery discharge RateBattery EfficiencyIP RankingConnectorsCharging powerPower distributionCharging voltageEfficiencyLithium iron phosphate233kWh / 2*233kWh208 kWh/2*208 kWh30kW/60kW≤0.5C≤1C≥94.5% under 0.25CIP652DC Max.150kW +30kW/60kW=180kW/210kW2 connectors intelligent distribution300V~1000V≥96.5%BatteryPerformanceChargingSystemElectrical ParametersCopyright | NZS Installation and Operation Manual 9

10 Copyright | NZS Installation and Operation ManualInput & OutputBasicParametersEnvironmentParameterTypeDimensionInstallationMaterialColorWeightApplicable siteOperating temperatureStorage TemperatureHumidityAltitudeNoise EmissionEMC EmissionMediumDC charging station2.3m*0.8m*2.35m (w*d*h)Floor typeIndustrial Grade AlloyWhite weather-resistant coating3600kgOutdoors-25℃-55℃（over 45℃ derating）SOC 30% - 60%Long term: -20℃-35℃ <12 monthsShort term: -20℃-45℃ <3 months≤95%，No condensation≤2000m≤75dB under nominal situationClass BNo explosive hazardous, No toxic & harmful gases.General ParametersPayment SystemConnectivityRFID, credit cardGSM & LTE & LAN(Min. distance from wireless Module to User >200mm)OCPP 1.6JLiquid-cooledAerosol5kW @45°Input VoltageCircuit breakerInput FrequencyOutput Voltage RangeConstant-power voltage output rangeNominal power outputCurrent output3Phrase 400VAC +/- 15%Type A50Hz±1Hz150VDC-1000VDC300VDC-1000VDC150kW + 30kW/60kW250A CCS2 continuously(200A optional）CommunicationBattery coolingFire suppression system Auxiliary power

Copyright | NZS Installation and Operation Manual 11RF Output PowerGSM900: 880-915MHz(UL), 925-960MHz(DL)33.04dBmDCS1800: 1710-1785MHz(UL), 1805-1880MHz(DL)30.92dBmWCDMA B1: 1920-1980MHz(UL), 2110-2170MHz(DL)23.5dBmWCDMA B8: 880-915MHz(UL), 925-960MHz(DL)22.8dBmLTE Band 1: 1920-1980MHz(UL), 2110-2170MHz(DL)23.6dBmLTE Band 3: 1710-1785MHz(UL), 1805-1880MHz(DL)23.5dBmLTE Band 7: 2500-2570MHz(UL), 2620-2690MHz(DL)23.0dBmLTE Band 8: 880-915MHz(UL), 925-960MHz(DL)23.1dBmLTE Band 20: 832-862MHz(UL), 791-821MHz(DL)22.0dBmLTE Band 28: 703-748MHz(UL), 758-803MHz(DL)21.8dBmLTE Band 40: 2300-2400MHz(UL/DL)23.6dBmSafety and Lowvoltage electricalEMCREDBattery SystemTransportationIEC 61851-1:2017EN 61851-1: 2019EN 61851-23: 2014EN 61851-24: 2014IEC 62477-1: 2012+A1EN 62477-1 :2012+A11+A1IEC 61000-6-2:2016IEC 61000-6-4:2018EN 301908-1EN 300330EN IEC 62311:2020IEC 62619IEC 61000UN38.3Compliance

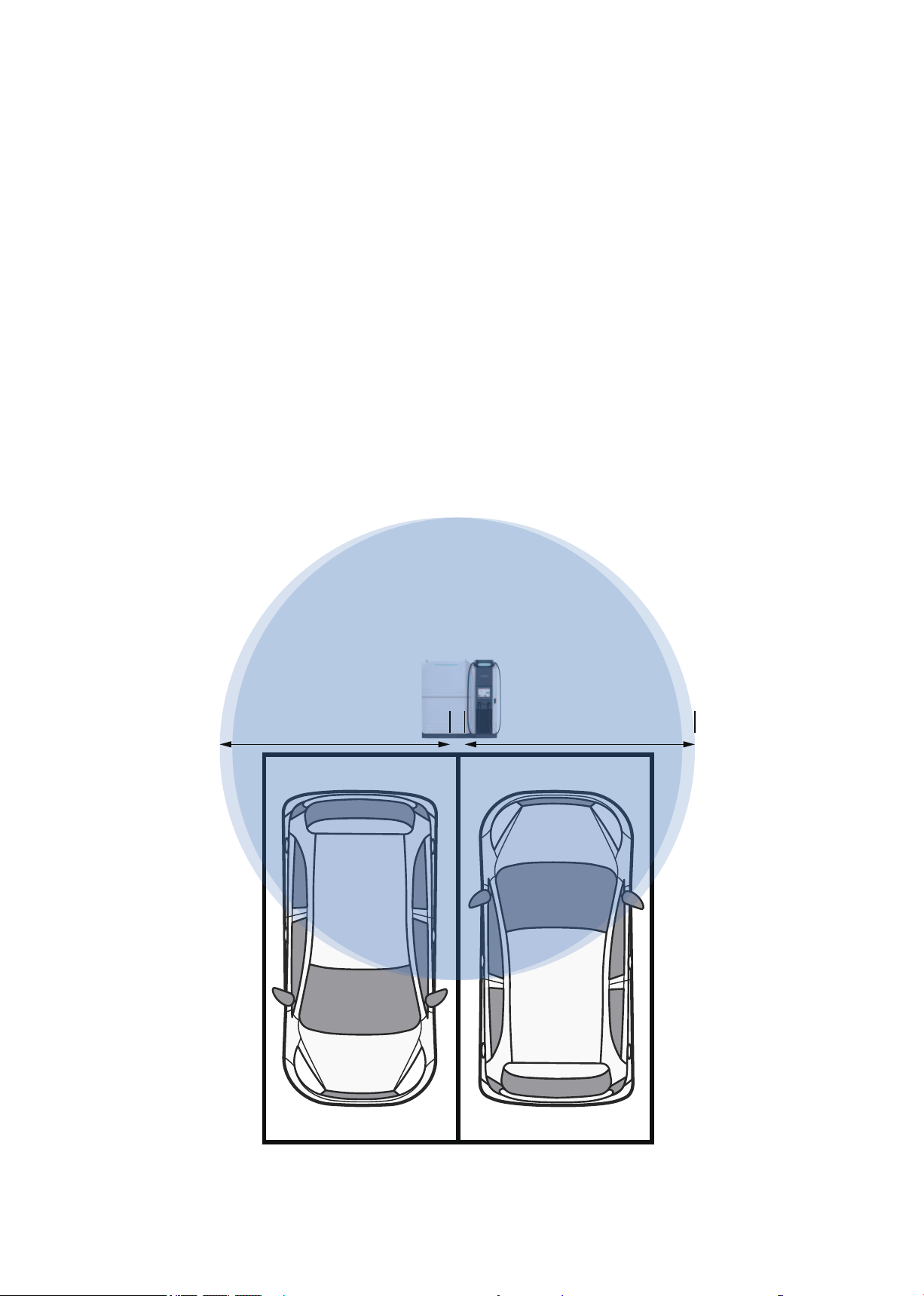

12 Copyright | NZS Installation and Operation ManualCCS Combo 2 different current varieties are available to choose. There are three kinds of current level to use 200A, 250A and 300A. Of which, 250A and 300A cables can support up to 400Afor certain period based on ambient temperature and connector temperature. For each, cable length is free to be customized from 3m to 10m.The usable DC-Power on a DC-outlet is limited by the maximum current of the used DC-charging cable. The effective current carrying capacity of the charging interfaces is spec-ified on the nameplate.Net Zero Series is by default configured with a cable length of 5m. It can offer at least 4.4m cable radius at the height of ground level covering the parking space.Charging Connectors4.4m 4.4m

2.3 Applicable scenarios3.1 PackageBecause of low input requirement, NZS is flexible to be applicated in varies scenarios:
Highway refueling stations: Due to remote location, there is only limited power supply condi-tion at refueling stations on highway. NZS only needs max. 70kW for input and output more than 200kW, which realize fast charging demand on highway. Commercial Center: In case of a large price difference between day and night, NZS supports charging battery with low price and discharge power to vehicle during peak hours, which significantly increase profit for CPOs.Retails: Industrial socket simplify cable connection procedure.

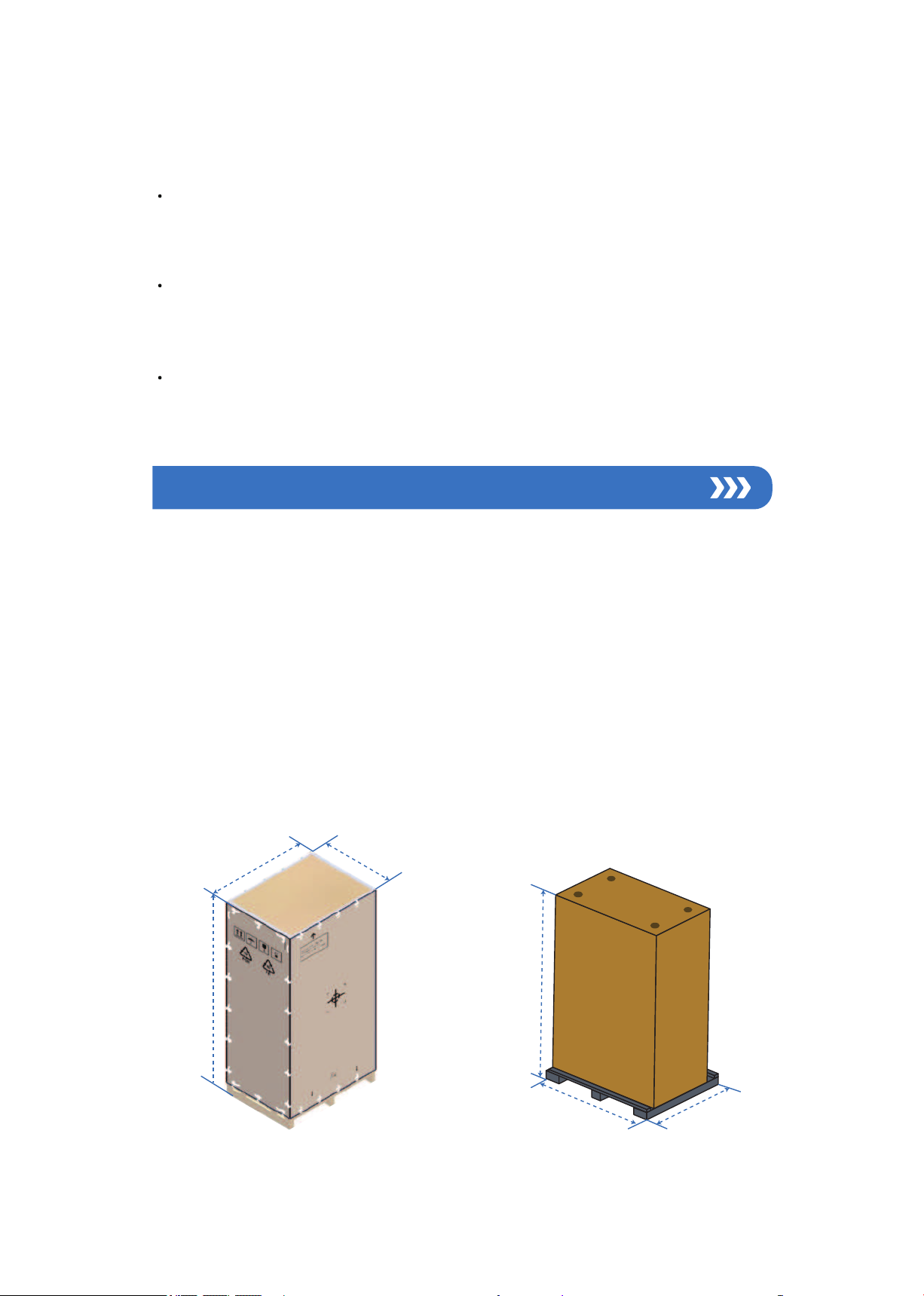

Copyright | NZS Installation and Operation Manual 13/ Package and Transportation3.0Net Zero Series is packed in recyclable wooden Package (PLYWOOD). Charger unit, ESS unit and basement are packed separately in 3 packages. Following are package pictures for charger unit (left) and ESS unit (right) with their dimen-sions. Charge package is formed from a wooden pallet and 5 pieces of wooden boards. Different with Charger unit, center-of-gravity for ESS shifts to the front of system. To ensure transportation safety, instead of wooden pallet, ESS package is formed from a metal pallet and 5 pieces of wooden boards.
950
1280
25002500
1600
1300
(Charger unit)(ESS unit)

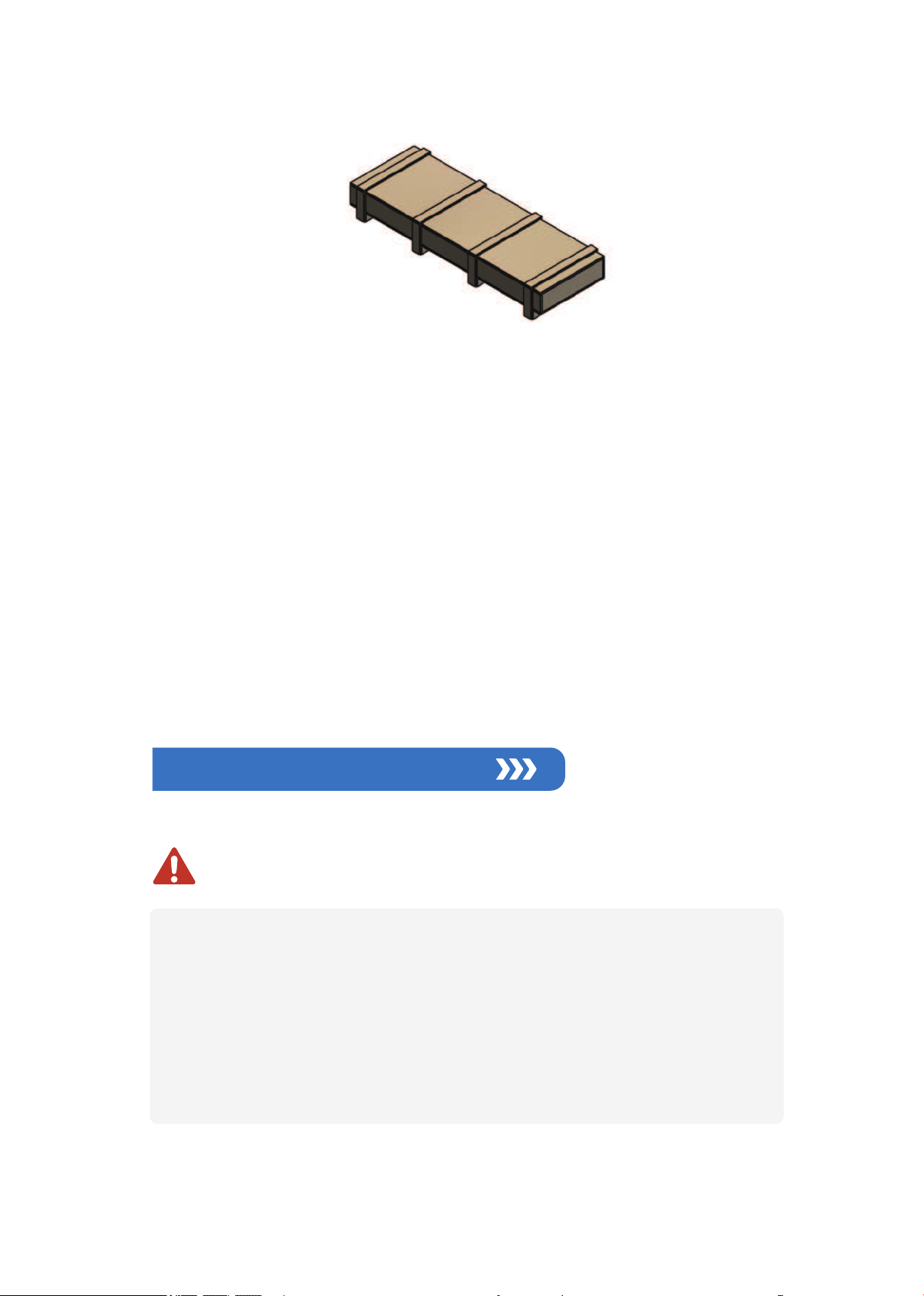

14 Copyright | NZS Installation and Operation Manual/ Installation4.03.2 TransportationPackage of metal basement is made with full PLYWOOD, showed in following picture.To transport the product in package, forklift must be prepared before transportation.The lashing and securing method is suitable for transportation. For charger unit, at least two binding belts must be through top of charger and fasten the product. For ESS, 4 binding belts must pass through 4 rings to cross-fasten the ESS.DANGER
Danger to life due to improper installation!Failure to observe the ambient conditions can lead to dangerous situations when deal-ing with electricity.Do not install and use the charger near flammable, explosive, rough or combustible materials or chemicals or steam.(Package of metal basement)

Copyright | NZS Installation and Operation Manual 154.1 Preparation before installationThe product is delivered to a warehouse by a logistics company and handed over to the customer. Normally, XCHARGE is not responsible for transporting the charger to the final installation site. During Installation there will be XCHARGE Service Colleagues for guidance. Before installation, please ensure following list well prepared.Foot print of NZS is 2300 mm x 800 mm. The space requirement of NZS is calculated as front at least 1.6m to open the front door and rear at least 0.5m to ensure tightening screws and basic operation.NamePiecesUsageForklift truckscranesAnti-theft screw toolsSocketsInsulated torque spannersHerringbone laddersGlass glueInsulated glovesInsulated floor matsExpansion boltsLeveling ruler11Safety helmet631211111111151Bolts≥5T, for product unloading≥5T, for lifting and installationFor safety during ESS installationM12 fix metal base to concrete baseCheck levelnessCheck and mark torque valuesRemove ropes for liftingSealing screw gapFor safety during ESS installation124578910121314No.4pcs M12*35 for connection between Metal base and charger4pcs M12*100 for connection between Metal base and ESS4pcs M14*80 for leveling between ESS and Charger5pcs M12*150 Expansion boltsDoor security screw removalFastening of case and base screwsRemoval and tightening of frontand rear door body screwsProtection against falling objectsand other dangerous impacts1Electric screwdrivers1

16 Copyright | NZS Installation and Operation ManualThe metal base of this product needs to be fixed to a concrete base, please refer to the diagram below to create the installation base in advance on site. The requirement for this concrete base is as follows:Concrete base height H0≥300mmLoad bearing capacity > 4.5 t / ㎡Foundation area ≥ 2700mm x 1200mm （200mm more each side）Foundation Horizontal degree ≥3mm/m2Mental BaseHardened groundHardened Foundation 2Geological FoundationHardenedFoundation 1
HO
