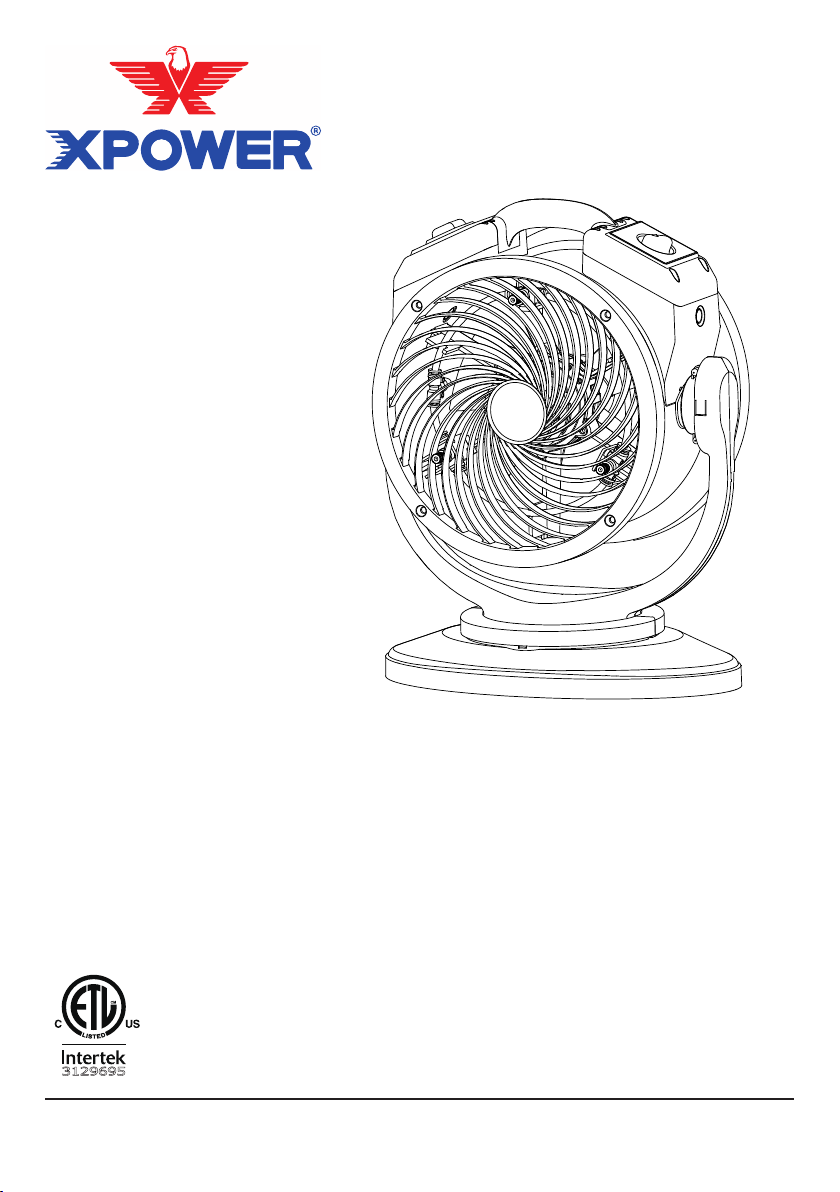

XPower FM-68 User manual

Misting Fan Owner's Manual
Model :
FM-68
(115V~, 60Hz)
Read and save these instructions before use
www.xpower.com | 1-(855)-855-8868 | [e-mail]
3129695
Index: NA-1-A36
Edition: 1.2. Final

English - 2
Safety Instructions
!WARNING - READ AND SAVE THIS INSTRUCTIONS BEFORE USING THIS PRODUCT.
The user of electrical products may create hazards that include, but are not limited to injury, fire,
electrical shock. Failure to follow these instructions may damage and/or impair its operation and
void the warranty.
• Before operating, remove all packaging material and check for any damage that may have
occurred during shipping or any missing items.
• Check power supply to ensure it matches the appliance’s specification.
• Do not operate any fan with a damaged cord or plug. Discard fan or return it to an authorized
service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for verification and
/ or installation of a GFCI receptacle if necessary.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
• To reduce the risk of fire or electric shock, DO NOT use this fan with any solid-state speed
control device.
• This fan is an outdoor product and is Not intended for indoor use. Do not leave the fan
unattended when it is plugged in.
• Do not touch this appliance or the plug with wet hands or while standing in water.
• Do not operate the appliance in any pooled water.
• Do not use the product in areas where gasoline, paint or other flammable goods and objects are
used or stored.
• Do not insert or allow objects to enter any ventilation or exhaust opening as this may damage
the appliance and void the warranty.
• Do not cover the air inlet or outlet on the appliance.
• Do not direct the air flow at human faces or bodies.
• Do not allow children to play or with this appliance.
• Do not move or carry this appliance while the unit is operating.
• Always place this appliance on a smooth and level surface for safe operation.
• Automatically Operated Device – To reduce the risk of injury, disconnect from power supply
before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the power cord
plug-end only, do not pull the cord directly.
• Do not attempt to repair or adjust any electrical or mechanical functions of this appliance, as
this may cause danger and void the warranty.
• This product employs overload protection (fuse). A blown fuse indicates an overload or short-
circuit situation. If the fuse blows,unplug the product from the outlet. Replace the fuse as per
the user servicing instructions (follow product marking for proper fuse rating) and check the
product. If the replacement fuse blows, a short-circuit may be present and the product should be
discarded or returned to an authorized service facility for examination and /or repair.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the product
from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity, or other
extreme environments, when not in use.
• An electronic instruction manual can be obtained through website www.xpower.com.

English - 3
Grounding Instructions
This appliance must be grounded. In the event of malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric shock.
This appliance is equipped with a cord having an equipment-grounding conductor and
a grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
A qualified electrician should be consulted if there is any doubt as to whether an outlet
box is properly grounded.
DANGER: Improper connection of the equipment-grounding conductor can result in
a risk of electric shock. The conductor with insulation having an outer surface that is
green with or without yellow stripes is the equipment-grounding conductor. When repair
or replacement of the cord or plug is required, do not connect the grounding wire to
either flat blade pin. Check with a qualified electrician or serviceman if the grounding
instructions are not completely understood, or if in doubt as to whether the appliance is
properly grounded. Do not modify the plug provided with the appliance – if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.

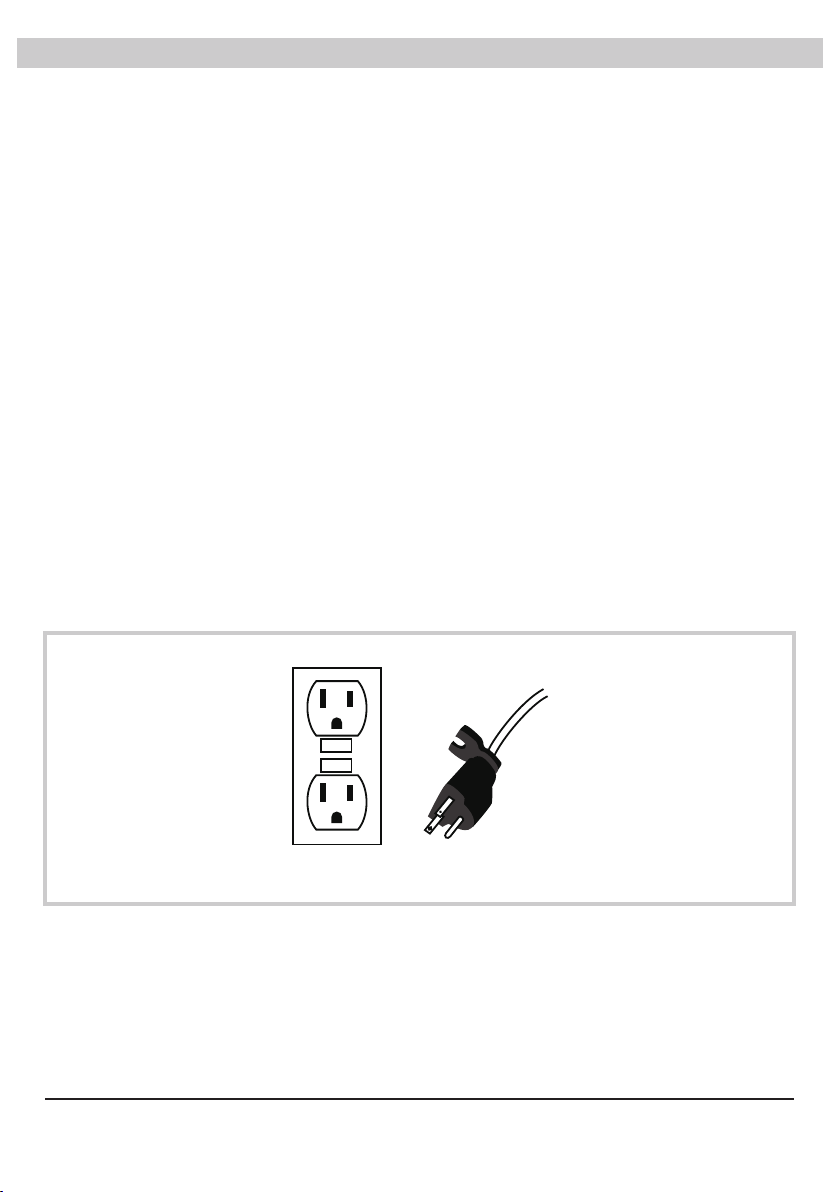

This appliance is for use on a nominal 115V circuit (NEMA 5-15R), and has a grounding
plug (NEMA 5-15P) as illustrated below. Make sure that the appliance is connected to an
outlet having the same configuration as the plug. No adapter should be used with this
appliance.
TEST
TEST
RESET
RESET
NEMA 5-15R NEMA 5-15P

English - 4
Items Included
Owner's Manual
XXXManual De Usuario (página 10)
XXXMode d'emploi (page 18)
Model / Modelo / Modèle:
(115V 60HZ)
Readand save these instructions before use
Leay guarde estas instrucciones antes de usar la unidad
Lireet conser ver ces instructions avantutilisation
Index:NA-1- A2
Edition:1.0.Alpha
• Misting Fan x 1
• Owner’s Manual x 1
Parts Description
1 2 34
5
67
8
9
10
11 12 13
14
15
16
17
18
19
20
(1) Front Grille Cover
(2) Atomization Assembly
(3) Motor
(4) Front Rack
(5) Oscillate Panel
Assembly
(6) Housing Handle Front
(7) Housing Handle Rear
(8) Timer Panel Assembly
(9) Capacitor
(10) Back Rack
(11) Fan
(12) Rear End Cover
(13) Rear Grille Cover
(14) Machine Base
(15) Turntable Rubber Pad
(16) Oscillate Motor
(17) Turntable Cover
(18) Turntable Base
(19) Water Hose
(20) Power Cord

English - 5
Installation and Operation Guide
Installing the Water Hose
Water Faucet
Water Switch
Open
Close

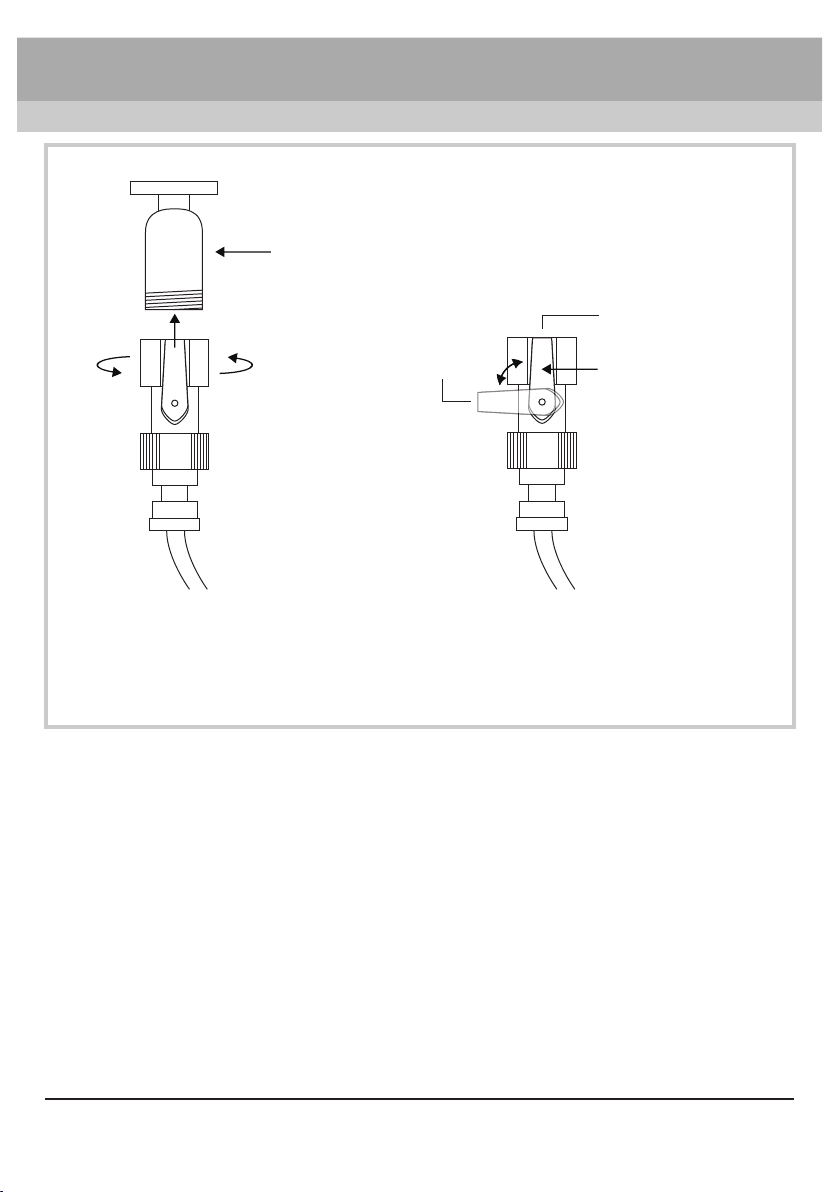

• Screw the water faucet adapter onto the water faucet.
• Turn the switch to desired position to open or close the valve.
• Turn on the water faucet.

English - 6
GFCI Protected Power Cord
Circuit Reset
Button
Power
Indicator
Test
Button
RESET
TEST
• The power cord of the misting fan is protected by GFCI.
• If the misting fan stops working, press the RESET BUTTON to reset the circuit.
For GFCI (Ground Fault Circuit Interrupter) protected power cord receptacle:
• Once a ground fault occurs, the GFCI will immediately interrupt the power
connection to this appliance.
• A ground fault is an inadvertent contact between an energized conductor (for
example, a human being) and ground or equipment frame.
WARNING: Risk of electric shock. You should test the GFCI before each use.
• Press the Test Button, the Power Indicator should go off. Then press GFCI Reset
Button, the Power Indicator should illuminate and Test Button should be reset to
unpressed position.
• Do not use if the test fails.
OFF
123
Switch Plate
• Turn to “OFF” position to switch the misting fan
OFF. Turn to any speed position to switch the
misting fan ON.
• Turn clockwise to set the desired fan speed.
There are 3 fan speeds from: 1, 2, 3. “1” is the
lowest speed and “3” is the highest speed.

English - 7
Multiple Operating Positions

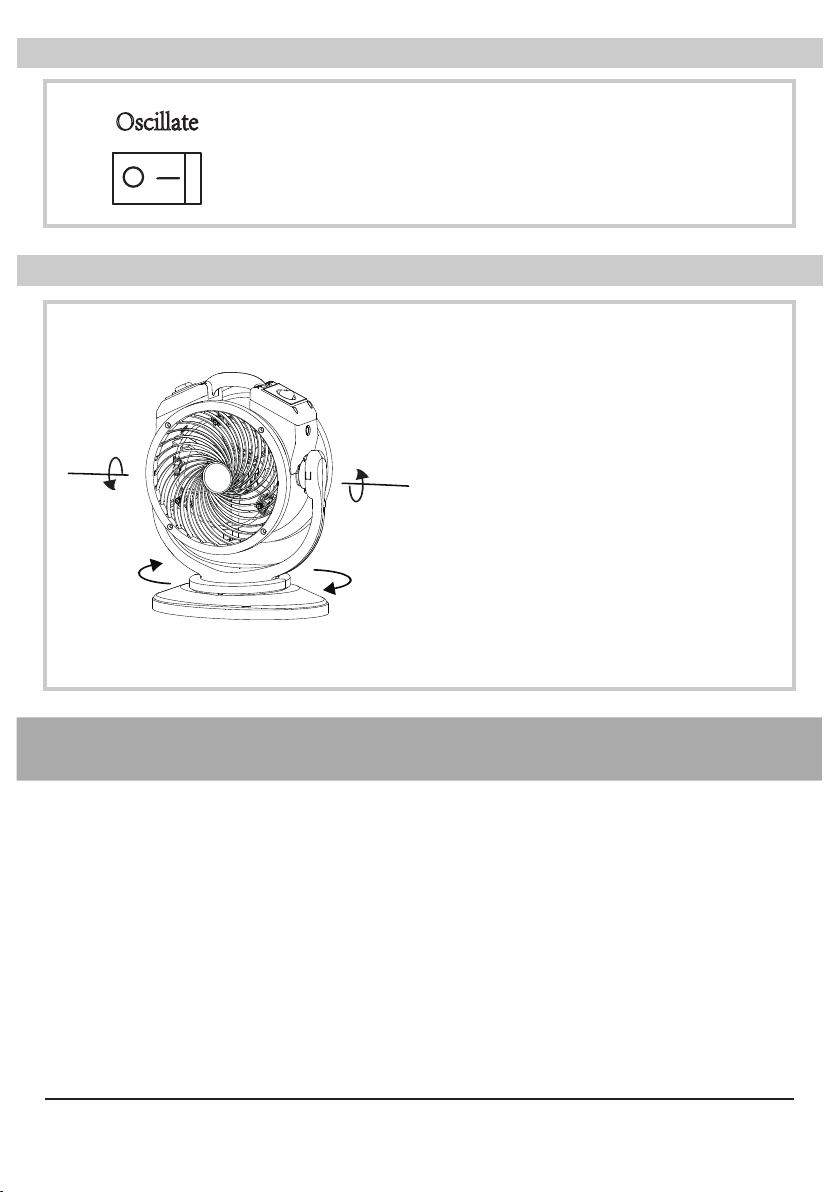

Oscillate Switch
• The misting fan can operate in
different positions, directing the
airflow and mist to desired areas.
Oscillate
• Switch to “I” setting to let the machine oscillate.
• Switch to “O” setting to let the machine stay still.
User Maintenance Instructions
Frequent maintenance is recommended on this appliance. Failure to follow the
maintenance instructions may cause failure of the appliance and void the warranty.
• When not in use, unplug and store the appliance in a dry and cool indoor place. Make
sure it’s out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the misting fan
from its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water
directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block
the air inlet and air outlet.

English - 8

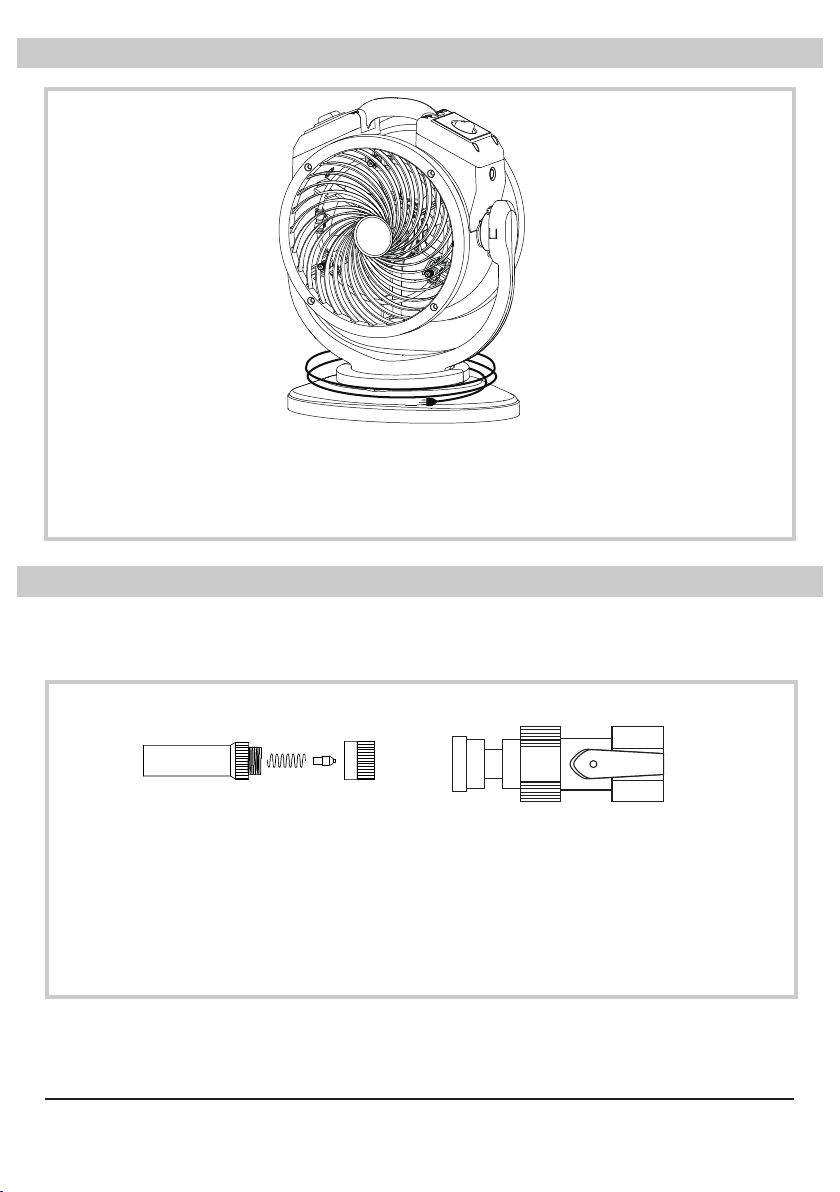

• Disassemble the nozzles (See illustration above) and unscrew the water faucet
adapter.
• Soak the parts with soapy water or mild (or alkaline) detergent for several hours.
DO NOT use vinegar or other acidic detergent.
• When finished, dry the surfaces completely and reassemble the parts.
When not in use, unscrew the misting nozzles, store the nozzles in a dry indoor place out
of reach of children. The nozzles must be dried completely before stored.
Organizing the Cord
Water Faucet Adapter and Misting Nozzle Maintenance
• Wrap the water hose first and then the power cord around the turntable after use.
• Use convenient clip on the housing to secure in place.

English - 9
• Grasp plug and remove from the receptacle or other outlet device. Do not
unplug by pulling on cord.
• Slide open the fuse cover on top of attachment plug. Remove the fuse
carefully.
• To reduce risk of fire, replace fuse only with 5A/125V fuse.
Slide close the fuse cover on top of the attachment plug.
To reduce risk of fire. DO NOT replace the attached plug, which contains a
safety device (fuse), with any other plug. Discard product if the attachment plug
is damaged.
Replacing the Fuse
FUSE FUSE
Fuse Cover Fuse
Troubleshooting Guide
PROBLEM POSSIBLE CAUSE SOLUTION
Misting Fan does not
start
No electricity. Check for power supply.
The power cord is not properly
plugged in.
Remove and reconnect the power
cord.
The machine is working under
an extreme temperature.
Turn off the machine and unplug
it. Let the machine cool down to
normal temperature.
Unit runs but the
speed is abnormal
Air inlet or air outlet is blocked. Remove blockage.
Misting function is
abnormal
The water hose is blocked. Remove blockage.
The water switch is off. Check for water supply.
If troubleshooting does not resolve your problem, please contact XPOWER or other
parties authorized by XPOWER for further instructions.

English - 10
Technical Specication
MODEL NUMBER FM-68
Voltage / Frequency 115 V~60 Hz
Amperage 0.55 A
Rated Airflow 1000 CFM
Speed Control 3 Speeds
Cord Length 10 ft. / 3.0 m
Unit Dimension
(L) x (W) x (H) 14.8 x 8.3 x 19.0 in. / 37.5 x 21 x 48.3 cm
Unit Weight 12.8 lbs. / 5.8 kg
Safety Certification ETL/C-ETL
If your product(s) is not listed above, please visit www.xpower.com for more information.
XPOWER Limited Warranty (USA)
1 YEAR LIMITED WARRANTY
XPOWER-branded products purchased in the U.S. from authorized distributors include
a 1-year limited warranty. Contact XPOWER to confirm warranty information about your
product(s).
This limited warranty covers defects in materials and workmanship in your XPOWER-
branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your
country will cover products purchased outside the U.S.
IMPORTANT:
(1) Please finish the online warranty registration before usage. Visit https://xpower.com/
warranty-registration/.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit
www.xpower.com for more information.

English - 11
Items mentioned but not limited to below are not covered by warranty:
(1) Power cord, filters or any other components considered as a “consumable parts” by
XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER’s sole discretion, from:
(3.1) External causes such as accident, abuse, misuse or problems with electrical power
supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner’s Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated
in Owner’s Manual.
Before contacting XPOWER, please try one or more of the following:
(1) Consult this Owner’s Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to
address your problems.
If you need additional assistance from XPOWER, please:
(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers
provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the
most current address provided on www.xpower.com.
Please also have your original proof of purchase and the serial number(s) of your
product(s) ready when you contact XPOWER.
If you are instructed to return the unit for service or replacement, please:
(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own
expense to the address provided by XPOWER, with the RMA number on the shipping
label or the packaging.
(3) Include all the original parts and components.
XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any.
For products under warranty, we will pay to ship the repaired or replaced product(s) to
you if you use an address within the Contiguous United States. Otherwise, we will ship
the product(s) to you at your own expense.

Read and save these instructions before use
www.xpower.com | 1-(855)-855-8868 | [e-mail]
668 S. 6th Ave.,
City of Industry, CA 91746 USA
Index: NA-1-A36
Edition: 1.2. Final
XPOWER Manufacture, INC.
