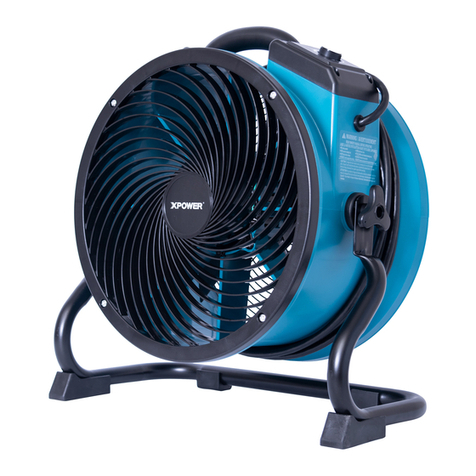

XPower X-41ATR TURBO-PRO User manual

X-41ATR TURBO-PRO
Professional Axial Fan
OWNER’S MANUAL

Introducon ................................................................................................................ 2
Features ................................................................................................................ 2, 3
Operaon .................................................................................................................... 4
Specificaons .............................................................................................................. 5
Safety Instrucons .................................................................................................. 5, 6
Warranty ..................................................................................................................... 7
Troubleshoong .......................................................................................................... 8
Parts List ...................................................................................................................... 9
Warranty Registraon Form ...................................................................................... 10
INDEX

INTRODUCTION
Thank you for purchasing the XPOWER X-41ATR Turbo-Pro Axial Fan! XPOWER Manufacture, Inc.
with over 25 years of manufacturing experience is bringing a series of products with the most
advanced technology in today’s market. Our goal with the 41 series was to bring an axial fan
never seen before, through our research and design; we have brought a revoluonary series of
fans to the industry that provides long-life operaon, excellent performance, compact design and
extremely low noise. Our Axial fans are completely speed controllable, a first in the industry. We
also offer a high quality dual outlet for Daisy-Chaining and a 3 hour mer for ease of use in
professional applicaons. Enjoy!
EXTERNAL ROTOR MOTOR:
The external movement of the rotor cools down the motor more efficiently, providing safer
operaon and longer life for the machine. This ultra-unique design also provides excellent
power, compact size and extremely low noise compared to tradional inducon motors.
VARIABLE SPEED CONTROL SWITCH:
An industry first, our completely variable speed control allows you to adjust the fan speed
exactly to your liking. This is extremely useful in venlaon applicaons where precise
volume guidelines need to be met.
FEATURES

DAISY CHAIN FEATURE:
2 Built-In Outlets for Addional Machines
3-HOUR TIMER:
Extremely convenient in busy contractor projects for the professional or a busy aernoon for
the handyman, 3 hour mer allows you to setup mulple fans without having to comeback to
turn them off.
SPECIALLY DESIGNED AIR FIN GUIDE:
Contoured to provide maximum focused and extended airflow volume and velocity.
360° ROTATION- RACK STAND INCLUDED:
Full Rotaon of the axial fan to fit the need of any project from drying flooded floors, painted
walls and damp damaged ceilings.
SUPER LIGHTWEIGHT:
24.2 Lbs. Unit Weight / Durable ABS Housing
COMPACT DESIGN W/ STACKABILITY:
L-21.9” x W-9.8” x H-22.5”
Unit Size – 2.79 CBF Only
Stackable Up To 5 Units
FEATURES (cont’d)

1) With the unit unplugged, carefully place the XPOWER unit on stable, flat, and dry surface.
2) Plug the cord into a grounded G.F.C.I. outlet only, the use of a 3-prong to 2-prong adapter is
strictly prohibited.
3) Turn on the switch to make sure the fan is operang correctly.
4) All fans in operaon must be supervised at all mes.
OPERATION
Daisy Chain
If ulizing the Daisy-Chain feature, only use devices under 4 AMPS for 12-AMP circuit.
X-41ATR axial fan has an on-board Circuit Breaker. If the Auxiliary Outlet overloads, the Circuit
Breaker will trip. If the Breaker does trip ,unplug the units and press the Circuit Breaker Reset
buon. Plug the units back into the power source and turn on the switch.
Timer
Models using a mer can be set up to 3 hours long. Aer the mer expires, the fan will turn off
while the speed control will be at the last set posion. Set posion to off and then again at a
desired speed to connue operaon.

SAFETY INSTRUCTIONS
1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug
the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not direct air flow at face or body.
3. WARING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use Unit With Any Solid-State
Speed Control Device.
4. Use only with GFCI protected receptacles. Please contact a qualified electrician for
verificaon and / or installaon of a GFCI receptacle if necessary.
Model X-41ATR
Voltage/Frequency 115V/60HZ
Airflow 3,600 CFM
AMPS 3.2A
Power 1/3 HP
Weight 24.2 LBS
Dimensions (L x W x H) 21.9” x 9.8” x 22.5”
Cord 20 . /14AWG
Housing Injecon-molded ABS
Posions 360° Rotaonal Coverage
Timer Yes –3Hours
Outlet Yes –2Outlets
SPECIFICATIONS

SAFETY INSTRUCTIONS (cont’d)
5. Do not operate any unit with a damaged cord or plug. Discard fan or return to an authorized
service facility for examinaon and/or repair.
6. It’s automacally operated device. To reduce the risk of injury disconnect from power supply
before servicing.
7. Do not run cord under carpeng. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
8. Do not allow children to play with or around an air mover at any me.
9. Do not move or carry the air mover while unit is operang.
10. All air movers in operaon must be supervised at all mes.
11. Keep air intakes and exhausts clean at all mes to avoid clogging or blocking in order to
prevent overheang the unit. Blocking the air intake could result in a fire or electrical hazards.
12. To prevent injury to persons and to avoid objects from coming in contact with the fan blade,
do not remove any screens or safety guards from this unit. Damage in this manner will void
your warranty.
13. Always place the fan on a smooth and level surface for safe operaon.
14. Do not use unit if defecve or damaged.
15. Unplug the unit before performing any maintenance, cleaning, or servicing.
16. The axial fan must be supervised at all mes during operaon.
17. Any misuse or abuse of this product will void the warranty.

XPOWER LIMITED WARRANTY (USA)
XPOWER’s Limited Warranty covers the unit (excludes POWER CORD) from defects in material
and crasmanship. The Warranty covers normal use for a term of one year from the original
date of purchase including parts, labor and one way shipping. Non-conguous states must pay
for roundtrip freight. A purchase receipt must be provided.
Important!
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse,
disassembly, alteraon, corrosive chemicals, improper voltage, fire, flood, negligence,
accident, improperly or incorrectly performed maintenance or repair, or failure to perform
necessary maintenance or repair, or if the use of this product is not in compliance with the
instrucons and specificaons for its use
In order to receive service or replacement parts under warranty, you must:
1) Contact us before the warranty has expired,
2) Call for return merchandise authorizaon number,
3) Provide original, legible proof of purchase, and
4) Ship to:
XPOWER Manufacture, Inc
220 Clary Ave.
San Gabriel, CA 91776

SYMPTOM PROBABLE CAUSE ACTION
Switched Off
Make sure unit is plugged in
and switch is turned to ON
mode
Power failure Check outlet/Change to
another outlet
Wiringfailure Contact XPOWER for repair
Obstrucons at the
intake or exhaust of fan Remove obstrucon(s)
Fan broken Contact XPOWER for repair
Weak Air Flow Obstructed vents/inlets Clean out vents/inlets
Motor Not Running
ScrapingNoise FromFan
TROUBLESHOOTING

41 Series Parts List
1
23
47
19
20
21
8
910
11 12 13
14 15
16
17 18
56
Item No. Parts NameItem No. Parts NameItem No. Parts Name
1 Front air cover 2Front end cover 3 Housing
4 Outlet cover 5ACreceptacle 6 Circuit breaker
7 Handle cover 8Power cord 9 Timer knob
10Speed control knob 11 Switch plate 12 Timer
13Switch 14 Side cover 15Rack handle
16Rack 17 Motor 18 Capacitor
19Rear air cover 20 Rear end cover 21Cover

Please complete and mail or fax this form for your product warranty. For multiple units, please list serial numbers on a separate
sheet of paper. Address: XPOWER MANUFACTURE, INC, 220 Clary Avenue San Gabriel, CA 91776, USA
Tel: [phone]; Fax: [phone]
Company Name / Contact Person / Title
State / Province Zip Country

X-41ATR TURBO-PRO
Professional Axial Fan
OWNER’S MANUAL
INTRODUCTION
Thank you for purchasing the XPOWER X-41ATR Turbo-Pro Axial Fan! XPOWER Manufacture, Inc.
with over 25 years of manufacturing experience is bringing a series of products with the most
advanced technology in today’s market. Our goal with the 41 series was to bring an axial fan
never seen before, through our research and design; we have brought a revoluonary series of
fans to the industry that provides long-life operaon, excellent performance, compact design and
extremely low noise. Our Axial fans are completely speed controllable, a first in the industry. We
also offer a high quality dual outlet for Daisy-Chaining and a 3 hour mer for ease of use in
professional applicaons. Enjoy!
EXTERNAL ROTOR MOTOR:
The external movement of the rotor cools down the motor more efficiently, providing safer
operaon and longer life for the machine. This ultra-unique design also provides excellent
power, compact size and extremely low noise compared to tradional inducon motors.
VARIABLE SPEED CONTROL SWITCH:
An industry first, our completely variable speed control allows you to adjust the fan speed
exactly to your liking. This is extremely useful in venlaon applicaons where precise
volume guidelines need to be met.
FEATURES

Introducon ................................................................................................................ 2
Features ................................................................................................................ 2, 3
Operaon .................................................................................................................... 4
Specificaons .............................................................................................................. 5
Safety Instrucons .................................................................................................. 5, 6
Warranty ..................................................................................................................... 7
Troubleshoong .......................................................................................................... 8
Parts List ...................................................................................................................... 9
Warranty Registraon Form ...................................................................................... 10
INDEX
DAISY CHAIN FEATURE:
2 Built-In Outlets for Addional Machines
3-HOUR TIMER:
Extremely convenient in busy contractor projects for the professional or a busy aernoon for
the handyman, 3 hour mer allows you to setup mulple fans without having to comeback to
turn them off.
SPECIALLY DESIGNED AIR FIN GUIDE:
Contoured to provide maximum focused and extended airflow volume and velocity.
360° ROTATION- RACK STAND INCLUDED:
Full Rotaon of the axial fan to fit the need of any project from drying flooded floors, painted
walls and damp damaged ceilings.
SUPER LIGHTWEIGHT:
24.2 Lbs. Unit Weight / Durable ABS Housing
COMPACT DESIGN W/ STACKABILITY:
L-21.9” x W-9.8” x H-22.5”
Unit Size – 2.79 CBF Only
Stackable Up To 5 Units
FEATURES (cont’d)

1) With the unit unplugged, carefully place the XPOWER unit on stable, flat, and dry surface.
2) Plug the cord into a grounded G.F.C.I. outlet only, the use of a 3-prong to 2-prong adapter is
strictly prohibited.
3) Turn on the switch to make sure the fan is operang correctly.
4) All fans in operaon must be supervised at all mes.
OPERATION
Daisy Chain
If ulizing the Daisy-Chain feature, only use devices under 4 AMPS for 12-AMP circuit.
X-41ATR axial fan has an on-board Circuit Breaker. If the Auxiliary Outlet overloads, the Circuit
Breaker will trip. If the Breaker does trip ,unplug the units and press the Circuit Breaker Reset
buon. Plug the units back into the power source and turn on the switch.
Timer
Models using a mer can be set up to 3 hours long. Aer the mer expires, the fan will turn off
while the speed control will be at the last set posion. Set posion to off and then again at a
desired speed to connue operaon.
SAFETY INSTRUCTIONS (cont’d)
5. Do not operate any unit with a damaged cord or plug. Discard fan or return to an authorized
service facility for examinaon and/or repair.
6. It’s automacally operated device. To reduce the risk of injury disconnect from power supply
before servicing.
7. Do not run cord under carpeng. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area
and where it will not be tripped over.
8. Do not allow children to play with or around an air mover at any me.
9. Do not move or carry the air mover while unit is operang.
10. All air movers in operaon must be supervised at all mes.
11. Keep air intakes and exhausts clean at all mes to avoid clogging or blocking in order to
prevent overheang the unit. Blocking the air intake could result in a fire or electrical hazards.
12. To prevent injury to persons and to avoid objects from coming in contact with the fan blade,
do not remove any screens or safety guards from this unit. Damage in this manner will void
your warranty.
13. Always place the fan on a smooth and level surface for safe operaon.
14. Do not use unit if defecve or damaged.
15. Unplug the unit before performing any maintenance, cleaning, or servicing.
16. The axial fan must be supervised at all mes during operaon.
17. Any misuse or abuse of this product will void the warranty.

SAFETY INSTRUCTIONS
XPOWER LIMITED WARRANTY (USA)
1. To prevent electric shock, do not operate the unit in standing water. Never plug in or unplug
the unit with wet hands or while standing in water.
2. To avoid risk of injury, do not direct air flow at face or body.
3. WARING: To Reduce The Risk Of Fire Or Electric Shock, Do Not Use Unit With Any Solid-State
Speed Control Device.
4. Use only with GFCI protected receptacles. Please contact a qualified electrician for
verificaon and / or installaon of a GFCI receptacle if necessary.
XPOWER’s Limited Warranty covers the unit (excludes POWER CORD) from defects in material
and crasmanship. The Warranty covers normal use for a term of one year from the original
date of purchase including parts, labor and one way shipping. Non-conguous states must pay
for roundtrip freight. A purchase receipt must be provided.
Important!
This warranty does not cover or apply to defects due directly or indirectly to misuse, abuse,
disassembly, alteraon, corrosive chemicals, improper voltage, fire, flood, negligence,
accident, improperly or incorrectly performed maintenance or repair, or failure to perform
necessary maintenance or repair, or if the use of this product is not in compliance with the
instrucons and specificaons for its use
In order to receive service or replacement parts under warranty, you must:
1) Contact us before the warranty has expired,
2) Call for return merchandise authorizaon number,
3) Provide original, legible proof of purchase, and
4) Ship to:
XPOWER Manufacture, Inc
220 Clary Ave.
San Gabriel, CA 91776
Model X-41ATR
Voltage/Frequency 115V/60HZ
Airflow 3,600 CFM
AMPS 3.2A
Power 1/3 HP
Weight 24.2 LBS
Dimensions (L x W x H) 21.9” x 9.8” x 22.5”
Cord 20 . /14AWG
Housing Injecon-molded ABS
Posions 360° Rotaonal Coverage
Timer Yes –3Hours
Outlet Yes –2Outlets
SPECIFICATIONS

Please complete and mail or fax this form for your product warranty. For multiple units, please list serial numbers on a separate
sheet of paper. Address: XPOWER MANUFACTURE, INC, 220 Clary Avenue San Gabriel, CA 91776, USA
Tel: [phone]; Fax: [phone]
Company Name / Contact Person / Title
State / Province Zip Country
SYMPTOM PROBABLE CAUSE ACTION
Switched Off
Make sure unit is plugged in
and switch is turned to ON
mode
Power failure Check outlet/Change to
another outlet
Wiringfailure Contact XPOWER for repair
Obstrucons at the
intake or exhaust of fan Remove obstrucon(s)
Fan broken Contact XPOWER for repair
Weak Air Flow Obstructed vents/inlets Clean out vents/inlets
Motor Not Running
ScrapingNoise FromFan
TROUBLESHOOTING

41 Series Parts List
1
23
47
19
20
21
8
910
11 12 13
14 15
16
17 18
56
Item No. Parts NameItem No. Parts NameItem No. Parts Name
1 Front air cover 2Front end cover 3 Housing
4 Outlet cover 5ACreceptacle 6 Circuit breaker
7 Handle cover 8Power cord 9 Timer knob
10Speed control knob 11 Switch plate 12 Timer
13Switch 14 Side cover 15Rack handle
16Rack 17 Motor 18 Capacitor
19Rear air cover 20 Rear end cover 21Cover
