XPower X-39AR User manual

Axial Fan Owner's Manual
Model / Modelo / Modèle:
X-39AR, P-39AR, X-47ATR
(115V 60HZ)
Read and save these instructions
Lea y guarde estas instrucciones
Lisez et gadez ces instructions
www.xpower.com | 1-(855)-855-8868 | [e-mail]
Index: NA-1-A25
Edition: 4.0.Final
Ventilador Axial Manual de Usuario
Ventilateur Axial Manuel d'Emploi

English - 2
Safety Instructions
!WARNING - READ AND SAVE THIS INSTRUCTION BEFORE USING THIS PRODUCT.
The user of electrical products may create hazards that include, but are not limited to
injury, fire, electrical shock. Failure to follow these instructions may damage and/or
impair its operation and void the warranty.
• Before operating, remove all packaging material and check for any damage that may
have occurred during shipping or any missing items.
• Check household power supply to ensure it matches the appliance’s specification.
• DO NOT operate any fan with a damaged cord or plug. Discard fan or return it to an
authorized service facility for examination and/or repair.
• Use only on GFCI protected receptacles. Please contact a qualified electrician for
verification and / or installation of a GFCI receptacle if necessary.
• DO NOT run cord under carpeting. DO NOT cover cord with throw rugs, runners, or
similar coverings. DO NOT route cord under furniture or appliances. Arrange cord away
from traffic area and where it will not be tripped over.
• Suitable for use with solid state speed control.
• DO NOT touch this appliance or the plug with wet hands or while standing in water.
• DO NOT operate the appliance in any pooled water.
• DO NOT use the product in areas where gasoline, paint or other flammable goods and
objects are used or stored.
• DO NOT insert or allow objects to enter any ventilation or exhaust opening as this may
damage the appliance and void the warranty.
• DO NOT cover the air inlet or outlet on the appliance.
• DO NOT direct the air flow at human faces or bodies.
• DO NOT allow children to play around or with this appliance.
• AUTOMATICALLY OPERATED DEVICE – To reduce the risk of injury, disconnect from
power supply before servicing.
• Remove the power cord from the electrical receptacle by grasping and pulling on the
power cord plug-end only, DO NOT pull the cord directly.
• DO NOT attempt to repair or adjust any electrical or mechanical functions of this
appliance, as this may cause danger and void the warranty.
• If the appliance is damaged or it malfunctions, DO NOT continue to use it. Unplug the
product from the electrical outlet. Refer to troubleshooting guide or contact XPOWER.
• Store in a dry area, away from exposure to sunlight, extreme temperature and humidity,
or other extreme environments, when not in use.
• DO NOT stack more than four units of this appliance.
• An electronic instruction manual can be obtained through manufacturer’s website
www.xpower.com.

English - 3
Items Included
Axial Fan Owner's Manual
XXXManual De Usuario (página 10)
XXXMode d'emploi (page 18)
Model / Modelo / Modèle:
P-80Series, P-100 Series, P-200 Series
(115V 60HZ)
Readand save these instructions before use
Leay guarde estas instrucciones antes de usar la unidad
Lireet conserver ces instructions avant utilisation
www.xpower.com| 1-(855)-8868 | [email protected]
Index:NA-1-A2
Edition:1.0.Alpha
• Owner’s Manual x 1• Axial Fan Body x 1* • Axial Fan x 1**
• Rack x 1* • Rack Handle x 2*• Rubber Washer x 2*
* For model X-39AR, P-39AR only.
** For model X-47ATR only.

English - 4
Axial Fan Introduction
• XPOWER Axial Fans are designed to offer efficient air
circulation and ventilation with its high and long-distance
focused airflow.
• It’s perfect for air circulation and ventilation in janitorial/
sanitation jobs, water damage restoration and more.
Parts Description
(1) Front Grille Cover
(2) Motor
(3) Housing
(4) Additional Electrical
Receptacle
(5) Capacitor
(6) Housing Handle
(7) Switch Plate
(8) Rack Handle
(9) Rubber Washer
(10) Rack
(11) Circuit Board
(12) Fan
(13) Rear End Cover
(14) Rear Grille Cover
(15) Power Cord
1
2
10
14
13
15
12
3
8
9
8
11
7
6
5
4

English - 5
Installation and Operation Guide
Installing the Rack*
①
①
③
②
②
③
①Fit both rubber washers onto bolts on both sides of unit.
②Align the rack onto the axial fan.
③Fasten the connection with the rack handle.
* For model X-39AR and P-39AR only.
Switch Plate
OFF
MAX
LOW
Variable Speed Switch
• Turn to “OFF” position to switch the Ventilateur Axial OFF. Turn clock-wisely to any
position between “MAX” and “LOW” to switch the Ventilateur Axial ON.
• You can adjust to any desired speed variably. “MAX” is the highest speed and “LOW”
is the lowest speed.

English - 6
Installation and Operation Guide (Continued)
Additional Electrical Receptacle (Daisy Chain)
CIRCUIT BREAKER 12A
TOTAL OUTPUT
12 AMPS MAX WITH THIS UNIT OFF
10 AMPS MAX WITH THIS UNIT ON
• Other appliances can be plugged in the
additional electrical receptacles and work
whether the Axial Fan is on or off. However,
the total amperage must be lower than the
amperage instructed. Different models may
have varying instructions.
• If the Axial Fan or the plugged in appliance
stops working, press the RESET BUTTON to
reset the circuit.
120
60
0
ON
180
Timer Switch
• Turn clockwise to set timer for minutes count
down to an automatic stop.
• The timer can be set for up to 180 minutes (3
hours).
• When the timer reaches “0” position, the unit
stops working. On “ON” position, it will work
constantly.
Timer Switch*
* For model X-47ATR only.

English - 7
Installation and Operation Guide (Continued)
Adjust Operation Position
• The Axial Fan features 360° Rotation. Tilt the Axial Fan to desired angle and
screw on rack handles to secure the fan’s position.
Use without Rack*
• Uninstall the rack and place the
Axial Fan on a level surface.
* For model X-47ATR only.

English - 8
Adjust Operating Position (Continued)
Installation and Operation Guide (Continued)
Transportation
Lift with Handle
• Lift the Axial Fan with the
handle on the top.
User Maintenance Instructions
Frequent maintenance is recommended on this appliance. Failure to follow the
maintenance instructions may cause failure of the appliance and void the warranty.
• When not in use, unplug and store the appliance in a dry and cool indoor place. Make
sure it’s out of reach of children.
• Before performing any maintenance or cleaning, always disconnect the Axial Fan from
its power source.
• Use a damp cloth to wipe the surface of the housing. Do not clean the unit with water
directly.
• Check if the grille covers are clean. Remove dirt or any other objects that could block
the air inlet and air outlet.

English - 9
Fasten the Rack Handles
• To prevent possible injury, when
you finish using this appliance,
please position the Axial Fan
UPRIGHT.
• Fasten the rack handle to lock the
position of the Axial Fan.
Organize the Power Cord
• Wrap the power cord around the housing.
• Clip the cord to the cord clip on the plug shown above.
User Maintenance Instructions (Continued)

English - 10
User Maintenance Instructions (Continued)

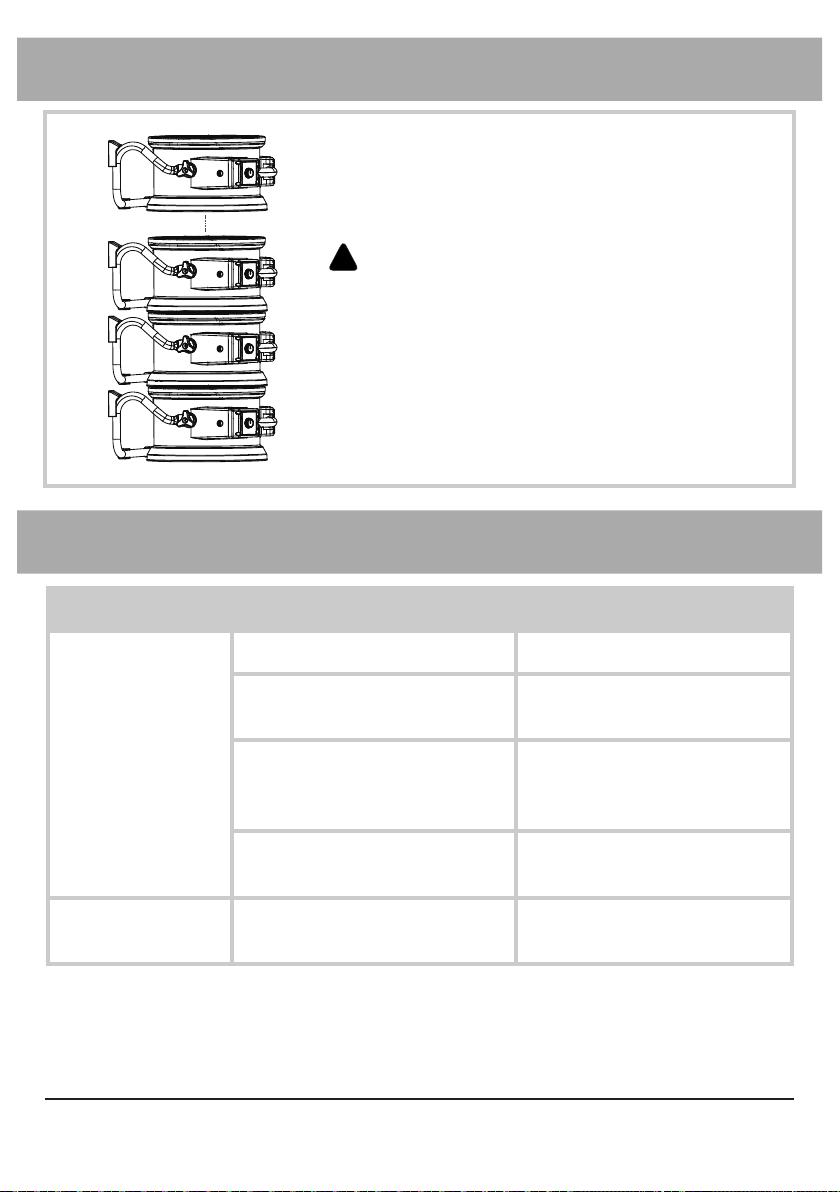

Stack Multiple Units
• Stack the Axial Fans on the sides. Align the air
inlets of both Axial Fans.
WARNING
• Do not stack more than four units of this
appliance.
• Stacking function is not secure during
transportation.
!
Troubleshooting Guide
* The timer function does not apply to all models mentioned in this manual.
If troubleshooting does not resolve your problem, please contact XPOWER or other
parties authorized by XPOWER for further instructions.
PROBLEM POSSIBLE CAUSE SOLUTION
Axial fan does not
start
No electricity. Check for power supply.
The power cord is not properly
plugged in.
Remove and reconnect the
power cord.
The circuit breaker on the
additional electrical receptacle
(Daisy chain) jumps.
Remove all appliance on
the additional electrical
receptacle and press “Reset”.
The timer switch is set to “0”
position.*
Set the timer switch to “ON”
position.
Unit runs but the
speed is abnormal
Air inlet or air outlet is blocked. Remove blockage.

English - 11
Technical Specication
MODEL NUMBER X-39AR P-39AR X-47ATR
Voltage/Frequency 115 V~60 Hz
Amperage 1.6 A 1.0 A 2.8 A
Motor Power 1/4 HP 1/3 HP
Rated Airflow 2100 CFM 3600 CFM
Speed Control Variable Speeds 4 Speeds Variable Speeds
Timer N/A 3 hours (OFF)
Additional Electrical
Receptacles (Daisy
Chain)
Yes
Cord Length 20 ft. / 6.1 m
Housing ABS PP ABS
Unit Dimension
(L) x (W) x (H)
18.6 x 9.4 x 19.2 in. /
47.2 x 23.9 x 48.8 cm
21.9 x 9.8 x 22.5
in. /
55.6 x 24.9 x 57.1
cm
Unit Weight 16.5 lbs. / 7.5 kg 14.5 lbs./ 6.57 kg 22.2 lbs. / 10.1kg
Safety Certification ETL/C-ETL
If your product(s) is not listed above, please visit www.xpower.com for more information.

English - 12
XPOWER Limited Warranty (USA)
1 YEAR LIMITED WARRANTY
XPOWER-branded products purchased in the U.S. from authorized distributors include
a 1-year limited warranty. Contact XPOWER to confirm warranty information about your
product(s).
This limited warranty covers defects in materials and workmanship in your XPOWER-
branded products, purchased in the U.S. ONLY. Local warranty policy (if any) in your
country will cover products purchased outside the U.S.
Items mentioned but not limited to below are not covered by warranty:
(1) Power cord, filters or any other components considered as a “consumable parts” by
XPOWER.
(2) Normal wear and tear.
(3) Problems that result, directly or indirectly, at XPOWER’s sole discretion, from:
(3.1) External causes such as accident, abuse, misuse or problems with electrical power
supply.
(3.2) Disassembling, servicing or modification not authorized by XPOWER.
(3.3) Usage that is not accordant with product instructions stated in Owner’s Manual.
(3.4) Failure to follow the product instructions or lack of necessary maintenance stated
in Owner’s Manual.
Before contacting XPOWER, please try one or more of the following:
(1) Consult this Owner’s Manual and follow the instructions of troubleshooting guide.
(2) Access www.xpower.com for more advice and information that could be helpful to
address your problems.
If you need additional assistance from XPOWER, please:
(1) Email [e-mail].
(2) Call XPOWER U.S. Customer Service Department at 855-855-8868 or other numbers
provided on www.xpower.com.
(3) Visit XPOWER U.S. Head Office at 668 S. 6th Ave., City of Industry, CA 91746 or the
most current address provided on www.xpower.com.
Please also have your original proof of purchase and the serial number(s) of your
product(s) ready when you contact XPOWER.
IMPORTANT:
(1) Please finish the online warranty registration before usage. Visit www.xpower.com/
service-support/warranty-registration.
(2) This Limited Warranty applies with its own timeliness. Contact XPOWER or visit
www.xpower.com for more information.
!

English - 13
If you are instructed to return the unit for service or replacement, please:
(1) Request a RMA (Return-Merchandise-Authorization) number.
(2) Use the original or an equivalent packaging, prepay shipping charges at your own
expense to the address provided by XPOWER, with the RMA number on the shipping
label or the packaging.
(3) Include all the original parts and components.
XPOWER will inspect, assess and advise the repairs needed and applicable cost, if any.
For products under warranty, we will pay to ship the repaired or replaced product(s) to
you if you use an address within the Contiguous United States. Otherwise, we will ship
the product(s) to you at your own expense.
XPOWER Limited Warranty (USA) (Continued)

Read and save these instructions
Lea y guarde estas instrucciones
Lisez et gadez ces instructions
www.xpower.com | 1-(855)-855-8868 | [e-mail]
668 S. 6th Ave.,
City of Industry, CA 91746 USA
Index: NA-1-A25
Edition: 4.0.Final
XPOWER Manufacture, INC.
