VHF FM HANDHELDTRANSCEIVER
144 MHz, Ultra-Rugged, 5 Watts!
Compact yet incredibly rugged, theVX-110 2-meter
handheld is designed to perform under the most
difficult operating conditions, and it's especially
designed with the ease of operation you’ve come to
expect from aYaesu product. TheVX-110’s die-cast
aluminum case houses a large, high-output speaker,
and the illuminated keypad provides easy viewing
during nighttime operation.
You need a radio that's as tough as your operating
environment. You need theVertexVX-110 fromYaesu!
●Frequency Range
RX 140~174 MHz
TX 144~148 MHz
●5Watts Power Output
●209 Memories
●Simple 8-Key Operation
●7-Digit Alphanumeric Memory Labels
●CTCSS and DCS Encode/Decode
●Omni-Glow™ Display Illumination
●9 DTMF Auto-Dial Memories (16 digits each)
●Automatic Repeater Shift (ARS)
●ARTS™ (Auto-RangeTransponder System)
●Wide/Narrow Deviation Selection
●TX and RX Battery Savers
●Time-OutTimer (TOT)
●Smart Search™ Auto Memory Loading
●Automatic Power-Off (APO)
●1750 HzTone Calling for European Repeaters
●MIL-STD 810D/E
●Busy ChannelTX Lock-Out (BCLO)
●Battery Voltage Meter
●ADMS-1F PC Programmable

SPECIFICATIONS
GENERAL
Frequency Coverage :
Channel Steps:
Standard Repeater Shift:
Emission Type:
Supply Voltage:
Current Consumption:
Antenna (SMA jack):
Case Size (WHD):
Weight (approx.):
Rx 144~146 MHz (B1),140~174 MHz (B2)
Tx 144~146 MHz (B1), (B2)
5, 10, 12.5, 15, 20, 25 & 50 kHz
600 kHz
G3E
6.0 to 16.0 VDC
Receive: 130 mA
Transmit (HIGH: 5 W): 1.3 A
(MID: 2 W): 800 mA
(LOW: 0.5 W): 500 mA
Auto Power Off: 8 mA
YHA-62 rubber flex antenna
58 (W) 108.5 (H) 26.5 (D) mm
(2.3" 4.3" 1.0")
(w/o knob & antenna)
325g w/FNB-64 & antenna
RECEIVER
Circuit Type:
Sensitivity (for 12 dB SINAD):
Adjacent Channel Selectivity:
Intermodulation:
Audio Output:
TRANSMITTER
Power Output:
Frequency Stability:
Maximum Deviation:
Spurious Emissions:
Audio Distortion (@ 1 kHz):
Microphone Type:
Burst Tone:
5.0/2.0/0.5 W @ 7.2 V
Better than 5 ppm
5 kHz
Better than 60 dB below Carrier
Less than 5 % w/3 kHz Deviation
2 k Condenser
1750 Hz
Specifications are subject to change, in the interest of technical improvement, without notice or obligation. Performance measurements are per EIA
standards, unless noted otherwise. Comparative performance and other statements are based on market conditions as of the printing date of this brochure.
FNB-64:
FNB-V57:
FBA-25:
NC-72B:
NC-72C:
NC-72F:
NC-73B:
NC-73C:
MH-34
MH-37
VC-25:
E-DC-5B:
E-DC-6:
CN-3:
CT-44:
YHA-62:
CT-27:
B4B:
A4B:
7.2 V, 700 mAh Ni-Cd Battery Pack
7.2 V, 1100 mAh Ni-Cd Battery Pack
Compact Dry Cell Battery Case for 6 AA-size cells
120 VAC Compact Wall Charger for FNB-64
240 VAC Compact Wall Charger for FNB-64
220 VAC Compact Wall Charger for FNB-64
120 VAC Desktop Rapid Charger
240 VAC Desktop Rapid Charger
External Hand Speaker/Microphone
Earpiece/Microphone
VOX Headset
DC Cable w/Noise Filter
DC Cable; plug and wire only
BNC-to-SMA Adapter
Microphone Adapter
Rubber Flex Antenna

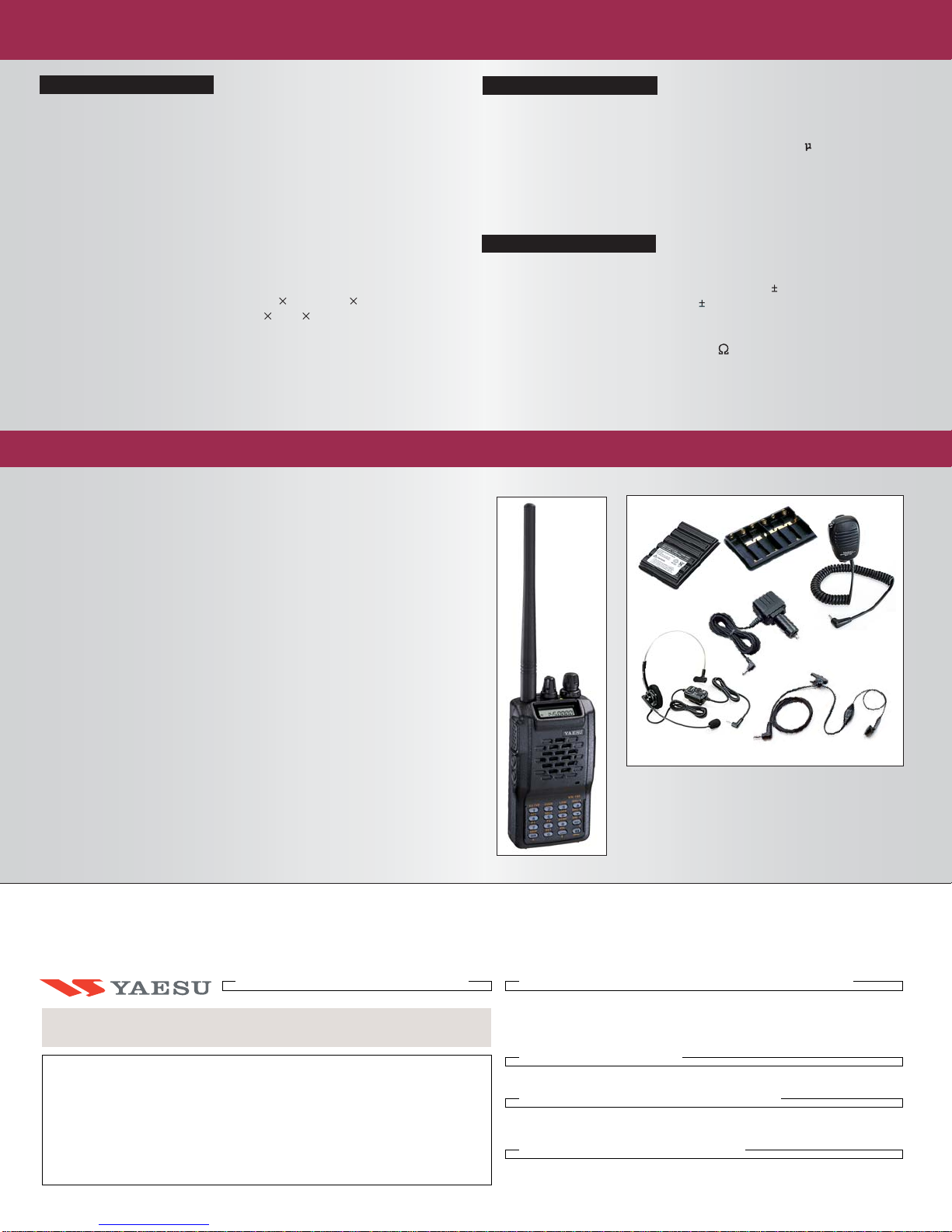

Cloning Cable Sixteen-key VX-150
model (w/direct
frequency and DTMF
entry) also available
About this brochure: because of printing process tolerances, the actual color hue or color density of product images shown in this brochure may be slightly different from that
of the manufactured product. Some information may have been updated since the time of printing; please check with your Authorized Yaesu Dealer for complete details.
Specifications guaranteed only within amateur bands.
We reserve the right to make changes at any time in equipment, optional accessories, specifications, model number, and availability.
OPTIONS AND ACCESSORIES
Double-Conversion
Superheterodyne
Better than 0.16 V
Typcal 70 dB
Typcal 70 dB
0.4 W @ 8 Ohms for 10 % THD
@ 7.2 V
E-DC-5B
MH-37A4B
VC-25
Availability of accessories may vary : some accessories
are supplied as standard per local regulations and
requirements, others may be unavailable in some
regions.Check with your Yaesu dealer for additions to
the abovelist. Batteries, Speaker/Mics, Chargers, etc.
are warranted for one year.
FNB-V57
FBA-25
MH-34B4B
2000.05NA B9200283 Printed in Japan
