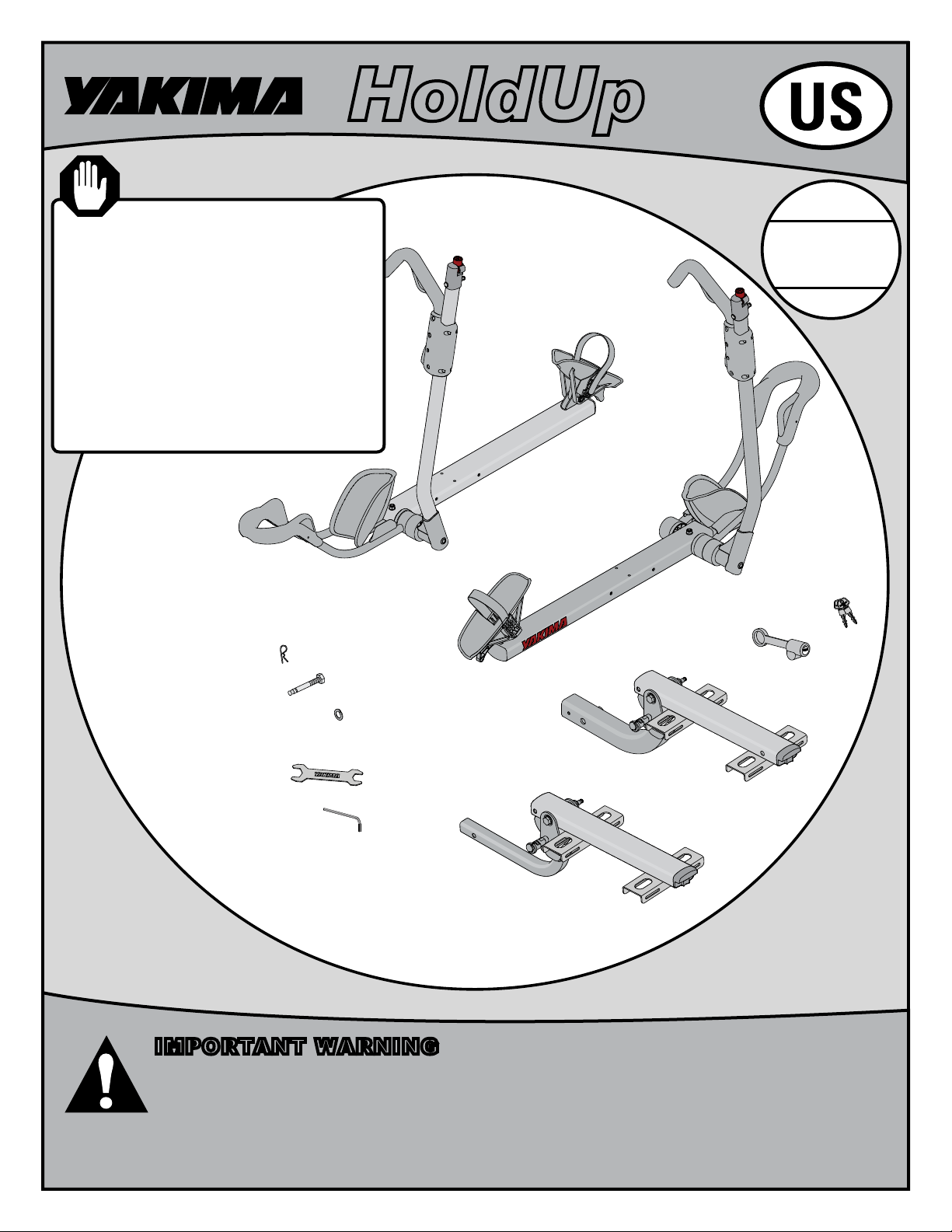

Yakima HoldUp User manual

1034426J-1/21
HoldUp
SAFETY CLIP (1X)
WRENCH (1X)
REAR WHEEL TRAY
ASSEMBLY (1X)
FRONT WHEEL TRAY
ASSEMBLY (1X)
HITCH BOLT (1X)
1 1/4" BASE (1X)
(1 1/4" HOLDUP ONLY)
2" BASE (1X)
(2" HOLDUP ONLY)
LOCK WASHER (1X)
KEY (2X)
HEX WRENCH (1X)
HITCHLOCK (1X)
For Your
Safety
Warranty
Registration
on-line
YAKIMA.com
 Install This product on 2" OR 1¼" hitch
receivers ONLY.
 Do not use with hitch-extenders or with
1 ¼” hitch adapters.
 Do not install on trailers, campers, or RVs.
 Do not install if spare tire causes
interference with bikes, or folded carrier.
 Not for use on bikes with front fenders.
In addition, some undersized receivers may
not accept this product. If you do not know the
capabilities of your hitch receiver, consult an
automotive professional.
IMPORTANT WARNING
IT IS CRITICAL THAT ALL YAKIMA RACKS AND ACCESSORIES BE PROPERLY AND SECURELY ATTACHED TO YOUR VEHICLE. IMPROPER
ATTACHMENT COULD RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH TO YOU OR
TO OTHERS. YOU ARE RESPONSIBLE FOR SECURING THE RACKS AND ACCESSORIES TO YOUR CAR, CHECKING THE ATTACHMENTS
PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR, AND DAMAGE. THEREFORE, YOU
MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS SUPPLIED WITH YOUR YAKIMA PRODUCT PRIOR TO INSTALLATION
OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT
THOROUGHLY FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER.

1034426J-2/21

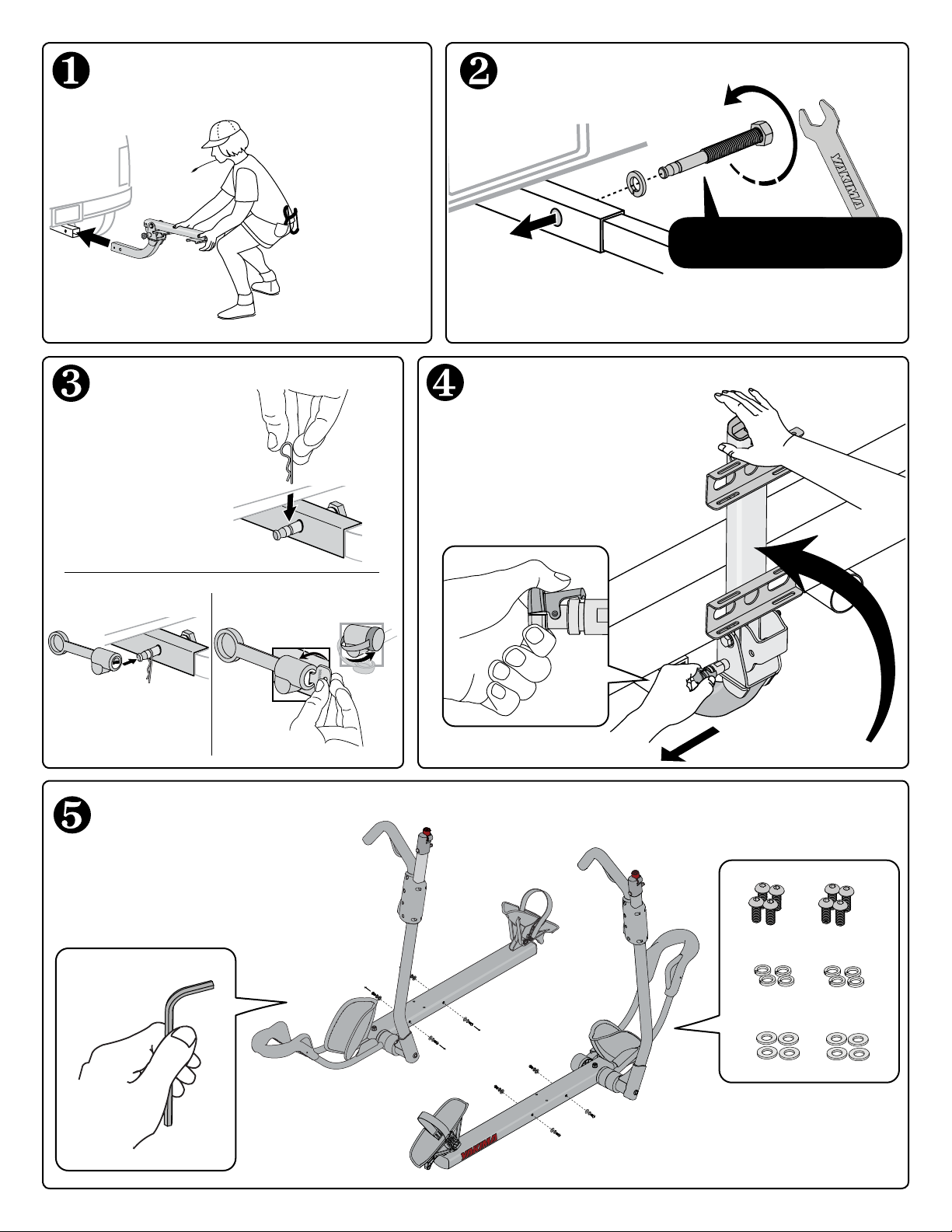

INSERT BASE INTO
HITCH RECEIVER.
The holes in
the base must
align to the
holes in the
hitch receiver.
FASTEN HITCH BOLT.
 Insert hitch bolt and lock washer, from RIGHT TO LEFT.
 Tighten with wrench.
REMOVE FASTENERS.
The fasteners are installed in the trays
for shipping purposes. Remove them to
prepare for assembly.
SECURE HITCH
BOLT WITH
SAFETY CLIP
AND INSTALL
HITCHLOCK.
ROTATE BASE TO
UP POSITION.
 Squeeze knob to release lock.
 Pull spring pin to release base.
 Lift frame.
 Release spring pin. Pin should
snap into place and lock.
1 1/4" - 75 ft-lbs.
2" - 100 ft-lbs.

1034426J-3/21

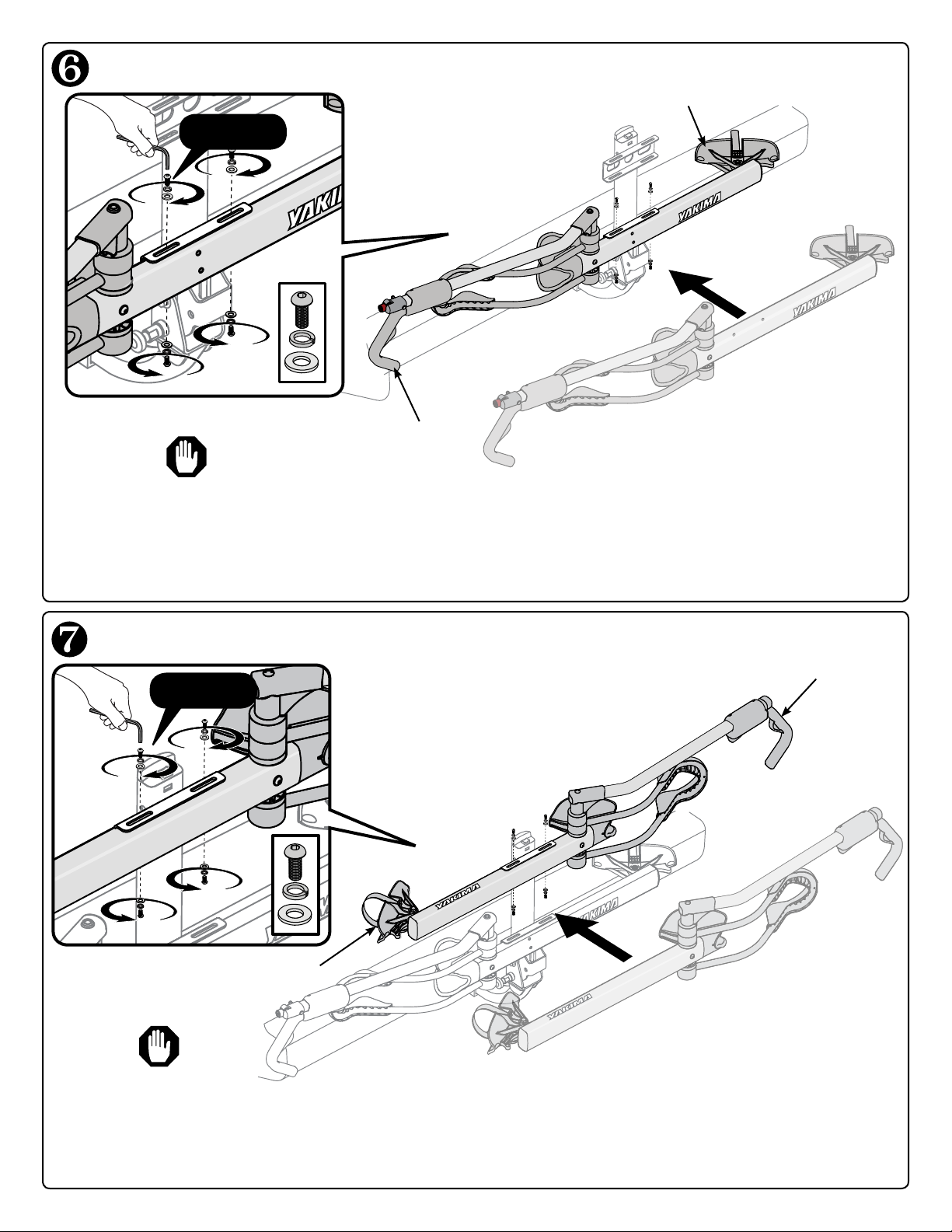

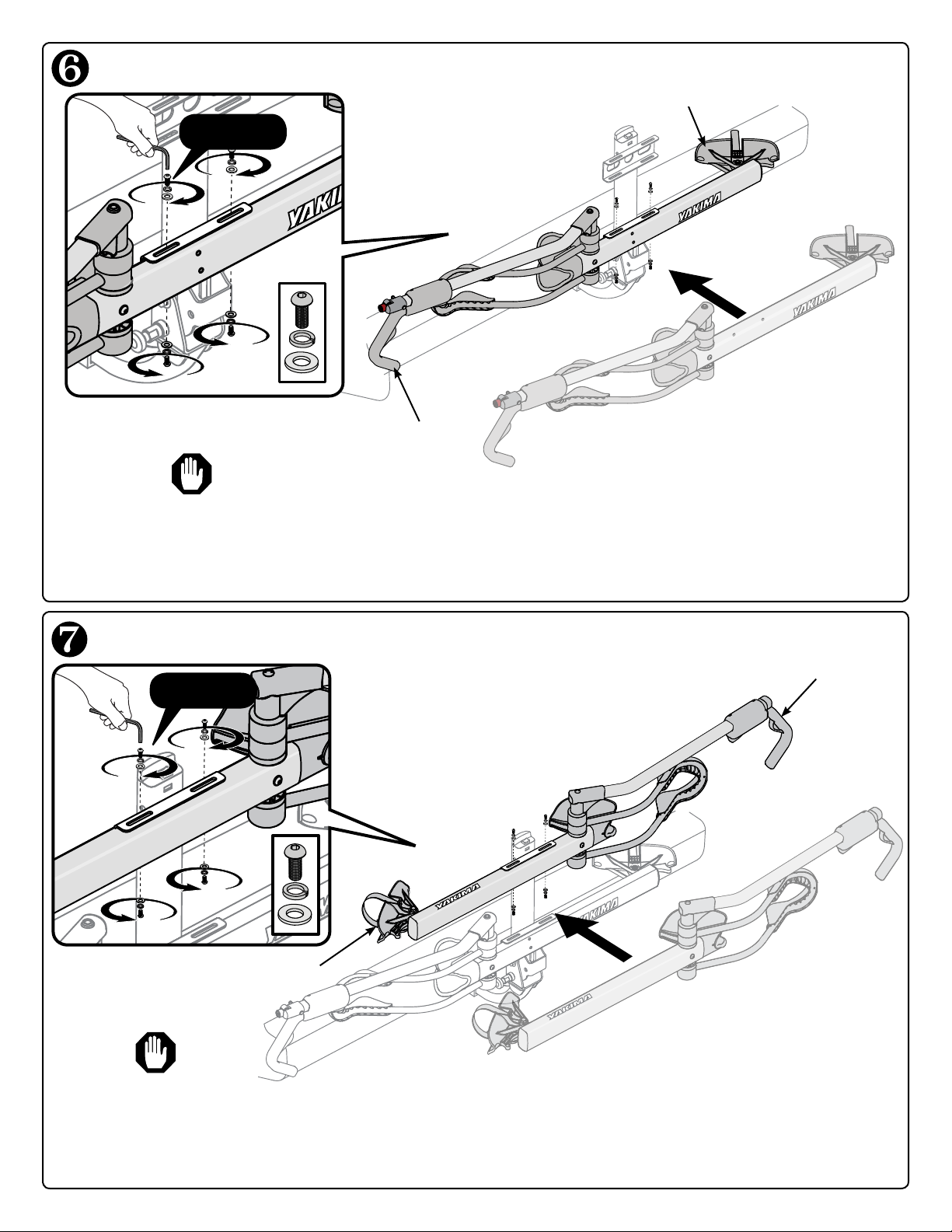

ATTACH FIRST TRAY TO BASE.
LOWER TRAY:
IMPORTANT: Wheel strap
is to your right, and pivot
arm is to your left.
wheel strap
pivot arm
ATTACH SECOND TRAY TO BASE.
pivot arm
wheel strap
 Align holes in tray to be centered in slots on base.
 Insert bolt, washer, and lock-washer, in order shown.
 Finger tighten all four bolts.
 Tighten with supplied wrench.
 Align holes in tray to be centered in slots on base.
 Install bolt, lock-washer, and washer, in order shown.
 Finger tighten all four bolts.
 Tighten with supplied wrench.
UPPER TRAY:
IMPORTANT: Wheel
strap is to your left, and
pivot arm is to your right.
17 ft-lbs.
17 ft-lbs.

>
2X
1034426J-4/21
Rotate the pivot arm
up until the hook
rests on the bike tire
1” or less from the
brakes or the fork.
Failure to place wheel
hook in the correct
position can cause
your bicycle to eject,
and cause personal
injury, property
damage, or death.

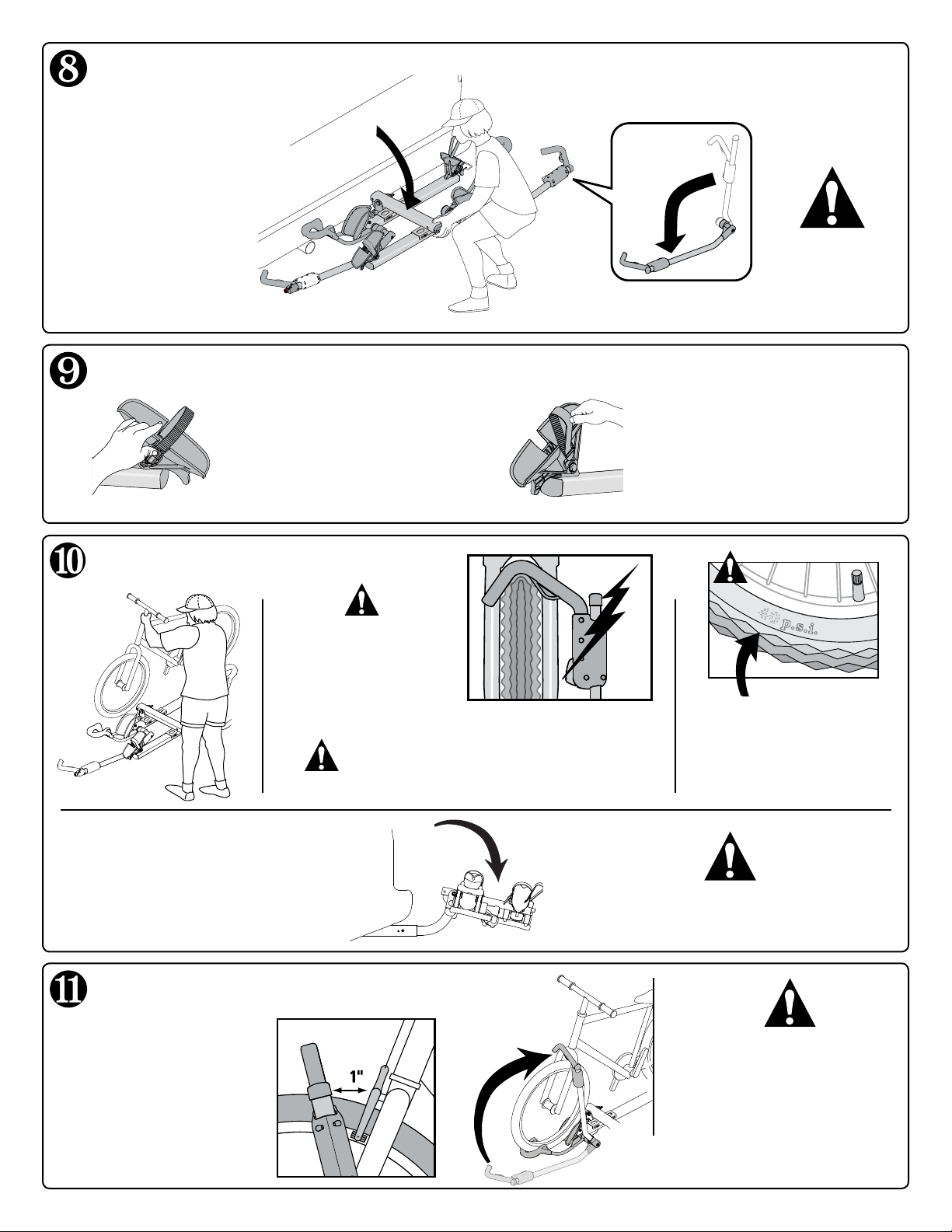

SWING PIVOT ARM INTO PLACE.
CAUTION: If any part
of your bike comes in
contact with the red
trigger, do not use this
carrier with that bike.
FOLD HOLDUP DOWN.
Be sure pivot
arms are
folded down.



into place.
Note: HoldUp can fold down
past horizontal to aid in
loading your bikes.
LOAD HEAVIEST BIKE FIRST.
PREPARE FOR LOADING.
Do not install if your bike
has a flat tire or has a slow
leak. Lost tire pressure
after install may result in
an insecure load.
Tuck strap into slot at
rear of wheeltray.
Release wheelstrap by pressing the
lever on the buckle.
If a fender prevents proper placement
of the wheel hook, remove the fender
for proper and safe loading.
Be sure to return the HoldUp to the locked
horizontal position after loading.
Do not push
arm beyond
horizontal.

4X
1034426J-5/21

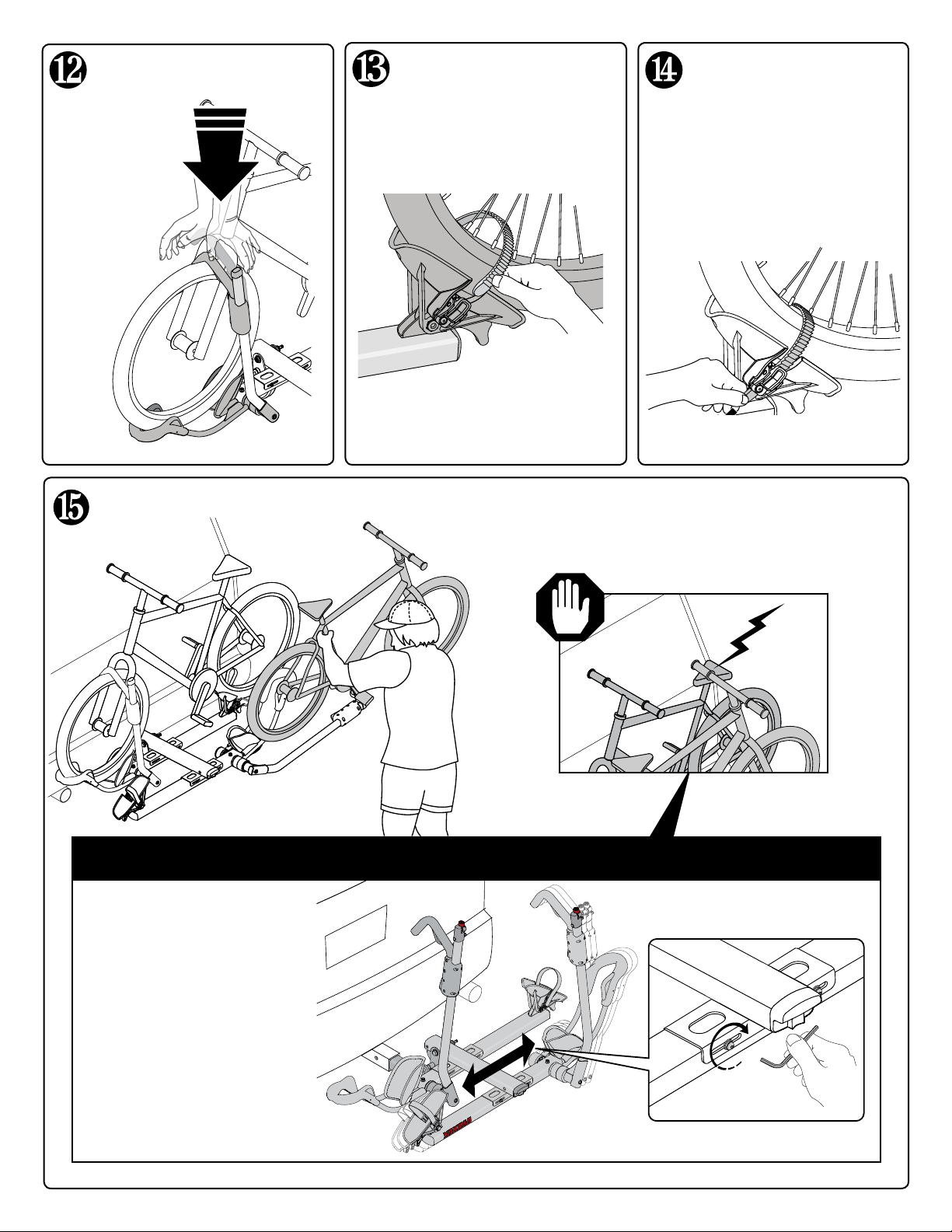

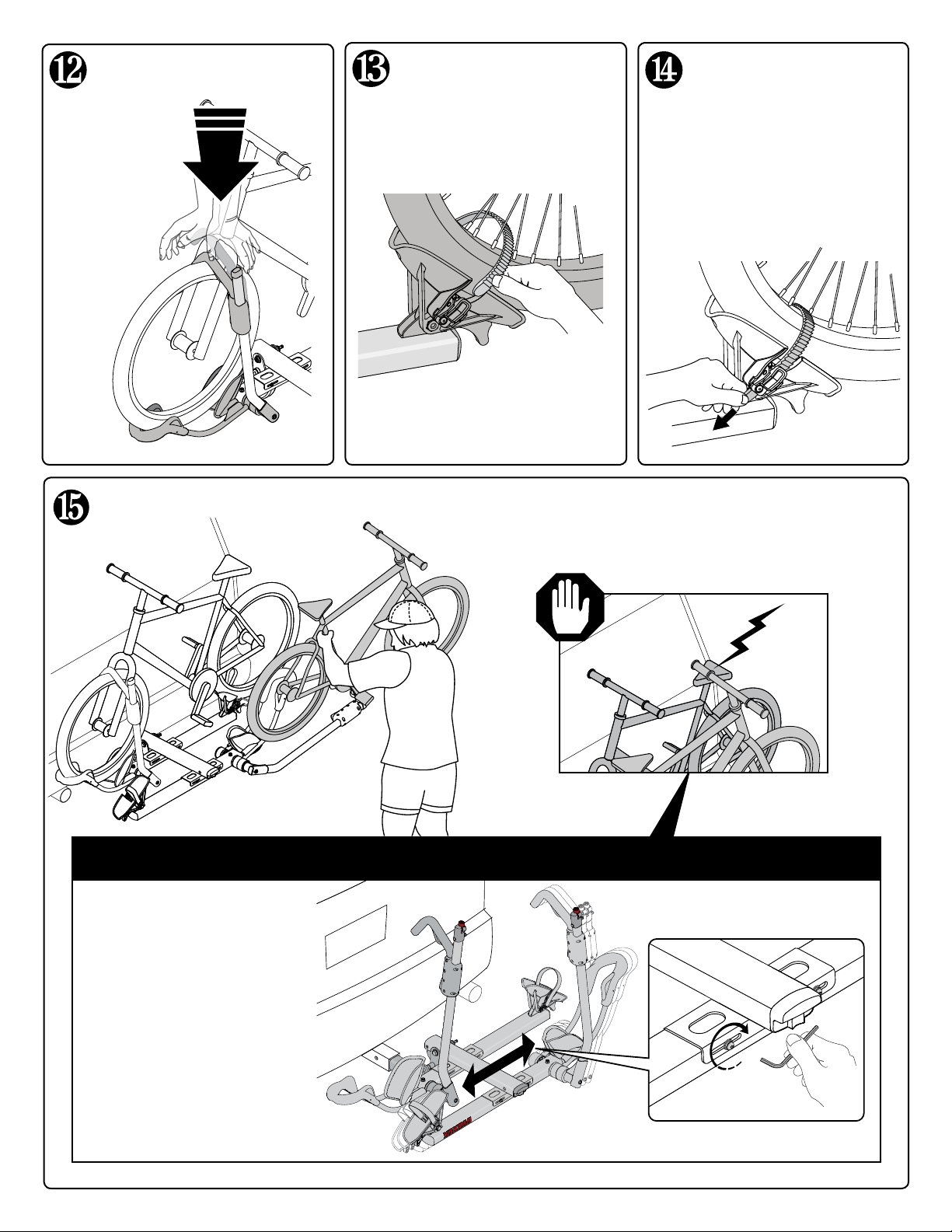

 Alternate bike direction.
 Refer to steps 10 through 14
to load your second bike.
If you have bike to bike
interference when loading
two bikes, adjust trays as
necessary to eliminate
interference between bikes.
 Loosen the 4 tray bolts (do
not remove bolts).
 Slide the tray left or right.
 Retighten the 4 tray bolts.
 Both trays can be adjusted.
If necessary adjust tray position to avoid bike to bike interference.
Feed the strap through
the spokes of wheel.
SECURE REAR
WHEEL STRAP.
TIGHTEN REAR
WHEEL STRAP.
Rotate the wheel
slightly, if necessary.
LOAD SECOND BIKE (IF APPLICABLE).
 Thread strap through
spokes and insert it into
the slot in the wheeltray.
 Pull hard to tighten.
SECURE THE HOOK.
Compress
the hook
against the
wheel by
applying
firm
pressure.

1034426J-6/21

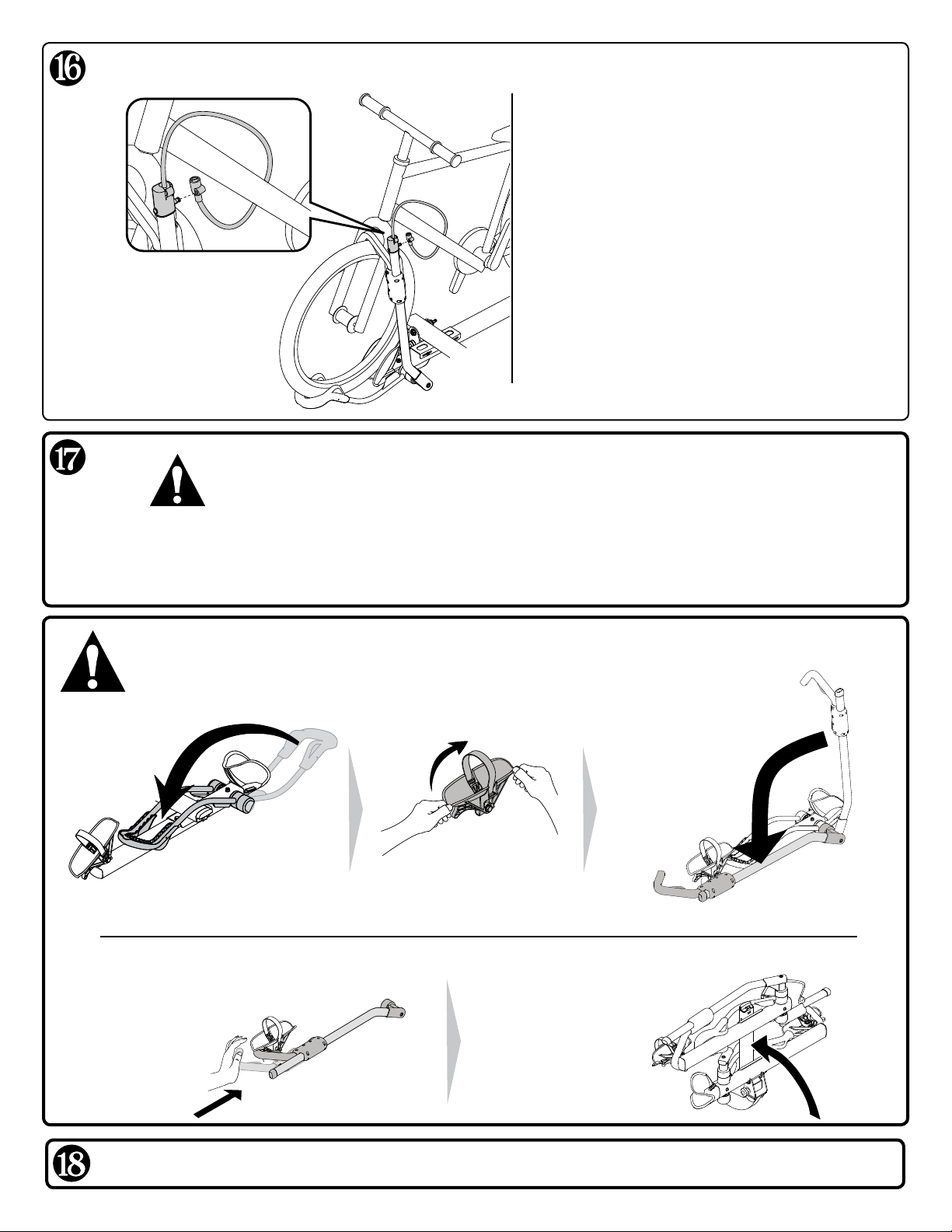

 Access locking cables at
the end of each pivot arm.
 Wrap locking cable
around bike frame.
 Insert the pin from the
pivot arm into hole at the
end of the locking cable.
Lock with key.

 


CHECK THE
INSTALLATION
BEFORE
DRIVING AWAY.
READ ALL WARNINGS ON NEXT PAGE BEFORE DRIVING AWAY.
ALWAYS USE INTEGRATED LOCKING CABLE WHEN TRANSPORTING BIKES.
Slide the hook
against the rear
wheel cradle.
Fold up HoldUp.
SECURE PIVOT ARMS WHEN NOT IN USE.
WHEN NOT CARRYING BIKES ALWAYS FOLD HOLDUP UP.
Tilt wheeltray
inboard.
Rotate pivot
arm down.
Fold wheeltray
inboard.
 
Ajuste la correa si es necesario.

1034426J-7/21
TECHNICAL ASSISTANCE OR REPLACEMENT PARTS: GO ONLINE: WWW.YAKIMA.COM
Contact your dealer or call: [phone] Monday through Friday 7:00 am to 5:00 pm PST
Attachment hardware can loosen over time. Check before each use, and tighten if necessary.
Failure to obey load limits can result in property damage, personal injury, or death.
HITCH LOAD IS LIMITED TO 60 LBS. PER BIKE.
This product is covered by YAKIMA’s
“Love It Till You Leave It” Limited Lifetime Warranty
To obtain a copy of this warranty, go online to www.yakima.com
or email us at [email protected]
or call [phone]
BOTTLE OPENER
Enjoy a refreshing beverage.
Your HoldUp endcap
doubles as a bottle opener!
IMPORTANT LOAD LIMITS:



hot exhaust.

interference with bikes or folded carrier.
BIKES:

recommended pressure found on the tire.

Do not transport bicycles with attached
baby seats, panniers, wheel covers, full
bike covers or motors.
INSTALL THIS PRODUCT
ON 2" AND 1 1/4" HITCH
RECEIVERS ONLY.
MAINTENANCE: Periodically use non-water
soluble lubricant on moving metal parts. Use
a soft cloth with water and mild detergent to
clean rubber parts.
Do not use with a hitch-extender.
Do not use with a 1-1/4" hitch adapter.
Not for use on bikes with front fenders.
In addition, some undersized receivers
may not accept this product. If you do not
know the capabilities of your hitch receiver,
consult an automotive professional.
KEEP THESE INSTRUCTIONS!
MAINTENANCE
Remove this rack before entering an
automatic car wash, and when not in use.

1034426J-8/21

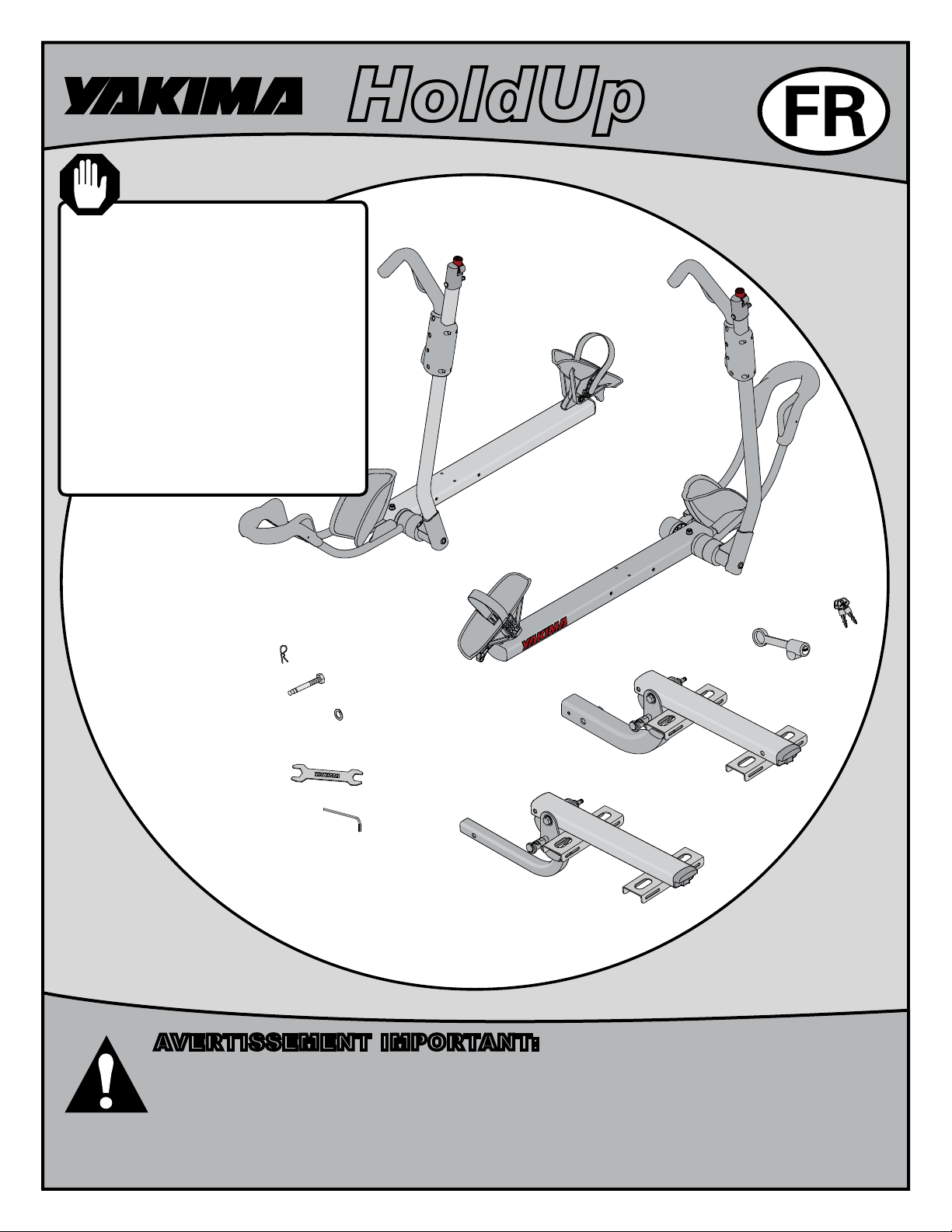

HoldUp
AVERTISSEMENT IMPORTANT:
IL EST IMPÉRATIF QUE LES PORTE-BAGAGES ET LES ACCESSOIRES YAKIMA SOIENT CORRECTEMENT ET SOLIDEMENT FIXÉS AU
VÉHICULE. UN MONTAGE MAL RÉALISÉ POURRAIT PROVOQUER UN ACCIDENT D’AUTOMOBILE, QUI POURRAIT ENTRAÎNER DES
BLESSURES GRAVES OU MÊME LA MORT, À VOUS OU À D’AUTRES PERSONNES. VOUS ÊTES RESPONSABLE DE L’INSTALLATION
DU PORTE-BAGAGES ET DES ACCESSOIRES SUR VOTRE VÉHICULE, D’EN VÉRIFIER LA SOLIDITÉ AVANT DE PRENDRE LA
ROUTE ET DE LES INSPECTER RÉGULIÈREMENT POUR EN CONTRÔLER L’ÉTAT, L’AJUSTEMENT ET L’USURE. VOUS DEVEZ DONC
LIRE ATTENTIVEMENT TOUTES LES INSTRUCTIONS ET TOUS LES AVERTISSEMENTS ACCOMPAGNANT VOTRE PRODUIT YAKIMA AVANT DE
L’INSTALLER ET DE L’UTILISER. SI VOUS NE COMPRENEZ PAS TOUTES LES INSTRUCTIONS ET TOUS LES AVERTISSEMENTS, OU SI VOUS N’AVEZ
PAS DE COMPÉTENCES EN MÉCANIQUE ET NE COMPRENEZ PAS PARFAITEMENT LA MÉTHODE DE MONTAGE, VOUS DEVRIEZ FAIRE INSTALLER
LE PRODUIT PAR UN PROFESSIONNEL.
BROCHE DE
SÛRETÉ (X 2)
CLÉ (X 1)
SUPPORT
ARRIÈRE (X 1)
SUPPORT
AVANT (X 1)
BOULON
D'ATTELAGE (X 1)
BASE 1 1/4 PO (X 1)

BASE 2 PO (X 1)
(HOLDUP 2 PO SEULEMENT)
RONDELLE DE
SÉCURITÉ (X 1)
CLÉS (X 2)
 
51 mm (2 po) OU de 32 mm (1 ¼ po).
 Ne pas employer avec une rallonge
d'attelage ou un adaptateur pour attelage de
32 mm (1 ¼ po).
 Ne pas poser ce porte-vélo sur une
remorque, une autocaravane ou un véhicule
récréatif.
 Ne pas poser ce porte-vélo si la présence de
la roue de secours gêne le chargement des
vélos ou empêche de relever le porte-vélo.
 Ne pas employer si les vélos ont une aile
avant.
Par ailleurs, il est possible que certains
attelages plus petits n'acceptent pas ce
produit. Si l'on ne connaît pas la solidité du
tube d'attelage du véhicule, consulter un
professionnel de l'automobile.
CLÉ HEXAGONALE(X 1)
SERRURE
D'ATTELAGE (X 1)

1034426J-9/21

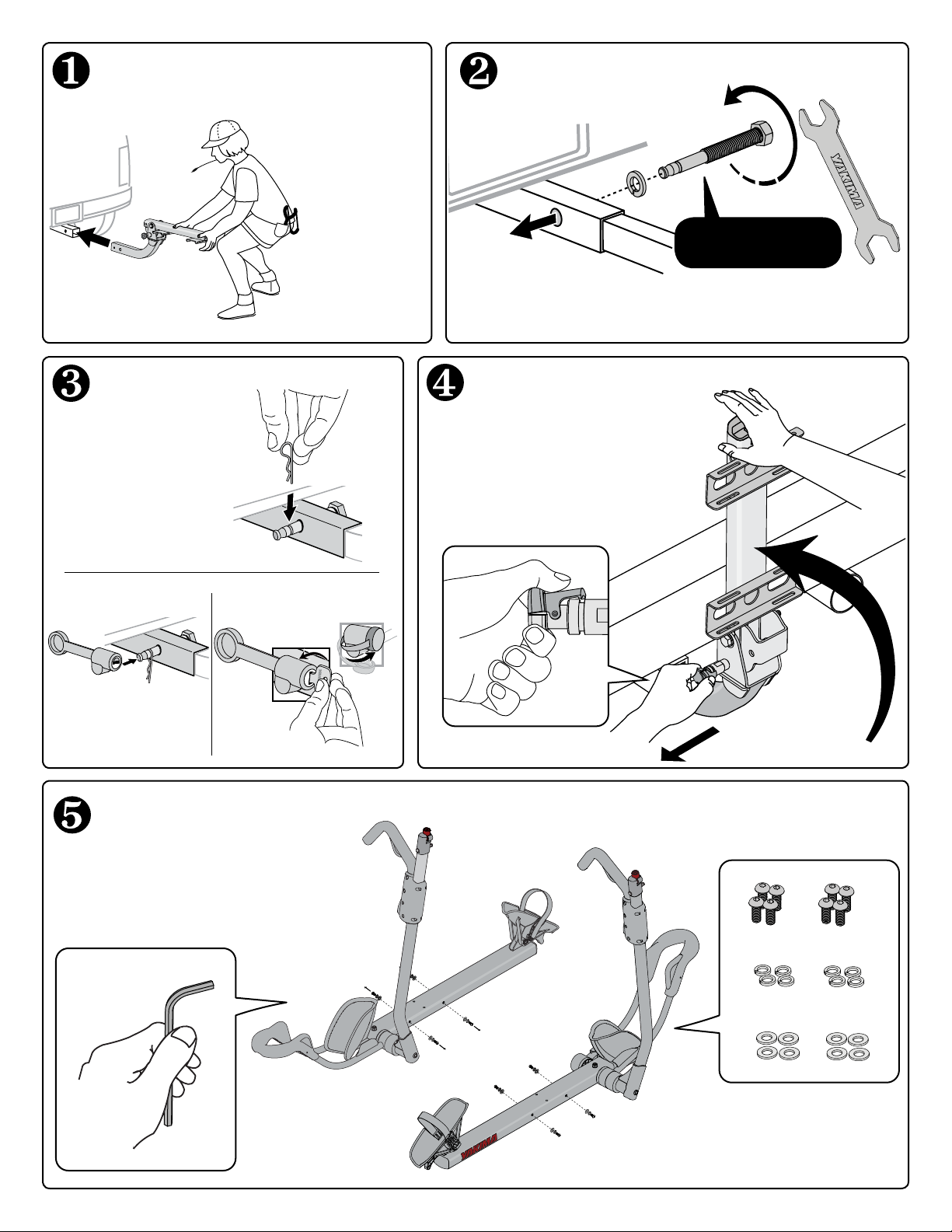

ENFILER LA BASE
DANS L'ATTELAGE.
Le trous de la
base doivent
s'aligner avec
les trous de
l'attelage.
METTRE EN PLACE LE
BOULON D'ATTELAGE.
 Enfiler le boulon muni de sa rondelle DE

 Serrer avec la clé.
BLOQUER LE
BOULON AVEC
LA BROCHE
DE SÛRETÉ
ET POSER LA
SERRURE.
RELEVER LA BASE EN POSITION
VERTICALE.



libérer la base.


en place et se verrouiller.
32mm (1¼po): 75pi/lb
5cm (2po)  : 100pi/lb
ENLEVER LES BOULONS.
Les boulons sont vissés dans les supports
pour le transport. Les enlever avant de
procéder au montage.

1034426J-10/21

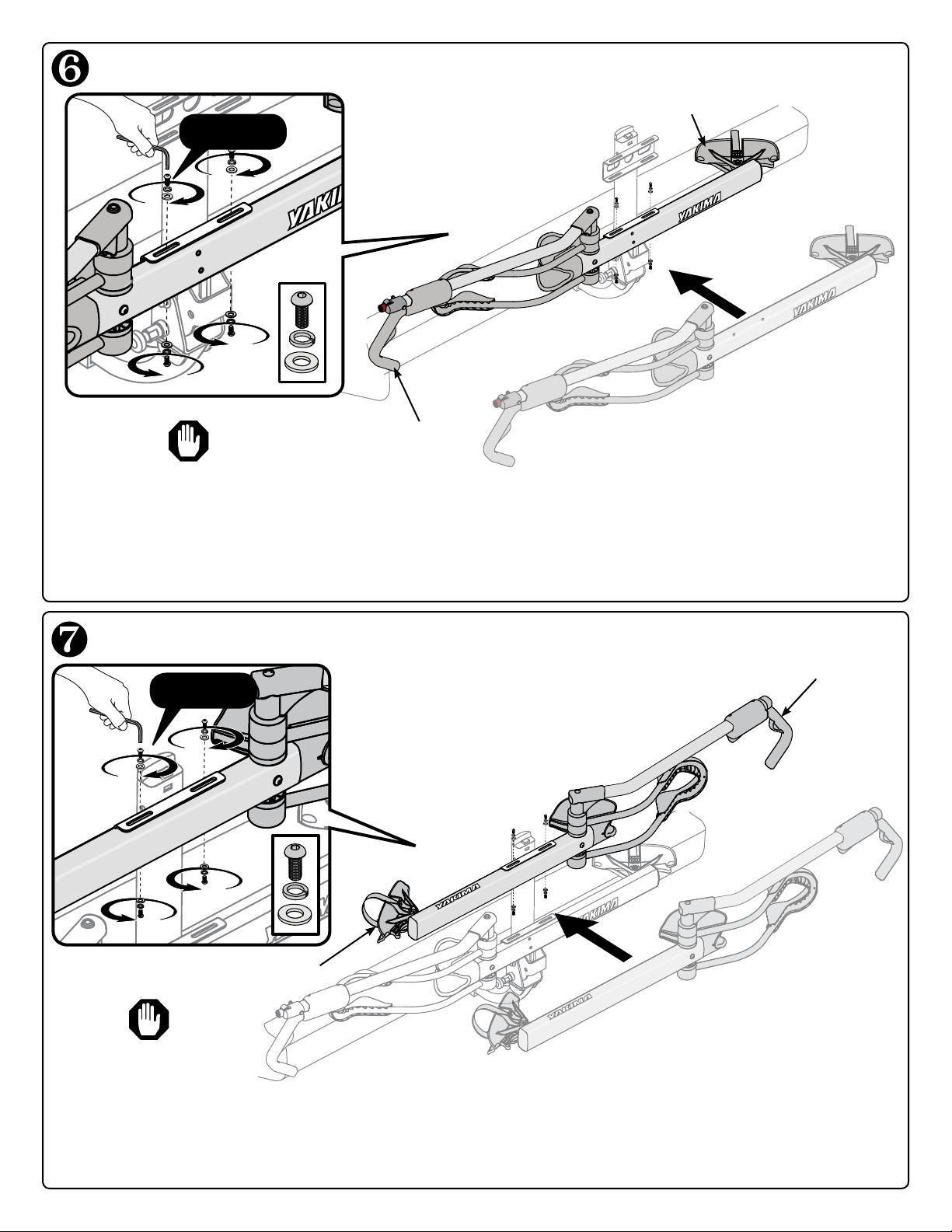

FIXER LE PREMIER SUPPORT À LA BASE.
Courroie crantée
Bras pivotant
FIXER LE DEUXIÈME SUPPORT À LA BASE.
Bras pivotant
Courroie crantée
 Centrer les trous du support dans les rainures de la base.
 Enfiler les boulons, les rondelles de sécurité et les

 Serrer les quatre boulons du bout des doigts.
 Serrer avec la clé fournie.
 Centrer les trous du support dans les rainures de la base.
 Enfiler les boulons, les rondelles de sécurité et les

 Serrer les quatre boulons du bout des doigts.
 Serrer avec la clé fournie.
17pi/lb
17pi/lb
SUPPORT INFÉRIEUR :
IMPORTANT : Placer la courroie
crantée à droite et le bras
pivotant à gauche.
SUPPORT SUPÉRIEUR :
IMPORTANT : Placer la
courroie crantée à gauche
et le bras pivotant à droite.
