SERVICE MANUAL
6CE-28197-3N-11
F(L)225F
F(L)250D
F(L)300B

Preface
This manual has been prepared by Yamaha primarily for use by Yamaha dealers and their trained
mechanics when performing maintenance procedures and repairs to Yamaha equipment. It has
been written to suit the needs of persons who have the Bronze Technical Certificate of the YTA
(Yamaha Technical Academy) marine or the equivalent basic understanding of the mechanical and
electrical concepts and procedures inherent in the work, for without such knowledge attempted
repairs or service to the equipment could render it unsafe or unfit for use.
Because Yamaha has a policy of continuously improving its products, models may differ in detail
from the descriptions and illustrations given in this publication. Use only the latest edition of this
manual. Authorized Yamaha dealers are notified periodically of modifications and significant
changes in specifications and procedures, and these are incorporated in successive editions of this
manual. Also, up-to-date parts information is available on YPEC-web. Additional information and up-
to-date information on Yamaha products and services are available on Yamaha Service Portal.
Important information
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
A WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
A NOTICE indicates special precautions that must be taken to avoid damages to the out-
board motor or other property.
TIP:
A TIP provides key information to make procedures easier or clearer.
F(L)225F, F(L)250D, F(L)300B
SERVICE MANUAL
©2010 by Yamaha Motor Co., Ltd.
1st Edition, May 2010
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Co., Ltd.
is expressly prohibited.

Contents
General information GEN
INFO 0
Specification SPEC 1
Technical features and description TECH
FEA 2
Rigging information RIG
GING 3
Troubleshooting TRBL
SHTG 4
Electrical system ELEC 5
Fuel system FUEL 6
Power unit POWR 7
Lower unit LOWR 8
Bracket unit BRKT 9
Maintenance MNT 10
Index
Appendix A

GEN
INFO
0
1
2
3
4
5
6
7
8
9
10
A
General information 0
Safety while working .................................................... 0-1
Rotating part .............................................................................. 0-1
Hot part ...................................................................................... 0-1
Electric shock ............................................................................ 0-1
Propeller .................................................................................... 0-1
Handling of gasoline .................................................................. 0-1
Ventilation .................................................................................. 0-1
Self-protection ........................................................................... 0-2
Working with crane .................................................................... 0-2
Handling of gas torch ................................................................ 0-2
Part, lubricant, and sealant ........................................................ 0-2
Handling of sealant .................................................................... 0-3
Special service tool ................................................................... 0-3
Tightening torque ...................................................................... 0-3
Non-reusable part ...................................................................... 0-3
Disassembly and assembly ....................................................... 0-3
How to use this manual .................................................... 0-4
Manual format ........................................................................... 0-4
Abbreviation .............................................................................. 0-5
Lubricant, sealant, and thread locking agent ................. 0-7
Symbol ...................................................................................... 0-7

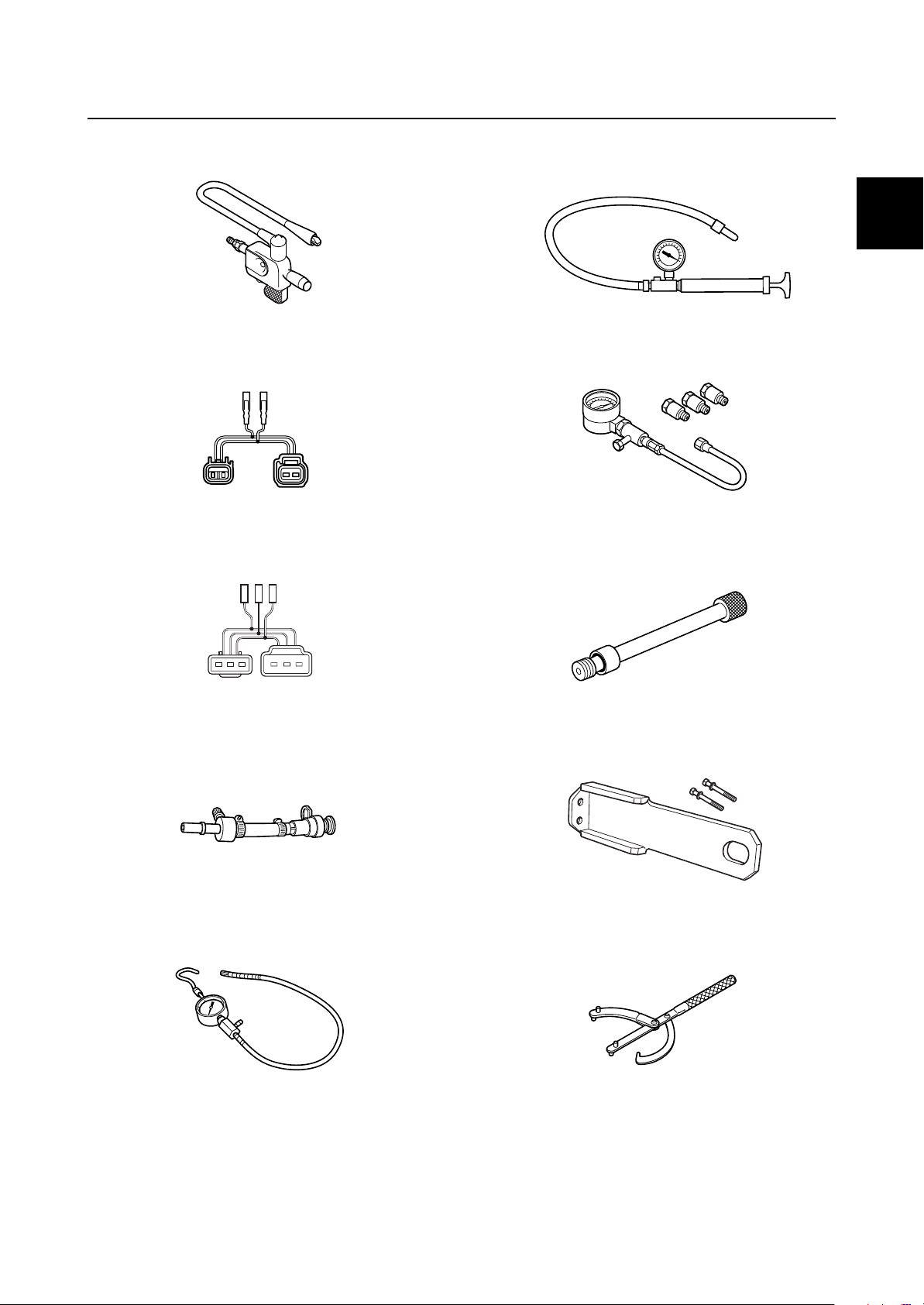

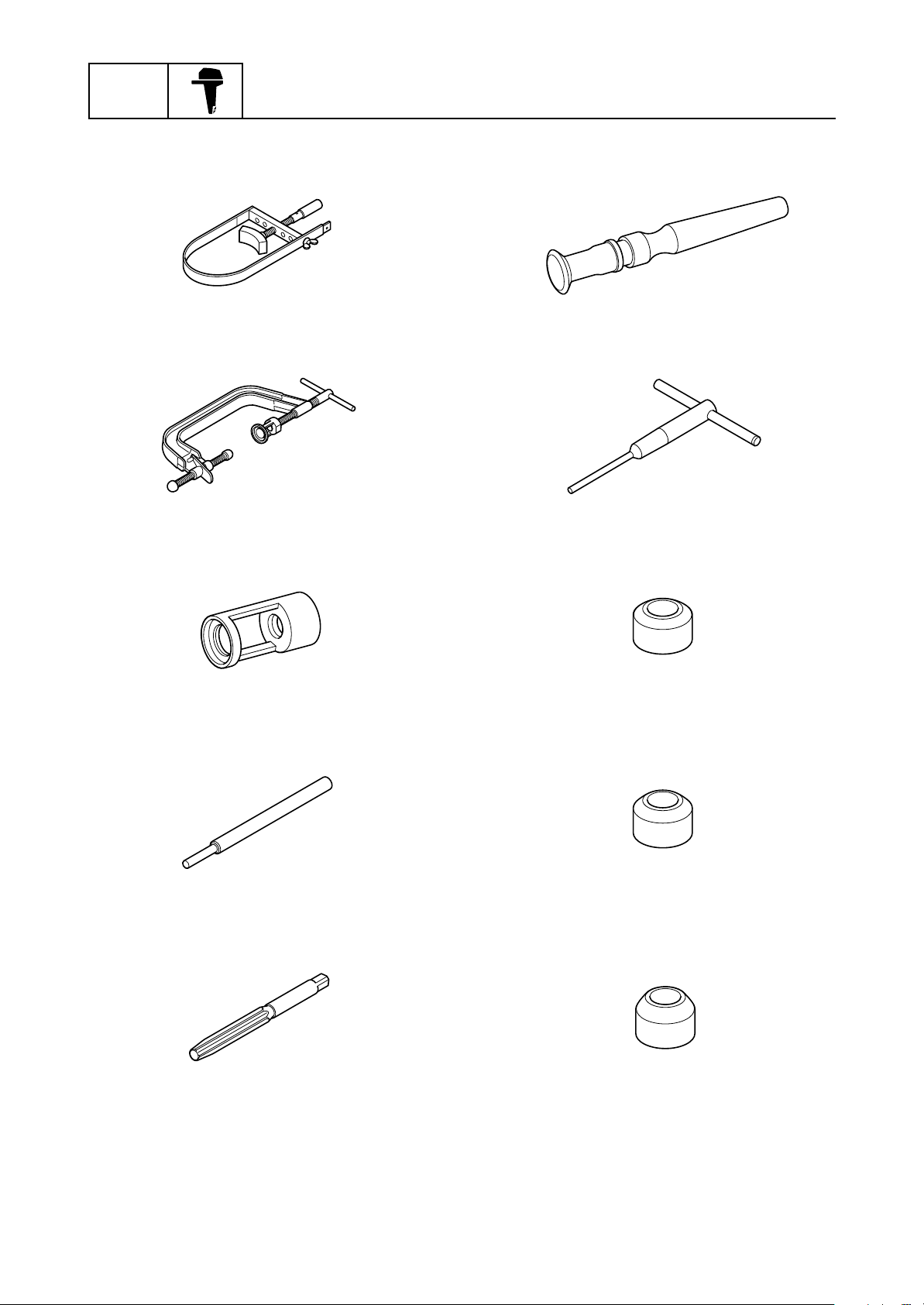

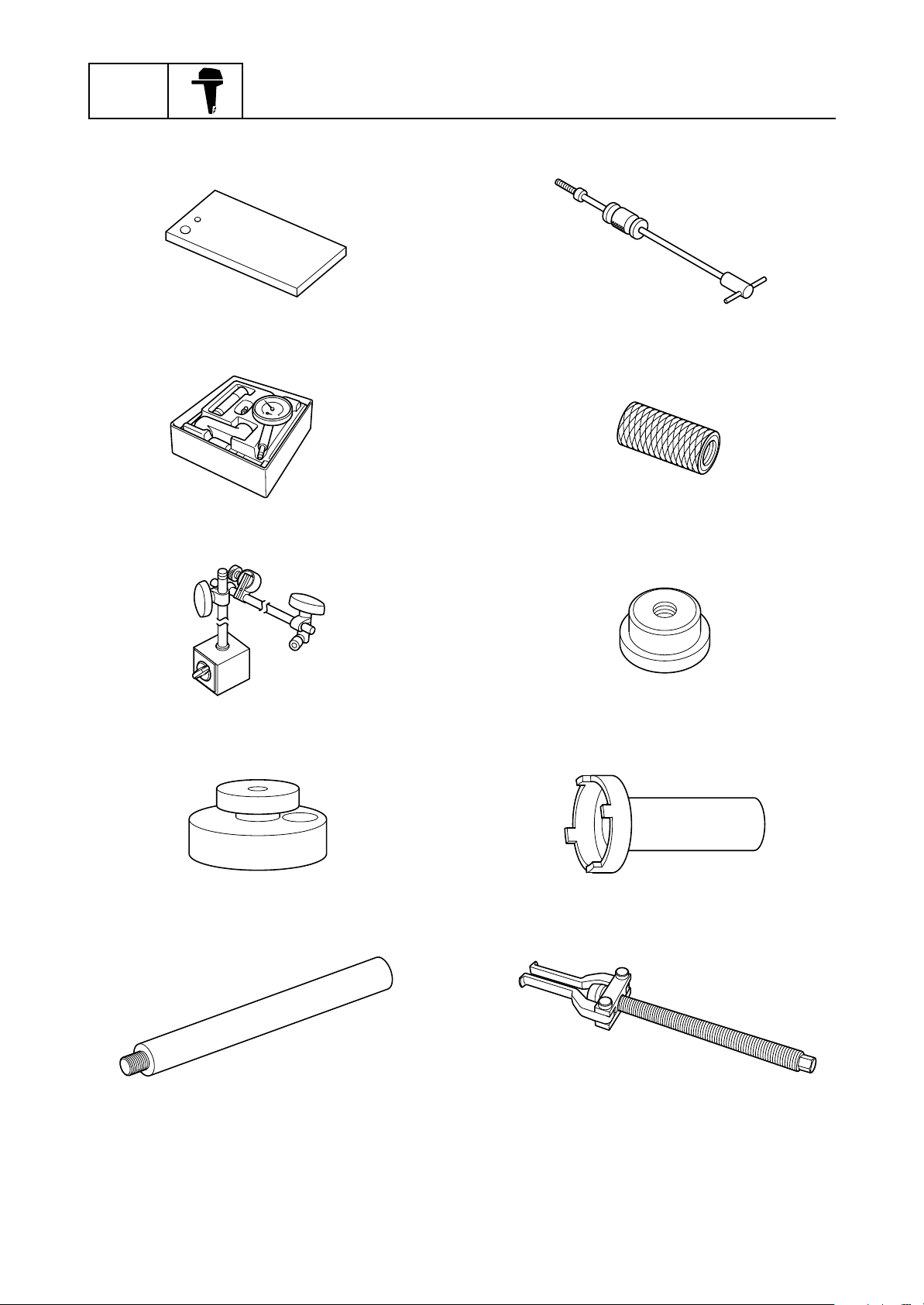

Special service tool ........................................................... 0-9

0-1
GEN
INFO General information
Safety while working
To prevent an accident or injury and to pro-
vide quality service, observe the following
safety procedures.
Rotating part
• Hands, feet, hair, jewelry, clothing, personal
flotation device straps, and so on, can
become entangled with internal rotating
parts of the engine, resulting in serious
injury or death.
• Keep the top cowling installed whenever
possible. Do not remove or install the top
cowling when the engine is running.
• Only operate the engine with the top cowl-
ing removed according to the specific
instructions in the manual. Keep hands,
feet, hair, jewelry, clothing, personal flota-
tion device straps, and so on, away from
any exposed moving parts.
Hot part
During and after operation, engine parts are
hot enough to cause burns. Do not touch any
parts under the top cowling until the engine
has cooled.
Electric shock
Do not touch any electrical parts while start-
ing or operating the engine. Otherwise, shock
or electrocution could result.
Propeller
Do not hold the propeller with your hands
when loosening or tightening the propeller
nut.
Handling of gasoline
• Gasoline is highly flammable. Keep gaso-
line and all flammable products away from
heat, sparks, and open flames.
• Gasoline is poisonous and can cause injury
or death. Handle gasoline with care. Never
siphon gasoline by mouth. If you swallow
some gasoline, inhale a lot of gasoline
vapor, or get some gasoline in your eyes,
see your doctor immediately. If gasoline
spills on your skin, wash with soap and
water. If gasoline spills on your clothing,
change your clothes.
Ventilation
• Gasoline vapor and exhaust gas are
heavier than air and extremely poisonous. If
gasoline vapor or exhaust gas is inhaled in
large quantities, it may cause loss of con-
sciousness and death within a short time.
• When test running an engine indoors (for
example, in a water tank) make sure to do
so where adequate ventilation can be main-
tained.

0-2
Safety while working
0
1
2
3
4
5
6
7
8
9
10
A
Self-protection
• Protect your eyes by wearing safety
glasses or safety goggles during all opera-
tions involving drilling and grinding, or when
using an air compressor.
• Protect your hands and feet by wearing pro-
tective gloves and safety shoes when nec-
essary.
Working with crane
• Outboard motors weighing 18.0 kg (39.7 lb)
and over must be carried by a crane.
• Use the wire ropes of adequate strength,
and lift up the outboard motor using the
three-point suspension.
• If the outboard motor does not have three
or more points to be suspended, support it
using additional ropes, or the like, so that
the outboard motor can be lifted and carried
in a stable manner.
Handling of gas torch
• Improper handling of a gas torch may result
in burns. For information on the proper han-
dling of the gas torch, see the operation
manual issued by the manufacturer.
• When using a gas torch, keep it away from
the gasoline and oil, to prevent a fire.
• Components become hot enough to cause
burns. Do not touch any hot components
directly.
Part, lubricant, and sealant
Use only genuine Yamaha parts, lubricants,
and sealants, or those recommended by
Yamaha, when servicing or repairing the out-
board motor.

0-3
GEN
INFO General information
Handling of sealant
• Wear protective gloves to protect your skin,
when using the sealants.
• See the material safety data sheet issued
by the manufacturer. Some of the sealants
may be harmful to human health.
Special service tool
Use the recommended special service tools
to work safely, and to protect parts from dam-
age.
Tightening torque
When tightening nuts, bolts, and screws, fol-
low the tightening instructions provided
throughout the manual. If the tightening order
is not specified, tighten the large sizes first,
and then tighten the small sizes, starting from
the center and moving outward.
Non-reusable part
Always use new gaskets, seals, O-rings, cot-
ter pins, and so on, when installing or assem-
bling parts.
Disassembly and assembly
• Use compressed air to remove dust and dirt
during disassembly.
• Apply engine oil to the contact surfaces of
moving parts before assembly.
• Install bearings so that the bearing identifi-
cation mark is facing in the direction indi-
cated in the installation procedure. In
addition, make sure to lubricate the bear-
ings liberally.
• Apply a thin coat of water resistant grease
to the lip and periphery of an oil seal before
installation.
• Check that moving parts operate normally
after assembly.

0-4
How to use this manual
0
1
2
3
4
5
6
7
8
9
10
A
How to use this manual
Manual format
The format of this manual has been designed to make service procedures clear and easy to under-
stand. Use the following information as a guide for effective and quality service.
• Parts are shown and detailed in an exploded diagram and are listed in the component list (see a
in the following figure for an example page).
• The component list consists of part names and quantities, as well as bolt and screw dimensions
(see bin the following figure).
• Symbols are used to indicate important aspects of a procedure, such as the grade of lubricant and
the lubrication points (see cin the following figure).
• Tightening torque specifications are provided in the exploded diagrams (see din the following fig-
ure), and in the related detailed instructions. Some torque specifications are listed in stages as
torque figures or angles in degrees.
• Separate procedures and illustrations are used to explain the details of removal, checking, and
installation where necessary (see ein the following figure for an example page).
TIP:
For troubleshooting procedures, see Chapter 4, “Troubleshooting.”
Safety while working / How to use this manual

0-5
GEN
INFO General information
Abbreviation
The following abbreviations are used in this service manual.
Abbreviation Description
ABYC American Boat and Yacht Council
API American Petroleum Institute
ATDC After Top Dead Center
ATF Automatic Transmission Fluid
AWG American Wire Gauge
BTDC Before Top Dead Center
C/E Check Engine
CCA Cold Cranking Ampere
DN Down side
DOHC Double Over Head Camshaft
ECM Electronic Control Module
ETV Electronic Throttle Valve
EN European Norm (European standard)
ENG Engine
EX Exhaust
EXH Exhaust
FForward
GPS Global Positioning System
ID Identification
IEC International Electro-technical Commission
IN Intake
INT Intake
ISO International Organization for Standardization
LPS Lever Position Sensor
N Neutral
OCV Oil Control Valve
PCV Pressure Control Valve
PORT Port side
PTT Power Trim and Tilt
RReverse
R.C. Remote Control (Digital Electronic Control)
RON Research Octane Number
SAE Society of Automotive Engineers
SPS Shift Position Sensor
STBD Starboard side
TCI Transistor-Controlled Ignition
TDC Top Dead Center
TPS Throttle Position Sensor

0-6
How to use this manual
0
1
2
3
4
5
6
7
8
9
10
A
UP Up side
VCT Variable Camshaft Timing
W/F Water in Fuel
Y-COP Yamaha Customer Outboard Protection
YDIS Yamaha Diagnostic System
Abbreviation Description

0-7
GEN
INFO General information

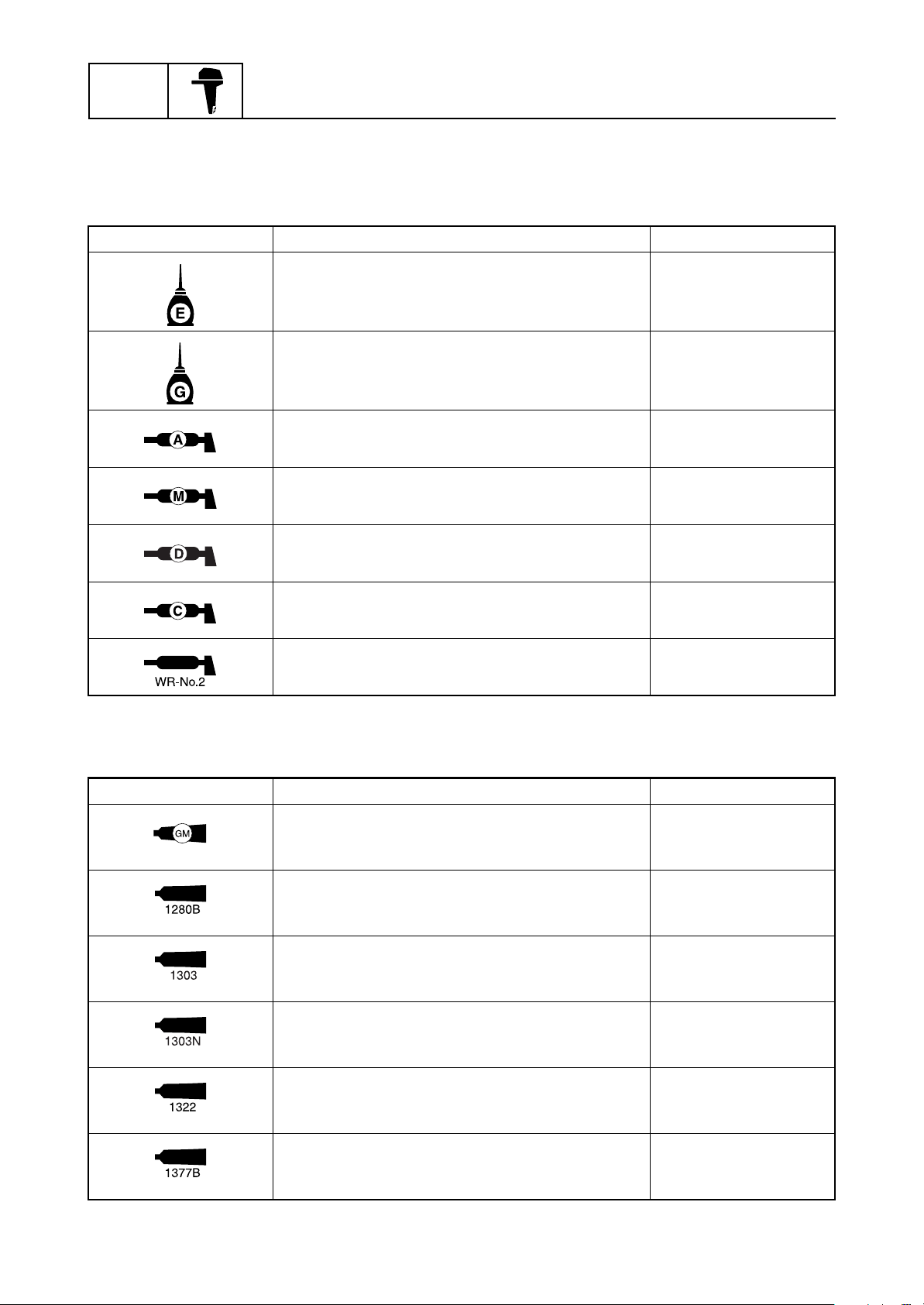

Lubricant, sealant, and thread locking agent
Symbol
Symbols in an exploded diagram or illustration indicate the grade of lubricant and the lubrication
points.
Symbols in an exploded diagram or illustration indicate the type of sealant or thread locking agent
and the application points.
Symbol Name Application
Yamaha 4-stroke motor oil Lubricant
Gear oil Lubricant
Water resistant grease
(Yamaha grease A)
Lubricant
Molybdenum disulfide grease Lubricant
Corrosion resistant grease
(Yamaha grease D)
Lubricant
Low temperature resistant grease
(Yamaha grease C)
Lubricant
WR-No.2 grease Lubricant
Symbol Name Application
Gasket Maker Sealant
ThreeBond 1280B Sealant
ThreeBond 1303 Thread locking agent
ThreeBond 1303N Thread locking agent
ThreeBond 1322 Thread locking agent
ThreeBond 1377B Thread locking agent

0-8
Lubricant, sealant, and thread locking agent
0
1
2
3
4
5
6
7
8
9
10
A
ThreeBond 1386B Sealant
ThreeBond 1530D Sealant
LOCTITE 210 (red) Thread locking agent
LOCTITE 242 (blue) Thread locking agent
LOCTITE 271 (red) Thread locking agent
LOCTITE 572 (white) Sealant
Silicone sealant Sealant
Symbol Name Application

0-9
GEN
INFO General information
Special service tool
For all markets except U.S.A. and Canada
Special service tools with Yamaha part numbers (90890-*****) are distributed by the Parts Division.
Engine lifting eye
90890-06820
Drilling plate
90890-06783
YDIS (CD-ROM, Ver. 1.33)
60V-WS853-06
YDIS USB adapter and cable
60V-WS850-00
Digital circuit tester
90890-03174
Peak voltage adapter B
90890-03172
Test harness (3 pins)
90890-06869
Vacuum/pressure pump gauge set
90890-06756
Test harness (1 pin)
90890-06888
Test harness (2 pins)
90890-06887

0-10
Special service tool
0
1
2
3
4
5
6
7
8
9
10
A
Ignition tester (spark gap tester)
90890-06754
Test harness (2 pins)
90890-06867
Test harness (3 pins)
90890-06791
Fuel pressure gauge adapter
90890-06842
Fuel pressure gauge
90890-06786
Leakage tester
90890-06840
Compression gauge
90890-03160
Compression gauge extension
90890-06563
Balance hanger
90890-06822
Rotor holder
90890-01235

0-11
GEN
INFO General information
Sheave holder
90890-01701
Valve spring compressor
90890-04019
Valve spring compressor attachment
90890-06320
Valve guide remover/installer
90890-06801
Valve guide reamer
90890-06804
Valve lapper
90890-04101
Valve seat cutter holder
90890-06316
Valve seat cutter 30°
90890-06331
Valve seat cutter 45°
90890-06332
Valve seat cutter 60°
90890-06333

0-12
Special service tool
0
1
2
3
4
5
6
7
8
9
10
A
Valve seat cutter 30°
90890-06327
Valve seat cutter 45°
90890-06325
Valve seat cutter 60°
90890-06324
Oil filter wrench
90890-06830
Driver rod L3
90890-06652
Needle bearing attachment
90890-06612
Bearing inner race attachment
90890-06640
Piston ring compressor
90890-05158
Needle bearing attachment
90890-06653
Shift rod socket
90890-06679

0-13
GEN
INFO General information
Needle bearing attachment
90890-06614
Ring nut wrench extension
90890-06513
Ring nut wrench 6
90890-06677
Bearing housing puller claw L
90890-06502
Stopper guide plate
90890-06501
Center bolt
90890-06504
Ball bearing attachment
90890-06634
Needle bearing attachment
90890-06611
Bearing inner race attachment
90890-06661
Driver rod LL
90890-06605

0-14
Special service tool
0
1
2
3
4
5
6
7
8
9
10
A
Bearing outer race attachment
90890-06623
Bearing inner race attachment
90890-06640
Drive shaft ring nut wrench
90890-06674
Drive shaft holder 6
90890-06520
Pinion nut holder
90890-06715
Needle bearing attachment
90890-06680
Ball bearing attachment
90890-06655
Bearing outer race puller assembly
90890-06523
Bearing outer race attachment
90890-06628
Backlash indicator
90890-06836

0-15
GEN
INFO General information
Magnet base plate
90890-07003
Dial gauge set
90890-01252
Magnet base B
90890-06844
Pinion shimming gauge
90890-06675
Pinion shimming gauge rod
90890-06676
Slide hammer
90890-06531
Puller head
90890-06514
Needle bearing attachment
90890-06607
Ring nut wrench
90890-06578
Bearing puller assembly
90890-06535
