INTRODUCTION
Welcome to the Yamaha world of motorcycling!
As the owner of a XN125, you are benefiting fromYamaha’s vast experience and newest technology regarding
the design and manufacture of high-quality products, which have earnedYamaha a reputation for dependability.
Please take the time to read this manual thoroughly, so as to enjoy all advantages of your XN125. The
owner’s manual does not only instruct you in how to operate, inspect and maintain your scooter, but also in
how to safeguard yourself and others from trouble and injury.
In addition, the many tips given in this manual will help keep your scooter in the best possible condition. If you
have any further questions, do not hesitate to contact your Yamaha dealer.
The Yamaha team wishes you many safe and pleasant rides. So, remember to put safety first!

NOTE:
WARNING
CAUTION:
EAU00005
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could result in severe injury or death to the scooter
operator, a bystander, or a person inspecting or repairing the scooter.
A CAUTION indicates special precautions that must be taken to avoid damage to the scooter.
A NOTE provides key information to make procedures easier or clearer.
NOTE:
• This manual should be considered a permanent part of this scooter and should remain
with it even if the scooter is subsequently sold.
• Yamaha continually seeks advancements in product design and quality. Therefore, while
this manual contains the most current product information available at the time of printing,
there may be minor discrepancies between your scooter and this manual. If you have any
questions concerning this manual, please consult your Yamaha dealer.

IMPORTANT MANUAL INFORMATION
EW000002
PLEASE READ THIS MANUAL CAREFULLY AND COMPLETELY BEFORE OPERATING THIS SCOOTER.
WARNING

EAUM0023
XN125
OWNER’S MANUAL
© 2000 by MBK INDUSTRIE
1st Edition, April 2000
All rights reserved
Any reproduction or representation
without the written permission of
MBK INDUSTRIE
is expressly prohibited.
Printed in France.

1
2
3
4
5
6
7
8
9
1 GIVE SAFETY THE RIGHT OF WAY
2 DESCRIPTION
3 INSTRUMENT AND CONTROL FUNCTIONS
4 PRE-OPERATION CHECKS
5 OPERATION AND IMPORTANT RIDING POINTS
6 PERIODIC MAINTENANCE AND MINOR REPAIR
7 SCOOTER CARE AND STORAGE
8 SPECIFICATIONS
9 CONSUMER INFORMATION
INDEX
EAU00009
TABLE OF CONTENTS

1
GIVE SAFETY THE RIGHT OF WAY
Give safety the right of way.............................................................. 1-1
Further safe-riding points ................................................................. 1-2

1
1-1
EAU00021
EW000015
GIVE SAFETY THE RIGHT OF WAY
Scooters are fascinating vehicles, which can give you an unsurpassed feeling of power and freedom. However,
they also impose certain limits, which you must accept; even the best scooter does not ignore the laws of physics.
Regular care and maintenance are essential for preserving value and operating condition of your scooter. Moreover,
what is true for the scooter is also true for the rider: good performance depends on being in good shape. Riding
under the influence of medication, drugs and alcohol is, of course, out of the question. Scooter riders-more than
car drivers-must always be at their mental and physical best. Under the influence of even small amounts of
alcohol, there is a tendency to take dangerous risks.
Protective clothing is as essential for the scooter rider as seat belts are for car drivers and passengers.Always
wear a complete scooter suit (whether made of leather or tear-resistant synthetic materials with protectors),
sturdy boots, scooter gloves and a properly fitting helmet. Optimum protective wear, however, should not encou-
rage carelessness. Although full-coverage helmets and suits, in particular, create an illusion of total safety and
protection, motorcyclists will always be vulnerable. Riders who lack critical self-control run the risk of going too
fast and are apt to take chances. This is even more dangerous in wet weather. The good motorcyclist rides safely,
predictably and defensively-avoiding all dangers, including those caused by others.
Enjoy your ride!

1
1-2
GIVE SAFETY THE RIGHT OF WAY
EAU02964
Further safe-riding points
• Be sure to signal clearly when making turns.
• Braking can be extremely difficult on a wet road. Avoid hard braking, because the scooter could slide.
Apply the brakes slowly when stopping on a wet surface.
• Slow down as you approach a corner or turn. Once you have completed a turn, accelerate slowly.
• Be careful when passing parked cars. A driver might not see you and open a door in your path.
• Railroad crossings, streetcar rails, iron plates on road construction sites, and manhole covers become
extremely slippery when wet. Slow down and cross them with caution. Keep the scooter upright, otherwise
it could slide out from under you.
• The brake lining could get wet when you wash the scooter. After washing the scooter, check the brakes
before riding.
• Always wear a helmet, gloves, trousers (tapered around the cuff and ankle so they do not flap), and a
bright colored jacket.
• Do not carry too much luggage on the scooter. An overloaded scooter is unstable. Use a strong cord to
secure any luggage to the carrier. A loose load will affect the stability of the scooter and could divert your
attention from the road.

2
DESCRIPTION
Left view ........................................................................................... 2-1
Right view......................................................................................... 2-2
Controls and instruments ................................................................. 2-3

2
1. Storage compartment (page 3-9)
2. Fuel tank cap (page 3-7)
3. Passenger handle (page 5-2)
2-1
EAU00026
DESCRIPTION
Left view
1 2 3
65 4
4. Air filter (page 6-15)
5. Centerstand (page 6-23)
6. V-belt case air filter (page 6-15)

2
DESCRIPTION
2-2
7. Seat (page 3-9)
8. Battery (page 6-25)
9. Fuse (page 6-26)
10. Front turn signal (page 6-28)
11. Headlight (page 6-28)
Right view
15
789
14
13
10
11
12
12. Coolant reservoir (page 6-13)
13. Engine oil dipstick (page 6-10)
14. Headlight (page 6-29)
15. Rear turn signal (page 6-28)

2
DESCRIPTION
2-3
16. Rear brake lever (page 3-7)
17. Dimmer switch (page 3-6)
18. Odometer / Clock (3-4)
19. Speedometer (page 3-4)
20. Battery voltage / Fuel gauge (3-5)
21. Light switch (page 3-6)
22. Front brake lever (page 3-7)

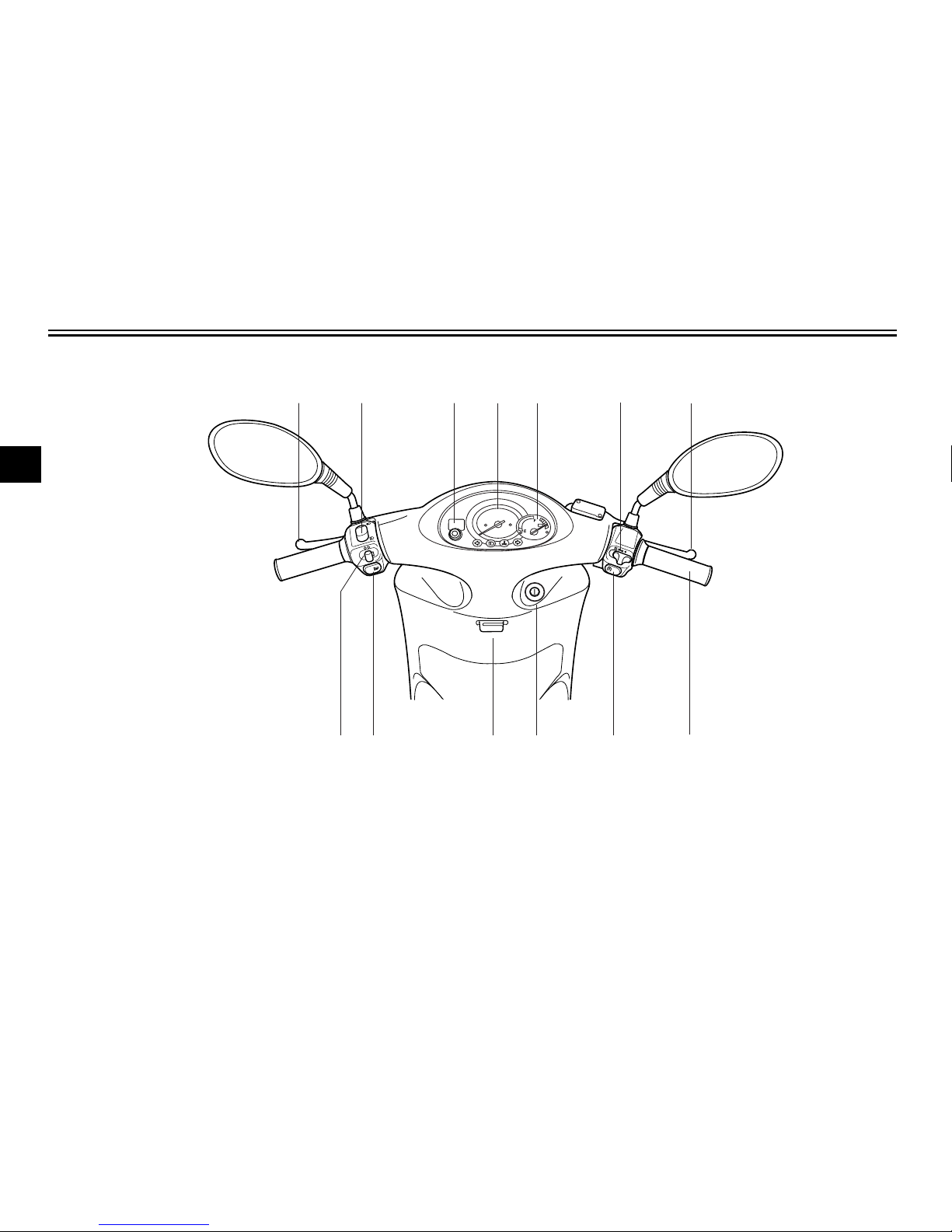

Controls and instruments
16 17 18 19 20 21 22
26
2728 25 24 23
23. Throttle grip (page 6-17)
24. Start switch (page 3-6)
25. Main switch / Steering lock (page 3-1)
26. Luggage hook (page 3-10)
27. Horn switch (page 3-6)
28. Turn signal switch (page 3-6)

3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch / steering lock ............................................................... 3-1
Indicator lights .................................................................................. 3-2
Coolant temperature warning light check......................................... 3-3
Speedometer unit............................................................................. 3-4
Selecting miles or kilometers ........................................................... 3-4
Battery voltage / Fuel gauge ............................................................ 3-5
Clock ................................................................................................ 3-5
Handlebar switches.......................................................................... 3-6
Front brake lever .............................................................................. 3-7
Rear brake lever............................................................................... 3-7
Fuel tank cap.................................................................................... 3-7
Fuel .................................................................................................. 3-8
Catalytic converter ........................................................................... 3-9
Seat.................................................................................................. 3-9
Storage compartment....................................................................... 3-9
Luggage hook ................................................................................ 3-10

3
3-1
EAU00027
INSTRUMENT AND CONTROL FUNCTIONS
EAU00029
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and
is used to lock the steering.The various
positions are described below.
EAU00036
ON “ ”
All electrical systems are supplied with
power, and the engine can be started.
The key cannot be removed.
EAU00038
OFF “ ”
All electrical systems are off. The key
can be removed.
EAUM0015
LOCK “ ”
The steering is locked, and all electrical
systems are off. The key can be
removed.
To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF”
position, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
NOTE:
Always turn the main switch to “OFF”
or “LOCK” and remove the key when
the scooter is unattended.
EW000016
Never turn the key to “OFF” or
“LOCK” while the scooter is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the scooter is stopped
before turning the key to “OFF” or
“LOCK”.
WARNING
PUSH
OPEN
EAUM0038
“ ”
The coolant temperature warning light
should come on, when the key is turned
to “ ”. See page 3-2 for an explanation
of the coolant temperature warning
light.

3
3-2

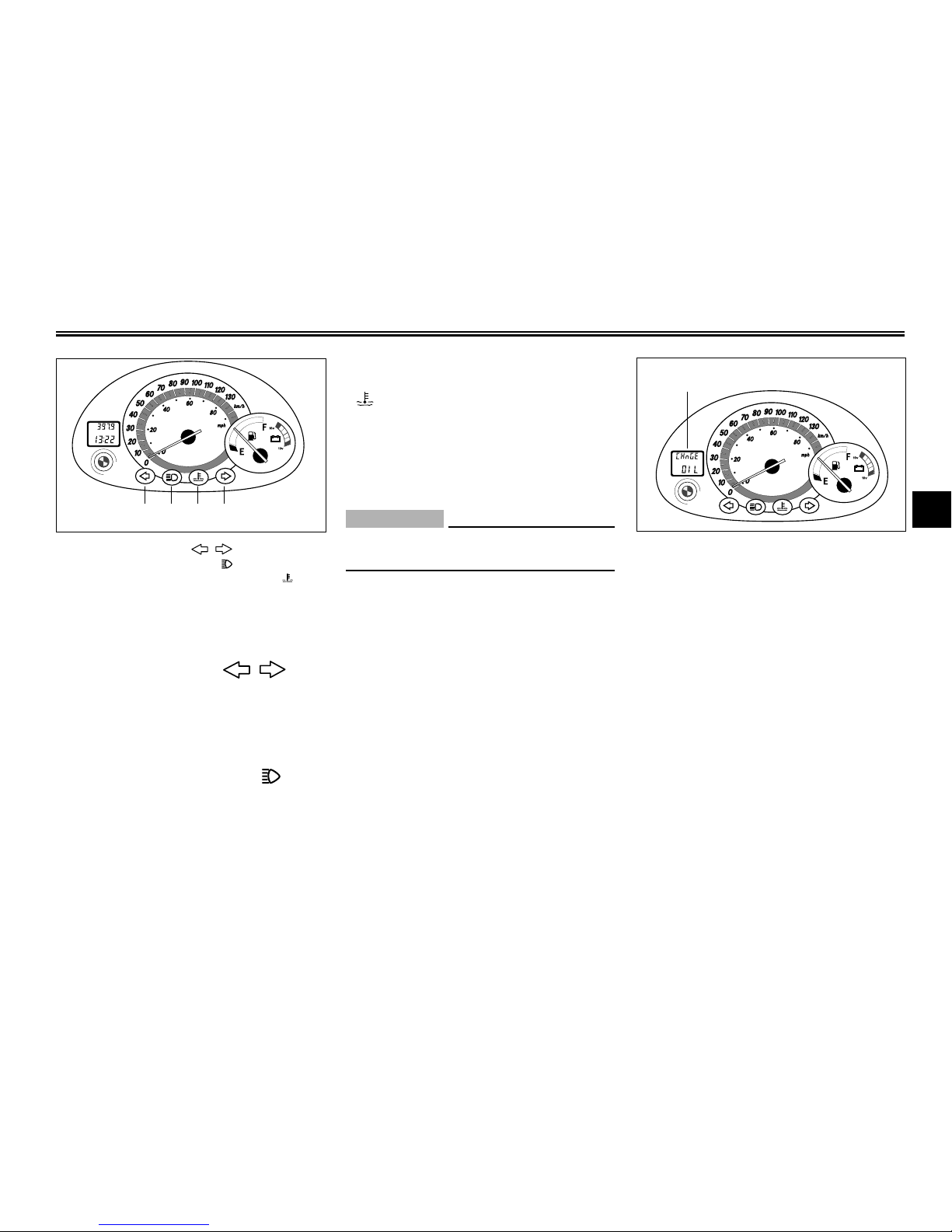

1. Turn indicator lights “ , ”
2. High beam indicator light “ ”
3. Coolant temperature warning light “ ”
INSTRUMENT AND CONTROL FUNCTIONS
EAU00056
Indicator lights
EAU03125
Turn indicator lights “ , ”
The corresponding indicator flashes
when the turn signal switch is moved
to the left or right.
EAU00064
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU01716
Coolant temperature warning light
“ ”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and allow
the engine to cool.
1. Oil change indicator “CHnGE OIL”
EC000002
Do not operate the engine if it is
overheated.
CAUTION:
TOTAL
1 2 3 1
ZAUM0006
1
ZAUM0007
EAUM0048
Oil change indicator
At the initial 500 km and every 3,000
km thereafter, the message “CHnGE
OIL” appears in the odometer/clock
display to indicate that the engine oil
should be changed. (See page 6-10 for
the resetting procedure.)

3
3-3
INSTRUMENT AND CONTROL FUNCTIONS
EAU01292
Coolant temperature warning light check
NOTE:
If, after the warning light goes off, the key is turned to “OFF” and then immediately back to “ON”, the warning light may not
come on again, but this does not indicate a malfunction.
The warning light comes on.
Have a Yamaha dealer
check the electrical circuit.
The warning light
goes off.
Go ahead with riding.
The warning light
does not go off.
Wait a few seconds.
See the “Engine overheating”
section on page 6-32 for further
instructions.
The warning light does not come
on. (See the NOTE below.)
Turn the key to “ ”.

3
3-4
1. Speedometer
2. Odometer
3. “TRIP” button
1. Tripmeter
INSTRUMENT AND CONTROL FUNCTIONS
EAU01586
Speedometer unit
The speedometer unit is equipped with
a speedometer, an odometer and a
tripmeter. The speedometer shows
riding speed. The odometer shows the
total distance traveled. The tripmeter
shows the distance traveled since it
was last set to zero.
Pushing the “TRIP” button switches the
display between the odometer mode
“TOTAL” and the tripmeter mode
“TRIP”. To reset the tripmeter, enter the
“TRIP” mode, and then hold down the
“TRIP” button for at least two seconds.
The tripmeter can be used together with
the fuel gauge to estimate the distance
that can be traveled with a full tank of
fuel. This information will enable you
to plan future fuel stops.
TOTAL
1
2
3
ZAUM0008
TOTAL
1
ZAUM0009
EAUM0040
Setting the odometer/tripmeter
reading mode
The odometer and tripmeter can be set to
count in either miles or kilometers
according to the following procedure.
1. Turn the key to “ON” while pressing
the “TRIP” button.
2. Release the “TRIP” button when the
display comes on.
3. The current mode appears in the
display: “CONT” (continental) for the
kilometer mode and “EnGL” (English)
for the mile mode.
4. Press the “TRIP” button to switch the
mode.
5. Press the “TRIP” button for two se-
conds to confirm the setting.
NOTE:
• The odometer/tripmeter reading mode
can be changed any number of times
while the odometer reading is below
10, but it cannot be changed anymore
after the reading has reached 10.
• Switching between the mile and the
kilometer mode does not change or
convert the current odometer/tripmeter
reading.
