YASKAWA iQpump Micro User manual

Quick Start Procedure
To properly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance. Ensure the end user
receives this manual.
iQpump Micro AC Drive
Compact Intelligent Pump Controller
Models: 200 V Class, Single-Phase Input: 1 to 5 HP ND
200 V Class, Three-Phase Input: 1.5 to 25 HP ND
400 V Class, Three-Phase Input: 1 to 25 HP ND
Type: CIMR-PW
MANUAL NO. TOEP YAIQPM 01A

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 2
of 31
Contents
STEP 1: UNPACK THE IQPUMP MICRO ..........................................................3
STEP 2: IDENTIFY THE MODEL FOR INSTALLATION....................................4
STEP 3: PERFORM MECHANICAL INSTALLATION........................................5
STEP 4: MOTOR, LINE POWER AND START/STOP CIRCUIT........................6
STEP 5: INSTALL THE 24 V TRANSDUCER POWER SUPPLY ......................7
STEP 6: ADJUST AND MONITOR IQPUMP MICRO SETTINGS....................19
STEP 7: APPLICATION SPECIFIC SETUP ....................................................20
STEP 8: PARAMETER OVERVIEW-QUICK SETTING MENU (SIMPLEX).....21
STEP 9: IQPUMP MICRO PARAMETERS - ADVANCED SETTINGS ............23
STEP 10: FINE-TUNE SETTINGS FOR PUMPING APPLICATION ..................24
STEP 11: VERIFY PUMP ROTATION AND TRANSDUCER FEEDBACK ........26
STEP 12: AUTO MODE OPERATION................................................................27
STEP 13: HAND MODE OPERATION................................................................28

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 3
of 31
Unpack the iQpump Micro
1
STEP
Remove all contents
prior to discarding packaging !
Quick Start Procedure
Toproper ly use the product, read this manual thoroughly and retain
for easy reference, inspection, and maintenance.Ensure the end user
receives this manual.
iQpump Micro AC Drive
Compact Intelligent Pump Controller
Models: 200 V Class, Single-Phase Input: 1 to 5 HP ND
200 V Class, Three-Phase Input: 1.5 to 25 HP ND
400 V Class, Three-Phase Input: 1 to 25 HP ND
Type:CIMR-PW
MANUAL NO. TOEPYAIQPM01 .
Quick Start Guide
Toproper ly use the product, read this manualthoroughly and retain
for easy reference, inspection, and maintenance.Ensure the end user
receives this manual.
iQpump Micro AC Drive
Compact Intelligent Pump Controller
Models: 200 V Class, Single-Phase Input: 1 to 5 HP ND
200 V Class, Three-Phase Input: 1.5 to 25 HP ND
400 V Class, Three-Phase Input: 1 to 25 HP ND
Type:CIMR-PW
MANUAL NO. TOEPYAIQPM02
+
NOTICE: Connect LINE, MOTOR, and
CONTROL circuit wiring BEFORE installing
24V power supply.
LINE
MOTOR
CONTROL
2
24V PS
3
1
24 VPS
iQpump Micro

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 4
of 31
Identify the Model for Installation
2
STEP
Safety Symbols in
this Document
WARNING!
Read and understand
users manual before
using this equipment.
Failure to follow users
instructions may result
in serious injury or
death.
WARNING!
Hazardous Voltage.
Contact may cause
electric shock or burn.
Turn-off and lock-out
system and facility
power before servicing.
WARNING!
Stay Clear- Equipment
starts automatically.
Clear all personnel
from equipment, install
shields or guards, locate
and verify emergency
SHUT-OFF is functional.
Failure to comply may
result in serious injury to
personnel.
WARNING!
Improper Operation
Sequence. DO NOT
RUN THE MOTOR.
Failure to comply may
result in serious injury to
personnel.
WARNING!
Do not operate
equipment with covers
or guards removed.
Install or replace cover
and/or guards before
operation. Failure to
comply may result
in serious injury to
personnel.
This Quick Start Procedure serves as general guide to help install, configure and perform test run operation.
Refer to the iQpump Micro User Manual No. TOEP YAIQPM 03 for complete instructions to configure this
product for each specific installation site.
2.1 Verify the correct model and ratings.
Follow this procedure for each iQpumpMicro and motor combination.

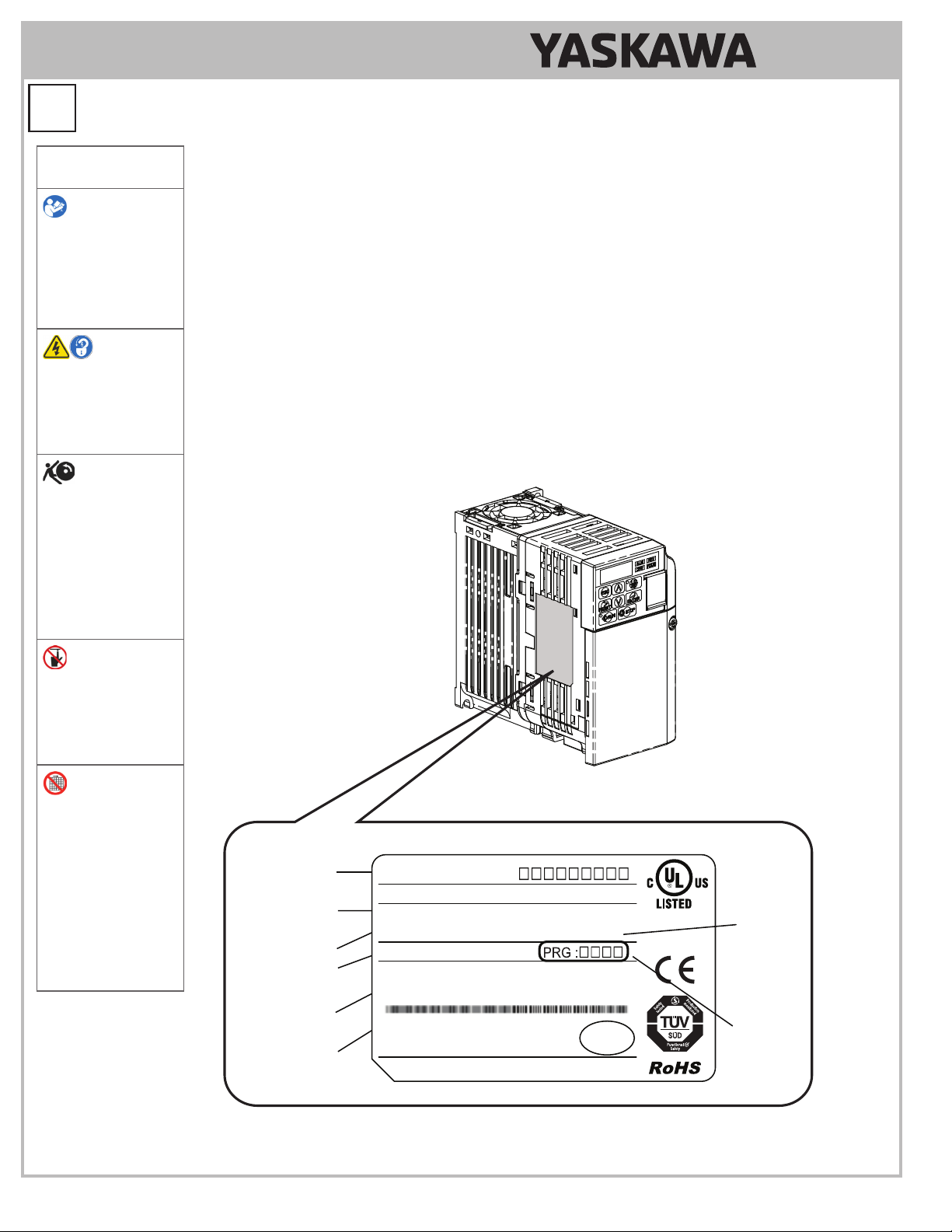

a. Locate the nameplate and your order information.
b. Verify the Model No: (E) matches the line item(s) on your order, to confirm receipt of the correct
model.
c. Locate the nameplate of motor that will be connected.
d. Confirm the motor nameplate Amperage, Voltage, and Frequency (Hz) are within the Output
specifications (B) shown on the iQpump Micro nameplate.
2.2 Verify main power source is adequate by reviewing the Input
specifications (A) shown on the iQpump Micro nameplate.
IND.CONT.EQ.
7J48
CIMR-PW
PASS
:
: AC3PH 200-240V 50 / 60Hz 2.7A / 1.4A
: AC3PH 0-240V 0-400Hz 1.2A / 0.8A
: 0.6 kg
:
:
: E131457 IP20
MODEL
MAX APPLI. MOTOR : 0.75kW / 0.4kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
Weight
Input Power
Rating
Software
Version
YASKAWA ELECTRIC CORPORATION MADE IN JAPAN
2-1 Kurosaki-shiroishi, Yahatanishi-Ku, Kitakyushu 806-0004 Japan
Output Power
Rating
Output Power
Rating
Serial
Number
UL File
Number
Output
Amps

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 5
of 31
3.1 Verify installation environment.
Mechanical installation and mounting footprint vary by model. Refer to the iQpump Micro User Manual No. TOEP YAIQPM 03,
Chapter 2: Mechanical Installation for details. Ensure the installation conditions are suitable to prolong and optimize performance
life.
Environment Conditions
Installation Area Indoors
Ambient Temperature -10 to + 40 °C (+14 to +104 °F) NEMA 1, UL Type 1 Enclosure
Humidity 95% RH or less and free of condensation
Storage Temperature -20 °C to +60 °C (-4 °F to +104 °F)
Surrounding Area Install the drive in an area free from:
• oil mist and dust
• metal shavings, oil, water, or other foreign materials
• radioactive materials
• combustible materials (e.g., wood)
• harmful gases and liquids
• excessive vibration
• chlorides
• direct sunlight.
Altitude Up to 1000 meters without derating. Up to 3000 meters with output current and voltage derating
Orientation Install the unit vertically to maintain maximum cooling effects.
3.2 Maintain installation clearances.
AA
B
C
C
Top/Bottom Clearance
Side Clearance
2 mm
AB B
C
D
C
Multiple Drive Installation
Single Drive Installation
Install Type Minimum Spacing
AB C D
Single drive 30 mm (1.18 in) • Airflow
direction 100 mm (3.93 in) -
Multiple drive
installation
Align the tops of
the units 30 mm (1.18 in) 100 mm (3.93 in) Airflow direction
Ensure the back panel is placed against a closed flat
surface for proper cooling.
NOTICE: Abnormal Operation. Avoid placing peripheral
devices, transformers, or other electronics near the
bypass as the noise created can lead to abnormal
operation. Take proper steps to shield the bypass from
electrical interference if such devices must be used in
close proximity to the Bypass.
NOTICE: Equipment Damage. Prevent foreign matter
such as metal shavings and wire clippings from falling
into the bypass during installation. Failure to comply could
result in damage to the bypass. Place a temporary cover
over the top of the drive during installation. Remove the
temporary cover before bypass start-up, as the cover will
reduce ventilation and cause the bypass to overheat.
Perform Mechanical Installation
3
STEP

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 6
of 31
Motor, Line Power and Start/Stop Circuit
4
STEP
4.1 Remove the front cover
NOTICE: Improper removal of the the drive’s protective covers and conduit bracket (NEMA
1, UL Type 1) can cause damage to the drive. Adhere to iQpump User Manual, Section 3,
Protective Covers to avoid drive damage.
4.2 Connect main input power and motor wiring to the drive.
Refer to Figure 1 for single-phase input power drive models.
Refer to Figure 2 for three-phase input power drive models.
Follow accepted wiring practices and applicable electric codes. Ensure all equipment is properly
grounded.
WARNING! Fire Hazard. Do not connect terminals B1, B2 (-), +1, +2
terminals to earth ground. Only connect ground wiring to designated
ground terminals.
U/T1 V/T2 W/T3
1Ø Line
Input Power
Connect
frame to
ground
Input
Protection
(Fuse or C.B.)
Exchange any two
of the three motor
leads to change
motor rotation
direction.
L1 L2
Connect to chassis
ground
(S/L2)(R/L1) (U/T1) (V/T2) (W/T3)
Sizing note: Verify the drive is properly sized for single phase input
power. The drive input line voltage must be equal to or greater than motor
rated voltage for best performance.

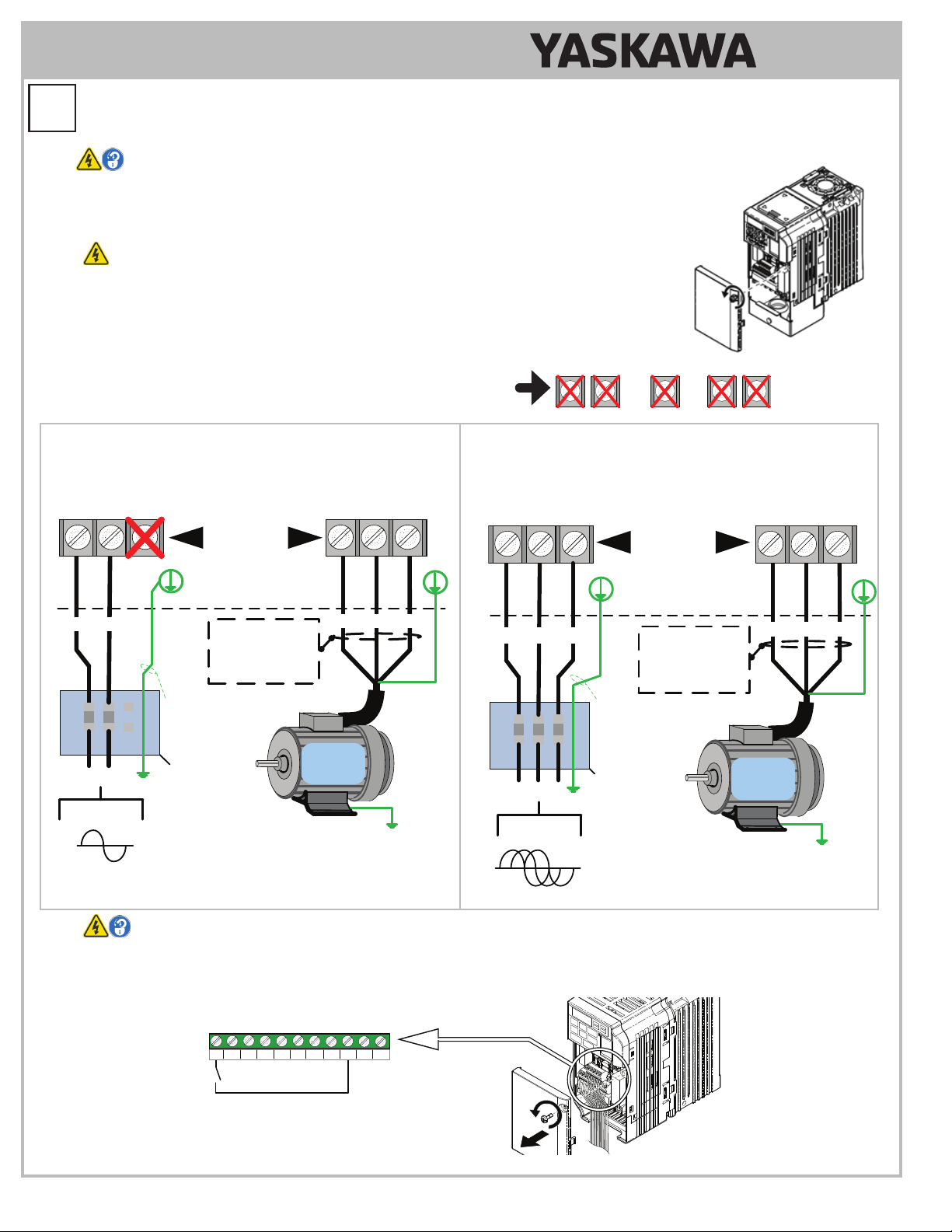

Figure 1: Line and Motor Electrical
Connections - Single-Phase Input Power
R/L1 S/L2 Drive
Power
Terminals
Single-phase
Input Line Power Output Motor
3Ø
Induction
motor
U/T1 V/T2 W/T3
3Ø Line
Input Power
L1 L2 L3
R/L1 S/L2 T/L3
(U/T1) (V/T2) (W/T3)
Connect
frame to
ground
Input
Protection
(Fuse or C.B.)
Connect to chassis
ground
(R/L1) (S/L2) (T/L3) Exchange any two
of the three motor
leads to change
motor rotation
direction.
Figure 2: Line and Motor Electrical
Connections - Three-Phase Input Power
Drive
Power
Terminals
Three-phase
Input Line Power Output Motor
3Ø
Induction
motor
4.3 Select start / stop control method, (parameter b1-02). Remove the drive terminal cover to access
the control terminals. The drive will START and STOP from the keypad from the factory. If this is the preferred start/stop method
then continue to the feedback signal connection section. Refer to the wiring diagram below to START/STOP the drive using an
external switch or contact 2-Wire Start/Stop Wiring Diagram
S3 S5 S6 S7 HC SC H1 RPS2 S4S1
Forward
Run
Use for maintained contacts
2-Wire Control
iQpump Micro Terminals TB1-1
NEMA 1, UL Type 1 Enclosure
-
+1 +2B1 B2

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 7
of 31

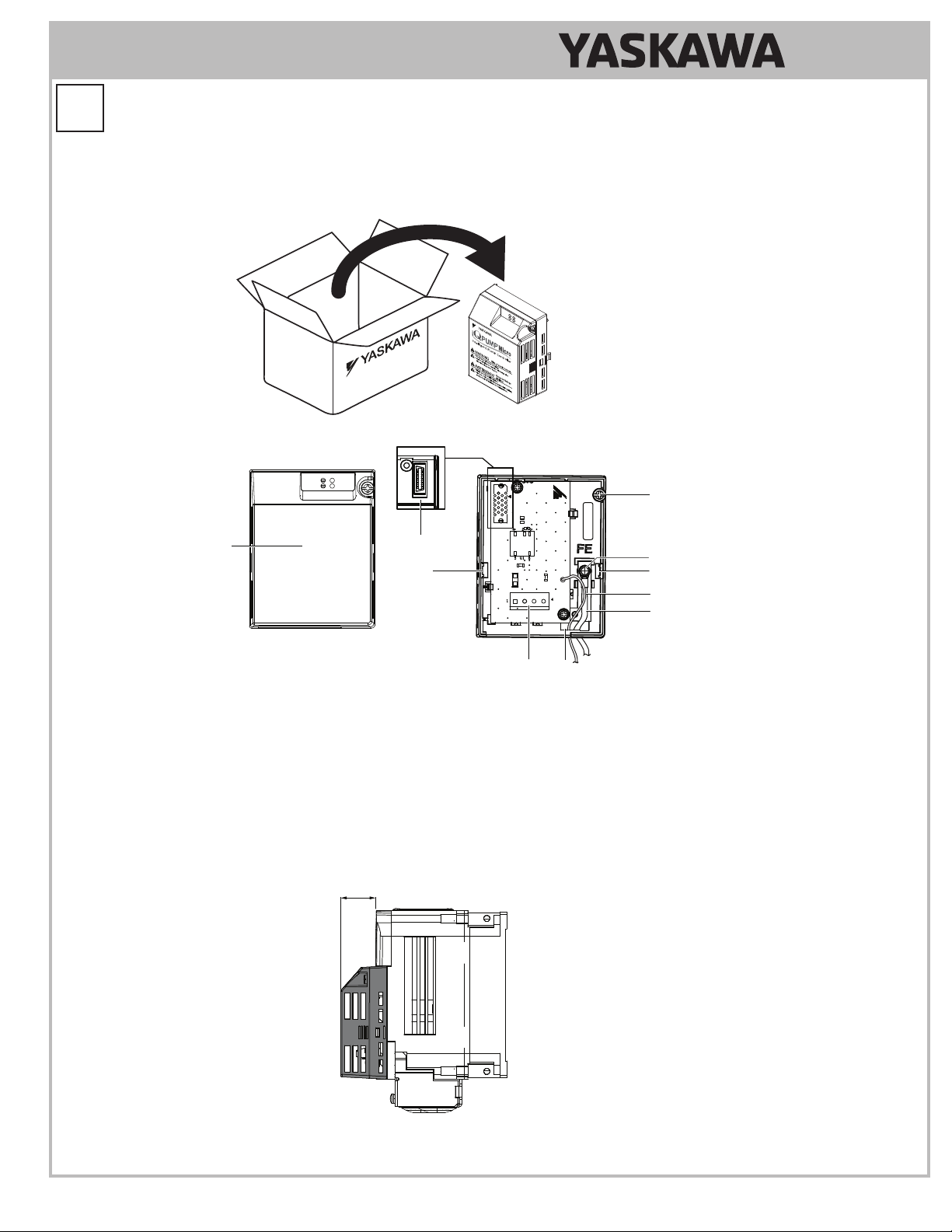

5.1 24V Power Supply Components
A
E
B
24V Power supply with cover removed
CN5 connector port
(Underside)
C
E
D
G
H
F
I
24V AC A2 FE
F1
C1
CN5
J2
J1
C3
C2
D1
CN1
20 19
10
9
12
11
2 1
xxxxxxxxxxxxxxx xxxxxxxxxxxxxxx
A – 24V Power Supply cover
B – CN5 Connector to drive
C – Screw hole (attaches 24V Power
Supply cover)
D – Functional Earth cable connection
(FE)
E – Mounting tabs
F – J2/A2 (white) conductor wire
G–Ground wire <1>
H – Through-slot for J2/A2 wire and
ground wire
I – CN1 Terminal Block-Customer
Connections
Figure 1.1 24V Power Supply Components
<1> One of the four ground wires packaged with the 24V Power Supply must be connected during installation.
IP20/NEMA 1, UL Type 1 Dimensions with 24V Power Supply
The installed 24 V power supply option adds 27 mm (1.06 in.) to the total depth of the drive. Height and width dimensions
are unaffected.
27 mm (1.06 in.)
Figure 1.2 24 V Power Supply Dimensions
24 V Power
Supply
Unpack the 24 V Power Supply
Install the 24 V Transducer Power Supply
5
STEP

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 8
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.2 Prior to Installing the 24V Power Supply
Prior to installing the 24V Power Supply, wire the drive, make necessary connections to the drive terminals, and verify that
the drive functions normally without the 24V Power Supply installed. Refer to the product manual packaged with the drive
for information on wiring and connecting the drive.
The installation procedure differs slightly depending on enclosure type. The enclosure type is identified within the drive model
number.
5.3 Locate the drive model number using Figure 1.3.
Model Number Location
Micro
Figure 1.3 Model Number Location
5.4 Identify the drive enclosure type. Use Figure 1.4 to find the digit within the model number that identifies the enclosure
type.
Note: Installing the 24V Power Supply on an IP20/NEMA 1, UL Type 1 enclosure drive voids NEMA 1, UL Type 1 protection while
maintaining IP20 conformity.
CIMR
-
PW 2 V 0010 F A A
Drive iQpump No.
Enclosure
Type Design
Revision
Order
No. Customized
Specifications
V Standard model FIP20/NEMA 1,
UL Type 1
No. Environmental
Specification
A Standard
Drive Capacity
GIP66/NEMA 4X,
UL Type 4X
No. Voltage Class
2
4
1-phase, 200-240 Vac
B
3-phase, 200-240 Vac
3-phase, 380-480 Vac
Figure 1.4 Drive Enclosure Type Identification
5.5 Select proper installation tools according to enclosure type and model.
Note: Tools required to prepare the 24V Power Supply cables for wiring are not listed in this manual.
Table 1.1 Tool and Material Requirements (Customer Supplied)
Model
Number
Enclosure
Type Digit
Drive Enclosure
Type Drive Capacity
Tools Materials
Screwdriver Socket Wrench Wire Tie with
Adhesive Mount
FIP20/NEMA 1, UL
Type 1 All Phillips screwdriver
M3 metric
#1, #2 U.S. standard size
Note: Screw sizes vary by
drive capacity. Select a
screwdriver appropriate for
the drive capacity.
Not applicable All models
GIP66/NEMA 4X, UL
Type 4X
2V0030 to
2V0069
4V0018 to
4V0038
10 mm socket wrench Not applicable
Other capacities 8 mm socket wrench

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 9
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.6 Installation Procedure
5.7 Shut off power to the drive. Wait at least five minutes after confirming the DC bus voltage is safe.
On IP20/NEMA 1, UL Type 1 models, loosen the screw that fastens the front cover in place and remove the front
cover. This drive front cover will be replaced by the 24V Power Supply cover. Cover removal varies depending on
drive size.
On IP66/NEMA 4X, UL Type 4X models, loosen the 4 bolts that attach the enclosure front cover in place, gently
move the front cover away from the enclosure, press firmly on the digital operator cable connector release tab to
disconnect the cable from port CN1 on the drive, then remove the front cover. Refer to Table 1.3 for installation bolt
size.

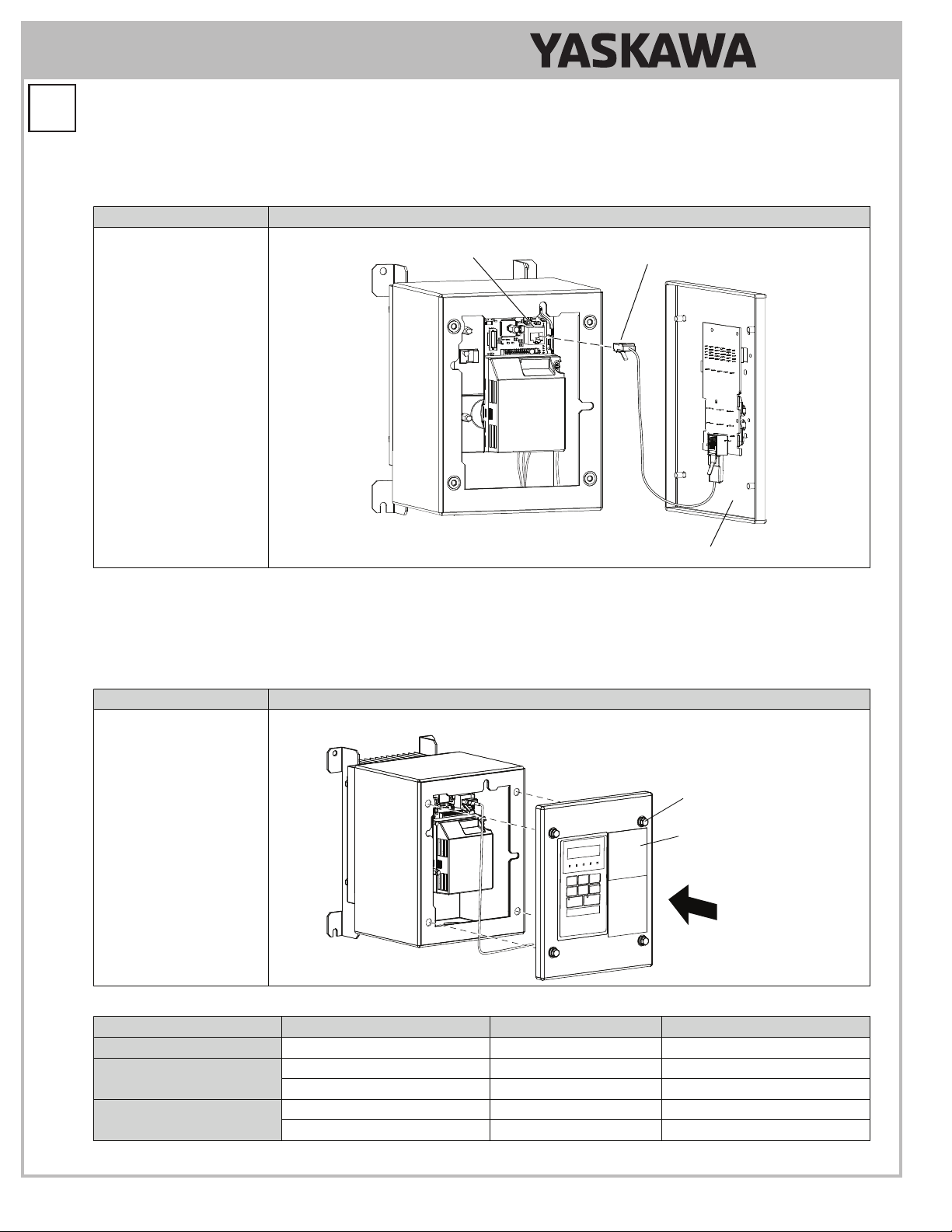

Table 1.2 Remove the Drive or Enclosure Front Cover
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Digital
Operator
Cable
Port
CN1
Connector
Release Tab
Table 1.3 IP66/NEMA 4X, UL Type 4X Enclosure Front Cover Installation Bolt Size
Voltage Class Drive Model Installation Bolt Size
Single-Phase 200 V Class BV0001G to BV0012G M5
Three-Phase 200 V Class 2V0001G to 2V0020G M5
2V0030G to 2V0069G M6
Three-Phase 400 V Class 4V0001G to 4V0011G M5
4V0018G to 4V0038G M6

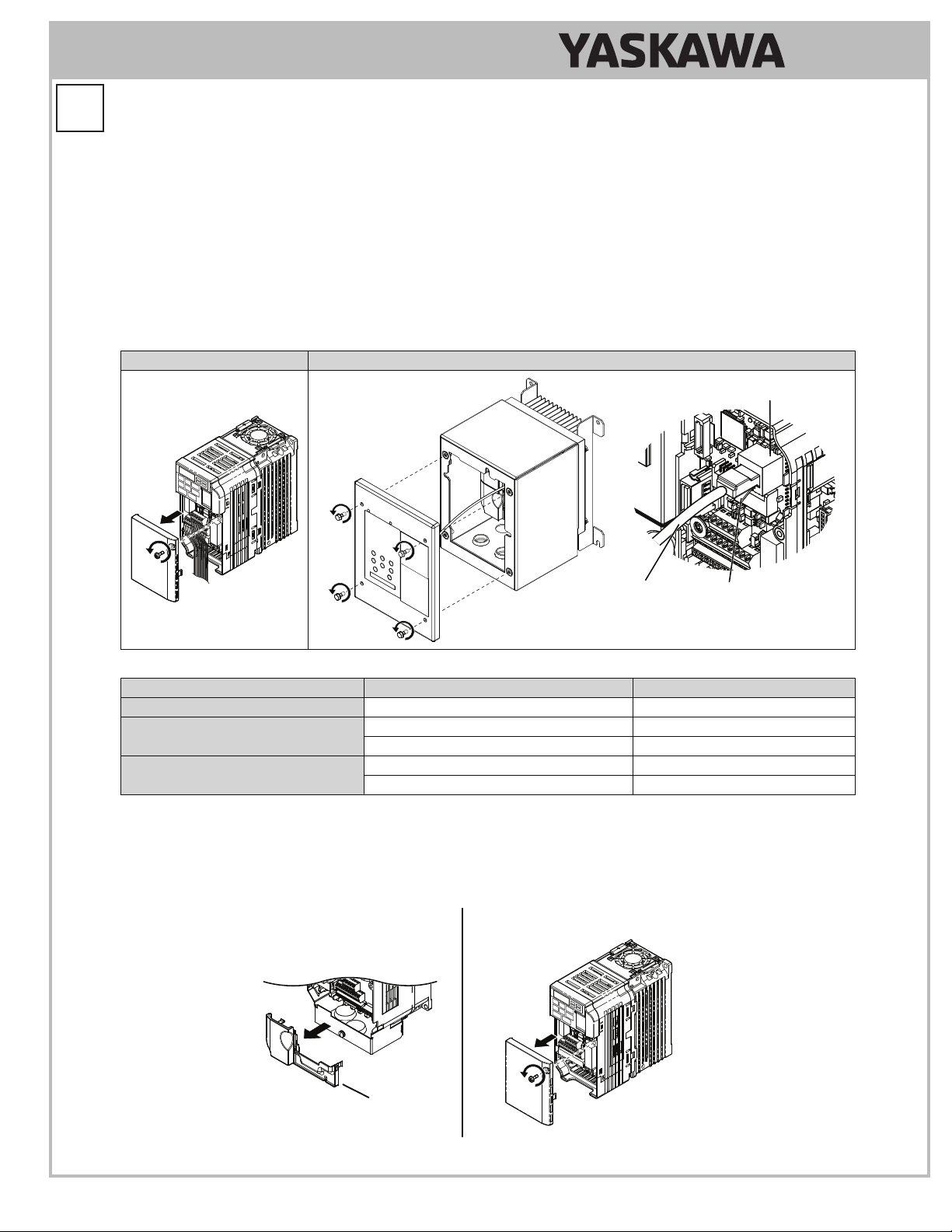

5.8 On IP20/NEMA 1, UL Type 1 enclosure models, loosen the screw on the front of the bottom cover and remove it from
the drive. All models except 2V0006F require removing a plastic lower terminal cover prior to removing the bottom
cover.
On IP66/NEMA 4X, UL Type 4Xenclosure models, remove the lower terminal cover (if provided) from the drive.
The lower terminal cover is not present on certain models.
Models Without
Lower Terminal Cover:
BV0001 to BV0003 and
2V0001 to 2V0006
Models With
Lower Terminal Cover
Lower
Terminal Cover

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 10
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
Note: The lower terminal cover is required for secure mounting of the 24V Power Supply on the models shown in Table 1.4. Contact
your Yaskawa representative for ordering if you have a model listed in Table 1.4 and the lower terminal cover is not present
on your drive.
Table 1.4 Lower Terminal Cover Part Number by Model
Drive Model Terminal Cover Part Number
BV0006and BV0010
2V0010and 2V0012
4V0002to 4V0009
CVST31300
BV0012
2V0020
4V0011
CVST31301
Other models Not required

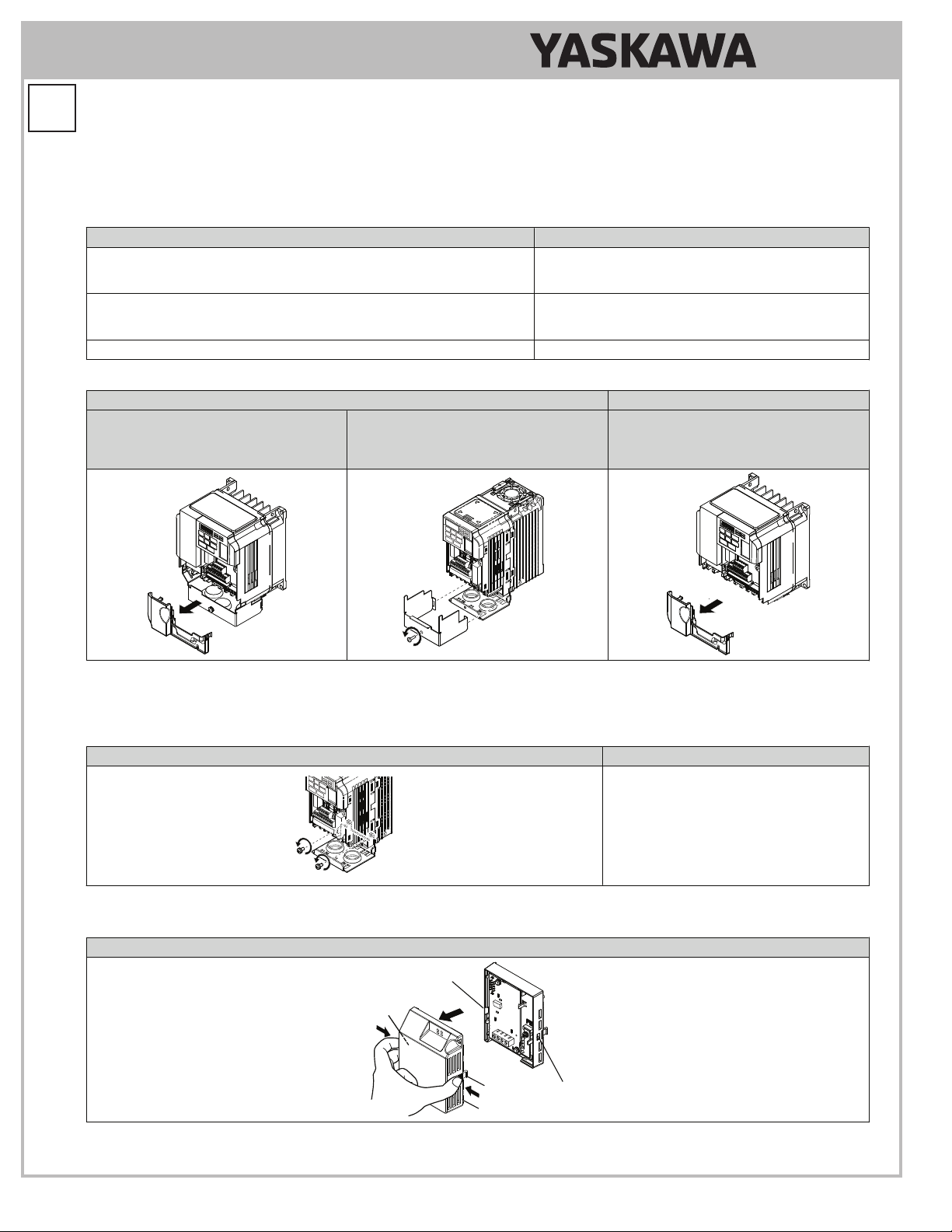

Table 1.5 Remove the Bottom Cover and Lower Terminal Cover
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Lower Terminal Cover on All Models
Except Models:
BV0001 to BV0003
2V0001 to 2V0006
Bottom Cover on All Models Terminal Cover on Models
BV0006G to BV0010G
2V0010G to 2V0020G
4V0002G to 4V0011G
5.9 On IP20/NEMA 1, UL Type 1 enclosure models, loosen the screws attaching the NEMA 1, UL Type 1 conduit bracket
to the drive to allow the bracket to swing out to provide easier access to the ground screw. Do not remove the
screws.
Table 1.6 Loosen Conduit Bracket Screws
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Not applicable.

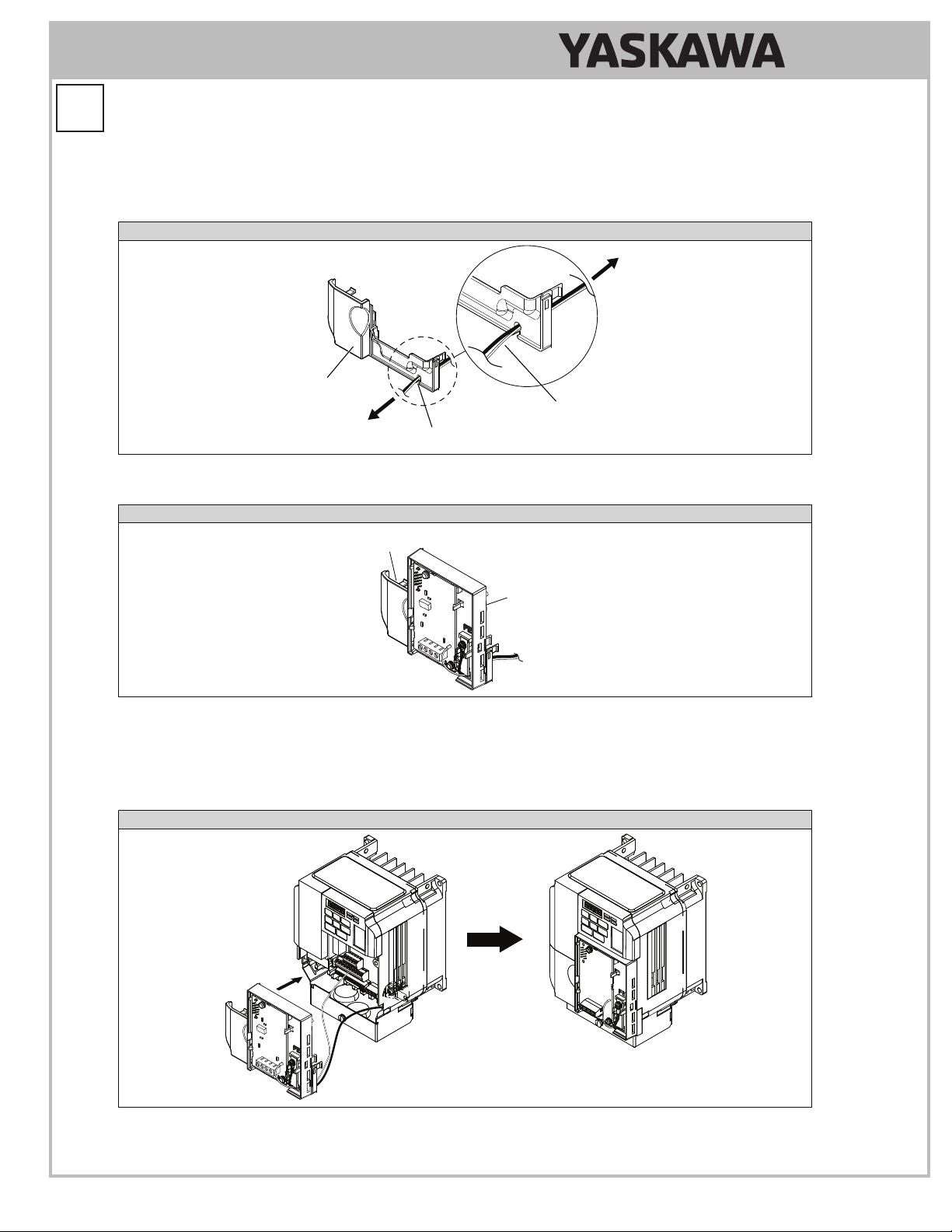

5.10 Remove the 24V Power Supply cover.
Table 1.7 Remove 24V Power Supply Cover
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
24V Power Supply Cover
Mounting Tab Mounting Slot
Mounting Slot
Mounting Tab

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 11
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.11 Select one of the four ground wires packaged with the 24V Power Supply unit and attach the ground wire to the
drive.
Select the correct ground wire shown in Figure 1.5 by first removing the drive ground terminal screw as shown in
Table 1.8. Yaskawa recommends using a long Phillips screwdriver with a magnetic tip to aid in keeping the screw
captive during removal and installation.
Test fit the screw (size M3.5 to M6) into each of the four ground wire drive-side ring lugs prior to installation. Ground
wire selection varies by drive model.
With the appropriate screw removed, attach the drive-side of the ground wire to the drive ground terminal and tighten
all loosened screws.
To 24V Power Supply
Ground Screw FE
Screw Size: M3
Drive-Side Ring Lugs
To Drive Ground Terminal
Screw Size: M3.5 to M6
Figure 1.5 Ground Wire Selections
Table 1.8 Drive Ground Terminal and Screw Location
IP20/NEMA 1, UL Type 1
IP66/NEMA 4X, UL Type 4X
Models
BV0001 to BV0003
2V0001 to 2V0006
All Other Models
Drive
Ground
Terminal
Screw
Conduit Bracket
(Shown Removed
for Clarity) Ground
Terminal
Ground Wire
Drive
Ground
Terminal
Screw Conduit Bracket
Removed for Clarity
Ground
Terminal
Ground Wire
Drive Ground
Terminal Screw
Ground Wire
Ground Terminal
5.12 Reattach the bottom terminal cover.
Table 1.9 Reattach Bottom Terminal Cover
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Not applicable.

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 12
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.13 Connect the ground wire to the 24V Power Supply at ground terminal FE.
Route the free end of the ground wire to the front of the 24V Power Supply via the through-slot as shown in Table
1.10 and connect the ground wire. Tighten the screw to 0.5 ~ 0.6 Nm or (4.4 ~ 5.3 in lbs) using an M3 Phillips
screwdriver.
Table 1.10 Connect Ground Wire to 24V Power Supply
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
Ground Wire
24V Power Supply
Ground Terminal (FE)
J2
FE
Through-slot
for 24V Power
Supply Wiring
5.14 Connect the white J2 lead wire to terminal A2 on drive terminal block TB1-2.
Route the free end of the J2 wire to the A2 terminal on the drive via the through-slot on the 24V Power supply as
shown in Table 1.11.
Table 1.11 Connect J2 Lead Wire to Drive
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
TB1-2 (A2) Terminal
A2
TB1-2
TB1-1
J2
J2 Lead Wire
(White)
Ground Wire
J2
FE
Through-slot
for 24V Power
Supply Wiring

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 13
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.15 On models BV0006to BV0018, 2V0010to 2V0020, and 4V0002to 4V0011, insert the ground wire and
J2 lead wire into the terminal cover wire notch.
Table 1.12 Insert Wires Into Routing Notch
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
Terminal Cover
Wire Routing Notch
Ground Wire and
J2 Lead Wire
To 24V
Power Supply
To Drive
After inserting the ground wire and J2 lead wire into the notch, attach the terminal cover to the 24V Power Supply.
Table 1.13 Connect Terminal Cover to 24V Power Supply
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
J2
J2
24V Power
Supply
Terminal
Cover

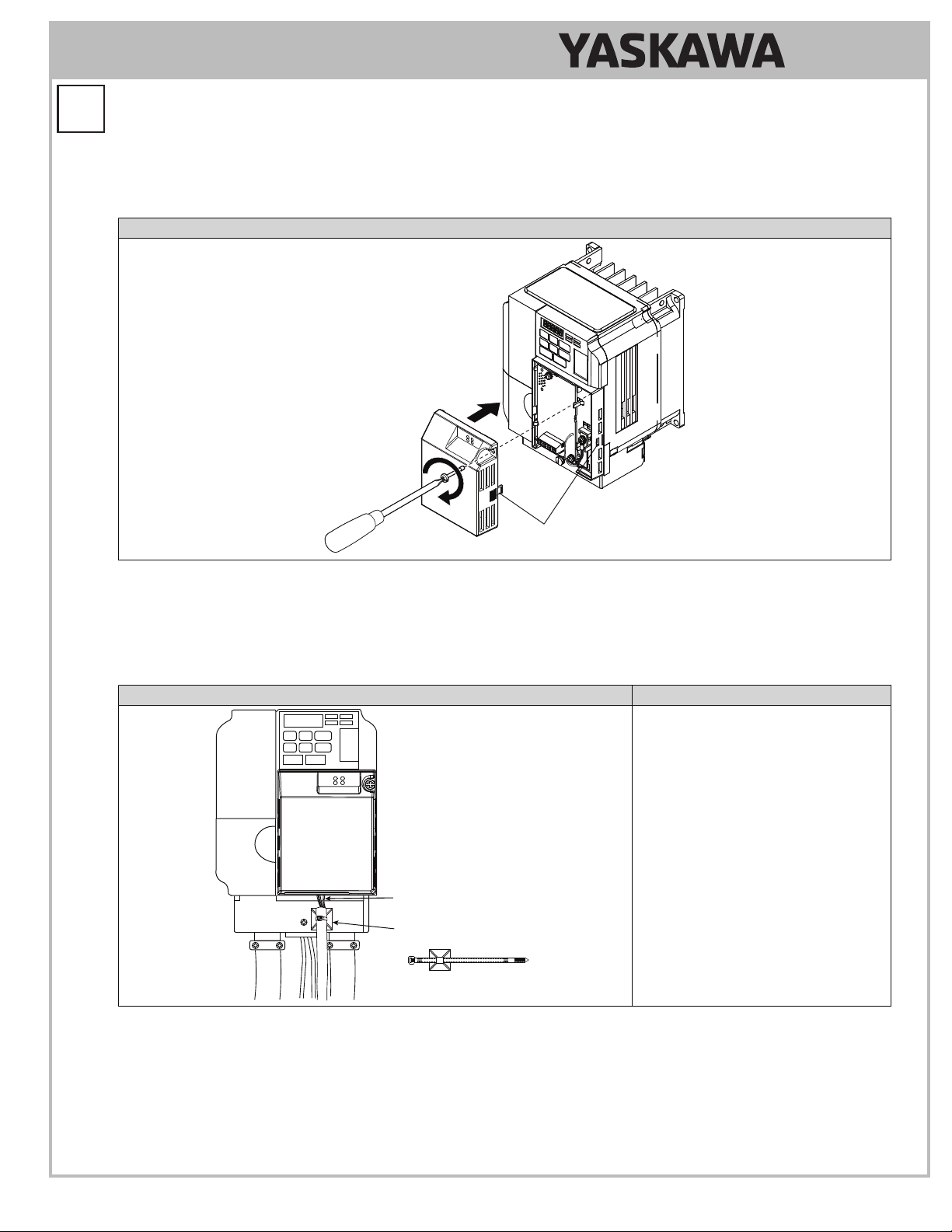

5.16 Attach the 24V Power Supply or 24V Power Supply/Terminal Cover combination to the drive.
Properly seat the tabs on the left and right sides of the 24V Power Supply unit into the drive case mounting slots and
snap into place.
NOTICE: Damage to Equipment. Take proper precautions when attaching the 24V Power Supply to the drive so that no cables
are pinched between the 24V Power Supply and the drive. Failure to comply may result in damage to circuitry and equipment.
Table 1.14 Attach 24V Power Supply to Drive
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
J2
J2
J2

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 14
of 31

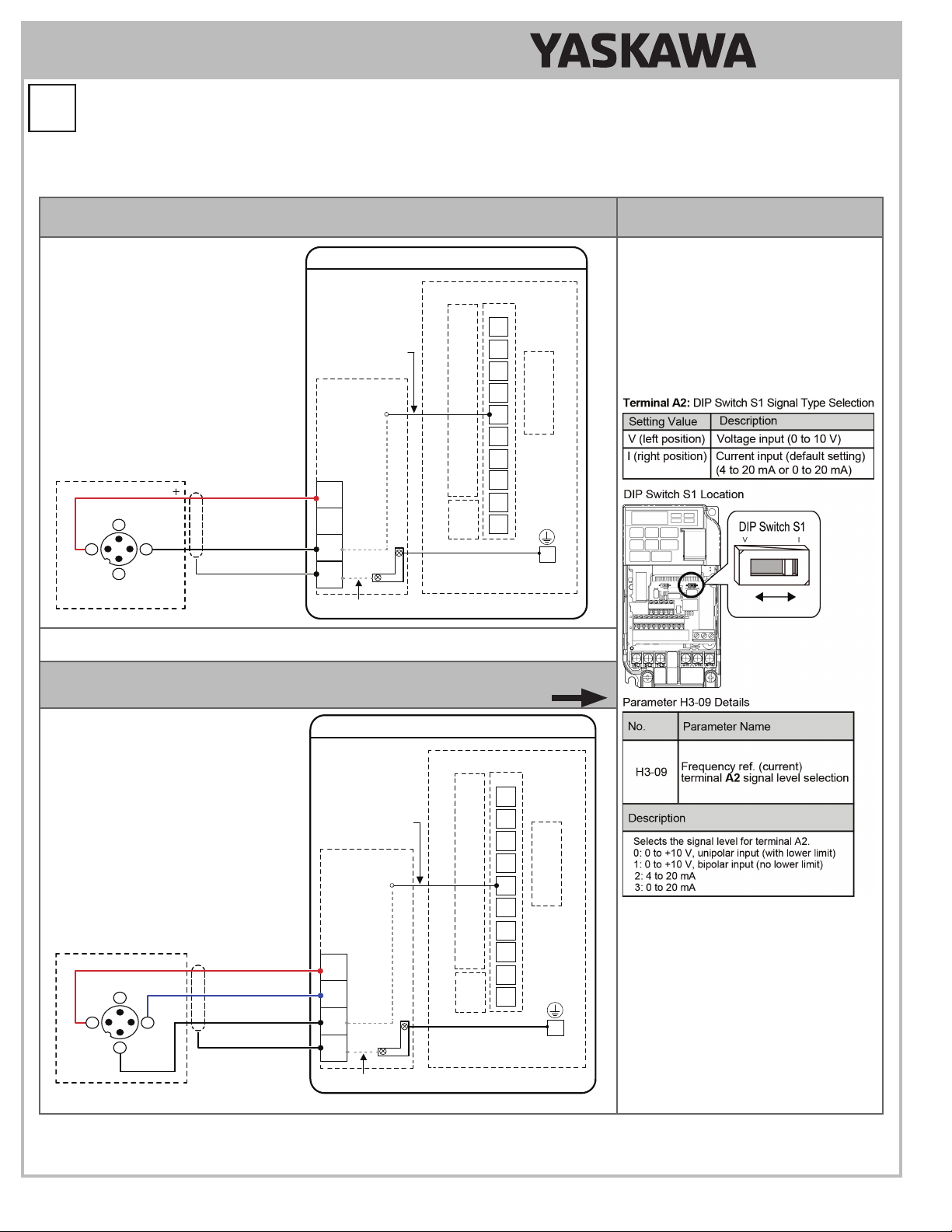

5.17 Connect wiring from customer-supplied transducer to 24V Power Supply.
Refer to Figure 1.6 Transducer (2-Wire) connection or Figure 1.7 Transducer (3-Wire) connection based on the application.
Figure 1.6 (2-Wire) 4 to 20 mA Transducer Setting DIP Switch S1 for
Terminal A2 Signal Type Selection
Signal Wire (white)
24 V PSU to Drive
A2
24V
AC
FE
24V Power Supply
Shield
SIG FE
Functional Earth Cable
(Blue)
J2
24V Power Supply
Transducer
Signal 4-20 mA
(typical)
CN1
Terminal
Block
TB1-2
TB1-1
TB2
TB1-3
EG
A2
A1
PC
P2
V+
AM
AC
MP
AC
P1
iQpump Micro Drive
(Earth
Ground)
Internal Circuit
Internal Circuit
iQpump Micro Drive
I/O Terminals
2
4
3
1
N/C
N/C
V+ Output
Example:
Customer supplied
pressure transducer
feedback device
(2-Wire)
Note: Transducer wire colors and numbering may vary depending on feedback device used, consult feedback device
manual.
Figure 1.7 (3-Wire) 0 to 10 V Transducer
Note: Set DIP switch S1 located on drive to V position for use with 0 to 10V transducer.
Signal Wire (white)
24 V PSU to Drive
A2
24V
AC
FE
24V Power Supply
Shield
FE
Functional Earth Cable
(Blue)
J2
24V Power Supply
Transducer
Signal 0-10 Vdc
(typical)
CN1
Terminal
Block
Example:
Customer supplied
pressure transducer
feedback device
(3-Wire)
TB1-2
TB1-1
TB2
TB1-3
EG
A2
A1
PC
P2
V+
AM
AC
MP
AC
P1
iQpump Micro Drive
(Earth
Ground)
Internal Circuit
Internal Circuit
iQpump Micro Drive
I/O Terminals
Supply Common
2
4
3
1
N/C
V+
Output
Com
+
Note: Refer to the iQpump Micro User Manual, (No. TOEPYAIQPM03) to program the iQpump Micro drive for network communication if
required.
Install the 24 V Transducer Power Supply (continued)
5
STEP

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 15
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.18 (continued)
Select appropriate transducer wire type and size from Table 1.15. For simpler and more reliable wiring, you may
choose to crimp ferrules to the wire ends. Refer to Figure 1.9 and Table 1.16 for ferrule terminal types and sizes.
Table 1.15 24V Power Supply Wire Size and Torque Specifications
Terminal Screw
Size
Tightening
Torque
N•m
(in-lbs)
Bare Wire Terminal Ferrule-Type Terminal
Applic. wire
size
mm2(AWG)
Recomm.
mm2
(AWG)
Applic. wire
size
mm2
(AWG)
Recomm.
mm2(AWG) Wire Type
24V, AC, A2,
FE M3 0.5 to 0.6
(4.4 to 5.3)
Stranded:
0.25 to 1.5
(24 to 16)
Single:
0.25 to 1.5
(24 to 16)
0.75 (18) 0.25 to 1.0
(24 to 17) 0.5 (20) Shielded
line, etc.

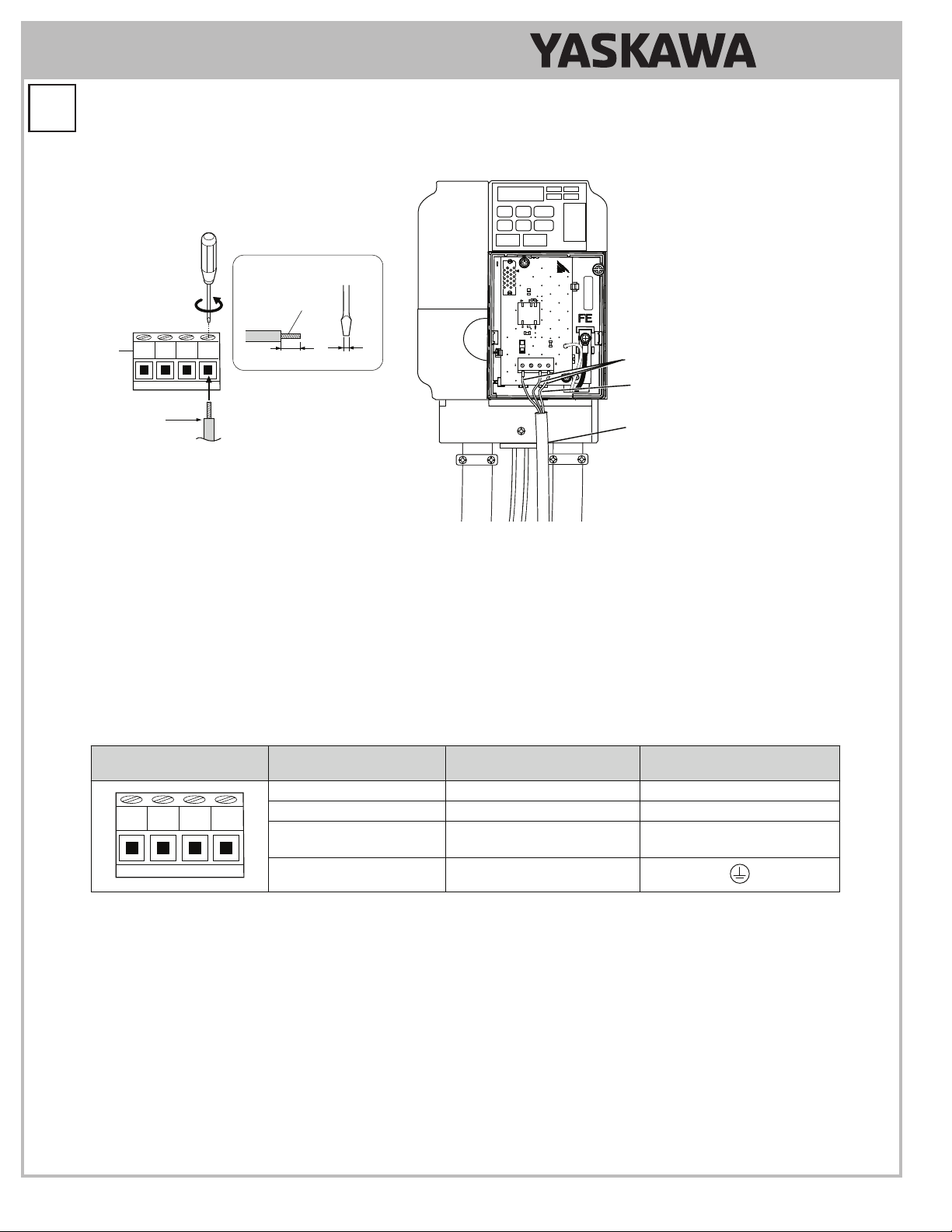

5.19 Prepare the ends of the transducer wires as shown in Figure 1.8.
AFCD
E
B
A – Drive side
B – Connect shield to FE ground
terminal of drive.
C – Insulation
D – Transducer side
E – Shield sheath (Insulate with tape)
F – Shield
Figure 1.8 Preparing the Ends of Shielded Cables
NOTICE: Insulate shields with tape or shrink tubing to prevent contact with other signal lines and equipment. Improper wiring
practices could result in drive or equipment malfunction due to short circuit.
NOTICE: Connect the shield of shielded cable to the appropriate ground terminal. Improper equipment grounding could result
in drive or equipment malfunction or nuisance trips.
5.20 If desired, select the correct ferrule-type wire termination.
Crimp a ferrule to signal wiring to improve wiring simplicity and reliability. Use CRIMPFOX 6, a crimping tool
manufactured by PHOENIX CONTACT.
d1
d2
6 mm
L
Figure 1.9 Ferrule Dimensions
Table 1.16 Ferrule Terminal Types and Sizes
Size mm2(AWG) Type L (mm) d1 (mm) d2 (mm) Manufacturer
0.25 (24) AI 0.25-6YE 10.5 0.8 2.0
PHOENIX CONTACT
0.34 (22) AI 0.34-6TQ 10.5 0.8 2.0
0.5 (20) AI 0.5-6WH 12 1.1 2.5
0.75 (18) AI 0.75-6GY 12 1.3 2.8
1.0 AI 1-6RD 12 1.5 3.0
Note: Do not route shielded cable through bottom conduit bracket cable glands on IP20/NEMA 1, UL Type 1 enclosures.

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 16
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.21 Connect transducer wiring to the 24V Power Supply terminals using Figure 1.10 as a guide.
Strain Relief
24V AC A2 FE
F1
C1
CN5
J2
J1
C3
C2
D1
TB1
20 19
10
9
12
11
2 1
xxxxxxxxxxxxxxx xxxxxxxxxxxxxxx
Transducer Wiring
Shielded
Transducer Cable
(Customer Supplied)
Preparing Wire
Terminal Ends E
A
B
D
C
24V FEA2AC
A – Terminal block CN1
B – Avoid fraying wire strands when
stripping insulation from wire. Strip
length 5.5 mm.
C – Single wire or stranded wire
D – Loosen screw to insert wire.
E – Blade depth of 0.4 mm or less
Blade width of 2.5 mm or less
Figure 1.10 24V Power Supply Wiring Guide
NOTICE: Separate transducer wiring from main circuit wiring (terminals R/L1, S/L2, T/L3, B1, B2, U/T1, V/T2, W/T3,
⊖
,
⊕
1,
⊕
2) and other high-power lines. Improper wiring practices could result in drive malfunction due to electrical interference.
NOTICE: Damage to Equipment. Do not tighten screws beyond the specified tightening torque. Failure to comply may damage
the terminal block. Refer to 24V Power Supply Wire Size and Torque Specifications on page 13 for details.
Table 1.17 24V Power Supply Terminal Block CN1
CN1 Terminal Block Terminal No. Terminal Name (Function) Function (Signal Level)
Default Setting
24V FEA2AC
24V Tranducer Power Supply +20V to +24V Vdc 30 mA
AC Power Supply Common 0 Vdc
A2 Analog input 4-20 mA, 0-20 mA, 0-10 Vdc
FE Functional Earth Ground for
Shielded Connection

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 17
of 31
Install the 24 V Transducer Power Supply (continued)
5
STEP
5.22 Attach the 24V Power Supply cover by aligning the tabs with the mounting slots, seat the front cover into place, and
tighten the screw on the front.
Table 1.18 Attach the 24V Power Supply Cover
IP20/NEMA 1, UL Type 1 and IP66/NEMA 4X, UL Type 4X
Line Up Mounting Tabs
with Mounting Slots
J2
NOTICE: Damage to Equipment. Take proper precautions when wiring the 24V Power Supply unit so that the front covers will
easily fit back onto the drive. Make sure no cables are pinched between the front covers and the drive when replacing the cover.
Failure to comply may result in damage to circuitry and equipment.
5.23 Secure the shielded cable with a customer-supplied adhesive mount wire tie positioned on the lower drive cover to
complete the installation procedure for IP20/NEMA 1, UL Type 1 enclosures.
Table 1.19 Secure the Shielded Cable
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Customer-Supplied
Adhesive Mount Wire Tie
Slack for Strain Relief
Not applicable.

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 18
of 31
5.24 On IP66/NEMA 4X, UL Type 4X models, insert the digital operator cable from the front cover into port CN1 on the
drive.
Table 1.20 Insert Digital Operator Cable
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Not applicable.
Drive
CN1 Port
Inside Front Cover
Insert Digital
Operator Cable
5.25 To complete the installation procedure on IP66/NEMA 4X, UL Type 4X enclosures, reattach the front cover of the
drive enclosure. Refer to Table 1.22 for tightening torque specifications.
NOTICE: Damage to Equipment. Take proper precautions when wiring the 24V Power Supply unit so that the front covers will
easily fit back onto the drive. Make sure no cables are pinched between the front covers and the drive when replacing the cover.
Failure to comply may result in damage to circuitry and equipment.
Table 1.21 Attach Enclosure Front Cover
IP20/NEMA 1, UL Type 1 IP66/NEMA 4X, UL Type 4X
Not applicable.
Front Cover
Front Cover Screw (4)
Drive
Table 1.22 IP66/NEMA 4X, UL Type 4X Enclosure Front Cover Installation Bolt Size and Tightening Torque
Voltage Class Drive Model Installation Screw Size Tightening Torque Nವ
ವ
m (lb-in)
Single-Phase 200 V Class BV0001G to BV0012G M5 2.0 to 2.5 (17.7 to 22.1)
Three-Phase 200 V Class 2V0001G to 2V0020G M5 2.0 to 2.5 (17.7 to 22.1)
2V0030G to 2V0069G M6 5.4 to 6.0 (47.8 to 53)
Three-Phase 400 V Class 4V0001G to 4V0011G M5 2.0 to 2.5 (17.7 to 22.1)
4V0018G to 4V0038G M6 5.4 to 6.0 (47.8 to 53)
Install the 24 V Transducer Power Supply (continued)
5
STEP

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 19
of 31
6.1 Access the Parameter Menu and Change Parameter Values. DO NOT RUN THE
MOTOR. Ensure all protective covers are installed and power is turned on.
LED Digital Operator (Standard)
Press two times until
.
the digital operator shows the parameter
menu (PAr) then press
iQpump Micro digital operator
power-up state
Press to select the digit
you would like to change. Next use
and to select the
parameter group, sub-group or number.
Modify the parameter value using
and and press
to save the new value.
Select Parameter
Select Parameter Menu
5 0.00
paR
C1-01
0010.0
Monitor Motor Frequency and Current (Standard)
Press until the FOUT
LED turns on. The display now shows
the actual drive output frequency in Hz.
Pressing again will
show the motor output current. The ‘A’
behind the value means ‘Amps’.
iQpump Micro digital operator
power-up state
Motor Current
Output Frequency
5 00.0
42.78
0.8a
Refer to the iQpump Micro User Manual, (Document No. TOEPYAIQPM03) to access additional drive monitors
Adjust and Monitor iQpump Micro Settings
6
STEP

YASKAWA TOEP YAIQPM 01A iQpump Micro Quick Start Procedure
iQpump Micro
Quick Start Procedure
Page 20
of 31
7.1 Configure the iQpump Micro for a dedicated pump application. DO NOT RUN
THE MOTOR. Ensure all protective covers are installed and power is turned on.
Available iQpump Micro Application Macro Settings using parameter A1-03 :
• 6008 Constant Pressure Mode (PSI) [Factory Default] Note: Do not change unless pump application differs from default.
• 6009 Pump Down Level Mode (Ft)
• 7770 General Purpose Mode
• 7771 Submersible Motor GP Mode
7.2 Select Application Macro Parameter A1-03
LED Digital Operator (Standard)
Press two times until the digital operator shows the parameter menu.
2X
Inc./Dec. Selection Select Application
Switch to Edit Mode
Press to select.
2X
5 00.0 PAr A1-01
A1-03 0000 6008
Enter Application Parameters (Standard)
Hold button for 3 sec. to go back to the main menu.
3X
Select Parameter.
Switch to Edit Mode Save New ValueModify Value
5 00.0 5tuPE2-01
1.90 2.90 E2-01
Go Back to Main Menu (Standard)
Hold button for 3 sec. to go back to the main menu.
Application Specific Setup
7
STEP
