YASKAWA VS-606V7 Series User manual

YASKAWA
VS-606V7 Series
INSTRUCTION MANUAL
YA S K A WA
MANUAL NO. TOE-S606-11.2H
COMPACT GENERAL-PURPOSE INVERTER
Upon receipt of the product and prior to initial operation, read these instructions
thoroughly and retain them for future reference.
(VOLTAGE VECTOR CONTROL)

1
PREFACE
Yaskawa’s VS-606V7 is a small and simple Inverter; as easy to use as a
contactor. This instruction manual describes installation, maintenance,
inspection, troubleshooting, and specifications of the VS-606V7. Read this
instruction manual thoroughly before operation.
YASKAWA ELECTRIC CORPORATION
General Precautions
• Some drawings in this manual are shown with protective covers or shields
removed in order to show detail with more clarity. Make sure all covers and
shields are replaced before operating the product.
• This manual may be modified when necessary because of improvements to
the product, modifications, or changes in specifications.
Such modifications are indicated by revising the manual number.
• To order a copy of this manual, or if your copy has been damaged or lost,
contact your Yaskawa representative.
• Yaskawa is not responsible for any modification of the product made by the
user, since that will void the guarantee.

2
NOTATION FOR SAFETY PRECAUTIONS
Read this instruction manual thoroughly before installation, operation, mainte-
nance, or inspection of the VS-606V7. In this manual, safety precautions are
classified as either warnings or cautions and are indicated as shown below.
Indicates a potentially hazardous situation which, if not avoided, may result in
death or serious injury.
Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury or damage to equipment.
It may also be used to alert against unsafe practices.
Even items classified as cautions may result in serious accidents in some situa-
tions. Always follow these important precautions.
: Indicates information to insure proper operation.
WARNING
CAUTION
NOTE

3
PRECAUTIONS FOR UL/cUL MARKING
• Do not connect or disconnect wiring, or perform signal checks while the
power supply is turned ON.
• The Inverter internal capacitor is still charged even after the power supply
is turned OFF. To prevent electric shock, disconnect all power before ser-
vicing the Inverter, and then wait at least one minute after the power sup-
ply is disconnected. Confirm that all indicators are OFF before
proceeding.
• Do not perform a withstand voltage test on any part of the Inverter. The
Inverter is an electronic device that uses semiconductors, and is thus vul-
nerable to high voltage.
• Do not remove the Digital Operator or the blank cover unless the power
supply is turned OFF. Never touch the printed circuit board (PCB) while
the power supply is turned ON.
• This Inverter is not suitable for use on a circuit capable of delivering more
than 18,000 RMS symmetrical amperes, 250 V maximum (200 V Class
Inverters) or 18,000 RMS symmetrical amperes, 480 V maximum (400 V
Class Inverters).
PRECAUTIONS FOR CE MARKINGS
• Only basic insulation to meet the requirements of protection class 1 and
overvoltage category II is provided with control circuit terminals.
Additional insulation may be necessary in the end product to conform to
CE requirements.
• For 400 V Class Inverters, make sure to ground the supply neutral to con-
form to CE requirements.
• For conformance to EMC directives, refer to the relevant manuals for the
requirements.
Document No. EZZ008389 for Japanese version,
Document No. EZZ008390 for English version
• Use 75°C copper wire or equivalent.
CAUTION

4
RECEIVING THE PRODUCT
MOUNTING
(Ref. page)
• Do not install or operate any Inverter that is
damaged or has missing parts.
Failure to observe this caution may result in injury or
equipment damage.
20
(Ref. page)
• Lift the Inverter by the heatsinks. When moving
the Inverter, never lift it by the plastic case or the
terminal cover.
Otherwise, the main unit may fall and be damaged.
26
• Mount the Inverter on nonflammable material
(i.e., metal).
Failure to observe this caution may result in a fire.
25
• When mounting Inverters in an enclosure, install
a fan or other cooling device to keep the intake
air temperature below 50°C for IP20 (open
chassis type), or below 40°C for NEMA 1 (TYPE
1).
Overheating may cause a fire or damage the Inverter.
25
• The VS-606V7 generates heat. For effective
cooling, mount it vertically.
Refer to the figure in Mounting Dimensions on
page 26.
26
CAUTION
CAUTION

5
WIRING
(Ref. page)
• Only begin wiring after verifying that the power
supply is turned OFF.
Failure to observe this warning may result in an elec-
tric shock or a fire.
30
• Wiring should be performed only by qualified
personnel.
Failure to observe this warning may result in an elec-
tric shock or a fire.
30
• When wiring the emergency stop circuit, check
the wiring thoroughly before operation.
Failure to observe this warning may result in injury.
30
• Always ground the ground terminal accord-
ing to the local grounding code.
Failure to observe this warning may result in an elec-
tric shock or a fire.
36
• For 400 V class, make sure to ground the sup-
ply neutral.
Failure to observe this warning may result in an elec-
tric shock or a fire.
30
• If the power supply is turned ON during the
FWD (or REV) RUN command is given, the
motor will start automatically.
Turn the power supply ON after verifying that
the RUN signal is OFF.
Failure to observe this warning may result in injury.
39
• When the 3-wire sequence is set, do not make
the wiring for the control circuit unless the multi-
function input terminal parameter is set.
Failure to observe this warning may result in injury.
92
WARNING

6
(Ref. page)
• Verify that the Inverter rated voltage coincides
with the AC power supply voltage.
Failure to observe this caution may result in personal
injury or a fire.
30
• Do not perform a withstand voltage test on the
Inverter.
Performing withstand voltage tests may damage
semiconductor elements.
30
• To connect a Braking Resistor, Braking Resistor
Unit, or Braking Unit, follow the procedure
described in this manual.
Improper connection may cause a fire.
37
• Always tighten terminal screws of the main cir-
cuit and the control circuits.
Failure to observe this caution may result in a mal-
function, damage, or a fire.
30
• Never connect the AC main circuit power supply
to output terminals U/T1, V/T2, W/T3, B1, B2, -,
+1, or +2.
The Inverter will be damaged and the guarantee will
be voided.
30
• Do not connect or disconnect wires or connec-
tors while power is applied to the circuits.
Failure to observe this caution may result in injury.
30
• Do not perform signal checks during operation.
The machine or the Inverter may be damaged.
30
• To store the constant with an ENTER command
by communications, be sure to take measures
for an emergency stop by using the external ter-
minals.
Delayed response may cause injury or damage the
machine.
121
CAUTION

7
OPERATION
(Ref. page)
• Only turn ON the input power supply after con-
firming that the Digital Operator or blank cover
(optional) are in place. Do not remove the
Digital Operator or the covers while current is
flowing.
Failure to observe this warning may result in an elec-
tric shock.
40
• Never operate the Digital Operator or DIP
switches with wet hands.
Failure to observe this warning may result in an elec-
tric shock.
40
• Never touch the terminals while current is flow-
ing, even if the Inverter is stopping.
Failure to observe this warning may result in an elec-
tric shock.
40
• When the fault retry function is selected, stand
clear of the Inverter or the load. The Inverter
may restart suddenly after stopping.
(Construct the system to ensure safety, even if the
Inverter should restart.) Failure to observe this warn-
ing may result in injury.
77
• When continuous operation after power recov-
ery is selected, stand clear of the Inverter or the
load. The Inverter may restart suddenly after
stopping.
(Construct the system to ensure safety, even if the
Inverter should restart.) Failure to observe this warn-
ing may result in injury.
72
• The Digital Operator stop button can be dis-
abled by a setting in the Inverter. Install a sepa-
rate emergency stop switch.
Failure to observe this warning may result in injury.
86
WARNING

8
(Ref. page)
• If an alarm is reset with the operation signal ON,
the Inverter will restart automatically. Reset an
alarm only after verifying that the operation sig-
nal is OFF.
Failure to observe this warning may result in injury.
39
• When the 3-wire sequence is set, do not make
the wiring for the control circuit unless the multi-
function input terminal parameter is set.
Failure to observe this warning may result in injury.
92
• If n001=5, a Run command can be received
even while changing a constant. If sending a
Run command while changing a constant, such
as during a test run, be sure to observe all
safety precautions.
Failure to observe this warning may result in injury.
48, 55
(Ref. page)
• Never touch the heatsinks, which can be
extremely hot.
Failure to observe this caution may result in harmful
burns to the body.
40
• It is easy to change operation speed from low to
high. Verify the safe working range of the motor
and machine before operation.
Failure to observe this caution may result in injury
and machine damage.
40
• Install a holding brake separately if necessary.
Failure to observe this caution may result in injury.
40
WARNING
CAUTION

9
• If using an Inverter with an elevator, take safety
measures on the elevator to prevent the eleva-
tor from dropping.
Failure to observe this caution may result in injury.
155
• Do not perform signal checks during operation.
The machine or the Inverter may be damaged.
40
• All the constants set in the Inverter have been
preset at the factory. Do not change the settings
unnecessarily.
The Inverter may be damaged.
40
(Ref. page)
CAUTION

10
MAINTENANCE AND INSPECTION
(Ref. page)
• Never touch high-voltage terminals on the
Inverter.
Failure to observe this warning may result in an elec-
trical shock.
160
• Disconnect all power before performing mainte-
nance or inspection, and then wait at least one
minute after the power supply is disconnected.
For 400 V Class Inverters, confirm that all indi-
cators are OFF before proceeding.
If the indicators are not OFF, the capacitors are still
charged and can be dangerous.
160
• Do not perform withstand voltage test on any
part of the VS-606V7.
The Inverter is an electronic device that uses semi-
conductors, and is thus vulnerable to high voltage.
160
• Only authorized personnel should be permitted
to perform maintenance, inspection, or parts
replacement.
(Remove all metal objects (watches, bracelets, etc.)
before starting work.)
(Use tools which are insulated against electrical
shock.)
Failure to observe these warnings may result in an
electric shock.
160
WARNING

11
OTHERS
(Ref. page)
• The control PCB employs CMOS ICs.
Do not touch the CMOS elements.
They are easily damaged by static electricity.
160
• Do not connect or disconnect wires, connectors,
or the cooling fan while power is applied to the
circuit.
Failure to observe this caution may result in injury.
160
• Never modify the product.
Failure to observe this warning may result in an electrical shock or
injury and will void the guarantee.
• Do not subject the Inverter to halogen gases, such as fiuorine,
chlovine, bromine, and iodine, at any time even during trans-
portation or installation.
Otherwise, the Inverter can be damaged or interior parts burnt.
CAUTION
WARNING
CAUTION

12
WARNING LABEL

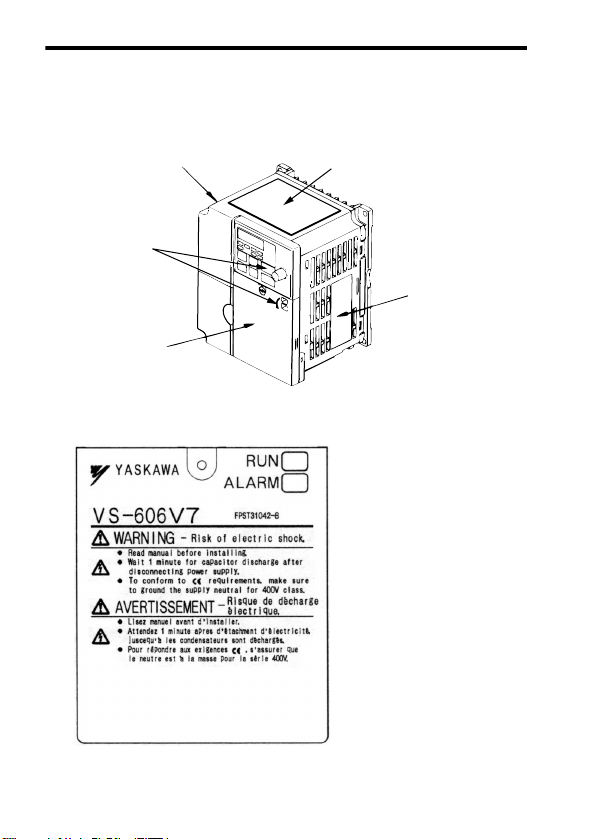

A warning label is provided on the front cover of the Inverter, as shown below.
Follow the warnings when handling the Inverter.
Plastic Case
Nameplate
Top Cover (in case of 5.5/7.5 kW)
Warning Label Location
Status
Indicators
Example of 5.5 kW for 400 V
Warning Labels

13
WARRANTY INFORMATION
Free Warranty Period and Scope
Warranty Period
This product is warranted for twelve months after being delivered to
Yaskawa’s customer or if applicable eighteen months from the date of
shipment from Yaskawa’s factory, whichever comes first.
Scope of Warranty
Inspections
Periodic inspections must be conducted by the customer. However,
upon request, Yaskawa or one of Yaskawa’s Service Centers can inspect
the product for a fee. In this case, if after conferring with the customer, a
Yaskawa product is found to be defective due to Yaskawa workmanship
or materials and the defect occurs during the warranty period, then this
fee will be waived and the problem remedied free of charge.
Repairs
If a Yaskawa product is found to be defective due to Yaskawa workman-
ship or materials and the defect occurs during the warranty period,
Yaskawa will provide a replacement, repair the defective product, and
provide shipping to and from the site free of charge.
However, if the Yaskawa Authorized Service Center determines that the
problem with a Yaskawa product is not due to defects in Yaskawa’s
workmanship or materials, then the customer will be responsible for the
cost of any necessary repairs. Some problems that are outside the scope
of this warranty are:
• Problems due to improper maintenance or handling, carelessness, or
other reasons where the customer is determined to be responsible.
• Problems due to additions or modifications made to a Yaskawa prod-
uct without Yaskawa’s understanding.
• Problems due to the use of a Yaskawa product under conditions that
do not meet the recommended specifications.
• Problems caused by natural disaster or fire.
• Or other problems not due to defects in Yaskawa workmanship or
materials.
Warranty service is only applicable within Japan.
However, after-sales service is available for customers outside of Japan
for a reasonable fee. Contact your local Yaskawa representative for
more information.

14
Exceptions
Any inconvenience to the customer or damage to non-Yaskawa products
due to Yaskawa's defective products whether within or outside the war-
ranty period are NOT covered by this warranty.
RESTRICTIONS
• The VS-606V7 was not designed or manufactured for use in devices or
systems that may directly affect or threaten human lives or health.
• Customers who intend to use the product described in this manual for
devices or systems relating to transportation, health care, space aviation,
atomic or electric power, or underwater use must contact their Yaskawa
representatives or the nearest Yaskawa sales office beforehand.
• This product has been manufactured under strict quality-control guide-
lines. However, if this product is to be installed in any location where fail-
ure of this product could involve or result in a life-and-death situation or
loss of human life or in a facility where failure may cause a serious acci-
dent or physical injury, safety devices must be installed to minimize the
likelihood of any accident.

15
CONTENTS
NOTATION FOR SAFETY PRECAUTIONS - - - - - - 2
1. Receiving the Product - - - - - - - - - - - - - - - - - - - 20
Checking the Nameplate - - - - - - - - - - - - - - - - - - - - - - - - - - - 21
2. Identifying the Parts- - - - - - - - - - - - - - - - - - - - - 22
3. Mounting - - - - - - - - - - - - - - - - - - - - - - - - - - - - 25
Choosing a Location to Mount the Inverter - - - - - - - - - - - - - - 25
Mounting Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Mounting/Removing Components- - - - - - - - - - - - - - - - - - - - - 27
Removing the Front Cover - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Mounting the Front Cover - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Removing the Terminal Cover - - - - - - - - - - - - - - - - - - - - - - - 27
Mounting the Terminal Cover - - - - - - - - - - - - - - - - - - - - - - - - 28
Removing the Digital Operator - - - - - - - - - - - - - - - - - - - - - - - 28
Mounting the Digital Operator- - - - - - - - - - - - - - - - - - - - - - - - 28
Removing the Bottom Cover - - - - - - - - - - - - - - - - - - - - - - - - 29
Mounting the Bottom Cover - - - - - - - - - - - - - - - - - - - - - - - - - 29
4. Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 30
Wire and Terminal Screw Sizes - - - - - - - - - - - - - - - - - - - - - - 32
Wiring the Main Circuits- - - - - - - - - - - - - - - - - - - - - - - - - - - - 36
Wiring the Control Circuits - - - - - - - - - - - - - - - - - - - - - - - - - - 38
Wiring Inspection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 39
5. Operating the Inverter - - - - - - - - - - - - - - - - - - - 40
Test Run - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 41
Selecting Rotation Direction - - - - - - - - - - - - - - - - - - - - - - - - - 43
Operation Check Points - - - - - - - - - - - - - - - - - - - - - - - - - - - - 43
Operating the Digital Operator - - - - - - - - - - - - - - - - - - - - - - - 44
Description of Status Indicators - - - - - - - - - - - - - - - - - - - - - - 45

16
Function Indicator Description- - - - - - - - - - - - - - - - - - - - - - - - 47
MNTR Multi-function Monitoring - - - - - - - - - - - - - - - - - - - - - - 48
Input/Output Terminal Status - - - - - - - - - - - - - - - - - - - - - - - - - 50
Data Reception Error Display - - - - - - - - - - - - - - - - - - - - - - - - 50
Simple Data Setting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 52
6. Programming Features - - - - - - - - - - - - - - - - - - 54
Hardware - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 54
Software (Constant) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 54
Constant Setup and Initialization - - - - - - - - - - - - - - - - - - - - - - 55
Constant Selection/Initialization (n001) - - - - - - - - - - - - - - - - - 55
Using V/f Control Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - 57
Adjusting Torque According to Application - - - - - - - - - - - - - - - 57
Using Vector Control Mode - - - - - - - - - - - - - - - - - - - - - - - - - - 60
Precautions for Voltage Vector Control Application - - - - - - - - - 60
Motor Constant Calculation- - - - - - - - - - - - - - - - - - - - - - - - - - 61
V/f Pattern during Vector Control - - - - - - - - - - - - - - - - - - - - - - 62
Switching LOCAL/REMOTE Mode - - - - - - - - - - - - - - - - - - - - 63
How to Select LOCAL/REMOTE Mode - - - - - - - - - - - - - - - - - 64
Selecting RUN/STOP Commands - - - - - - - - - - - - - - - - - - - - - 64
LOCAL Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 64
REMOTE Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 65
Operating (RUN/STOP Commands) by Communications- - - - - 65
Selecting Frequency Reference - - - - - - - - - - - - - - - - - - - - - - 65
LOCAL Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 66
REMOTE Mode - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 66
Setting Operation Conditions - - - - - - - - - - - - - - - - - - - - - - - - 67
Reverse Run Prohibit (n006)- - - - - - - - - - - - - - - - - - - - - - - - - 67
Multi-step Speed Selection - - - - - - - - - - - - - - - - - - - - - - - - - - 67
Operating at Low Speed - - - - - - - - - - - - - - - - - - - - - - - - - - - - 68
Adjusting Speed Setting Signal - - - - - - - - - - - - - - - - - - - - - - - 69
Adjusting Frequency Upper and Lower Limits - - - - - - - - - - - - - 70
Using Four Acceleration/Deceleration Times - - - - - - - - - - - - - 70
Momentary Power Loss Ridethrough Method (n081) - - - - - - - - 72
S-curve Selection (n023) - - - - - - - - - - - - - - - - - - - - - - - - - - - 73
Torque Detection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 74
Frequency Detection Level (n095) - - - - - - - - - - - - - - - - - - - - - 75

17
Jump Frequencies (n083 to n086) - - - - - - - - - - - - - - - - - - - - 76
Continuing Operation Using Automatic Retry Attempts
(n082) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 77
Operating a Coasting Motor without Tripping - - - - - - - - - - - - - 77
Holding Acceleration/Deceleration Temporarily - - - - - - - - - - - 78
Using Frequency Meter or Ammeter (n066) - - - - - - - - - - - - - - 79
Calibrating Frequency Meter or Ammerter (n067)- - - - - - - - - - 80
Using Analog Output (AM-AC) as a Pulse Train Signal Output
(n065) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 80
Reducing Motor Noise or Leakage Current Using Carrier
Frequency Selection (n080) - - - - - - - - - - - - - - - - - - - - - - - - - 83
Operator Stop Key Selection (n007) - - - - - - - - - - - - - - - - - - - 86
Selecting the Stopping Method- - - - - - - - - - - - - - - - - - - - - - - 87
Stopping Method Selection (n005) - - - - - - - - - - - - - - - - - - - - 87
Applying DC Injection Braking - - - - - - - - - - - - - - - - - - - - - - - 88
Building Interface Circuits with External Devices - - - - - - - - - - 90
Using Input Signals - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 90
Using the Multi-function Analog Inputs (n077, n078, n079) - - - 94
Using Output Signals (n057, n058, n059) - - - - - - - - - - - - - - - 97
Setting Frequency by Current Reference Input - - - - - - - - - - - 99
Frequency Reference by Pulse Train Input - - - - - - - - - - - - - 101
Preventing the Motor from Stalling (Current Limit) - - - - - - - - 102
Stall Prevention during Operation - - - - - - - - - - - - - - - - - - - - 104
Decreasing Motor Speed Fluctuation - - - - - - - - - - - - - - - - - 106
Slip Compensation (n002 = 0) - - - - - - - - - - - - - - - - - - - - - - 106
Motor Protection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 107
Motor Overload Detection - - - - - - - - - - - - - - - - - - - - - - - - - 107
Selecting Cooling Fan Operation - - - - - - - - - - - - - - - - - - - - 109
Using MEMOBUS (MODBUS) Communications - - - - - - - - - 109
MEMOBUS (MODBUS) Communications - - - - - - - - - - - - - - 109
Communications specified - - - - - - - - - - - - - - - - - - - - - - - - - 110
Communications Connection Terminal - - - - - - - - - - - - - - - - 110
Setting Constants Necessary for Communication- - - - - - - - - -111
Message Format- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 112
Storing Constants [ENTER Command]
(can be written only.) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 121
Performing Self-test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 124

18
Using Energy-saving Control Mode - - - - - - - - - - - - - - - - - - - 125
Energy-saving Control Selection (n139) - - - - - - - - - - - - - - - - 125
Energy-saving Search Operation- - - - - - - - - - - - - - - - - - - - - 126
Motor Code - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 129
Using PID Control Mode- - - - - - - - - - - - - - - - - - - - - - - - - - - 130
PID Control Selection (n128)- - - - - - - - - - - - - - - - - - - - - - - - 131
Using Constant Copy Function - - - - - - - - - - - - - - - - - - - - - - 138
Constant Copy Function - - - - - - - - - - - - - - - - - - - - - - - - - - - 138
READ Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 140
COPY Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 141
VERIFY Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 143
Inverter Capacity Display - - - - - - - - - - - - - - - - - - - - - - - - - - 145
Software No. Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147
Display List - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 147
Unit Selection for Frequency Reference Setting/Display - - - - 149
Selecting Processing for Frequency Reference Loss
(n064)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 151
Input/Output Open-phase Detection - - - - - - - - - - - - - - - - - - 152
Undertorque Detection - - - - - - - - - - - - - - - - - - - - - - - - - - - - 153
Using Inverter for Elevating Machines - - - - - - - - - - - - - - - - - 155
Brake ON/OFF Sequence - - - - - - - - - - - - - - - - - - - - - - - - - - 155
Stall Prevention During Deceleration - - - - - - - - - - - - - - - - - - 157
Settings for V/f Pattern and Motor Constants - - - - - - - - - - - - 157
Momentary Power Loss Restart and Fault Restart- - - - - - - - - 157
I/O Open-phase Protection and Overtorque Detection - - - - - - 157
Carrier Frequency - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 157
External Baseblock Signal - - - - - - - - - - - - - - - - - - - - - - - - - 158
Acceleration/Deceleration Time- - - - - - - - - - - - - - - - - - - - - - 158
Contactor on the Inverter’s Output-side - - - - - - - - - - - - - - - - 158
Using MECHATROLONK-II Communications- - - - - - - - - - - - 159
7. Maintenance and Inspection - - - - - - - - - - - - - 160
Periodic Inspection - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 161
Part Replacement - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 162
Replacement of Cooling Fan- - - - - - - - - - - - - - - - - - - - - - - - 163

19
8. Fault Diagnosis - - - - - - - - - - - - - - - - - - - - - - - 165
Protective and Diagnostic Functions- - - - - - - - - - - - - - - - - - 165
Corrective Actions of Models with Blank Cover - - - - - - - - - - 165
Corrective Actions of Models with Digital Operator - - - - - - - - 166
Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 178
9. Specifications - - - - - - - - - - - - - - - - - - - - - - - - 180
Standard Specifications (200 V Class) - - - - - - - - - - - - - - - - 180
Standard Specifications (400 V Class) - - - - - - - - - - - - - - - - 184
Standard Wiring - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 188
Sequence Input Connection with NPN/PNP Transistor - - - - - 192
Dimensions/Heat Loss - - - - - - - - - - - - - - - - - - - - - - - - - - - 194
Recommended Peripheral Devices- - - - - - - - - - - - - - - - - - - 197
Constants List - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 200
10 Conformance to CE Markings - - - - - - - - - - - - 213
CE Markings - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 213
Requirements for Conformance to CE Markings - - - - - - - - - 213
Low Voltage Directive - - - - - - - - - - - - - - - - - - - - - - - - - - - - 213
EMC Directive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 214
Revision History
