yeedi K652G User manual

Instruction Manual
Manuel d’instructions
Manual de instrucciones
K652G

2
EN
Instruction Manual����������������������������������������������������������������������������������������������������������� 2
EN
Manuel d’instructions ��������������������������������������������������������������������������������������������������� 27
FR-CA
Manual de instrucciones���������������������������������������������������������������������������������������������� 51
ES-LA

3EN
Important Safety Instructions
1� Do not allow to be used as a toy� Close
attention is necessary when used by or near
children�
2� Clear the area to be cleaned� Remove power
cords and small objects from the oor that
could entangle the Appliance� Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the oor�
3� If there is a drop off in the cleaning area
due to a step or stairs, you should operate
the Appliance to ensure that it can detect
the step without falling over the edge� It
may become necessary to place a physical
barrier at the edge to keep the unit from
falling� Make sure the physical barrier is not
a trip hazard�
4� Only use as described in this manual� Only
use attachments recommended or sold by
the manufacturer�
5� Please make sure your power supply voltage
matches the power voltage marked on the
Docking Station�
6� Do not handle plug or appliance with wet
hands�
7� Non-rechargeable batteries are prohibited�
8� Do not use without dust bin and/or lters in
place�
9� Do not operate the vacuum in an area where
there are lit candles or fragile objects on the
oor to be cleaned�
10� Do not use and store in extremely hot or
cold environments (below -5˚C /23˚F or
above 40˚C/104˚F)� Please charge the robot
in temperature above 0°C/32°F and below
40°C/104°F�
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE.
For Household use only
When using an electrical appliance, basic
precautions should always be followed, including
the following:
WARNING: Read all safety warnings and
instructions. Failure to follow the warnings and
instructions may result in electric shock, re or
serious injury.

4
EN
11� Keep hair, loose clothing, ngers, and all
parts of body away from any openings and
moving parts�
12� Do not operate the Appliance in a room
where an infant or child is sleeping�
13� For INDOOR use ONLY� Do not use
the Appliance in outdoor, commercial
or industrial environments� Do not use
Appliance on wet surfaces or surfaces with
standing water�
14� Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance�
15� Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present�
16� Do not use Appliance to pick up anything
that is burning or smoking, such as
cigarettes, matches, hot ashes, or anything
that could cause a re�
17� Do not put any object into openings� Do not
use with any opening blocked; keep free of
dust, lint, hair, and anything that may reduce
air ow�
18� Take care not to damage the power cord� Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners� Do not run Appliance over the
power cord� Keep power cord away from hot
surfaces� Do not unplug by pulling on cord�
To unplug, grasp the plug, not the cord�
19� If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard�
20� Do not use the Docking Station if it is
damaged�
21� Do not use with a damaged power cord or
plug� Do not use the Appliance or Docking
Station if it is not working properly, has been
dropped, damaged, left outdoors, or come
in contact with water� It must be repaired by
the manufacturer or its service agent in order
to avoid a hazard�
22� Turn OFF the power switch before cleaning
or maintaining the Appliance� Turn off all
controls before unplugging�

5EN
23� The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station�
24� Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance�
25� The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance�
26� Please dispose of used batteries according
to local laws and regulations�
27� Do not incinerate the Appliance even if it
is severely damaged� The batteries can
explode in a re�
28� When not using the Docking Station for a
long period of time, please unplug it�
29� The Appliance must be used in accordance
with the directions in this Instruction
Manual� REECOO cannot be held liable
or responsible for any damages or injuries
caused by improper use�
30� Prevent unintentional starting� Ensure
the switch is in the off position before
connecting to battery pack, picking up
or carrying the appliance� Carrying the
appliance with your nger on the switch or
energizing appliance that have the switch on
invites accidents�
31� When battery pack is not in use, keep it
away from other metal objects, like paper
clips, coins, keys, nails, screws or other
small metal objects, that can make a
connection from one terminal to another�
Shorting the battery terminals together may
cause burns or a re�
32� Under abusive conditions, liquid may be
ejected from the battery; avoid contact� If
contact accidentally occurs, ush with water�
If liquid contacts eyes, additionally seek
medical help� Liquid ejected from the battery
may cause irritation or burns�
33� Do not use a battery pack or appliance
that is damaged or modied� Damaged or
modied batteries may exhibit unpredictable
behavior resulting in re, explosion or risk of
injury�

6
EN
Direct current
Alternating current
34� Do not expose a battery pack or appliance
to re or excessive temperature� Exposure to
re or temperature above 130°C may cause
explosion� The temperature of 130°C can be
replaced by the temperature of 265°F�
35� Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specied
in the instructions� Charging improperly or at
temperatures outside of the specied range
may damage the battery and increase the
risk of re�
36� Have servicing performed by a qualied
repair person using only identical
replacement parts� This will ensure that the
safety of the product is maintained�
37� Do not modify or attempt to repair the
appliance or the battery pack (as applicable)
except as indicated in the instructions for
use and care�
38� Place the cords from other appliances out of
the area to be cleaned�
39� Do not operate the vacuum in a room that
has lit candles on furniture that the vacuum
may accidentally hit or bump into�
40� Do not allow children to sit on the vacuum�
41� Recharge only with the charger specied by
the manufacturer� A charger that is suitable
for one type of battery pack may create a
risk of re when used with another battery
pack�
42� Use appliances only with specically
designated battery packs� Use of any other
battery packs may create a risk of injury and
re�
43� The robot contains batteries that are only
replaceable by skilled persons� To replace
the robot’s battery, please contact Customer
Service�
44� If the robot will not be used for a long time,
fully charge the robot and power OFF for
storage and unplug the Docking Station�
SAVE THESE INSTRUCTIONS

7EN
Federal Communications Commission (FCC) Interference
Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules�
These limits are designed to provide reasonable protection
against harmful interference in a residential installation� This
equipment generate, uses and can radiate radio frequency
energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio
communications�
However, there is no guarantee that interference will not
occur in a particular installation� If this equipment does cause
harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of
the following measures:
Reorient or relocate the receiving antenna�
Increase the separation between the equipment and receiver�
Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected�
Consult the dealer or an experienced radio/TV technician for
help�
This device complies with Part 15 of the FCC Rules�
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation�
FCC Caution: Any changes or modifications not expressly
approved by the party responsible for compliance could void
the user’s authority to operate this equipment�
RF exposure warning
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment�
This equipment must be installed and operated in accordance
with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance
of at least 20 cm from all persons and must not be collocated
or operating in conjunction with any other antenna or
transmitter�
To disable Wi-Fi module on Robot, power the robot ON� Place
the robot on the Docking Station making sure the Charging
Contacts on Robot and the Docking Station Pins make a
connection�
Press and hold the AUTO Mode Button on the robot for 20
seconds until Robot emits 3 beeps�
To enable Wi-Fi module on Robot, power the robot OFF and
then power ON� The Wi- Fi module is turned on when Robot
is restarted�

8
EN
Contents
1. Package Contents.............................................................................................................................................................9
2. Operating and Programming..........................................................................................................................................12
3. Maintenance ....................................................................................................................................................................19
4. Troubleshooting...............................................................................................................................................................23
5. Product Specications....................................................................................................................................................26

9EN
Robot Docking Station+Power Adapter Instruction Manual Side Brushes
High Efciency Filter &
Sponge Filter
Main Brush (Pre-installed)
1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance�
Product design and specications are subject to changes without notice�
Instruction Manual
XL Dust Bin + Tangle-free Brush + Filter for XL Dust Bin
+ +

10
EN
Robot
Wi-Fi Indicator
Infrared Anti-
Collision
Sensor and Bumper
AUTO Mode Button
RESET Button
Power Switch
(I=ON, O=OFF)
Bottom
Charging Contacts
Anti-Drop Sensors
Anti-Drop Sensors
Universal Wheels
Main Brush
Option
Battery
Driving Wheels
Side Brushes
Main Brush Release
Button
1. Package Contents/1.2 Product Diagram

11 EN
XL Dust Bin Docking Station
Power Adapter Port
Infrared Signal Emitter
Charging Contacts
Sponge Filter
High Efciency Filter
Filter Cover Release Button
Dust Bin Release Button
Filter Net

12
EN
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place�
Put away objects including
wires, cloths and slippers,
etc� on the oor to improve
the cleaning efciency�
Before using the product on
a rug with tasseled edges,
please fold the rug edges
under�
It may be necessary to place a physical barrier at the edge of a drop
to stop the unit from falling over the edge�
Please do not stand in narrow
spaces, such as hallways,
and make sure not to block
Robot�
2. Operating and Programming/2.1 Notes Before Cleaning

13 EN
1 Remove Protective Materials
2 Install Side Brushes
2. Operating and Programming/2.2 Quick Start
Click

14
EN
Note: I = ON, O = OFF
Robot cannot be charged when being powered OFF�
4.5-5.5h
*It is suggested to avoid picking up or moving Robot during the
cleaning for Robot to return to charge successfully�
2. Operating and Programming/2.3 Charging Robot
1 Docking Station Placement 3 Charge Robot
2 Power ON

15 EN
2. Operating and Programming/ 2.4 Yeedi App
To enjoy all available features, it is recommended to control your Robot via the Yeedi app�
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual�
• Your mobile phone is connected to a Wi-Fi network�
• The 2�4GHz band wireless signal is enabled on your router�
• The Wi-Fi indicator light on Robot is slowly ashing�
Slowly ashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly ashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi

16
EN
During the rst cleaning, please supervise Robot and assist it should there be a problem�
Robot will clean in Random Cleaning Pattern designed for carpet cleaning by default�
2. Operating and Programming/ 2.5 Operating Robot
1 Start

17 EN
The robot’s Control Panel stops glowing after the robot is paused for
a few minutes� Press the AUTO Mode Button on Robot to wake up
the robot�
Pause
Wake Up Start
*If Robot will not be used for a while, fully charge Robot and power
OFF before storage� Charge Robot every 1�5 month to prevent
battery drain�
*When Robot is not cleaning, it is recommended to keep Robot
powered ON and charging�
2 Start/Pause 3 Power OFF

18
EN
Tangle-free Brush is specically designed to pick up hair without tangling� It is suggested to increase the vacuum power in Yeedi App when using
Tangle-free Brush�
Install Tangle-free Brush
Release the Brush Cover
Uninstall the Main Brush
Install Tangle-free Brush
1
2
3
2. Operating and Programming/2.6 Tangle-free Brush

19 EN
To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug the Docking Station.
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: REECOO manufactures various replacement parts and ttings� Please contact Customer Service for more information on replacement parts�
Robot Part Maintenance Frequency Replacement Frequency
Side Brush Once every 2 weeks Every 3-6 months
Main Brush
Tangle-free Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Docking Station Pins
Once per week /
3. Maintenance/3.1 Regular Maintenance

20
EN
1 4
2 5
3 6

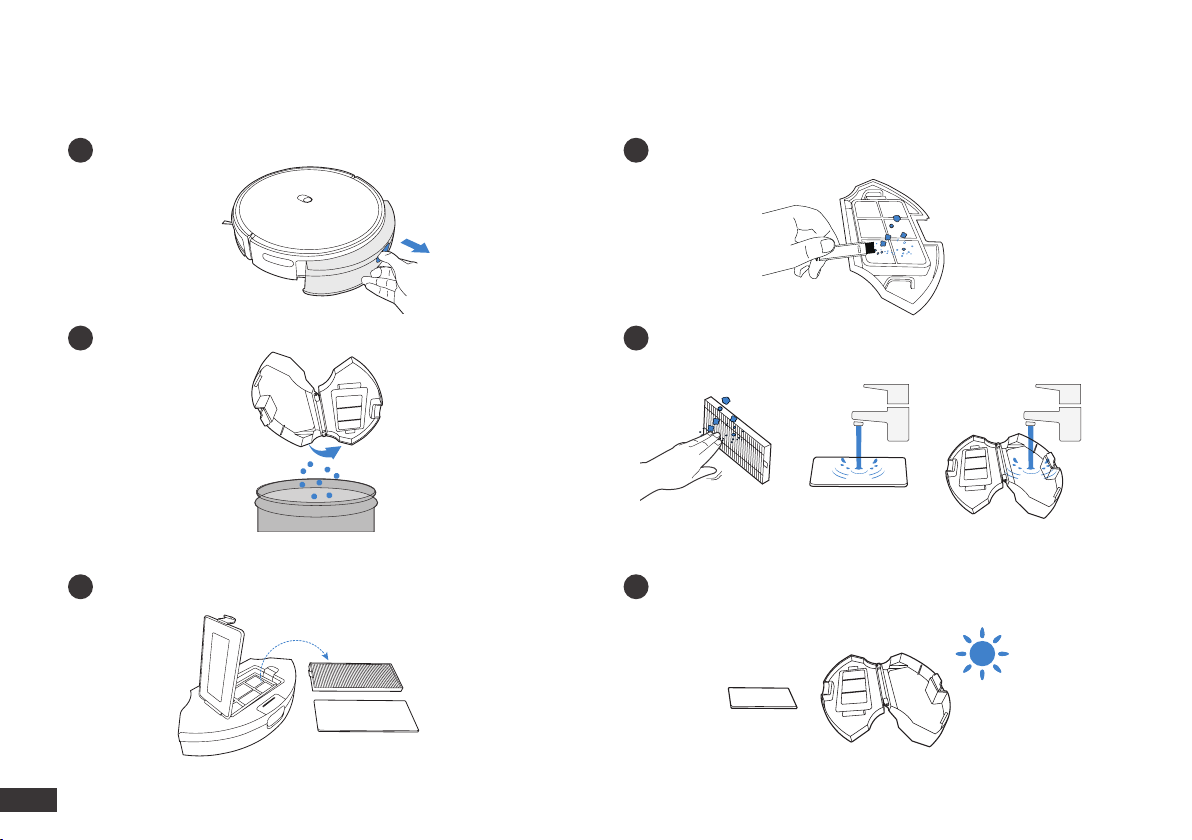

3. Maintenance/3.2 XL Dust Bin
