yeedi K600 User manual

K600
Instruction Manual
Manuel d’instructions
Manual de instrucciones
Model/Modèle/Modelo:K602G

Instruction Manual����������������������������������������������������������������������������������������������������������� 3
Manuel d’instructions ��������������������������������������������������������������������������������������������������� 25
Manual de instrucciones���������������������������������������������������������������������������������������������� 48
EN
FR-CA
ES-LATAM

3EN
1. Important Safety Instructions ..........................................................................................................................................4
2. Package Contents.............................................................................................................................................................9
3. Operating and Programming..........................................................................................................................................12
4. Maintenance ....................................................................................................................................................................17
5. Indicator Light and Alarm Sounds .................................................................................................................................21
6. Troubleshooting...............................................................................................................................................................23
7. Technical Specifications.................................................................................................................................................24
Contents

4
EN
1� Do not allow to be used as a toy� Close
attention is necessary when used by or near
children�
2� Clear the area to be cleaned� Remove power
cords and small objects from the floor that could
entangle the Appliance� Tuck rug fringe under
the rug base, and lift items such as curtains and
tablecloths off the floor�
3� If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge� It may become
necessary to place a physical barrier at the
edge to keep the unit from falling� Make sure
the physical barrier is not a trip hazard�
4� Only use as described in this manual� Only
use attachments recommended or sold by the
manufacturer�
5� Please make sure your power supply voltage
matches the power voltage marked on the
Charging Dock�
6� For INDOOR use ONLY� Do not use the
Appliance in outdoor, commercial or industrial
environments�
7� Non-rechargeable batteries are prohibited�
8� Do not use without dust bin and/or filters in
place�
9� Do not operate the Appliance in an area where
there are lit candles or fragile objects on the
floor to be cleaned�
10� Do not use and store in extremely hot or
cold environments (below -5°C/23˚F or
above 40°C/104˚F)� Please charge the robot
in temperature above 0°C/32°F and below
Household use only
IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING
THIS APPLIANCE.
WARNING: Read all safety warnings
and instructions. Failure to follow the warnings
and instructions may result in electric shock,
fire or serious injury.
1. Important Safety Instructions

5EN
40°C/104°F�
11� Keep hair, loose clothing, fingers, and all parts
of body away from any openings and moving
parts�
12� Do not operate the Appliance in a room where an
infant or child is sleeping�
13� Do not use Appliance on wet surfaces or
surfaces with standing water�
14� Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or any
item that may clog the Appliance�
15� Do not use Appliance to pick up flammable or
combustible materials such as gasoline, printer
or copier toner, or use in areas where they may
be present�
16� Do not use Appliance to pick up anything that is
burning or smoking, such as cigarettes, matches,
hot ashes, or anything that could cause a fire�
17� Do not put objects into the suction intake� Do
not use if the suction intake is blocked� Keep
the intake clear of dust, lint, hair, or anything
that may reduce air flow�
18� Take care not to damage the power cord� Do
not pull on or carry the Appliance or Charging
Dock by the power cord, use the power cord
as a handle, close a door on the power cord, or
pull power cord around sharp edges or corners�
Do not run Appliance over the power cord�
Keep power cord away from hot surfaces� Do
not unplug by pulling on cord� To unplug, grasp
the plug, not the cord�
19� If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard�
20� Do not use the Charging Dock if it is damaged�
21� Do not use with a damaged power cord
or receptacle� Do not use the Appliance or
Charging Dock if it is not working properly,
has been dropped, damaged, left outdoors, or
come in contact with water� It must be repaired
by the manufacturer or its service agent in order
to avoid a hazard�
22� Turn OFF the power switch before cleaning or
maintaining the Appliance�
23� The plug must be removed from the receptacle
before cleaning or maintaining the Charging
Dock�
24� Remove the Appliance from the Charging Dock,
1. Important Safety Instructions

6
EN
and turn OFF the power switch to the Appliance
before removing the battery for disposal of the
Appliance�
25� The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance�
26� Please dispose of used batteries according to
local laws and regulations�
27� Do not incinerate the Appliance even if it is
severely damaged� The batteries can explode
in a fire�
28� When not using the Charging Dock for a long period
of time, please unplug it�
29� The Appliance must be used in accordance
with the directions in this Instruction Manual�
REECOO cannot be held liable or responsible
for any damages or injuries caused by improper
use�
30� the robot contains batteries that are only replaceable
by skilled persons� To replace or remove the battery,
please contact Customer Service�
31� If the robot will not be used for a long time, fully
charge the robot and power OFF for storage
and unplug the Charging Dock�
1. Important Safety Instructions
32� Prevent unintentional starting� Ensure the
switch is in the off position before connecting
to battery pack, picking up or carrying the
appliance� Carrying the appliance with your
finger on the switch or energizing appliance that
have the switch on invites accidents�
33� When battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal objects
that can make a connection from one terminal
to another� Shorting the battery terminals
together may cause burns or a fire�
34� Under abusive conditions, liquid may be
ejected from the battery; avoid contact� If
contact accidentally occurs, flush with water� If
liquid contacts eyes, additionally seek medical
help� Liquid ejected from the battery may cause
irritation or burns�
35� Do not use a battery pack or appliance that is
damaged or modified� Damaged or modified
batteries may exhibit unpredictable behavior
resulting in fire, explosion or risk of injury�
36� Do not expose a battery pack or appliance
to fire or excessive temperature� Exposure to

7EN
1. Important Safety Instructions
fire or temperature above 130°C may cause
explosion� The temperature of 130°C can be
replaced by the temperature of 265°F�
37� Follow all charging instructions and do
not charge the battery pack or appliance
outside of the temperature range specified
in the instructions� Charging improperly or at
temperatures outside of the specified range
may damage the battery and increase the risk of
fire�
38� Have servicing performed by a qualified repair
person using only identical replacement parts�
This will ensure that the safety of the product is
maintained�
39� Do not modify or attempt to repair the appliance
or the battery pack (as applicable) except as
indicated in the instructions for use and care�
40� Place the cords from other appliances out of
the area to be cleaned�
41� Do not operate the vacuum in a room that has
lit candles on furniture that the vacuum may
accidentally hit or bump into�
42� Do not allow children to sit on the vacuum�
43� Recharge only with the charger specified by the
manufacturer� A charger that is suitable for one
type of battery pack may create a risk of fire
when used with another battery pack�
44� Use appliances only with specifically designated
battery packs� Use of any other battery packs
may create a risk of injury and fire�
45� Do not handle plug or appliance with wet
hands�
SAVE THESE INSTRUCTIONS

8
EN
This device complies with Part 15 of the FCC Rules / Industry Canada
licence-exempt RSS standard(s)� Operation is subject to the following
two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation�
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
the equipment�
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules� These limits are designed to provide reasonable protection
against harmful interference in a residential installation� This
equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications� However,
there is no guarantee that interference will not occur in a particular
installation� If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
— Reorient or relocate the receiving antenna�
— Increase the separation between the equipment and receiver�
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected�
— Consult the dealer or an experienced radio/TV technician for help�
1. Important Safety Instructions

9EN
2.1 Package Contents
Robot Side BrushesCharging Dock + Power Adapter
Multi-Function Cleaning
Tool Instruction Manual
2. Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance�
Product design and specications are subject to changes without notice�
Instruction Manual
Manuel d’instructions
Manual de instruccionesl
Remote Control with
Batteries

10
EN
2.2 Product Diagram
Robot
Bottom View
2. Package Contents
Anti-Collision Sensors and
Bumper
AUTO Mode Button
Power Switch
Power Adapter Port
Dust Bin
Release Button
Anti-Drop Sensors
Main Brush Option
Dust Bin
Charging
Contacts
Universal Wheel
Side Brushes

11 EN
2. Package Contents
Power Indicator Light
Power Adapter
Power Adapter Port
Charging Dock Pins
Charging Dock
START/PAUSE Button
Edge Cleaning Button
Direction Control Buttons
Spot Cleaning Mode Button
Return to Charger
Mode Button
Remote Control

12
EN

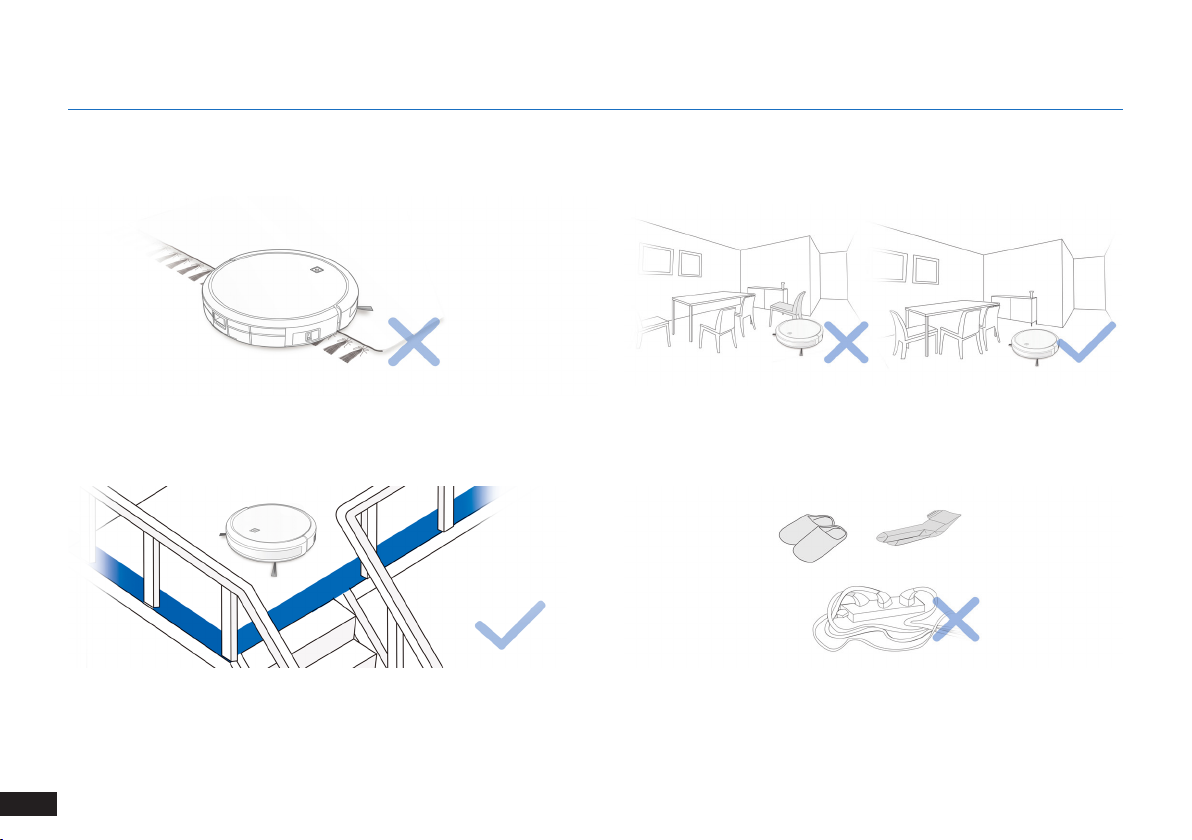

Before using the product on a rug with tasseled edges, please fold the
rug edges under�
WARNING: Do not use the robot on wet surfaces or surfaces with standing water.
It may be necessary to place a physical barrier at the edge of a drop to
stop the unit from falling over the edge�
Remove power cords and small objects from the oor that the robot
could be obstructed by�
3.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting furniture, such as chairs, in
their proper place�
3. Operating and Programming

13 EN
3. Operating and Programming
1Plug in Adapter 2Charging Dock Placement 3Install Side Brushes
4Power ON
3.2 Preparation
Note: When the robot completes the cleaning cycle or when battery power gets
low, the robot automatically returns to the Charging Dock to recharge itself�
5Charge the robot

14
EN
3. Operating and Programming
OR
3.3 Selecting Cleaning Mode
1AUTO Cleaning Mode
ARandom Cleaning Pattern (optimized for carpets) will be selected by
default�
2Return to Docking Station
3Edge Cleaning Mode

15 EN
3. Operating and Programming
3.4 Switch vacuum power
X 2
4Spot Cleaning Mode

16
EN
3. Operating and Programming
3.5 Pause, Wake Up, Power Off
1Pause 2Wake Up
Note: the robot’s Control Panel stops glowing after the robot is paused
for a few minutes� Press the AUTO Mode Button on the robot to wake
up the robot�
Press the AUTO button on the robot to wake it up
3Power OFF
Note: When the robot is not working, it is recommended to keep it
switched ON and charging�

17 EN
Dust Bin
4.1 Dust Bin and Filters
1
2
3
Filter Net
Sponge Filter
High Efciency Filter
Dust Bin
Dust Bin Release Button
Dust Bin Cover
4. Maintenance

18
EN
Main Brush
4.2 Main Brush and Side Brushes
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
1
4
2
5
3
4. Maintenance

19 EN
4. Maintenance
4.3 Other Components
Side Brushes
1 2 3

20
EN
Note: Before cleaning the robot’s Charging
Contacts and Charging Dock Pins, turn the robot
OFF and unplug the Charging Dock�
4.4 Regular Maintenance
To keep the robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: YEEDI manufactures various replacement parts and ttings� Please contact Customer Service for more information on replacement parts�
Robot Part Maintenance Frequency Replacement Frequency
Side Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/ High Efciency Filter Once per week Every 3-6 months
Universal Wheel
Anti-Drop Sensors
Bumper
Charging Contacts
Charging Dock Pins
Once per week /
4. Maintenance
