yeedi cube User manual

INSTRUCTION MANUAL
GEBRAUCHSANWEISUNG
MANUAL DE INSTRUCCIONES
MANUEL D’INSTRUCTION
MANUALE DI ISTRUZIONI
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
cube Robot Vacuum and Mop
่�ือการใ้งาน
BUKU PETUNJUK
產品使用說明書
MANUAL ARAHAN

2
EN
Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the oor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the oor.
3. If there is a drop off in the cleaning area due
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge. It may become
necessary to place a physical barrier at the
edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the OMNI Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and OMNI Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
8. Do not use without dust bin and/or lters in place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments

3EN
(below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, ngers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up ammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a re.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air ow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or OMNI
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the OMNI Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
OMNI Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the OMNI Station.

4
EN
plug the OMNI Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH2251 provided with the Appliance.
To satisfy RF exposure requirements, a separation distance
of 20 cm or more should be maintained between this
device and persons during device operation.
To ensure compliance, operations at closer than this
distance is not recommended. The antenna used for this
transmitter must not be co-located in conjunction with any
other antenna or transmitter.
To disable Wi-Fi module on Robot, power the Robot ON.
Place the Robot on the Charging Station making sure the
Charging Contacts on Robot and the Charging Station
Pins make a connection.
Press and hold the SPOT Button on the Robot for 20
seconds until Robot emits 1 beep.
To enable Wi-Fi module on Robot, power the Robot OFF
and then power ON. The Wi- Fi module is turned on when
Robot is restarted.
24. Remove the Appliance from the OMNI
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a re.
28. When not using the OMNI Station for a long
period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The manufacturer cannot be held liable or
responsible for any damages or injuries
caused by improper use.
30. The Robot contains batteries that are only
replaceable by skilled persons. To replace
the Robot’s battery, please contact Customer
Service.
31. If the Robot will not be used for a long time,
power OFF the Robot for storage and un-

5EN
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household waste
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
recycle your used device, please use the return and
collection systems or contact the retailer where the
product was purchased. They can safely recycle this
product.
The remote surveillance is for the absolute private
use of non-public, private owned places for the pure
self-protection and single control intended only.
Please be aware of the local data protection based
legal obligations in case of use. No surveillance of
public places, especially with clandestine intent
and/or on the part of the employer without justied
reasons. Such not justified use is in the risk and
responsibility of the user only.
For EU Countries
For UK
For EU Declaration of Conformity information, visit
https://service.yeedi.com/pages/user-manuals.
For UK Declaration of Conformity information, visit
https://service.yeedi.com/pages/user-manuals.
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
Read all instructions before using
(this appliance)
Time-lag miniature fuse-link

6
EN

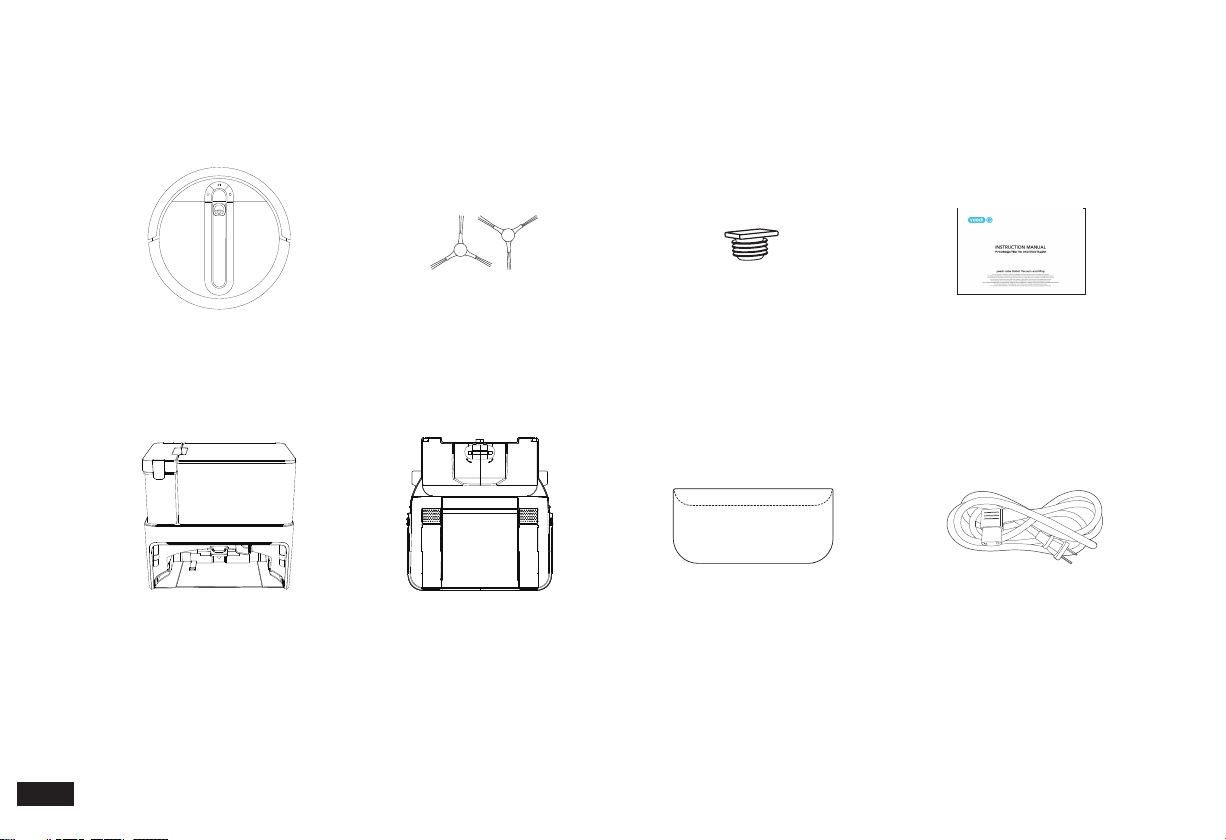

1. Package Contents/1.1 Package Contents
Robot
(Pre-installed with UFO Water Tank, Dustbin,
Multi-Surface Main Brush,Washable Filter and Easy-
to-Clean Mopping Pad)
Cube Station
(Pre-installed with Dirty Water Tank and Dust Bag)
Detachable Base Station Extension Pad Power Cord
Instruction Manual
Note:
1. All gures and illustrations are for reference only and may present differences in appearance from the actual product.
2. The “Edge Brushes”, ”Water Tank Plug” , “Detachable Base” ,”Station Extension Pad” and “Power Cord” need to be installed by the user prior to use.
3. Accessories from different countries shall be subject to the actual product conguration at the time of purchase, and the patterns are for reference only.
Edge Brushes Water Tank Plug

7EN
1. Package Contents/1.2 Product Diagram
Robot Top View Robot Side View
Robot Bottom View
Vision and Laser
Fusion Navigation
System
Water Tank Lock Pick-up Handle
Charging Contacts
Edge Brushes
Universal Wheel
Ultrasonic Carpet
Detection Sensor
Multi-Surface Main
Brush
Multi-Surface Main
Brush Release Buttons
Driving Wheels
Water Outlet
Anti-Drop Sensors
Dust Disposal Port
Dustbin Release Button
1L UFO Water
Tank
Power Switch
"I"=ON,
"O"=OFF.
Edge Detection
Sensors
Dustbin
Note:
Make sure that the Water Tank Lock is securely locked before lifting the Robot.
CLEAN Button
(Auto Clean Button)
HOME Button
(Return to Station Button)
SPOT Button
(Spot Cleaning
Button)
Floor Tracking
Sensor

8
EN
UFO Water Tank Cube Station
Dustbin
Dirty Water Tank
Dustbin Cover
Dust Bag
Built-in Electric Scrubber
Detachable Base
Filter
Pick-up Handle
Filter Net
Sponge Filter
High-Efciency Filter
Water Tank LockWater Inlet
Water Tank Plug
1. Package Contents/1.2 Product Diagram
Note:
1. The Detachable Base needs to be installed by the user before use.
2. Lift the mop Built-in Electric Scrubber before installation and put it
down after installation. Otherwise, the Robot's operations will be
affected.
3. The Filter is removable and needs to be cleaned regularly.
Note:
Keep the Water Tank Plug properly. Each time, after you have lled it,
cover the Plug before installing the UFO Water Tank in the Robot.

9EN

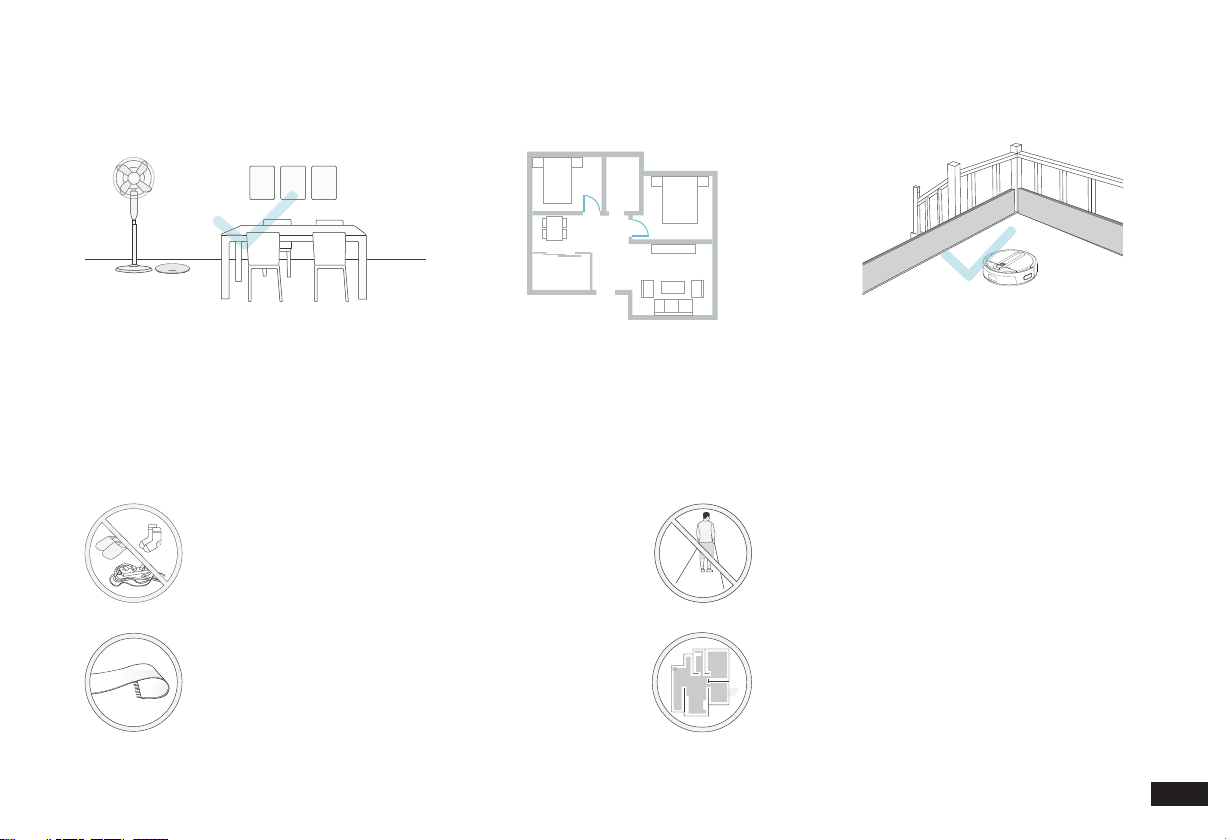

2. Mapping and Cleaning/2.1 Notes before Cleaning
Tidy up the area to be cleaned
Put furniture, such as chairs and  oor fans, in
their proper place. Put away low items such
as scales to ensure the maximum cleaning
space.
Open the door to help the Robot explore
During the  rst use, make sure each room door
is open to help the Robot fully explore your
house.
Stop the Robot from falling
It may be necessary to place a physical
barrier at the edge of a drop to stop the
Robot from falling over it.
Put away objects such as wires, cloths, or slippers
that may be on the  oor to improve the mapping
and cleaning ef ciency.
Before using the Robot on a rug with tasseled
edges, please fold the edges under the rug.
Note: Do not use the mopping function on the
carpet.
Please do not stand in narrow spaces such as
hallways so as to avoid preventing the Robot from
identifying the area to be cleaned.
Please make sure that the Robot has created
a home map in the yeedi App before it starts
cleaning.

10
EN
Please remove all protection materials on the Robot before use.
Install Edge Brushes
Remove all protection materials Lift the Scrubber and install the Detachable Base.
Reset the Scrubber once it has been successfully installed.
Make sure the color of the Edge Brushes is consistent with that of
mounting slot. The "click" sound indicates a successful connection.
Step 1: Lift the Scrubber and a "click" sound will be heard;
Step 2: Push the Detachable Base into the Station on a at surface.
The "click" sound indicates a successful connection.
2. Mapping and Cleaning/2.2 Notes before Using
2
1 3
4
1
2
Note:
The Robot experience may be affected if protection materials are not
removed.
Note:
The Robot experience may be affected if the Scrubber is not lowered in
time after installing the "Detachable Base".
Lower the Scrubber to nish installation.

11 EN
Put the Cube Station in place and connect it to the power
supply. Install the Station Extension Pad.
Remove the UFO Water Tank.
Step 1: Place the Cube Station against the wall in a large space and
do not place items within a radius of about 0.5 m or 1.5 m in front
of it.
Step 2: Align the dashed line with the edge of the base, with the
rough side facing up, and place it under the base. After putting it
in place,peel off the transparent tape from the smooth bottom and
stick the extension pad onto the hard, non-carpeted oor.
Step 1: Hold the handle on the Water Tank with one hand and slide
down the lock with your thumb to lift the Tank upward.
Step 2: Fill the Tank with clean water and put it back into the Robot
after installing the Plug.
2. Mapping and Cleaning/2.2 Notes before Using
5 6
Note:
1. Cover an area of at least 5 cm height from the bottom of any
reective objects such as mirrors.
2. Do not place the Cube Station in direct sunlight.
3. Periodically wipe off any accumulated water on the Extension Pad
to maintain its anti-slip effect.
4. Please do not move it frequently to avoid affecting the xation of
the extension pad.
>0.5m(1.64’)>0.5m(1.64’)
>1.5m(4.92’)
Note:
1. Please make sure the Tank Plug is installed.
2. To prolong the service life of the Water Tank, it is recommended to
use puried water or softened water.
3. Do not add any cleaning solution from any other brands; excessive
solution could cause the Robot to slip or be damaged.
4. Keep the UFO Water Tank Plug properly.
5. Do not put any foreign objects in the Tank.
facing
upwards
Clean Water

12
EN
Turn on the power switch, put the Robot near the Cube
Station and press the HOME Button. The Robot will
automatically return to the Station to charge.
Download the yeedi App to experience more functions:
7
Note:
1. "I"=ON, "O"=OFF
2. The Robot cannot be charged when being powered OFF.
3. When the Robot completes the cleaning or when the battery gets
low, it automatically returns to the Cube Station to recharge.
4. Please make sure that the Robot starts cleaning from the Station.
Do not move the Station while it is cleaning.
2. Mapping and Cleaning/2.3 yeedi
App
After downloading, please complete registration, login, and
the network setup according to the guide in the mobile App
page .
Method 1: Open "Scan" in your mobile phone to scan the QR code on the
Robot, download and install the yeedi App according to the
prompts.
Method 2:
Open the mobile App store, search "yeedi", download and
install the yeedi App.
iOS Android
yeedi
Lower side of the UFO
Water Tank
2. Mapping and Cleaning/2.2 Notes
before Using
①
Turn on the power
switch.
②
The Robot will
automatically return to
Station to charge by
pressing the HOME
Button.
③
It will charge for about 6.5 hours until fully
charged.
1
2

13 EN
2. Mapping and Cleaning/2.4 Connect the Robot to the Mobile Phone
Network setup steps:
1. Please turn on your mobile phone Bluetooth and Wi-Fi;
2. Make sure that yeedi cube Robot Vacuum and Mop is on;
3. Open the yeedi App;
4.
Scan the QR code on the Robot using the yeedi App, complete
"Conrm access to the setup mode", "conrm the device and
Wi-Fi to be connected", and "enter the Wi-Fi password"
respectively according to the prompts in the App, and then wait
for the setup result;
5. If the network setup fails, it is recommended that you try again
according to the above steps, or choose other network setup
methods according to the prompts in the App.
Note:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting section in this manual.
Slowly ashing white light
Disconnected from Wi-Fi
or waiting for home Wi-Fi
connection
Rapidly ashing white light Connecting to home Wi-Fi
Solid white Connected to home Wi-Fi

14
EN
2Function of the SPOT Button (Spot Cleaning Button)
2. Mapping and Cleaning/2.5 Robot Operation Buttons
1Function of the CLEAN Button (Auto Clean Button)
• Please ensure that the Robot is on the Cube Station and is fully
charged before starting.
• Press the CLEAN Button to start the rst mapping and Auto Clean.
• When the Robot is working, press the CLEAN Button to stop
cleaning and press again to continue.
• Press and hold for 2 seconds to end the current cleaning task.
• Please place the Robot in the area to be cleaned before starting.
• Press the SPOT Button to start the Spot Cleaning task, which
will focus on the 1.5*1.5 meters area centered on the Robot (the
Cleaning Settings can be modied in the App).
• When the Robot is working, press the SPOT Button to pause
cleaning and press again to continue.
• Move the Robot to end the current Spot Cleaning and start the
next one by pressing the SPOT Mode Button again.

15 EN
+
+
3Function of the HOME Button (Return to Station Button)
2. Mapping and Cleaning/2.5 Robot Operation Buttons
• When the Robot is outside the Cube Station, press the HOME Button
to return.
• Press the HOME Button to pause the returning; and press again to
continue.
4Button combination for network setup of the Wi-Fi Model 6ON and OFF Button
5Button combination for restoring default setting
• Press the SPOT and HOME Buttons at the same time for 2 seconds.
When you hear the prompt tone, the Robot enters the network setup
mode.
• If you are not going to use the Robot for a long time, turn the power
switch to "o" to shut it down.
• Press the SPOT and HOME Buttons at the same time for 5 seconds.
When the startup music sounds, the Robot has successfully restored
default setting.
Note:
1. Do not turn the Robot off and keep it in charging state after working
completed so as to facilitate control by the App and all forthcoming
work.
2.
If you are not going to use the Robot for a long time, please charge it
every three months.
Note:
Use this button combination with caution as all of the Robot's usage data
will be deleted after the default setting has been restored.
2 seconds
5 seconds

16
EN
2. Mapping and Cleaning/2.6 Instructions for Robot and Station
Indicator Lights
CLEAN Indicator Light
Ambient Light of the
Station
HOME Indicator Light
SPOT Indicator Light
Indicator Light Display Status Robot Status
CLEAN
Indicator Light
The light blue
light is solid on Have a cleaning task
The red light is
solid on
Low power/power off
charging
The red light
ashes Robot alarm status
The white light is
solid on
Standby/network setup
succeeded/Base Station
docking successful
The white light is
ashing
Charging/Start up/Robot
loading/Firmware update
HOME Indicator
Light
The white light is
solid on Return to Station
SPOT Indicator
Light
The light blue
light is solid on Spot Cleaning
Ambient Light
of the Station
The light blue
light is solid on Working/Charging
The left red light
is solid on
Dirty water bucket out of
place/full of water
The right red light
is solid on Dust Bag out of place
Robot lighting effect
1
Cube Station lighting effect
2

17 EN
3. Maintenance/3.1 Regular Maintenance
To keep the Robot cleaning at peak performance, perform maintenance tasks and replace parts with the following frequencies:
Note:
yeedi manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Parts Maintenance Frequency Replacement Frequency
Easy-to-Clean Mopping Pad / Every 3-6 months
Edge Brushes Once every 2 weeks Every 3-6 months
Multi-Surface Main Brush Once per week Every 6-12 months
Washable Filter Once per week Every 3-6 months
Edge Detection Sensors
Vision and Laser Fusion Navigation System
Universal Wheel
Anti-Drop Sensors
Robot Charging Contacts
Station Charging Contacts Pins
Once per week /
Detachable Base and Filter Once every 2 weeks /
Dirty Water Tank After each mopping /

18
EN
3. Maintenance/3.2 Dustbin and Washable Filter
1Press the Dustbin Release Button to remove the Dustbin 3
Open the Filter Net, remove the ne Washable Filter and the
High-Efciency Filter Assembly
2
Press the Dustbin Cover Release Button to empty the
Dustbin
4
Clean the dust on both sides of the Filter Net with the Multi-
Function Cleaning Tool
PUSH

19 EN
3. Maintenance/3.2 Dustbin and
Washable Filter
1
2
Wipe Vision and Laser Fusion Navigation System
Wipe Edge Detection Sensors
Please wipe with a clean soft cloth, and do not use detergent.
Note: Please avoid direct sunlight and exposure to high
temperatures.
3. Maintenance/3.3 Vision and
Laser Fusion Navigation System
and Edge Detection Sensors
5
Wash High-Efficiency Filter Assembly, Sponge Filter and
Dustbin with water
6
Air-dry High-Efficiency Filter Assembly, Sponge Filter and
Dustbin

20
EN
2Wipe Robot Charging Contacts
Wipe Anti-Drop Sensors
1Wipe Station Charging Contacts Pins
3
Note:
1. Sensitive electronic components are contained in the Charging
Contacts. Please use dry cloth when cleaning. Do not use wet cloth
to prevent damage.
2. Before cleaning the Robot Charging Contacts and Station Charging
Contacts Pins, turn the Robot OFF and unplug the Cube Station.
3. Maintenance/3.4 Anti-Drop Sensors and Charging Contacts Pins
Please wipe with a clean soft cloth, and do not use detergent.
