yeedi vac 2
INSTRUCTION MANUAL
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
MANUALE D'ISTRUZIONI

2
EN
1. Package Contents.............................................................................................................................................................7
2. Operating and Programming..........................................................................................................................................10
3. Maintenance ....................................................................................................................................................................15
4. Indicator Light..................................................................................................................................................................20
5. Troubleshooting...............................................................................................................................................................21
6. Product Specifications....................................................................................................................................................25
Contents

3EN
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without
supervision.(For European Union countries)
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug
fringe under the rug base, and lift items such
as curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area
due to a step or stairs, you should operate
the Appliance to ensure that it can detect
the step without falling over the edge. It
may become necessary to place a physical
barrier at the edge to keep the unit from
falling. Make sure the physical barrier is not
a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Docking Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and Docking Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
For battery information, please refer to
Specifications section.
IMPORTANT SAFETY INSTRUCTIONS
FOR HOUSEHOLD USE ONLY
When using an electrical Appliance, basic precautions should
always be followed, including the following:
WARNING: READ ALL SAFETY WARNINGS
AND INSTRUCTIONS. FAILURE TO FOLLOW
THE WARNINGS AND INSTRUCTIONS MAY
RESULT IN ELECTRIC SHOCK, FIRE OR
SERIOUS INJURY.
READ ALL INSTRUCTIONS BEFORE USING
THIS APPLIANCE
SAVE THESE INSTRUCTIONS

4
EN
8. Do not use without dust bin and/or filters in
place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything
that is burning or smoking, such as
cigarettes, matches, hot ashes, or anything
that could cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Docking
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Docking Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or
Docking Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.

5EN
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Docking Station.
24. Remove the Appliance from the Docking
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations
before disposal of the Appliance.
26. Please dispose of used batteries according
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a fire.
28. When not using the Docking Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
The manufacturer cannot be held liable or
responsible for any damages or injuries
caused by improper use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Docking Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1822 provided with the Appliance, or
CH1918 sold separately as an accessory.
33. This Appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision or
instruction concerning use of the Appliance
by a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the Appliance. (For
Non-European Union countries)

6
EN

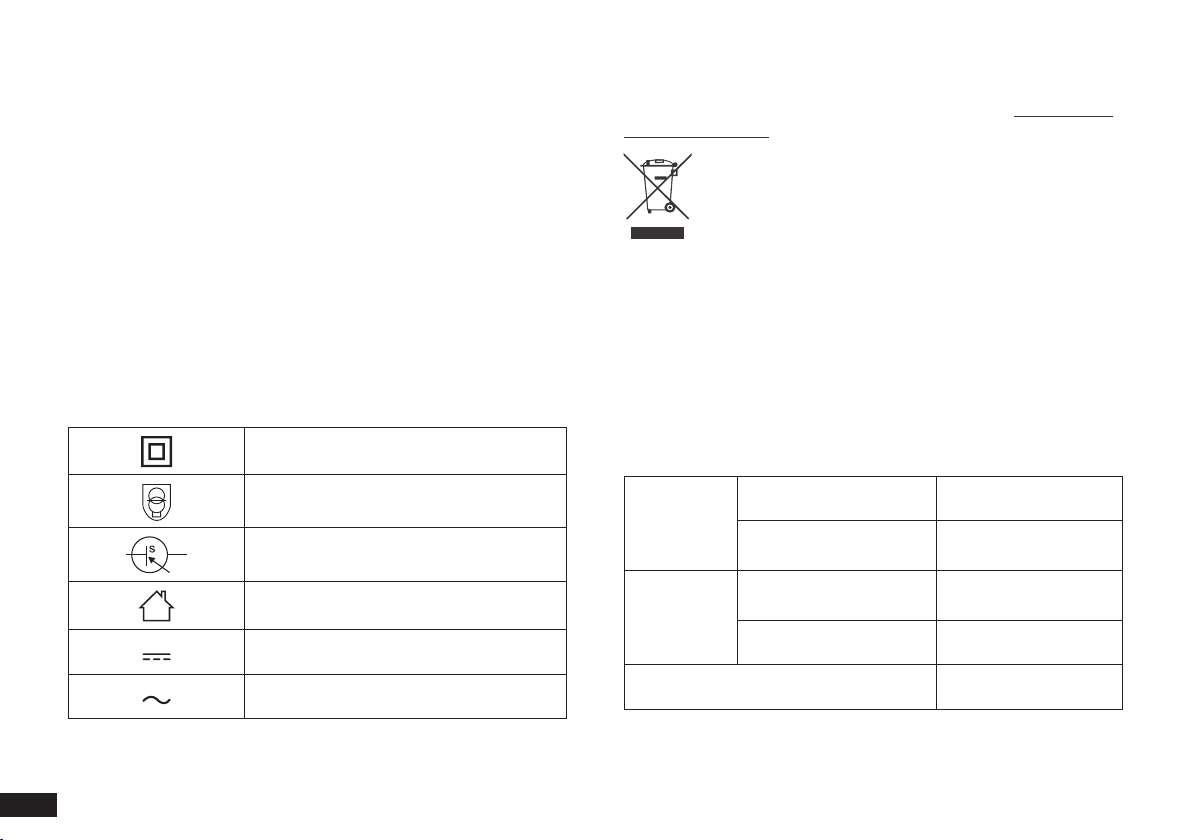

Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
To satisfy RF exposure requirements, a separation distance of
20 cm or more should be maintained between this device and
persons during device operation.
To ensure compliance, operations at closer than this distance
is not recommended. The antenna used for this transmitter
must not be co-located in conjunction with any other antenna
or transmitter.
To disable Wi-Fi module on Robot, powerthe robot ON.
Place the robot on the Docking Station making sure the
Charging Contacts on Robot and the Docking Station Pins
make a connection.
Press and hold the AUTO Mode Button on the robot for 20
seconds until Robot emits 3 beeps.
To enable Wi-Fi module on Robot, power the robot OFF and
then power ON. The Wi- Fi module is turned on when Robot
is restarted.
Correct Disposal of this Product
This marking indicates that this product should not be disposed
of with other household waste throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To recycle your used
device, please use the return and collection systems or contact
the retailer where the product was purchased. They can safely
recycle this product.
For EU Countries
For EU Declaration of Conformity information, visit https://www.
yeedi.com/support
Working
Temperature -5-40℃
Humidity 5%-95%
Storage
Temperature -5-40℃
Humidity 5%-95%
Service Life 5 years

7EN
Robot
Instruction Manual
Edge Brush
Docking Station

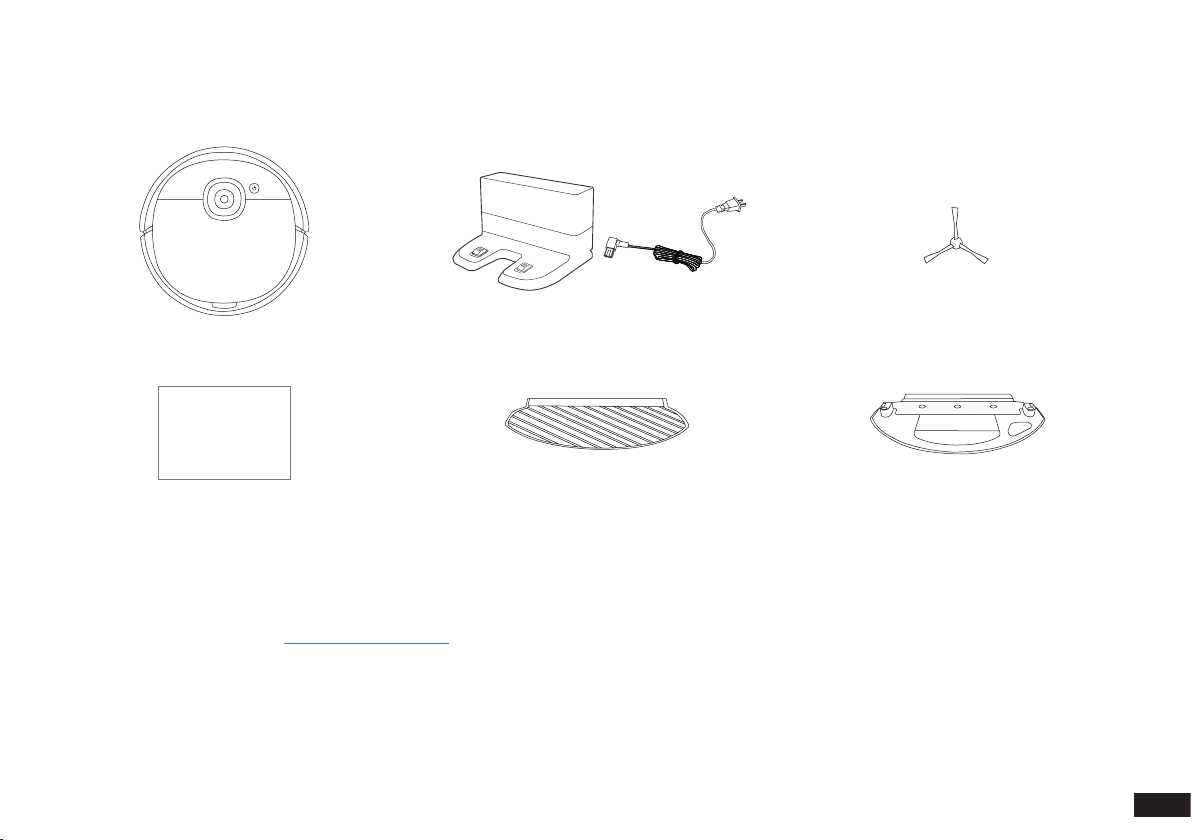

1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specifications are subject to changes without notice.
* Oscillating Mopping kit is sold separately .
Explore more accessories at https://www.yeedi.com.
Instruction Manual
Mopping Pad PlateWashable Mopping Pad

8
EN

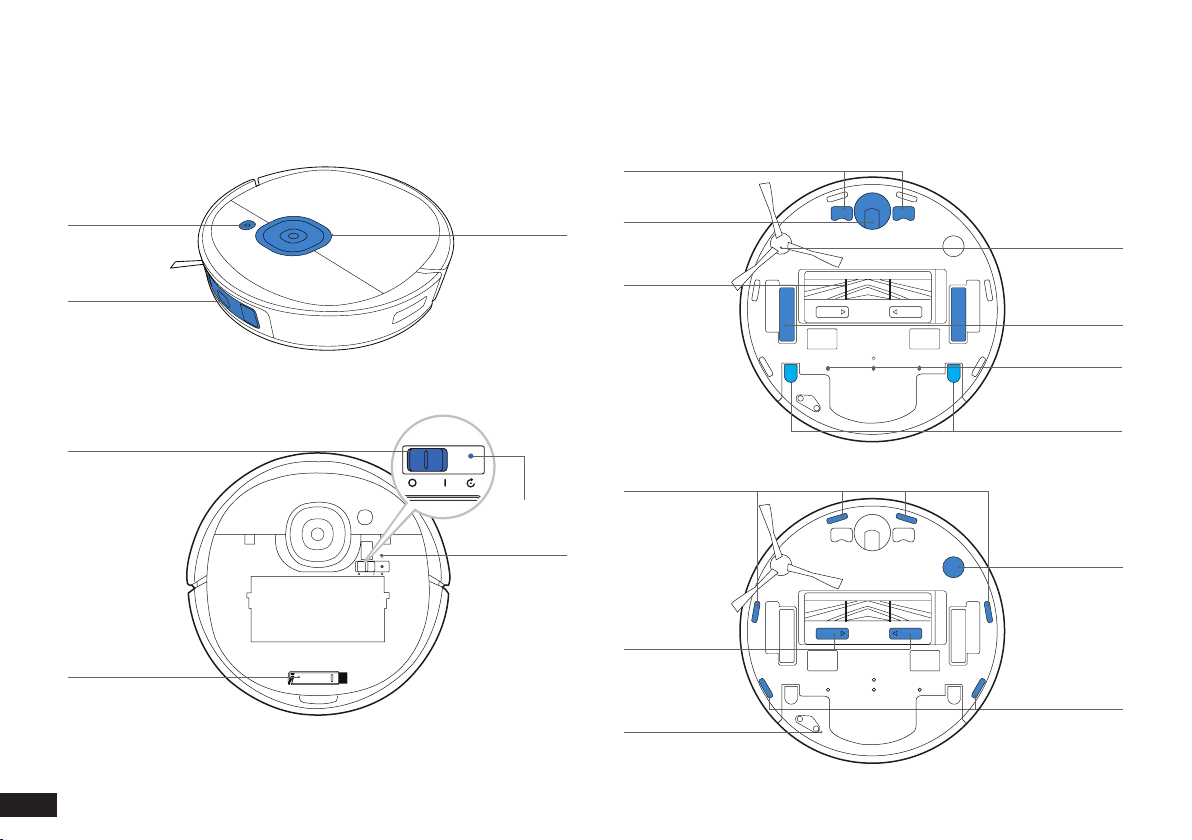

1. Package Contents/1.2 Product Diagram
3D-Detect Sensor
Multi-function
Cleaning Tool
Robot
Mapping Sensor
Bottom View
Power Switch
Wi-Fi Indicator
RESET Button
Mopping Pad
Plate Slot
AUTO Mode Button
Charging Contacts
Anti-drop Sensors
Reservoir
Main Brush
Release Button
Universal Wheel
Edge Brush
Anti-drop Sensors
Driving Wheels
Floor Tracking
Sensor
Main Brush
Water Outlet

9EN

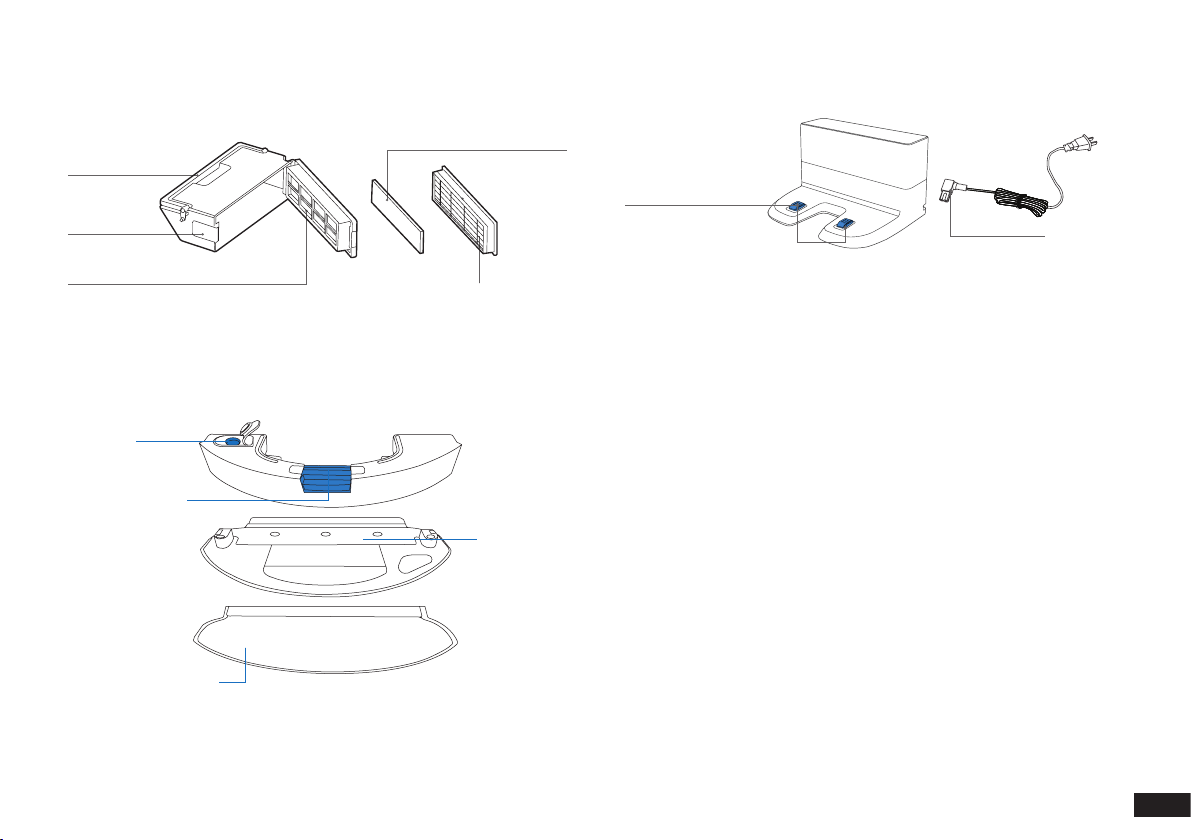

Docking Station
Dust Bin
Dust Bin Handle
Release Button
Filter Net
Sponge Filter
High Efficiency Filter
Docking Station Pins
Power Cord
Reservoir
Water Inlet
Mopping Pad
Plate
Reservoir Release
Button
Washable Mopping Pad

10
EN

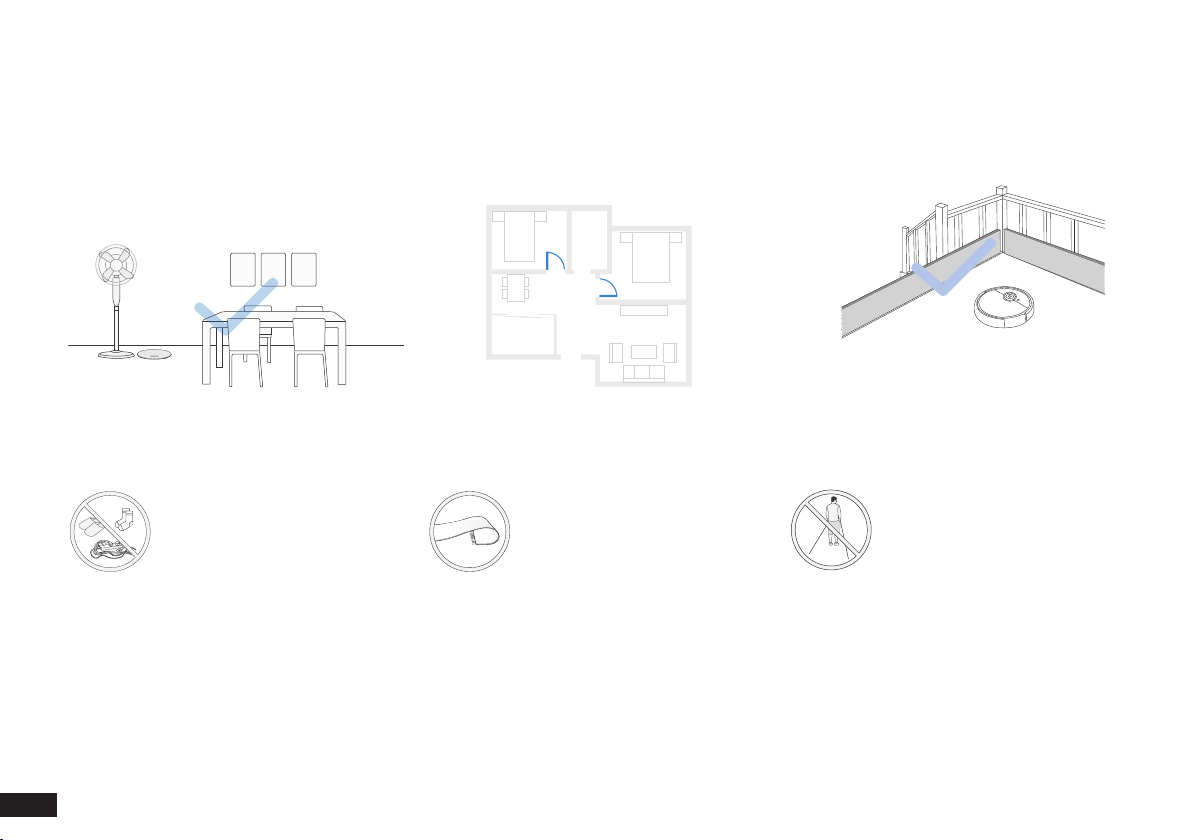

2. Operating and Programming/2.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door is
open to help Robot fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including wires,
cloths and slippers, etc. on the
oor to improve the cleaning
efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.

11 EN

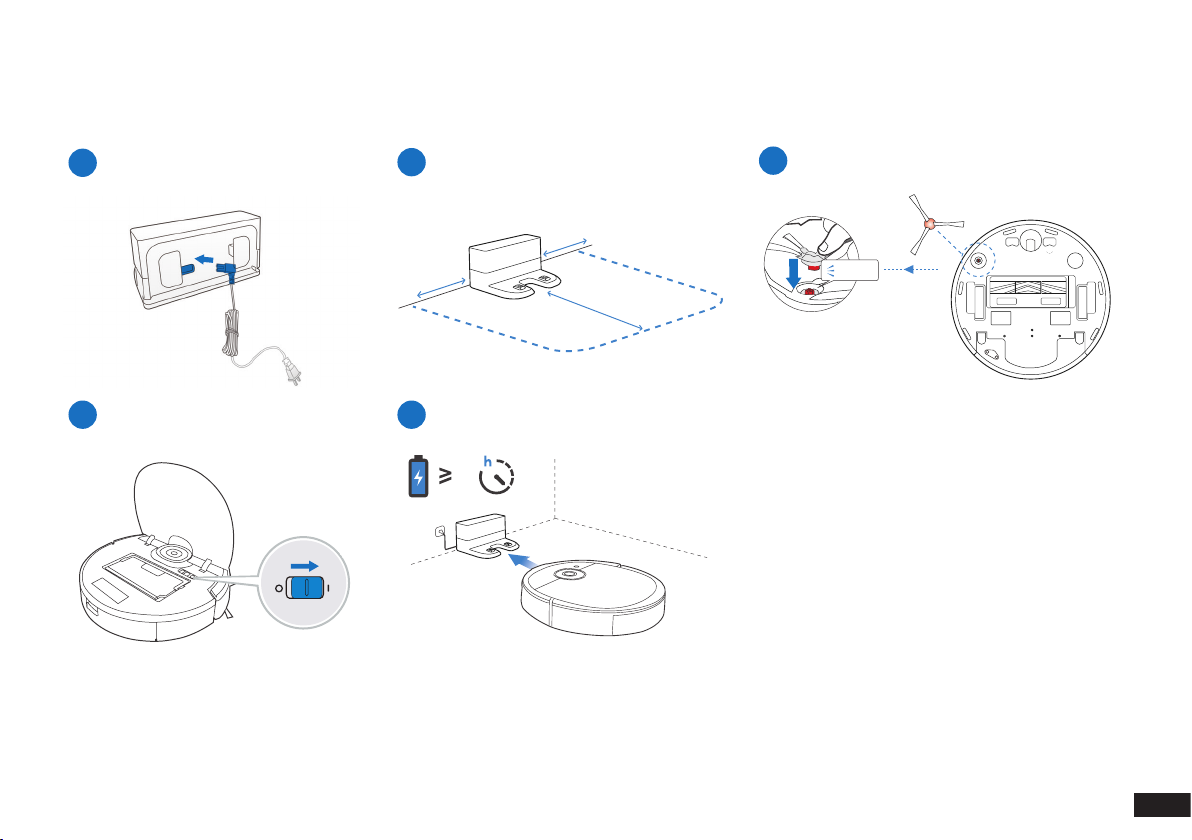

Please remove all protection materials on Robot and Docking Station before use.
1Assemble Docking Station 2Docking Station Placement 3Install Edge Brush
4Power ON 5Charge Robot
4
Note: When Robot completes the cleaning cycle or when the battery gets low, Robot automatically returns to the Docking Station to recharge itself.
Robot can also be sent back to the Docking Station at any time by using the yeedi App or by pressing the AUTO Button on the robot for 3 seconds.

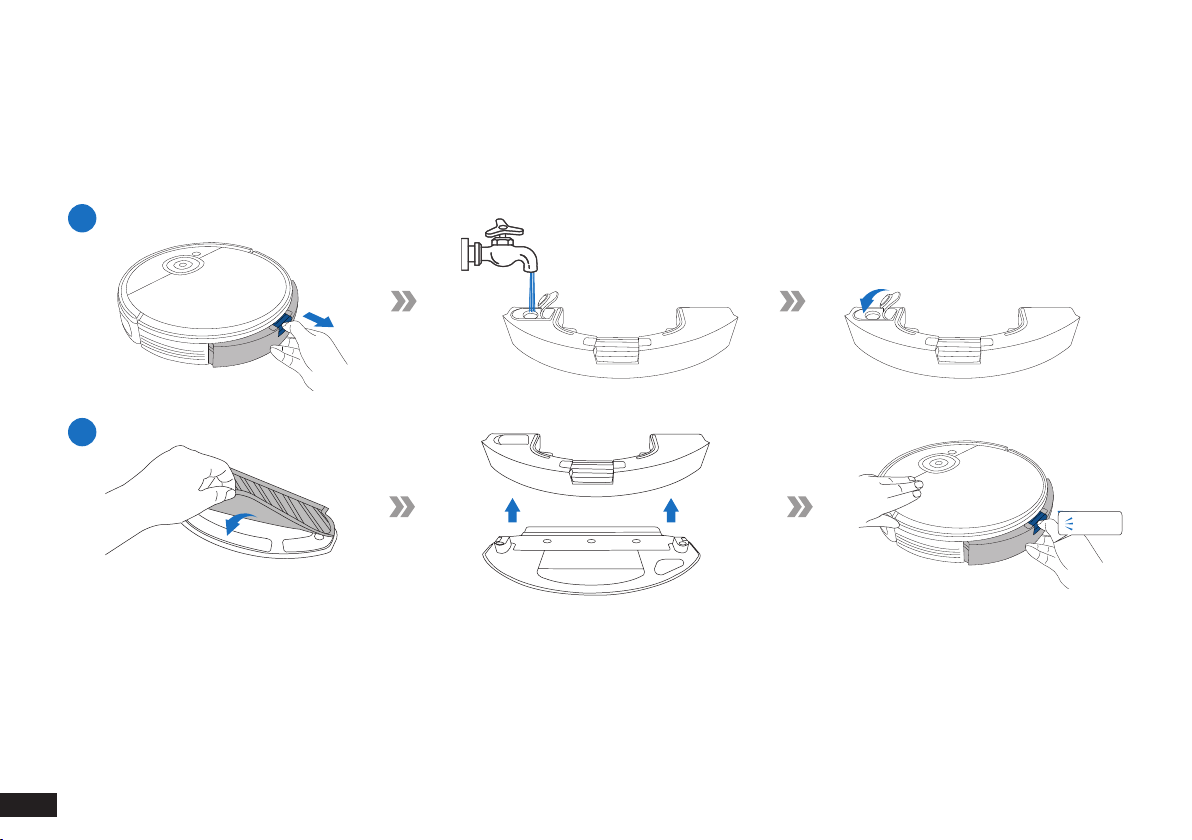

Empty remaining water from the Reservoir and remove the Mopping Pad Plate before charging Robot.
2. Operating and Programming/2.2 Preparation
Click
>0.5m (1.64')
>1.5m (4.92')
>0.5m (1.64')

12
EN

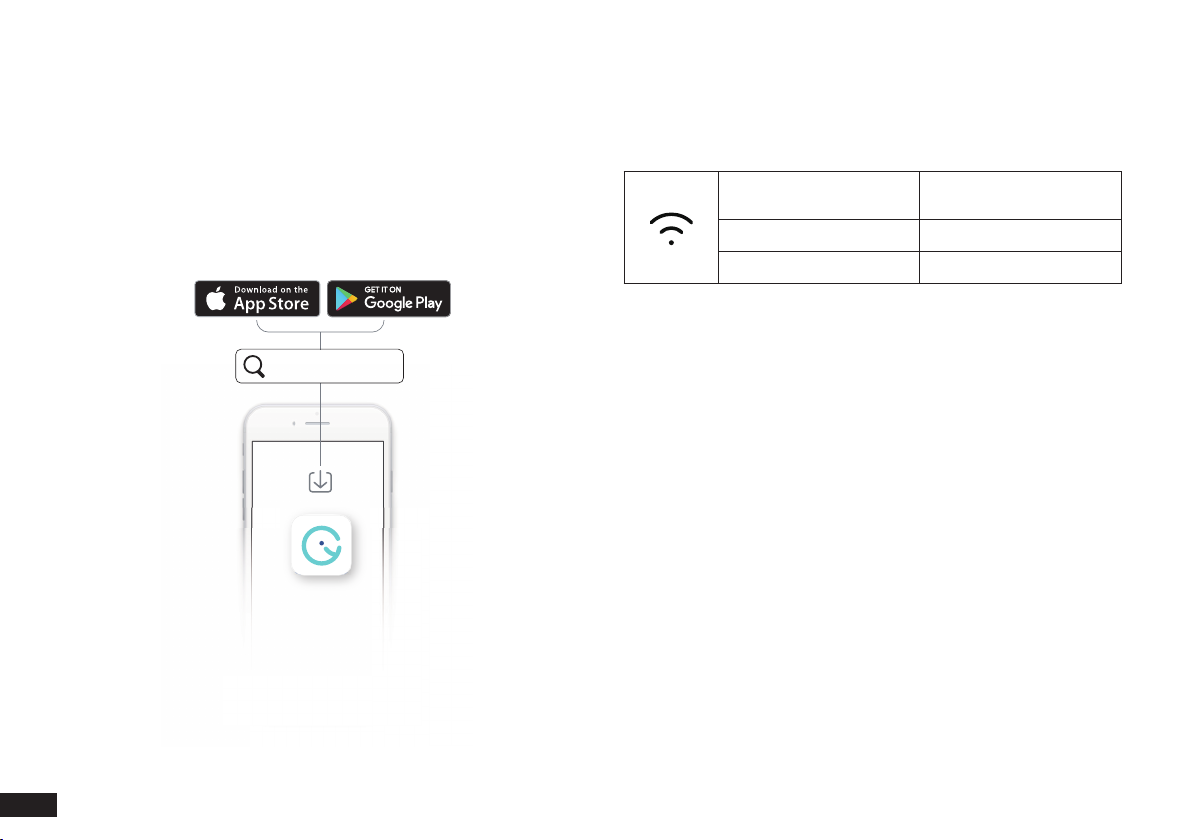

2. Operating and Programming/2.3 yeedi App
To enjoy all available features, it is recommended to control your Robot via the yeedi App.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly ashing.
Slowly flashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi

13 EN
2Pause
3Wake Up
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on Robot to
wake it up.
Press the AUTO button on Robot to wake it up
4Power OFF
Note: When Robot is not working, it is recommended to keep it
switched ON and charging.
2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off

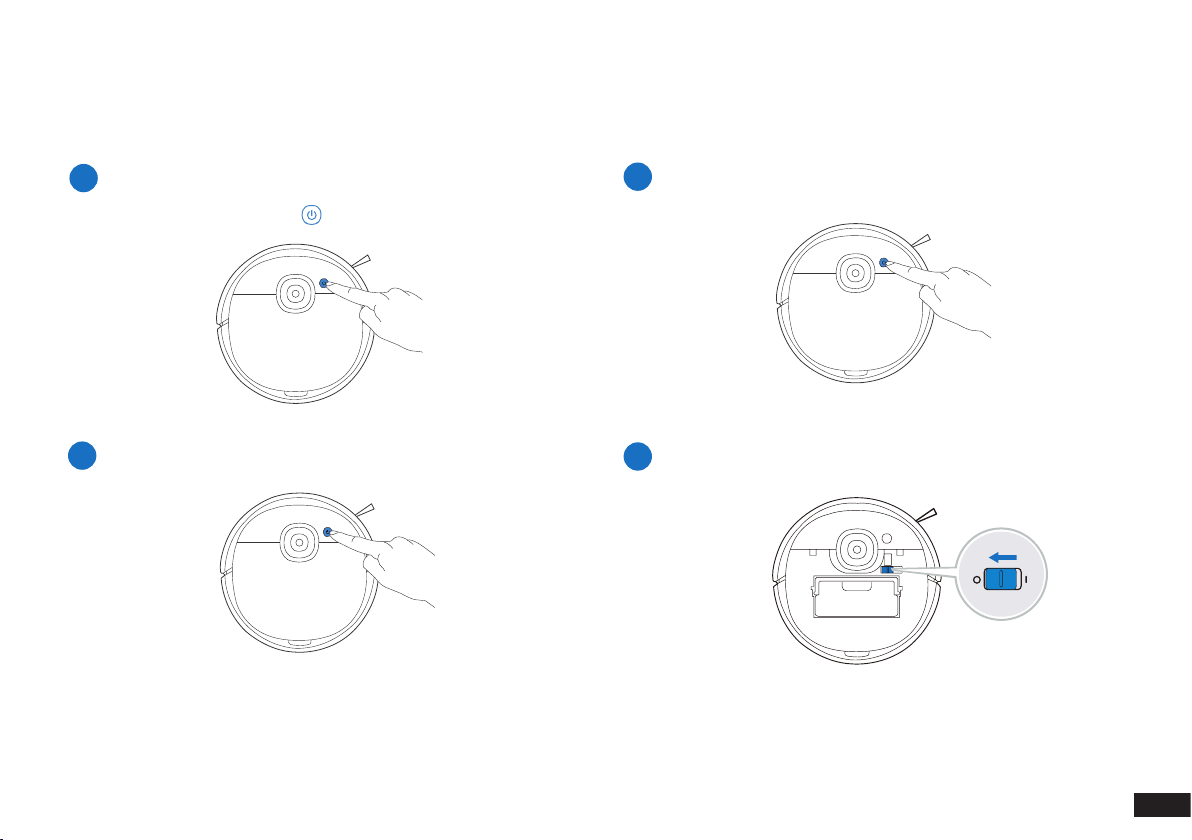

1Start
Press
During the first cleaning:
Please supervise Robot and assist it should there be a problem.

14
EN
1
2
Note:
1. To prolong the service life of the reservoir, it is recommended to use puried water or softened water for the mopping system.
2. If you need to clean the carpet, please uninstall the Mopping Pad Plate rst.
3. Empty the reservoir after Robot nishes mopping.
Click
2. Operating and Programming/2.5 Mopping System

15 EN

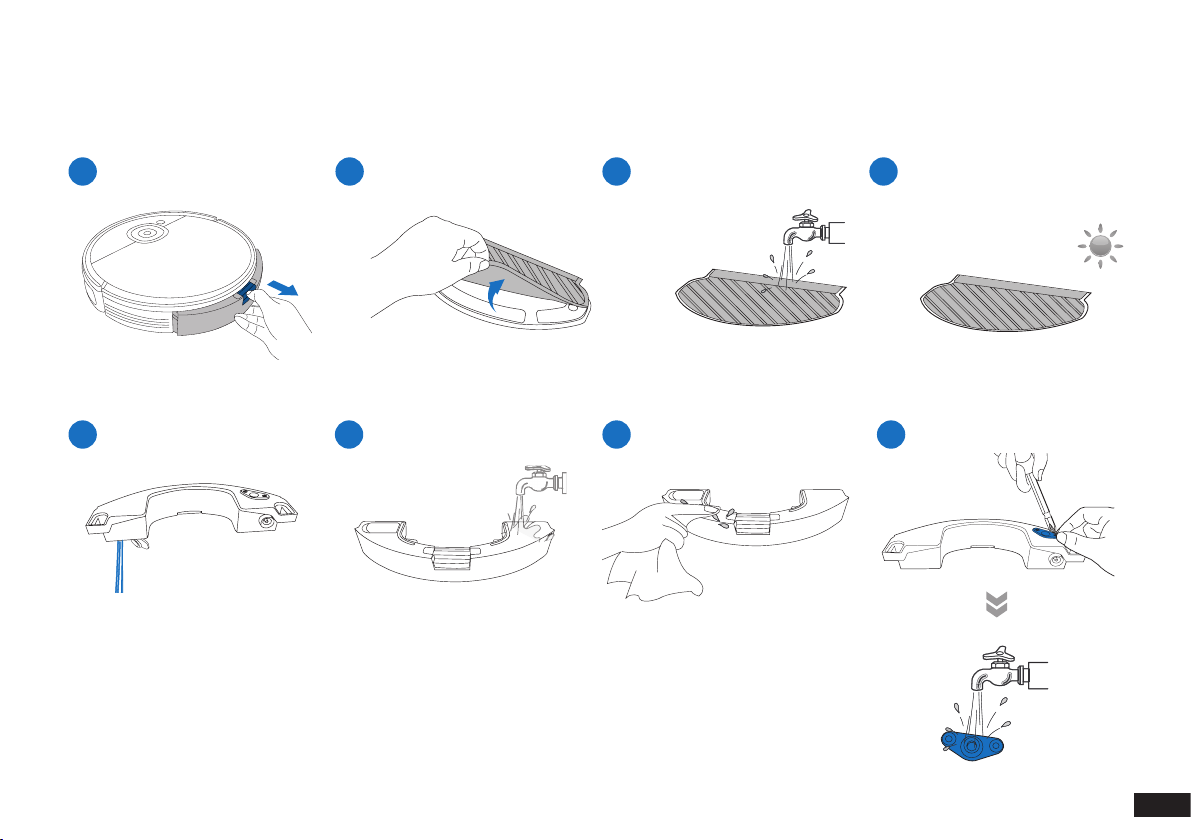

Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug the Docking Station.
3. Maintenance/3.1 Mopping System
1 42
5
3
7 86

16
EN

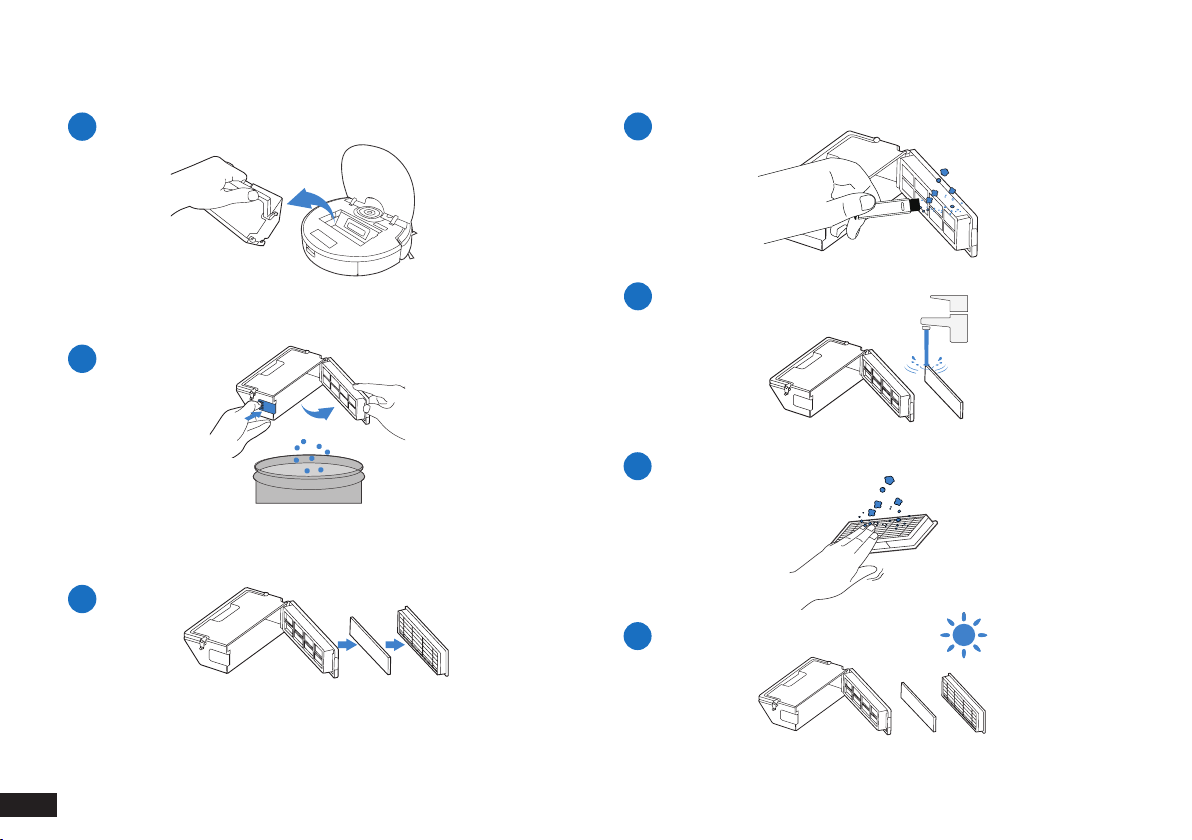

Note: 1. Please rinse the lter with water as shown above. 2. Do not use nger or brush to clean the lter.
3. Be sure to dry out the lter for at least 24 hours after washing.
3. Maintenance/3.2 Dust Bin and Filters
3
1
2
4
6
5
7

17 EN

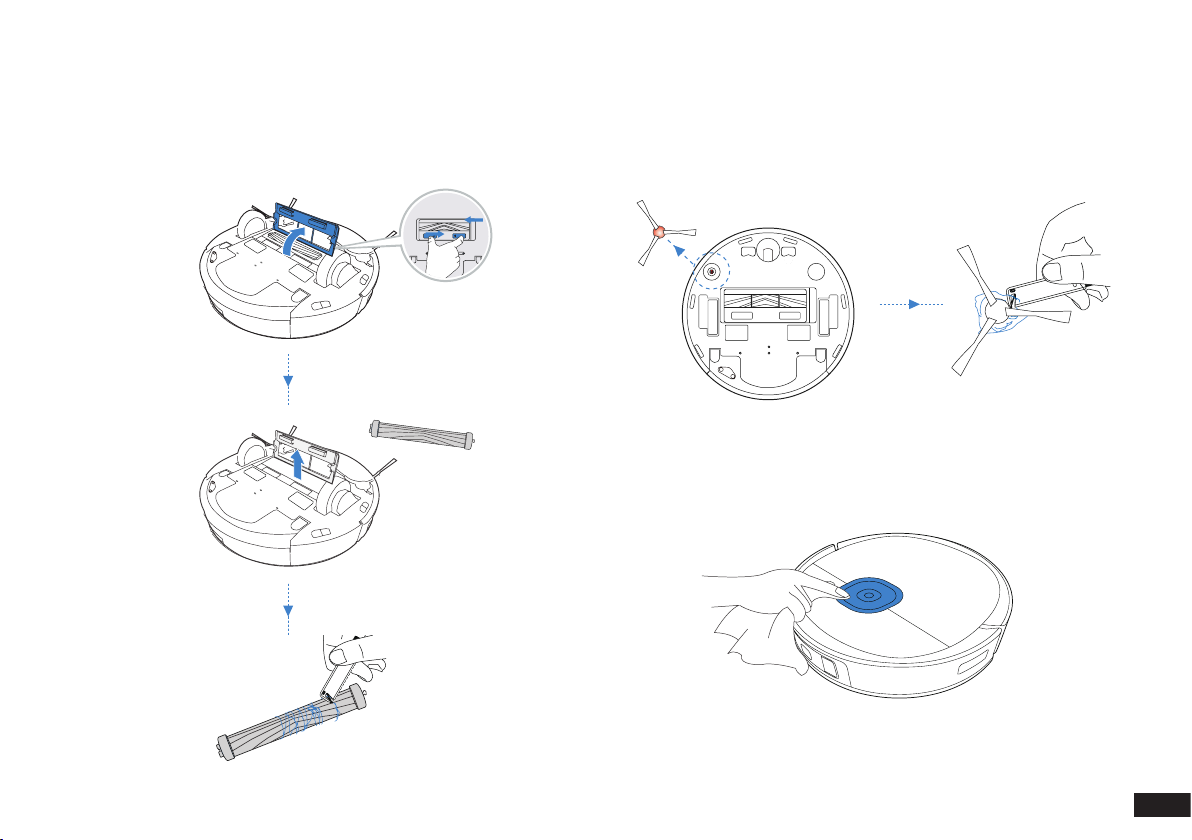

Main Brush Edge Brush
Mapping Sensor
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
3. Maintenance/3.3 Main Brush, Edge Brush and Mapping Sensor

18
EN

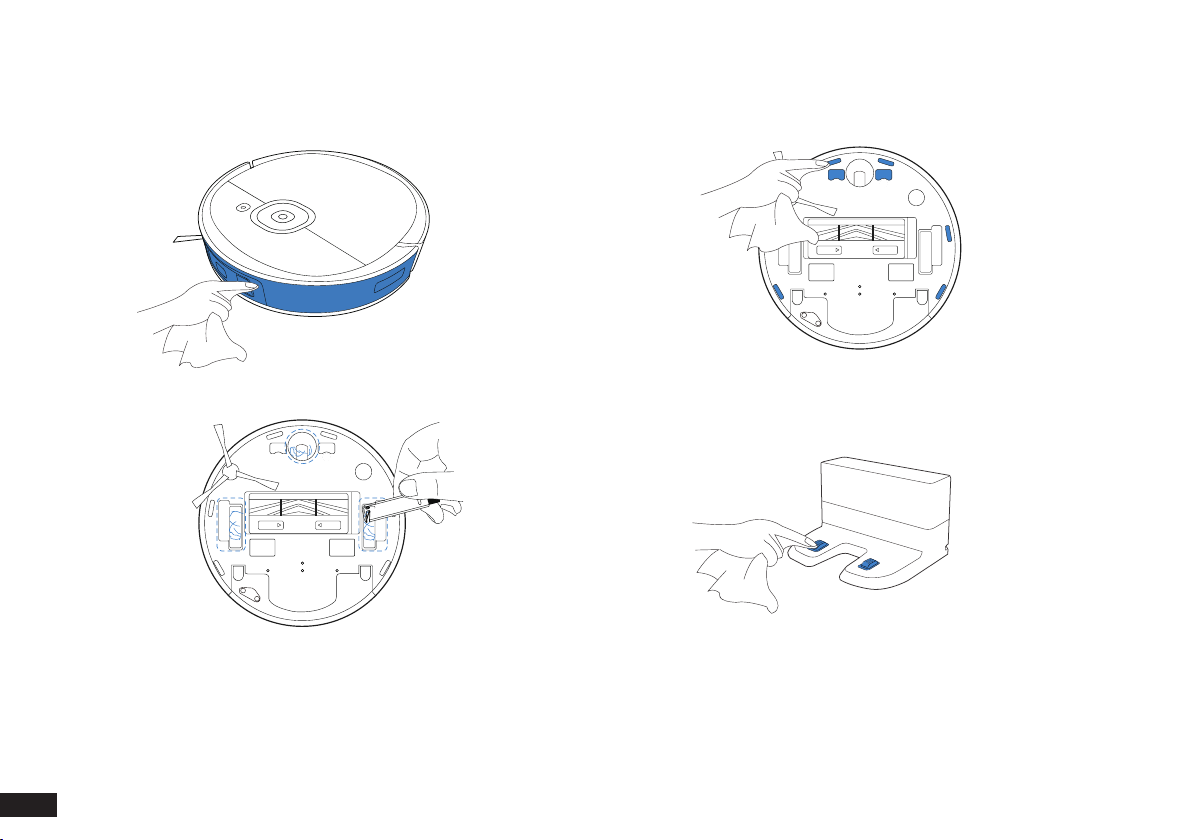

Note: Before cleaning the robot’s Charging Contacts and Docking Station Pins, turn the robot OFF and unplug the Docking Station.
3. Maintenance/3.4 Other Components

19 EN
To keep Robot running at peak performance, perform maintenance tasks and replace parts with the following frequencies:
A multi-function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
Note: yeedi manufactures various replacement parts and ttings. Please contact Customer Service for more information on replacement parts.
Robot Part Maintenance Frequency Replacement Frequency
Washable Mopping Pad After each use Every 50 washings
Reservoir/Mopping Pad Plate After each use /
Edge Brush Once every 2 weeks Every 3-6 months
Main Brush Once per week Every 6-12 months
Sponge Filter/High Efciency Filter Once per week Every 3-6 months
3D-Detect Sensor
Universal Wheel
Anti-Drop Sensors Bumper
Mapping Sensor
Charging Contacts
Docking Station Pins
Once per week /
3. Maintenance/3.5 Regular Maintenance
