yeedi yeedi vac 2 pro User manual

yeedi vac 2 pro
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
MANUALE D'ISTRUZIONI
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

7EN
Robot
Instruction Manual
Edge Brush
Docking Station

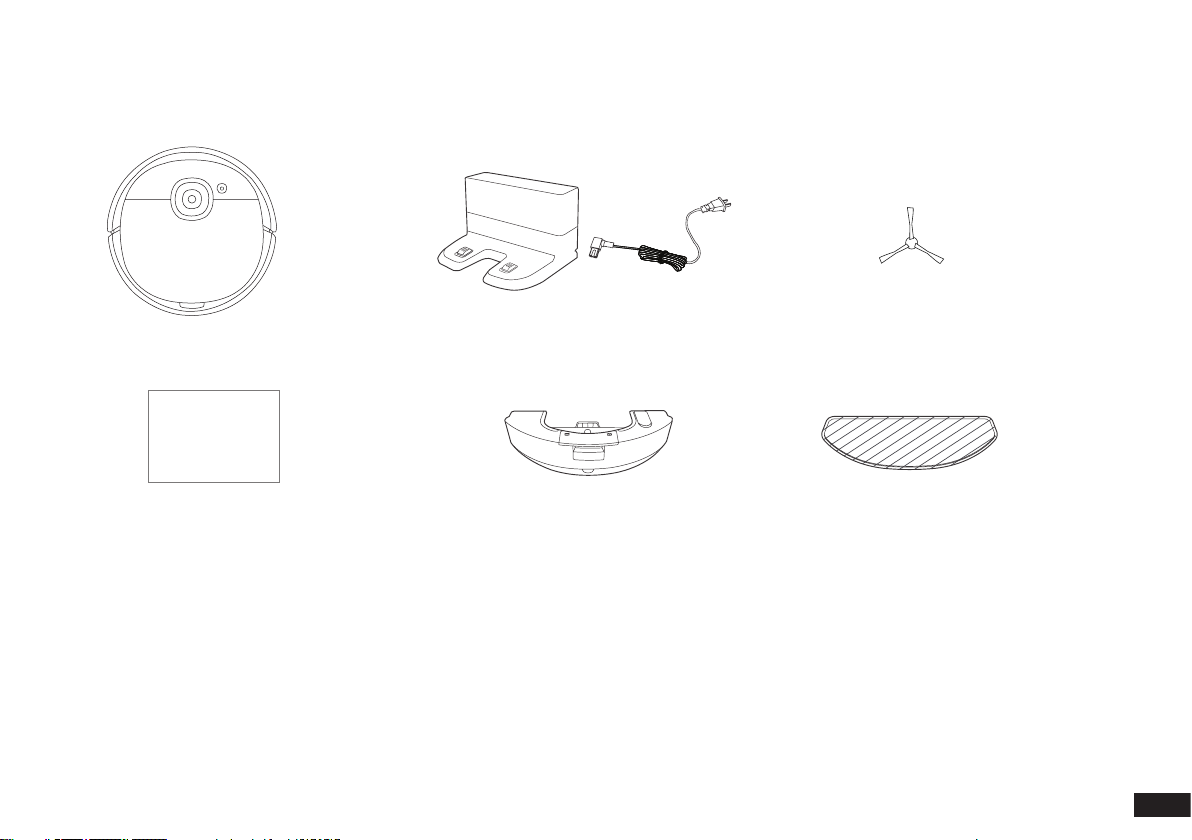

1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
Instruction Manual
Washable Mopping Pad(Oscillating Mopping)
(Pre-installed)
Oscillating Mopping

8
EN
1. Package Contents/1.2 Product Diagram
3D-Detect Sensor
Multi-function
Cleaning Tool
Robot
Mapping Sensor
Bottom View
Power Switch
Wi-Fi Indicator
RESET Button
AUTO Mode Button
Charging Contacts
Anti-drop Sensors
Substitute Module
(Pre-installed)
Main Brush
Release Button
Universal Wheel
Edge Brush
Carpet Detection
Sensor
Anti-drop Sensors
Driving Wheels
Main Brush
Water Outlet

9EN
Oscillating Mopping
Docking Station
Dust Bin
Dust Bin Handle
Release Button
Filter Net
Sponge Filter
High Efciency Filter
Reservoir
Washable Mopping
Pad(Oscillating
Mopping)
Water Inlet
Reservoir
Release Button
Docking Station Pins
Power Cord

10
EN

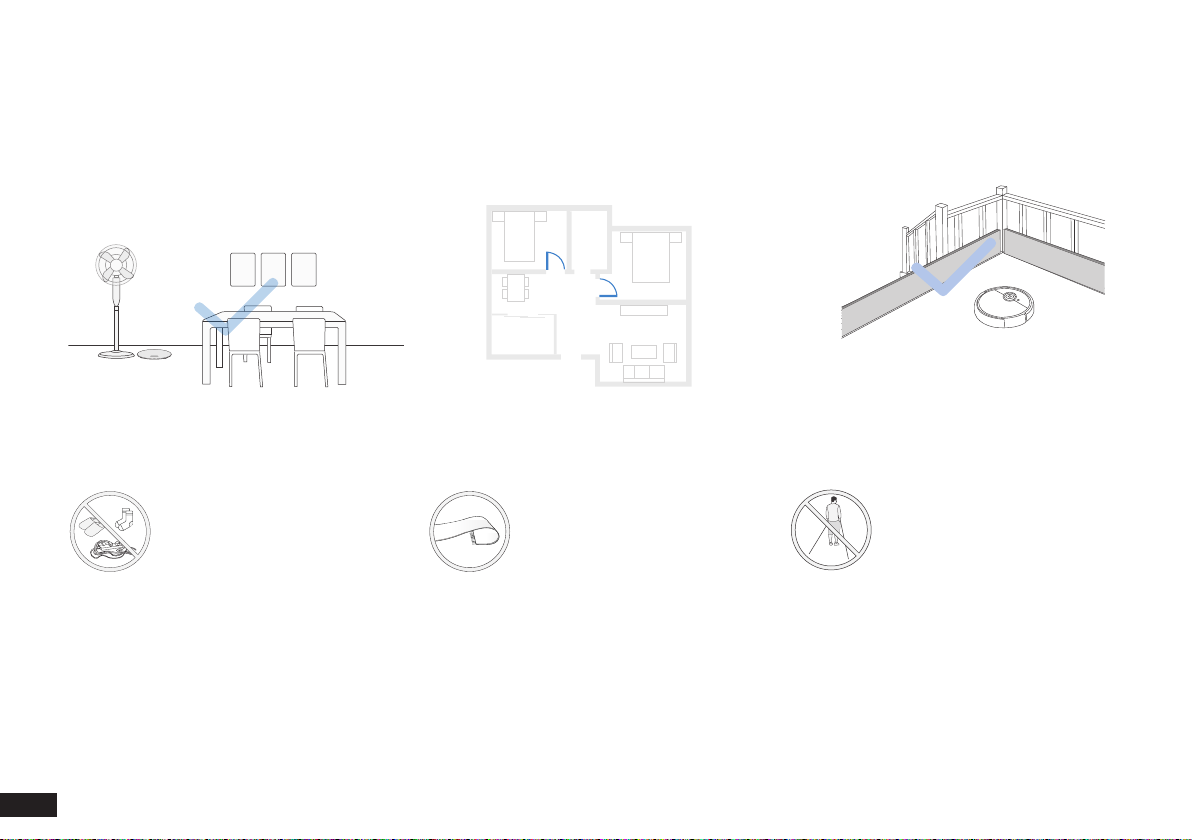

2. Operating and Programming/2.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door
is open to help Robot fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop
the unit from falling over the edge.
Put away objects including wires,
cloths and slippers, etc. on the
oor to improve the cleaning
efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.

11 EN
Please remove all protection materials on Robot and Docking Station before use.

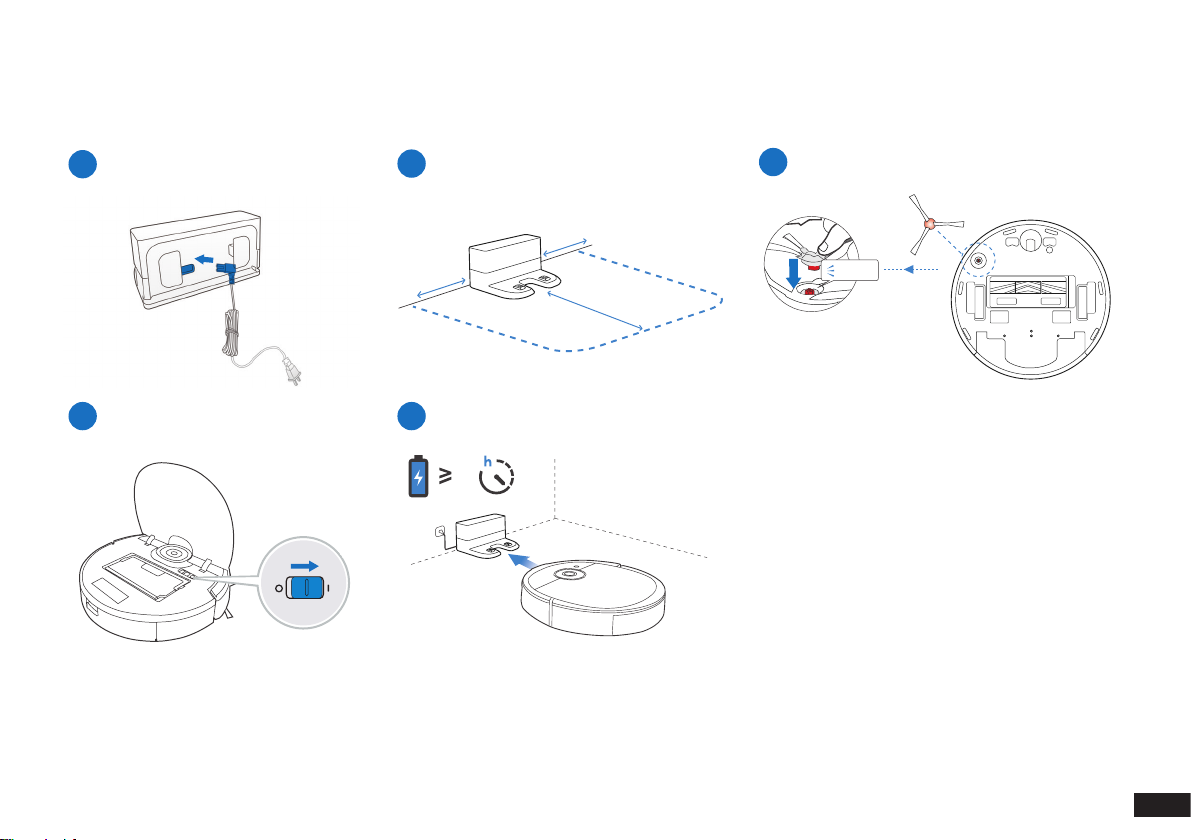

1Assemble Docking Station 2Docking Station Placement 3Install Edge Brush
4Power ON 5Charge Robot
Note: When Robot completes the cleaning cycle or when the battery gets low, Robot automatically returns to the Docking Station to recharge itself.
Robot can also be sent back to the Docking Station at any time by using the yeedi App or by pressing the AUTO Button on the robot for 3 seconds.
Empty remaining water from the Reservoir before charging Robot.
2. Operating and Programming/2.2 Preparation
Click
>0.5m (1.64')
>1.5m (4.92')
>0.5m (1.64')
6.5

12
EN
2. Operating and Programming/2.3 yeedi App
To enjoy all available features, it is recommended to control your Robot via the yeedi App.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly ashing.
Slowly ashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly ashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi

13 EN
2Pause
3Wake Up
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on Robot to
wake it up.
Press the AUTO button on Robot to wake it up
4Power OFF
Note: When Robot is not working, it is recommended to keep it
switched ON and charging.

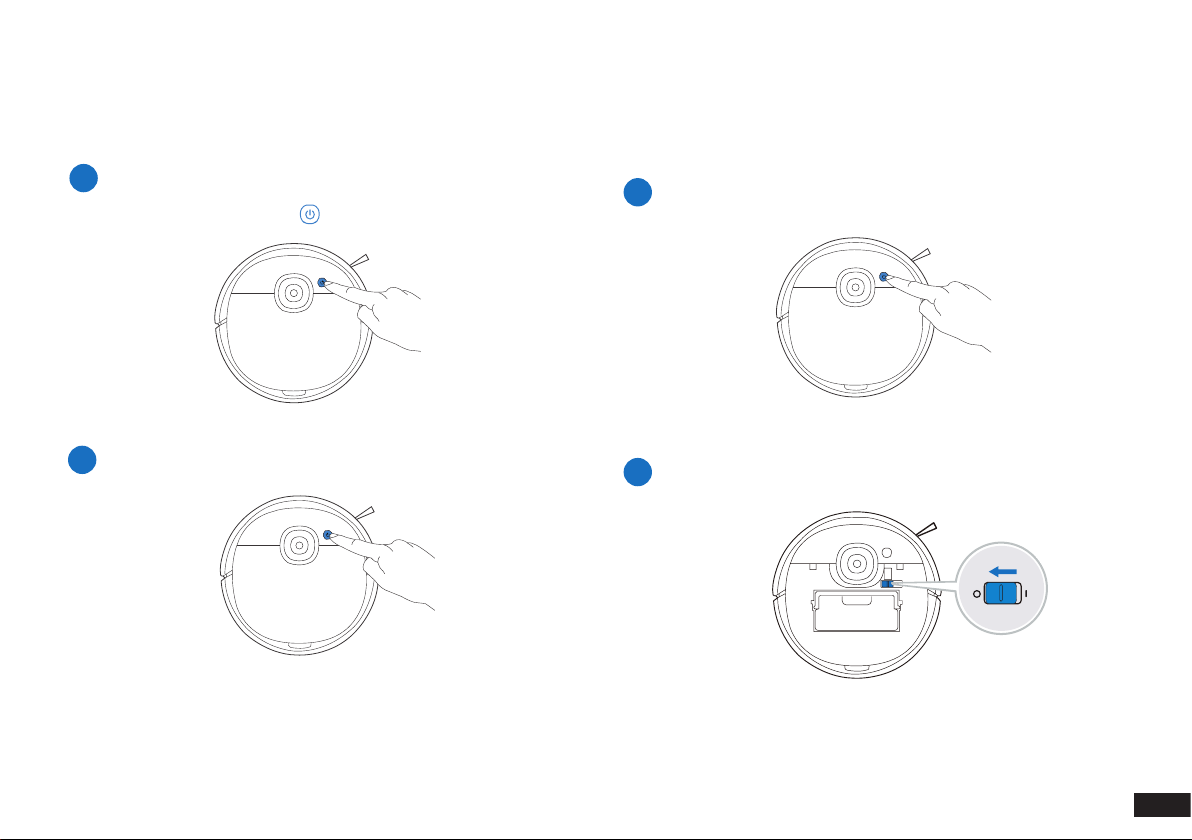

2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off
1Start
Press
During the rst cleaning:
1.Please supervise Robot and assist it should there be a problem.

14
EN
Note:
1. lnstall Oscillating Mopping for oor scrubbing.
2. With electric oscillating mopping up to 480 times per minute,Oscillating Mopping is applicable for area of highly concentrated dirt or dust.
3. Before installing Oscillating Mopping, please make sure the contacts are thoroughly dry.
4. Please avoid using Oscillating Mopping on the carpet.

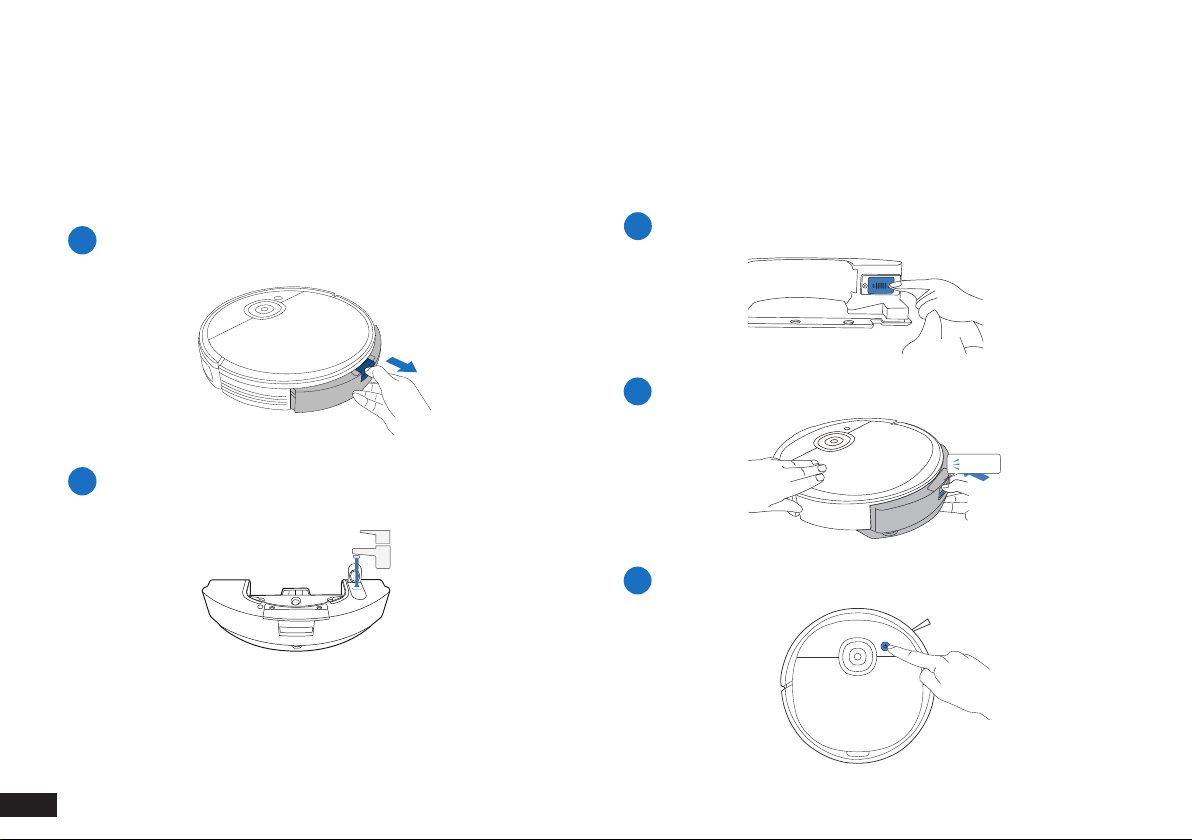

2. Operating and Programming/2.5 Oscillating Mopping
Add Water
Remove the Substitute Module
2
1
*To prolong the service life of Oscillating Mopping, it is recommended to use
puried water or softened water.
*Do not soak Oscillating Mopping in water.
3Dry Contacts Thoroughly
4Install Oscillating Mopping
5Start Cleaning
Click

15 EN

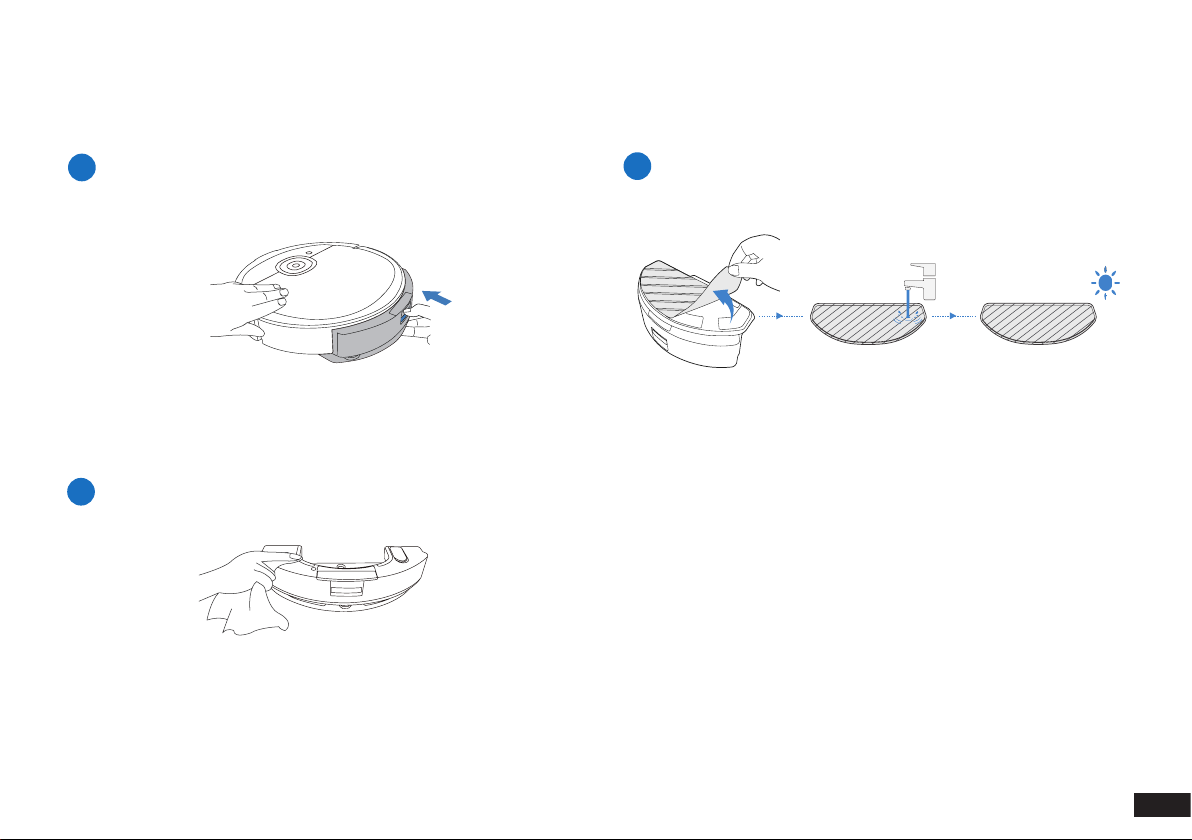

3. Maintenance/3.1 Oscillating Mopping
*After Robot nishes mopping, please empty the reservoir.
*Wipe Oscillating Mopping with a clean, dry cloth. Do not soak
into water.
Remove Oscillating Mopping Washable Mopping Pad(Oscillating Mopping)
Wipe Oscillating Mopping Clean
13
2
