yeedi K781 User manual

yeedi vac station
INSTRUCTION MANUAL
BEDIENUNGSANLEITUNG
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTIONS
MANUALE D'USO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

2
EN
Bedienungsanleitung��������������������������������������������������������������������������������������������������������������������������������������� 34
Instruction Manual ��������������������������������������������������������������������������������������������������������������������������������������������� 2
DE
EN
Manual de instrucciones���������������������������������������������������������������������������������������������������������������������������������� 66
Manuale d'uso ����������������������������������������������������������������������������������������������������������������������������������������������� 130
ES
IT
Manuel d'instructions��������������������������������������������������������������������������������������������������������������������������������������� 98
Руководство по эксплуатации��������������������������������������������������������������������������������������������������������������������� 162
FR
RU
1. Package Contents.............................................................................................................................................................7
2. Operating and Programming..........................................................................................................................................11
3. Maintenance ....................................................................................................................................................................18
4. Indicator Light..................................................................................................................................................................26
5. Troubleshooting...............................................................................................................................................................28
6. Product Specifications....................................................................................................................................................33
Contents

3EN
Important Safety Instructions
1. This Appliance can be used by children
aged from 8 years and above and persons
with reduced physical, sensory or mental
capabilities or lack of experience and
knowledge if they have been given supervision
or instruction concerning use of the Appliance
in a safe way and understand the hazards
involved. Children shall not play with the
Appliance. Cleaning and user maintenance
shall not be made by children without
supervision.
2. Clear the area to be cleaned. Remove power
cords and small objects from the floor that
could entangle the Appliance. Tuck rug fringe
under the rug base, and lift items such as
curtains and tablecloths off the floor.
3. If there is a drop off in the cleaning area due
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical Appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE
USING THIS APPLIANCE
SAVE THESE INSTRUCTIONS
to a step or stairs, you should operate the
Appliance to ensure that it can detect the step
without falling over the edge. It may become
necessary to place a physical barrier at the
edge to keep the unit from falling. Make sure
the physical barrier is not a trip hazard.
4. Only use as described in this manual. Only
use attachments recommended or sold by
the manufacturer.
5. Please make sure your power supply source
voltage matches the power voltage marked
on the Self-empty Station.
6. For INDOOR household use ONLY. Do not
use the Appliance in outdoor, commercial or
industrial environments.
7. Use only the original rechargeable battery
and Self-empty Station provided with the
Appliance from the manufacturer. Non-
rechargeable batteries are prohibited.
8. Do not use without dust bin and/or filters in place.
9. Do not operate the Appliance in an area
where there are lit candles or fragile objects.
10. Do not use in extremely hot or cold environments
(below -5˚C/23˚F or above 40˚C/104˚F).
11. Keep hair, loose clothing, fingers, and all
parts of body away from any openings and
moving parts.

4
EN
12. Do not operate the Appliance in a room
where an infant or child is sleeping.
13. Do not use Appliance on wet surfaces or
surfaces with standing water.
14. Do not allow the Appliance to pick up large
objects like stones, large pieces of paper or
any item that may clog the Appliance.
15. Do not use Appliance to pick up flammable
or combustible materials such as gasoline,
printer or copier toner, or use in areas where
they may be present.
16. Do not use Appliance to pick up anything that
is burning or smoking, such as cigarettes,
matches, hot ashes, or anything that could
cause a fire.
17. Do not put objects into the suction intake.
Do not use if the suction intake is blocked.
Keep the intake clear of dust, lint, hair, or
anything that may reduce air flow.
18. Take care not to damage the power cord. Do
not pull on or carry the Appliance or Self-empty
Station by the power cord, use the power
cord as a handle, close a door on the power
cord, or pull power cord around sharp edges
or corners. Do not run Appliance over the
power cord. Keep power cord away from hot
surfaces.
19. If the power cord is damaged, it must be
replaced by the manufacturer or its service
agent in order to avoid a hazard.
20. Do not use the Self-empty Station if it is
damaged. The power supply is not to be
repaired and not to be used any longer if it is
damaged or defective.
21. Do not use with a damaged power cord or
receptacle. Do not use the Appliance or Self-
empty Station if it is not working properly,
has been dropped, damaged, left outdoors,
or come in contact with water. It must be
repaired by the manufacturer or its service
agent in order to avoid a hazard.
22. Turn OFF the power switch before cleaning
or maintaining the Appliance.
23. The plug must be removed from the
receptacle before cleaning or maintaining
the Self-empty Station.
24. Remove the Appliance from the Self-empty
Station, and turn OFF the power switch to
the Appliance before removing the battery
for disposal of the Appliance.
25. The battery must be removed and discarded
according to local laws and regulations before
disposal of the Appliance.
26. Please dispose of used batteries according

5EN
to local laws and regulations.
27. Do not incinerate the Appliance even if it
is severely damaged. The batteries can
explode in a fire.
28. When not using the Self-empty Station for a
long period of time, please unplug it.
29. The Appliance must be used in accordance
with the directions in this Instruction Manual.
yeedi cannot be held liable or responsible for
any damages or injuries caused by improper
use.
30. The robot contains batteries that are only
replaceable by skilled persons. To replace
the robot’s battery, please contact Customer
Service.
31. If the robot will not be used for a long time,
power OFF the robot for storage and unplug
the Self-empty Station.
32. WARNING: For the purposes of recharging
the battery, only use the detachable supply
unit CH1918 provided with the Appliance.
To satisfy RF exposure requirements, a
separation distance of 20 cm or more should
be maintained between this device and
persons during device operation.
To ensure compliance, operations at closer
than this distance is not recommended. The
antenna used for this transmitter must not
be co-located in conjunction with any other
antenna or transmitter.

6
EN
To disable Wi-Fi module on Robot, power the
robot ON.
Place the robot on the Self-empty Station making
sure the Charging Contacts on Robot and the
Self-empty Station Pins make a connection.
Press and hold the AUTO Mode Button on the
robot for 20 seconds until Robot emits 3 beeps.
To enable Wi-Fi module on Robot, power the
robot OFF and then power ON. The Wi- Fi module
is turned on when Robot is restarted.
Class II
Short-circuit-proof safety isolating
transformer
Switch mode power supply
For indoor use only
Direct current
Alternating current
Correct Disposal of this Product
This marking indicates that this product should
not be disposed of with other household waste
throughout the EU. To prevent possible harm to the
environment or human health from uncontrolled
waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To
recycle your used device, please use the return
and collection systems or contact the retailer
where the product was purchased. They can safely
recycle this product.
For EU Countries
For EU Declaration of Conformity information, visit
https://www.yeedi.com/support

7EN

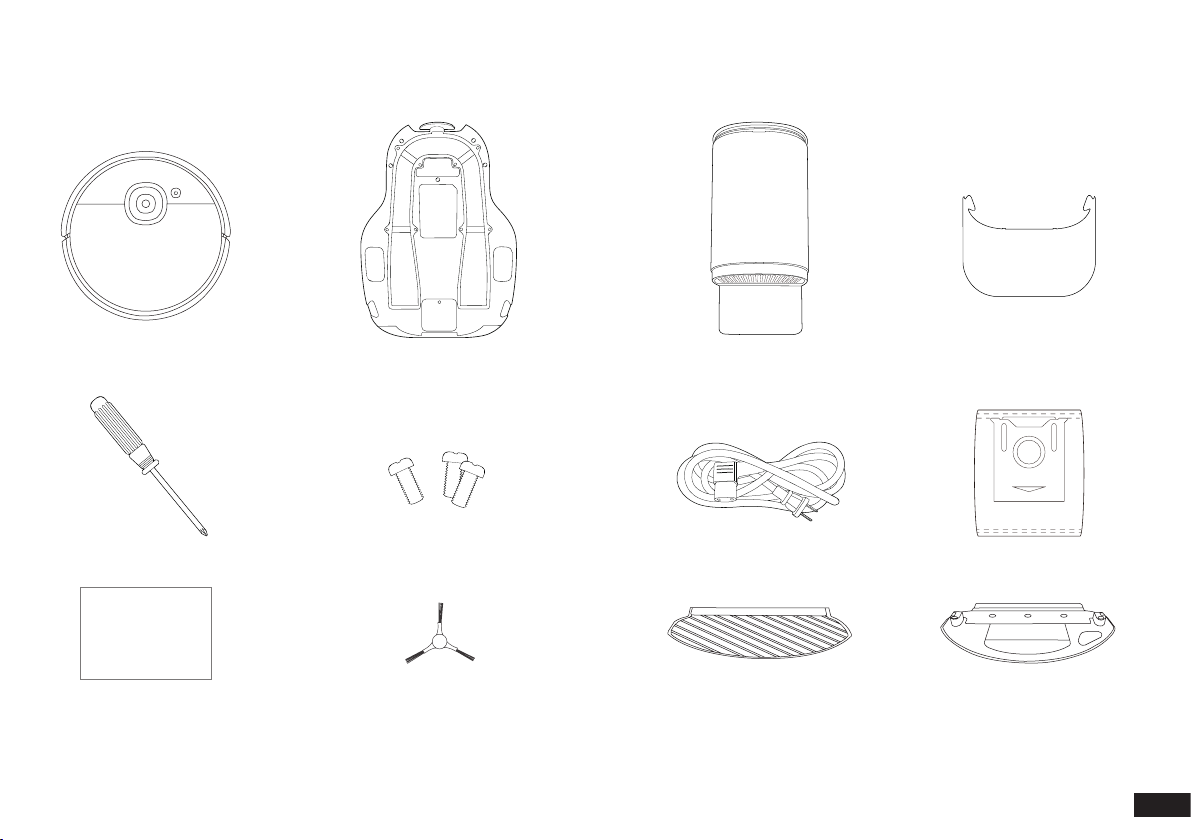

Robot
Instruction Manual Edge Brush Mopping Pad PlateWashable Mopping Pad
1. Package Contents/1.1 Package Contents
Note: Figures and illustrations are for reference only and may differ from actual product appearance.
Product design and specications are subject to changes without notice.
Instruction Manual
Power Cord Dust Bag
Dust Container
Base
Base Socket ScrewsScrew Driver
Ramp Extension

8
EN
1. Package Contents/1.2 Product Diagram
Anti-Collision Sensors and Bumper
AUTO Mode Button
Multi-function
Cleaning Tool
Robot
Mapping Sensor
Power Switch
Wi-Fi Indicator
RESET Button
Bottom View
Anti-Drop Sensors
Carpet Detection
Sensor
Mopping Pad Plate
Slot
Water Outlet
Driving Wheels
Battery
Charging Contacts
Anti-Drop Sensors
Reservoir
Edge Brush
Universal Wheel
Main Brush
Main Brush
Release Button

9EN
Reservoir
Water Inlet
Mopping Pad Plate
Reservoir Release Button
Washable Mopping Pad
Dust Bin
Dust Bin Handle
Release Button
Filter Net
Self-empty Outlet
Sponge Filter
High Efciency Filter
Self-empty Station
Lid Release Button
Indicator Light
Infrared Singnal Emitter
Self-empty Inlet Self-empty Station Pins
Ramp Extension

10
EN
Self-empty Station (Back)
Self-empty Station (Top)
Power Cord Port
Dust Bag Socket
Dust Evacuation Tube
Power Cord Wrap
Blower Cover
Self-empty Station (Bottom)
Power Cord
Base Screw Socket
Dust Evacuation Tube
+ Tube Cover
Ramp Extension Slot
Dust Evacuation Tube
Cover Set Screws

11 EN

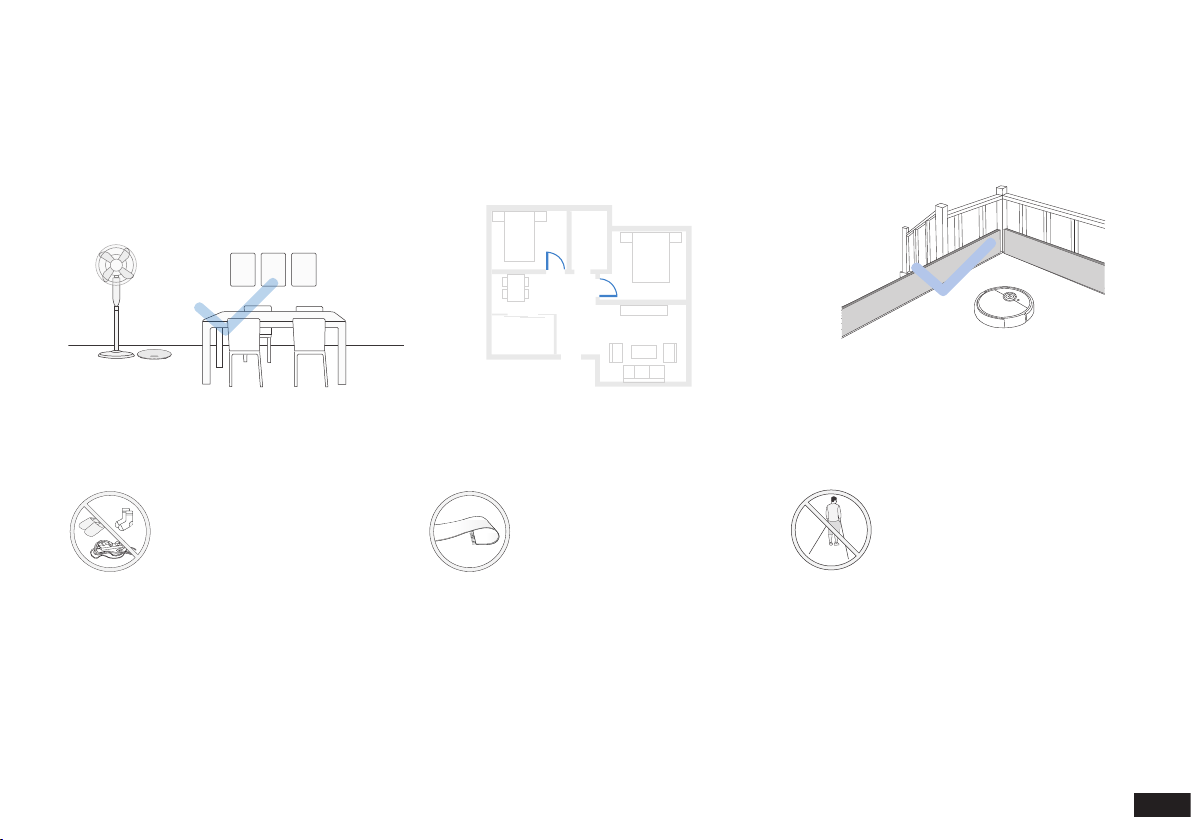

2. Operating and Programming/2.1 Notes Before Cleaning
Tidy up the area to be cleaned by putting
furniture, such as chairs, in their proper place.
During the rst use, make sure each room door is
open to help Robot fully explore your house.
It may be necessary to place a physical
barrier at the edge of a drop to stop the
unit from falling over the edge.
Put away objects including wires,
cloths and slippers, etc. on the
oor to improve the cleaning
efciency.
Before using the product on a rug
with tasseled edges, please fold
the rug edges under.
Please do not stand in narrow
spaces, such as hallways, and
make sure not to block the
Detection Sensor.

12
EN
2. Operating and Programming/2.2 Preparation
Please remove all protection materials on Robot and Self-empty
Station before use.
1
2
Connect the Dust Container and the Base
Tighten the Base Socket Set Screws

13 EN
3Assemble Self-empty Station
4Install the Ramp Extension
5Self-empty Station Placement

14
EN

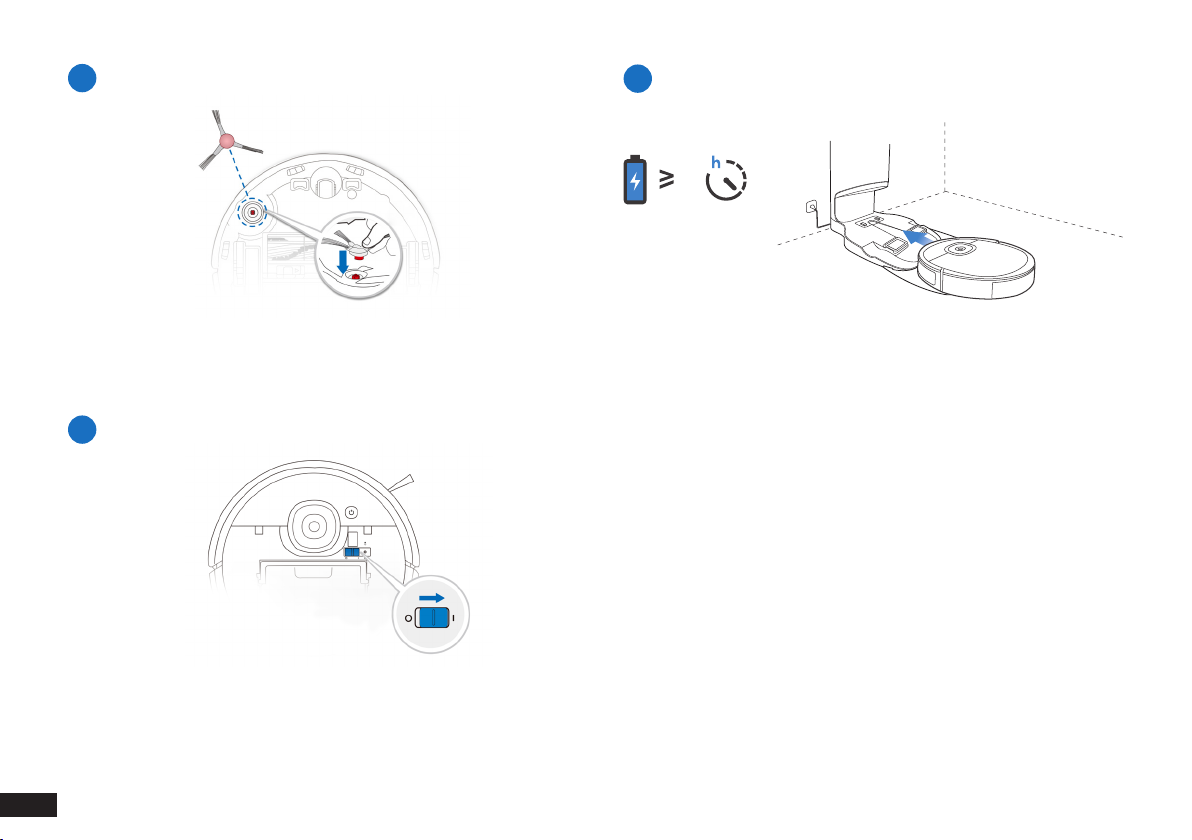

6Install Edge Brush
7Power ON
8Charge Robot
Note: When Robot completes the cleaning cycle or when the battery
gets low, Robot automatically returns to the Self-empty Station to
recharge itself. Robot can also be sent back to the Self-empty Station
at any time by using the yeedi App or by pressing the AUTO Button on
the robot for 3 seconds.

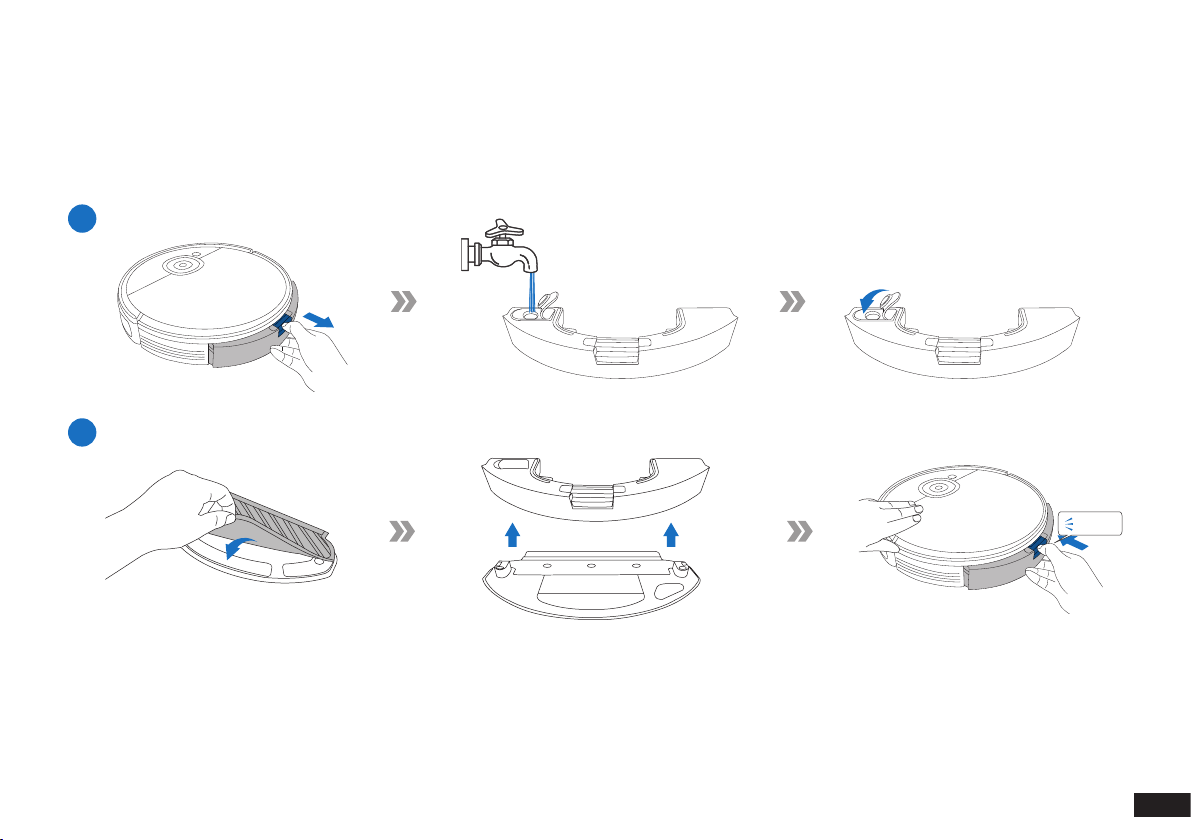

Empty remaining water from the Reservoir and remove the Mopping
Pad Plate before charging Robot.
6.5

15 EN
2. Operating and Programming/2.3 yeedi App
To enjoy all available features, it is recommended to control your Robot via the yeedi App.
Wi-Fi Indicator LightBefore you start, make sure that:
Tips:
If you have any problems during the Wi-Fi setup process, refer to the
Troubleshooting > Wi-Fi Connection section in this manual.
• Your mobile phone is connected to a Wi-Fi network.
• The 2.4GHz band wireless signal is enabled on your router.
• The Wi-Fi indicator light on Robot is slowly ashing.
Slowly flashing Disconnected to Wi-Fi or
waiting for Wi-Fi connection
Rapidly flashing Connecting to Wi-Fi
Solid Connected to Wi-Fi
yeedi

16
EN
2Pause
3Wake Up
Note: The robot’s Control Panel stops glowing after the robot is
paused for a few minutes. Press the AUTO Mode Button on Robot to
wake it up.
Press the AUTO button on Robot to wake it up
4Power OFF
Note: When Robot is not working, it is recommended to keep it
switched ON and charging.

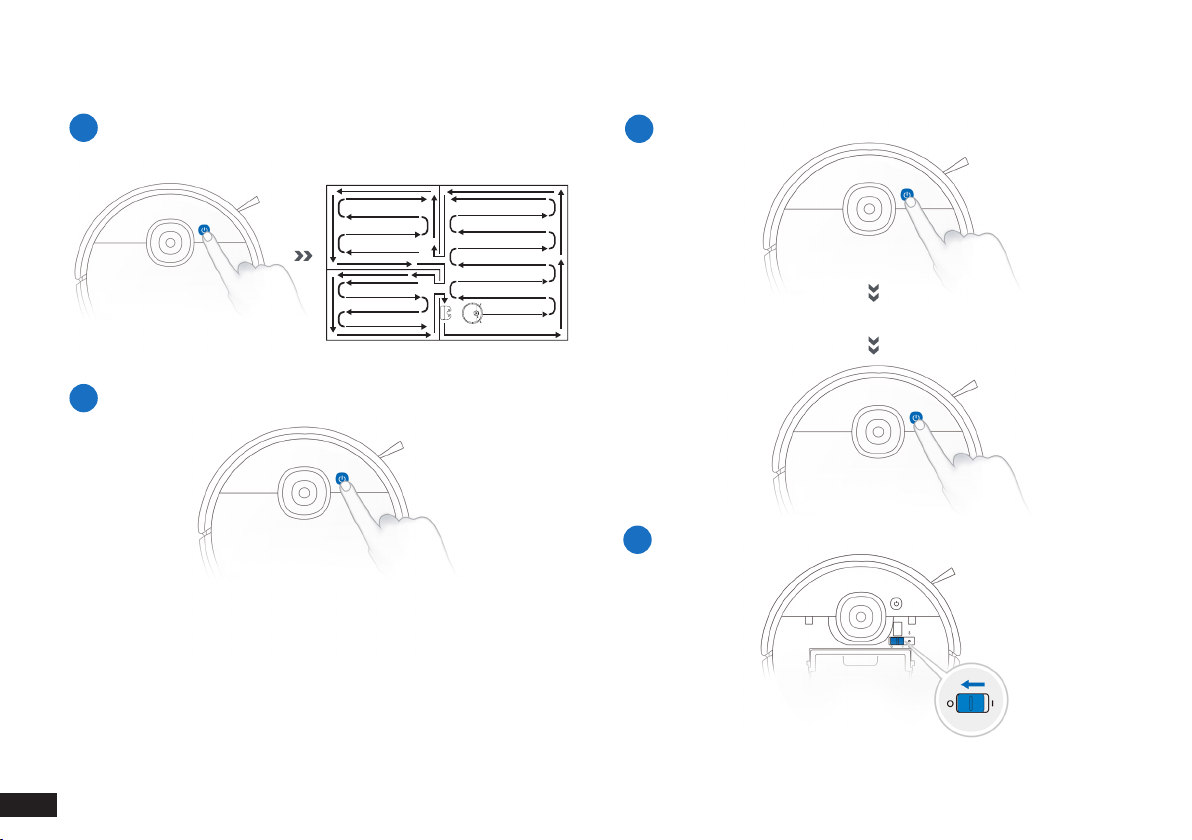

2. Operating and Programming/2.4 Start, Pause, Wake Up, Power Off
1Start

17 EN
1
2
Note:
1. To prolong the service life of the reservoir, it is recommended to use puried water or softened water for the mopping system.
2. If you need to clean the carpet, please uninstall the Mopping Pad Plate rst.
3. Empty the reservoir after Robot nishes mopping.
Click
2. Operating and Programming/2.5 Mopping System

18
EN

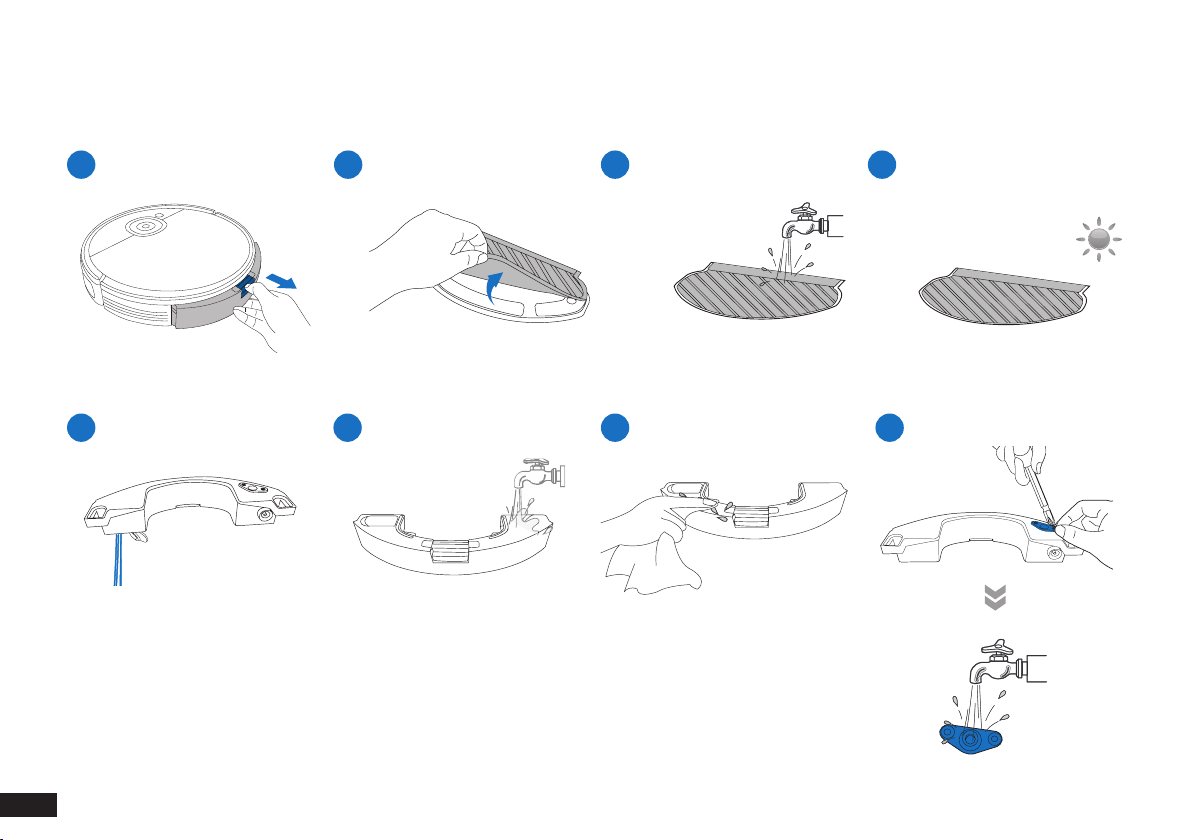

Before performing cleaning and maintenance tasks on Robot, turn the robot OFF and unplug the Self-empty Station.
3. Maintenance/3.1 Mopping System
1 42
5
3
7 86

19 EN

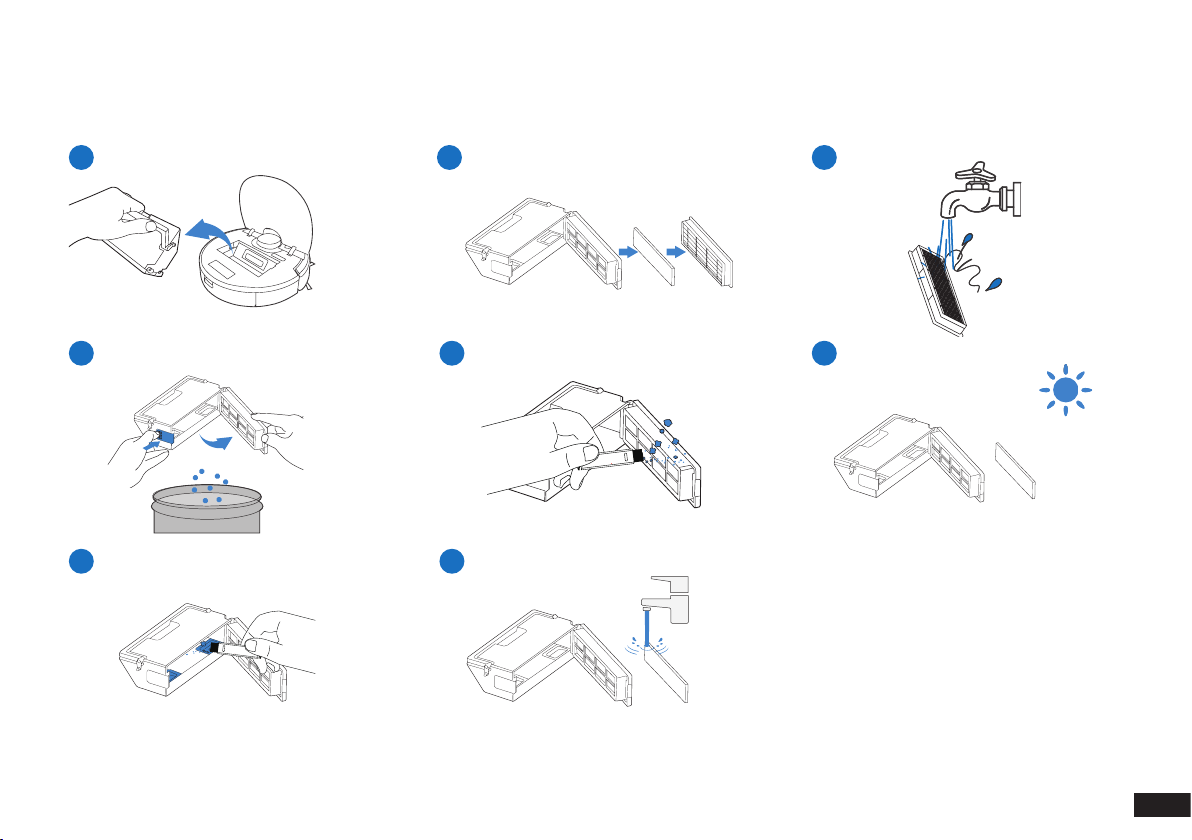

Dust Bin
Note: 1. Please rinse the lter with water as shown above. 2. Do not use nger or brush to clean the lter.
3. Be sure to dry out the lter for at least 24 hours after washing.
3. Maintenance/3.2 Dust Bin and Filters
3 6
41
2 5
7
8

20
EN

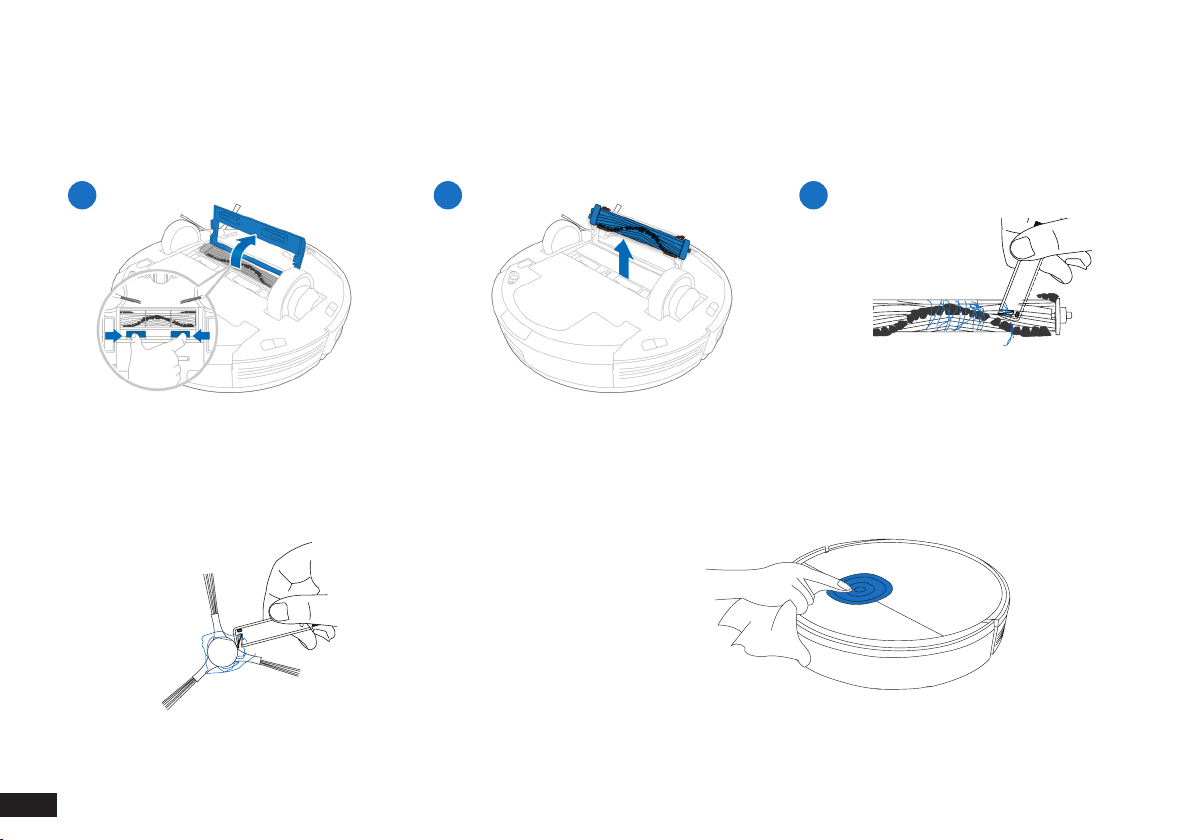

Main Brush
Edge Brush Mapping Sensor
Note: A Multi-Function Cleaning Tool is provided for easy maintenance. Handle with care, this cleaning tool has sharp edges.
123
3. Maintenance/3.3 Main Brush, Edge Brush and Mapping Sensor
