YOKOGAWA UTAdvanced UP55A Manual

UTAdvanced UP55A
Program Controller
Parameter Ma
p
s and List
s
TI 05P02C41-01EN
©Copyright July. 2011
1st Edition July. 2011
Page 1 / 25

UTAdvanced UP55
A
Introduction
Brief Descri
p
tion of Sheets
This sheet provides a brief description of the following sheets entitled "Names and Functions of Display Parts,"
"Operation and Program Parameter Map," "Setup Parameter Map," "List of Parameters," "Program Data Sheet,"
and "Example."
"Names and Functions of Display Part
s
"
This sheet describes the names and functions of display parts, function of parameter display level, meaning of
parameter map symbol and numeric value, parameter display transition and setup operation, and display symbol
list.
"Operation Map (SGL_PRO)"
This sheet describes the operation parameter map, which can be used as an operation guide.
"Setup Map (SGL_PRO)"
This sheet describes the setup parameter map, which can be used as an operation guide.
"
L
i
st o
f
Parameters
(SG
L_PR
O)
"
This sheet describes the setting range and initial value of operation parameters and setup parameters. There is a
column for user settings.
"Program Data Sheet"
This sheet can be used for recording the setting value or creating the program pattern.
"Example"
This sheet describes an example of simply program pattern.
Parameters in the sheets are displayed when the control mode is set to single loop control (CTLM=SGL) and the
parameter display level is set to professional setting mode (LEVL=PRO). Some parameters are not displayed
accordin
g
to model and suffix codes. For details
,
refer to the User's Manual.
Operation and Program Parameters: Parameters for setting the functions necessary for the operatio
n
and Parameters for creatin
g
the
p
ro
g
ram
p
attern.
Setup Parameters: Parameters for setting the basic functions of the controller.
Notice
The contents of this manual are subject to change without notice as a result of continuing improvements to the
instrument’s performance and functions.
Page 2 / 25

UTAdvanced UP55
A

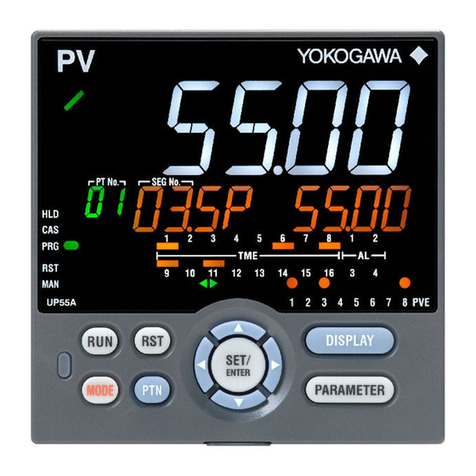

Names and Functions of Display Parts
UP55A Dis
p
la
y
Parts
No. in figure
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
Name
PV display
(white or red)
Group display (pattern
number)
(green)
Symbol display (orange)
Data display (orange)
Bar-graph display (event,
alarm)
(orange)
Event indicator (orange)
Key navigation indicator
(green)
Parameter display level
indicator
(green)
Program monitor (green)
Status indicator (green and
red)
Security indicator (red)
Displays a parameter setpoint and menu symbol.
Displays the event status and the segment position in the Operation Display. (Default
values: Time event status, Alarm status)
Displays control output value (OUT) and measured input value (PV).
The data to be displayed can be set by the parameter.
Lit when the PV events occur.
Event displays can be set by the parameter.
Lit or blinks when the Up/Down or Left/Right arrow key operation is possible.
Displays PV. Displays an error code if an error occurs.
Displays the scrolling guide in the Menu Display and Parameter Setting Display when the
guide display ON/OFF is set to ON.
Description
1 to 30 represent pattern numbers in the Operation Display.
Displays a group number (1 to 8 or R) and terminal area (E1 to E4) in the Parameter
Setting Display.
Displays a parameter symbol.
Displays the setting conditions of the parameter display level function.
Parameter display level EASY PRO
Easy setting mode Lit Unlit
Standard setting mode Unlit Unlit
Professional setting mode Unlit Lit
Displays the status of increment, constancy, and decrement of the program setpoint.
: Lit when a program setpoint is increasing.
: Lit when a program setpoint is constant.
: Lit when a program setpoint is decreasing.
Displays the operating conditions and control status.
Display Description
HLD Lit when in remote mode (HOLD).
CAS Lit when in cascade mode (CAS).
PRG Lit when in program operation mode (PRG).
Lit while the Starting time of program operation (S.TM) is available.
RST Lit when in reset mode (RST).
MAN Lit when in manual mode (MAN). Blinks during auto-tuning.
Lit if a password is set. The setup parameter settings are locked.
Ladder operation indicator
(green)
Loop 2 indicator (LP2 lamp)
(green)
Lit while the ladder program operation is executed.
Lit when the control mode is Cascade control.
In the Operation Display, the LP2 lamp is lit while the Loop-2 data is displayed on Setpoint
display. In the Parameter Setting Display, the LP2 lamp indicates the loop of displayed
menu symbol or parameter symbol. The LP2 lamp is lit while the Loop-2 menu symbol or
parameter symbol is displayed.
Page 3 / 25

UP55A Ke
y
Parts
No. in figure
(1)
(2)
(3)
(4)
(5)
Name
DISPLAY key
Hold down the key for 3 seconds to move to the Operation Parameter Setting Display.
Hold down the key and the Left arrow key simultaneously for 3 seconds to move to the
Setup Parameter Setting Display.
Press the key in the Parameter Setting Display to return to the Menu Display. Press the key
once to cancel the parameter setting (setpoint is blinking).
SET/ENTER key
Press the key in the Menu Display to move to the Parameter Setting Display of the Menu.
Press the key in the Parameter Setting Display to transfer to the parameter
setting mode (setpoint is blinking), and the parameter can be changed. Press the key
during parameter setting mode to register the setpoint.
Up/Down/Left/Right arrow keys
Press the Left/Right arrow keys in the Menu Display to switch the Displays.
Press the Up/Down/Left/Right arrow keys in the Parameter Setting Display to switch the
Displays.
Press the Up/Down arrow keys during parameter setting mode (setpoint is blinking) to
change a setpoint.
Press the Left/Right arrow keys during parameter setting mode (setpoint is blinking) to
move between digits according to the parameter.
Description
Used to switch the Operation Displays.
Press the key in the Operation Display to switch the provided Operation Displays.
Press the key in the Menu Display or Parameter Setting Display to return to the Operation
Display.
PARAMETER key
SET/ENTER key
Up/Down/ Left/Right arrow
keys
Light-loader interface
RUN key
RST key
MODE key
PTN key
It is the communication interface to the adapter cable when setting and storing parameters
via PC. The LL50A Parameter Setting Software (sold separately) is required.
PTN key: Press the RUN key for 1 second while an operation display is shown starts the
controller.
RST key: Press the RST key for 1 second while an operation display is shown stops the
controller.
MODE key: Presents a display for switching between the HOLD, ADVANCE, PROG, RESET,
LOCAL, REMOTE and AUTO/MAN. In order to change the operation mode, press the
SET/ENTER key while the setpoint is blinking.
PTN key: A program pattern number can be selected during the operation except the
program pattern operation. (The program pattern number displayed on the Group display
blinks.) When the PTN key is pressed while the program pattern number is blinking, the
blinking stops. Users can assign functions to the key using parameters.
Page 4 / 25

Brief Description of Parameter Map
The control prevents unintentional change of the function.
The parameter display level is just a function to hide the display so the set function works.
Changing of parameter display level
The parameters to be displayed can be controlled by changing the setting value for setup parameter LEVL.
Setting value
EASY EASY Symbol
Corresponding parameters are displayedin all modes.
STD Symbol Symbol
PRO PRO Symbol Symbol Symbol
Corresponding parameters are displayed only in Professional setting mode.
Meaning of Parameter Symbol and Numeric Value
Numeric Value S
y
mbol Symbol
↑↑↑
Group/Segment ↑LP2: Program pattern-2 retransmission
Parameter symbol
Group E1: indicates the parameter in E1-terminal area
E2: indicates the parameter in E2-terminal area
E3: indicates the parameter in E3-terminal area
E4: indicates the parameter in E4-terminal area
1 to 8, R: indicate the group numbers
Display may be controlled according to the setting value of the setup parameter and operation status.
Parameter Dis
p
la
y
Transition and Setu
p
O
p
eration
To move to the Operation Parameter Setting Display
To move to the Setup Parameter Setting Display
To move to the Operation Display
<Operation for Setting>
Corresponding parameters are displayed only in Standard setting mode and Professional setting mode.
Parameter display level indicators "EASY" and "PRO" are unlit in Standard setting mode.
If you cannot remember how to carry out an operation during setting, press the DISPLAY key once. This brings you to the
display (Operation Display) that appears at power-on.
The parameter display level is a function to control the parameters to be displayed. The factory setting is
LEVL=STD.
Parameter Display Level
To select the parameter setting displayed as the initial value, press the Down arrow key to move to the next parameter.
To change and set the parameter setting, press the SET/ENTER key to start the setpoint blinking. The blinking state allows
you to make changes (setting mode). Use the Up/Down/Left/Right arrow keys to change the setpoint. Press the
SET/ENTER key to register the setting.
Press the key
for 3 seconds.
＋Press the key
for 3 seconds.
Page 5 / 25

The followin
g
o
p
eratin
g
p
rocedure describes an exam
p
le of settin
g
alarm set
p
oint
(
A1
)
1. Hold down the PARAMETER ke
y
for 3 seconds in the O
p
eration Dis
p
la
y
to call u
p
the
[
MODE
]
Menu Dis
p
la
y
.
2. Press the Ri
g
ht arrow ke
y
to dis
p
la
y
the
[
AL
]
Menu Dis
p
la
y.
3. Press the SET
/
ENTER ke
y
to dis
p
la
y
the
[
A1
]
Parameter Settin
g
Dis
p
la
y.
4. Press the SET
/
ENTER ke
y
to blink the set
p
oint.
5. Press the U
p
or Down arrow ke
y
to chan
g
e the set
p
oint
.
6. Press the SET
/
ENTER ke
y
to re
g
ister the set
p
oint
(
the set
p
oint sto
p
s blinkin
g).
This com
p
letes the settin
g
p
rocedure
.
How to Cancel Parameter Settin
g
To cancel
p
arameter settin
g
when a
p
arameter is bein
g
set
(
set
p
oint is blinkin
g),
p
ress the PARAMETER ke
y
once
7. Press the PARAMETER key once to return to the Menu Display. Press the DISPLAY key once to return to
the Operation Display.
(Change the setpoint using the Up/Down arrow keys to increase and decrease the value and the Left/Right
arrow keys to move between digits.)
Page 6 / 25

How to Set Parameter Set
p
oin
t
Numeric Value Settin
g
Selection Data Settin
g
Time
(
minute.second
)
Settin
g
Page 7 / 25

List of Display Symbols
Figure (common to all display area)
PV display (14 segments): Alphabet
Symbol display and Data display (11 segments): Alphabet
Group display (7 segments): Alphabet
PV display (14 segments): Symbol
The following shows the parameter symbols, menu symbols, alphanumeric of guide, and symbols which are
displayed on the UP55A.
Page 8 / 25

UTAdvanced UP55A
Operation and Program Parameter Map * This parameter map is for the case that the control mode (CTLM) is set to single loop control (SGL). Some parameters are not displayed according to model and suffix codes. For details, refer to the User's Manual.
Operation
Mode SELECT Parameter
Program
Pattern
Setting
Local
Setting Program Editing
Alarm
Setpoint
Setting
SP-related
Setting
Alarm
Function
Setting
PV-related
Setting PID Setting Tuning Zone Control P Parameter
(END) MODE CS PROG LOC EDIT AL SPS ALRM PVS PID TUNE ZONE PPAR
HOLD CS10 PTNO. LSP ALL.S A1 RMS EHY1 BS 1P8PRP SC RP1 P01
ADV CS11 LSP LP2 PTN.S A2 RFL EHY2 FL 1I8IRI AT.TY RP2 P02
MODE CS12 L.PID USE.S A3 RT EHY3 END 1D8DRDAT.OH RP3 P03
A.M CS13 SEGNO. L.TY1 CPY.S A4 RBS EHY4 1OH 8OH ROH AT.OL RP4 P04
PTNO. CS14 L.EV1 CPY.D A5 SPT EHY5 1OL 8OL ROL AT.BS RP5 P05
SST CS15 L.TY2 CLR.P A6 S.TM EHY6 1MR 8MR RMR GW RP6 P06
P.FWD CS16 SSP 1TSP 99 TSP L.EV2 END A7 PNC EHY7 1HYS 8HYS RHYS GG RP7 P07
AT CS17 SSP LP
2
1TSP LP2 99 TSP LP2 L.TY3 A8 END EHY8 1HY.UP 8HY.UP RHY.UP AR RHY P08
PID CS18 STC 1TIME 99 TIME L.EV3 END AL1 1HY.LO 8HY.LO RHY.LO OPR RDV P09
END CS19 WT.SW1 1TM.RT 99 TM.RT L.TY4 AL2 1DR ······ 8DR ··· RDR OLMT END P10
END WZ.UP1 1S.PID 99 S.PID L.EV4 AL3 1Pc 8Pc RPc MPON END
WZ.LO1 1JC 99 JC L.TY5 AL4 1Ic 8Ic RIc MPO1
WT.TM1 1PV.TY1 99 PV.TY1 L.EV5 AL5 1Dc 8Dc RDc MPO2
WT.SW2 1PV.EV1 99 PV.EV1 L.TY6 AL6 1OHc 8OHc ROHc MPO3
WZ.UP2 1
…
99
…
L.EV6 AL7 1OLc 8OLc ROLc MPO4
WZ.LO2 1PV.TY8 ······ 99 PV.TY8 L.TY7 AL8 1HYSc 8HYSc RHYSc MPO5
WT.TM2 1PV.EV8 99 PV.EV8 L.EV7 VT1 1DB 8DB RDB END
…
1TME1 99 TME1 L.TY8 VT2 1PO 8PO RPO
WT.SW5 1T.ON1 99 T.ON1 L.EV8 VT3 1POc 8POc RPOc
WZ.UP5 1T.OF1 99 T.OF1 END VT4 END END END
WZ.LO5 1
…
99
…
VT5
WT.TM5 1TME16 99 TME16 VT6
R.CYCL 1T.ON16 99 T.ON16 VT7
R.STRT 1T.OF16 99 T.OF16 VT8
R.END END END HY1
END HY2
HY3
HY4
HY5
HY6
HY7
S
y
mbol
Corresponding parameters are displayedin all modes. HY8 1PYS1 2PYS2 3PYS3 4PYS4 END (MODE)
DYN1
DYN2
S
y
mbol DYN3 1PYS 2PYS 3PYS 4PYS
DYN4 1A1 2A1 3A1 4A1
DYN5 1B1 2B1 3B1 4B1
S
y
mbol Corresponding parameters are displayed only in Professional setting mode. DYN6 1A2 2A2 3A2 4A2
DYN7 1B2 2B2 3B2 4B2
DYN8 1A3 2A3 3A3 4A3
DYF1 1B3 2B3 3B3 4B3
DYF2 1A4 2A4 3A4 4A4
DYF3 1B4 2B4 3B4 4B4
Numeric Value S
y
mbol Symbol DYF4 1A5 2A5 3A5 4A5
↑↑↑DYF5 1B5 2B5 3B5 4B5
Group/Segment ↑LP2: Program pattern-2 retransmission DYF6 1A6 2A6 3A6 4A6
Parameter symbol DYF7 1B6 2B6 3B6 4B6
DYF8 1A7 2A7 3A7 4A7
AMD 1B7 2B7 3B7 4B7
To move to the Setup Parameter Setting Display END 1A8 2A8 3A8 4A8
1B8 2B8 3B8 4B8
1A9 2A9 3A9 4A9
1B9 2B9 3B9 4B9
To move to the Operation Parameter Setting Display 1A10 2A10 3A10 4A10
1B10 2B10 3B10 4B10
1A11 2A11 3A11 4A11
1B11 2B11 3B11 4B11
1PMD 2PMD 3PMD 4PMD
END END END END
Display may be controlled according to the setting value of the setup parameter and
operation status.
10-segment
Linearizer-4
Setting
Corresponding parameters are displayed only in Standard setting mode and Professional setting
mode. Parameter display level indicators "EASY" and "PRO" are unlit in Standard setting mode.
Operation
Display
10-segment
Linearizer-1
Setting
10-segment
Linearizer-2
Setting
10-segment
Linearizer-3
Setting
The parameter in PROG is displayed in the PV Display.
1 to 30
1 to 99
0
Press the key
for 3 seconds.
＋Press the key
for 3 seconds.
If you cannot remember how to carry out an operation during
setting, press the DISPLAY key once. This brings you to the display
(
O
p
eration Dis
p
la
y)
that a
pp
ears at
p
ower-on
CS menu is displayed when the SELECT
p
arameter has been re
g
istered.
Parameters for setting
the functions necessary
for the o
p
eration.
SET/ENTER ke
y
Press the key
for 3 seconds.
Page 9 / 25

UTAdvanced UP55A
Setup Parameter Map * This parameter map is for the case that the control mode (CTLM) is set to single loop control (SGL). Some parameters are not displayed according to model and suffix codes. For details, refer to the User's Manual.
PASS
Control
Function
Setting
PV Input
Setting RSP Setting
AIN2 Aux.
Analog
Input
Setting
AIN4 Aux.
Analog
Input
Setting
Input
Range/SP
Limiter
Setting
Output
Setting
Heater
Break Alarm
Setting
RS-485
Communicat
ion Setting
(E3 terminal
area)
RS-485
Communicat
ion Setting
(E4 terminal
area)
Ethernet
Communicat
ion Setting
PROFIBUS-
DP
Communicat
ion Setting
DeviceNet
Communicat
ion Setting
CC-Link
Communicat
ion Setting
Key Action
Setting
Display
Function
Setting
SELECT
Display
Setting
(END) CTL PV E1 RSP E2 AIN2 E4 AIN4 MPV OUT HBA E3 R485 E4 R485 E3 ETHR E3 PROF E3 DNET E3 CC-L KEY DISP CSEL
CTLM IN E1 IN E2 IN E4 IN P.UNI OT HB1.S E3 PSL E4 PSL E3 HSR E3 BR E3 BR E3 BR RUN PCMD CS1
CNT UNIT E1 UNIT E2 UNIT E4 UNIT P.DP CT HB2.S E3 BPS E4 BPS E3 BPS E3 ADR E3 ADR E3 ADR RST PCH CS2
ALG RH E1 RH E2 RH E4 RH P.RH CTc HB1 E3 PRI E4 PRI E3 PRI E3 BPS E3 BPS E3 BPS PTN PCL CS3
ALNO. RL E1 RL E2 RL E4 RL P.RL V.AT HB2 E3 STP E4 STP E3 IP1 E3 FILE E3 FILE E3 FILE MODE PTSL CS4
ZON SDP E1 SDP E2 SDP E4 SDP SPH V.RS CT1.T E3 DLN E4 DLN E3 IP2 E3 SCAN E3 SCAN E3 SCAN END BAR1 CS5
SEG.T SH E1 SH E2 SH E4 SH SPL V.L CT2.T E3 ADR E4 ADR E3 IP3 END END END BAR2 CS10
TMU SL E1 SL E2 SL E4 SL END V.H HDN1 E3 RP.T E4 RP.T E3 IP4 BDV CS11
PT2.G BSL E1 BSL E2 BSL E4 BSL TR.T HDN2 END END E3 SM1 EV1 CS12
SMP RJC E1 RJC E2 A.BS E4 A.BS V.MOD HDF1 E3 SM2 EV2 CS13
END ERJC E1 ERJC E2 A.FL E4 A.FL RTS HDF2 E3 SM3 EV3 CS14
A.BS E1 RTD.S E2 A.SR E4 A.SR RTH HB1.D E3 SM4 EV4 CS15
A.FL E1 A.BS E2 A.LC E4 A.LC RTL HB2.D E3 DG1 EV5 CS16
A.SR E1 A.FL E2 DI6.D E4 DI6.D O1RS END E3 DG2 EV6 CS17
A.LC E1 A.SR END END O1RH E3 DG3 EV7 CS18
END E1 A.LC O1RL E3 DG4 EV8 CS19
E1 DI6.D O2RS E3 PRT PV.D END
END O2RH E3 IPAR SP.D
O2RL E3 1.IP1 STS.D
OU.H E3 1.IP2 SPD
OU.L E3 1.IP3 GUID
Symbol
Corresponding parameters are displayedin all modes. OU2.H E3 1.IP4 HOME
OU2.L E3 2.IP1 ECO
RET.H E3 2.IP2 BRI
Symbol RET.L E3 2.IP3 B.PVW
OU.A E3 2.IP4 B.PVR
OU2.A E3 ESW B.SP
Symbol Corresponding parameters are displayed only in Professional setting mode. RET.A END B.BAR
END B.STS
D.CYC
Numeric Value Symbol Symbol OP.JP
↑↑↑MLSD
Group/Segment ↑LP2: Program pattern-2 retransmission END
Parameter symbol
Key Lock
Setting Menu Lock Setting DI Function Registration DI Function Numbering
DI1-DI3
Contact
Type
Settin
g
DI Setting
(E1 terminal
area)
DI Setting
(E2 terminal
area)
DI Setting
(E3 terminal
area)
DI Setting
(E4 terminal
area)
AL1-AL3
Function
Registration
DO Setting
(E1 terminal
area)
DO Setting
(E2 terminal
area)
DO Setting
(E3 terminal
area)
DO Setting
(E4 terminal
area) I/O Display System
Setting Initialization Error and
Version
Confirmation
Parameter
Display
Level
KLOC MLOC DI.SL DI.NU DI.D E1 DI.D E2 DI.D E3 DI.D E4 DI.D ALM E1 DO E2 DO E3 DO E4 DO I/O SYS INIT VER LVL END (CTL)
U.SP CTL PRG PT.B0 DI1.D E1 DI1.D E2 DI1.D E3 DI1.D E4 DI1.D AL1.S E1 DO1.S E2 DO1.S E3 DO1.S E4 DO1.S KEY R.MD U.DEF PA.ER LEVL
U.SP LP2 PV RST PT.B1 DI2.D E1 DI2.D E2 DI2.D E3 DI2.D E4 DI2.D AL2.S E1 DO2.S E2 DO2.S E3 DO2.S E4 DO2.S
X
00
0
R.TM F.DEF OP.ER
U.TSP E1 RSP LOC PT.B2 DI3.D E1 DI3.D E2 DI3.D E3 DI3.D E4 DI3.D AL3.S E1 DO3.S E2 DO3.S E3 DO3.S E4 DO3.S E1
X
10
0
EPO P.DEF AD1.E
U.TSP LP
2
E2 AIN2 REM PT.B3 END E1 DI4.D E2 DI4.D E3 DI4.D E4 DI4.D OR.S E1 DO4.S E2 DO4.S E3 DO4.S E4 DO4.S E2
X
20
0
C.GRN END AD2.E
U.TM E4 AIN4 P/R PT.B4 E1 DI5.D E2 DI5.D E3 DI5.D E4 DI5.D OR2.S E1 DO5.S E2 DO5.S E3 DO5.S E4 DO5.S E3
X
30
0
FREQ PV1.E
U.OUT MPV P/H PT.B5 END END END END AL1.D E1 DO1.D E2 DO1.D E3 DO1.D E4 DO1.D E4
X
40
0
QSM PV2.E LP2
U.OUT LP2 MPV LP2 P/L PN.B0 AL2.D E1 DO2.D E2 DO2.D E3 DO2.D E4 DO2.D
Y
000 LANG LA.ER
U.HCO OUT HOLD PN.B1 AL3.D E1 DO3.D E2 DO3.D E3 DO3.D E4 DO3.D E1
Y
100 PASS MCU
U.VP HBA ADV PN.B2 OR.D E1 DO4.D E2 DO4.D E3 DO4.D E4 DO4.D E2
Y
200 SMEC DCU
U.MV E3 R485 WAIT PN.B3 OR2.D E1 DO5.D E2 DO5.D E3 DO5.D E4 DO5.D E3
Y
300 END E1 ECU1
U.PID E4 R485 S.HLD MP.B0 END END END END END E4
Y
400 E2 ECU2
U.PID LP
2
E3 ETHR A/M MP.B1 END E3 ECU3
U.SEG E3 PROF AT MP.B2 E4 ECU4
U.RCY E3 DNET LAT PT.BC PARA
U.PTN E3 CC-L LCD PN.BC H.VER
U.AL KEY PVRW MP.BC SER1
U.AL LP2 DISP MG1 END SER2
U.HC CSEL MG2 LVL E3 MAC1
U.PV1 KLOC MG3 MODE E3 MAC2
U.PV2 LP2 DI.SL MG4 CS E3 MAC3
U.PV DI.NU END PROG END
U.RSP DI.D LOC
U.AI2 E1 DI.D EDIT
U.AI4 E2 DI.D AL
COM.W E3 DI.D SPS
DATA E4 DI.D ALRM
RUN ALM PVS
RST E1 DO PID
PTN E2 DO TUNE
MODE E3 DO ZONE
END E4 DO PPAR
I/O 1PYS1
SYS 2PYS2
INIT 3PYS3
VER 4PYS4
END
Co
rr
esponding
pa
r
amete
r
s
a
r
e
displa
y
ed
onl
y
in
Standa
r
d
setting
mode
and
P
r
ofessional
setting
mode.
Parameter display level indicators
"
EASY
"
and
"
PRO
"
are unlit in Standard setting mode
Operation
Display
Displayed when a password has been
Parameters for setting
the basic functions of the
controller
If you cannot remember how to carry out an operation during
setting, press the DISPLAY key once. This brings you to the display
(
O
p
eration Dis
p
la
y)
that a
pp
ears at
p
ower-on.
SET
/
ENTER ke
y
SET
/
ENTER ke
y
＋Press the key
for 3 seconds.
Page 10 / 25

UTAdvanced UP55A
List of Parameters
O
p
eration and Pro
g
ram Parameters
Operation Mode
Menu Symbol Name Display level Setting range Initial value User setting
MODE HOLD Pause/cancel release of program operation EASY ON: Pause OFF: Cancel release (Program operation restart)
Display during program operation. OFF
ADV Advance of segment EASY OFF: - Display during program operation.
Set as “ADV = ON” to advance from the current segment to the next segment. OFF
MODE Operation mode EASY
RESET: Stop of program operation
PROG: Start of program operation
LOCAL: Start of local-mode operation
REM: Start of remote-mode operation
RESET
A.M AUTO/MAN switch EASY AUTO: Automatic mode
MAN: Manual mode MAN
PTNO. Program pattern number selection EASY 0: Not select program pattern
1 to 30 0
SST Start-of-program segment number EASY 1 to 99 The setting value returns to “1” when the program operation (PROG) changes
into RESET, LOCAL, or REM. 1
P.FWD Fast-forwarding of program operation EASY
1: Normal, 2: Twice, 5: Five times, 10: Ten times, 20: Twenty times
* Use this function when checking the program pattern setting. Only Segment
time and Time event can be faster.
* The operation returns to the normal speed after fast-forwarding.
1
AT Auto-tuning switch EASY
OFF: Disable
1 to 8: Perform auto-tuning. Tuning result is stored in the specified numbered
PID.
R: Tunin
g
result is stored in the PID for reference deviation.
OFF
PID PID number EASY The PID group number being selected is displayed. (display only)
1 to 8, R: PID group for reference deviation 1
SELECT Parameter
Menu Symbol Name Display level Setting range Initial value User setting
CS CS10 SELECT parameter 10 EASY -
CS11 SELECT parameter 11 EASY -
CS12 SELECT parameter 12 EASY -
CS13 SELECT parameter 13 EASY -
CS14 SELECT parameter 14 EASY -
CS15 SELECT parameter 15 EASY -
CS16 SELECT parameter 16 EASY -
CS17 SELECT parameter 17 EASY -
CS18 SELECT parameter 18 EASY -
CS19 SELECT parameter 19 EASY -
Program Pattern Setting Program pattern-2
retransmission
(PT2.G=ON)
Menu Symbol Name Display level Setting range Initial value User setting User setting
PROG>
SEGNO. SSP Starting target setpoint EASY 0.0 to 100.0% of PV input range (EU) (Setting range: P.RL to P.RH) P.RL See
Sheet"Program
Data Sheet"
See
Sheet"Program
Data Sheet"
STC Start code EASY
SSP: Program operation begins with the starting target setpoint.
RAMP: Ramp-prioritized PV start
TIME: Time-prioritized PV start
LSP: Local-mode start
RSP: Remote-mode start
* STC=TIME cannot be selected when the parameter SEG.T is TM.RT.
SSP See Sheet"Program
Data Sheet"
WT.SW1 Wait function ON/OFF 1 STD OFF: Disable
ON: Enable OFF See
Sheet"Program
Data Sheet"
WZ.UP1 Upper-side wait zone 1 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WZ.LO1 Lower-side wait zone 1 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WT.TM1 Wait time 1 STD
OFF: No function
0.00 to 999.59 (“hour.minute” or “minute.second”)
* Available only for the wait time at the segment switching.
* Use the parameter TMU to set the time unit. (Common in the instrument.)
OFF See Sheet"Program
Data Sheet"
WT.SW2 Wait function ON/OFF 2 STD Same as SW1. OFF See Sheet"Program
Data Sheet"
WZ.UP2 Upper-side wait zone 2 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WZ.LO2 Lower-side wait zone 2 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WT.TM2 Wait time 2 STD Same as TM1. OFF See Sheet"Program
Data Sheet"
WT.SW3 Wait function ON/OFF 3 STD Same as SW1. OFF See Sheet"Program
Data Sheet"
WZ.UP3 Upper-side wait zone 3 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WZ.LO3 Lower-side wait zone 3 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WT.TM3 Wait time 3 STD Same as TM1. OFF See Sheet"Program
Data Sheet"
WT.SW4 Wait function ON/OFF 4 STD Same as SW1. OFF See Sheet"Program
Data Sheet"
WZ.UP4 Upper-side wait zone 4 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WZ.LO4 Lower-side wait zone 4 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WT.TM4 Wait time 4 STD Same as TM1. OFF See Sheet"Program
Data Sheet"
WT.SW5 Wait function ON/OFF 5 STD Same as SW1. OFF See Sheet"Program
Data Sheet"
WZ.UP5 Upper-side wait zone 5 STD 0.5% of PV input range See
Sheet"Program
Data Sheet"
WZ.LO5 Lower-side wait zone 5 STD 0.5% of PV input range See Sheet"Program
Data Sheet"
WT.TM5 Wait time 5 STD Same as TM1. OFF See Sheet"Program
Data Sheet"
R.CYCL Number of repeat cycles STD 0 to 999, CONT (The controller indefinitely repeats the segment specified by
the R.STRT and R.END parameters.) 0See
Sheet"Program
Data Sheet"
R.STRT Repeat cycle start segment number STD 1 See Sheet"Program
Data Sheet"
R.END Repeat cycle end segment number STD 1 See Sheet"Program
Data Sheet"
When the
p
ro
g
ram
p
attern-2 retransmission is selected
(
PT2.G=ON
),
the second loo
p
is also dis
p
la
y
ed for the
p
arameter SSP.
(
LP2 lam
p
is lit.
)
* This parameter lists are for the case that the control mode (CTLM) is set to single loop control (SGL). Some
parameters are not displayed according to model and suffix codes. For details, refer to the User's Manual.
Same as WZ.UP1 and WZ.LO1.
Same as WZ.UP1 and WZ.LO1.
1 to 99
1 ≤R.STRT ≤R.END ≤99
Setting range of a registered parameter.
See User's Manual.
0.0 to 10.0% of PV input range (EU)
Same as WZ.UP1 and WZ.LO1.
Same as WZ.UP1 and WZ.LO1.
Page 11 / 25

Program Pattern Setting Program pattern-2
retransmission
(PT2.G=ON)
Menu Symbol Name Display level Setting range Initial value User setting User setting
PROG>
PTNO. TSP Final target setpoint EASY 0.0 to 100.0% of PV input range (EU) (Setting range: P.RL to P.RH) P.RL See
Sheet"Program
Data Sheet"
See
Sheet"Program
Data Sheet"
TIME Segment time setting EASY
-: Unregistered
0.00 to 999.59 (“hour.minute” or “minute.second”)
* Setting available for the parameter SEG.T=TIME.
* Use the parameter TMU to set the time unit. (Common in the instrument.)
* If the setting is 0.00, TSP changes in stepwise after one control period.
-See Sheet"Program
Data Sheet"
TM.RT Segment ramp-rate setting EASY
-: Unregistered
Ramp: 0.0 to 100.0% of PV input range span (EUS) / 1 hour or 1 minute
Soak: 0.00 to 999.59 (“hour.minute” or “minute.second”)
* Setting available for the parameter SEG.T=TM.RT.
* Use the parameter TMU to set the time unit. (Common in the instrument.)
Per 1 hour: TMU=HH.MM,
Per 1 minute: TMU=MM.SS
* If it is set to 0.0% of the input range span, or the segment time 0.00, the
program moves to the next segment after one control period.
-See Sheet"Program
Data Sheet"
S.PID Segment PID number selection EASY 1 to 8
* PID number can be set when the parameter “ZON = 0.” 1See
Sheet"Program
Data Sheet"
JC Junction code STD
CONT: Switching for continuation
HOLD: Hold-on switching (the controller holds the end-of-segment setpoint
when the segment is completed, to perform control).
LOCAL: Local-mode switching (the controller switches to a local setpoint when
the segment is completed).
REM: Remote-mode switching (the controller switches to a remote setpoint
when the segment is completed).
W.SW1 to W.SW5: Wait during switching between segments.
W.IV1 to W.IV5: Wait within a segment interval.
W.SL1 to W.SL5: Segment switching (the controller switches to a local setpoint
when the segment is completed after release.) (5 groups)
W.SR1 to W.SR5: Segment switching (the controller switches to a remote
setpoint when the segment is completed after release.) (5 groups)
PLK.1 to PLK.30: Linked to patterns 1 to 30.
INS.: Allows a segment to be added to the end of a specified segment.
DEL.: Allows a specified segment to be deleted.
CONT See Sheet"Program
Data Sheet"
PV.TY1～
PV.TY8 PV event-1 to -8 type STD
OFF: Disable
(Energized)
1: PV high limit,
2: PV low limit,
3: SP high limit,
4: SP low limit,
5: Deviation high limit,
6: Deviation low limit,
7: Deviation high and low limits,
8: Deviation within high and low limits,
9: Target SP high limit,
10: Target SP low limit,
11: Target SP deviation high limit,
12: Target SP deviation low limit,
13: Target SP deviation high and low limits,
14: Target SP deviation within high and low limits,
15: OUT high limit,
16: OUT low limit,
17: Cooling-side OUT high limit,
18: Cooling-side OUT low limit
* Add 100 for "de-energized". For example, when the PV high limit is de-
energized, the setting is 101.
OFF See Sheet"Program
Data Sheet"
PV.EV1～
PV.EV8 PV event-1 to -8 setpoint STD
Set a display value of setpoint of PV alarm, SP alarm, deviation alarm, or
output alarm.
-19999 to 30000 (Set a value within the input range.)
Decimal point position depends on the input type.
0See Sheet"Program
Data Sheet"
TME1～TME16 Start condition of time event 1 to 16 STD ON: Start ON state
OFF: Start OFF state OFF See
Sheet"Program
Data Sheet"
T.ON1～T.ON16 On time of time event 1 to 16 STD - See Sheet"Program
Data Sheet"
T.OF1～T.OF16 Off time of time event 1 to 16 STD - See Sheet"Program
Data Sheet"
Local Setting Program pattern-2
retransmission
(PT2.G=ON)
Menu Symbol Name Display level Setting range Initial value User setting User setting
LOC LSP Local target setpoint EASY 0.0 to 100.0% of PV input range (EU)
(Setting range: P.RL to P.RH) P.RL
L.PID PID number selection for local mode operation EASY
Set a PID group number to use.
1 to 8
* Available only for the L.PID when ZON = 0 or 5.
* If set to “Local PID selection,” local PID is selected irrespective of the
operation modes.
1
L.TY1 Local event-1 type STD
OFF: Disable
(Energized)
1: PV high limit,
2: PV low limit,
3: SP high limit,
4: SP low limit,
5: Deviation high limit,
6: Deviation low limit,
7: Deviation high and low limits,
8: Deviation within high and low limits,
9: Target SP high limit,
10: Target SP low limit,
11: Target SP deviation high limit,
12: Target SP deviation low limit,
13: Target SP deviation high and low limits,
14: Target SP deviation within high and low limits,
15: OUT high limit,
16: OUT low limit,
17: Cooling-side OUT high limit,
18: Cooling-side OUT low limit
* Add 100 for "de-energized". For example, when the PV high limit is de-
energized, the setting is 101.
OFF
L.EV1 Local event-1 setpoint STD
Set a display value of setpoint of PV alarm, SP alarm, deviation alarm, or
output alarm.
-19999 to 30000 (Set a value within the input range.)
Decimal
p
oint
p
osition de
p
ends on the in
p
ut t
yp
e
0
L.TY2 Local event-2 type STD Same as L.TY1 OFF
L.EV2 Local event-2 setpoint STD Same as L.EV1 0
L.TY3 Local event-3 type STD Same as L.TY1 OFF
L.EV3 Local event-3 setpoint STD Same as L.EV1 0
L.TY4 Local event-4 type STD Same as L.TY1 OFF
L.EV4 Local event-4 setpoint STD Same as L.EV1 0
L.TY5 Local event-5 type STD Same as L.TY1 OFF
L.EV5 Local event-5 setpoint STD Same as L.EV1 0
L.TY6 Local event-6 type STD Same as L.TY1 OFF
L.EV6 Local event-6 setpoint STD Same as L.EV1 0
L.TY7 Local event-7 type STD Same as L.TY1 OFF
L.EV7 Local event-7 setpoint STD Same as L.EV1 0
L.TY8 Local event-8 type STD Same as L.TY1 OFF
L.EV8 Local event-8 setpoint STD Same as L.EV1 0
Program Editing
Menu Symbol Name Display level Setting range Initial value User setting
EDIT ALL.S Number of remaining unused segments PRO 0 to 300 (Display only) 300
PTN.S Pattern number designation for comfirming
number of segments PRO Specify the numbers of program pattern to display in parameter USE.S. 1 to 30 0
USE.S Number of segments within a pattern PRO
Can be displayed when the parameter number specify in parameter PTN.S.
(Display only)
0: disable
1 to 9
9
-
CPY.S Source-of-copying pattern number designation PRO Specify the number of the sourceof-copying program pattern. (1 to 30) 0
CPY.D Target-of-copying pattern number designation PRO Specify the target-of-copying program pattern. (1 to 30) 0
CLR.P Program pattern clearance PRO Specify the number of the program pattern to be cleared. (1 to 30) 0
Alarm Setpoint Setting
Menu Symbol Name Display level Setting range Initial value User setting
AL A1 Alarm-1 setpoint EASY 0
A2 Alarm-2 setpoint EASY 0
A3 Alarm-3 setpoint EASY 0
A4 Alarm-4 setpoint EASY 0
A5 Alarm-5 setpoint EASY 0
A6 Alarm-6 setpoint EASY 0
A7 Alarm-7 setpoint EASY 0
A8 Alarm-8 setpoint EASY 0
These alarms work irrespective of the operation mode.
Set a display value of setpoint of PV alarm, SP alarm, deviation alarm, output
alarm, or velocity alarm.
-19999 to 30000 (Set a value within the input range.)
Decimal point position depends on the input type.
-: Unregistered
0.01 to 999.59 (“hour.minute” or “minute.second”)
* Available only within the segment time.
* OFF when the operation mode is changed to the mode except the program
operation.
* Use the parameter TMU to set the time unit. (Common in the instrument.)
Page 12 / 25

SP-related Setting
Menu Symbol Name Display level Setting range Initial value User setting
SPS RMS Remote input method STD RSP: Via remote (aux. analog) input
COM: Via communication RSP
RFL Remote input filter STD OFF, 1 to 120 s OFF
RT Remote input ratio STD 0.001 to 9.999 1.000
RBS Remote input bias STD -100.0 to 100.0% of PV input range span (EUS) 0.0 % of PV input range
span
SPT SP tracking selection STD OFF, ON Tracking is performed when the mode changes from Program or Remote to
Local. (The local setpoint keeps track of the remote setpoint.) OFF
S.TM Starting time of program operation STD 0.00 to 999.59 (“hour.minute” or “minute.second” (common use of instrument)
* Use the parameter TMU to set the time unit. 0.00
PNC Program pattern number clearance STD
OFF: Not cleared.
ON: Cleared. (Set the program No. before restart program operation)
* The controller resets (clears) the program pattern number on the operating
display to “0” at the end of program operation.
OFF
Alarm Function Setting
Menu Symbol Name Display level Setting range Initial value User setting
ALRM EHY1 Event-1 hysteresis STD 0.5%
EHY2 Event-2 hysteresis STD 0.5%
EHY3 Event-3 hysteresis STD 0.5%
EHY4 Event-4 hysteresis STD 0.5%
EHY5 Event-5 hysteresis STD 0.5%
EHY6 Event-6 hysteresis STD 0.5%
EHY7 Event-7 hysteresis STD 0.5%
EHY8 Event-8 hysteresis STD 0.5%
AL1 Alarm-1 type EASY
PV high limit (01)
Without Standby action (0)
Energized (0)
Latch action (0)
AL2 Alarm-2 type EASY
PV low limit (02)
Without Standby action (0)
Energized (0)
Latch action (0)
AL3 Alarm-3 type EASY
PV high limit (01)
Without Standby action (0)
Energized (0)
Latch action (0)
AL4 Alarm-4 type EASY
PV low limit (02)
Without Standby action (0)
Energized (0)
Latch action (0)
AL5 Alarm-5 type EASY
PV high limit (01)
Without Standby action (0)
Energized (0)
Latch action (0)
AL6 Alarm-6 type EASY
PV low limit (02)
Without Standby action (0)
Energized (0)
Latch action (0)
AL7 Alarm-7 type EASY
PV high limit (01)
Without Standby action (0)
Energized (0)
Latch action (0)
AL8 Alarm-8 type EASY
PV low limit (02)
Without Standby action (0)
Energized (0)
Latch action (0)
VT1 PV velocity alarm time setpoint 1 EASY 1.00
VT2 PV velocity alarm time setpoint 2 EASY 1.00
VT3 PV velocity alarm time setpoint 3 EASY 1.00
VT4 PV velocity alarm time setpoint 4 EASY 1.00
VT5 PV velocity alarm time setpoint 5 EASY 1.00
VT6 PV velocity alarm time setpoint 6 EASY 1.00
VT7 PV velocity alarm time setpoint 7 EASY 1.00
VT8 PV velocity alarm time setpoint 8 EASY 1.00
HY1 Alarm-1 hysteresis EASY 10
HY2 Alarm-2 hysteresis EASY 10
HY3 Alarm-3 hysteresis EASY 10
HY4 Alarm-4 hysteresis EASY 10
HY5 Alarm-5 hysteresis EASY 10
HY6 Alarm-6 hysteresis EASY 10
HY7 Alarm-7 hysteresis EASY 10
HY8 Alarm-8 hysteresis EASY 10
DYN1 Alarm-1 On-delay timer STD 0.00
DYN2 Alarm-2 On-delay timer STD 0.00
DYN3 Alarm-3 On-delay timer STD 0.00
DYN4 Alarm-4 On-delay timer STD 0.00
DYN5 Alarm-5 On-delay timer STD 0.00
DYN6 Alarm-6 On-delay timer STD 0.00
DYN7 Alarm-7 On-delay timer STD 0.00
DYN8 Alarm-8 On-delay timer STD 0.00
DYF1 Alarm-1 Off-delay timer PRO 0.00
DYF2 Alarm-2 Off-delay timer PRO 0.00
DYF3 Alarm-3 Off-delay timer PRO 0.00
DYF4 Alarm-4 Off-delay timer PRO 0.00
DYF5 Alarm-5 Off-delay timer PRO 0.00
DYF6 Alarm-6 Off-delay timer PRO 0.00
DYF7 Alarm-7 Off-delay timer PRO 0.00
DYF8 Alarm-8 Off-delay timer PRO 0.00
AMD Alarm mode STD 0: Always active 1: Not active in RESET mode
2: Not active in RESET or MAN mode 0
PV-related Setting
Menu Symbol Name Display level Setting range Initial value User setting
PVS BS PV input bias EASY -100.0 to 100.0% of PV input range span (EUS) 0.0 % of PV input range
span
FL PV input filter EASY OFF, 1 to 120 s OFF
The hysteresis setpoint of PV event or Local event is set to the parcentage of
0.0 to 100.0%.
The setting value (%) is for the PV input range span or output span.
These alarms work irrespective of the operation mode.
Set a 5-digit value in the following order.
[Alarm type: 2 digits (see below)] + [Without (0) or With (1) Stand-by action]
+ [Energized (0) or De-energized (1)] + [Latch action (0/1/2/3/4)]
Alarm type: 2 digits
00: Disable
01: PV high limit
02: PV low limit
03: SP high limit
04: SP low limit
05: Deviation high limit
06: Deviation low limit
07: Deviation high and low limits
08: Deviation within high and low limits
09: Target SP high limit
10: Target SP low limit
11: Target SP deviation high limit
12: Target SP deviation low limit
13: Target SP deviation high and low limits
14: Target SP deviation within high and low limits
15: OUT high limit
16: OUT low limit
17: Cooling-side OUT high limit
18: Cooling-side OUT low limit
19: Analog input PV high limit
20: Analog input PV low limit
21: Analog input RSP high limit
22: Analog input RSP low limit
23: Analog input AIN2 high limit
24: Analog input AIN2 low limit
25: Analog input AIN4 high limit
26: Analog input AIN4 low limit
27: Feedback input high limit
28: Feedback input low limit
29: PV velocity
30: Fault diagnosis
31: FAIL
0.01 to 99.59 (minute.second)
Set a display value of setpoint of hysteresis.
-19999 to 30000 (Set a value within the input range.)
Decimal point position depends on the input type.
When the decimal point position for the input type is set to "1", the initial
value of the hysteresis is "1.0".
0.00 to 99.59 (minute.second)
0.00 to 99.59 (minute.second)
Page 13 / 25

PID Setting Group 1
(S.PID=1) Group 2 (S.PID=2) Group 3 (S.PID=3) Group 4 (S.PID=4) Group 5 (S.PID=5) Group 6 (S.PID=6) Group 7 (S.PID=7) Group 8 (S.PID=8)
Menu Symbol Name Display level Setting range Initial value User setting User setting User setting User setting User setting User setting User setting User setting
PID P Proportional band Heating-side proportional band (in
Heating/cooling control) EASY 0.0 to 999.9%
When 0.0% is set, it operates as 0.1%.
Heating-side ON/OFF control applies when 0.0% in Heating/cooling control 5.0%
IIntegral time Heating-side integral time (in Heating/cooling
control) EASY OFF: Disable
1 to 6000 s 240 s
DDerivative time Heating-side derivative time (in Heating/cooling
control) EASY OFF: Disable
1 to 6000 s 60 s
OH Control output high limit Heating-side control output high limit (in
Heating/cooling control) EASY -4.9 to 105.0%, (OL<OH)
In Heating/cooling control: 0.1 to 105.0% (OL<OH) 100.0%
OL Control output low limit Heating-side control output low limit (in
Heating/cooling control) EASY -5.0 to 104.9%, (OL<OH), SD:Tight shut
In Heating/cooling control: 0.0 to 104.9% (OL<OH) 0.0%
MR Manual reset EASY Enabled when integral time is OFF. The manual reset value equals the output value when PV = SP.
-5.0 to 105.0% 50.0%
HYS
Hysteresis (in ON/OFF control, or Position
proportional control)
Heating-side ON/OFF control hysteresis (in
Heating/cooling control)
EASY In ON/OFF control: 0.0 to 100.0% of PV input range span (EUS)
In Heating/cooling control or Position proportional control: 0.0 to 100.0%
In ON/OFF control: 0.5 %
of PV input range span
In Heating/cooling control
or Position proportional
control: 0.5 %
HY.UP Upper-side hysteresis (in ON/OFF control) EASY 0.5 % of PV input range
span
HY.LO Lower-side hysteresis (in ON/OFF control) EASY 0.5 % of PV input range
span
DR Direct/reverse action switch STD RVS: Reverse action, DIR: Direct action RVS
Pc Cooling-side proportional band EASY 0.0 to 999.9%
(Cooling-side ON/OFF control applies when 0.0% in Heating/cooling control) 5.0%
Ic Cooling-side integral time EASY OFF: Disable
1 to 6000 s 240 s
Dc Cooling-side derivative time EASY OFF: Disable
1 to 6000 s 60 s
OHc Cooling-side control output high limit EASY 0.1 to 105.0%, (OLc<OHc) 100.0%
OLc Cooling-side control output low limit EASY 0.0 to 104.9%, (OLc<OHc) 0.0%
HYSc Cooling-side ON/OFF control hysteresis EASY 0.0 to 100.0% 0.5%
DB Output dead band (in Heating/cooling control
or Position proportional control) EASY In Heating/cooling control: -100.0 to 50.0% In Position proportional control: 1.0 to 10.0% 3.0%
PO Preset output Heating-side preset output (in Heating/cooling
control) EASY -5.0 to 105.0%
In RESET mode, fixed control output can be generated. In Position
proportional control, Valve opening can be set. 0.0%
POc Cooling-side preset output EASY -5.0 to 105.0%
In RESET mode, cooling-side fixed control output can be generated. 0.0%
Tuning
Menu Symbol Name Display level Setting range Initial value User setting
TUNE SC Super function EASY
OFF: Disable
1: Overshoot suppressing function (normal mode)
2: Hunting suppressing function (stable mode)
Enables to answer the wider characteristic changes compared with response
mode.
3: Hunting suppressing function (response mode)
Enables quick follow-up and short converging time of PV for the changed SP.
4: Overshoot suppressing function (strong suppressing mode)
Note: Setpoints 2 and 3 must be used in PID control or PI control.
Disabled in the following controls:
1) ON/OFF control, 2) PD control, 3) P control, 4) Heating/cooling control.
Do not use the function for the control processes with response such as flow
or pressure control.
OFF
AT.TY Auto-tuning type STD 0: Normal
1: Stability 0
AT.OH Output high limit in auto-tuning PRO 100.0%
AT.OL Output low limit in auto-tuning PRO 0.0%
AT.BS SP bias in autotuning PRO -100.0 to 100.0% of PV input range span (EUS) 0.0% of PV input range
span
GW Non-linear control gap width PRO OFF, 0.0%+1digit to 50.0% of PV input range span (EUS) OFF
GG Non-linear control gain PRO 0.001 to 1.000 1.000
AR Anti-reset windup (excess integration
prevention) STD AUTO, 50.0 to 200.0% AUTO
OPR Output velocity limiter STD OFF: Disable
0.1 to 100.0%/s OFF
OLMT Output limiter switch PRO OFF: Disable output limiter in MAN mode
ON: Enable output limiter in MAN mode ON
MPON Manual preset output number selection STD
OFF: Hold the control output in AUTO mode (bumpless)
1: Use manual preset output 1 (output bump)
2: Use manual preset output 2 (output bump)
3: Use manual preset output 3 (output bump)
4: Use manual preset output 4 (output bump)
5: Use manual preset output 5 (output bump)
OFF
MPO1 Manual preset output 1 STD 0.0%
MPO2 Manual preset output 2 STD 0.0%
MPO3 Manual preset output 3 STD 0.0%
MPO4 Manual preset output 4 STD 0.0%
MPO5 Manual preset output 5 STD 0.0%
Zone Control
Menu Symbol Name Display level Setting range Initial value User setting
ZONE RP1 Reference point 1 STD 100.0 % of PV input range
RP2 Reference point 2 STD 100.0 % of PV input range
RP3 Reference point 3 STD 100.0 % of PV input range
RP4 Reference point 4 STD 100.0 % of PV input range
RP5 Reference point 5 STD 100.0 % of PV input range
RP6 Reference point 6 STD 100.0 % of PV input range
RP7 Reference point 7 STD 100.0 % of PV input range
RHY Zone PID switching hysteresis STD 0.0 to 10.0% of PV input range span (EUS)
* Hysteresis can be set for switching at a reference point. 0.5 % of PV input range span
RDV Reference deviation STD
OFF: Disable
0.0 + 1 digit to 100.0% of PV input range span (EUS)
* Set a deviation from SP. The PID for reference deviation is used if there is a
lar
g
er deviation than the
p
reset reference deviation.
OFF
P Parameter
Menu Symbol Name Display level Setting range Initial value User setting
PPAR P01 P01 Parameter STD 0
P02 P02 Parameter STD 0
P03 P03 Parameter STD 0
P04 P04 Parameter STD 0
P05 P05 Parameter STD 0
P06 P06 Parameter STD 0
P07 P07 Parameter STD 0
P08 P08 Parameter STD 0
P09 P09 Parameter STD 0
P10 P10 Parameter STD 0
0.0 to 100.0% of PV input range span (EUS)
-5.0 to 105.0% (Disabled in Heating/cooling control)
-5.0 to 105.0%
* However, output is limited to the output high limit and low limit.
0.0 to 100.0% of PV input range (EU)
(RP1 ≤RP2 ≤RP3 ≤RP4 ≤RP5 ≤RP6 ≤RP7)
* Set reference points at which switching is carried out between groups of PID
constants according to the given temperature zone.
-19999 to 30000 (Set a decimal point position using LL50A Parameter Setting
Software.)
Page 14 / 25

10-segment Linearizer-1 Setting
Menu Symbol Name Display level Setting range Initial value User setting
PYS1 PYS 10-segment linearizer-1 selection STD
OFF: Disable
PV: PV analog input
RSP: RSP analog input
AIN2: AIN2 analog input
AIN4: AIN4 analog input
PVIN: PV input
OUT: OUT analog output
OUT2: OUT2 analog output
RET: RET analog output
PV
(CTLM: SGL)
A1 10-segment linearizer-1 input 1 STD 0.0%
B1 10-segment linearizer-1 output 1 STD 0.0%
A2 10-segment linearizer-1 input 2 STD 0.0%
B2 10-segment linearizer-1 output 2 STD 0.0%
A3 10-segment linearizer-1 input 3 STD 0.0%
B3 10-segment linearizer-1 output 3 STD 0.0%
A4 10-segment linearizer-1 input 4 STD 0.0%
B4 10-segment linearizer-1 output 4 STD 0.0%
A5 10-segment linearizer-1 input 5 STD 0.0%
B5 10-segment linearizer-1 output 5 STD 0.0%
A6 10-segment linearizer-1 input 6 STD 0.0%
B6 10-segment linearizer-1 output 6 STD 0.0%
A7 10-segment linearizer-1 input 7 STD 0.0%
B7 10-segment linearizer-1 output 7 STD 0.0%
A8 10-segment linearizer-1 input 8 STD 0.0%
B8 10-segment linearizer-1 output 8 STD 0.0%
A9 10-segment linearizer-1 input 9 STD 0.0%
B9 10-segment linearizer-1 output 9 STD 0.0%
A10 10-segment linearizer-1 input 10 STD 0.0%
B10 10-segment linearizer-1 output 10 STD 0.0%
A11 10-segment linearizer-1 input 11 STD 0.0%
B11 10-segment linearizer-1 output 11 STD 0.0%
PMD 10-segment linearizer mode STD 0: 10-segment linearizer bias
1: 10-segment linearizer approximation 0
10-segment Linearizer-2 Setting
Menu Symbol Name Display level Setting range Initial value User setting
PYS2 PYS 10-segment linearizer-2 selection STD
OFF: Disable
PV: PV analog input
RSP: RSP analog input
AIN2: AIN2 analog input
AIN4: AIN4 analog input
PVIN: PV input
OUT: OUT analog output
OUT2: OUT2 analog output
RET: RET analog output
OFF
A1 10-segment linearizer-2 input 1 STD 0.0%
B1 10-segment linearizer-2 output 1 STD 0.0%
A2 10-segment linearizer-2 input 2 STD 0.0%
B2 10-segment linearizer-2 output 2 STD 0.0%
A3 10-segment linearizer-2 input 3 STD 0.0%
B3 10-segment linearizer-2 output 3 STD 0.0%
A4 10-segment linearizer-2 input 4 STD 0.0%
B4 10-segment linearizer-2 output 4 STD 0.0%
A5 10-segment linearizer-2 input 5 STD 0.0%
B5 10-segment linearizer-2 output 5 STD 0.0%
A6 10-segment linearizer-2 input 6 STD 0.0%
B6 10-segment linearizer-2 output 6 STD 0.0%
A7 10-segment linearizer-2 input 7 STD 0.0%
B7 10-segment linearizer-2 output 7 STD 0.0%
A8 10-segment linearizer-2 input 8 STD 0.0%
B8 10-segment linearizer-2 output 8 STD 0.0%
A9 10-segment linearizer-2 input 9 STD 0.0%
B9 10-segment linearizer-2 output 9 STD 0.0%
A10 10-segment linearizer-2 input 10 STD 0.0%
B10 10-segment linearizer-2 output 10 STD 0.0%
A11 10-segment linearizer-2 input 11 STD 0.0%
B11 10-segment linearizer-2 output 11 STD 0.0%
PMD 10-segment linearizer-2 mode STD 0: 10-segment linearizer bias
1: 10-segment linearizer approximation 0
10-segment Linearizer-3 Setting
Menu Symbol Name Display level Setting range Initial value User setting
PYS3 PYS 10-segment linearizer-3 selection PRO
OFF: Disable
PV: PV analog input
RSP: RSP analog input
AIN2: AIN2 analog input
AIN4: AIN4 analog input
PVIN: PV input
OUT: OUT analog output
OUT2: OUT2 analog output
RET: RET analog output
OFF
A1 10-segment linearizer-3 input 1 PRO 0.0%
B1 10-segment linearizer-3 output 1 PRO 0.0%
A2 10-segment linearizer-3 input 2 PRO 0.0%
B2 10-segment linearizer-3 output 2 PRO 0.0%
A3 10-segment linearizer-3 input 3 PRO 0.0%
B3 10-segment linearizer-3 output 3 PRO 0.0%
A4 10-segment linearizer-3 input 4 PRO 0.0%
B4 10-segment linearizer-3 output 4 PRO 0.0%
A5 10-segment linearizer-3 input 5 PRO 0.0%
B5 10-segment linearizer-3 output 5 PRO 0.0%
A6 10-segment linearizer-3 input 6 PRO 0.0%
B6 10-segment linearizer-3 output 6 PRO 0.0%
A7 10-segment linearizer-3 input 7 PRO 0.0%
B7 10-segment linearizer-3 output 7 PRO 0.0%
A8 10-segment linearizer-3 input 8 PRO 0.0%
B8 10-segment linearizer-3 output 8 PRO 0.0%
A9 10-segment linearizer-3 input 9 PRO 0.0%
B9 10-segment linearizer-3 output 9 PRO 0.0%
A10 10-segment linearizer-3 input 10 PRO 0.0%
B10 10-segment linearizer-3 output 10 PRO 0.0%
A11 10-segment linearizer-3 input 11 PRO 0.0%
B11 10-segment linearizer-3 output 11 PRO 0.0%
PMD 10-segment linearizer-3 mode PRO 0: 10-segment linearizer bias
1: 10-segment linearizer approximation 0
10-segment Linearizer-4 Setting
Menu Symbol Name Display level Setting range Initial value User setting
PYS4 PYS 10-segment linearizer-4 selection PRO
OFF: Disable
PV: PV analog input
RSP: RSP analog input
AIN2: AIN2 analog input
AIN4: AIN4 analog input
PVIN: PV input
OUT: OUT analog output
OUT2: OUT2 analog output
RET: RET analog output
OFF
A1 10-segment linearizer-4 input 1 PRO 0.0%
B1 10-segment linearizer-4 output 1 PRO 0.0%
A2 10-segment linearizer-4 input 2 PRO 0.0%
B2 10-segment linearizer-4 output 2 PRO 0.0%
A3 10-segment linearizer-4 input 3 PRO 0.0%
B3 10-segment linearizer-4 output 3 PRO 0.0%
A4 10-segment linearizer-4 input 4 PRO 0.0%
B4 10-segment linearizer-4 output 4 PRO 0.0%
A5 10-segment linearizer-4 input 5 PRO 0.0%
B5 10-segment linearizer-4 output 5 PRO 0.0%
A6 10-segment linearizer-4 input 6 PRO 0.0%
B6 10-segment linearizer-4 output 6 PRO 0.0%
A7 10-segment linearizer-4 input 7 PRO 0.0%
B7 10-segment linearizer-4 output 7 PRO 0.0%
A8 10-segment linearizer-4 input 8 PRO 0.0%
B8 10-segment linearizer-4 output 8 PRO 0.0%
A9 10-segment linearizer-4 input 9 PRO 0.0%
B9 10-segment linearizer-4 output 9 PRO 0.0%
A10 10-segment linearizer-4 input 10 PRO 0.0%
B10 10-segment linearizer-4 output 10 PRO 0.0%
A11 10-segment linearizer-4 input 11 PRO 0.0%
B11 10-segment linearizer-4 output 11 PRO 0.0%
PMD 10-segment linearizer-4 mode PRO 0: 10-segment linearizer bias
1: 10-segment linearizer approximation 0
10-segment linearizer input
-66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer output
10-segment linearizer bias: -66.7 to 105.0% of input range span (EUS)
10-segment linearizer approximation: -66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer input
-66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer output
10-segment linearizer bias: -66.7 to 105.0% of input range span (EUS)
10-segment linearizer approximation: -66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer input
-66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer output
10-segment linearizer bias: -66.7 to 105.0% of input range span (EUS)
10-segment linearizer approximation: -66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer input
-66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
10-segment linearizer output
10-segment linearizer bias: -66.7 to 105.0% of input range span (EUS)
10-segment linearizer approximation: -66.7 to 105.0% of input range (EU)
Output linearizer: -5.0 to 105.0%
Page 15 / 25

Setup Parameters
Control Function Setting
Menu Symbol Name Display level Setting range Initial value User setting
CTL CTLM Control mode STD
SGL: Single-loop control
CAS1: Cascade primary-loop control
CAS: Cascade control
PVSW: Loop control with PV switching
PVSEL: Loop control with PV autoselector
* When using the ladder program, the control mode cannot be changed.
SGL
CNT Control type EASY
PID: PID control
ONOF: ON/OFF control (1 point of hysteresis)
ONOF2: ON/OFF control (2 points of hysteresis)
H/C: Heating/cooling control
Standard type: PID
Heating/cooling type: H/C
ALG PID control mode PRO 0: Standard PID control mode
1: Fixed-point control mode 0
ALNO. Number of alarms PRO 1 to 8 4
ZON Zone PID selection STD
0: Segment PID selection
1: Zone PID selection (selection by PV)
2: Zone PID selection (selection by target SP)
4: Zone PID selection (selection by SP)
5: Local PID selection
* If set to “Segment PID selection,” allows PID constants to be selected for
each segments.
* If set to “Zone PID selection,” automatically selects PID constants according
to the range set in the Reference point.
* If set to “Local PID selection,” local PID is selected irrespective of the
operation modes.
1
SEG.T Segment setting method EASY TIME: Segment time setting TM.RT: Segment ramp-rate setting
Note: A change of setting deletes a program pattern. TIME
TMU Program time unit EASY HH.MM: hour.minute
MM.SS: minute.second HH.MM
PT2.G Program pattern-2 retransmission STD
OFF: Not used.
ON: used.
* The controller can serve as a program pattern generator.
* Retransmission output types (RTS, O1RS, or O2RS) need to be set to SP2.
OFF
SMP Input sampling period (control period) STD 100: 100 ms
200: 200 ms 200
PV Input Setting
Menu Symbol Name Display level Setting range Initial value User setting
PV IN PV input type EASY
OFF: Disable
K1: -270.0 to 1370.0 (ºC) / -450.0 to 2500.0 (ºF)
K2: -270.0 to 1000.0 (ºC) / -450.0 to 2300.0 (ºF)
K3: -200.0 to 500.0 (ºC) / -200.0 to 1000.0 (ºF)
J: -200.0 to 1200.0 (ºC) / -300.0 to 2300.0 (ºF)
T1: -270.0 to 400.0 (ºC) / -450.0 to 750.0 (ºF)
T2: 0.0 to 400.0 (ºC) / -200.0 to 750.0 (ºF)
B: 0.0 to 1800.0 (ºC) / 32 to 3300 (ºF)
S: 0.0 to 1700.0 (ºC) / 32 to 3100 (ºF)
R: 0.0 to 1700.0 (ºC) / 32 to 3100 (ºF)
N: -200.0 to 1300.0 (ºC) / -300.0 to 2400.0 (ºF)
E: -270.0 to 1000.0 (ºC) / -450.0 to 1800.0 (ºF)
L: -200.0 to 900.0 (ºC) / -300.0 to 1600.0 (ºF)
U1: -200.0 to 400.0 (ºC) / -300.0 to 750.0 (ºF)
U2: 0.0 to 400.0 (ºC) / -200.0 to 1000.0 (ºF)
W: 0.0 to 2300.0 (ºC) / 32 to 4200 (ºF)
PL2: 0.0 to 1390.0 (ºC) / 32.0 to 2500.0 (ºF)
P2040: 0.0 to 1900.0 (ºC) / 32 to 3400 (ºF)
WRE: 0.0 to 2000.0 (ºC) / 32 to 3600 (ºF)
JPT1: -200.0 to 500.0 (ºC) / -300.0 to 1000.0 (ºF)
JPT2: -150.00 to 150.00 (ºC) / -200.0 to 300.0 (ºF)
PT1: -200.0 to 850.0 (ºC) / -300.0 to 1560.0 (ºF)
PT2: -200.0 to 500.0 (ºC) / -300.0 to 1000.0 (ºF)
PT3: -150.00 to 150.00 (ºC) / -200.0 to 300.0 (ºF)
0.4-2V: 0.400 to 2.000 V
1-5V: 1.000 to 5.000 V
4-20: 4.00 to 20.00 mA
0-2V: 0.000 to 2.000 V
0-10V: 0.00 to 10.00 V
0-20: 0.00 to 20.00 mA
-1020: -10.00 to 20.00 mV
0-100: 0.0 to 100.0 mV
Note: W: W-5% Re/W-26% Re (Hoskins Mfg. Co.), ASTM E988
WRE: W97Re3-W75Re25
OFF
UNIT PV input unit EASY
-: No unit
C: Degree Celsius
-: No unit
--: No unit
---: No unit
F: Degree Fahrenheit
C
RH Maximum value of PV input range EASY Depends on the input type
RL Minimum value of PV input range EASY Depends on the input type
SDP PV input scale decimal point position EASY
0: No decimal place
1: One decimal place
2: Two decimal places
3: Three decimal places
4: Four decimal places
Depends on the input type
SH Maximum value of PV input scale EASY Depends on the input type
SL Minimum value of PV input scale EASY Depends on the input type
BSL PV input burnout action STD OFF: Disable UP: Upscale
DOWN: Downscale Depends on the input type
RJC PV input reference junction compensation PRO OFF: RJC OFF
ON: RJC ON ON
ERJC PV input external RJC setpoint PRO -10.0 to 60.0 (°C) 0.0
A.BS PV analog input bias STD -100.0 to 100.0% of PV input range span (EUS) 0.0 % of PV input range
span
A.FL PV analog input filter STD OFF, 1 to 120 s OFF
A.SR PV analog input square root extraction PRO OFF: No square root extraction. 1: Compute the square root. (The slope equals “1.”)
2: Compute the square root. (The slope equals “0.”) OFF
A.LC PV analog input low signal cutoff PRO 0.0 to 5.0% 1.0%
RSP Setting
Menu Symbol Name Display level Setting range Initial value User setting
RSP IN RSP remote input type EASY
0.4-2V: 0.400 to 2.000 V
1-5V: 1.000 to 5.000 V
0-2V: 0.000 to 2.000 V
0-10V: 0.00 to 10.00 V
0-125: 0.000 to 1.250 V
For option /DR, RSP remote input type is same as PV input type.
1-5V
UNIT RSP remote input unit EASY
-: No unit
C: Degree Celsius
-: No unit
--: No unit
---: No unit
F: Degree Fahrenheit
C
RH Maximum value of RSP remote input range EASY Depends on the input type
RL Minimum value of RSP remote input range EASY Depends on the input type
SDP RSP remote input scale decimal point position EASY
0: No decimal place
1: One decimal place
2: Two decimal places
3: Three decimal places
4: Four decimal places
Depends on the input type
SH Maximum value of RSP remote input scale EASY Depends on the input type
SL Minimum value of RSP remote input scale EASY Depends on the input type
BSL RSP remote input burnout action STD OFF: Disable UP: Upscale
DOWN: Downscale Depends on the input type
RJC RSP remote input reference junction
compensation (for /DR option) PRO OFF: RJC OFF ON: RJC ON ON
ERJC RSP remote input external RJC setpoint (for
/DR option) PRO -10.0 to 60.0 (°C) 0.0
RTD.S RTD wiring system STD 3-W: 3-wire system, 4-W: 4-wire system 3-W
A.BS RSP aux. analog input bias PRO -100.0 to 100.0% of RSP input range span (EUS) 0.0 % of RSP input range
span
A.FL RSP aux. analog input filter PRO OFF, 1 to 120 s OFF
A.SR RSP aux. analog input square root extraction PRO OFF: No square root extraction. 1: Compute the square root. (The slope equals “1.”)
2: Compute the square root. (The slope equals “0.”) OFF
A.LC RSP aux. analog input low signal cutoff PRO 0.0 to 5.0% 1.0%
DI6.D DI16 contact type PRO 0: The assigned function is enabled when the contact is closed.
1: The assigned function is enabled when the contact is opened. 0
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E1
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
-19999 to 30000, (SL<SH), | SH - SL | ≤30000
Depends on the input type.
- For temperature input -
Set the temperature range that is actually controlled. (RL<RH)
- For voltage / current input -
Set the range of a voltage / current signal that is applied.
The scale across which the voltage / current signal is actually controlled should
be set using the maximum value of input scale (SH) and minimum value of
input scale (SL).
(Input is always 0% when RL = RH.)
Depends on the input type.
- For temperature input (with /DR option) -
Set the temperature range that is actually controlled. (RL<RH)
- For voltage / current (with /DR option) input -
Set the range of a voltage / current signal that is applied.
The scale across which the voltage / current signal is actually controlled should
be set using the maximum value of input scale (SH) and minimum value of
input scale (SL).
(Input is always 0% when RL = RH.)
-19999 to 30000, (SL<SH), | SH - SL | ≤30000
Page 16 / 25

AIN2 Aux. Analog Input Setting
Menu Symbol Name Display level Setting range Initial value User setting
AIN2 IN AIN2 aux. analog input type EASY
0.4-2V: 0.400 to 2.000 V
1-5V: 1.000 to 5.000 V
0-2V: 0.000 to 2.000 V
0-10V: 0.00 to 10.00 V
0-125: 0.000 to 1.250 V
1-5V
UNIT AIN2 aux. analog input unit EASY
-: No unit
C: Degree Celsius
-: No unit
--: No unit
---: No unit
F: Degree Fahrenheit
C
RH Maximum value of AIN2 aux. analog input
range EASY Depends on the input type
RL Minimum value of AIN2 aux. analog input range EASY Depends on the input type
SDP AIN2 aux. analog input scale decimal point
position EASY
0: No decimal place
1: One decimal place
2: Two decimal places
3: Three decimal places
4: Four decimal places
Depends on the input type
SH Maximum value of AIN2 aux. analog input scale EASY Depends on the input type
SL Minimum value of AIN2 aux. analog input scale EASY Depends on the input type
BSL AIN2 aux. analog input burnout action STD OFF: Disable UP: Upscale
DOWN: Downscale Depends on the input type
A.BS AIN2 aux. analog input bias PRO -100.0 to 100.0% of AIN2 input range span (EUS) 0.0 % of AIN2 input range
span
A.FL AIN2 aux. analog input filter PRO OFF, 1 to 120 s OFF
A.SR AIN2 aux. analog input square root extraction PRO OFF: No square root extraction. 1: Compute the square root. (The slope equals “1.”)
2: Compute the square root. (The slope equals “0.”) OFF
A.LC AIN2 aux. analog input low signal cutoff PRO 0.0 to 5.0% 1.0%
DI6.D DI26 contact type PRO 0: The assigned function is enabled when the contact is closed.
1: The assigned function is enabled when the contact is opened. 0
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E2
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
AIN4 Aux. Analog Input Setting
Menu Symbol Name Display level Setting range Initial value User setting
AIN4 IN AIN4 aux. analog input type EASY
0.4-2V: 0.400 to 2.000 V
1-5V: 1.000 to 5.000 V
0-2V: 0.000 to 2.000 V
0-10V: 0.00 to 10.00 V
0-125: 0.000 to 1.250 V
1-5V
UNIT AIN4 aux. analog input unit EASY
-: No unit
C: Degree Celsius
-: No unit
--: No unit
---: No unit
F: Degree Fahrenheit
C
RH Maximum value of AIN4 aux. analog input
range EASY Depends on the input type
RL Minimum value of AIN4 aux. analog input range EASY Depends on the input type
SDP AIN4 aux. analog input scale decimal point
position EASY
0: No decimal place
1: One decimal place
2: Two decimal places
3: Three decimal places
4: Four decimal places
Depends on the input type
SH Maximum value of AIN4 aux. analog input scale EASY Depends on the input type
SL Minimum value of AIN4 aux. analog input scale EASY Depends on the input type
BSL AIN4 aux. analog input burnout action STD OFF: Disable UP: Upscale
DOWN: Downscale Depends on the input type
A.BS AIN4 aux. analog input bias PRO -100.0 to 100.0% of AIN4 input range span (EUS) 0.0 % of AIN4 input range
span
A.FL AIN4 aux. analog input filter PRO OFF, 1 to 120 s OFF
A.SR AIN4 aux. analog input square root extraction PRO OFF: No square root extraction. 1: Compute the square root. (The slope equals “1.”)
2: Compute the square root. (The slope equals “0.”) OFF
A.LC AIN4 aux. analog input low signal cutoff PRO 0.0 to 5.0% 1.0%
DI6.D DI46 contact type PRO 0: The assigned function is enabled when the contact is closed.
1: The assigned function is enabled when the contact is opened. 0
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E4
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
Input Range/SP Limiter Setting
Menu Symbol Name Display level Setting range Initial value User setting
MPV P.UNI Control PV input unit STD
-: No unit
C: Degree Celsius
-: No unit
--: No unit
---: No unit
F: Degree Fahrenheit
Same as PV input unit
P.DP Control PV input decimal point position STD
0: No decimal place
1: One decimal place
2: Two decimal places
3: Three decimal places
4: Four decimal places
Depends on the input type
P.RH Maximum value of control PV input range STD Depends on the input type
P.RL Minimum value of control PV input range STD Depends on the input type
SPH SP high limit STD 100.0 % of PV input range
SPL SP low limit STD 0.0 % of PV input range
Depends on the input type.
Set the range of a voltage signal that is applied.
The scale across which the voltage signal is actually controlled should be set
using the maximum value of input scale (SH) and minimum value of input
scale (SL).
(Input is always 0% when RL = RH.)
-19999 to 30000, (SL<SH), | SH - SL | ≤30000
Depends on the input type.
Set the range of a voltage signal that is applied.
The scale across which the voltage signal is actually controlled should be set
using the maximum value of input scale (SH) and minimum value of input
scale (SL).
(Input is always 0% when RL = RH.)
-19999 to 30000, (SL<SH), | SH - SL | ≤30000
-19999 to 30000, (P.RL<P.RH), | P.RH - P.RL |≤30000
0.0 to 100.0% of PV input range (EU), (SPL<SPH)
Place limits on the program setpoints or the local setpoints when the controller
is in program operation.
* Places the limit on the program setpoint, local setpoint, or remote setpoint
during program operation.
* When LP2 lamp is on, SPH and SPL limit the program setpoint for program
pattern 2 retransmission.
Page 17 / 25

Output Setting
Menu Symbol Name Display level Setting range Initial value User setting
OUT OT Output type selection EASY
Control output or Heating-side control output (Lower two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
04: OUT2 terminals (voltage pulse)
05: OUT2 terminals (current)
06: OUT2 terminals (relay/triac)
Cooling-side control output (Upper two digits)
00: OFF
01: OUT terminals (voltage pulse)
02: OUT terminals (current)
03: OUT terminals (relay/triac)
04: OUT2 terminals (voltage pulse)
05: OUT2 terminals (current)
06: OUT2 terminals (relay/triac)
Standard type: 00.03
Heating/cooling type: 06.03
CT Control output cycle time Heating-side control output cycle time (in
Heating/cooling control) EASY 30.0 s
CTc Cooling-side control output cycle time EASY 30.0 s
V.AT Automatic valve position adjustment EASY OFF: Stop automatic adjustment
ON: Start automatic adjustment OFF
V.RS Valve position setting reset EASY Setting V.RS to ON resets the valve adjustment settings and causes the
indication “V.RS” to blink. OFF
V.L Fully-closed valve position setting EASY Pressing the SET/ENTER key with valve position set to the fullyclosed position by Down arrow key causes the adjusted value to be stored. When V.L
adjustment is complete, V.L stops blinking. -
V.H Fully-open valve position setting EASY Pressing the SET/ENTER key with valve position set to the fullyopened position by Up arrow key causes the adjusted value to be stored. When V.H adjustment
is complete, V.H stops blinking. -
TR.T Valve traveling time STD 5 to 300 s 60 s
V.MOD Valve adjusting mode STD
0: Valve position feedback type
1: Valve position feedback type
(moves to the estimating type if a feedback input error or break occurs.)
2: Valve position estimating type
0
RTS Retransmission output type of RET EASY
OFF: Disable
PV1: PV
SP1: SP
OUT1: OUT (Valve opening: 0 to 100 % in Position proportional control)
LPS: 15 V DC loop power supply
PV2: Loop-2 PV
SP2: Loop-2 SP
OUT2: Loop-2 OUT
TSP1: Target SP
HOUT1: Heating-side OUT
COUT1: Cooling-side OUT
MV1: Position proportional output internal computed value)
TSP2: Loop-2 target SP
HOUT2: Loop-2 heating-side OUT
COUT2: Loop-2 cooling-side OUT
MV2: Loop-2 position proportional output (internal computed value)
PV: PV terminals analog input
RSP: RSP terminals analog input
AIN2: AIN2 terminals analog input
AIN4: AIN4 terminals analog input
Loop-2 setting values are unavailable in Single-loop control.
PV1
RTH Maximum value of retransmission output scale
of RET STD 100 % of PV input range
RTL Minimum value of retransmission output scale
of RET STD 0 % of PV input range
O1RS Retransmission output type of OUT current
output STD Same as RTS OFF
O1RH Maximum value of retransmission output scale
of OUT current output STD -
O1RL Minimum value of retransmission output scale
of OUT current output STD -
O2RS Retransmission output type of OUT2 current
output STD Same as RTS OFF
O2RH Maximum value of retransmission output scale
of OUT2 current output STD -
O2RL Minimum value of retransmission output scale
of OUT2 current output STD -
OU.H 100% segmental point of OUT current output PRO 100.0%
OU.L 0% segmental point of OUT current output PRO 0.0%
OU2.H 100% segmental point of OUT2 current output PRO 100.0%
OU2.L 0% segmental point of OUT2 current output PRO 0.0%
RET.H 100% segmental point of RET current output PRO 100.0%
RET.L 0% segmental point of RET current output PRO 0.0%
OU.A OUT current output range STD 4-20
OU2.A OUT2 current output range STD 4-20
RET.A RET current output range STD 4-20
Heater Break Alarm Setting
Menu Symbol Name Display level Setting range Initial value User setting
HBA HB1.S Heater break alarm-1 function selection EASY 1
HB2.S Heater break alarm-2 function selection EASY 1
HB1 Heater break alarm-1 current setpoint EASY OFF
HB2 Heater break alarm-2 current setpoint EASY OFF
CT1.T CT1 coil winding number ratio EASY 800
CT2.T CT2 coil winding number ratio EASY 800
HDN1 Heater break alarm-1 Ondelay timer STD 0.00
HDN2 Heater break alarm-2 Ondelay timer STD 0.00
HDF1 Heater break alarm-1 Offdelay timer PRO 0.00
HDF2 Heater break alarm-2 Offdelay timer PRO 0.00
HB1.D Heater break alarm-1 contact type PRO CLS
HB2.D Heater break alarm-2 contact type PRO CLS
RS-485 Communication Setting (E3 terminal
area) (E4 terminal area)
Menu Symbol Name Display level Setting range Initial value User setting User setting
R485 PSL Protocol selection EASY
PCL: PC link communication
PCLSM: PC link communication (with checksum)
LADR: Ladder communication
CO-M: Coordinated master station
MBASC: Modbus (ASCII)
MBRTU: Modbus (RTU)
CO-S2: Coordinated slave station (Loop-2 mode)
P-P: Peer-to-
p
eer communication
MBRTU
BPS Baud rate EASY
600: 600 bps
1200: 1200 bps
2400: 2400 bps
4800: 4800 bps
9600: 9600 bps
19200: 19.2k bps
38400: 38.4k bps (except for communication of E4 terminal area)
19200
PRI Parity EASY NONE: None EVEN: Even
ODD: Odd EVEN
STP Stop bit EASY 1: 1 bit, 2: 2 bits 1
DLN Data length EASY 7: 7 bits, 8: 8 bits 8
ADR Address EASY 1 to 99 1
RP.T Minimum response time PRO 0 to 10 (x10ms) 0
0.5 to 1000.0 s
When RTS = PV1, SP1, PV2, SP2, TSP1, TSP2, PV, RSP, AIN2, or AIN4,
RTL + 1 digit to 30000
-19999 to RTH - 1 digit
Decimal point position:
When RTS=PV1, SP1, or TSP1, decimal point position is same as that of PV
input.
When RTS=PV2, SP2, or TSP2, decimal point position is same as that of RSP
input.
When RTS=PV, decimal point position is same as that of PV input scale.
When RTS=RSP, decimal point position is same as that of RSP input scale.
When RTS=AIN2, decimal point position is same as that of AIN2 scale.
When RTS=AIN4, decimal point position is same as that of AIN4 scale.
When O1RS = PV1, SP1, PV2, SP2, TSP1, TSP2, PV, RSP, AIN2, or AIN4,
O1RL + 1 digit to 30000
-19999 to O1RH - 1 digit
Decimal point position:
When O1RS=PV1, SP1, or TSP1, decimal point position is same as that of PV
input.
When O1RS =PV2, SP2, or TSP2, decimal point position is same as that of RSP
input.
When O1RS =PV, decimal point position is same as that of PV input scale.
When O1RS =RSP, decimal point position is same as that of RSP input scale.
When O1RS =AIN2, decimal point position is same as that of AIN2 scale.
When O1RS =AIN4, decimal point position is same as that of AIN4 scale.
When O2RS = PV1, SP1, PV2, SP2, TSP1, TSP2, PV, RSP, AIN2, or AIN4,
O2RL + 1 digit to 30000
-19999 to O2RH - 1 digit
Decimal point position:
When O2RS=PV1, SP1, or TSP1, decimal point position is same as that of PV
input.
When O2RS =PV2, SP2, or TSP2, decimal point position is same as that of RSP
input.
When O2RS =PV, decimal point position is same as that of PV input scale.
When O2RS =RSP, decimal point position is same as that of RSP input scale.
When O2RS =AIN2, decimal point position is same as that of AIN2 scale.
When O2RS =AIN4, decimal point position is same as that of AIN4 scale.
-100.0 to 200.0%
4-20: 4 to 20 mA
0-20: 0 to 20 mA
20-4: 20 to 4 mA
20-0: 20 to 0 mA
0: Heater current measurement
1: Heater break alarm
OFF, 0.1 to 300.0 Arms
1 to 3300
0.00 to 99.59 (minute.second)
CLS: When the event occurs, the contact is closed.
OPN: When the event occurs, the contact is opened.
Page 18 / 25

Ethernet Communication Setting
Menu Symbol Name Display level Setting range Initial value User setting
ETHR HSR High-speed response mode EASY OFF, 1 to 8 1
BPS Baud rate EASY 9600: 9600 bps 19200: 19.2k bps
38400: 38.4k bps 38400
PRI Parity EASY NONE: None EVEN: Even
ODD: Odd EVEN
IP1 IP address 1 EASY 0 to 255 192
IP2 IP address 2 EASY 0 to 255 168
IP3 IP address 3 EASY 0 to 255 1
IP4 IP address 4 EASY 0 to 255 1
SM1 Subnet mask 1 EASY 0 to 255 255
SM2 Subnet mask 2 EASY 0 to 255 255
SM3 Subnet mask 3 EASY 0 to 255 255
SM4 Subnet mask 4 EASY 0 to 255 0
DG1 Default gateway 1 EASY 0 to 255 0
DG2 Default gateway 2 EASY 0 to 255 0
DG3 Default gateway 3 EASY 0 to 255 0
DG4 Default gateway 4 EASY 0 to 255 0
PRT Port number EASY 502, 1024 to 65535 502
IPAR IP access restriction EASY OFF: Disable, ON: Enable OFF
1.IP1 Permitted IP address 1-1 EASY 0 to 255 255
1.IP2 Permitted IP address 1-2 EASY 0 to 255 255
1.IP3 Permitted IP address 1-3 EASY 0 to 255 255
1.IP4 Permitted IP address 1-4 EASY 0 to 255 255
2.IP1 Permitted IP address 2-1 EASY 0 to 255 255
2.IP2 Permitted IP address 2-2 EASY 0 to 255 255
2.IP3 Permitted IP address 2-3 EASY 0 to 255 255
2.IP4 Permitted IP address 2-4 EASY 0 to 255 255
ESW Ethernet setting switch EASY
OFF, ON
Setting this parameter to “ON” enables the Ethernet communication parameter
settings.
* The
p
arameter ESW automaticall
y
returns to “OFF” after “ON” is set.
OFF
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E3
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
PROFIBUS-DP Communication Setting
Menu Symbol Name Display level Setting range Initial value User setting
PROF BR Baud rate EASY
9.6K: 9.6k bps
19.2K: 19.2k bps
93.75K: 93.75k bps
187.5K: 187.5k bps
0.5M: 0.5M bps
1.5M: 1.5M bps
3M: 3M bps
6M: 6M bps
12M: 12M bps
AUTO
45.45K: 45.45k bps
AUTO
ADR Address EASY 0 to 125 3
BPS Baud rate EASY 9600: 9600 bps 19200: 19.2k bps
38400: 38.4k bps 38400
FILE Profile number EASY 0, 11 to 15 0
SCAN Automatic rescan time PRO
OFF
1M: 1 minute
10M: 10 minutes
30M: 30 minutes
60M: 60 minutes
OFF
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E3
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
DeviceNet Communication Setting
Menu Symbol Name Display level Setting range Initial value User setting
DNET BR Baud rate EASY 125K: 125k bps 250K: 250k bps
500K: 500k bps 125K
ADR Address EASY 0 to 63 63
BPS Baud rate EASY 9600: 9600 bps 19200: 19.2k bps
38400: 38.4k bps 38400
FILE Profile number EASY 0, 11 to 15 0
SCAN Automatic rescan time PRO
OFF
1M: 1 minute
10M: 10 minutes
30M: 30 minutes
60M: 60 minutes
OFF
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E3
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
CC-Link Communication Setting
Menu Symbol Name Display level Setting range Initial value User setting
CC-L BR Baud rate EASY
156K: 156k bps
625K: 625k bps
2.5M: 2.5M bps
5M: 5M bps
10M: 10M bps
10M
ADR Address EASY 1 to 64 1
BPS Baud rate EASY 9600: 9600 bps 19200: 19.2k bps
38400: 38.4k bps 38400
FILE Profile number EASY 0, 11 to 15
(0, 11: Ver.1.10) (12 to 15: Ver.2.00) 0
SCAN Automatic rescan time PRO
OFF
1M: 1 minute
10M: 10 minutes
30M: 30 minutes
60M: 60 minutes
OFF
When each
p
arameter is dis
p
la
y
ed
,
the terminal area
(
E3
)
is dis
p
la
y
ed on Grou
p
dis
p
la
y
.
Key Action Setting
Menu Symbol Name Display level Setting range Initial value User setting
KEY RUN RUN key action setting RPO PROG
RST RST key action setting PRO RESET
PTN PTN key action setting PRO PTN
MODE MODE key action setting PRO MODE
OFF: Disable
PROG: Switch to PROG (Start of program operation)
RESET: Switch to RESET (Stop of program operation)
LOCAL: Switch to LOCAL(LSP) (Start of local-mode operation)
REM: Switch to REMOTE
P/R: PROG/RESET Switch
P/H: PROG/HOLD Switch
P/L: PROG/LOCAL(LSP) Switch
L/C: LOCAL(LSP)/CAS switch
HLD: Switch to HOLD (Start of hold-mode operation)
ADV: Advance of segment
A/M1: Loop-1 AUTO/MAN switch
A/M2: Loop-2 AUTO/MAN switch
PRG1: Switch to PROG1 (Start of program-1 operation)
PRG2: Switch to PROG2 (Start of program-2 operation)
AT: Auto-tuning
LTUP: LCD brightness UP
LTDN: LCD brightness DOWN
BRI: Adjust LCD brightness
LCD: LCD backlight ON/OFF switch
LAT: Latch release
PID: PID tuning switch
PTN: Program pattern number switch
MODE: Operation mode
Page 19 / 25

Display Function Setting
Menu Symbol Name Display level Setting range Initial value User setting
DISP PCMD Active color PV display switch EASY
0: Fixed in white
1: Fixed in red
2: Link to alarm 1 (Alarm OFF: white, Alarm ON: red)
3: Link to alarm 1 (Alarm OFF: red, Alarm ON: white)
4: Link to alarm 1 or 2 (Alarm OFF: white, Alarm ON: red)
5: Link to alarm 1 or 2 (Alarm OFF: red, Alarm ON: white)
6: PV limit (Within range: white, Out of range: red)
7: PV limit (Within range: red, Out of range: white)
8: SP deviation (Within deviation: white, Out of deviation: red)
9: SP deviation (Within deviation: red, Out of deviation: white)
10: Link to DI (ON: red, OFF: white)
0
PCH PV color change high limit EASY 0
PCL PV color change low limit EASY 0
PTSL Program display pattern selection STD PTN: Pattern display
SK.RP: Ramp and soak display PTN
BAR1 Upper bar-graph display registration STD 23
BAR2 Lower bar-graph display registration STD 0
BDV Bar-graph deviation display band STD 0.0 to 100.0% of PV input range span (EUS) 10.0 % of PV input range
span
EV1 EV1 display condition registration PRO 4785
EV2 EV2 display condition registration PRO 4786
EV3 EV3 display condition registration PRO 4787
EV4 EV4 display condition registration PRO 4789
EV5 EV5 display condition registration PRO 4790
EV6 EV6 display condition registration PRO 4791
EV7 EV7 display condition registration PRO 4793
EV8 EV8 display condition registration PRO 4794
PV.D PV display area ON/OFF PRO ON
SP.D Setpoint display area ON/OFF PRO ON
STS.D Status display area ON/OFF PRO ON
SPD Scroll speed PRO (Slow) 1 to 8 (Quick) 4
GUID Guide display ON/OFF STD OFF: Nondisplay
ON: Display ON
HOME Home Operation Display setting PRO
SP1: SP Display
SP2: Loop-2 SP Display
OUT1: OUT Display
OUT2: Loop-2 OUT Display
HCO: Heating/cooling OUT Display
VP: Valve Position Display
MV: Position Proportional Computation Output Display
PID1: PID Number Display
PID2: Loop-2 PID Number Display
HC1: Heater Break Alarm-1 Current Display
HC2: Heater Break Alarm-2 Current Display
PV1: PV2/PV1 Display
PV2: PV1/PV2 Display
PV: PV Analog Input Display
RSP: RSP Analog Input Display
AIN2: AIN2 Analog Input Display
AIN4: AIN4 Analog Input Display
CS1 to CS5: SELECT Display 1 to 5
TSP1: TSP Display
TSP2: Loop-2 TSP Display
R.TIM: Remaining Segment-tim Display
SEG.N: Segment Number Dispaly
R.CYC: Remaining Repetition Display
PTN: Program Pattern Display
AL5.8.1: Alarm-5 to -8 Status Display
AL5.8.2: Loop-2 Alarm-5 to -8 Status Display
SP1
ECO Economy mode STD
OFF: Disable
1: Economy mode ON (All indications except PV display OFF)
2: Economy mode ON (All indications OFF)
3: Bri
g
htness 10 %
(
All indications
)
OFF
BRI Brightness EASY (Dark) 1 to 5 (Bright) 3
B.PVW White brightness adjustment of PV display PRO Adjusts the white brightness of PV display.
(Dark) -4 to 4 (Bright) 0
B.PVR Red brightness adjustment of PV display PRO Adjusts the red brightness of PV display.
(Dark) -4 to 4 (Bright) 0
B.SP Brightness adjustment of Setpoint display PRO Adjusts the brightness of SP display.
(Dark) -4 to 4 (Bright) 0
B.BAR Brightness adjustment of Bargraph display PRO Adjusts the brightness of Bargraph display.
(Dark) -4 to 4 (Bright) 0
B.STS Brightness adjustment of Status indicator PRO Adjusts the brightness of Status indicator.
(Dark) -4 to 4 (Bright) 0
D.CYC Display update cycle PRO
1: 100 ms
2: 200 ms
3: 500 ms
4: 1 s
5: 2 s
2
OP.JP Autoreturn to operation display PRO Automatically returned to the Operation Display when there has been no keystroke operation for 5 minutes.
OFF, ON ON
MLSD Least significant digital mask of PV display STD OFF: With least significant digit
ON: Without least significant digit OFF
Set a display value when in PV limit or SP deviation.
-19999 to 30000 (Set a value within the input range.)
Decimal point position depends on the input type.
0: Disable
1: OUT, Heating-side OUT, Internal value in Position proportional control
2: Cooling-side OUT
3: PV
4: SP
5: Deviation
6: Loop-2 OUT, Loop-2 heatingside OUT
7: Loop-2 cooling-side OUT
8: Loop-2 PV
9: Loop-2 SP
10: Loop-2 deviation
11 to 16: Disable
17: Feedback input (valve opening)
18: PV terminals analog input
19: RSP terminals analog input
20: AIN2 terminals analog input
21: AIN4 terminals analog input
22: Segment progress
23: Time event and alarm status
Setting range: 4001 to 6304
OFF: Disable
4785: Link to PV event-1/local event-1 (Lit when the event occurs)
4786: Link to PV event-2/local event-2 (Lit when the event occurs)
4787: Link to PV event-3/local event-3 (Lit when the event occurs)
4789: Link to PV event-4/local event-4 (Lit when the event occurs)
4790: Link to PV event-5/local event-5 (Lit when the event occurs)
4791: Link to PV event-6/local event-6 (Lit when the event occurs)
4793: Link to PV event-7/local event-7 (Lit when the event occurs)
4794: Link to PV event-8/local event-8 (Lit when the event occurs)
4817: Link to time event-1 (Lit when the event occurs)
4818: Link to time event-2 (Lit when the event occurs)
4819: Link to time event-3 (Lit when the event occurs)
4821: Link to time event-4 (Lit when the event occurs)
4822: Link to time event-5 (Lit when the event occurs)
4823: Link to time event-6 (Lit when the event occurs)
4825: Link to time event-7 (Lit when the event occurs)
4826: Link to time event-8 (Lit when the event occurs)
4833: Link to time event-9 (Lit when the event occurs)
4834: Link to time event-10 (Lit when the event occurs)
4835: Link to time event-11 (Lit when the event occurs)
4837: Link to time event-12 (Lit when the event occurs)
4838: Link to time event-13 (Lit when the event occurs)
4839: Link to time event-14 (Lit when the event occurs)
4841: Link to time event-15 (Lit when the event occurs)
4842: Link to time event-16 (Lit when the event occurs)
4321: Link to alarm-1 (Lit when the alarm occurs)
4322: Link to alarm-2 (Lit when the alarm occurs)
4323: Link to alarm-3 (Lit when the alarm occurs)
4325: Link to alarm-4 (Lit when the alarm occurs)
4326: Link to alarm-5 (Lit when the alarm occurs)
4327: Link to alarm-6 (Lit when the alarm occurs)
4329: Link to alarm-7 (Lit when the alarm occurs)
4330: Link to alarm-8 (Lit when the alarm occurs)
4529: Heater break alarm 1 (Lit when the alarm occurs)
4530: Heater break alarm 2 (Lit when the alarm occurs)
5025 to 5027: Link to DI1-DI3 (Lit when the contact is closed)
5041 to 5046: Link to DI11-DI16 (E1-terminal area) (Lit when the contact is closed)
5057 to 5062: Link to DI21-DI26 (E2-terminal area) (Lit when the contact is closed)
5073 to 5077: Link to DI31-DI35 (E3-terminal area) (Lit when the contact is closed)
5089 to 5094: Link to DI41-DI46 (E4-terminal area) (Lit when the contact is closed)
5153 to 5155: Link to AL1-AL3 (Lit when the contact is closed)
5169 to 5173: Link to DO11-DO15 (E1-terminal area) (Lit when the contact is closed)
5185 to 5189: Link to DO21-DO25 (E2-terminal area) (Lit when the contact is closed)
5201 to 5205: Link to DO31-DO35 (E3-terminal area) (Lit when the contact is closed)
5217 to 5221: Link to DO41-DO45 (E4-terminal area) (Lit when the contact is closed)
* For other functions, see the UTAdvanced Series Communication Interface
User’s Manual.
OFF: Nondisplay, ON: Display
Page 20 / 25
