York YCM Series User manual
YCM Air Handling Unit
Installation,Operation and Maintenance Manual FORM NO.: 6A6J-A01C-NA-EN
Calalogue
I. Overview...........................................................................................................................................................................3
1-1 Brief Introduction.................................................................................................................................................3
1-2 Model of Air Handling Unit .................................................................................................................................3
1-3 Outlines & Dimensions.........................................................................................................................................5
II. Installation & Transportation ....................................................................................................................................2
2-1 Matters Needing Attention.................................................................................................................................
2-2 Transportation ....................................................................................................................................................
2-3 Preparations Before Installation........................................................................................................................
2-4 Space of Installation ...........................................................................................................................................
24
2-5 Fixture..................................................................................................................................................................
2-6 Connection of Air Duct.......................................................................................................................................2
2-7 Connection of Water Pipe ..................................................................................................................................
2-8 Water Quality & Required Environment .........................................................................................................2
2-9 U-trap...................................................................................................................................................................
2-10 Warnings............................................................................................................................................................
2-11 TiO2Installation................................................................................................................................................
2-12 Dry Steam Humidifier Installation..................................................................................................................2
28
III. Starting & Running....................................................................................................................................................
29
3-1 Electrical Diagram..............................................................................................................................................
3-2 Check Before Startup .........................................................................................................................................
30
3-3 Testing ..................................................................................................................................................................
31
3-4 Running ...............................................................................................................................................................
IV. Maintenance & Service ..............................................................................................................................................
32
4-1 Filter.....................................................................................................................................................................3
4-2 Fan & Electric Motors........................................................................................................................................3
4-3 Belt .......................................................................................................................................................................
4-4 Coil .......................................................................................................................................................................3
4-5 Drain Pipe............................................................................................................................................................3
4-6 TiO2......................................................................................................................................................................
4-7 Others ..................................................................................................................................................................
V. Troubleshooting ...........................................................................................................................................................
2
22
22
23
22
24
24
5
25
2
5
25
28
30
1
1
3
3
2
2
32
Calalogue
5
5
7
I. Overview
1-1 Brief Introduction
York YCM series air handling unit is designed for factories, warehouses, office building and shopping malls. It
provides them a comfortable air conditioning environment. The coil of this air handling unit can use heating water to
heat air in winter, chilled water to cool air in summer. We can supply eighteen models of YCM clients can select it
necessity.
Features of YCM Series of Air Handling Unit:
Exquisite & Beautiful Appearance
All operation panels are made of galvanized steel with best quality. They are continuous leveling, clear and beautiful
appearance.
Good Stability
All internal parts and components of air conditioning are set in frame structure with high strength and good stability.
High Rate of Heat Transfer
The coils made of best quality copper pipe and sine wave aluminum fin by mechanical expansion tube. It has high heat
transfer efficiency. Equipped with mega air flow fan, air handling unit can exert the most heat transmission efficiency.
Quiet Operation
The air handling unit equips with best quality and low noise level motor, the newest low rotational speed and mega air
flow fan. It is driven by belt and pulley, runs very quietly.
“Dry Drain Pan”
Condensate drain pan is “dry drain pan” which makes condensate water be drained out in time.
Easy Installation & Low Installation Cost
Computer was used to design the internal structure. Small size makes you convenient to install the unit in limited
space; which makes the installation cost reduced to the lowest. The static pressure in unit is high and you can install the
unit by connecting air duct or disconnecting air duct. There are two types for installing supply air: vertical and
horizontal.
Convenient Cleaning for Filter
The filters can be drawn out from left or right freely, which can cleaned conveniently.
Options
1-Row, 2-Row heating Coil
Evaporative Humidifier
TiO2Sterilizer
Static Filter
1-2 Model of Air Handling Unit
1-2-1 Nomenclature
3
Overview
Note: Along the airflow direction, it is the right hand unit if coil connection pipes are on the right side of unit, vice versa.

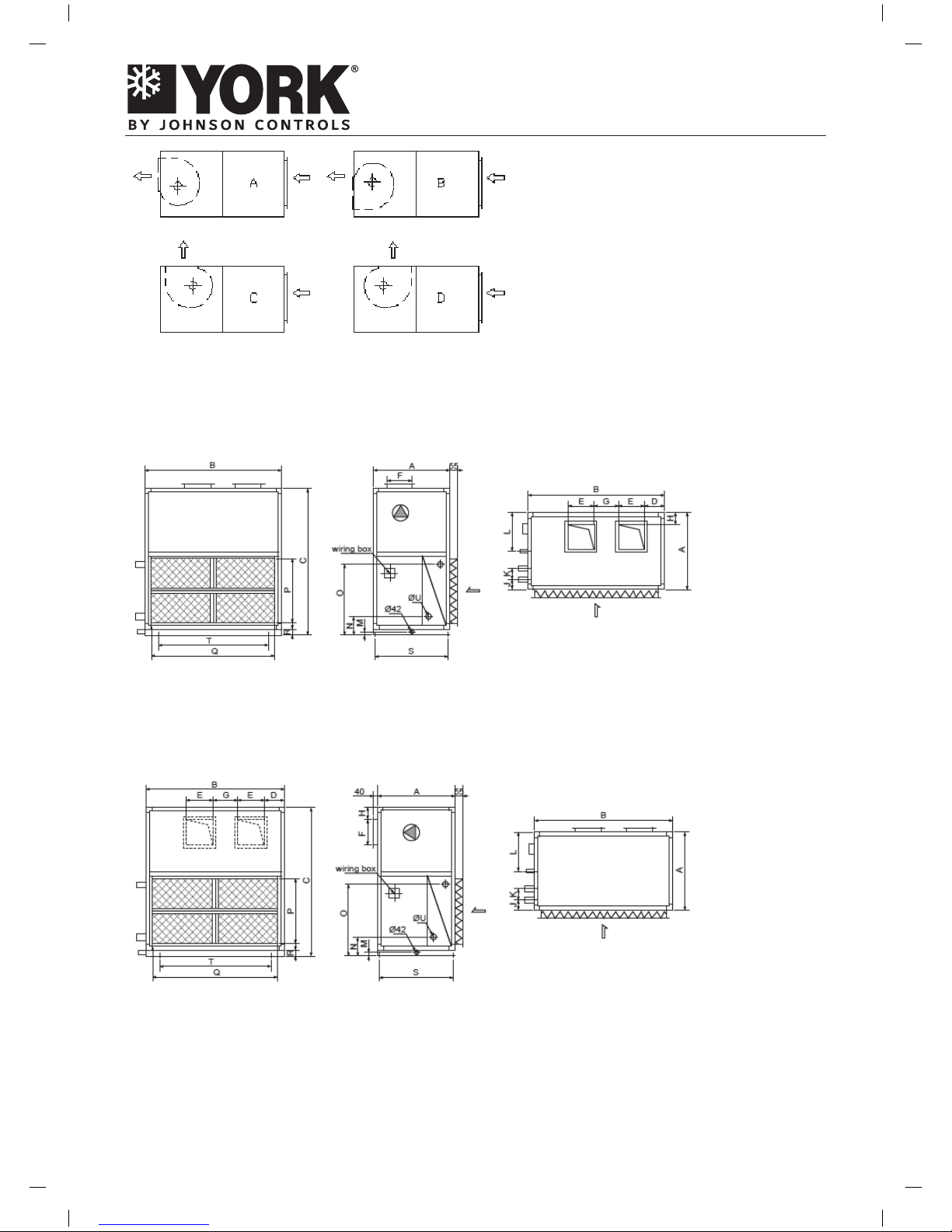

1-2-2 The types of supply air
Vertical unit
4
Overview
Horizontal unit
1-3 Outlines & Dimensions
1-3-1 Supply Air Method-Vertical Unit
Vertical Standard Unit (V1)-Top Outlet
Note: The above apply to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
outlet should be orientated from the left side of unit.
Vertical Standard Unit (V1)-Front Outlet
Note: The above apply to left hand unit. For right hand unit, the coil connection pipes are on the right of unit. If the
supply air method is B, the air outlet is on the side of air inlet.
5
Overview

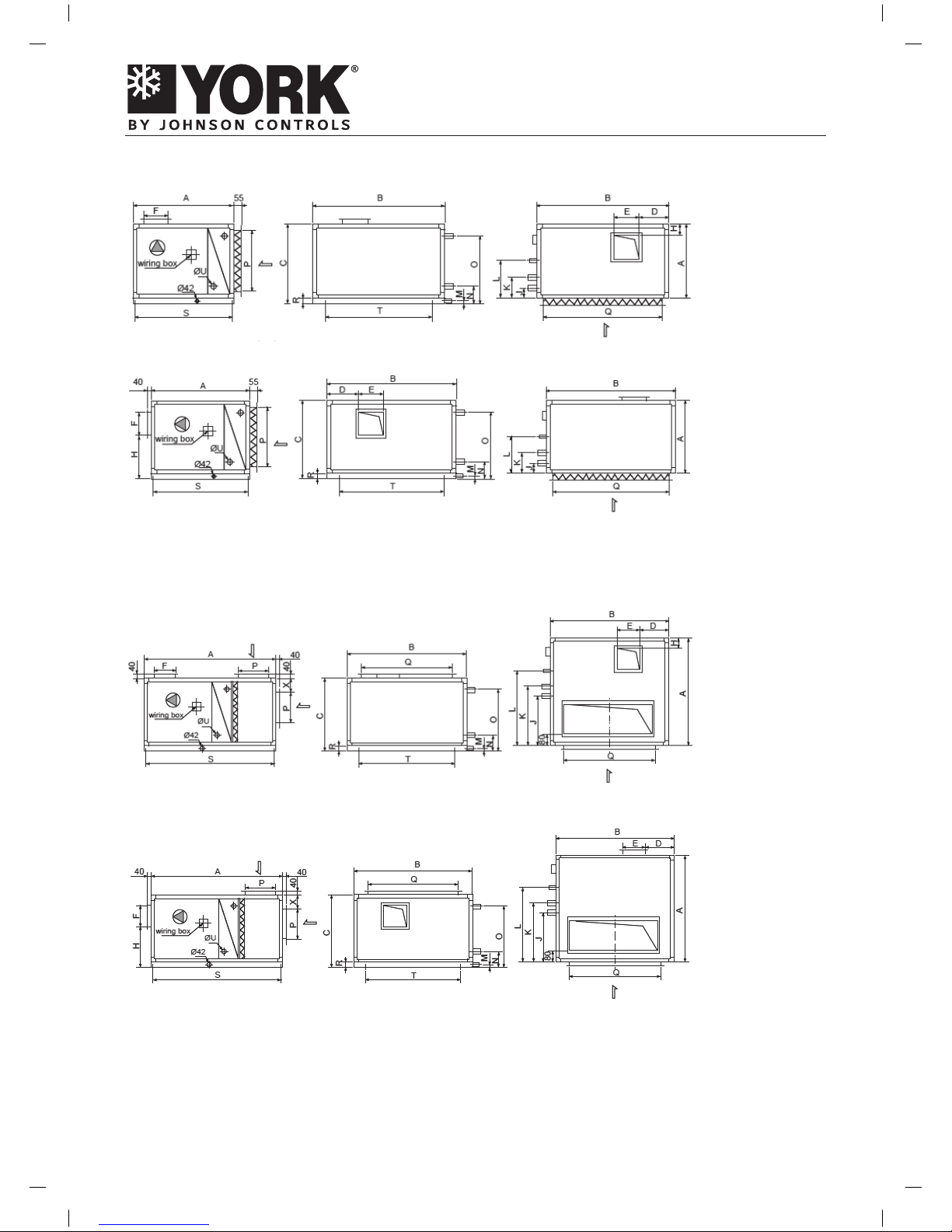

1-3-2 Supply Air Method-Horizontal Unit
Horizontal Standard Unit (H1)-Top Outlet
Horizontal Standard Unit (H1)-Front Outlet
Note: The above applies to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
outlet should be orientated from the left side of unit.
Horizontal Standard Unit (H2)-Top Outlet
Horizontal Standard Unit (H2)-Front Outlet
Note: The above applies to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
outlet should be orientated from the left side of unit.
Horizontal Standard Unit (H3)-Top Outlet
6
Overview
Horizontal Standard Unit (H3)-Front Outlet
Note: The above applies to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
outlet should be orientated from the left side of unit.
Horizontal Standard Unit (H4)-Top Outlet
Horizontal Standard Unit (H4)-Front Outlet
Note: The above applies to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
7
Overview
outlet should be orientated from the left side of unit.
Horizontal Standard Unit (H5)-Top Outlet
Horizontal Standard Unit (H5)-Front Outlet
Note: The above applies to left hand unit. For right hand unit, the coil connection pipes are on the right of unit and the
outlet should be orientated from the left side of unit.
8
Overview
1-3-3 Outlines & Dimensions
Vertical Unit (V1)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F G
H J K
L M
N O
P Q R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R
25-02V 636 816 1128 141 232 262 - 78 78 90 284 110 110 83 138 318 33 163 163 511 511 391 654 65 596 322
25-03V 636 976 1188 208 232 262 - 76 76 88 286 110 110 83 138 318 33 163 163 575 575 455 814 65 596 482
25-04V 636 1236 1328 263
309 341 - 80 80 76 219 110 110 83 138 318 33
163 163 575 575 455 1074 65 596 742
25-05V 636 1326 1392 263
309 341 - 80 80 76 219 125 125 83 138 318 33
163 169 639 633 518 1164 65 596 832
25-06V 636 1326 1519 263 395 341 - 80 80 76 219 125 125 83 138 318 33 163 169 766 760 645 1164 65 596 832
25-07V 716 1336 1668 263
373 404 - 76 76 76 236 125 125 83 138 358 33
168 168 822 822 709 1174 65 676 842
25-08V 716 1386 1732 348
373 404 - 76 76 76 236 125 125 83 138 358 33
168 176 886 878 772 1224 65 676 892
25-10V 846 1656 1858 508
430 478 - 76 76 76 292 125 125 112 138 423 33 168 176 886 878 772 1494 65 806 1162
25-12V 846 1916 1858 608 557 478 - 76 76 76 292 125 125 112 138 423 33 168 176 886 878 772 1754 65 806 1422
25-15V 846 2026 1858 258 373 404 294 76 76 108 334 125 125 112 138 423 33 175 182 1004 997 899 1864 65 806 1532
25-18V 846 2226 1922 198 471 404 384 76 76 108 334 110 125 112 138 423 33 177 182 1065 1061 963 2064 65 806 1732
25-20V 846 2316 2121 278 430 478 343 76 76 76 292 109 124 112 138 423 33 177 182 1129 1124 1026 2154 65 806 1822
25-22V 846 2316 2248 278 430 478 343 76 76 76 292 109 124 112 138 423 33 177 182 1256 1251 1153 2154 65 806 1822
25-25V 846 2316 2375 278 430 478 343 76 76 76 292 109 124 112 138 423 33 174 174 1384 1384 1280 2154 65 806 1822
25-28V 1016 2556 2358 253 507 507 400 76 76 83 426 110 125 112 138 508 33 181 174 1377 1384 1280 2394 65 976 2062
25-30V 1016 2716 2358 328 507 507 400 76 76 83 426 110 125 112 138 508 33 181 174 1377 1384 1280 2554 65 976 2222
25-33V 1016 2956 2388 328 569 569 450 76 76 83 364 110 125 112 138 508 33 181 174 1377 1384 1280 2794 65 976 2462
25-36V 1016 3196 2388 673 569 569 450 76 76 83 364 100 125 112 138 508 33 181 174 1377 1384 1280 3034 65 976 2702
9
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F G
H J K
L M
N O
P Q R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R
50-02V 686 866 1178 166 232 262 - 103 103 115 309 140 140 83 138 343 33
187 187 536 536 391 654 65 596 322
50-03V 686 1026 1238 233 232 262 - 101 101 113 311 140 140 83 138 343 33
188 183 600 595 455 814 65 596 482
50-04V 686 1286 1378 288
309 341 - 105 105 101 244 140 140 83 138 343 33
188 183 600 595 455 1074 65 596 742
50-05V 686 1376 1442 288
309 341 - 105 105 101 244 140 140 83 138 343 33
188 194 663 657 518 1164 65 596 832
50-06V 686 1376 1569 288 395 341 - 105 105 101 244 140 140 83 138 343 33
183 188 785 778 645 1164 65 596 832
50-07V 766 1386 1718 288
373 404 - 101 101 101 261 140 140 83 138 383 33
193 187 847 841 709 1174 65 676 842
50-08V 766 1436 1782 373
373 404 - 101 101 101 261 140 140 83 138 383 33
193 201 910 902 772 1224 65 676 892
50-10V 896 1706 1908 533
430 478 - 101 101 101 317 125 140 83 138 448 33
193 195 910 896 772 1494 65 806 1162
50-12V 896 1966 1908 633 557 478 - 101 101 101 317 125 140 83 138 448 33
193 195 910 896 772 1754 65 806 1422
50-15V 896 2076 1908 283 373 404 294 101 101 133 359 130 145 83 138 448 33 200 205 1028 1021 899 1864 65 806 1532
50-18V 896 2276 1972 223 471 404 384 101 101 133 359 130 145 83 138 448 33 202 205 1090 1084 963 2064 65 806 1732
50-20V 896 2366 2171 303 430 478 343 101 101 101 317 130 145 83 138 448 33 202 205 1153 1148 1026 2154 65 806 1822
50-22V 896 2366 2298 303 430 478 343 101 101 101 317 130 140 83 138 448 33 202 205 1280 1275 1153 2154 65 806 1822
50-25V 896 2366 2425 303 430 478 343 101 101 101 317 125 140 83 138 448 33 199 193 1408 1402 1280 2154 65 806 1822
50-28V 1066 2606 2408 278 507 507 400 101 101 108 451 135 145 83 138 533 33 205 193 1402 1402 1280 2394 65 976 2062
50-30V 1066 2766 2408 353 507 507 400 101 101 108 451 135 145 83 138 533 33 205 193 1402 1402 1280 2554 65 976 2222
50-33V 1066 3006 2438 353 569 569 450 101 101 108 389 135 145 83 138 533 33 205 193 1402 1402 1280 2794 65 976 2462
50-36V 1066 3246 2438 698 569 569 450 101 101 108 389 135 145 83 138 533 33 205 193 1402 1402 1280 3034 65 976 2702
10
Overview
Horizontal Unit (H1)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
25-02H 1136 866 701 171 232 262 358 278 87 199 139 128 205 265 316 30 174 170 460 462 - - - - 490 704 65 1096 276
25-03H 1136 966 730 188 232 262 393 303 87 199 139 128 205 265 316 30 168 170 581 589 - - - - 519 804 65 1096 376
25-04H 1196 1066 865 168 309 341 450 268 87 230 128 128 210 265 316 30 176 176 681 681 - - - - 654 904 65 1156 476
25-05H 1196 1116 865 178 309 341 450 268 87 230 128 128 210 265 316 30 176 176 700 700 - - - - 654 954 65 1156 526
25-06H 1196 1116 960 178 395 341 450 268 87 230 128 128 210 265 316 30 176 176 821 821 - - - - 749 954 65 1156 526
25-07H 1276 1256 960 228 373 404 475 268 80 287 128 128 210 265 316 30 176 176 821 821 - - - - 749 1094 65 1236 666
25-08H 1276 1256 1090 228 373 404 475 268 80 287 113 128 225 265 316 30 176 176 948 948 - - - - 879 1094 65 1236 666
25-10H 1406 1366 1220 238 430 478 531 268 75 385 118 128 225 265 316 30 176 176 1075 1075 - - - - 1009 1204 65 1366 776
25-12H 1406 1536 1220 358 557 478 531 268 75 385 118 128 225 265 316 30 176 176 1075 1075 - - - - 1009 1374 65 1366 946
25-15H 1486 1676 1340 308 568 568 516 268 62 315 118 128 225 265 316 30 176 176 1200 1200 - - - - 1129 1514 65 1446 1086
25-18H 1486 1786 1470 408 568 568 516 268 62 315 118 128 225 265 316 30 176 176 1330 1330 - - - - 1259 1624 65 1446 1196
25-20H 1576 1956 1470 460 638 638 538 268 62 337 118 128 225 265 316 30 176 176 1330 1330 - - - - 1259 1794 65 1536 1366
25-22H 1576 1956 1600 460 638 638 538 268 62 337 118 128 225 265 316 30 176 176 1458 1458 - - - - 1389 1794 65 1536 1366
25-25H 1686 2186 1635 510 714 714 608 303 62 372 118 128 225 265 316 63 211 211 1493 1493 - - - - 1389 2024 100 1638 1588
25-28H 1686 2236 1765 525 714 714 608 303 62 372 118 128 225 265 316 63 211 211 1625 1625 - - - - 1519 2074 100 1638 1638
25-30H 1816 2376 1765 545 800 800 649 303 62 412 118 128 225 265 316 63 211 211 1625 1625 - - - - 1519 2214 100 1768 1778
25-33H 1816 2586 1765 696 800 800 647 306 62 412 118 128 225 265 316 63 211 211 1625 1625 - - - - 1519 2424 100 1768 1988
25-36H 1816 2796 1765 749 800 800 647 306 62 412 118 128 225 265 316 63 211 211 1625 1625 - - - - 1519 2634 100 1768 2198
25-40H 1951 2666 2075 724 897 897 617 266 62 477 112 128 225 265 319 65 216 216 984 984 1156 1156 1924 1924 1829 2498 100 1897 2262
25-45H 1951 2806 2200 839 897 897 742 266 62 477 112 128 225 265 319 65 217 218 1049 1049 1221 1221 2052 2053 1954 2638 100 1897 2402
25-50H 2116 3086 2200 811 1006 1006 583 266 62 533 112 128 225 265 319 65 217 218 1049 1049 1221 1221 2052 2053 1954 2918 100 2062 2682
25-60H 2296 3126 2380 668 1129 1129 585 268 62 590 112 128 225 265 319 65 214 214 1236 1236 1407 1408 2239 2239 2134 2958 100 2242 2722
11
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
50-02H 1186 916 751 196 232 262 383 303 112 225 164 153 230 290 342 30 199 195 485 487 - - - - 490 704 65 1096 276
50-03H 1186 1016 780 213 232 262 402 328 112 225 164 153 230 290 342 30 193 195 606 614 - - - - 519 804 65 1096 376
50-04H 1246 1116 915 193 309 341 459 293 112 256 153 153 235 290 342 30 201 201 706 706 - - - - 654 904 65 1156 476
50-05H 1246 1166 915 203 309 341 475 293 112 256 153 153 235 290 342 30 201 201 725 725 - - - - 654 954 65 1156 526
50-06H 1246 1166 1010 203 395 341 475 293 112 256 153 153 235 290 342 30 201 201 846 846 - - - - 749 954 65 1156 526
50-07H 1326 1306 1010 253 373 404 500 293 105 312 153 153 235 290 342 30 201 201 846 846 - - - - 749 1094 65 1236 666
50-08H 1326 1306 1140 253 373 404 500 293 105 312 138 153 250 290 342 30 201 201 973 973 - - - - 879 1094 65 1236 666
50-10H 1456 1416 1270 263 430 478 556 293 100 412 143 153 250 290 342 30 201 201 1100 1100 - - - - 1009 1204 65 1366 776
50-12H 1456 1586 1270 383 557 478 556 293 100 412 143 153 250 290 342 30 201 201 1100 1100 - - - - 1009 1374 65 1366 946
50-15H 1536 1726 1390 334 568 568 541 293 87 341 143 153 250 290 342 30 201 201 1225 1225 - - - - 1129 1514 65 1446 1086
50-18H 1536 1836 1520 434 568 568 541 293 87 341 143 153 250 290 342 30 201 201 1355 1355 - - - - 1259 1624 65 1446 1196
50-20H 1626 2006 1520 486 638 638 563 293 87 363 143 153 250 290 342 30 201 201 1355 1355 - - - - 1259 1794 65 1536 1366
50-22H 1626 2006 1650 486 638 638 563 293 87 363 143 153 250 290 342 30 201 201 1483 1483 - - - - 1389 1794 65 1536 1366
50-25H 1736 2236 1685 536 714 714 598 318 87 398 143 153 250 290 342 63 236 236 1518 1518 - - - - 1389 2024 100 1638 1588
50-28H 1736 2286 1815 551 714 714 598 318 87 398 143 153 250 290 341 63 236 236 1650 1650 - - - - 1519 2074 100 1638 1638
50-30H 1866 2426 1815 571 800 800 637 321 87 437 143 153 250 290 341 63 236 236 1650 1650 - - - - 1519 2214 100 1768 1778
50-33H 1866 2636 1815 722 800 800 637 321 87 437 143 153 250 290 341 63 236 236 1650 1650 - - - - 1519 2424 100 1768 1988
50-36H 1866 2846 1815 775 800 800 637 321 87 437 143 153 250 290 341 63 236 236 1650 1650 - - - - 1519 2634 100 1768 2198
50-40H 2001 2716 2125 749 897 897 642 291 87 502 137 153 250 290 345.5 63 241 241 1009 1009 1181 1181 1949 1949 1829 2498 100 1907 2272
50-45H 2001 2856 2250 864 897 897 767 291 87 502 137 153 250 290 345.5 63 242 243 1074 1074 1246 1246 2077 2078 1954 2638 100 1907 2412
50-50H 2166 3136 2250 836 1006 1006 608 291 87 558 137 153 250 290 345.5 63 242 243 1074 1074 1246 1246 2077 2078 1954 2918 100 2072 2692
50-60H 2346 3176 2430 693 1129 1129 610 293 87 615 137 153 250 290 345.5 63 239 239 1261 1261 1432 1433 2264 2264 2134 2958 100 2252 2732
12
Overview

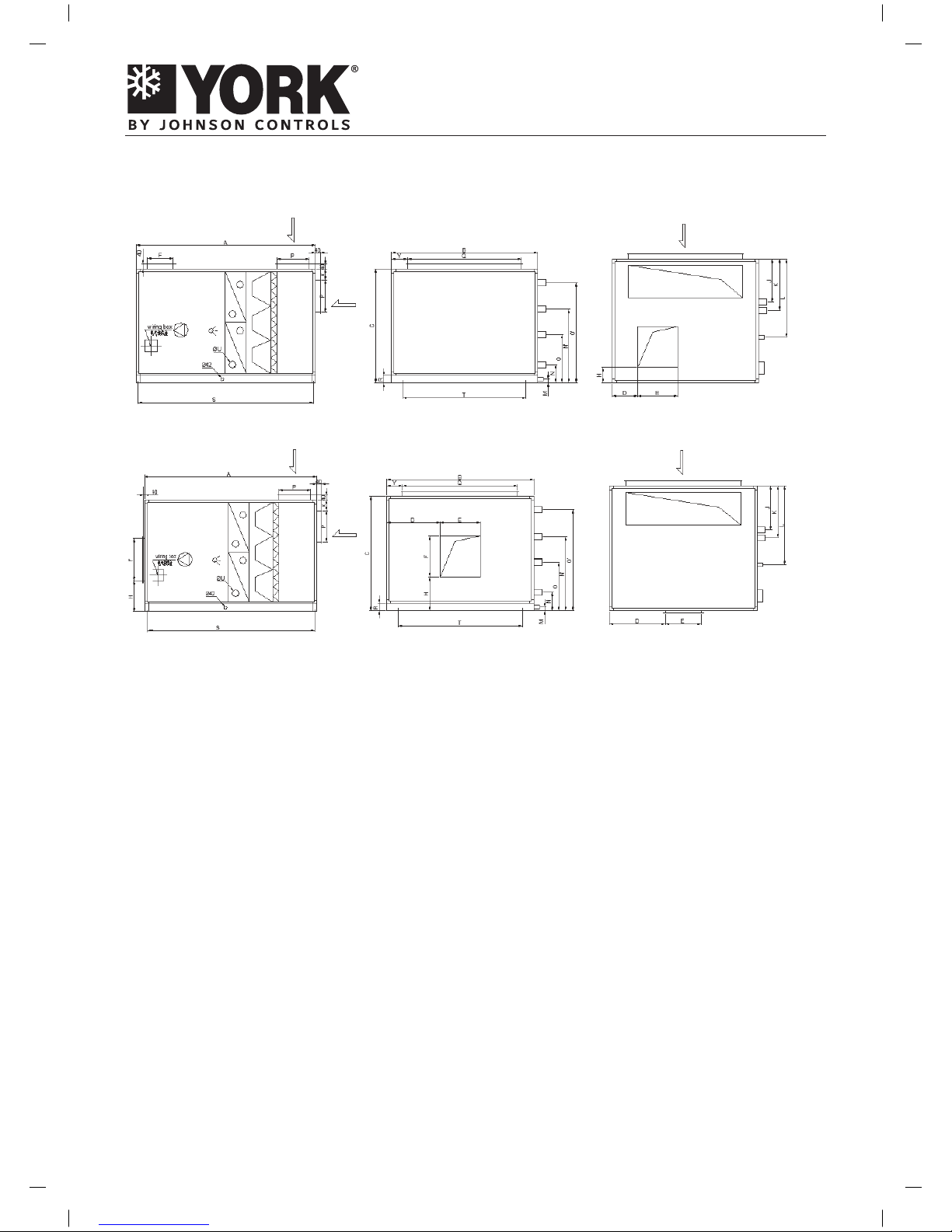

Horizontal Unit (H2)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
25-02H 1506 866 701 171 232 262 358 278 87 199 509 498 575 635 686 30 174 170 460 462 - - - - 200 780 43 65 1466 276
25-03H 1506 966 730 188 232 262 393 303 87 199 509 498 575 635 686 30 168 170 581 589 - - - - 200 880 43 65 1466 376
25-04H 1566 1066 865 168 309 341 450 268 87 230 498 498 580 635 686 30 176 176 681 681 - - - - 200 980 43 65 1526 476
25-05H 1566 1116 865 178 309 341 450 268 87 230 498 498 580 635 686 30 176 176 700 700 - - - - 200 1030 43 65 1526 526
25-06H 1666 1116 960 178 395 341 450 268 87 230 598 598 680 735 786 30 176 176 821 821 - - - - 200 1030 43 65 1626 526
25-07H 1746 1256 960 228 373 404 475 268 80 287 598 598 680 735 786 30 176 176 821 821 - - - - 200 1170 43 65 1706 666
25-08H 1746 1256 1090 228 373 404 475 268 80 287 583 598 695 735 786 30 176 176 948 948 - - - - 300 1170 43 65 1706 666
25-10H 1976 1366 1220 238 430 478 531 268 75 385 688 698 795 835 886 30 176 176 1075 1075 - - - - 300 1280 43 65 1936 776
25-12H 1976 1536 1220 358 557 478 531 268 75 385 688 698 795 835 886 30 176 176 1075 1075 - - - - 300 1450 43 65 1936 946
25-15H 2056 1676 1340 308 568 568 516 268 62 315 688 698 795 835 886 30 176 176 1200 1200 - - - - 400 1590 43 65 2016 1086
25-18H 2056 1786 1470 408 568 568 516 268 62 315 688 698 795 835 886 30 176 176 1330 1330 - - - - 400 1700 43 65 2016 1196
25-20H 2146 1956 1470 460 638 638 538 268 62 337 688 698 795 835 886 30 176 176 1330 1330 - - - - 400 1870 43 65 2106 1366
25-22H 2246 1956 1600 460 638 638 538 268 62 337 788 798 895 935 986 30 176 176 1458 1458 - - - - 500 1870 43 65 2206 1366
25-25H 2396 2186 1635 510 714 714 608 303 62 372 828 838 935 975 1026 63 211 211 1493 1493 - - - - 500 2100 43 100 2356 1588
25-28H 2396 2236 1765 525 714 714 608 303 62 372 828 838 935 975 1026 63 211 211 1625 1625 - - - - 500 2150 43 100 2356 1638
25-30H 2526 2376 1765 545 800 800 649 303 62 412 828 838 935 975 1026 63 211 211 1625 1625 - - - - 500 2290 43 100 2486 1778
25-33H 2526 2586 1765 696 800 800 647 306 62 412 828 838 935 975 1026 63 211 211 1625 1625 - - - - 500 2500 43 100 2486 1988
25-36H 2526 2796 1765 749 800 800 647 306 62 412 828 838 935 975 1026 63 211 211 1625 1625 - - - - 500 2710 43 100 2486 2198
25-40H 2861 2660 2075 724 897 897 617 266 62 477 1022 1038 1135 1175 1235 65 216 216 984 984 1156 1156 1924 1924 600 2574 43 100 2812 2262
25-45H 2861 2800 2200 839 897 897 742 266 62 477 1022 1038 1135 1175 1235 65 217 218 1049 1049 1221 1221 2052 2053 600 2714 43 100 2812 2402
25-50H 3026 3080 2200 811 1006 1006 583 266 62 533 1022 1038 1135 1175 1235 65 217 218 1049 1049 1221 1221 2052 2053 600 2994 43 100 2977 2682
25-60H 3206 3120 2380 668 1129 1129 585 268 62 590 1022 1038 1135 1175 1235 65 214 214 1236 1236 1407 1408 2239 2239 600 3034 43 100 3158 2722
13
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
50-02H 1556 916 751 196 232 262 383 303 112 225 534 523 600 660 712 30 199 195 485 487 - - - - 200 780 68 65 1466 276
50-03H 1556 1016 780 213 232 262 402 328 112 225 534 523 600 660 712 30 193 195 606 614 - - - - 200 880 68 65 1466 376
50-04H 1616 1116 915 193 309 341 459 293 112 256 523 523 605 660 712 30 201 201 706 706 - - - - 200 980 68 65 1526 476
50-05H 1616 1166 915 203 309 341 475 293 112 256 523 523 605 660 712 30 201 201 725 725 - - - - 200 1030 68 65 1526 526
50-06H 1716 1166 1010 203 395 341 475 293 112 256 623 623 705 760 812 30 201 201 846 846 - - - - 200 1030 68 65 1626 526
50-07H 1796 1306 1010 253 373 404 500 293 105 312 623 623 705 760 812 30 201 201 846 846 - - - - 200 1170 68 65 1706 666
50-08H 1796 1306 1140 253 373 404 500 293 105 312 608 623 720 760 812 30 201 201 973 973 - - - - 300 1170 68 65 1706 666
50-10H 2026 1416 1270 263 430 478 556 293 100 412 713 723 820 860 912 30 201 201 1100 1100 - - - - 300 1280 68 65 1936 776
50-12H 2026 1586 1270 383 557 478 556 293 100 412 713 723 820 860 912 30 201 201 1100 1100 - - - - 300 1450 68 65 1936 946
50-15H 2106 1726 1390 334 568 568 541 293 87 341 713 723 820 860 912 30 201 201 1225 1225 - - - - 400 1590 68 65 2016 1086
50-18H 2106 1836 1520 434 568 568 541 293 87 341 713 723 820 860 912 30 201 201 1355 1355 - - - - 400 1700 68 65 2016 1196
50-20H 2196 2006 1520 486 638 638 563 293 87 363 713 723 820 860 912 30 201 201 1355 1355 - - - - 400 1870 68 65 2106 1366
50-22H 2296 2006 1650 486 638 638 563 293 87 363 813 823 920 960 1012 30 201 201 1483 1483 - - - - 500 1870 68 65 2206 1366
50-25H 2502 2236 1685 536 714 714 598 318 87 398 909 919 1016 1056 1108 63 236 236 1518 1518 - - - - 500 2100 68 100 2356 1588
50-28H 2502 2286 1815 551 714 714 598 318 87 398 909 919 1016 1056 1107 63 236 236 1650 1650 - - - - 500 2150 68 100 2356 1638
50-30H 2632 2426 1815 571 800 800 637 321 87 437 909 919 1016 1056 1107 63 236 236 1650 1650 - - - - 500 2290 68 100 2486 1778
50-33H 2632 2636 1815 722 800 800 637 321 87 437 909 919 1016 1056 1107 63 236 236 1650 1650 - - - - 500 2500 68 100 2486 1988
50-36H 2632 2846 1815 775 800 800 637 321 87 437 909 919 1016 1056 1107 63 236 236 1650 1650 - - - - 500 2710 68 100 2486 2198
50-40H 2961 2710 2125 749 897 897 642 291 87 502 1097 1113 1210 1250 1312 63 241 241 1009 1009 1181 1181 1949 1949 600 2574 68 100 2872 2272
50-45H 2961 2850 2250 864 897 897 767 291 87 502 1097 1113 1210 1250 1312 63 242 243 1074 1074 1246 1246 2077 2078 600 2714 68 100 2872 2412
50-50H 3126 3130 2250 836 1006 1006 608 291 87 558 1097 1113 1210 1250 1312 63 242 243 1074 1074 1246 1246 2077 2078 600 2994 68 100 3037 2692
50-60H 3306 3170 2430 693 1129 1129 610 293 87 615 1097 1113 1210 1250 1312 63 239 239 1261 1261 1432 1433 2264 2264 600 3034 68 100 3218 2732
14
Overview
Horizontal Unit (H3)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
25-02H 1886 866 701 171 232 262 358 278 87 199 889 878 955 1015 1066 30 174 170 460 462 - - - - 200 780 43 65 1846 276
25-03H 1886 966 730 188 232 262 393 303 87 199 889 878 955 1015 1066 30 168 170 581 589 - - - - 200 880 43 65 1846 376
25-04H 1946 1066 865 168 309 341 450 268 87 230 878 878 960 1015 1066 30 176 176 681 681 - - - - 200 980 43 65 1906 476
25-05H 1946 1116 865 178 309 341 450 268 87 230 878 878 960 1015 1066 30 176 176 700 700 - - - - 200 1030 43 65 1906 526
25-06H 2046 1116 960 178 395 341 450 268 87 230 978 978 1060 1115 1166 30 176 176 821 821 - - - - 200 1030 43 65 2006 526
25-07H 2126 1256 960 228 373 404 475 268 80 287 978 978 1060 1115 1166 30 176 176 821 821 - - - - 200 1170 43 65 2086 666
25-08H 2126 1256 1090 228 373 404 475 268 80 287 963 978 1075 1115 1166 30 176 176 948 948 - - - - 300 1170 43 65 2086 666
25-10H 2356 1366 1220 238 430 478 531 268 75 385 1068 1078 1175 1215 1266 30 176 176 1075 1075 - - - - 300 1280 43 65 2316 776
25-12H 2356 1536 1220 358 557 478 531 268 75 385 1068 1078 1175 1215 1266 30 176 176 1075 1075 - - - - 300 1450 43 65 2316 946
25-15H 2436 1676 1340 308 568 568 516 268 62 315 1068 1078 1175 1215 1266 30 176 176 1200 1200 - - - - 400 1590 43 65 2396 1086
25-18H 2436 1786 1470 408 568 568 516 268 62 315 1068 1078 1175 1215 1266 30 176 176 1330 1330 - - - - 400 1700 43 65 2396 1196
25-20H 2526 1956 1470 460 638 638 538 268 62 337 1068 1078 1175 1215 1266 30 176 176 1330 1330 - - - - 400 1870 43 65 2486 1366
25-22H 2626 1956 1600 460 638 638 538 268 62 337 1168 1178 1275 1315 1366 30 176 176 1458 1458 - - - - 500 1870 43 65 2586 1366
25-25H 2736 2186 1635 510 714 714 608 303 62 372 1168 1178 1275 1315 1366 63 211 211 1493 1493 - - - - 500 2100 43 100 2696 1588
25-28H 2736 2236 1765 525 714 714 608 303 62 372 1168 1178 1275 1315 1366 63 211 211 1625 1625 - - - - 500 2150 43 100 2696 1638
25-30H 2866 2376 1765 545 800 800 649 303 62 412 1168 1178 1275 1315 1366 63 211 211 1625 1625 - - - - 500 2290 43 100 2826 1778
25-33H 2866 2586 1765 696 800 800 647 306 62 412 1168 1178 1275 1315 1366 63 211 211 1625 1625 - - - - 500 2500 43 100 2826 1988
25-36H 2866 2796 1765 749 800 800 647 306 62 412 1168 1178 1275 1315 1366 63 211 211 1625 1625 - - - - 500 2710 43 100 2826 2198
25-40H 3201 2660 2075 724 897 897 617 266 62 477 1362 1378 1475 1515 1575 65 216 216 984 984 1156 1156 1924 1924 600 2574 43 100 3153 2262
25-45H 3201 2800 2200 839 897 897 742 266 62 477 1362 1378 1475 1515 1575 65 217 218 1049 1049 1221 1221 2052 2053 600 2714 43 100 3152 2402
25-50H 3366 3080 2200 811 1006 1006 583 266 62 533 1362 1378 1475 1515 1575 65 217 218 1049 1049 1221 1221 2052 2053 600 2994 43 100 3317 2682
25-60H 3546 3120 2380 668 1129 1129 585 268 62 590 1362 1378 1475 1515 1575 65 214 214 1236 1236 1407 1408 2239 2239 600 3034 43 100 3498 2722
15
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
50-02H 1936 916 751 196 232 262 383 303 112 225 914 903 980 1040 1092 30 199 195 485 487 - - - - 200 780 68 65 1846 276
50-03H 1936 1016 780 213 232 262 402 328 112 225 914 903 980 1040 1092 30 193 195 606 614 - - - - 200 880 68 65 1846 376
50-04H 1996 1116 915 193 309 341 459 293 112 256 903 903 985 1040 1092 30 201 201 706 706 - - - - 200 980 68 65 1906 476
50-05H 1996 1166 915 203 309 341 475 293 112 256 903 903 985 1040 1092 30 201 201 725 725 - - - - 200 1030 68 65 1906 526
50-06H 2096 1166 1010 203 395 341 475 293 112 256 1003 1003 1085 1140 1192 30 201 201 846 846 - - - - 200 1030 68 65 2006 526
50-07H 2176 1306 1010 253 373 404 500 293 105 312 1003 1003 1085 1140 1192 30 201 201 846 846 - - - - 200 1170 68 65 2086 666
50-08H 2176 1306 1140 253 373 404 500 293 105 312 988 1003 1100 1140 1192 30 201 201 973 973 - - - - 300 1170 68 65 2086 666
50-10H 2406 1416 1270 263 430 478 556 293 100 412 1093 1103 1200 1240 1292 30 201 201 1100 1100 - - - - 300 1280 68 65 2316 776
50-12H 2406 1586 1270 383 557 478 556 293 100 412 1093 1103 1200 1240 1292 30 201 201 1100 1100 - - - - 300 1450 68 65 2316 946
50-15H 2486 1726 1390 334 568 568 541 293 87 341 1093 1103 1200 1240 1292 30 201 201 1225 1225 - - - - 400 1590 68 65 2396 1086
50-18H 2486 1836 1520 434 568 568 541 293 87 341 1093 1103 1200 1240 1292 30 201 201 1355 1355 - - - - 400 1700 68 65 2396 1196
50-20H 2576 2006 1520 486 638 638 563 293 87 363 1093 1103 1200 1240 1292 30 201 201 1355 1355 - - - - 400 1870 68 65 2486 1366
50-22H 2676 2006 1650 486 638 638 563 293 87 363 1193 1203 1300 1340 1392 30 201 201 1483 1483 - - - - 500 1870 68 65 2586 1366
50-25H 2842 2236 1685 536 714 714 598 318 87 398 1249 1259 1356 1396 1448 63 236 236 1518 1518 - - - - 500 2100 68 100 2696 1588
50-28H 2842 2286 1815 551 714 714 598 318 87 398 1249 1259 1356 1396 1447 63 236 236 1650 1650 - - - - 500 2150 68 100 2696 1638
50-30H 2972 2426 1815 571 800 800 637 321 87 437 1249 1259 1356 1396 1447 63 236 236 1650 1650 - - - - 500 2290 68 100 2826 1778
50-33H 2972 2636 1815 722 800 800 637 321 87 437 1249 1259 1356 1396 1447 63 236 236 1650 1650 - - - - 500 2500 68 100 2826 1988
50-36H 2972 2846 1815 775 800 800 637 321 87 437 1249 1259 1356 1396 1447 63 236 236 1650 1650 - - - - 500 2710 68 100 2826 2198
50-40H 3301 2710 2125 749 897 897 642 291 87 502 1437 1453 1550 1590 1652 63 241 241 1009 1009 1181 1181 1949 1949 600 2574 68 100 3213 2272
50-45H 3301 2850 2250 864 897 897 767 291 87 502 1437 1453 1550 1590 1652 63 242 243 1074 1074 1246 1246 2077 2078 600 2714 68 100 3207 2412
50-50H 3466 3130 2250 836 1006 1006 608 291 87 558 1437 1453 1550 1590 1652 63 242 243 1074 1074 1246 1246 2077 2078 600 2994 68 100 3376 2692
50-60H 3646 3170 2430 693 1129 1129 610 293 87 615 1437 1453 1550 1590 1652 63 239 239 1261 1261 1432 1433 2264 2264 600 3034 68 100 3558 2732
16
Overview
Horizontal Unit (H4)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
25-02H 1806 866 701 171 232 262 358 278 87 199 509 498 575 635 836 30 174 170 460 462 - - - - 200 780 43 65 1766 276
25-03H 1806 966 730 188 232 262 393 303 87 199 509 498 575 635 836 30 168 170 581 589 - - - - 200 880 43 65 1766 376
25-04H 1866 1066 865 168 309 341 450 268 87 230 498 498 580 635 836 30 176 176 681 681 - - - - 200 980 43 65 1826 476
25-05H 1866 1116 865 178 309 341 450 268 87 230 498 498 580 635 836 30 176 176 700 700 - - - - 200 1030 43 65 1826 526
25-06H 1966 1116 960 178 395 341 450 268 87 230 598 598 680 735 936 30 176 176 821 821 - - - - 200 1030 43 65 1926 526
25-07H 2046 1256 960 228 373 404 475 268 80 287 598 598 680 735 936 30 176 176 821 821 - - - - 200 1170 43 65 2006 666
25-08H 2046 1256 1090 228 373 404 475 268 80 287 583 598 695 735 936 30 176 176 948 948 - - - - 300 1170 43 65 2006 666
25-10H 2276 1366 1220 238 430 478 531 268 75 385 688 698 795 835 1036 30 176 176 1075 1075 - - - - 300 1280 43 65 2236 776
25-12H 2276 1536 1220 358 557 478 531 268 75 385 688 698 795 835 1036 30 176 176 1075 1075 - - - - 300 1450 43 65 2236 946
25-15H 2356 1676 1340 308 568 568 516 268 62 315 688 698 795 835 1036 30 176 176 1200 1200 - - - - 400 1590 43 65 2316 1086
25-18H 2356 1786 1470 408 568 568 516 268 62 315 688 698 795 835 1036 30 176 176 1330 1330 - - - - 400 1700 43 65 2316 1196
25-20H 2446 1956 1470 460 638 638 538 268 62 337 688 698 795 835 1036 30 176 176 1330 1330 - - - - 400 1870 43 65 2406 1366
25-22H 2546 1956 1600 460 638 638 538 268 62 337 788 798 895 935 1136 30 176 176 1458 1458 - - - - 500 1870 43 65 2506 1366
25-25H 2696 2186 1635 510 714 714 608 303 62 372 828 838 935 975 1176 63 211 211 1493 1493 - - - - 500 2100 43 100 2656 1588
25-28H 2696 2236 1765 525 714 714 608 303 62 372 828 838 935 975 1176 63 211 211 1625 1625 - - - - 500 2150 43 100 2656 1638
25-30H 2826 2376 1765 545 800 800 649 303 62 412 828 838 935 975 1176 63 211 211 1625 1625 - - - - 500 2290 43 100 2786 1778
25-33H 2826 2586 1765 696 800 800 647 306 62 412 828 838 935 975 1176 63 211 211 1625 1625 - - - - 500 2500 43 100 2786 1988
25-36H 2826 2796 1765 749 800 800 647 306 62 412 828 838 935 975 1176 63 211 211 1625 1625 - - - - 500 2710 43 100 2786 2198
25-40H 3161 2660 2075 724 897 897 617 266 62 477 1022 1038 1135 1175 1385 65 216 216 984 984 1156 1156 1924 1924 600 2574 43 100 3112 2262
25-45H 3161 2800 2200 839 897 897 742 266 62 477 1022 1038 1135 1175 1385 65 217 218 1049 1049 1221 1221 2052 2053 600 2714 43 100 3112 2402
25-50H 3326 3080 2200 811 1006 1006 583 266 62 533 1022 1038 1135 1175 1385 65 217 218 1049 1049 1221 1221 2052 2053 600 2994 43 100 3277 2682
25-60H 3506 3120 2380 668 1129 1129 585 268 62 590 1022 1038 1135 1175 1385 65 214 214 1236 1236 1407 1408 2239 2239 600 3034 43 100 3458 2722
17
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
50-02H 1856 916 751 196 232 262 383 303 112 225 534 523 600 660 862 30 199 195 485 487 - - - - 200 780 68 65 1766 276
50-03H 1856 1016 780 213 232 262 402 328 112 225 534 523 600 660 862 30 193 195 606 614 - - - - 200 880 68 65 1766 376
50-04H 1916 1116 915 193 309 341 459 293 112 256 523 523 605 660 862 30 201 201 706 706 - - - - 200 980 68 65 1826 476
50-05H 1916 1166 915 203 309 341 475 293 112 256 523 523 605 660 862 30 201 201 725 725 - - - - 200 1030 68 65 1826 526
50-06H 2016 1166 1010 203 395 341 475 293 112 256 623 623 705 760 962 30 201 201 846 846 - - - - 200 1030 68 65 1926 526
50-07H 2096 1306 1010 253 373 404 500 293 105 312 623 623 705 760 962 30 201 201 846 846 - - - - 200 1170 68 65 2006 666
50-08H 2096 1306 1140 253 373 404 500 293 105 312 608 623 720 760 962 30 201 201 973 973 - - - - 300 1170 68 65 2006 666
50-10H 2326 1416 1270 263 430 478 556 293 100 412 713 723 820 860 1062 30 201 201 1100 1100 - - - - 300 1280 68 65 2236 776
50-12H 2326 1586 1270 383 557 478 556 293 100 412 713 723 820 860 1062 30 201 201 1100 1100 - - - - 300 1450 68 65 2236 946
50-15H 2406 1726 1390 334 568 568 541 293 87 341 713 723 820 860 1062 30 201 201 1225 1225 - - - - 400 1590 68 65 2316 1086
50-18H 2406 1836 1520 434 568 568 541 293 87 341 713 723 820 860 1062 30 201 201 1355 1355 - - - - 400 1700 68 65 2316 1196
50-20H 2496 2006 1520 486 638 638 563 293 87 363 713 723 820 860 1062 30 201 201 1355 1355 - - - - 400 1870 68 65 2406 1366
50-22H 2596 2006 1650 486 638 638 563 293 87 363 813 823 920 960 1162 30 201 201 1483 1483 - - - - 500 1870 68 65 2506 1366
50-25H 2802 2236 1685 536 714 714 598 318 87 398 909 919 1016 1056 1258 63 236 236 1518 1518 - - - - 500 2100 68 100 2656 1588
50-28H 2802 2286 1815 551 714 714 598 318 87 398 909 919 1016 1056 1257 63 236 236 1650 1650 - - - - 500 2150 68 100 2656 1638
50-30H 2932 2426 1815 571 800 800 637 321 87 437 909 919 1016 1056 1257 63 236 236 1650 1650 - - - - 500 2290 68 100 2786 1778
50-33H 2932 2636 1815 722 800 800 637 321 87 437 909 919 1016 1056 1257 63 236 236 1650 1650 - - - - 500 2500 68 100 2786 1988
50-36H 2932 2846 1815 775 800 800 637 321 87 437 909 919 1016 1056 1257 63 236 236 1650 1650 - - - - 500 2710 68 100 2786 2198
50-40H 3261 2710 2125 749 897 897 642 291 87 502 1097 1113 1210 1250 1462 63 241 241 1009 1009 1181 1181 1949 1949 600 2574 68 100 3172 2272
50-45H 3261 2850 2250 864 897 897 767 291 87 502 1097 1113 1210 1250 1462 63 242 243 1074 1074 1246 1246 2077 2078 600 2714 68 100 3172 2412
50-50H 3426 3130 2250 836 1006 1006 608 291 87 558 1097 1113 1210 1250 1462 63 242 243 1074 1074 1246 1246 2077 2078 600 2994 68 100 3337 2692
50-60H 3606 3170 2430 693 1129 1129 610 293 87 615 1097 1113 1210 1250 1462 63 239 239 1261 1261 1432 1433 2264 2264 600 3034 68 100 3518 2732
18
Overview
Horizontal Unit (H5)
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
25-02H 2186 866 701 171 232 262 358 278 87 199 889 878 955 1015 1216 30 174 170 460 462 - - - - 200 780 43 65 2146 276
25-03H 2186 966 730 188 232 262 393 303 87 199 889 878 955 1015 1216 30 168 170 581 589 - - - - 200 880 43 65 2146 376
25-04H 2246 1066 865 168 309 341 450 268 87 230 878 878 960 1015 1216 30 176 176 681 681 - - - - 200 980 43 65 2206 476
25-05H 2246 1116 865 178 309 341 450 268 87 230 878 878 960 1015 1216 30 176 176 700 700 - - - - 200 1030 43 65 2206 526
25-06H 2346 1116 960 178 395 341 450 268 87 230 978 978 1060 1115 1316 30 176 176 821 821 - - - - 200 1030 43 65 2306 526
25-07H 2426 1256 960 228 373 404 475 268 80 287 978 978 1060 1115 1316 30 176 176 821 821 - - - - 200 1170 43 65 2386 666
25-08H 2426 1256 1090 228 373 404 475 268 80 287 963 978 1075 1115 1316 30 176 176 948 948 - - - - 300 1170 43 65 2386 666
25-10H 2656 1366 1220 238 430 478 531 268 75 385 1068 1078 1175 1215 1416 30 176 176 1075 1075 - - - - 300 1280 43 65 2616 776
25-12H 2656 1536 1220 358 557 478 531 268 75 385 1068 1078 1175 1215 1416 30 176 176 1075 1075 - - - - 300 1450 43 65 2616 946
25-15H 2736 1676 1340 308 568 568 516 268 62 315 1068 1078 1175 1215 1416 30 176 176 1200 1200 - - - - 400 1590 43 65 2696 1086
25-18H 2736 1786 1470 408 568 568 516 268 62 315 1068 1078 1175 1215 1416 30 176 176 1330 1330 - - - - 400 1700 43 65 2696 1196
25-20H 2826 1956 1470 460 638 638 538 268 62 337 1068 1078 1175 1215 1416 30 176 176 1330 1330 - - - - 400 1870 43 65 2786 1366
25-22H 2926 1956 1600 460 638 638 538 268 62 337 1168 1178 1275 1315 1516 30 176 176 1458 1458 - - - - 500 1870 43 65 2886 1366
25-25H 3036 2186 1635 510 714 714 608 303 62 372 1168 1178 1275 1315 1516 63 211 211 1493 1493 - - - - 500 2100 43 100 2996 1588
25-28H 3036 2236 1765 525 714 714 608 303 62 372 1168 1178 1275 1315 1516 63 211 211 1625 1625 - - - - 500 2150 43 100 2996 1638
25-30H 3166 2376 1765 545 800 800 649 303 62 412 1168 1178 1275 1315 1516 63 211 211 1625 1625 - - - - 500 2290 43 100 3126 1778
25-33H 3166 2586 1765 696 800 800 647 306 62 412 1168 1178 1275 1315 1516 63 211 211 1625 1625 - - - - 500 2500 43 100 3126 1988
25-36H 3166 2796 1765 749 800 800 647 306 62 412 1168 1178 1275 1315 1516 63 211 211 1625 1625 - - - - 500 2710 43 100 3126 2198
25-40H 3501 2660 2075 724 897 897 617 266 62 477 1362 1378 1475 1515 1725 65 216 216 984 984 1156 1156 1924 1924 600 2574 43 100 3453 2262
25-45H 3501 2800 2200 839 897 897 742 266 62 477 1362 1378 1475 1515 1725 65 217 218 1049 1049 1221 1221 2052 2053 600 2714 43 100 3452 2402
25-50H 3666 3080 2200 811 1006 1006 583 266 62 533 1362 1378 1475 1515 1725 65 217 218 1049 1049 1221 1221 2052 2053 600 2994 43 100 3617 2682
25-60H 3846 3120 2380 668 1129 1129 585 268 62 590 1362 1378 1475 1515 1725 65 214 214 1236 1236 1407 1408 2239 2239 600 3034 43 100 3798 2722
19
Overview
Model
L W H Supply Air Outlet Dimension 4R/6R Pipe Location Dimension
Air Inlet
Dimension
Base
Height
Installation
Location
Dimension
A B C D E F
H J K
L M
N O N' O'
P Q X R S T
A
Method
B
Method
C
Method
D
Method
4R 6R 4R 6R 4R 6R 4R 6R 4R 6R 4R 6R
50-02H 2236 916 751 196 232 262 383 303 112 225 914 903 980 1040 1242 30 199 195 485 487 - - - - 200 780 68 65 2146 276
50-03H 2236 1016 780 213 232 262 402 328 112 225 914 903 980 1040 1242 30 193 195 606 614 - - - - 200 880 68 65 2146 376
50-04H 2296 1116 915 193 309 341 459 293 112 256 903 903 985 1040 1242 30 201 201 706 706 - - - - 200 980 68 65 2206 476
50-05H 2296 1166 915 203 309 341 475 293 112 256 903 903 985 1040 1242 30 201 201 725 725 - - - - 200 1030 68 65 2206 526
50-06H 2396 1166 1010 203 395 341 475 293 112 256 1003 1003 1085 1140 1342 30 201 201 846 846 - - - - 200 1030 68 65 2306 526
50-07H 2476 1306 1010 253 373 404 500 293 105 312 1003 1003 1085 1140 1342 30 201 201 846 846 - - - - 200 1170 68 65 2386 666
50-08H 2476 1306 1140 253 373 404 500 293 105 312 988 1003 1100 1140 1342 30 201 201 973 973 - - - - 300 1170 68 65 2386 666
50-10H 2706 1416 1270 263 430 478 556 293 100 412 1093 1103 1200 1240 1442 30 201 201 1100 1100 - - - - 300 1280 68 65 2616 776
50-12H 2706 1586 1270 383 557 478 556 293 100 412 1093 1103 1200 1240 1442 30 201 201 1100 1100 - - - - 300 1450 68 65 2616 946
50-15H 2786 1726 1390 334 568 568 541 293 87 341 1093 1103 1200 1240 1442 30 201 201 1225 1225 - - - - 400 1590 68 65 2696 1086
50-18H 2786 1836 1520 434 568 568 541 293 87 341 1093 1103 1200 1240 1442 30 201 201 1355 1355 - - - - 400 1700 68 65 2696 1196
50-20H 2876 2006 1520 486 638 638 563 293 87 363 1093 1103 1200 1240 1442 30 201 201 1355 1355 - - - - 400 1870 68 65 2786 1366
50-22H 2976 2006 1650 486 638 638 563 293 87 363 1193 1203 1300 1340 1542 30 201 201 1483 1483 - - - - 500 1870 68 65 2886 1366
50-25H 3142 2236 1685 536 714 714 598 318 87 398 1249 1259 1356 1396 1598 63 236 236 1518 1518 - - - - 500 2100 68 100 2996 1588
50-28H 3142 2286 1815 551 714 714 598 318 87 398 1249 1259 1356 1396 1597 63 236 236 1650 1650 - - - - 500 2150 68 100 2996 1638
50-30H 3272 2426 1815 571 800 800 637 321 87 437 1249 1259 1356 1396 1597 63 236 236 1650 1650 - - - - 500 2290 68 100 3126 1778
50-33H 3272 2636 1815 722 800 800 637 321 87 437 1249 1259 1356 1396 1597 63 236 236 1650 1650 - - - - 500 2500 68 100 3126 1988
50-36H 3272 2846 1815 775 800 800 637 321 87 437 1249 1259 1356 1396 1597 63 236 236 1650 1650 - - - - 500 2710 68 100 3126 2198
50-40H 3601 2710 2125 749 897 897 642 291 87 502 1437 1453 1550 1590 1802 63 241 241 1009 1009 1181 1181 1949 1949 600 2574 68 100 3513 2272
50-45H 3601 2850 2250 864 897 897 767 291 87 502 1437 1453 1550 1590 1802 63 242 243 1074 1074 1246 1246 2077 2078 600 2714 68 100 3507 2412
50-50H 3766 3130 2250 836 1006 1006 608 291 87 558 1437 1453 1550 1590 1802 63 242 243 1074 1074 1246 1246 2077 2078 600 2994 68 100 3676 2692
50-60H 3946 3170 2430 693 1129 1129 610 293 87 615 1437 1453 1550 1590 1802 63 239 239 1261 1261 1432 1433 2264 2264 600 3034 68 100 3858 2732
20
Overview
Table of contents
Other York Air Conditioner manuals
York
York D*V User guide
York
York Eco 2 Troubleshooting guide
York
York HB 240 Quick start guide
York
York YDCS-28CA15A User manual
York
York ZF078-150 User manual
York
York YCAL0014E Series Owner's manual
York
York YCJD18 S41S1(H) Quick start guide
York
York YUHA 18 FS User manual
York
York SUNLINE 2000 D3CE User manual
York
York 251934-YTG-J-0910 Quick start guide
York
York SINGLE PACKAGE AIR CONDITIONER Guide
York
York MOC-MOH 07-65 User manual
York
York PCG6B42 User manual
York
York EUKC 12 User manual
York
York LX series Quick start guide
York
York YOHC 12 User manual
York
York HMCG2 Series Quick start guide
York
York PCG4A24 Quick start guide
York
York LX series Quick start guide
York
York JDOH Series User manual
