ZAPATA FLYRIDE User manual

1
ZAPATA FLYRIDE™ – USER GUIDE
SUMMARY
Description .......................................................................................................................................... 2
Security ............................................................................................................................................... 2
Maintenance ....................................................................................................................................... 4
Warranty ............................................................................................................................................. 4
Anatomy of Zapata Flyride™ ................................................................................................................... 5
Step 1 : PWC installation ......................................................................................................................... 1
Step 2 : Battery and charger.................................................................................................................... 2
Step 3 : EMK installation (optional)......................................................................................................... 3
Step 4 : Pairing Zapata Flyride™ to EMK (optional)................................................................................. 4
Step 5 : Handlebar to trigger calibration................................................................................................. 5
Step 6 : Calibration of gyroscopes........................................................................................................... 6
Step 7 : Difficulty levels ........................................................................................................................... 7
Step 8 : Start and take-off ....................................................................................................................... 8
Step 9 : Flight........................................................................................................................................... 9
Step 10 : Tricks....................................................................................................................................... 12
Step 11 : Joystick (optional)................................................................................................................... 14

2
DESCRIPTION
Zapata Flyride™ is a new generation hydro-flyer and the first to feature IFA – Intelligent Flight
assistance.
Zapata Flyride™ is designed to make hydro-flight accessible to all, whilst offering new sensations to
experienced riders. Handling is similar to that of a PWC with automatic self-stabilization above the
water.
It can be used alone or with a passenger.
Zapata Flyride™ connects to the PWC’s pump and must be connected to a PWC in order to operate.
The supply hose (which is connected to the pump of the PWC) is attached to a Y shaped pipe which
roots the water through the three nozzles (two at the front on each side of the machine and one at
the back). This way, Zapata Flyride™ is propelled out of the water and can be driven with the
handlebars.
Zapata Flyride™ is free to use for all recreational activities and flight initiations. Lucrative shows and
demonstrations are the exclusivity of ZAPATA®.
Zapata Flyride™ is protected by international patents.
All rights reserved. Any reproduction, even partial of the product by any means whatsoever is
prohibited.
Zapata Flyride™ is assembled in France and 95% of its parts are made in France.
SECURITY
Zapata Flyride™ is designed to offer maximum security to its user. IFA (Intelligent Flight Assistance)
prevents falls, even if the user deliberately tries to loose balance.
Very easy to use, it nevertheless requires the observation of some basic security rules.
The Infinity mode must not be used when two people are riding the machine. The effort required is a
little more intensive for a simple barrel roll; ensure to hold the handlebars firmly to perform this
trick.
The user must do his best to never fall or jump from the machine, to avoid any collision with the PWC
or the hose.
Each difficulty level must be practiced for 1 hour before moving on to the next level.Zapata Flyride™
can be used from the age of 5, in child mode and controlled with the joystick by the adult. Ensure the

3
child is tall enough to reach the handlebars. There is no minimum weight. Children can drive the
machine with handlebars from the age of 8.
It is forbidden and dangerous to use Zapata Flyride™ when wind speed is over 60 km/h and when
waves exceed 1 meter in height.
The minimum water depth must be 2 meters when the Flyride flies over a meter high.
Avoid using Zapata Flyride™ in the sand, and rinse the bearings after each use to prevent them from
being blocked while flying. WARNING: blocked bearings will cause the auto-stabilization to fail.
Ensure the watercraft has enough fuel.
It is strictly forbidden to use Zapata Flyride™ under the influence of alcohol, narcotics or drugs that
reduce alertness.
Ensure that the area where Zapata Flyride™ is used, is clear of any other watercraft such as boats,
other PWCs or other hydro-flight users as well as swimmers, divers and other sea users.
Do not use Zapata Flyride™ near any source of risk such as rocks, wharves, beaches, boats, banks etc.
There is a high risk of getting hurt by hitting these surfaces.
Do not exceed your limits and avoid any aggressive maneuvers, keep the machine in control (choose
the appropriate difficulty level).
The user of Zapata Flyride™ must also constantly check the presence of any objects, reefs, buoys, etc
.
If the user falls off the machine, he must immediately check the distance between himself and the
watercraft as inertia may push the watercraft in his direction.
In case of a fall; if the throttle is managed through the watercraft, it is essential that the driver cuts
the power as quickly as possible.
A minimum level in swimming is compulsory. Zapata Flyride™ shouldn’t be used by anyone who
suffers a phobia to water.
MANDATORY EQUIPMENT
- Life jacket with CE certification
- Wakeboard type helmet when using the barrel-roll mode
WHERE TO PRACTICE ZAPATA FLYRIDE™
Zapata Flyride™ can be used in both lakes, open seas or rivers as long as the minimum water depth of
2 meters is respected when Zapata Flyride™ is used above 1 meter in height.
It is strictly forbidden to use Zapata Flyride™ in small places like pools.

4
IMPORTANT
Please follow the current navigation laws in the country where Zapata Flyride™ will be used.
MAINTENANCE
WARNING: NEVER use hydrocarbons (like acetone or petrol) on polycarbonate parts (all see-through
parts) as these products can seriously damage the material.
To ensure adequate security, we recommend to:
- Change ball bearings every year. For assembly, please use silicone grease or Vaseline (no marine
grease or other product containing hydrocarbons that may damage the Flyboard® material).
- Change all o-rings and wear rings every year
- Rince Zapata Flyride™ with clear water after every use
- Change the servo/brainbox every two years
- Respect the number of cycles of battery charges recommended by the manufacturer
WARRANTY
Zapata Flyride™ is covered by warranty against all manufacturing faults for 1 year following the
date of purchase. You will be required to provide your purchasing invoice.
ZAPATA® will provide warranty cover on Zapata Flyride™ only if used as described in this manual.
Warranty is limited to the operation and not the visual condition of the parts.
Warranty does not cover any part subject to wear and tear (ball bearings, o-rings, wear wings, hose,
guard, etc.)
Zapata Flyride™ must be used in its original configuration. It is strictly forbidden and dangerous to
modify, remove or add parts other than those provided by ZAPATA®.
Breakage of equipment caused by falls or violent/extreme use will not be covered by warranty.
ZAPATA® cannot be held responsible for such usage of the product.

5

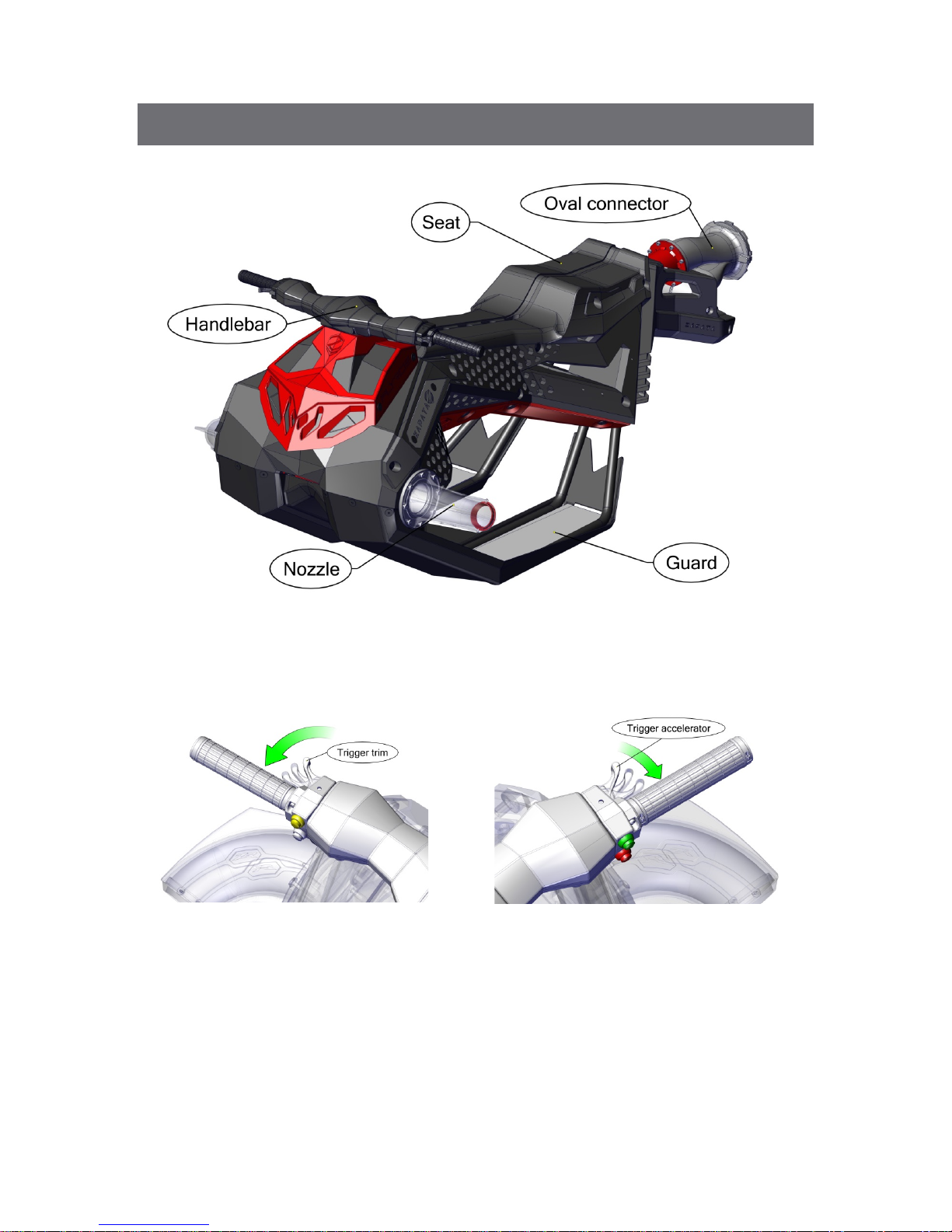

ANATOMY OF ZAPATA FLYRIDE™
Up-Down Trigger Throttle trigger

6

1
STEP 1 : PWC INSTALLATION
PWC TYPE
Any type of watercraft as long as is approved and certified by the authorities in the country where it
is used.
- Power requirement:
Minimum: 180 HP (possible to use with 155HP but the user must not weigh more than 90kg and the
performance will be very limited).
In order to use Zapata Flyride™ with a passenger, minimum power required is 300HP.
Adaptors for Sea Doo, Yamaha, Kawasaki and Honda PWCs are available within the distribution
network. The adaptor is compulsory in order to install Zapata Flyride™ on the PWC. Please let your
reseller know which watercraft you are using
PWC ADAPTATION
In order to install Zapata Flyride™ on your PWC, you must remove the PWC pump and install the
pump interface provided in your kit. It will be necessary to install it using the correct adapter
according to the make and model of your PWC (see installation guide).
We advise that you use a dual impeller to optimize the performance of the PWC and avoid cavitation.

2
STEP 2 : BATTERY AND CHARGER
Zapata Flyride™ battery is not provided
It can be purchased through any specialized retailer, and possibly through your reseller.
Compatible batteries:
8000mA 6S LiPo Lithium Voltage 22.2
Internal dimension of the sealed compartment:
160x70x50mm
Recommended battery charger :
LiPo E6 50W AC charger + cable XT90 male type
Please comply with the load cycles recommended by the manufacturer.
BATTERY INSTALLATION:
Install the battery in the sealed compartment, making sure to close it properly to protect the battery
from water. In order to do this, please tighten the lid until the logo is straight.

3
STEP 3 : EMK INSTALLATION (OPTIONAL)
This step is only necessary if you wish to use Zapata Flyride™ with throttle control at the handlebar. It
is still possible to use Zapata Flyride™ without the EMK if a person is using the throttle on the PWC to
power the machine.
If you wish to use Zapata Flyride™ with throttle control at the handlebar, you will need to purchase
an EMK brain box (ref : ZR01A11 + ZR01A10 or ZR02A11 available through the distribution network).
To install, please follow the EMK manual available on our website www.zapata.com following Water
> Support > How-to videos and Articles or by following this
link: https://zapata.com/pub/media/notices/emk/emk_manuel_v3v2.pdf

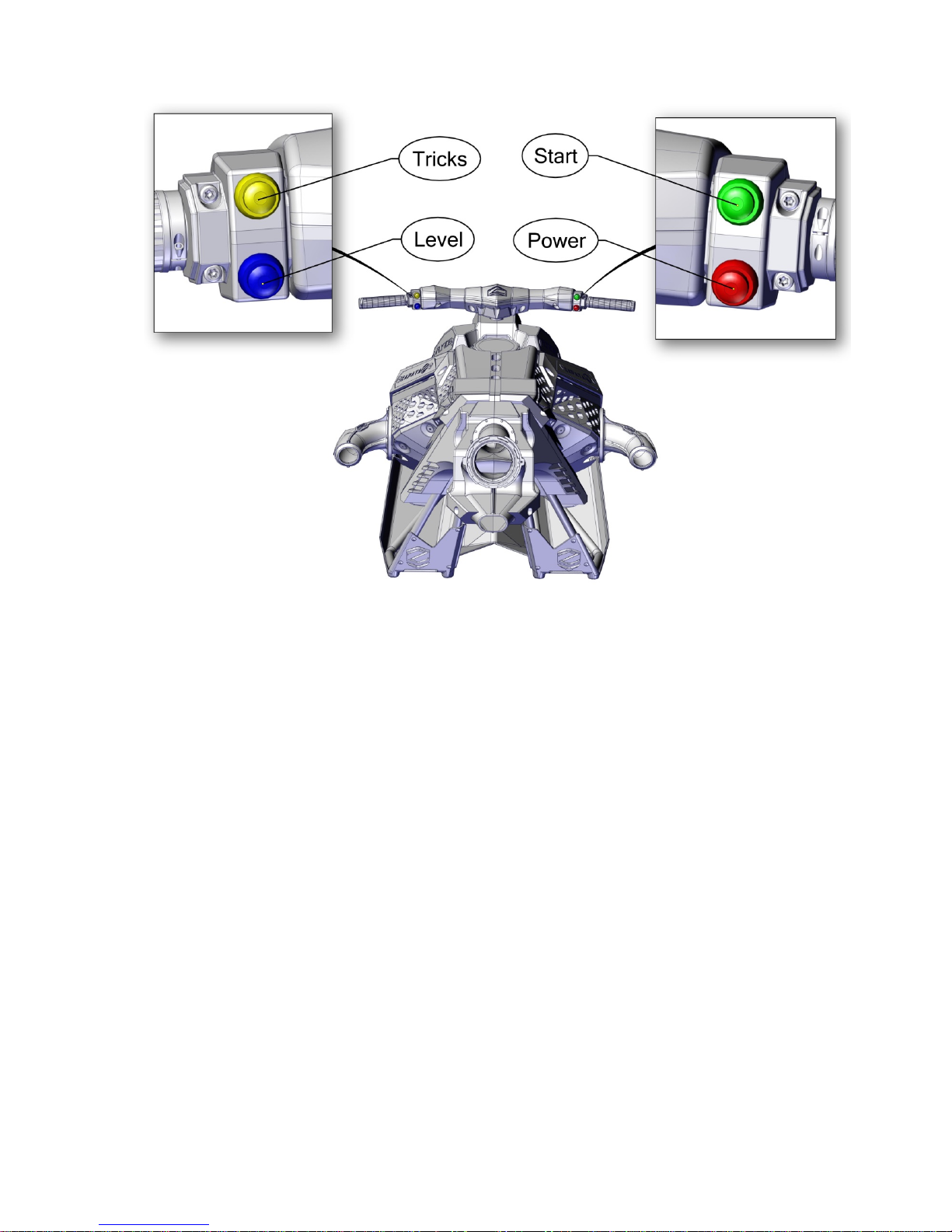

Note regarding the « Plug N’ Play » EMK: changing power mode will be done though the Zapata
Flyride™ handlebar. You will need to make a long press on the blue and yellow buttons
simultaneously.
