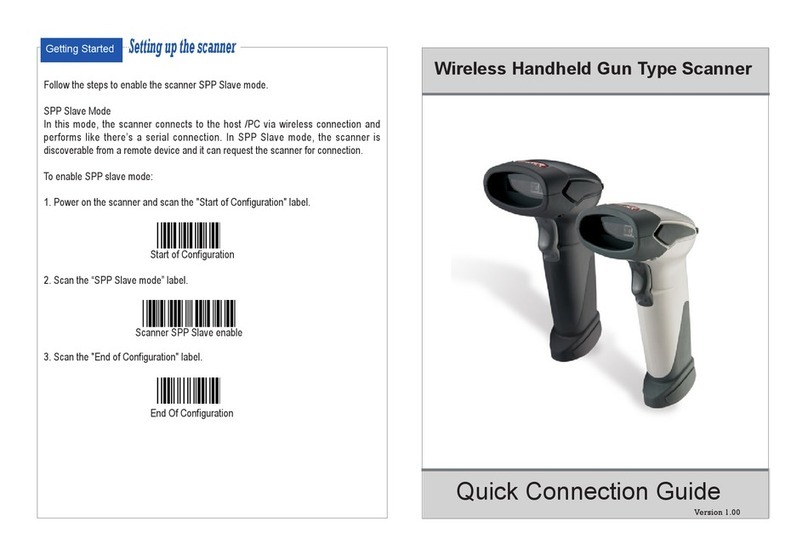

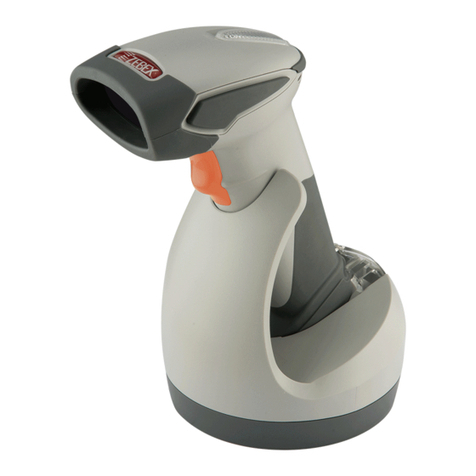

Zebex Z-3191BT Instruction Manual

Wireless Handheld Gun Type Scanner
Quick Connection Guide
Version 1.00
ASCII Code 39 Table
Use this table for PIN code entry.
048
159
2 6
3 7 Enter
To enable HID and Smart phone modes scan the following barcodes.
Getting Started
Setting up the scanner
1. Start of Conguration
2. BT HID mode 3. Smart phone mode
4. End Of Conguration

Please follow the below instructions carefully to pair the scanner with
your Android phone.
Step. 1
Press and hold the trigger to power on the scanner and use the barcodes
in Setting up the scanner to enable HID and Smart phone modes if
necessary. Steady blue LED ashing indicates the scanner is wireless
ready.
Step. 2
On your Android phone, go to Settings->Wireless controls->Bluetooth
settings.
Step. 3
Enable Bluetooth by tapping the Bluetooth check box then tap "Scan for
devices" and you will see the scanner listed (shown as "ZBBT") on your
Android as picture below. Tap "ZBBT" to connect to the scanner.
Connect scanner with Android phone
Connecting the phone
In this case, for example,
scan 6, 0, 9, 4, 4, 4, then
scan Enter in ASCII
table.
Step. 4
You will be prompt to enter a paring "PIN code" as shown in the
following screen.
Step. 5
Use the ASCII Code 39 Table to scan the pin code using the scanner
and scan "Enter" to conrm the entry. You should hear 2 short beeps
indicating the scanner is connected.
Step. 6
Once connected, you will see ZBBT listed as "Connected" on your
Android phone's Device list. You are now ready to scan!
Note
*The procedure to pair scanner with Android tablets is simialr to Android
phone. Simply follow the above procedure carefully and replace phone
with tablet as appropriate.
*(HID) support is available in Android 3.1+, and in earlier versions
through manufacturer customizations and third-party applications.
Press and hold trigger
Blue flashing 0.5 second interval
