Zehnder Rittling ComfoAir 200 User manual

Ventilation system ComfoAir Standard
Manual for the user
Cooling Fresh Air Clean AirHeating
ComfoAir 200ComfoAir 180
ComfoAir 550
ComfoAir 350
C
omfoAir 18
0

EN - 2
All rights reserved.
This documentation has been compiled with the utmost care. The publisher cannot be held liable for any damage
caused as a result of missing or incorrect information in this document. In case of disputes the English version of
these instructions will be binding.
Foreword
Read this document carefully before use.
This document provides all the information
required for safe and optimal operation and
maintenance of the ComfoAir 180, 200, 350 or 550.
In this document they will be referred to as “the unit”.
The unit is subject to continuous development and
improvement. As a result, the unit may slightly differ
from the descriptions.
The following pictograms are used in this
document:
Point of attention.
Risk of:
- damage to the device;
- performance of the device is compromised if
instructions are not observed carefully.
Risk of personal injury for the user.
Maintenance
Questions
Please contact the supplier if you have any questions
or would like to order a new document or new filters.
The contact details of the main supplier can be
found on the back page of this document.
Use of the unit
The unit may only be used when it is properly
installed according to the instructions and guidelines
in the installer manual of the unit. The unit can be
used by:
Qchildren aged from 8 years and above;
Qpersons with reduced physical capabilities;
Qpersons with reduced sensory capabilities;
Qpersons with reduced mental capabilities;
Qpersons with lack of experience and knowledge,
if they have been given supervision or instruction
concerning use of the unit in a safe way and
understand the hazards involved.
Childeren shall not play with the appliance.
Cleaning and user maintenance shall not be carried
out by children without supervision.
The following information can be found in this
document:
Information Chapter
General information about the ventilation system. 1
Safety instructions which must be followed. 1
Operating devices available for the unit. 2
The meaning of the information shown on the
display of the unit.
2
Using the display to set different parameters
(P-menus).
2
A summary of all the different parameters
(P-menus).
2
Warranty and liability conditions. 3
What to do with the unit at the end of its life. 3
EEC declaration of conformity. 3
How to replace or clean the filters of the unit. 4
How to clean the valves of the ventilation system. 4
When the installer or service engineer must come by
for the maintenance of the unit.
4
What to do in event of a malfunction. 5

3 - EN
3Not available on the ComfoAir 180.
Table of Contents
Foreword ..........................................................................................................................................................................2
1 Introduction and safety............................................................................................................................................5
2 Operation ..................................................................................................................................................................6
2.1 Available operating devices................................................................................................................................. 6
2.2 Reading the display on the unit ...........................................................................................................................7
2.3 Reading and setting the comfort temperature .................................................................................................... 8
2.4 Switching the supply fan on and off ...................................................................................................................8
2.5 Setting an overrun timer for the CCB or CCBL ............................................................................................................................................................................. 9
2.6 Setting an overrun timer for the bathroom switch................................................................................................9
2.7 Setting a delay timer for the bathroom switch ................................................................................................... 10
2.8 Setting the delay timer for the filter alert ........................................................................................................... 10
2.9 P menus for the user ......................................................................................................................................... 11
3 CE certification and warranty ............................................................................................................................... 12
4 Maintenance ..................................................................................................................................................... 13
4.1 Cleaning or replacing the filters .................................................................................................................. 13
4.1.1 Replacing the internal filters ......................................................................................................... 14
4.1.2 Cleaning the internal filters ............................................................................................................... 15
4.2 Cleaning the valves ..................................................................................................................................... 15
4.3 Condensation drain ..................................................................................................................................... 15
4.4 Maintenance by the installer or service engineer ........................................................................................ 15
5 Malfunctions ........................................................................................................................................................... 15
I Commissioning & Inspection Record ................................................................................................................... 16
II Maintenance log ..................................................................................................................................................... 21

EN - 4

5 - EN
1 Introduction and safety
The unit is a balanced ventilation system with heat
recovery in order to create energy-efficient ventilation
in houses. Balanced ventilation means that pollutants
from the kitchen, bathroom, wc(s) and possibly the
utility room are extracted, while the same amount of
fresh air is blown into the living room and bedrooms.
Gaps under or near doors ensure a good through-flow
in the dwelling.
Ensure that the gaps under or near doors are
never obstructed. For example by furniture,
draught excluders or deep-pile carpet.

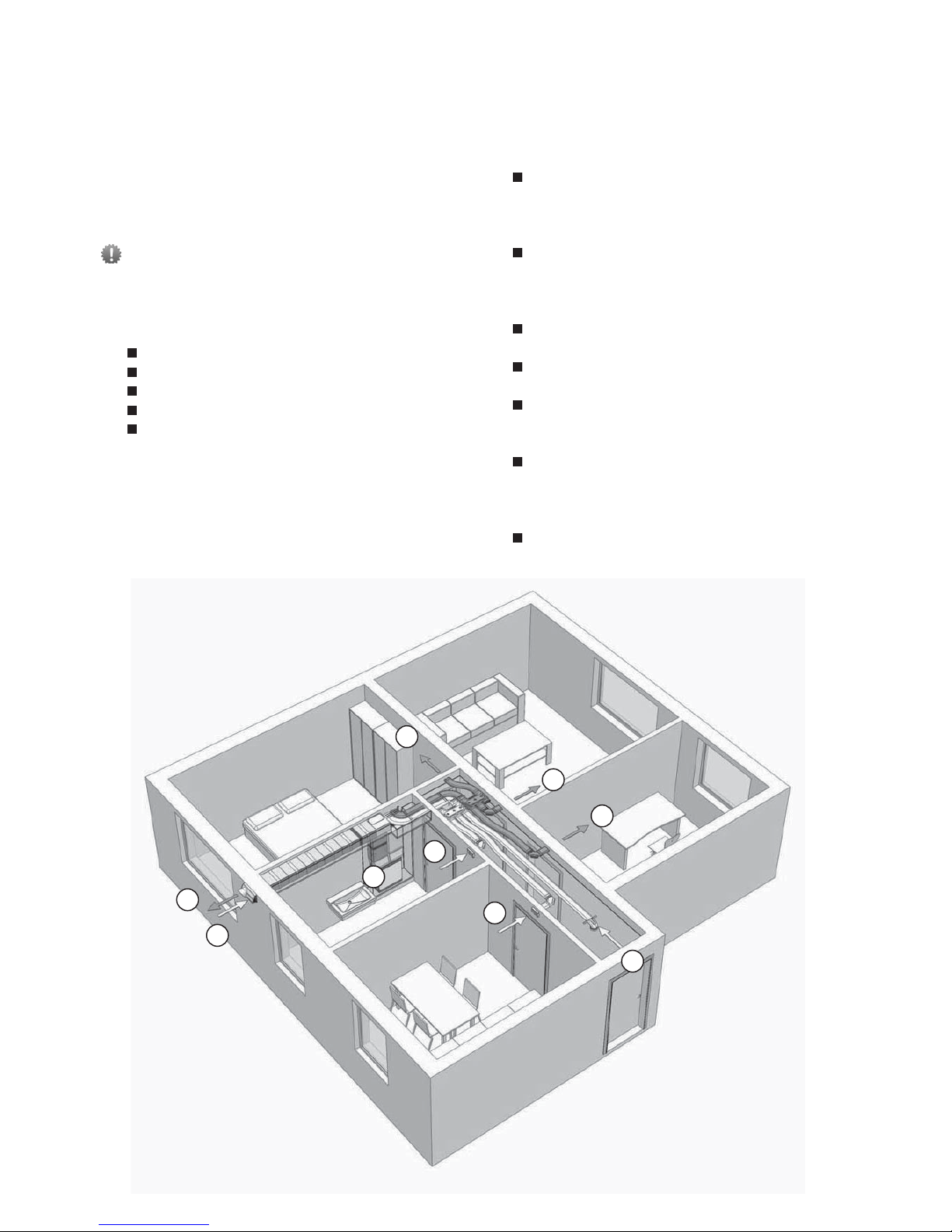

A balanced ventilation system consists of:
The unit (A);
Duct system for the intake of outdoor air (B);
Duct system for the exhaust of indoor air (C);
Supply valves in the living room and bedrooms (D);
Exhaust valves in the kitchen, bathroom, wc and (if
present) the utility room (E).
Safety instructions
Always follow the safety regulations, warnings,
comments and instructions given in this document.
Personal injury or damage to the unit can arise from
non-compliance with the safety regulations, warnings,
comments and instructions in this document.
It is recommended to take out a maintenance
contract so that the device is checked on a regular
basis. The supplier can provide a list of registered
installers nearby;
The unit may only be installed, connected,
rendered operational and maintained by an
appropriately approved installer, unless otherwise
indicated in this document;
Store this document for the entire working life of
the unit;
Instructions with regard to maintenance of the
filters must be carefully observed;
When carrying out any work on the unit, make
sure the power is disconnected and cannot be
inadvertently reconnected;
If the unit is disconnected from the power supply,
mechanical ventilation of the dwelling will cease.
This can lead to a buildup of moisture and result in
problems with mould;
The unit cannot be opened without using tools.
A
B
C
E
E
E
D
D
D

EN - 6
3Not available on the ComfoAir 180.
2 Operation
How to use and read the operating devices of the unit is mentioned in the document of the operating device.
How to use and read the display on the unit is mentioned in this document.
2.1 Available operating devices
One or more of the following operating devices can be present to operate the unit:
Appearance Name Functions
Display on unit Indicating the set ventilation level;
Indicating a malfunction or filter alert;
Indicating if the bypass is open;
Turning the supply fan on and off;
Indicating and setting the comfort temperature;
Setting the P-menus;
Resetting the malfunctions and filter alert.
The desired ventilation level cannot be set with the
display on the unit.
CCB Set the desired ventilation level:
Q1 = Low;
Q2 = Normal;
Q3 = High;
QOverrun timer.
CCBL3Set the desired ventilation level:
Q1 = Low;
Q2 = Normal;
Q3 = High;
QOverrun timer.
Indicating a malfunction or filter alert.
Example switch
Bathroom switch Activating the overrun timer.

7 - EN
2.2 Reading the display on the unit
Appearance Description What to do
All lights are off.
The power of the unit is turned off.
Turn on the power of the unit.
One number is displayed in the middle of the display.
The current ventilation setting is displayed.
Possible displayed settings are:
Q1 = Low;
Q2 = Normal;
Q3 = High.
No action required.
The letter “A” is displayed in the middle of the display.
The current ventilation setting is displayed.
The displayed setting is “Absent”.
No action required.
The letter “t” is displayed at the left of the display (with one
number in the middle of the display).
An overrun timer is activated (and the current ventilation
setting is displayed).
No action required.
A point is displayed next to the middle of the display (with one
number in the middle of the display).
The bypass is opened (and the current ventilation setting is
displayed).
No action required.
The letters “FiL” and “tEr” are alternately flashing on the
display.
The “internal filter malfunction“ is displayed.
Clean or replace the filters as
mentioned in the "Maintenance"
chapter.
The letter “A” is flashing at the left of the display with one or
two numbers on the right of the display.
The current “malfunction code“ is displayed.
Contact the installer or service
engineer as mentioned in the
"Malfunctions" chapter.
The letter “E” is flashing at the left of the display with one
number on the right of the display.
The current “malfunction code“ is displayed.
Contact the installer or service
engineer as mentioned in the
"Malfunctions" chapter.
The letters “EA” are flashing at the left of the display with one
number on the right of the display.
The current “malfunction code“ is displayed.
Contact the installer or service
engineer as mentioned in the
"Malfunctions" chapter.
The letter “P” is displayed at the left of the display with one or
two numbers on the right of the display.
The current chosen “P-menu” is displayed.
No action required.
At this time the lower
buttons of the display are
not functional.
One, two or three numbers are displayed in the right of the
display.
The current setting of the chosen “P-menu” is displayed.
No action required.
At this time the lower
buttons of the display are
not functional.

EN - 8

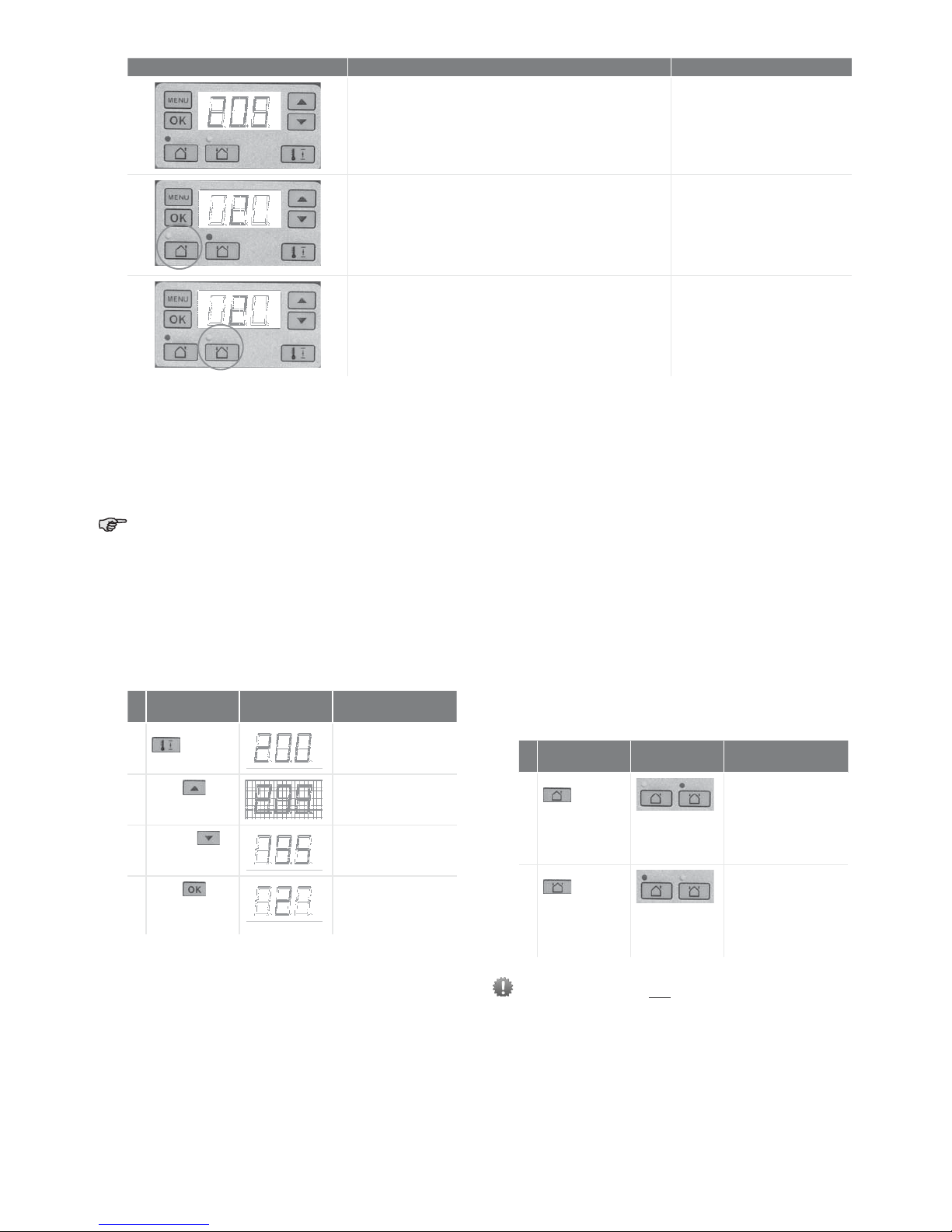

2.3 Reading and setting the comfort
temperature
The unit will strive for the most comfortable
supply air temperature based on the set comfort
temperature.
It is best to set the comfort temperature to the
same temperature as the room thermostat (of the
central heating system).
The comfort temperature can be set between
12°C and 28°C. How to read or set the comfort
temperature on the present operating device can be
found in the document of the operating device.
Action on
display
Reaction on
display4
Explanation
1 Press and hold
for at
least 3 seconds
Current set comfort
temperature is being
displayed.
2Press Comfort temperature
is increased by 0.5°C.
Or press Comfort temperature
is decreased by 0.5°C.
3Press Comfort temperature
is confirmed and the
display returns to the
default screen.
2.4 Switching the supply fan on and off
When required, the supply fan of the unit can be
turned off manually. This may be desired to keep
out unpleasant odours from outside. Bear in mind
that switching off the supply or exhaust fan will
temporarily immobilise your dwelling’s balanced
ventilation system, so do not forget to turn the
supply fan on again. How to switch the supply fan on
or off on the present operating device can be found
in the document of the operating device.
When can the supply fan not be turned off on the
display?
To prevent air being sucked back from the chimney
of a fireplace the unit is fitted with an open fire
programme. When needed the installer or service
engineer can turn this programme on. If the open fire
programme is turned on the supply fan cannot be
turned on or off manually.
When can the supply fan not be turned on?
The supply fan cannot only be operated manually
but can also be controlled automatically by the unit
itself. This occurs in the winter to protect the unit
from freezing. If the supply air is too cold for the
unit, the unit will automatically switch the supply fan
off. In this case the supply fan cannot be turned on
manually.
Action on
display
Reaction on
display
Explanation
1 Press and hold
for at
least 3 seconds
The supply fan is
turned off.
The light above the
button turns green.
2 Press and hold
for at
least 3 seconds
The supply fan is
turned on.
The light above the
button turns green.
The supply fan will not automatically turn back
on. Do not forget to turn the supply fan back on.
4The displayed settings are the standard setting of the unit. This may differ from the actual setting of the unit.
Appearance Description What to do
Three numbers with a point after the second number are
displayed in the display.
The current setting of the comfort temperature is displayed.
No action required.
The light above the icon with one arrow is lit.
The supply fan is turned off.
There is no supply of fresh air.
Do not forget to turn on the
supply fan again when the supply
fan has been turned off manually.
The light above the icon with two arrows is lit.
The supply fan is turned on.
There is balanced ventilation.
No action required.

9 - EN
2.5 Setting an overrun timer for the CCB
or CCBL3
The ventilation setting can be increased for a set
time. This can be useful when additional ventilation
is needed for a short time like during cooking and
showering. How to switch the overrun timer on or off
can be found in the document of the CCB or CCBL3.
The overrun timer can be set in P-menu 23 between
0 minute and 120 minutes.
Action on
display
Reaction on
display4
Explanation
1Press The main P-menus
are being entered.
2Press The sub P-menus of
the selected P-menu
are being entered
3Press until
P23 appears
The different sub
P-menus of the
selected P-menu are
being displayed.
4Press The selected
P-menu is being
entered.
5Press Time delay is
increased by 1
minute.
Or press Time delay is
decreased by 1
minute.
6Press Time delay is
confirmed and
returned to the sub
P-menus of the
selected P-menu.
Press Old settings are
restored and
returned to the sub
P-menus of the
selected P-menu.
7Press Returned to the
main P-menus.
8Press Returned to the
default screen.
2.6 Setting an overrun timer for the
bathroom switch
The ventilation setting can be increased for a set
time. This can be useful when additional ventilation
is needed for a short time like during cooking and
showering. How to switch the overrun timer on or
off can be found in the document of the bathroom
switch. The overrun timer can be set in P-menu 22
between 0 minute and 120 minutes.
Action on
display
Reaction on
display4
Explanation
1Press The main P-menus
are being entered.
2Press The sub P-menus of
the selected P-menu
are being entered
3Press until
P22 appears
The different sub
P-menus of the
selected P-menu are
being displayed.
4Press The selected
P-menu is being
entered.
5Press Time delay is
increased by 1
minute.
Or press Time delay is
decreased by 1
minute.
6Press Time delay is
confirmed and
returned to the sub
P-menus of the
selected P-menu.
Press Old settings are
restored and
returned to the sub
P-menus of the
selected P-menu.
7Press Returned to the
main P-menus.
8Press Returned to the
default screen.
3Not available on the ComfoAir 180.
4The displayed settings are the standard setting of the unit. This may differ from the actual setting of the unit.

EN - 10
2.7 Setting a delay timer for the
bathroom switch
A high ventilation setting is not always desired, for
instance when you only go to the bathroom for a
short time. Therefore a delay time, in which the unit
will do nothing with the information it receives from
the bathroom switch, can be set. How to switch the
delay timer on or off can be found in the document
of the bathroom switch. The delay timer can be set in
P-menu 21 between 0 minute and 15 minutes.
Action on
display
Reaction on
display4
Explanation
1Press The main P-menus
are being entered.
2Press The sub P-menus of
the selected P-menu
are being entered
3Press The selected
P-menu is being
entered.
4Press Time delay is
increased by 1
minute.
Or press Time delay is
decreased by 1
minute.
5Press Time delay is
confirmed and
returned to the sub
P-menus of the
selected P-menu.
Press Old settings are
restored and
returned to the sub
P-menus of the
selected P-menu.
6Press Returned to the
main P-menus.
7Press Returned to the
default screen.
2.8 Setting the delay timer for the filter
alert
How fast the filters of the unit need cleaning
or replacing depends on the air quality of the
environment.
In the countryside the filters may not pollute as fast
as in urban places. Therefore the filter alert has an
adjustable delay timer. After the delay timer has
run out, the following filter malfunctions appear
alternately on the display: and .
How to clean or replace the filters is mentioned in
the “Maintenance” chapter. The delay timer can be
set in P-menu 24 between 10 weeks and 25 weeks.
Action on
display
Reaction on
display4
Explanation
1Press The main P-menus
are being entered.
2Press The sub P-menus of
the selected P-menu
are being entered
3Press until
P24 appears
The different sub
P-menus of the
selected P-menu are
being displayed.
4Press The selected
P-menu is being
entered.
5Press Time delay is
increased by 1
week.
Or press Time delay is
decreased by 1
week.
6Press Time delay is
confirmed and
returned to the sub
P-menus of the
selected P-menu.
Press Old settings are
restored and
returned to the sub
P-menus of the
selected P-menu.
7Press Returned to the
main P-menus.
8Press Returned to the
default screen.
4The displayed settings are the standard setting of the unit. This may differ from the actual setting of the unit.

11 - EN
2.9 P menus for the user
The software of the unit can be customised to the
users requirements by changing the values in the
P-menus of the software.
Menu P1 and menu P9 are read-only menus, menu
P2 is for setting time delays among other things.
A summary of all the accessible P-menus is given
below.
Menu P1 > Status of time programmes
Status
Submenu Description Activated
P11 Is menu P21 currently active? Yes (1) / No (0)
P12 Is menu P22 currently
active?
Yes (1) / No (0)
P13 Is menu P23 currently
active?
Yes (1) / No (0)
P14 Is menu P24 currently active? Yes (1) / No (0)
P15 Is menu P25 currently active? Yes (1) / No (0)
P16 Is menu P26 currently
active?
Yes (1) / No (0)
P17 Is the Summermode
currently active?
Yes (1) / No (0)
Menu P9 > Status of additional programmes
Status
Submenu Description Activated
P90 Open fire programme active? Yes (1) / No (0)
P91 Bypass open? Yes (1) / No (0)
P94 n/a Yes (1) / No (0)
P95 Frost protection or pre
heater active?
Yes (1) / No (0)
P97 Enthalpy programme active? Yes (1) / No (0)
3Not available on the ComfoAir 180.
Menu P2 > Setting time delays
Time delay values
Submenu Description Minimum Maximum General
reset
P21
Only applies to systems
fitted with a bathroom
switch.
Delay timer for the bathroom switch (to switch to high
position).
Q ‘x‘ minutes after operating the bathroom switch,
the unit switches to the high setting.
0 Min. 15 Min. 0 Min.
P22
Only applies to systems
fitted with a bathroom
switch.
Overrun timer for the bathroom switch (to switch to normal
position).
Q ‘x‘ minutes after operating the bathroom switch, the unit
switches back to the normal setting.
0 Min. 120 Min. 30 Min.
P23
Only applies to systems
fitted with a CCB, or CCBL3
switch.
Overrun timer for ventilation position 3 (using a hardwired
3-position switch).
Q If ventilation setting 3 (high) is switched on briefly
(< 3 sec), the unit will switch to the high setting for ‘x’
minutes and then automatically returns to the
normal setting.
If any switch is operated during this lagging time the unit will
instantly revert to the ventilation position as set at that time.
0 Min. 120 Min. 0 Min.
P24 Filter warning
Q ‘x’ weeks after cleaning or replacing the filters the “filter
dirty” alert will reappear.
10 weeks 26 weeks 16 weeks
P25 n/a 1 Min. 20 Min. 10 Min.
P26 n/a 1 Min. 120 Min. 30 Min.
P27 n/a 0 Min. 120 Min. 30 Min.

EN - 12
3 CE certification and warranty
Warranty conditions
The unit is covered by a manufacturer’s warranty for
a period of 24 months after fitting up to a maximum
of 30 months after the date of manufacture. Warranty
claims may only be submitted for material faults and/
or construction faults arising during the warranty
period. In the case of a warranty claim, the unit
must not be dismantled without written permission
from the manufacturer. Spare parts are only
covered by the warranty if they were supplied by the
manufacturer and have been installed by an
approved installer.
The warranty becomes invalid if:
The guarantee period has elapsed;
The device is used without filters;
Parts are used that have not been supplied by the
manufacturer;
Non-authorised changes or modifications have
been made to the unit;
Installation has not been carried out
according to the applicable regulations;
The defects are due to incorrect connection,
inexpert use, or contamination of the system.
On-site (dis)assembly costs are not covered by the
terms of the warranty. This also applies to normal
wear and tear. The manufacturer retains the right to
change the construction and/or configuration of its
products at any time without being obliged to alter
previously delivered products.
Liability
The unit has been designed and manufactured for
use in balanced ventilation systems incorporating
Zehnder heat recovery systems. Any other
application is seen as inappropriate use and can
result in damage to the unit or personal injury, for
which the manufacturer cannot be held liable. The
manufacturer is not liable for any damage originating
from:
Non-compliance with the safety, operating and
maintenance instructions in this document;
The use of components not supplied or
recommended by the manufacturer.
Responsibility for the use of such
components lies entirely with the installer;
Normal wear and tear.
End of useful life
Consult with the supplier about what should be
done with the unit at the end of its useful life. If
the unit cannot be returned to the supplier, avoid
disposing of it with the domestic waste, and ask
your local council about the options for recycling
the components or processing the materials in an
environmentally friendly manner.
CE certification
Zehnder Group Nederland B.V.
/LQJHQVWUDDWŘ30=ZROOH1/
7Ř)
Company register Zwolle 05022293
EEC declaration of conformity
Machine description Heat recovery units: ComfoAir 180, 200, 350, 550 series
Complies with the following directives Machinery Directive (2006/42/EEC)
Low Voltage Directive (2006/95/EEC)
EMC Directive (2004/108/EEC)
Zwolle, 15-01-2014
Zehnder Group Nederland B.V.
O. Schulte,
Directeur Productie Zwolle

13 - EN
4 Maintenance
Failure to carry out (periodic) maintenance on
the unit ultimately compromises the performance
of the ventilation system.
The unit should be inspected and cleaned every 2
years by a specialist. To ensure a hassle free lifespan
for your unit, we recommend you take out a service
agreement with an expert company.
Ensure the unit has been disconnected
from mains power before carrying out any
maintenance work.
The power to the unit should not be disconnected
unless the unit is to be taken out of service due to a
serious malfunction, or for filter replacement or any
other compelling reasons.
If the power to the unit is disconnected,
mechanical ventilation of the dwelling will cease.
This can lead to a build-up of moisture and result
in problems with mould.
4.1 Cleaning or replacing the filters
Replace the filters (at least) every six months and
clean the filters every 2 or 3 months.
When indicated on the display you must clean or
replace the filters.
The following filter malfunctions appears alternately
on the display: and
The installer of the unit can provide the necessary
new filters.
Unit type Filter type Order number
ComfoAir 180 2x G4 400100090
1x F7 / 1x G4 400100091
ComfoAir 200 1x F7 / 1x G4 400100013
2x G4 400100014
2x F7 400100017
ComfoAir 350
ComfoAir 550
2x G4 400100085
1x F7 / 1x G4 400100084
2x F7 400100086

EN - 14

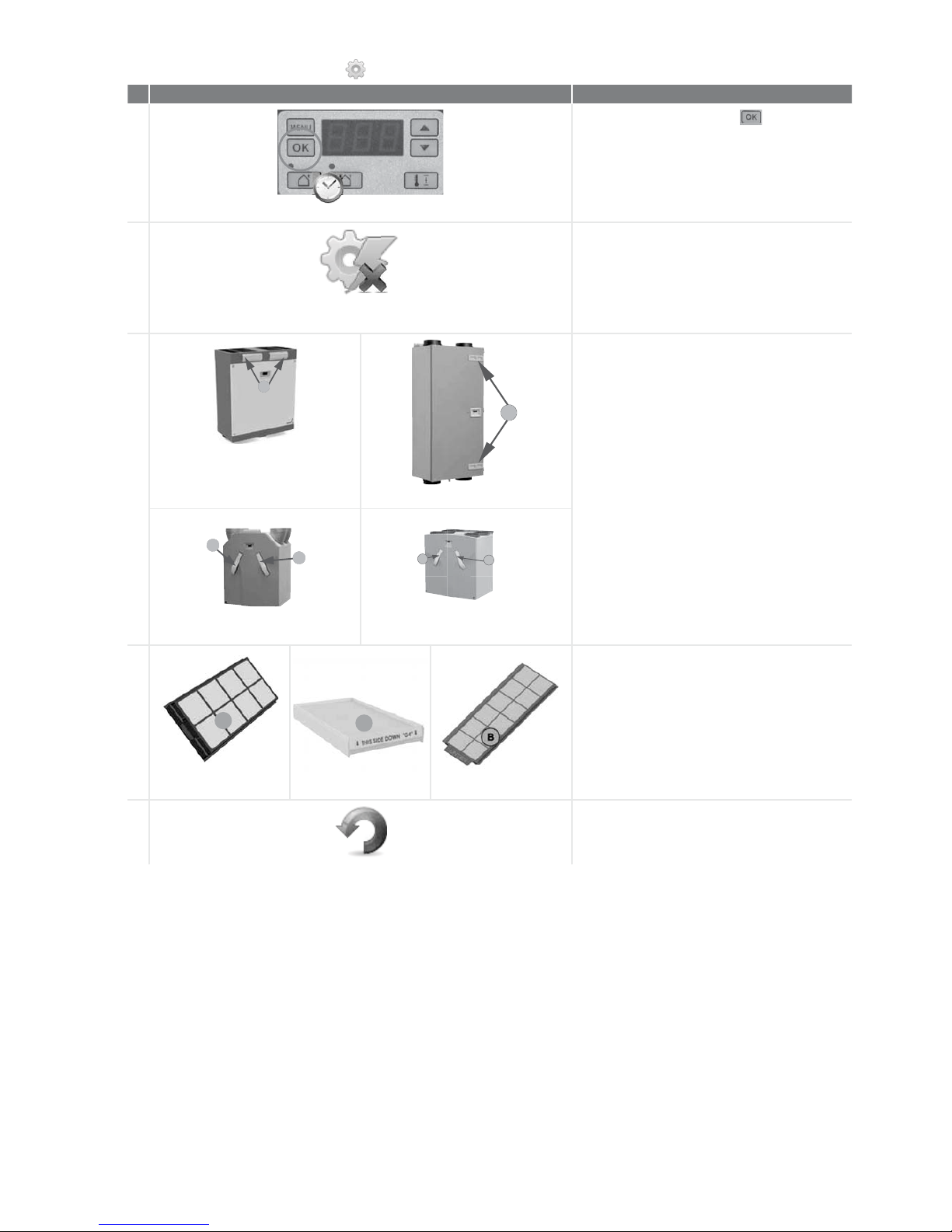

4.1.1 Replacing the internal filters
Action Explanation
1
4 seconds
Reset the filter error by pressing on the
display for at least 4 seconds until the filter warning
disappears.
2Disconnect the power from the unit.
3
A
ComfoAir180
A
ComfoAir 200
Remove the handles (A) from the unit.
A
A
ComfoAir 350
AA
ComfoAir 550
4
B
ComfoAir 200
B
ComfoAir 180 ComfoAir350/550
Remove the dirty filters (B) from the unit.
5Install the clean filter back into the unit and reconnect
the power.

15 - EN
4.1.2 Cleaning the internal filters
Vacuum the filters (B) with a vacuum cleaner instead
of replacing them with new filters.
When using the unit for the first time, it
is recommended to clean the filters (and
valves) first. During the construction phase
the ventilation system could have become
dirty with building dust.
4.2 Cleaning the valves
Clean the valves (at least) twice a year.
1. Mark the setting of the valve;
2. Remove the valve from the wall or ceiling;
3. Clean the valve in a solution of soap and warm
water;
4. Rinse the valve thoroughly and wipe dry;
5. Place the valve back WITH EXACTLY THE SAME
SETTING (and IN THE SAME HOLE);
6. Repeat this procedure for the other valves.
Some valves have a filter behind them. If a filter
is present, clean it in the same way as the valve.
About the valve settings
The ventilation air is supplied and discharged
by means of valves. Gaps under or near doors
in the dwelling ensure that the air flows in the
right direction. In order to ensure that the correct
ventilation volumes are maintained in the rooms, the
following must be observed:
Do not seal the gaps under or near doors. For
example with furniture, draught excluders or
deep-pile carpet. The gap should be at least
10mm;
Do not change the settings of the valves;
Do not replace the valves with one another.
The installer will have set all the valves to ensure
the optimum performance of the ventilation system.
Therefore, do not change the setting of the valves.
4.3 Condensation drain
Ensure that the water seal (u-bend) connected to the
domestic waste-water system is always full of water.
4.4 Maintenance by the installer or
service engineer
Not all neccesary maintenance can be done by the
user.
Once every 2 years the installer or a service
engineer should come by for the maintenance
inside the balanced ventilation system.
Some installers offer a full maintenance contract
package where the user maintenance can also be
integrated.
5 Malfunctions
In the event of a malfunction, the corresponding
malfunction code will be displayed on the display of
the unit.
In event of a filter malfunction the filter must
be cleaned or replaced as described in the
„Maintenance“ chapter.
In the event of all other malfunctions:
Action Explanation
1Note down the malfunction code that
appears on the display of the unit
2 Note down the unit type.
This is given on the identification plate on
the unit near the power supply.
3Contact the installer or service engineer and
give him the noted information.
The system should not be disconnected from the
power supply, unless the unit must be taken out of
service due to a serious malfunction, or for filter
cleaning/replacement or any other compelling
reasons.
If the unit is disconnected from the power
supply, mechanical ventilation of the
dwelling will cease. This can lead to a build-
up of moisture and result in problems with
mould.
If the unit is installed in an area with a higher
average humidity (such as bathroom or
wc) the probability of condensation on the
outside of the unit is high. This is similar to
condensation on a window and no action is
needed.

EN - 16
I Commissioning & Inspection Record
This should be used to record all installation details. The Commissioning Engineer should use the following Parts
1 to 3, to record important information relating to the installation, of which, copies should be given to the Building
Control Body (BCB), the Developer, the Installer and also be incorporated into the Homeowner Pack for the
homeowner to keep.
Part 1 System details and declarations
Part 2a Installation details
Part 2b Inspection of installation
Part 3 Airflow measurement test and commissioning details
Part 1 - System details and declarations
1.1 Installation Address Details
Dwelling name/number
Street
Locality
Town
County
Post Code
1.2 Installation Details
System classification1System...
Enter System 1 to 4 as defined by Approved Document F 2010
Manufacturer
Model numbers
Serial number (where available)
Location of fan units 1.
2.
3.
4.
5.
1Note. If a system has been installed that is not defined by System 1 to 4 in Approved Document F, further
installation checks and commissioning procedures may be required. Seek particular guidance from the
manufacturer for these systems.

17 - EN
Part 2a - Installation details
2.1 Installation Checklist - General (all systems) Tick as appropriate
Has the system been installed in accordance with manufacturer’s requirement Yes No
Have relevant systems installation clauses been followed as details in tables
1, 3, 5 and 7 applicable
Yes No
Type of ductwork installed
(e.g. rigid, semi-rigid)
If any deviation from tables 1, 3, 5 and 7,
these should be detailed here
Description of installed controls (e.g. timer,
central control humidistat, PIR, etc.)
Location of document/override controls
Signature
Number (if applicable)
Date of Installation (completion)
2.2 Installation Engineer’s Details
Engineer’s Name
Company
Address Line 1
Address Line 2
Telephone Number
Post Code
Signature
Competent Person Scheme/
Registration number (if applicable)
Date of installation (completion)
2.3d Inspector’s Details
Name
Company
Address Line 1
Address Line 2
Telephone Number
Post Code
Signature
Competent Person Scheme/
Registration number (if applicable)
Date of installation (completion)

EN - 18
Part 2b - Inspection of installation
This section should be completed by the commissioning engineer prior to completing Part 3.
2.3a Visual inspections - General (all systems)
Total installed equivalent area of background ventilators in dwelling mm
Total floor area of dwelling m2
Does the total installed equivalent ventilator area meet the requirements given in
tables 5.2a, 5.2b, or 5.2c in ADF?
Yes No
Have all background ventilators been left in the open position? Yes No
Have the correct number and location of extract fans/terminals been installed that satisfies table 5.2a in ADF? Yes No
Is the installation complete with no obvious defects present? Yes No
Do all internal doors have sufficient undercut to allow air transfer between rooms
(i.e. 10 mm over and above final floor finish)
Yes No
Has all protection/packaging been removed (including background ventilators)
such that system is fully functional?
Yes No
For ducted systems, has the ductwork installation been installed in such manner that air resistance and
leakage is kept to a minimum?
Yes No
Are the correct number and size of background ventilators provided that satisfy ADF? Yes No
Has the entire system been installed such that there is sufficient access for routine maintenance and
repair/replacement of components?
Yes No
2.3a Visual inspections - General (systems 3 and 4 only)
Have appropriate air terminal devices been installed to allow system balance? Yes No
Has the heat recovery unit (System 4 only) and all ductwork been effectively insulated where
installed in unheated spaces?
Yes No
Condensation connection is complete and drains to an appropriate location (System 4 only)? Yes No
2.3c Other inspections - General (systems 1, 3 and 4 only)
Upon initial start up, was any abnormal sound or vibration experiences, or unusual smells detected? Yes No

19 - EN
Part 3 - Airflow measurement test and commissioning details
3.1 Test Equipment
Schedule of air flow measurement equipment used (model and serial) Date of last UKAS calibration
1.
2.
3.
3.3 Air Flow Measurements (extract) - system 3 and 4 only
Room reference
(location of terminals)
Measured Air Flow
High Rate (l/s)
Design Air Flow
High Rate (l/s)
Refer to Table 5.1b ADF
Measured Air Flow
Low Rate (l/s)
Design Air Flow
Low Rate (l/s)
Refer to Table 5.1b in
ADF
Kitchen
Bathroom
En Suite
Utility
Other...
Other...
Other...
3.4 Air Flow Measurements (supply) - system 4 only
Room reference
(location of terminals)
Measured Air Flow
High Rate (l/s)
Design Air Flow
High Rate (l/s)
Refer to Table 5.1b ADF
Measured Air Flow
Low Rate (l/s)
Design Air Flow
Low Rate (l/s)
Refer to Table 5.1b in
ADF
Living Room 1
Living Room 2
Dining Room
Bedroom 1
Bedroom 2
Bedroom 3
Bedroom 4
Bedroom 5
Study
Other...
3.5 Commissioning - systems 3 and 4 only
Have controls been set-up in accordance with the manufacturer’s recommendations? Yes No
Have all distribution grilles been locked to prevent un authorised adjustment? Yes No

EN - 20
3.6 Test Engineer’s Details
Name
Company
Address Line 1
Address Line 2
Telephone Number
Post Code
Signature
Competent Person Scheme/Registration
(if applicable)
Date of test
