Zeki TBQG774B User manual

7” Capacitive
Multi-touch Tablet
User’s Guide for Model TBQG774B v998-01
TBQG774B-998-01-IB.indd 1 3/4/2014 11:15:56 AM

2
TBQG774B-998-01-IB.indd 2
3/4/2014 11:15:56 AM

3
Important Safety
Instructions
1. Read these Instructions.
2. Keep these Instructions.
3. Heed all Warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such
as radiators, heat registers, stoves, or other
apparatus (including ampliers) that produce
heat.
9. Do not defeat the safety purpose of the polarized
or grounding - type plug. A polarized plug
has two blades with one wider than the other.
A grounding type plug has two blades and a
third grounding prong. The wide blade or the
third prong are provided for your safety. When
the provided plug does not t into your outlet,
consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the apparatus.
11. Only use attachments/accessories specied by
the manufacturer.
12. Unplug this apparatus during lightning storms or
when unused for long periods of time.
13. Refer all servicing to qualied service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has
been dropped.
14. Use only with a cart, stand, tripod, bracket, or
table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
FCC Warnings
Warning: Changes or modications to this
unit not expressly approved by the party
responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested
and found to comply with the limits for
a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses,
and can radiate radio frequency energy
and, if not installed and used in accordance
with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the
equipment and receiver.
•Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
Additional Warnings
• WARNING: Lithium batteries, like all
rechargeable batteries, are recyclable
and should be recycled or disposed of in
normal household waste. Contact your
local government for disposal or recycling
practices in your area. They should never
be incinerated since they might explode.
•Mains plug is used as disconnect
device and it should remain readily
operable during intended use. In order to
disconnect the apparatus from the mains
completely, the mains plug should be
disconnected form the mains socket outlet
completely.
La prise du secteur est utilisé pour
déconnecter le système. La prise du
secteur ne doit pas être obstruée ou
doit être facilement accessible pendant
son utilisation. Pour être complètement
déconnecté de l’alimentation d’entrée, la
prise doit être débranchée du secteur.
TBQG774B-998-01-IB.indd 3
3/4/2014 11:15:56 AM

4
Table of Contents
5|Specications
6|Your 7” ZEKI Tablet
Orientation
8|Right Out of the Box
Accessories
Battery
10 |Using Your Tablet
Power button
Security
Important Icons
Screen Orientation
Gestures
Notications
Quick Settings
Settings & Personalization
18 |The Internet
Wi-Fi Connections
Internet Browser
Using the Browser
20 |Google and Email
Gmail
Email
21 |Apps
Google Playtm
22 |Other Devices
USB & HDMI Connections
Expanding Storage
24 |Camera
Pictures,Video & Gallery
Using the Camera
26 |Company Information
Customer Support
TBQG774B-998-01-IB.indd 4
3/4/2014 11:15:56 AM

5
Specications
»7” display
»5 point capacitive
multi-touch screen
»Full color touch LCD display
»Android™ OS 4.3
»Quad core 2 GHz processor
»Built-in 1GB RAM
»8GB installed ash memory
»Expandable memory and
Micro-SD card reader
(up to 32 GB)
»G-Sensor for screen rotation
»1024 x 600 native resolution
»Front facing .3 MP camera
»Built-in microphone
»Digital video: MOV, MKV, AVI,
RM, RMVB, FLV,WMV, MP4,
VOB
»Digital audio: MP3, WMA (non-
DRM), WAV
»Digital photos: JPEG, BMP, PNG
»eBooks: PDF, PDF DRM, EPUB,
EPUB DRM
»Apps: Browser, Gallery, Movie
Player, File Browser, eMusic,
Clock, Calculator, Calendar,
Camera,
»App Stores: Google Play™,
Opera™ Mobile, Soc.io™ Mall
»eBook Reader: Google Play
Book™, Play™ Magazines,
Soc.io™ eReader
»Google Apps: Google+™,
Maps™, Chrome™ browser,
Youtube™, Google Search™,
Play Music™, Play Movie,™
Hangouts™
»Micro-HDMI output (1080p)
»Micro-USB port
»3.5mm headphone jack
»Built-in speaker
»Built-in 2800 mAH
rechargeable battery:
approximately 2.5 hours of
continuous use
Note: For best results please run the latest Android operating
system.To nd your device’s version number or check for the latest
system update, go to Settings > About Tablet and look for Android
version or System updates.
Specications are subject to change without prior notice.
TBQG774B-998-01-IB.indd 5
3/4/2014 11:15:56 AM

6
1. Notications
2. Primary Apps Bar
3. Navigation Bar
4. Volume
5. Power Button
6. Camera
7. Status and Settings
ORIENTATION
Front
17
6
54
3
2
Your 7” ZEKI Tablet
TBQG774B-998-01-IB.indd 6
3/4/2014 11:15:59 AM

7
Rear
1. Speaker
2. Power Button
3. Headphone Jack
4. Micro USB Port
5. HDMI Input
6. Volume
7. Hard Reset Button
8. Micro SD Card Slot
7
8
4 5
3
2
1
Your 7” ZEKI Tablet
6
TBQG774B-998-01-IB.indd 7
3/4/2014 11:16:01 AM

8
ACCESSORIES
AC/DC Power Adapter
Used to charge the tablet.
Stereo Earbuds
Caution: Playing music with the volume turned up
may damage your hearing and cause permanent
hearing loss.
Right Out of the Box
Micro USB to USB Cable
Used to connect to a computer or
charge the tablet.
TBQG774B-998-01-IB.indd 8
3/4/2014 11:16:02 AM

9
It is necessary to charge your tablet before it can be powered on.The initial
charge time is approximately 10 hours.
When the Battery Indicator signals that the charge is running low, connect the
tablet to a USB or AC power adapter (included). It is normal for the body of
the tablet to become warm during charging or after extended periods of use.
Charge the Battery Using the AC/DC Adapter:
»Insert the small plug of the Micro-USB cord into the Micro-USB
input on the tablet.
»Insert the large end of the USB plug into the AC/DC adapter
(included).
Charge the Battery Using USB:
»Insert the small plug of the Micro-USB cord into the Micro-USB
input on the tablet.
»Insert the large end of the USB plug into a computer.
VOLUME
POWER
MICRO SD
RESET
SERIAL NO.:
MODEL NO. : TBQG774B INPUT : DC5V 2.0A
MADE IN CHINA FID : CF
2ABV2TBQG774B
BATTERY
Rear view
Right Out of the Box
TBQG774B-998-01-IB.indd 9
3/4/2014 11:16:02 AM

10

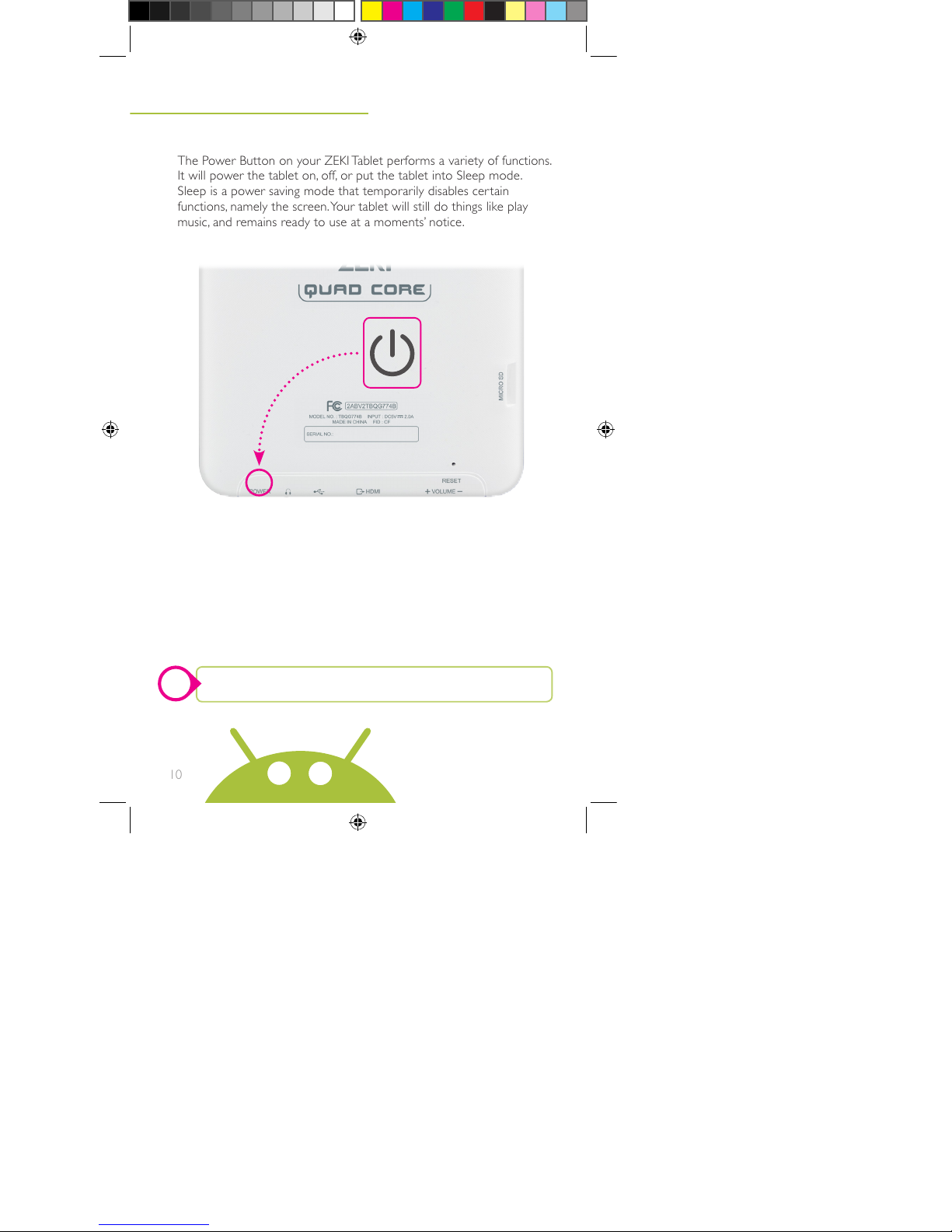

The Power Button on your ZEKI Tablet performs a variety of functions.
It will power the tablet on, off, or put the tablet into Sleep mode.
Sleep is a power saving mode that temporarily disables certain
functions, namely the screen.Your tablet will still do things like play
music, and remains ready to use at a moments’ notice.
Power Your Tablet On
»Press the power button on the side of the tablet and wait for
the screen to activate.
Put Your Tablet in Sleep Mode
»Press the Power Button once to put the tablet to Sleep.
Power Your Tablet Off
»Press and hold the Power Button to turn the tablet completely off.
POWER BUTTON
Rear view
You can set the amount of time it takes for your tablet to go into Sleep mode. Go to:
Settings > Display > Sleep and choose from the options there.
Using Your Tablet
!
TBQG774B-998-01-IB.indd 10
3/4/2014 11:16:04 AM

11

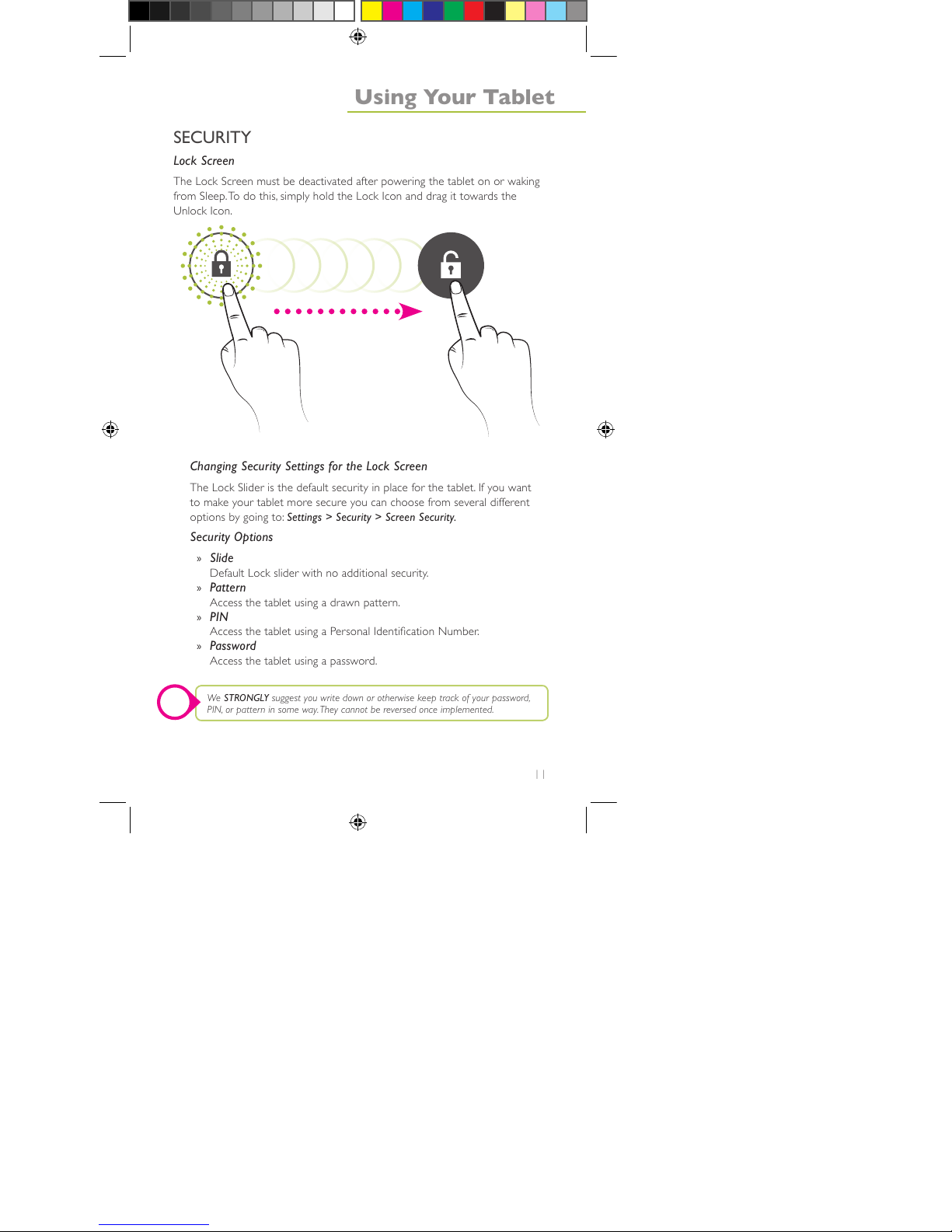

Lock Screen
The Lock Screen must be deactivated after powering the tablet on or waking
from Sleep.To do this, simply hold the Lock Icon and drag it towards the
Unlock Icon.
Changing Security Settings for the Lock Screen
The Lock Slider is the default security in place for the tablet. If you want
to make your tablet more secure you can choose from several different
options by going to: Settings > Security > Screen Security.
Security Options
»Slide
Default Lock slider with no additional security.
»Pattern
Access the tablet using a drawn pattern.
»PIN
Access the tablet using a Personal Identication Number.
»Password
Access the tablet using a password.
We STRONGLY suggest you write down or otherwise keep track of your password,
PIN, or pattern in some way.They cannot be reversed once implemented.
SECURITY
Using Your Tablet
!
TBQG774B-998-01-IB.indd 11
3/4/2014 11:16:04 AM

12
Google Play Store
Tap to browse
and download apps.
Browser
Tap to browse
the internet.
Camera
Tap to activate
the camera.
Gallery
Tap to view pictures
and videos on the tablet.
Apps Menu
Press to access apps
and widgets on the tablet.
Lock
Indicates the
tablet is locked.
Home
Tap to return to
the Home screen.
Screen shot
Tap to take
a screen shot.
Back
Tap to go back to a
previous screen or page.
Screens
Tap to view open
windows and apps.
Volume
Tap to adjust the
volume up or down.
Wi-Fi
Indicates the strength of
a connected Wi-Fi signal.
Settings
Tap to change various
aspects of the tablet.
Clear Notications
Tap to clear notications in
the Notications menu.
Battery
Indicates the strength
of the battery charge.
Status, Menus and Settings
General Icons
Apps
IMPORTANT ICONS
Using Your Tablet
Download
Go directly to
downloaded les in
the File Browser.
TBQG774B-998-01-IB.indd 12
3/4/2014 11:16:05 AM

13

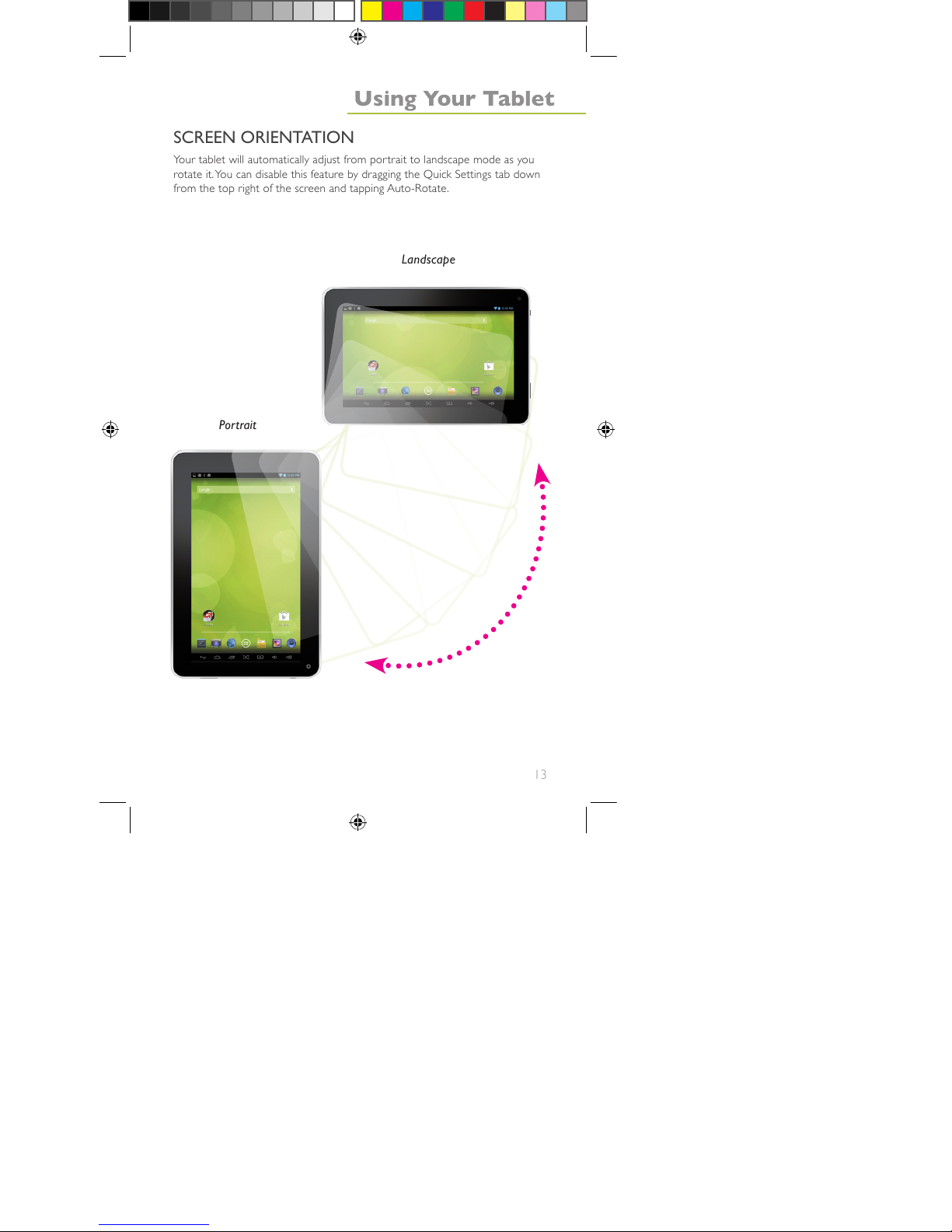

Your tablet will automatically adjust from portrait to landscape mode as you
rotate it.You can disable this feature by dragging the Quick Settings tab down
from the top right of the screen and tapping Auto-Rotate.
SCREEN ORIENTATION
Using Your Tablet
Portrait
Landscape
TBQG774B-998-01-IB.indd 13
3/4/2014 11:16:07 AM

14

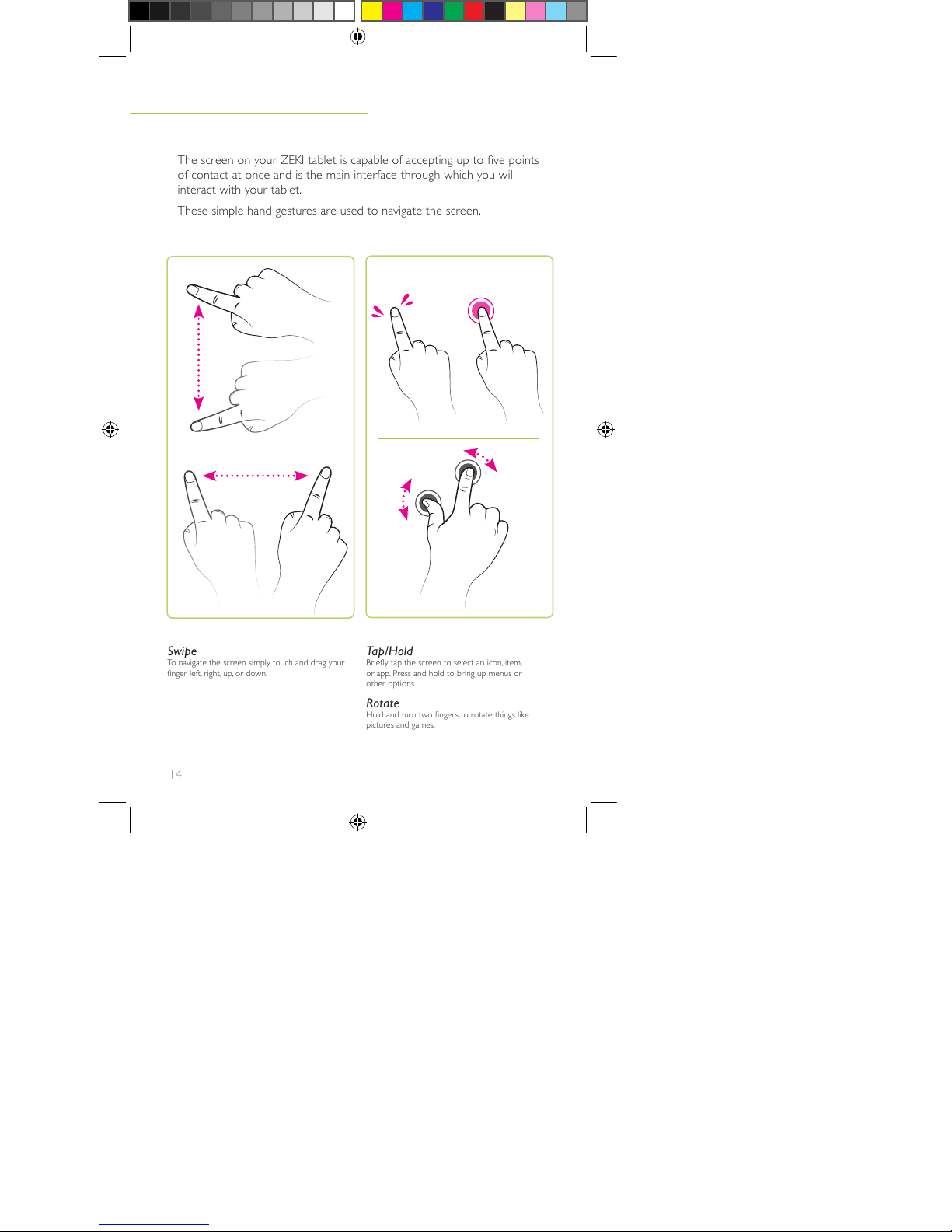

Swipe
To navigate the screen simply touch and drag your
nger left, right, up, or down.
Tap/Hold
Briey tap the screen to select an icon, item,
or app. Press and hold to bring up menus or
other options.
Rotate
Hold and turn two ngers to rotate things like
pictures and games.
The screen on your ZEKI tablet is capable of accepting up to ve points
of contact at once and is the main interface through which you will
interact with your tablet.
These simple hand gestures are used to navigate the screen.
GESTURES
Using Your Tablet
TBQG774B-998-01-IB.indd 14
3/4/2014 11:16:07 AM

15
Drag
To Drag, touch and hold any item on the screen,
such as an app, and just move it to any destination.
Zoom In/Out
To zoom in or out, touch the screen with two
ngers and pinch in or out.
You can also zoom in and out of the screen
by quickly tapping it twice.
Using Your Tablet
TBQG774B-998-01-IB.indd 15
3/4/2014 11:16:08 AM

16
Your tablet will display new emails, messages, the status of downloads, and
other notications in the upper left hand corner of the screen.To view them,
drag the notications bar down.You can clear your notications by pressing
the icon on the right of the notications bar.You can exit the notications
panel by dragging up from the bottom of the panel, or pressing the back
button, or tapping the screen anywhere outside of the panel.
You can access the quick settings to change things like screen brightness or
view the strength of the battery and Wi-Fi signal.You can also change the
current user that is logged into the tablet.To access the Quick Settings menu,
drag down from the upper right hand area of the screen next to the clock.You
can exit the menu the same way you can with the Notications panel.
Notications
displayed here
Quick Settings
displayed here
NOTIFICATIONS
QUICK SETTINGS
Using Your Tablet
TBQG774B-998-01-IB.indd 16
3/4/2014 11:16:10 AM

17

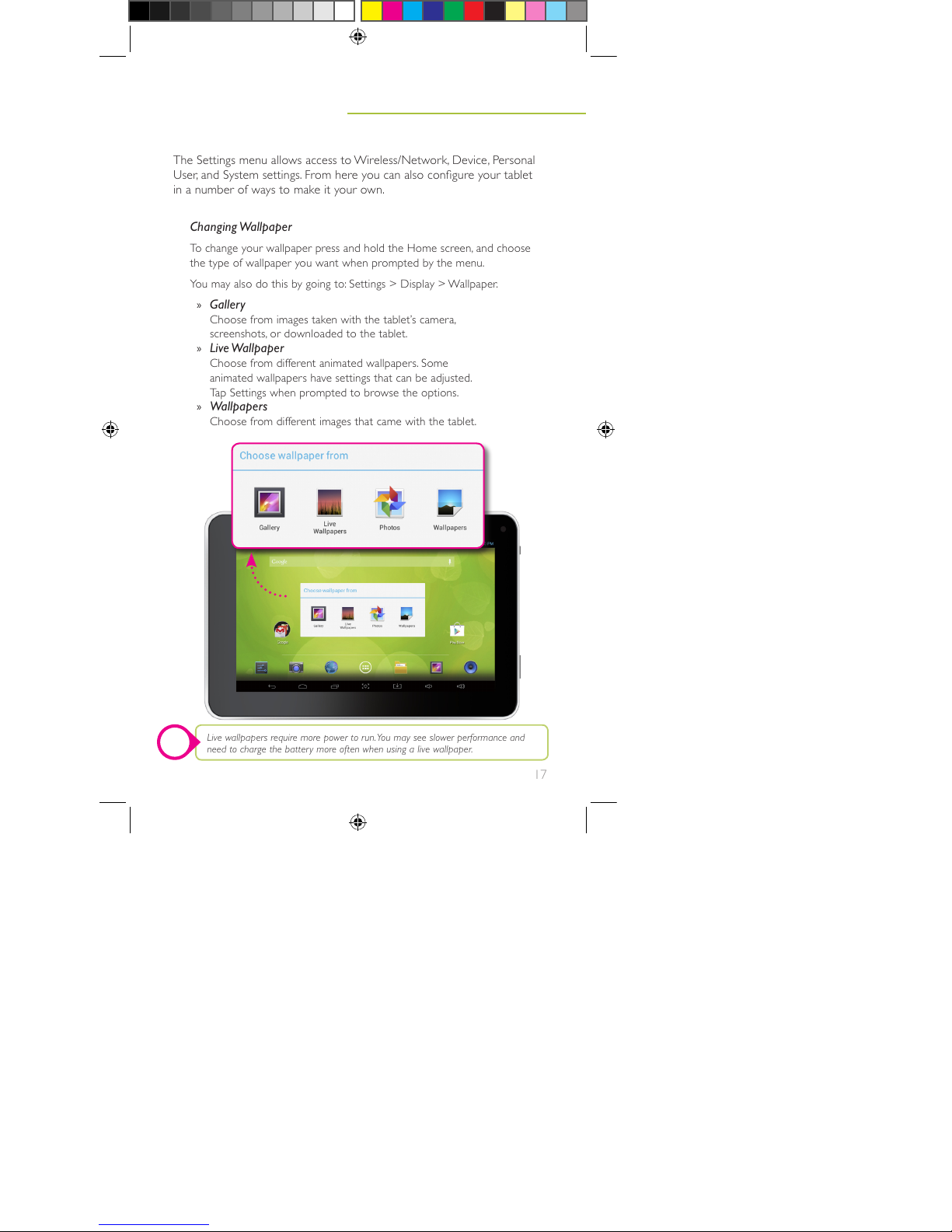

The Settings menu allows access to Wireless/Network, Device, Personal
User, and System settings. From here you can also congure your tablet
in a number of ways to make it your own.
Changing Wallpaper
To change your wallpaper press and hold the Home screen, and choose
the type of wallpaper you want when prompted by the menu.
You may also do this by going to: Settings > Display > Wallpaper.
»Gallery
Choose from images taken with the tablet’s camera,
screenshots, or downloaded to the tablet.
»Live Wallpaper
Choose from different animated wallpapers. Some
animated wallpapers have settings that can be adjusted.
Tap Settings when prompted to browse the options.
»Wallpapers
Choose from different images that came with the tablet.
Live wallpapers require more power to run.You may see slower performance and
need to charge the battery more often when using a live wallpaper.
SETTINGS & PERSONALIZATION
Using Your Tablet
!
TBQG774B-998-01-IB.indd 17
3/4/2014 11:16:12 AM

18
To Being Browsing the Internet
»Tap the Browser icon.
»Once the Browser is open, you can tap the search bar at the
top of the screen or on the web browser’s search page.
»The keyboard will automatically appear. Simply start typing and
tap Enter to begin your search.
To access the internet, download apps, or use other online services you
must have your tablet’s Wi-Fi receiver enabled and a wireless network
or “hotspot” selected.
Once connected to a Wi-Fi network you will have access to the internet.
To Connect to a Wi-Fi Hotspot
»Go to: Settings > Wi-Fi
»Slide the Wi-Fi switch to the ON position, select the desired
network from the list, and tap Connect. If the network is
secured with a passkey you will be prompted to enter it.
»Once completed, the display will show “Connected” under the
name of the network.
Browser Buttons:
Back/Forward will go to previous web pages that you have visited during your
browser session.
Refresh will reload the current web page.
You can open new tabs in the Browser, which is useful for viewing multiple web
pages.To do this, press the + button at the top of the Browser.
Bookmarks allow you quick and easy access to your favorite web pages.
To Bookmark a page tap
To see pages you’ve already book marked tap
Your tablet should automatically detect available networks, but if you want to search
for others or refresh the list press the Scan button.
Turning off Wi-Fi will conserve battery power and extend the life of the charge.
INTERNET BROWSER
WI-FI CONNECTIONS
The Internet
!
!
TBQG774B-998-01-IB.indd 18
3/4/2014 11:16:12 AM

19
1. Back, Forward, Refresh
2. Search Bars
3. Bookmark Page, Search,
Saved Bookmarks
4. Current Window/Tab
5. New Tab
6. Keyboard
7. Google Voice/
Speech to Text
2
54
6
7
USING THE BROWSER
The Internet
1 3
TBQG774B-998-01-IB.indd 19
3/4/2014 11:16:15 AM

20
A Google account is an easy and convenient way to get access to
Google services, including Gmail, the Play store, Hangouts (Google’s chat/
messaging service), Google+ and others services. It will automatically link
all of these services to your account
Gmail is Google’s email delivery service.Your tablet comes with Gmail
pre-loaded. It can be accessed by tapping the Gmail icon in the App menu
or in the Google icon.
You can also access your email using the default Android email app.
Android email can access multiple email accounts from different providers
and is a useful way to gather all of your email in one location.
Additionally, email can always be accessed through a page in the web
browser, just like on a regular computer.
Create a New Google Account
»Go to: Settings > Accounts > Add New > Google
»Tap Create New Account.
»Enter your information as requested.When completed you will
have access to Gmail and other Google services.
Use an Existing Google Account
»Go to: Settings > Accounts > Add New > Google
»Tap Existing.
»Enter your information as requested.When completed you will
have access to your existing Google account.
Adding Accounts to Email
»Tap the Email icon in the App menu.
»Enter the requested information and follow the instructions.
EMAIL
You can also download other email provider’s apps (Yahoo, Outlook, etc.) from the
Google Play store.
To add more accounts go to: Settings > Accounts > + Add New and select
the type of account you wish to add.
!
GMAIL
Google and Email
TBQG774B-998-01-IB.indd 20
3/4/2014 11:16:15 AM
