Zenna Home 72D2ALBNL User manual

Pg 1 of 32 www.zennahome.com IS072D2-I

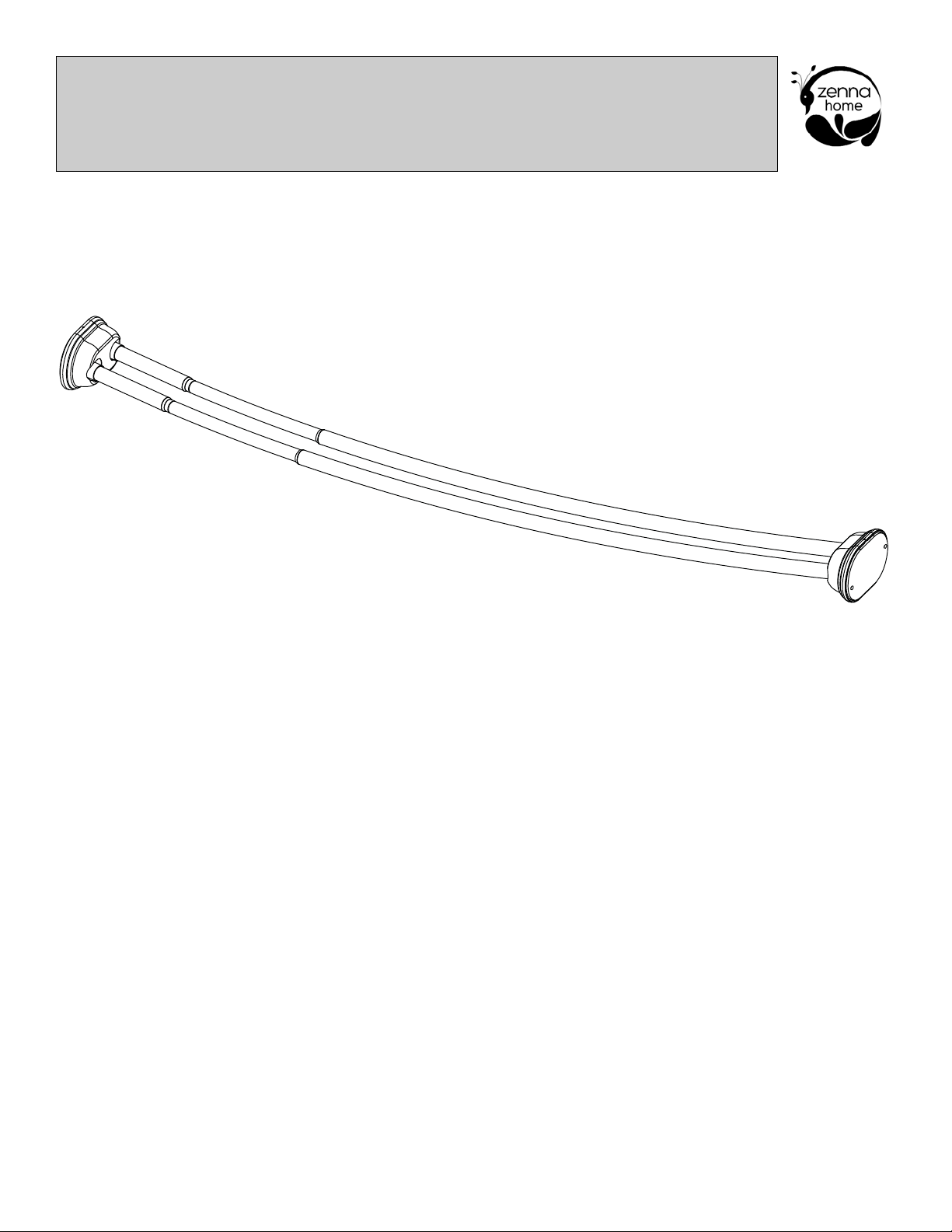

Assembly Instructions
72D2ALBNL ( Dual Mount Curved Rod )
Before You Begin:
Thank you for purchasing this product. Please identify all parts and hardware
pieces before you begin. When laying out parts, place them on a soft surface
to prevent scratching.
If any pieces are missing, call our Toll Free Number 1-800-892-3986 between
8:00AM-5:00PM EST Monday through Friday.
For Spanish and French instructions, start on page 17.
Para instrucciones en español y francés, comience en la página 17.
Pour les instructions espagnoles et françaises, commencez à la page 17.
MCS 10/16/2019

Pg 2 of 32 www.zennahome.com IS072D2-I
Cleaning Note:
Cleaning with a dry cloth may be sufficient, but for other stains or marks wipe
gently with a damp cloth.
DO NOT use strong detergents or abrasive cleaners, they may damage the
surface of this product.
NeverRust Guaranteed for Life Warranty:
The manufacturer warrants to the original purchaser that NeverRust aluminum shower rods,
caddies and accessories will be free from red rust during its lifetime. This warranty only covers
the proper and intended use of this product. Any alteration of this product or use of this
product in any manner other than its intended use shall automatically void this warranty.
In the event of a bona fide warranty claim relating to this product, the manufacturer will,
at its election and sole discretion provide a replacement product or a substantially similar
product. This replacement is the sole and exclusive remedy with respect to any warranty
claim relating to this product. Under no circumstances will manufacturer’s liability exceed
the purchase price of this product.
THE MANUFACTURER SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL, AND/OR
CONSEQUENTIAL DAMAGES.
To obtain warranty service, please contact [phone]. No warranty claim will be
processed without a copy of the receipt showing the retailer name, purchase price and
photographs of the defective product.
®
®

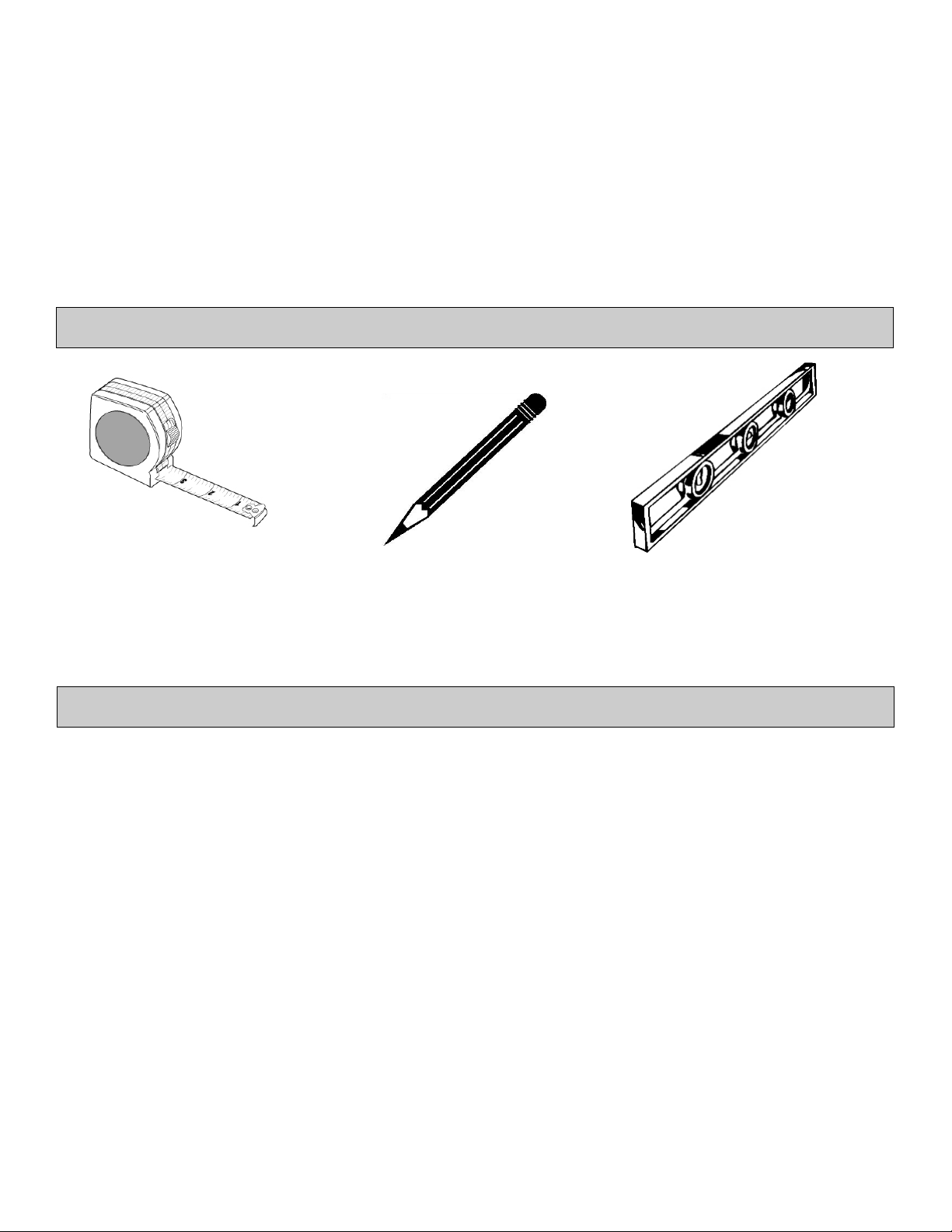

Tools Needed - not included

Pg 3 of 32 www.zennahome.com IS072D2-I

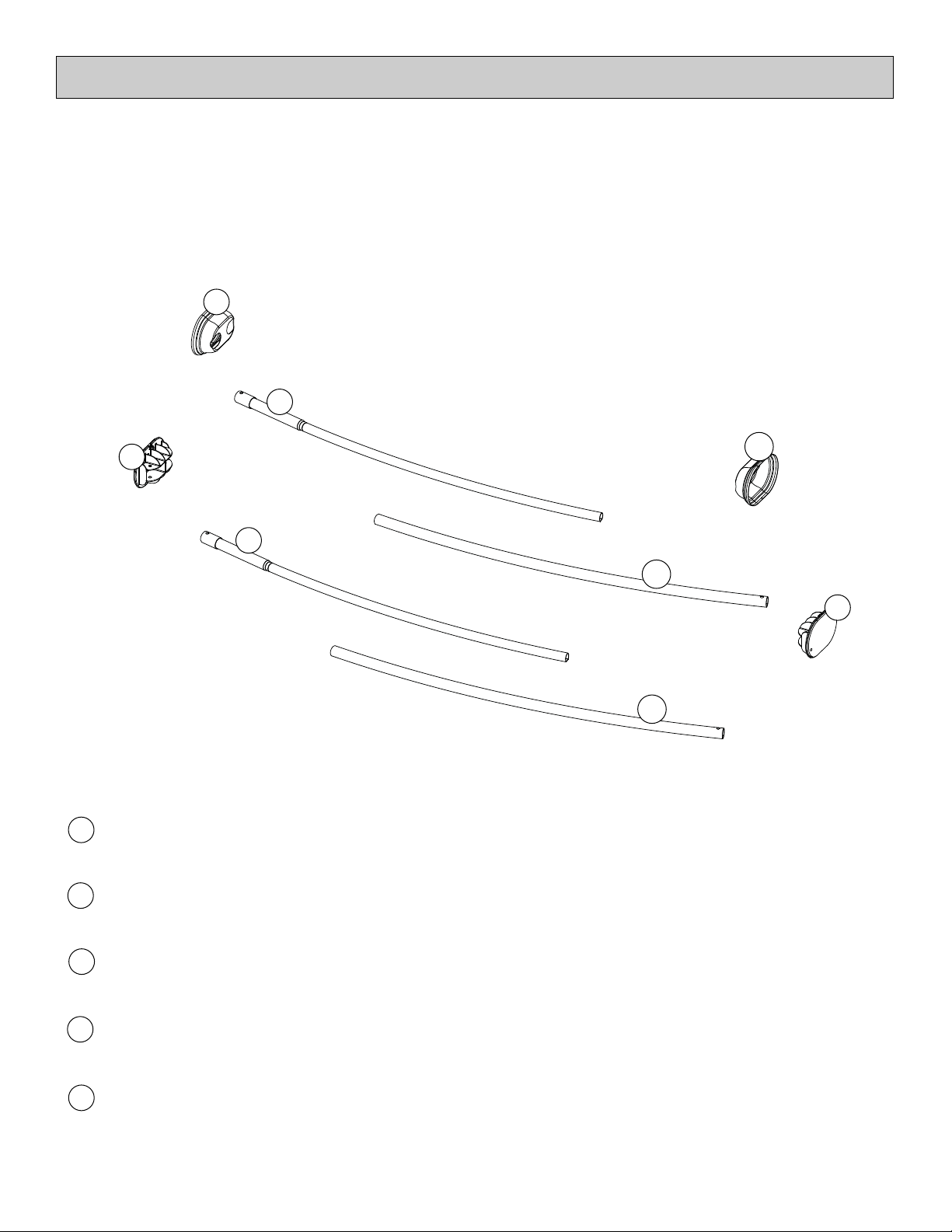

List of Parts
Before assembling,
make sure that the tube assemblies (C)
is at the shortest position
by twisting the end of the tube in the
OPPOSITE DIRECTION of the arrow stickers.
A1 in. Mounting Bracket 1
B7/8 in. Mounting Bracket 1
C7/8 in. Diameter Tube assembly 2
D1 in. Diameter Tube 2
EEnd Cap 2
A
D
E
B
C
E
C
D

Pg 4 of 32 www.zennahome.com IS072D2-I

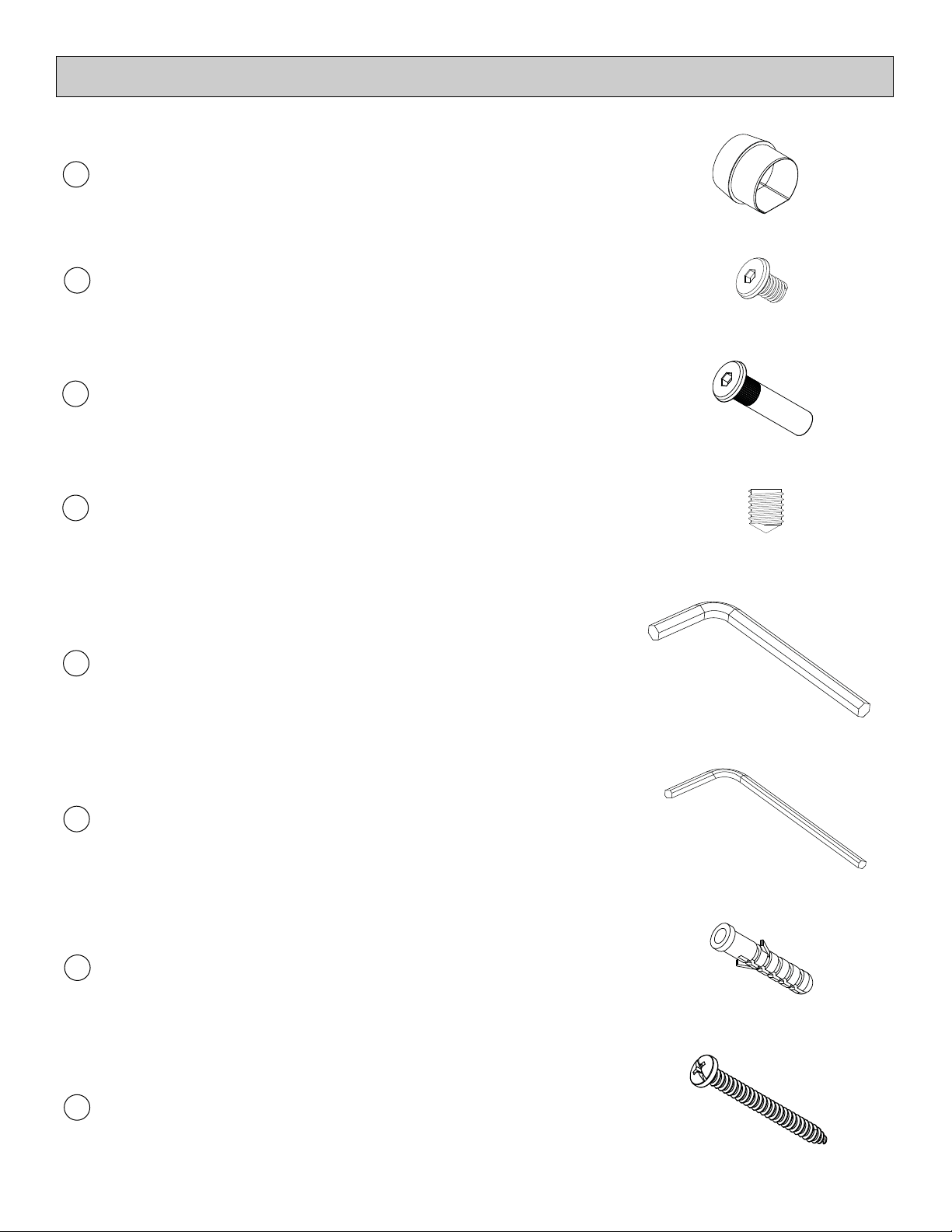

List of Hardware
Plastic Ring
Drywall Anchor
Mounting Bracket Screw
Rod Set Screw
Large Hex Wrench
Small Hex Wrench
x 2
x 4
x 2
x 2
x 1
x 4
Threaded Insert x 4
Mounting Screw x 4
1
3
2
4
5
6
7
8

Pg 5 of 32 www.zennahome.com IS072D2-I

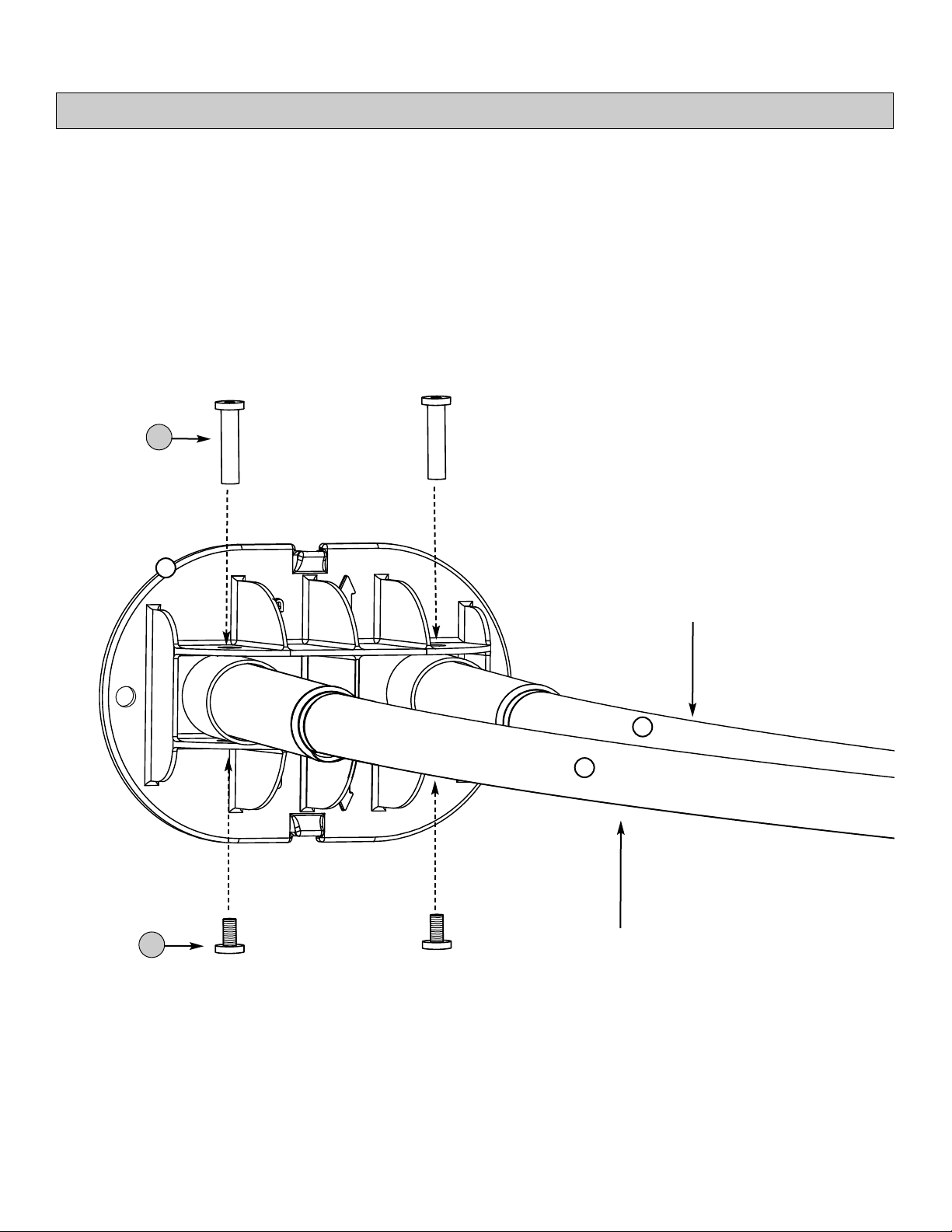

• With the arrows on the mounting bracket for the 7/8 in. diameter tube (C) pointing UP and DOWN, fasten the
7/8 in. diameter tube assemblies (C) to the mounting bracket for the 7/8 in. diameter tube (B) using the
mounting bracket screw (2) and threaded insert (3). NOTE: The flat side of the 7/8 in. diameter tube assembly (C)
should be facing DOWN.
• Tighten the mounting bracket screw (2) and threaded insert (3) using the large allen wrenches (5).
• Repeat this step for the 1 in. diameter tubes (D).
Step 1 - Attaching the Mounting Brackets.
3
2
REAR tube assembly (C)
FRONT tube assembly (C)
B
C
C
Permanent Installation - For Tension Mount Installation go to page (12)

Pg 6 of 32 www.zennahome.com IS072D2-I
• Position mounting bracket (B) with arrows pointing upwards and downwards, as shown.
• Slide the end cap (E) onto the tubes (C). NOTE: Do not attach the end cap to the mounting bracket.
• Repeat this step for the 1 in. diameter tubes (D). NOTE: Do not attach the end cap to the mounting bracket.
make sure end cap dimples
line up with the notches in mounting bracket
dimples on end cap
dimples on end cap
Step 2 - Installing the End Caps.
E
B
Permanent Mount

Pg 7 of 32 www.zennahome.com IS072D2-I

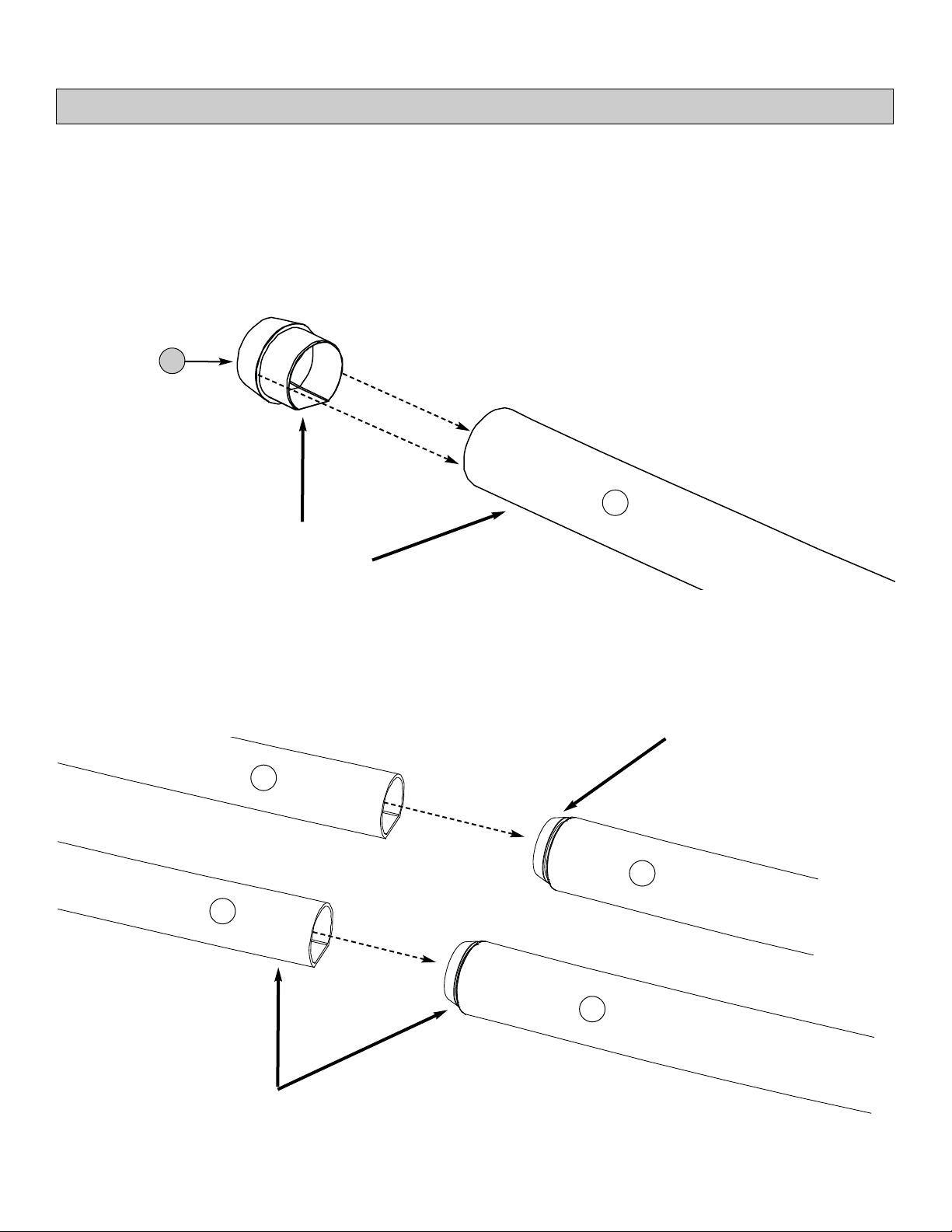

Step 3 - Installing the Plastic Ring.
D
D
C
flat side
facing DOWN
Fig. 2
• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.
• Insert plastic ring (1) into the end of the 1 in. diameter tube (D), fig 1.
• Repeat for the other 1 in. diameter tube (D).
• Now, insert the end of the 7/8 in. diameter tube assemblies (C) into the end of the 1 in. diameter tubes (D), fig 2.
Fig. 1
1
plastic ring (1)
flat side
facing DOWN
C
D
Permanent Mount

Pg 8 of 32 www.zennahome.com IS072D2-I
Permanent Mount
• Measure the space between the walls of the bathtub or shower where your rod assembly will be installed.
• NOTE: Please write down your measurement below, you will need this later.
• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.
•On the 7/8 in. diameter tube assemblies (C), twist the tube in the direction of the arrow sticker by 2 turns,
making the assembly longer, fig 1.
•Now, extend the rod assembly to the measurement from step 4 and lock the length of the assembly
with the rod set screws (4) using the small hex wrench (6). NOTE: Tighten the rod set screws (4) until it is
flush with the rods, fig 2.

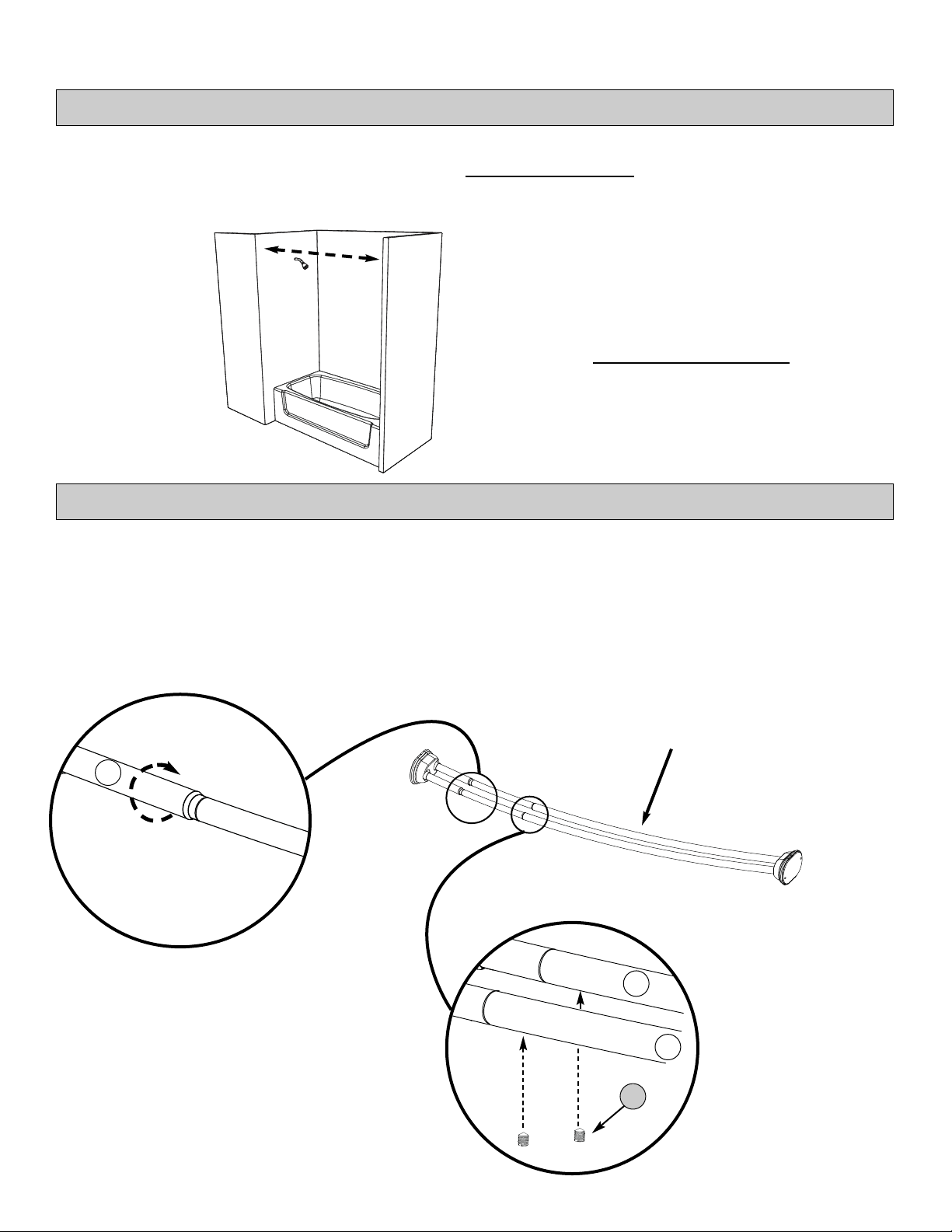

Step 4 - Measure the space between the walls.
Measurement
between walls:
Step 5 - Extending the 7/8 in. Rod and installing the Set Screw.
rod assembly
C
Fig. 1
Fig. 2
twist the tubes
in the direction of the
ARROW STICKER
D
4
D

Pg 9 of 32 www.zennahome.com IS072D2-I
Permanent Mount
Step 6 - Installing the Rod Assembly in its final location.
• Secure the shower rod to the walls by twisting the end of the 7/8 in. diameter tube assemblies (C)
away from you, until snug .
• Make sure rod is level and adjust as needed.
• Mark locations on the wall through the mounting brackets (A) and (B) mounting holes, as shown.
• Remove the shower rod from the walls by twisting the end of the 7/8 in. diameter tube assemblies (C)
towards you, until loose .
mounting holes
twist the tube away from you until snug
B
C
C

Pg 10 of 32 www.zennahome.com IS072D2-I
Permanent Mount
• Drill the 2 marked spots for each mounting bracket (A) and (B) .
• Insert drywall anchors (7) into wall, as shown. NOTE: If needed, using a hammer, lightly tap drywall
anchors (7) into wall.
• NOTE: Do not use a wall anchor if mounting screw will be going into a stud.
NOTE: Use a 1/4 in. (6mm) drill bit for drywall anchor installation. Use a 1/8 in. (3mm) drill bit for direct
stud installation. If installing into a material other than drywall or into stud,
consult a professional for proper installation.
Step 7 - Installing Wall Anchors.
NOT SHOWN TO SCALE

Pg 11 of 32 www.zennahome.com IS072D2-I
Permanent Mount

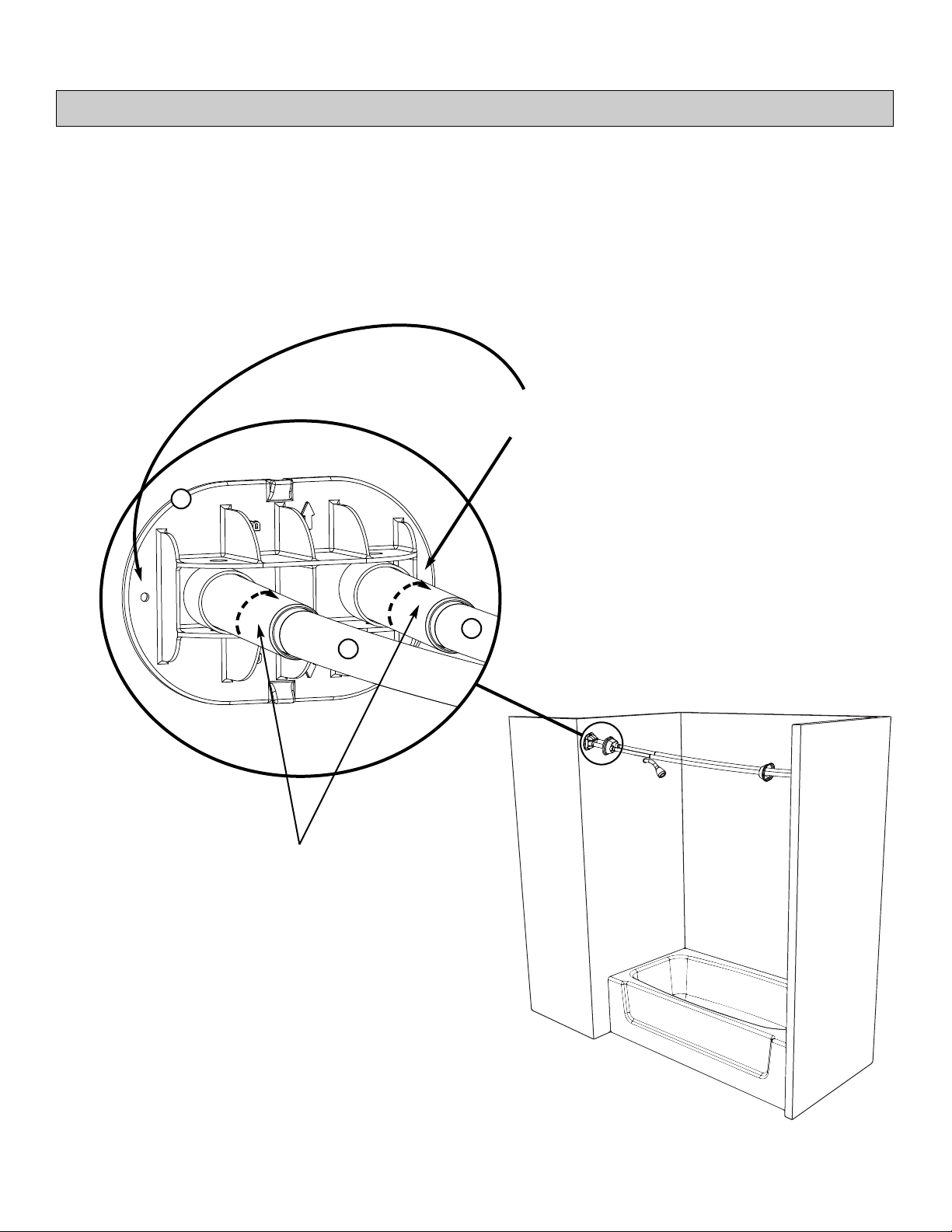

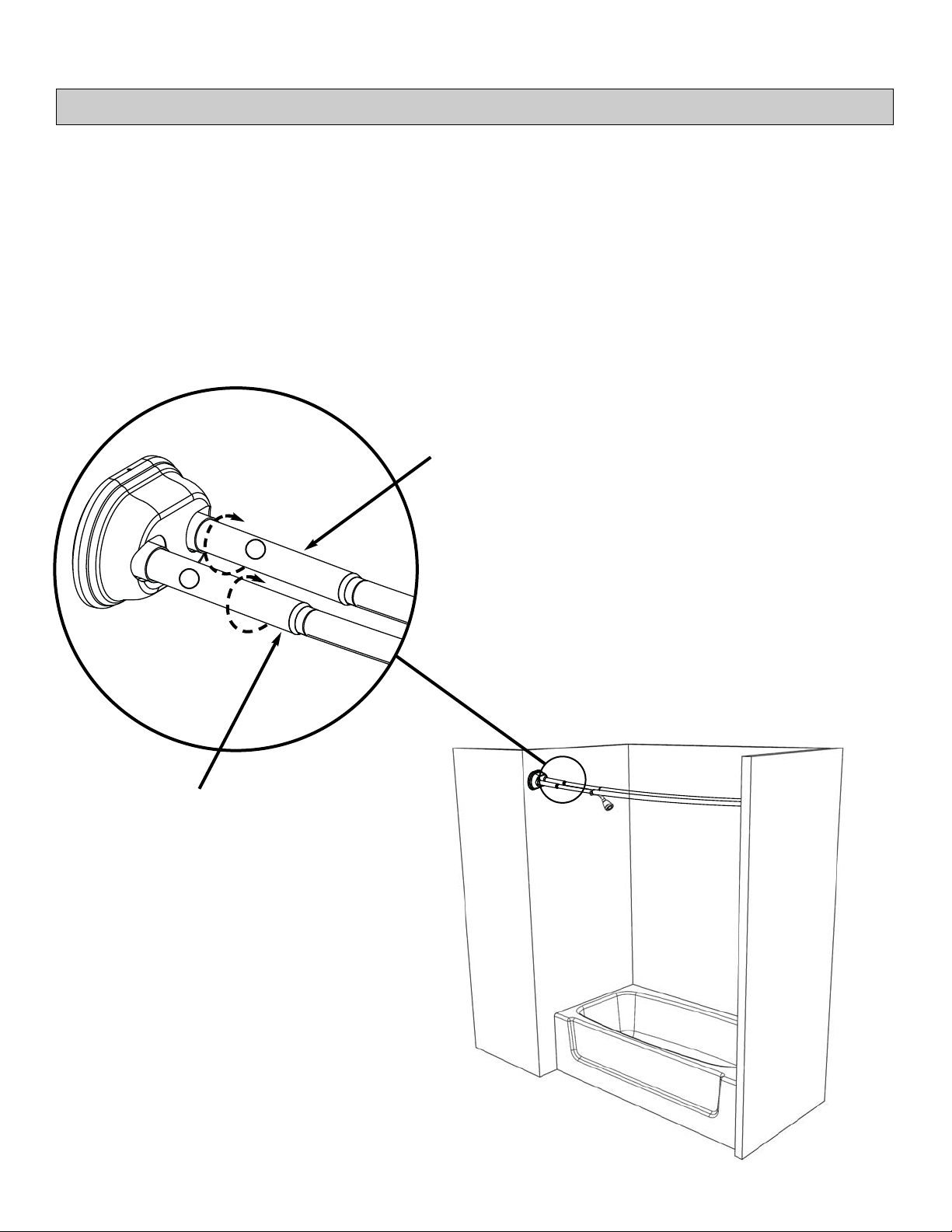

•Secure the shower rod to the walls by twisting the end of the REAR tube assembly (C) away from you,
until snug.
• Repeat for the FRONT tube assembly (C), as shown. NOTE: Make sure rod is level.
•Once the rod assembly is secure, twist the tubes until tight.
• Complete mounting by tightening mounting screws (8) into th wall anchors (7) or studs.
• Align the dimples
on the end caps (E) with the notches on the mounting brackets (A) and (B) and snap together,
as shown.
B
notch
E
B
dimples
notch
Step 8 - Installing the Rod Assembly in its final location.
twist the REAR TUBE AWAY from you until tight
twist the FRONT TUBE AWAY from you until tight
8
8

Pg 12 of 32 www.zennahome.com IS072D2-I
• With the arrows on the mounting bracket for the 7/8 in. diameter tube (C) pointing UP and DOWN, fasten the
7/8 in. diameter tube assemblies (C) to the mounting bracket for the 7/8 in. diameter tube (B) using the
mounting bracket screw (2) and threaded insert (3). NOTE: The flat side of the 7/8 in. diameter tube assembly (C)
should be facing DOWN.
• Tighten the mounting bracket screw (2) and threaded insert (3) using the large allen wrenches (5).
• Repeat this step for the 1 in. diameter tubes (D).
Step 1 - Attaching the Mounting Brackets.
3
2
REAR tube assembly (C)
FRONT tube assembly (C)
B
C
C
Tension Mount Installation - For Permanent Mount Installation go to page (5)

Pg 13 of 32 www.zennahome.com IS072D2-I
• Slide the end cap (E) onto the 7/8 in. diameter tube assemblies (C).
• Snap the end cap (E) to the mounting bracket for the 7/8 in. diameter tubes (B).
• Repeat this step for the 1 in. diameter tubes (D).
make sure end cap dimples
line up with the notches in mounting bracket
dimples on end cap
dimples on end cap
Step 2 - Installing the End Caps.
E
B
Tension Mount Installation

Pg 14 of 32 www.zennahome.com IS072D2-I
Step 3 - Installing the Plastic Ring.
D
D
C
flat side
facing DOWN
Fig. 2
• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.
• Insert plastic ring (1) into the end of the 1 in. diameter tube (D), fig 1.
• Repeat for the other 1 in. diameter tube (D).
• Now, insert the end of the 7/8 in. diameter tube assemblies (C) into the end of the 1 in. diameter tubes (D), fig 2.
Fig. 1
1
plastic ring (1)
flat side
facing DOWN
C
D
Tension Mount Installation

Pg 15 of 32 www.zennahome.com IS072D2-I
Tension Mount Installation
• Measure the space between the walls of the bathtub or shower where your rod assembly will be installed.
• NOTE: Please write down your measurement below, you will need this later.
• NOTE: ASSEMBLE ON A SMOOTH FLAT SURFACE.
•On the 7/8 in. diameter tube assemblies (C), twist the tube in the direction of the arrow sticker by 2 turns,
making the assembly longer, fig 1.
•Now, extend the rod assembly to the measurement from step 4 and lock the length of the assembly
with the rod set screws (4) using the small hex wrench (6). NOTE: Tighten the rod set screws (4) until it is
flush with the rods, fig 2.
Step 4 - Measure the space between the walls.
Measurement
between walls:
Step 5 - Extending the 7/8 in. Rod and installing the Set Screw.
rod assembly
C
Fig. 1
Fig. 2
twist the tubes
in the direction of the
ARROW STICKER
D
4
D

Pg 16 of 32 www.zennahome.com IS072D2-I
twist the REAR TUBE AWAY from you until tight
•Secure the shower rod to the walls by twisting the end of the REAR tube assembly (C) away from you,
until snug.
• Repeat for the FRONT tube assembly (C), as shown. NOTE: Make sure rod is level.
•Once the rod assembly is secure, twist the tubes until tight.
twist the FRONT TUBE AWAY from you until tight
C
C
Step 6 - Installing the Rod Assembly in its final location.
Tension Mount Installation

Pg 17 of 32 www.zennahome.com IS072D2-I
ADVERTENCIA DE SEGURIDAD:
Asegúrese de que está haciendo una instalación en un entorno limpio, seco y seguro. NO SE PARE EN EL
REBORDE DE LA BAÑERA.
Antes de que empiece:
Muchas gracias por comprar este producto. Identifique todas las piezas y las piezas de ferretería antes de
comenzar. Al distribuir las piezas, colóquelas sobre una superficie suave para evitar que se rayen.
Si faltaran piezas, llame a nuestro número gratuito 1-800-892-3986 entre las 8:00 a.m.- 5:00 p.m., hora del este,
de lunes a viernes o contáctenos a través de nuestro sitio web en www.zennahome.com para solicitar mas infor-
mación.
CONSIGNE DE SÉCURITÉ :
Assurez-vous d’installer le produit dans un endroit propre, sec et sécurisé. NE MONTEZ PAS SUR LE REBORD DE
LA BAIGNOIRE.
Avant de commencer :
Merci d’avoir acheté ce produit. Veuillez identifier toutes les pièces et les accessoires de montage avant de
commencer. Lorsque vous déballez les pièces, placez-les sur une surface non rugueuse afin d’éviter les
éraflures.
S’il venait à vous manquer des pièces, appelez notre numéro sans frais 1.800.892.3986 entre 8 h et 17 h (heure
de l’Est des États-Unis), du lundi au vendredi.
Instrucciones de Ensamblado / Instructions de montage
72D2ALBNL
(Tubo curvado de doble montaje / Double mont courbé)

Pg 18 of 32 www.zennahome.com IS072D2-I
Nota de limpieza:
La limpieza con un paño seco puede ser
suficiente, pero para otras manchas o marcas,
limpie suavemente con un paño húmedo.
NO use detergentes fuertes o limpiadores
abrasivos, ya que pueden dañar la superficie
de este producto.
Remarque sur le nettoyage :
Le nettoyage à l’aide d’un chiffon sec
peut suffire, mais pour d’autres taches ou
marques, essuyer à l’aide d’un chiffon
humide.
NE PAS utiliser de détergents agressifs ou
de nettoyants abrasifs, car ils pourraient
endommager la surface de ce produit.
NeverRust garantizadas por vida
garantía: NeverRust garanti à vie garantie :
El fabricante garantiza al comprador original que los
tubos para ducha, organizadores y accesorios de
aluminio NeverRust estarán libres de oxidación roja
durante su vida útil. Esta garantía cubre solamente
el uso adecuado y debido de este producto. Las
modificaciones realizadas a este producto o uso de
dicho producto de manera diferente al uso indicado
anularán automáticamente esta garantía. En el caso
de un reclamo de garantía de buena fe relacionado
con este producto, el fabricante, a su elección y a su
exclusiva discreción, proporcionará un reemplazo
del mismo o de un producto sustancialmente similar.
Este reemplazo constituirá el único recurso exclusivo
con respecto a reclamos bajo garantía en relación
con este producto. La responsabilidad del fabricante
en ningún caso excederá el precio de compra del
producto.
EL FABRICANTE NO SE RESPONSABILIZARÁ DE NINGÚN
DAÑO ESPECIAL, INCIDENTAL Y/O CONSECUENTE.
Para obtener servicio bajo garantía, contáctese
llamando al [phone]. Ninguna reclamación
de garantía será procesada sin copia del recibo con
nombre del mayorista, precio de compra y fotografías
del producto defectuoso.
Le fabricant garantit à l’acheteur initial que les
tringles, gagne-place et accessoires de bain
NeverRust en aluminium seront exempts de rouille
rouge pendant toute la durée de leur vie. La présente
garantie ne couvre le produit que s’il est utilisé
correctement et aux fins pour lesquelles il est prévu.
Toute modification de ce produit ou de l’utilisation
de ce produit de toute autre façon que celle pour
laquelle il est prévu annulera automatiquement la
présente garantie. Dans l’éventualité d’une réclamation
de bonne foi au titre de la garantie concernant ce
produit, le fabricant fournira, à sa convenance et à sa
seule discrétion, un produit de remplacement ou un
produit essentiellement similaire. Ce remplacement est
le seul et unique recours au titre de toute réclamation
de garantie portant sur le produit. En aucun cas la
responsabilité du fabricant ne dépassera le prix
d’achat de ce produit.
LE FABRICANT NE SERA RESPONSABLE D’AUCUN
DOMMAGE SPÉCIAL, CONSÉCUTIF ET/OU INDIRECT.
Pour obtenir un service de garantie, veuillez contacter
le 1.302.326.8203. Aucune réclamation de garantie ne
sera traitée sans une photocopie du reçu indiquant
le nom du détaillant et le prix d’achat, ainsi que des
photos du produit défectueux.
®
®
Herramientas que se requieren - no incluidas / Outils nécessaires -non inclus
®
®

Pg 19 of 32 www.zennahome.com IS072D2-I
Lista de Partes / Liste des pièces
A
D
E
B
C
E
C
D
Antes de ensamblarlo,
asegúrese de que los conjuntos de tubo (C)
estén en la posición más corta girando el
extremo del tubo en la DIRECCIÓN OPUESTA
de las etiquetas de flecha.
Avant le montage,
s’assurer que les assemblages de tube (C)
se trouvent dans la position la plus courte en
faisant tourner l’extrémité du tube dans le
SEN OPPOSÉ des étiquettes flèches.
ASoporte de montaje de 1 pulgada
Plaque de montage de 25 mm (1 po) 1
BSoporte de montaje de 7/8 de pulgada
Plaque de montage de 22 mm (7/8 po) 1
CEnsamble del tubo de 7/8 de pulg. de diámetro
Ensemble de tubes de 22 mm (7/8 po) de diamètre 2
DTubo de 1 pulg. diámetro
Tube de 25 mm (1 po) de diamètre 2
ETapa
Embout 2

Pg 20 of 32 www.zennahome.com IS072D2-I
Anillo de plástico
Bague en plastique
Ancla para pared de muro seco
Cheville murale
Tornillo del soporte de montaje
Vis pour plaque de montage
Tornillo de presión del cortinero
Vis de pression pour tringle
Llave Allen hexagonal grande
Grande clé hexagonale
Llave Allen hexagonal pequeña
Petite clé hexagonale
1
2
6
4
5
7
x 2
x 4
x 2
x 2
x 1
x 4
Inserto roscados
Douille filetée
3x 4
Tornillo de montaje
Vis de montage
8x 4
Continuación de lista de partes / Liste des pièces, suite
