1. READ THE DIRECTIONS FOR USE FIRST.
2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.
Dear Sir, Madam,
Congratulations on the purchase of your Zibro airconditioner. You have acquired a high
quality product that, if used responsibly, will give you many years of pleasure. Please read
these instructions for use first in order to ensure the maximum life span of your
airconditioner.
On behalf of the manufacturer, we provide a 24-month guarantee on all material and
production defects. Please enjoy your airconditioner.
Yours sincerely,
PVG International b.v.
Customer service department
man_S15xx.qxd 07-02-2007 16:54 Pagina 2

4
3
CONTENTS
A Safety instructions 04
B Parts and functions 05
C Before operation 08
D Instructions for use 09
E Air filter 16
F Maintenance 17
G Trouble shooting 18
H Guarantee conditions 19
I Technical data 20
man_S15xx.qxd 07-02-2007 16:54 Pagina 3

ASAFETY INSTRUCTIONS
Install the device only when it complies with local regulations, by-laws and standards. The unit is only sui-
table for use in dry locations, indoors. Check the mains voltage and frequency. This unit is only suitable for
earthed sockets, connection voltage 220 - 240 V. / 50 Hz.
Before connecting the unit, check the following:
• The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
•The plug on the cable of the device must fit into the wall socket.
• The device must be placed and mounted on a stable surface.
The electricity supply to the device must be checked by a recognised professional if you have any doubts
regarding the compatibility.
• This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with
any other electrical device.
• Do not cover the air inlet and outlet grill.
•Never allow the device to come into contact with chemicals.
• Never spray the unit with or submerge in water
•Do not insert hands, fingers or objects into the openings of the unit.
•Never use an extension cable to connect the device to the electric power supply.If there is no suitable,
earthed wall socket available, have one installed by a recognised electrician.
•For safety reasons take care when children are in the surrounding of the device, as with any other elec-
trical device.
•Have any repairs and/or maintenance only carried out by a recognised service engineer or your recognised
Zibro supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
•Always remove the plug of the unit from the wall socket when it is not in use.
• A damaged power cord or plug must always be replaced by a recognised electrician or your supplier.
•Do not operate or stop the airconditioner by inserting or pulling out the power plug. Only use the dedi-
cated buttons on the airconditioner or on the remote control.
• Do not open the airconditioner when it is in operation. Always pull out the electrical plug when ope-
ning the device.
•Always pull out the electrical plug when cleaning or servicing the airconditioner.
•Do not place gas burners, ovens and/or stoves in the airstream.
• Do not operate the buttons or touch the airconditioner with wet hands.
•Note that the outdoor unit produces sound when in use, this could interfere with local legislation, it is the
responsibility of the user to check and to make sure the equipment is in full compliance with local legislation.
•It is advised to stay out of the direct airstream.
• Never drink the drain water from the airconditioner.
•Do not use for the purpose of storage of food, art work or precise equipment or breeding cultivation.
• When abnormality such as burnt-smell found, immediately stop the operation button and contact sales shop.
•Check proper installation of the drainage securely.
G
IMPORTANT
•The device MUST always have an earthed connection. If the power supply is not earthed, you
may not connect the unit. The plug must always be easily accessible when the unit is connected.
Read these instructions carefully and follow the instructions.
•The airconditioner contains a refrigerant and can be classified as pressurized equipment.
Therefore always contact an authorized installation specialist for installation and maintenance
of the airconditioner. It is to be advised that the airconditioner is inspected and serviced on an
annual base by an authorized airconditioning engineer.
4
4
man_S15xx.qxd 07-02-2007 16:54 Pagina 4

4
5
Do not install in the following places:
• Heat or steam is generated in the vicinity.
• Under influence by the atmosphere containing in excess salt (in coastal area), sulphide gas (in spa),
ammonia, steam of high temperature and vapor.
• Air flow from outlet is blocked, for example by snow.
• Where oil is dispersed or oil fumes hang over.

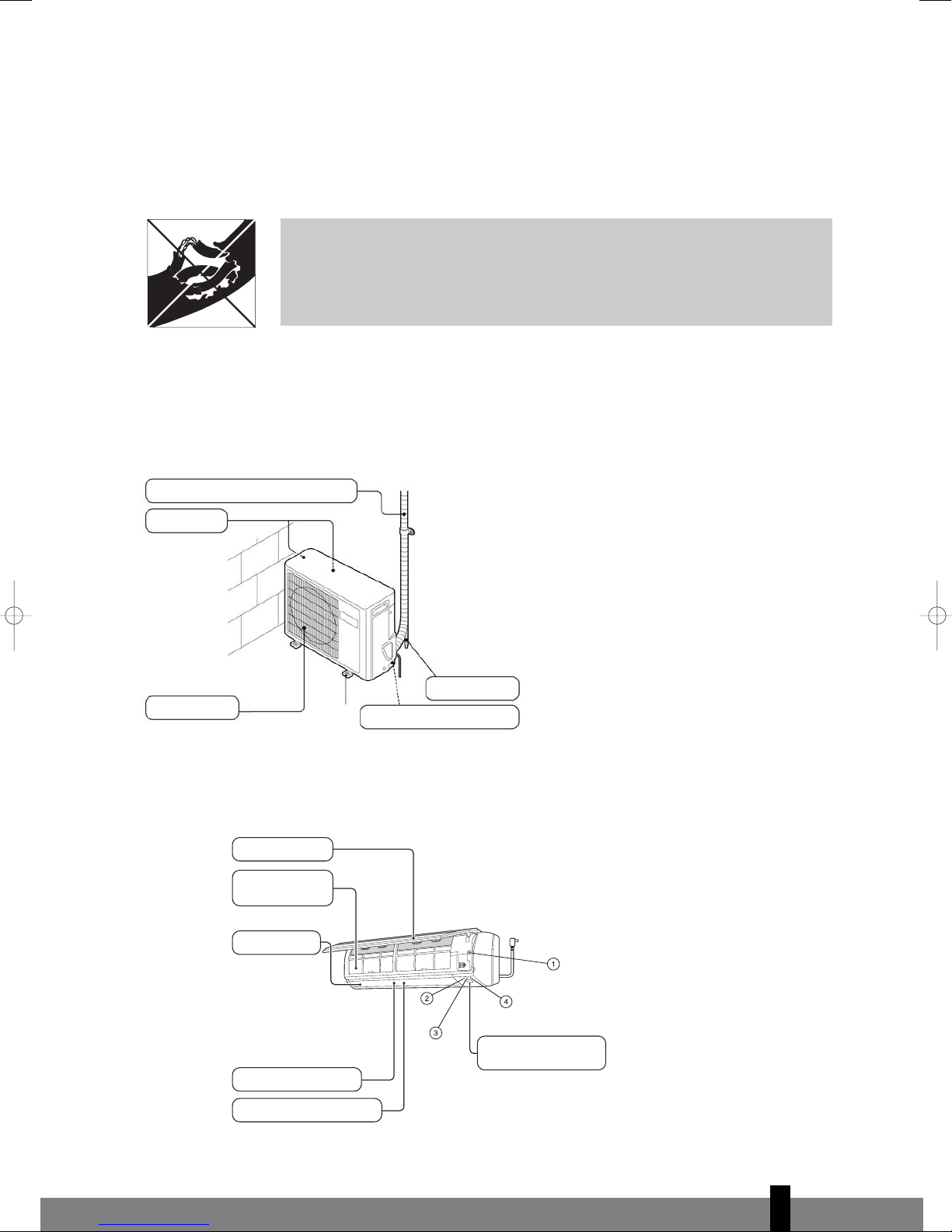

BPARTS AND FUNCTIONS
Outdoor unit
Indoor unit
Inlet grill
Mold proof
air filter
*Thereis one each,
left and right
Outlet
*The air flow direction
can be adjusted with
the vertical and hori-
zontal louvers.
Vertical louver
Horizontal louver
Remote signal
receiver
*Beeping sound assures
successful signal trans-
mission between wire-
less remote controller
and the indoor unit.
POWER
TIMER
OPERATE
EMERGENCY
OPERATION-
SWITCH
Pipe and connecting cable **
Air inlet
Drain hose
Earthing terminal
Air outlet *
*Warmair comes out when cooling,
cool air comes out when heating.
** Not included
G
ATTENTION!
•Never use the device with a damaged power cord, plug, cabinet or
control panel.
• Failing to follow the instructions may lead to nullification of the
guarantee on this device.
man_S15xx.qxd 07-02-2007 16:54 Pagina 5

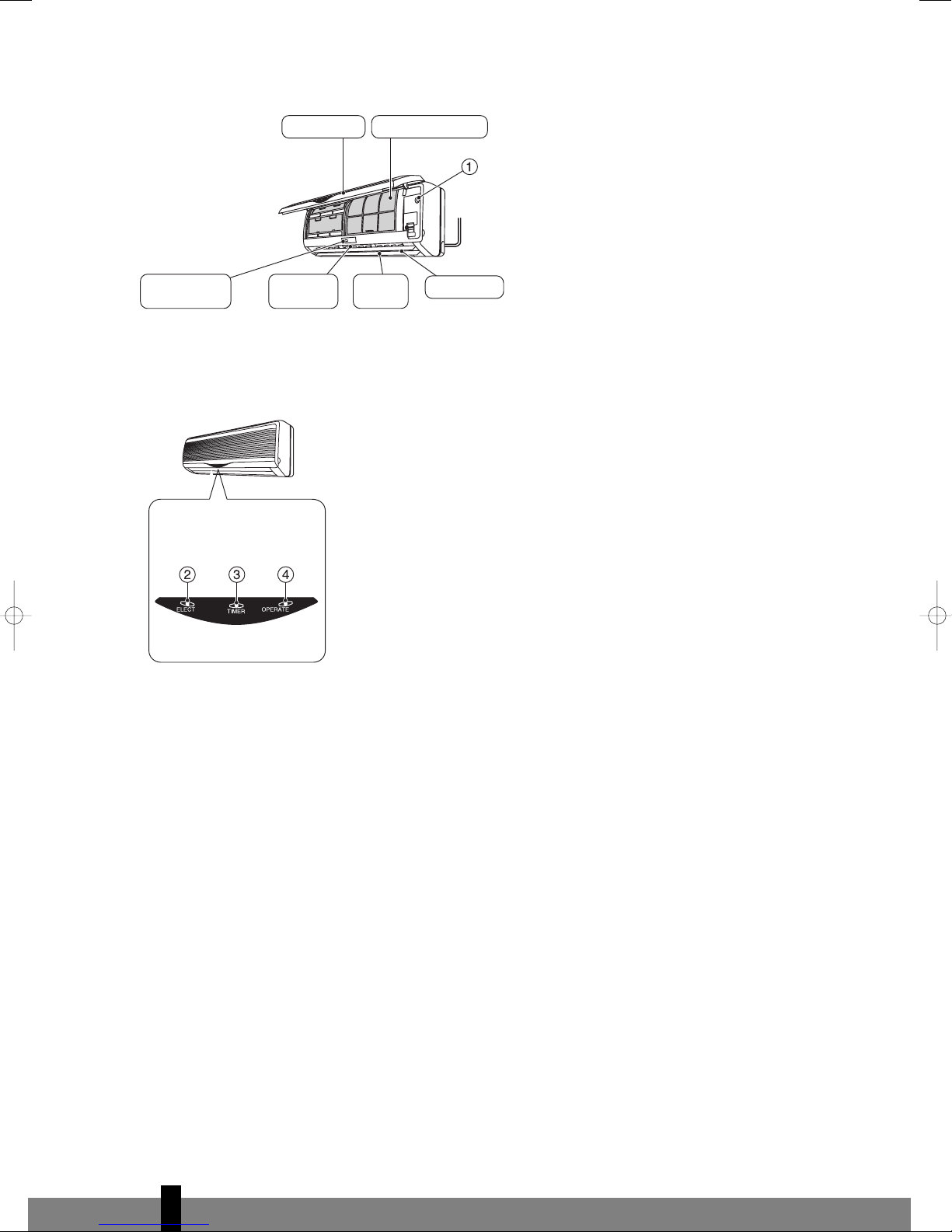

Operating panel
The test operation switch is used as an emergency operation switch.
1. EMERGENCY OPERATION (MANUAL) SWITCH. If the wireless remote controlling system is not available
(when the wireless remote controller is lost or is out of battery), the air conditioning system is able to
continue its operation temporarily.
TEST OPERATION (MANUAL) SWITCH. Test operation is needed in special occasion when you need to
test the “cooling operation” even with the room temperature below 16°C, therefore it is not for the
normal operation at all.
2. POWER/ELECT (POWER INDICATOR). The power indicator lights when the operational ON/OFF of the
remote controller is “ON”.
3. TIMER (TIMER MODE INDICATOR). The timer mode indicator lights when timer switch of the remote
controller is in “ON” or “OFF” position.
4. OPERATE (OPERATING MODE INDICATOR). The operating mode indicator lights when the air conditio-
ner is being operated.
Auto recovery function
lf there is any power failure during operation, operation status before power failure is memorized. 3~4
minutes after power recovery, the unit restarts automatically with previous operation status memorized
(3~4 minutes is protective time for compressor).
/POWER
Mold-proof Air Filters
Air Inlet grill
Vertical
louver*** Air outlet *** The air flow direction can be
adjusted with the vertical and
horizontal louvers.
-Beeping sound assures successfull
signal transmission between wire-
less remote and the indoor unit.
*two on each side
Horizontal
louver***
Remote
Signal
Receiver
4
6
Operating panel
man_S15xx.qxd 07-02-2007 16:54 Pagina 6

4
7
Remote Control
The above example of indications is for
the purpose of explanation only and is
different from actual indications.
G
NOTE
• 00:00 A.M. – 12:00 A.M. = 00:00 – 12:00
•00:00 P.M. – 12:00 P.M. = 12:00 – 24:00
1
8
7
6
5
4
3
2
17
16
15
14
13
12
11
9
Sends signals to the receiver of the indoor
unit.
Indicates the fan speed selected by the fan
speed button. When set at “AUTO”, the fan
speed changes automatically according to
the difference between the designated
temperature and the room temperature.
Indicates the current operating mode
Indicates the present time or the timer.
ON:The air conditioner starts operation at
the designated time.
OFF:The air conditioner stops operation at
the designated time.
Indicates the temperature set by the tem-
perature setting buttons.
Lights up when a signal is sent.
The setting temperature increases
by 1°C (1.8°F) per press.
The setting temperature decreases
by 1°C (1.8°F) per press.
Holding a button changes the temperature
setting quickly.
Air flow direction can be changed vertically
(upward and downward) by each press.
1TRANSMITTER
2FAN SPEED
INDICATION
3OPERATION MODE
INDICATION
4TIME DISPLAY
5TIMER MODE
INDICATOR
6TEMPERATURE
INDICATION
7TRANSMITTING
INDICATION
8TEMPERATURE
SETTING BUTTONS
9LOUVER BUTTON
Use to adjust the fan speed. The indication
of the fa speed varies among “L” (Low),
“M” (Medium), “H” (High), and “AUTO”
each time the button is pressed.
Use to change the operating mode. The
indication of the operating mode varies
among (Automatic), (Cooling),
(Dry), (Circulating) and
(Heating) each time the button is
pressed.
Press the “TIME ADJ” button to adjust the
present time or the timer.
Press these buttons to adjust the present
time or the timer.
Forward time
Backward time
Holding a button changes the time setting
in10-minute intervals.
Press these buttons to turn the timer ON or
OFF.
Press this button for the Sleep setting.
Starts operation with a press: stops opera-
tion with the next press.
kFAN SPEED BUTTON
lOPERATION MODE
BUTTON
mTIME ADJ BUTTON
n, BUTTONS
oTIMER FIXING
BUTTONS
pSLEEP BUTTON
qON/OFF BUTTON
man_S15xx.qxd 07-02-2007 16:55 Pagina 7

CBEFORE OPERATION
1. Operating the Remote Controller
Install / Replace Batteries
Use two dry alkaline batteries (AAA/LR03).
Do not use rechargeable batteries.
1. Remove the battery cover on the back of the Remote Control by pulling it
according to the arrow direction shown on the cover.
2. Insert new batteries making sure that the (+) and (-) of battery are installed
correctly.
3. Reattach the cover by sliding it back into position.
Storage of the remote control and tips for use
The remote control can be placed in the wall-mounted holder. The wall-mounted holder is delivered toge-
ther with the unit.
Using the remote control
Point the remote control at the receiver on the indoor unit of the air conditioner. The air conditioner can
be operated in this manner up to a distance of approximately 7 meters.
2. Attaching filters
G
NOTE!
•When replacing batteries, do not use old batteries or a different type battery. This may cause
the remote controller to malfunction.
•If you do not use the remote controller for several weeks remove the batteries. Otherwise
battery leakage may damage the remote controller.
•The average battery life under normal use is about 6 months.
•Replace the batteries when there is no answering beep from the indoor unit or if the
Transmission Indicator light fails to appear.
•Never mix new and old batteries. Never use different battery types (e.g. alkaline and
manganese dioxide) simultaneously.
4
8
G
COMMENT
• Never use the airconditioner without the air filter.
• Only use suitable Zibro filters. This will prevent damage to your airconditioner.
• Suitable filter packages are available at your dealer.
man_S15xx.qxd 07-02-2007 16:55 Pagina 8

4
9

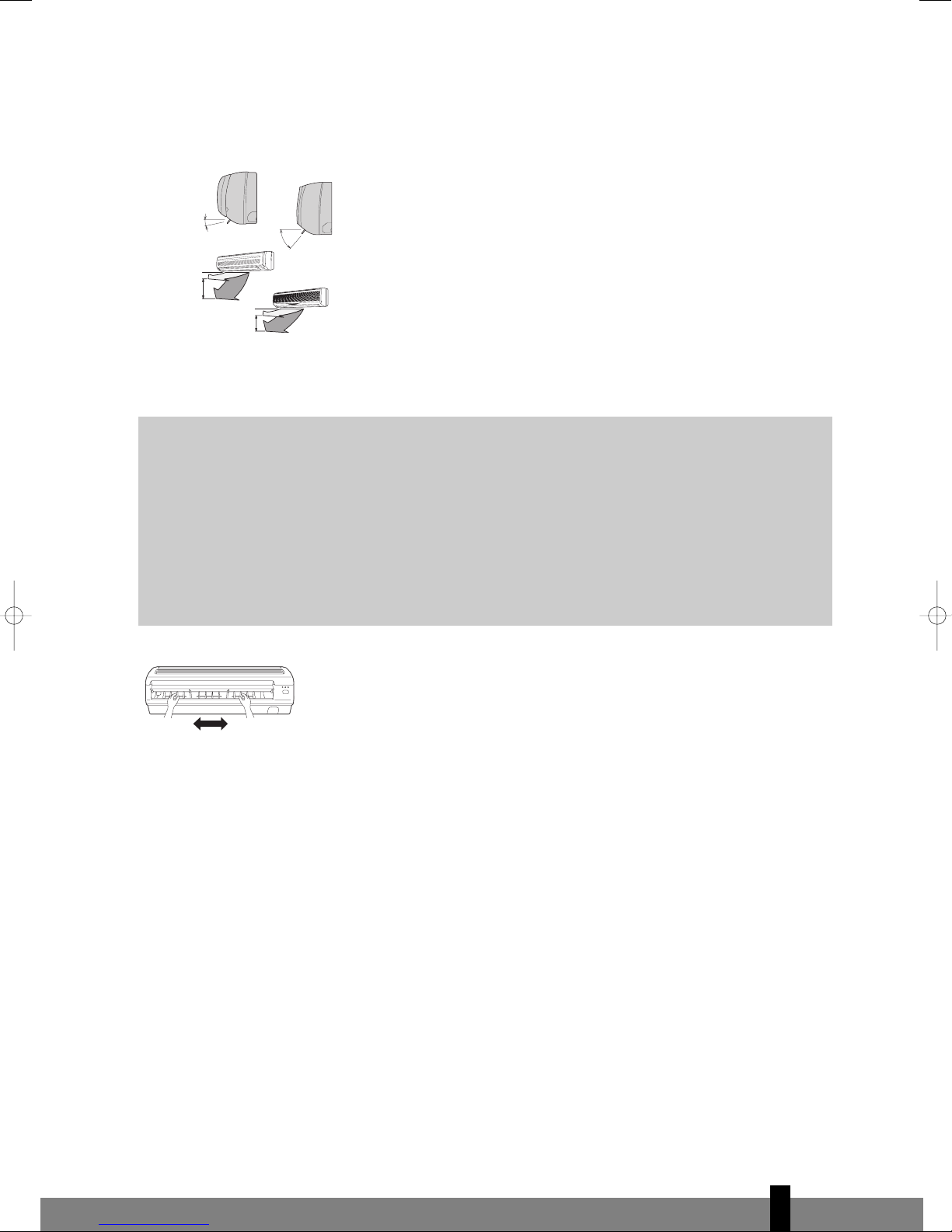

How to attach the air clean filters
a. Open the front panel by pulling upward
b. Remove the outer air filters. Push up the center tab of each filter slightly until
it is released from the stopper, and remove the filter downward.
c. Attach the air filters. Attach the air filters behind the stopper so that the
“FRONT” indication is showing outward. Make sure that the filters are com-
pletely behind the stoppers. If the filters are not attached correctly, it may
cause defects.
d. Close the front panel by pushing downward.
DINSTRUCTIONS FOR USE

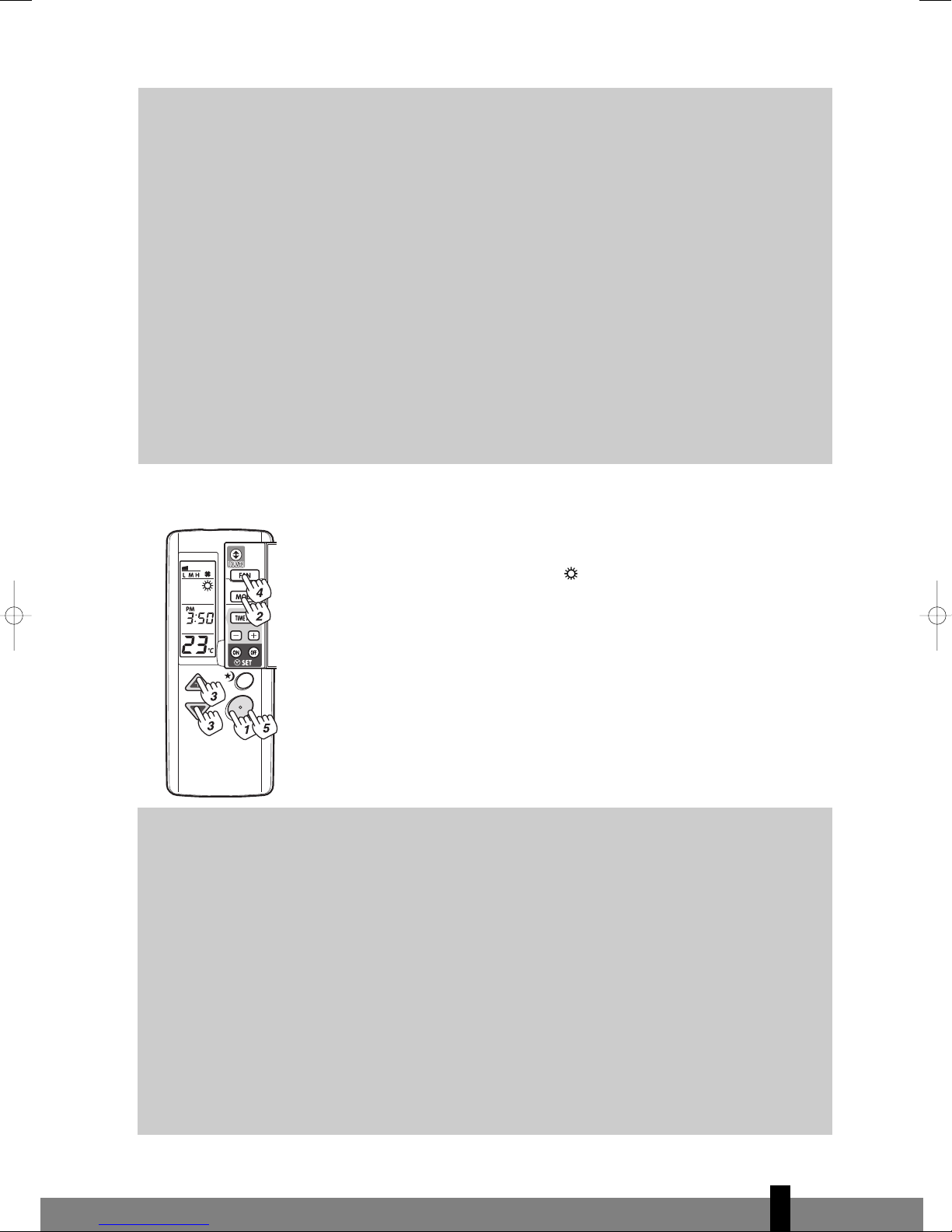

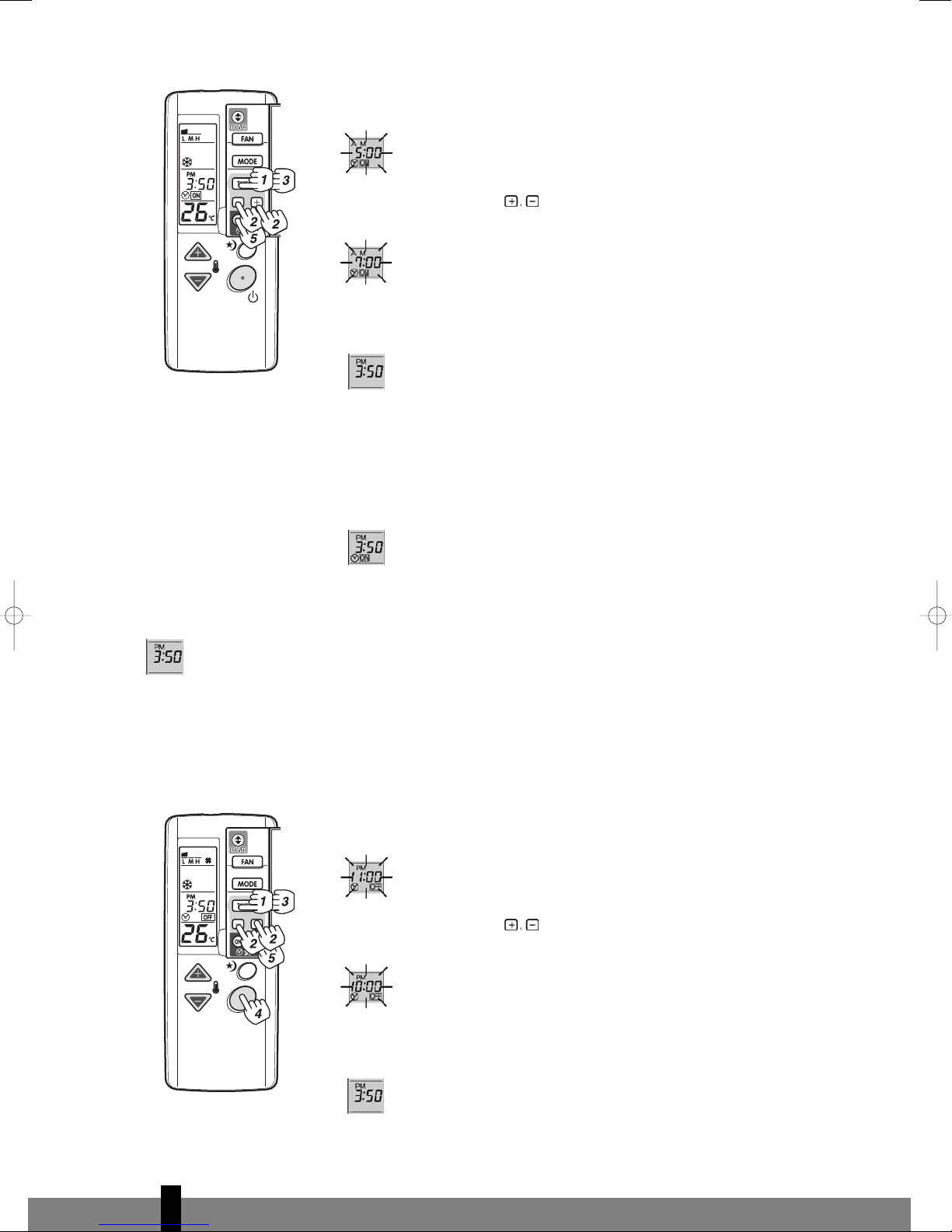

Present time setting
Example: Set to 3:50 p.m.
1. Press the “TIME ADJ” button once.
2. Adjust the time with “+”, “-“ buttons. Holding a button changes time set-
ting in 10-minute intervals.
3. Press the “TIME ADJ” button 3 times. The present time appears on the dis-
play. The setting is complete.
G
NOTE
Even if the actual time is not programmed, you can use all operations
except “Timer operation”
Air filters
Air filters
G
CAUTION
Do not touch the metalic parts to avoid injury, when attaching filters.
man_S15xx.qxd 07-02-2007 16:55 Pagina 9

Circulating Operation
What is Circulating Operation?
When you use other heating equipment, warmed air accumulates in the upper
space of the room. When the room temperature reaches the temperature set by
the remote controller, the indoor unit starts air circulating operation automatical-
ly to equalize temperature differences between the upper and lower spaces of the
room and consequently improves the heating efficiency.
1. Press the ON/OFF button.
2. Set the operation mode, Circulating , by pressing the operation mode but-
ton.
3. Adjust the setting temperature by pressing the temperature setting buttons.
Circulating Operation begins after the room temperature reaches the tem-
perature set by the remote controller.
4. Adjust the fan speed by pressing the fan speed button. When the MODE is
set at “AUTO”, the fan speed changes automatically.
5. Press the ON/OFF button again.The system will retain the previous setting
conditions until next operation.
Cooling/dry operation
1. Press the ON/OFF button
2. Set the operation mode to Cooling or Dry , by pressing the operation
mode button
3. Adjust the setting temperature by pressing the temperature setting buttons.
4. Adjust the fan speed by pressing the fan speed button. When the mode is set
at “AUTO” the fan speed changes automatically.
5. Press the ON/OFF button again. The system will retain the previous setting
conditions until next operation.
G
CAUTION
•Do not place heating equipment right under the indoor unit and the
remote controller.
•Adjust air flow direction to avoid the direct air flow hitting to the
heating equipment.
•Provide adequate ventilation.
4
10
man_S15xx.qxd 07-02-2007 16:55 Pagina 10

4
11
Heating Operation
1. Press the ON/OFF button
2. Set the operation mode to Heating ,by pressing the operation mode button.
3. Adjust the setting temperatureby pressing the temperaturesetting buttons.
Temperature setting range:16~30°C by 1°C step.
4. Adjust the fan speed by pressing the fan speed button. When the MODE is
set at “AUTO”, the fan speed changes automatically.
5. Press the ON/OFF button again.The system will retain the previous setting
conditions until next operation.
G
NOTE!
• Unless the heat exchanger gets warm enough, the air will not flow out to prevent cold air.
• Even if you press the ON button right after the operation stop, the air conditioner will not
start operation for approx. 3 min. in order to protect the compressor. The operation will start
automatically after 3 min. of waiting.
• During the heating operation, the outdoor unit may frost and heating capacity may
deteriorate. In this case, the unit stops its heating operation and conducts defrosting operation
automatically.During the defrosting operation, the fans of the indoor and outdoor units stop.
• If it is difficult to warm the room because of low outdoor temperature, use additional heating
equipment.
* For Dual and Triple models only
Only one operation mode should be selected at a time for all the indoor units. (Different
modes can not be concurrently selected for the indoor units.) If one or two indoor units are
already operating in a certain mode, another mode can not be selected for the other indoor
units. A warning beep will sound, and the unit will not function. When this happens, select the
same mode as the other operating units.
G
NOTE!
• Even if you press the ON button right after the operation stop, the air conditioner will not
start operation for approx. 3 min. in order to protect the compressor. The operation will start
automatically after 3 min. of waiting.
• If the unit operates cooling and dry for a long time in high humidity (i.e., windows and doors
are opened), dew and water droplets may form on the indoor unit.
• If you set a low temperature for dry operation, you may feel the air flow is cold.
• During dry mode operation, the system performs the cooling operation until the room
temperature reaches 1~2°C (1.8~3.6°F) above the setting temperature. Then it continues dry
mode operation intermittently with fan speed at “LO”, regardless of the designated speed.
• During dry operation, the indoor unit stops operating for 3 minutes when the room
temperature reaches the setting temperature.
*For Dual and Triple models only
Only one operation mode should be selected at a time for all the indoor units. (Different
modes can not be concurrently selected for the indoor units.) If one or two indoor units are
already operating in a certain mode, another mode can not be selected for the other indoor
units. A warning beep will sound, and the unit will not function.When this happens, select the
same mode as the other operating units.
man_S15xx.qxd 07-02-2007 16:55 Pagina 11

Automatic operation
Inautomatic operation the air conditioner selects the operation mode (cooling, dry, heating) according to
the room temperature when it starts.
• The air conditioner will restart in the previous mode if auto-
matic operation is resumed within 3 hours from the switch-
off.
•Mode review
The computer checks and compares the room temperature 5
minutes and 15 minutes apart after the compressor shuts
off, and it will review the mode. Afterwards it is repeated
every 10 minutes.
Auto Recovery Function
lf there is any power failure during operation, operation status before power failure is memorized. 3~4
minutes after power recover, the unit restarts automatically with previous operation status memorized. (3~4
minutes is protective time for compressor.)
1. Press the ON/OFF button
2. Set the operation mode to Automatic ,by pressing the operation mode
button.
3. Adjust the setting temperature by pressing the temperature setting button.
Temperature setting range:16~30°C by 1°C step.
4. Adjust the fan speed by pressing the fan speed button. When the mode is set
at “AUTO” the fan speed changes automatically.
5. Press the ON/OFF button again. The system will retain the previous setting
conditions until next operation.
G
NOTE
•If the selected mode by Automatic Operation does not suit you, set the operation mode
(cooling, dry heating) with the Operation mode button.
•Even if you press the ON button after the stop, the air conditioner will not start operation for
approx. 3 min. in order to protect the compressor. The operation will start automatically after 3
min. of waiting.
G
ATTENTION
Because of Auto Recovery Function, if shutting off the power supply during operation, the unit
may restart irrespective your intention when turning on the power supply next time. If the unit is
not to be used for a long time, shut offthe power supply after terminating all operation with
remote controller.
4
12
How to select operating mode
Heating Dry Cooling Room temperature
man_S15xx.qxd 07-02-2007 16:55 Pagina 12

4
13
Air flow adjustment
Vertical adjustment
The vertical louver will move automatically to the suitable position when
ON/OFF button is pressed.
Swing of air flow
The vertical louver will keep moving within the range illustrated on the
left, if the vertical louver button is pressed once.
Fixing the air flow Direction
If the louver button switch is pressed again, the vertical louver will be
fixed and that position is memorized. From the next operation the lou-
ver will be set at previous position automatically.
Horizontal Adjustment
Adjust the horizontal louver by moving the adjustment tabs. If the system is ope-
rated with the horizontal louver faced completely to the left or right under high
humidity (e.g., during the rainy season), dew drops may appear at the outlet.
Timer operation
Before setting the timer, confirm that the present time is set accurately. Once you set the timer, the remote
controller memorizes the setting. From the next time, you can operate the same timer mode just by pres-
sing the ON/OFF button and the Timer fixing (“ON/OFF Timer”) button.
You can use the combined function of the “ON Timer” and “OFF Timer”.
“ON Timer”
Example: set the “ON Timer” to 7 a.m.
Operation starts at the set time.
G
NOTE!
• When the operation is off, the vertical louver closes the outlet automatically.
• Do not move the vertical louver by hands. It may make the louver not to work correctly. In
order to move the vertical louver, use wireless remote controller without fail. In case the louver
does not work correctly, once stop the operation and turn on again.
• During in cooling or dry operation, the vertical louver should not be downward for long time.
If this is done, dew drops may appear at the outlet. (Even the louver direction is in the swing
range, the louver will move about 10 degrees from the horizontal after one hour.)
• During cooling operation, the angle of the vertical louver may automatically change to
prevent condensation.
During Cooling, Dry
Operation
Approx. 10
degrees
level
During Circulating,
Dry Operation
Approx. 60
degrees (70)
level
level
Approx. 10
degrees
Approx. 45
degrees level
Approx. 10
degrees (40)
Approx. 45
degrees (70)
(5 kW / 6.4 kW Heat Pump models)
man_S15xx.qxd 07-02-2007 16:55 Pagina 13

Programming the “ON Time”
1. Press the “TIME ADJ” 2 times.
2. Adjust the time with the button. The time setting changes in 10-minu-
te intervals. Hold the button to fast forward the time.
3. Press the “TIME ADJ” button two times. The setting of “ON Time” is com-
plete and the present time appears.
4. Press the “ON/OFF” button. Proceed from Step 5 (below) if the unit has been
operated or the OFF Timer has been set.
5. Press the timer fixing button “ON”. The “ON Time” is displayed for 2 seconds
and then the present time appears.
Cancelling “ON Timer”
Press the Timer fixing button “ON”. The timer lamp of the indoor unit goes off.
“OFF Timer”
Example: Set the “Off Timer” to 10 p.m.
Operation starts at the set time.
Programming the “OFF Time”
1. Press the “TIME ADJ” 3 times.
2. Adjust the time with the button. The time setting changes in 10-minu-
te intervals. Hold the button to fast forward the time.
3. Press the “TIME ADJ” button once. The setting of “OFF Time” is complete and
the present time appears.
4
14
man_S15xx.qxd 07-02-2007 16:55 Pagina 14

4
15
4. Press the “ON/OFF” button. Proceed from Step 5 (below) if the unit has been operated or the ON Timer
has been set.
5. Press the timer fixing button “ON”. The “ON Time” is displayed for 2 seconds and then the present time
appears.
Cancelling “OFF Timer”
Press the timer fixing button “OFF”. The timer lamp of the indoor unit goes off.
“SLEEP Timer”
Pressing this button starts the timer mode that will stop the operation after the setting time.
Press the “SLEEP” button during the operation.
The setting time repeats the following mode by pressing the button:
Continuous operation (Sleep Operation: OFF). The operation stops after passing
the setting time.
Sleep Timer features
During Cooling Operation
The setting temperature rises 0.6°C after 30 minutes of Sleep Timer ON, and rises
0.6°C again after 30 minutes of the first temperature rise.
During Heating Operation
The setting temperaturedrops 0.6°C after 30 minutes of Sleep Timer ON, and
drops 0.6°C again after 30 minutes of the first temperature drop.

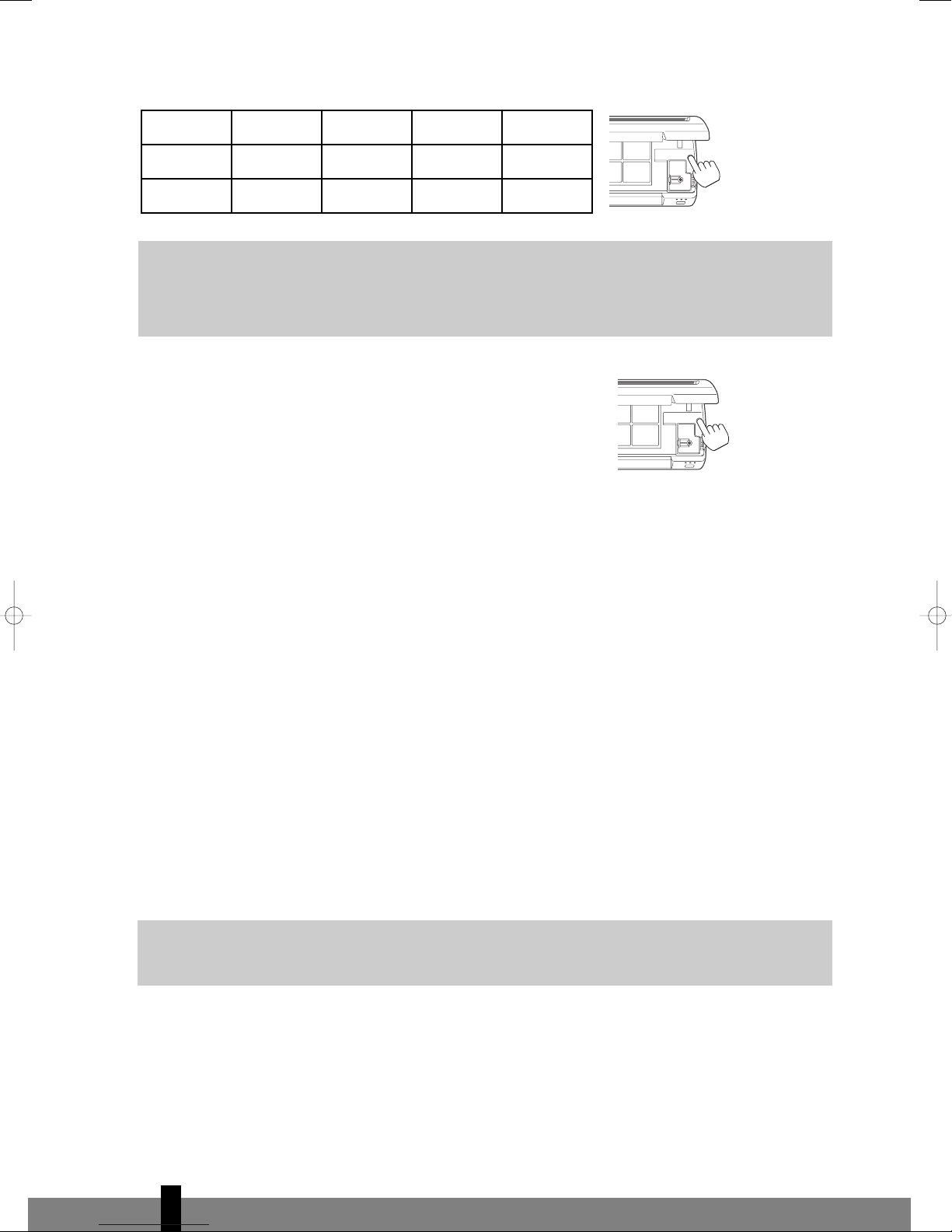

Emergency and test operation
Emergency Operation
• The emergency operation is needed only when the remote control can not be used.
•When you press the Emergency Operation Switch, you will hear a beep and the emergency operation
starts.
• Emergency operation is preset for the following two modes, only based on the temperatureof the
room at the time of operation.
man_S15xx.qxd 07-02-2007 16:55 Pagina 15

Test operation
• Same switch as used in Emergency operation.
• Test operation is needed in special occasion when you need to test
the “cooling operation” even with the room temperature below
16°C, therefore it is not for the normal operation at all.
• Press the Emergency operation switch and hear the beep once, then
keep on pressing the switch for more than 5 seconds but no more
than 10 seconds. After the first 5 seconds you will hear two beeps
then release the switch and you will have the Test Operation Mode.
•The Test Operation Mode will run the air conditioner at “cooling”
with air flow speed at “Hi” for 30 minutes and stops automatically.
Termination of emergency or test operation
• You can terminate the operation when you hear a beep by either pressing the switch once more, or by
operating through remote control.
• When you operate through remote control, is automatically get back to just normal operation mode by
remote control.
EAIR FILTER
This air conditioner is equipped with a Mold proof dust filter, to clean the circulated room air.
The Mold-Proof filter (screen filter) has to be cleaned regularly with a vacuum cleaner to avoid blocking of
the air flow. Or take out the filter and wash with water. After washing, dry the filter completely in the
shade.
G
NOTE
To run the unit without Mold-Proof filter does not bring any harm to the airconditioner. In that
case dust is not removed from the circulated air.
G
NOTE
Emergency operation at the temperature between above 23°C and below 26°C just switch the
machine in operation in “cooling mode” without actually “cooling”. It is not possible to operate
in “Dry” mode.
Temperature Operation
mode
Designated
temperature Timer mode Air flow
Above 23°C Cooling 26°C Continuous Automatic
Below 23°C Heating 23°C Continuous Automatic
4
16
man_S15xx.qxd 07-02-2007 16:55 Pagina 16

4
17
FMAINTENANCE
Remote controller
Donot use water, wipe the controller with a dry cloth. Do not use glass cleaner or chemical cloth.
Indoor body
Wipe the air conditioner by using a soft and dry cloth. For serious stains, use a neutral detergent diluted
with water. Wring the water out of the cloth before wiping, then wipe off the detergent completely.
Do not use the following for cleaning.
Gasoline, benzine, thinner or cleanser may damage the coating of the unit. Hot water over 40°C (104°F) may
cause discoloring or deformation.
Screen Filter Cleaning. (once every two weeks)
1. Open the inlet by pulling upward.
2. Remove the screen filter. Push up the filter’s center tab slightly until it is rele-
ased from the stopper,and remove the filter downward.
3. Clean the screen filter.Use a vacuum cleaner to remove dusts, or wash the fil-
ter with water.After washing, drythe screen filter completely in the shade.
4. Attach the filter behind the stopper so that the “FRONT” indication is sho-
wing outward. Make surethat the screen filter is completely behind the
stopper.If the filter is not attached correctly, it may cause defects.
Close the inlet grille.
G
WARNING!
Before maintenance, be sure to turn off the system and the circuit breaker.
man_S15xx.qxd 07-02-2007 16:55 Pagina 17

GTROUBLE SHOOTING
In case of an emergency while in operation, such as malfunction, stoppage or unoperative remote control
unit caused by lightning damage or automobile radio transmitter, please unplug and wait for three
minutes. Then plug in again and push ON/OFF button on the remote control unit.
Problem Cause / Solution
The system does not start re-operation
immediately.
This is for protection of the system. After a stop, the sys-tem does
not start operation for approx. 3 min
Smells are generated.
This is because the system circulates smells from the interior air
such as the smell of cigarettes, cosmetics, the walls or furniture.
When cooling is started or heating is stopped, a swishing or a
gurling noise may be heard. This noise is generated while the
refrigerant is flowing in the air conditioner.
When starting or stopping operation, a cracking noise may be
heard. This noise is generated by the casing expanding or
shrinking because of temperature changes.
Awhooshing noise may be heard during operation of the system.
This noise is generated when the refrigerant changes direction.
During the dry mode operation, air may not flow out, to prevent
excessive cooling.
During the heating operation, air does not flow out until the air
is heated enough to prevent cold air flow. During the thawing in
heating, air may not flow.
Air does not flow (Out-door Unit).
During the dry mode operation and heating mode operation, air
may not flow out.
The cooling/heating function may not work effectively when the
air filter is clogged with dust and dirt.
Make sure the room temperature has not yet reached the
designated level.
Make sure the air flow speed is not set at ”LO“.
Make sure the inlet or outlet of the outdoor unit is not blocked.
When the room temperature has not reached the required level
because of low ambient temperature, add other heating
facilities.
Make sure if the dry batteries have enough charge. Use dry R-03
(AAA) batteries. Replace worn dry batteries with a new pair
batteries.
Make sure the dry batteries are set in the right polarity
directions.
Misting (Indoor Unit) It is caused by chilled air in cooling operation.
Steaming (Outdoor Unit) It is caused by defrosting of outdoor unit in heating operation.
Occurring of noise.
Air does not flow (Indoor Unit). Air flow
speed can not be changed.
Cooling/heating is not sufficient.
The indicator on the wireless remote
controller is dim.The indicator dims when
sending signals.Indication does not appear
on the wireless remote controller.
G
CAUTION!
In the event of a malfunction (burning smell, etc.) immediately stop operation, disconnect the
Power Supply plug and consult sales shop. Before requesting service, perform the following
checks:
4
18
man_S15xx.qxd 07-02-2007 16:55 Pagina 18

4
19
HGUARANTEE CONDITIONS
The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All mate-
rial and manufacturing defects will be repaired or replaced free of charge within this period. The following
rules apply:
1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension
of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or
repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifica-
tions have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this
instruction booklet.
7. Transportation costs and the risks involved during the transportation of the air conditioner or air con-
ditioner components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Zibro filters is not covered by the guarantee.
9. Refrigerant loss and/or leakage because of incompetent (dis)connecting the units is not covered by the
guarantee conditions applicable to this product.
Toprevent unnecessaryexpense, we recommend that you always first carefully consult the instructions for
use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.
man_S15xx.qxd 07-02-2007 16:55 Pagina 19

ITECHNICAL DATA
* Conform EN 14511
** To be used as indication
*** Moisture removal at 27°C, 60% RH
Waste electrical products should not be disposed with household waste. Please recycle where facili-
ties exist. Check with your local authority or retailer for recycling advice.
Environmental information: This equipment contains fluorinated greenhouse gases covered by the Kyoto
Protocol. It should only be serviced or dismantled by professional trained personnel.
This equipment contains R410a refrigerant in the amount as stated in the table above. Do not vent R410a
into atmosphere: R410a, is a fluorinated greenhouse gas with a Global Warming Potential (GWP) = 1975
S1523 S 1526 S 1534 S 1550 S 1564
Type air-conditioner Wall mounted split Wall mounted split Wall mounted split Wall mounted split Wall mounted split
Cooling capacity (max) * W 2300 2600 3400 5000 6400
Cooling capacity (max) * btu/h 7850 8870 11600 17060 21840
EE Class* B A A C C
EER* W/W 3.1 3.22 3.21 2.81 2.82
Heating capacity (max) * W 2600 3100 4000 6000 7200
Heating capacity (max) * btu/h 8870 10580 13650 20470 24570
Heating performance A A A A C
COP* W/W 3.63 3.67 3.92 3.61 3.21
Dehumidifying capacity *** L / 24h 33 38 50 74 105
Power consumption cooling kW 0.75 0.82 1.05 1.76 2.29
Power consumption heating kW 0.71 0.84 1.01 1.67 2.24
Power supply V / Hz / Ph
Current (nom.) cooling / heating A3.5 / 3.4 3.6 / 3.7 4.7 / 4.5 8.1 / 7.7 10.1 / 9.9
Max. Current A 18 22 27 29 54
Air flow (cooling/heating)**
m3/h390 / 420 420 / 480 480 / 510 720 / 720 840 / 900
For rooms up to**
m355 - 75 65 - 90 85 - 105 125 - 150 160 - 180
Compressor type Rotary Rotary Rotary Rotary Rotary
Fan speeds 3 3 3 3 3
Thermostatic range ºC 16 - 30 16 - 30 16 - 30 16 - 30 16 - 30
Operating range ºC +1 - 43 +1 - 43 +1 - 43 +1 - 43 +1 - 43
Controls manual / mechanic / electronic Electronic remote Electronic remote Electronic remote Electronic remote Electronic remote
Remote control Yes / No Y Y Y Y Y
Air filter type(s) Screen dust filter Screen dust filter Screen dust filter Screen dust filter Screen dust filter
Refrigerant type / charge r / gr R410a / 700 R410a / 830 R410a / 1100 R410a / 1460 R410a / 1700
Refrigerant pipe diameter Liquid - Gas mm 6.35 / 9.52 6.35 / 9.52 6.35 / 9.52 6.35 / 12.70 6.35 / 15.88
Pressure suction / discharge bar 10 / 39 12 / 42 12 / 42 12 / 42 16 / 41
Dimensions indoor unit (w x h x d) mm 795x265x192 795x265x192 795x265x192 799x295x237 799x295x237
Dimensions outdoor unit (w x h x d) mm 640x490x210 710x545x255 710x545x255 780x642x245 850x643x330
Net weight indoor unit kg 7.2 7.2 8.3 9.1 9.1
Net weight outdoor unit kg 24 29 33 44 59
Gross weight indoor unit kg 10 10 11 13 13
Gross weight outdoor unit kg 27 33 33 47 65
Sound pressure level indoor unit dB(A) 26 - 36 28 - 39 27 - 42 34 - 44 36 - 47
Sound pressure level outdoor unit dB(A) 42 44 44 50 54
Unit protection indoor IP IPX0 IPX0 IPX0 IPX0 IPX0
Unit protection outdoor IP IPX4 IPX4 IPX4 IPX4 IPX4
Fuse rating F2.0A / 250V F2.0A / 250V F2.0A / 250V T3.15A / 250V T3.15A / 250V
Model
230 / 50 / 1
4
20
man_S15xx.qxd 07-02-2007 16:55 Pagina 20
