Zibro S1026 User manual

S1026 - S1034
2
6
5
3
4
FIN
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
MANUEL D'UTILISATION
KÄYTTÖOHJE
OPERATING MANUAL
2
22
42
62
82
102
man_S10xx_de.qxd 02-02-2007 14:24 Pagina 1

4
102
1. READ THE DIRECTIONS FOR USE FIRST.
2. IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.
Dear Sir, Madam,
Congratulations on the purchase of your Zibro airconditioner. You have acquired a high
quality product that, if used responsibly, will give you many years of pleasure.
Please read these instructions for use first in order to ensure the maximum life span of your
airconditioner.
On behalf of the manufacturer, we provide a 24-month guarantee on all material and
production defects. Please enjoy your airconditioner.
Yours sincerely,
PVG International b.v.
Customer service department
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 102

4
103
CONTENTS
A SAFETY INSTRUCTIONS 104
B. PARTS NAMES 105
C. OPERATING TEMPERATURE 106
D. MANUAL OPERATION 107
E. OPERATION WITH REMOTE CONTROL 108
F. OPTIMAL OPERATION 112
G. ADJUSTING AIR FLOW DIRECTION 113
H. HOW THE AIR CONDITIONER WORKS 114
I. MAINTENANCE 115
J. OPERATION TIPS 117
K. TROUBLESHOOTING TIPS 118
L. GUARANTEE CONDITIONS 120
M. TECHNICAL DATA 121
READ THIS MANUAL
Inside you will find many helpful hints on how to use and maintain your air con-
ditioner properly.You will find many answers to common problems in the chapter
Troubleshooting Tips. If you review chapter K “Troubleshooting Tips” first, you
may not need to call for service.
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 103

ASAFETY INSTRUCTIONS
Install the device only when it complies with local regulations, by-laws and standards. The unit is only sui-
table for use in dry locations, indoors. Check the mains voltage and frequency. This unit is only suitable for
earthed sockets, connection voltage 220 - 240 V. / 50 Hz.
Before connecting the unit, check the following:
•The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
• The plug on the cable of the device must fit into the wall socket.
• The device must be placed and mounted on a stable surface.
The electricity supply to the device must be checked by a recognised professional if you have any doubts
regarding the compatibility.
•This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with
any other electrical device.
• Do not cover the air inlet and outlet grill.
• Never allow the device to come into contact with chemicals.
• Never spray the unit with or submerge in water
• Do not insert hands, fingers or objects into the openings of the unit.
• Never use an extension cable to connect the device to the electric power supply. If there is no suitable,
earthed wall socket available, have one installed by a recognised electrician.
• For safety reasons take care when children are in the surrounding of the device, as with any other elec-
trical device.
• Have any repairs and/or maintenance only carried out by a recognised service engineer or your recognised
Zibro supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
• Always remove the plug of the unit from the wall socket when it is not in use.
•Adamaged power cord or plug must always be replaced by a recognised electrician or your supplier.
• Do not operate or stop the airconditioner by inserting or pulling out the power plug. Only use the dedi-
cated buttons on the airconditioner or on the remote control.
•Do not open the airconditioner when it is in operation. Always pull out the electrical plug when ope-
ning the device.
• Always pull out the electrical plug when cleaning or servicing the airconditioner.
• Do not place gas burners, ovens and/or stoves in the airstream.
• Do not operate the buttons or touch the airconditioner with wet hands.
•Note that the outdoor unit produces sound when in use, this could interfere with local legislation, it is the
responsibility of the user to check and to make sure the equipment is in full compliance with local legislation.
G
IMPORTANT
•The device MUST always have an earthed connection. If the power supply is not earthed, you
may not connect the unit. The plug must always be easily accessible when the unit is connected.
Read these instructions carefully and follow the instructions.
•The airconditioner contains a refrigerant and can be classified as pressurized equipment.
Therefore always contact an authorized installation specialist for installation and maintenance
of the airconditioner. It is to be advised that the airconditioner is inspected and serviced on an
annual base by an authorized airconditioning engineer.
4
104
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 104

4
105
• It is advised to stay out of the direct airstream.
• Never drink the drain water from the airconditioner.
BPART NAMES
INDOOR UNIT Indoor unit
aFront panel
bAir inlet
cAir filter (behind front panel)
dAir outlet
eHorizontal air flow grille
fVertical air flow louver
gDisplay panel
hRemote controller signal receiver
iRemote controller (see chapter E for
more details and operation)
jManual control button (auto/cool)
OUTDOOR UNIT Outdoor unit
kConnecting pipe, drain hose (not inclu-
ded)
lAir inlet (side and rear)
mAir outlet
The operation indicator lights flash rapidly (five times per second) when safety protection features come
into operation.
G
NOTE!
All the pictures in this manual and on the gift box are for explanation and indication purpose
only. They may be slightly different from the air conditioner you purchased. The actual shape
shall prevail.
4
3
5
2
6
1
10
9
12
13
11
7
8
ff
O/n
O
p
e
elS
n
aF
g
ni
w
S
n
oi
tc
e
r
i
Dr
i
A
nO
rem
i
T
ff
O
r
e
mi
T
e
d
o
M
.
r
H
T
N
OR
E
MI
.
rH
T
f
f
OR
E
M
I
SET TP
M
E
o
t
u
A
G
ATTENTION!
• Never use the device with a damaged power cord, plug, cabinet or
control panel.
• Failing to follow the instructions may lead to nullification of the
guarantee on this device.
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 105

FUNCTION INDICATORS ON INDOOR UNIT DISPLAY PANEL
aAUTO indicator
This indicator illuminates when the air conditioner is in AUTO operation.
bDEFROST indicator (For Cooling & Heating models only)
This indicator illuminates when the air conditioner starts defrosting automatically or when the warm
air control feature is activated in heating operation.
cTEMPERATURE indicator
Displays the temperature settings when the air conditioner is operational.
dOPERATION indicator
This indicator flashes after power is on and illuminates when the unit is in operation.
eTIMER indicator
This indicator illuminates when TIMER is set ON/OFF.
COPERATING TEMPERATURE
Cooling, heating and dehumidifying are most effective at the following indoor and outdoor temperatures:
G
CAUTION
•If air conditioner is used outside of the above conditions, certain safety protection features may
come into operation and cause the unit to function abnormally.
•Room relative humidity less than 80%. If the air conditioner operates in excess of a relative
humidity of 80% in the room, the surface of the air conditioner may attract condensation.
Please set the vertical air flow louver to its maximum angle (vertically to the floor), and set HIGH
fan mode.
•For maximum effect of your air conditioner always close doors and windows when cooling or
heating.
4
106
Temperature Mode Cooling operation Heating operation Dehumidifying operation
Room temperature 17ºC - 32ºC 10ºC - 27ºC 17ºC - 32ºC
Outdoor temperature 18ºC - 40ºC 10ºC - 24ºC 18ºC - 40ºC
Signal receptor
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 106

4
107
DMANUAL OPERATION
The air conditioner can be operated manually on the air conditioner itself as well as with the remote con-
trol included. For operation with the remote control please refer to chapter E “Operation with Remote
Control”. When operating without the remote control the air conditioner will only work in the AUTO-mode.
For operation without the remote control follow these instructions:
1. Open and lift the front panel up to an angle until it remains fixed with a clicking sound.
2. One press of the manual control button jwill lead to the AUTO operation.
3. Close the panel firmly to its original closed position.
G
CAUTION
•Once you push the manual button, the operation mode is shifted in an order as: AUTO, COOL,
OFF.
•Push the button twice, the unit will operate in forced COOL mode. This is used for testing
purposes only .
•Third press will stop the operation and turn off the air conditioner operation.
•Torestore the remote controller operation, use the remote controller directly.
Panel
AUTO / COOL
Manual control
button
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 107

EOPERATION WITH REMOTE CONTROL
Introduction of Function Buttons on the Remote Controller
aOn/offButton: Push this button to start the unit operation. Push the button again to stop the unit
operation.
bMode Button: Each time you press the button, a mode is selected in a sequence that goes from AUTO
COOL DRY HEAT and FAN only as the following figure indicates:
AUTO COOL DRY HEAT FAN
c▲Button: Push the button to increase the indoor temperature setting to 30ºC.
d▼Button: Push the button to decrease the indoor temperature setting to 17ºC.
eFan Button: This button is used for selecting Fan Speed. Each time you press the button, a fan speed
is selected in a sequence that goes from AUTO, LOW, MED to HIGH, then back to Auto. When you select
the AUTO or DRY mode, the fan speed will be automatically controlled and you can not set the fan
speed.
fSleep/Turbo Button: Press this button to select SLEEP or TURBO mode. Each time you press the but-
ton, the operation mode is shifted in the direction of the arrow. When the operation mode is either
DRY or FAN only, this function can not be used.
SLEEP SLEEP OFF TURBO TURBO OFF
gSwing Button: Press the SWING button to activate the swing feature. Push the button again to stop.
hAir direction Button: Press this button to change the swing angle of the louver. The swing angle of
the louver is 6oCfor each press. When the louver swing at a certain angle which would affect the coo-
ling and heating effect of the air conditioner,it would automatically change the swing direction . No
symbol will appear in the display area when press this button.
G
NOTE!
• Always aim the remote controller towards the receiver on the indoor unit and make sure there
are no obstacles in between the remote control and the receiver on the indoor unit. Otherwise
the remote control signal will not be picked up by the receiver and the air conditioner will not
work properly.
• The maximum distance at which the remote control will work is approximately 6 to 7 meters.
4
108
fig. 1
man_S10xx_uk.qxd 02-02-2007 14:38 Pagina 108

4
109
iTimer on Button: Press this button to initiate the auto-on time sequence. Each press will increase the
auto-timed setting in 30 minutes increments. When the setting time displays 10Hr, each press will incre-
ase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, continue pressing
the button until nothing displays.
jTimer off Button: Press this button to initiate the auto-off time sequence. Each press will increase the
auto-timed setting in 30 minutes increments. When the setting time displays 10Hr, each press will incre-
ase the auto-timed setting 60 minutes increments. To cancel the auto-timed program, continue pressing
the button until nothing displays.

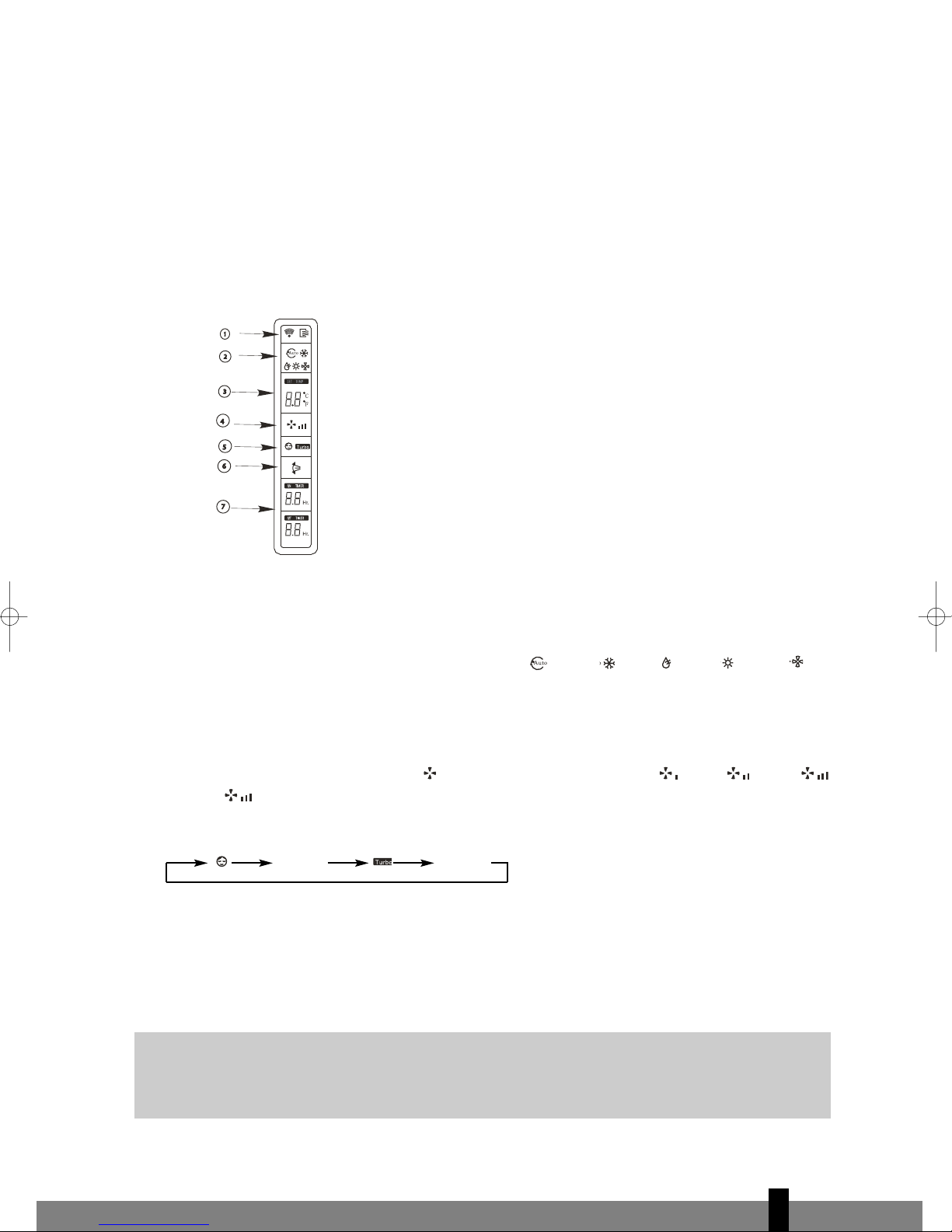

Names and Functions of indicators on Remote Controller
Display Panel
aTRANSMISSION Indicator:
This indicator lights when remote controller transmits signals to indoor unit.
bMODE indicator:
Displays the current operation modes. Including AUTO ,COOL , DRY , HEAT or FAN .
HEAT only available for heat pump model.
cTEMPERATURE indicator:
Displays the temperature settings(17ºC to 30ºC).
dFAN SPEED indicator:
Displays the selected fan speed, AUTO and three fan speed levels LOW , MED , HIGH .
Displays (flashing) when the operating mode is either AUTO or DRY.
eSLEEP/TURBO indicator:
Each time the Sleep/Turbo button is pushed, the signal displays in the following sequence:
Nothing Nothing
Nothing appears when the operating mode is either DRY or FAN only
fSWING indicator:
This indicator lights up when the SWING button is pressed.
gTIMER indicator:
The time set for timer operation is indicated. (0.5 ~ 24 hours)
G
NOTE!
All items are shown in the Fig.2 for the purpose of clear presentation But during the actual
operation only the relative functional items are shown on the display panel.
fig. 2
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 109

Operating the Remote Controller
Install / Replace Batteries
Use two dry alkaline batteries (AAA/LR03).
Do not use rechargeable batteries.
1. Remove the battery cover on the back of the Remote Control by pulling it according to the arrow
direction shown on the cover.
2. Insert new batteries making sure that the (+) and (-) of battery are installed correctly.
3. Reattach the cover by sliding it back into position.
AUTOMATIC Operation
When the Air Conditioner is ready for use, switch on the power and the OPERATION indicator lamp on the
display panel of the indoor unit starts flashing.
1. Use the Mode select button to select AUTO.
2. Push the ▲or ▼button to set the desired room temperature. The most comfortable temperature set-
tings are between 21ºC to 28ºC.
3. Push
the On/off button to start the air conditioner. The OPERATION lamp on the display panel of the
indoor unit lights. The operating mode is AUTO. The FAN SPEED is automatically controlled.
4. Push the On/off button again to stop the unit operation.
COOL, HEAT, and FAN ONLY Operation
1. If the AUTO mode is not comfortable, you may manually override the settings by using COOL, DRY,
HEAT(HEAT PUMP units only), or FAN ONLY modes by pressing button b.
2. Push
the ▲or ▼button (cand d)to set the desired room temperature. When in COOLING mode, the
most comfortable settings are 21ºC or above. When in HEATING mode, the most comfortable settings
are 28ºC or below.
3. Push the Fan button eto select the FAN mode of AUTO, HIGH, MED or LOW.
4. Push the On/off button a.The operation lamp lights and the air conditioner starts to operate per your
settings. Push the On/off button aagain to stop this unit operation.
G
NOTE!
•In the AUTO mode, the air conditioner can logically choose the mode COOL, FAN, HEAT and
DRY by sensing the difference between the actual ambient room temperature and the set
temperature on the remote controller.
•If the AUTO mode is not comfortable for you , the desired mode can be selected manually.
G
NOTE!
•When replacing batteries, do not use old batteries or a different type battery. This may cause
the remote controller to malfunction.
•If you do not use the remote controller for several weeks remove the batteries. Otherwise
battery leakage may damage the remote controller.
•The average battery life under normal use is about 6 months.
•Replace the batteries when there is no answering beep from the indoor unit or if the
Transmission Indicator light fails to appear.
•Never mix new and old batteries. Never use different battery types (e.g. alkaline and
manganese dioxide) simultaneously.
4
110
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 110

4
111
DRY Operation
1. Push the Mode button bto select DRY.
2. Push the ▲or ▼button (cand d)to set the desired temperature from 21 C to 28 C.
3. Push the On/off button a.The operation lamp lights and the air conditioner starts to operate in the DRY
mode. Push the On/off button aagain to stop this unit operation.
TIMER Operation
Push Timer on/off button (iand j)to set the on and off times of the unit. The effective operation time
set by the remote controller for the timer function is limited to a period of between 0.5 and less than 24
hours.
1. To set the STARTING time.
1.1 Push the Timer on button i,then the remote controller display shows ON TIMER,the last set time for
the starting operation and the signal "Hr"will be shown on the Timer display area. You are now ready
to reset the time to START the operation.
1.2 Push the Timer on button iagain to set desired unit start time.
1.3 After setting the Timer on ,there will be half a second delay before the remote controller transmits the
signal to the air conditioner.
2. To set the STOPPING time.
2.1 Push the Timer off button jand the remote controller display will show OFF TIMER and the last set
time for the timer off operation in hours will be shown on the Timer display area. You are now ready
to reset the time of the STOP operation.
2.2 Push the Timer off button jagain to set the time you want to stop the operation.
2.3 After setting the Timer off,there will be half a second delay before the remote controller transmits
the signal to the air conditioner.
3. Set the starting & stopping time
3.1 Push the Timer on button i,the remote controller display will show ON TIMER,the last set time for
Timer on operation in hours will be shown on the Timer display area. You are now ready to readjust
the Timer on to start the operation.
3.2 Push the Timer on button iagain to set the time you want to start the operation.
3.3 Push the Timer off button j,the remote controller will show OFF TIMER,the last set time for STOP
operation and the signal "Hr" will be shown on the Timer display area. You are now ready to set the
time to STOP operation.
G
NOTE!
Due to the difference of the set temperature of the unit and the actual indoor temperature, the
Air Conditioner when in DRY mode will automatically operate many times without running the
COOL and FAN mode.
G
NOTE!
The FAN ONLY mode cannot be used to control the temperature. In this mode, only steps 1, 3 and
4are applicable.
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 111

3.4 Push the Timer off button jagain to set the time you want to stop the operation.
3.5 After setting the TIMER, there will be half a second delay before the remote controller transmits the
signal to the Air Conditioner.
FOPTIMAL OPERATION
To achieve optimal performance, please note the following:
• Adjust the air flow direction correctly so that it is not directly directed to people.
• Adjust the temperature to achieve the highest comfort level. Do not adjust the unit to excessive tem-
perature levels.
• Close doors and windows otherwise the desired effect may be reduced.
• Use TIMER ON button on the remote controller to select a time you want to start your air conditioner.
• Do not put any object near air inlet or air outlet, as the efficiency of the air conditioner may be redu-
ced and the air conditioner may stop running. Make sure there are no obstacles blocking the airflow.
The air stream must be allowed to reach the entire room unhindered. Also the air stream must be allo-
wed to reach the air conditioner unhindered.
• Clean the air filter periodically, otherwise cooling or heating performance may be reduced. It is advi-
sed to clean the filters every two weeks.
• Do not operate unit with horizontal louvre in closed position.
G
WARNING
• Keep the Remote Controller away from all liquids.
• Protect the Remote Controller from high temperatures and exposure to radiation.
• Keep the indoor receiver out of direct sunlight or the Air Conditioner may malfunction.
• Never mix new and old batteries. Never use different battery types (e.g. alkaline and
manganese dioxide) simultaneously.
G
NOTE!
• If the same time is set for both START and STOPPING settings, the stopping time will
automatically increase 0.5hr(the set time displays less than 10Hr) or one hour (the set time
displays 10Hr or more).
• To change the Timer on/off time, just press the corresponding TIMER button and reset the
time.
• The setting time is relative time. That is the time set is based on the delay of the current time.
4
112
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 112

4
113
GADJUSTING AIR FLOW DIRECTION
•Adjust the air flow direction properly otherwise, it might cause discomfort
or cause uneven room temperatures.
• Adjust the horizontal louver using button hon the remote controller.
•Adjust the vertical louver manually.
Adjusting the horizontal Air Flow Direction (up - down)
The air conditioner automatically adjusts the horizontal air flow direction in accor-
dance with the operating mode.
To set the horizontal air flow direction
Perform this function while the unit is in operation. Keep pressing the AIR DIRECTI-
ON button hon the remote controller to move the louver to the desired direction.
•Adjust the horizontal air flow direction to the desired direction.
• In subsequent operations, the horizontal air flow is automatically set in the
direction to which you adjusted the louver by pressing the AIR DIRECTION
button.
To set the vertical air flow direction (left - right)
Adjust the vertical louver manually using the lever on the left or right side of the
vertical louver arm (depending on model). When the air conditioner is in opera-
tion and the vertical louver is in a specific position, move the lever at left (or right,
depending on model) end of the air outlet to the desired position.
To automatically swing the air flow direction (up - down)
Perform this function while the air conditioner is in operation.
• Press the SWING gbutton on the remote controller.
•To stop the function, press the SWING button gagain. Press AIR DIRECTION hbutton to lock louver in
desired position.
G
NOTE!
All the pictures in this manual and on the gift box are for explanation and indication purpose
only. They may be slightly different from the air conditioner you purchased. The actual shape
shall prevail.
G
CAUTION!
Take care, do not touch the fan behind the vertical louvers!
ff
O
/n
O
p
eel
S
na
F
gn
iw
S
n
oi
t
ce
ri
Dr
i
A
nO
r
e
m
i
T
f
fOre
m
i
T
e
do
M
.
rH
TN
OR
E
M
I
.rH
Off T RE
MI
SETT PME
o
t
u
A
Lever
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 113

HHOW THE AIR CONDITIONER WORKS
AUTOMATIC OPERATION
• When you set the air conditioner in AUTO mode (button 2 on the remote
controller), it will automatically select COOLING,HEATING or FAN only ope-
ration depending on what temperature you have selected and the room
temperature.
•The air conditioner will control room temperature automatically round the
temperature point set by you.
•If the AUTO mode is uncomfortable, you can select desired conditions manu-
ally.
ECONOMIC OPERATION
• When you push SLEEP button fduring COOLING, HEATING or AUTO opera-
tion, the air conditioner will automatically increase (cooling) or decrease
(heating) 1ºC per hour. The set temperature will be steady 2 hours later. The
fan speed will be automatically controlled.
DEHUMIDIFYING OPERATION
• The dehumidifying mode will automatically select the dehumidifying opera-
tion based on the difference between the set temperature and the actual
room temperature.
• The temperature is regulated while dehumidifying by repeatingly turning on
and off of the cooling operation or fan only. The fan speed is LOW.
• In normal cooling operation the airconditioner will also dehumidify the air.
G
NOTE
When the airconditioner is dehumidifying it is likely that the room temperature will decrease. It is
therefore normal that a hygrostat will measure a higher relative humidity. The absolute
humidity in the room will however be lowered, depending on the amount of moisture produced
in the room (cooking, people etc).
1
1
1
1
G
CAUTION
• The AIR DIRECTION and SWING buttons will be disabled when the air conditioner is not in
operation (including when the TIMER ON is set).
• Do not operate the air conditioner for long periods with the air flow direction set downward
in cooling or dry mode. Otherwise, condensation may occur on the surface of the horizontal
louver causing moisture to drop.
• Do not move the horizontal louver manually. Always use the AIR DIRECTION hor SWING
button g.If you move this louver manually, it may malfunction during operation. If the louver
malfunctions, stop the air conditioner once and restart it.
• When the air conditioner is started immediately after it was stopped, the horizontal louver
might not move for approximately 10 seconds.
• Open angle of the horizontal louver should not be set too small, as COOLING or HEATING
performance may be impaired due to too restricted air flow area.
• Do not operate unit with horizontal louver in closed position.
• When the air conditioner is connected to power (initial power), the horizontal louver may
generate a sound for 10 seconds, this is a normal operation.
4
114
Press Sleep button
Press Sleep button
COOLING
HEATING
DEHUMIDIFYING
Set
Tempe-
rature
1hour 1hour
1hour 1 hour
Set
Tempe-
rature
Set temperature
Time
Room
tempe-
rature
Cooling Fan only Cooling Fan only Cooling
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 114

4
115
IMAINTENANCE
Cleaning the indoor unit and remote controller
Cleaning the air filter
Aclogged air filter reduces the cooling efficiency of this unit. Clean the filter once
every 2 weeks.
1. Lift the indoor unit panel up to an angle until it stops with a clicking sound.
2. Take hold of the handle of the air filter and lift it up slightly to take it out
from the filter holder,then pull it downwards.
3. Remove the AIR FILTER from the indoor unit.
•Clean the AIR FILTER once every two weeks.
•Clean the AIR FILTER with a vacuum cleaner or water.
•Ensure before replacing that the filter is completely dry and has no defects.
4. Remove the Electrostatic Plasma Filter only when applicable from its support
frame as shown in the Figure on the left.
5. Clean the Electrostatic Plasma Filter with water, and, if necessary with a mild
detergent. Ensure before replacing that the filter is completely dry and has
no defects.
6. Install the air freshening filter back into position.
7. Insert the upper portion of air filter back into the unit taking care that the
left and right edges line up correctly and place filter into position.
G
CAUTION!
Do not touch this Electrostatic Plasma Filter within 10 minutes after
opening the inlet grille, it may cause an electric shock.
G
CAUTION
• Use a dry cloth to wipe the indoor unit and remote controller.
• A cloth dampened with cold water may be used on the indoor unit if
it is very dirty.
• The front panel of the indoor unit can be removed and cleaned with
water. Then wipe it with a dry cloth.
• Do not use a chemically treated cloth or duster to clean the unit.
• Do not use benzine, thinner, polishing powder, or similar solvents for
cleaning. These may cause the plastic surface to crack or deform.
G
WARNING
It is necessary to stop the air conditioner and disconnect the power
supply before cleaning.
House-
hold
Drain
Cleaner No
Thinner
Filter handle
Electrostatic Filter
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 115

Maintenance
If you plan to idle the unit for a long time, perform the following:
1. Operate the fan for about 6 hours to dry the inside of the unit.
2. Stop the air conditioner and disconnect power. Remove the batteries from the remote controller.
3. The outdoor unit requires periodic maintenance and cleaning. This should only be done by an authori-
zed airconditioning engineer.
Checks before operation
• Check that the wiring is not broken or disconnected.
• Check that the air filter is installed.
• Check if the air outlet or inlet is not blocked after the air conditioner has not been used for a long time.
G
CAUTION
• Do not touch the metal parts of the unit when removing the filter. Injuries can occur when
handling sharp metal edges.
• Do not use water to clean inside the air conditioner. Exposure to water can destroy the
insulation, leading to possible electric shock.
• When cleaning the unit, first make sure that the power and circuit breaker are turned
off.
4
116
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 116

4
117
JOPERATION TIPS
The following events may occur during normal operation.
1. Protection of the air conditioner.
Compressor protection
• The compressor cannot restart for 3 minutes after it stops.
Anti-cold air
• The unit is designed not to blow cold air on HEAT mode, when the indoor heat exchanger is in one
of the following three situations and the set temperature has not been reached.
A. When heating has just started.
B. Defrosting.
C. Low temperature heating.
Defrosting
• The indoor or outdoor fan stops running when defrosting.
•Frost may be generated on the outdoor unit during heat cycle when outdoor temperature is low and
humidity is high resulting in lower heating efficiency of the air conditioner.
• During this condition air conditioner will stop heating operation periodically and start defrosting
automatically.
• The time to defrost may vary from 4 to 10 minutes according to the outdoor temperature and the
amount of frost buildup on the outdoor unit.
2. A white mist coming out from the indoor unit.
•Awhite mist may generate due to a large temperature difference between air inlet and air outlet on
COOL mode in an indoor environment that has a high relative humidity.
•Awhite mist may generate due to moisture generated from defrosting process when the air conditi-
oner restarts in HEAT mode operation after defrosting.
3. Low noise of the air conditioner.
•You may hear a low hissing sound when the compressor is running or has just stopped running. This
sound is the sound of the refrigerant flowing or coming to a stop.
•You can also hear a low "squeak" sound when the compressor is running or has just stopped run-
ning. This is caused by heat expansion and cold contraction of the plastic parts in the unit when the
temperature is changing.
•Asound may be heard due to louver restoring to its original position when power is first turned on.
4. Dust is blown out from the indoor unit.
•This is a normal condition when the air conditioner has not been used for a long time or during first
use of the unit.
5. A peculiar smell comes out from the indoor unit.
• This is caused by the indoor unit giving off smells permeated from building material, from furniture,
or smoke.
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 117

6. The air conditioner turns to FAN only mode from COOL or HEAT mode.
• When indoor temperature reaches the temperature setting on air conditioner, the compressor will
stop automatically, and the air conditioner turns to FAN only mode. The compressor will start again
when the indoor temperature rises on COOL mode or falls on HEAT mode to the set point.
7. Dripping water may generate on the surface of the indoor unit when cooling in a high relatively
humidity (relative humidity higher than 80%). Adjust the horizontal louver to the maximum air out-
let position and select HIGH fan speed.
8. Heating mode
• The air conditioner draws in heat from the outdoor unit and releases it via the indoor unit during
heating operation. When the outdoor temperature falls, heat drawn in by the air conditioner decre-
ases accordingly. At the same time, heat loading of the air conditioner increases due to larger diffe-
rence between indoor and outdoor temperature. If a comfortable temperature cannot be achieved
by the air conditioner, it is advised to use a supplementary heating device.
9. Auto-restart function.
• Power failure during operation will stop the unit completely.
The airconditioner is equipped with Auto-restart feature, when the power restores, the unit restarts
automatically with all the previous settings preserved by the memory function.
KTROUBLE SHOOTING TIPS
Malfunctions and Solutions
G
TROUBLE
Stop the air conditioner immediately if one of the following faults occur. Disconnect the power
and contact your supplier.
• The following code appears on the LED window: E0,E1,E2,E3,E4,E5,E6,E7,E8 or P0,P1,P2,P3,P4.
• Fuse blows frequently or circuit breaker trips frequently.
• Other objects or water penetrate the air conditioner.
• The remote controller won't work or works abnormally.
• Other abnormal situations.
• Operation indicator flashes 5 times, even after mains electricity has been disconnected and
reconnected.
4
118
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 118

4
119
If the trouble has not been corrected, please contact your supplier. Be sure to inform them of the detailed
malfunctions and unit model.
G
NOTE!
Reparation of the device should only be done by an authorized airconditioning engineer.
Problem Cause Solution
Power cut Wait for power to be restored.
Unit may have become unplugged.
Check that plug is securely in wall
receptacle.
Fuse may have blown.
Replace fuse / reset relay / reset
circuitbraker
Battery in Remote controller may have
been exhausted.
Replace the battery.
Distance remote controller to receiver on
the indoor unit is more than 6 to 7 meters,
or there are obstacles in between the
remote controller and the receiver.
Shorten the distance. Remove possible
obstacles. Aim the remote controller
towards the receiver on the indoor unit.
The time you have set with timer is
incorrect.
Wait or cancel timer setting.
Inappropriate temperature setting.
Set temperature correctly. For detailed
method please refer to "operation with
remote control" chapter E.
Air filter is blocked. Clean the air filter.
Doors or windows in room are open. Close the doors or windows.
Air inlet or outlet of indoor or outdoor
unit has been blocked.
Clear obstructions away first, then restart
the unit.
Compressor 3 minutes delay protection
has been activated.
Defrosting of outdoor unit being
performed.
Airconditioner is in automode
Airconditioner is in dry mode
TEMP. Indicator is not
shown
Airconditioner is in fan mode Temperature cannot be set in FAN mode
Unit does not start
Unit not cooling or
heating room very well
while air flowing out
from the air
conditioner
Wait.
Fan speed cannot be
changed
Fan speed can only be changed in HEAT,
COOL and FAN mode
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 119

LGUARANTEE CONDITIONS
The air conditioner is supplied with a 24-month guarantee, commencing on the date of purchase. All mate-
rial and manufacturing defects will be repaired or replaced free of charge within this period. The following
rules apply:
1. We expressly refuse all further damage claims, including claims for collateral damage.
2. Repairs to or replacement of components within the guarantee period will not result in an extension
of the guarantee.
3. The guarantee is invalidated if any modifications have been made, non genuine parts are fitted or
repairs are carried out by third parties.
4. Components subject to normal wear, such as the filter, are not covered by the guarantee.
5. The guarantee is valid only when you present the original, dated purchase invoice and if no modifica-
tions have been made.
6. The guarantee is invalid for damage caused by neglect or by actions that deviate from those in this
instruction booklet.
7. Transportation costs and the risks involved during the transportation of the air conditioner or air con-
ditioner components shall always be for the account of the purchaser.
8. Damage caused by not using suitable Zibro filters is not covered by the guarantee.
9. Refrigerant loss and/or leakage because of incompetent (dis)connecting the units is not covered by the
guarantee conditions applicable to this product.
Toprevent unnecessary expense, we recommend that you always first carefully consult the instructions for
use. Take the air conditioner to your dealer for repairs if these instructions do not provide a solution.
4
120
man_S10xx_uk.qxd 02-02-2007 14:39 Pagina 120
