Zibro Kamin R 102 C User manual

®
R 102 C
2
14
26
38
50
62
74
MANUEL D'UTILISATION
GEBRAUCHSANWEISUNG
BRUGSANVISNING
INSTRUCCIONES DE USO
OPERATING MANUAL
ISTRUZIONI D’USO
GEBRUIKSAANWIJZING
3
2
6
5
4
>
1

Dear Sir, Madam,
Congratulations on your purchase of this Zibro Kamin heater, the number one
brand amongst portable heaters. You have purchased a first-class quality
product, which will serve you for many years to come. This, of course, provided
you use the heater correctly. Please read these Directions for Use first, to ensure
the maximum lifetime for your Zibro Kamin heater.
This appliance comes with a 24-month manufacturer’s warranty on all defects in
material or workmanship.
We wish you much warmth and comfort from your Zibro Kamin heater.
Yours sincerely,
PVG International b.v.
Customer Service Department
1 READ THE DIRECTIONS FOR USE FIRST.
2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.
3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE. E E E E E E E E E E
4
50

GENERAL DIRECTIONS FOR USE
Below you will find the main steps to be taken for
using your heater. For more details, please refer to
the MANUAL (pages 53 ff.).
•The first time you ignite your heater it will smell
like ’new’ for a short time.
•Store your fuel in a cool and dark place.
•Fuel has a limited shelf life. Start every heating
season with new fuel.
•The right quality of fuel will be assured, when
you use Zibro Plus for your heater.
•If you change to another brand and/or type of
paraffin oil, you must first finish up all the
remaining fuel in the heater.

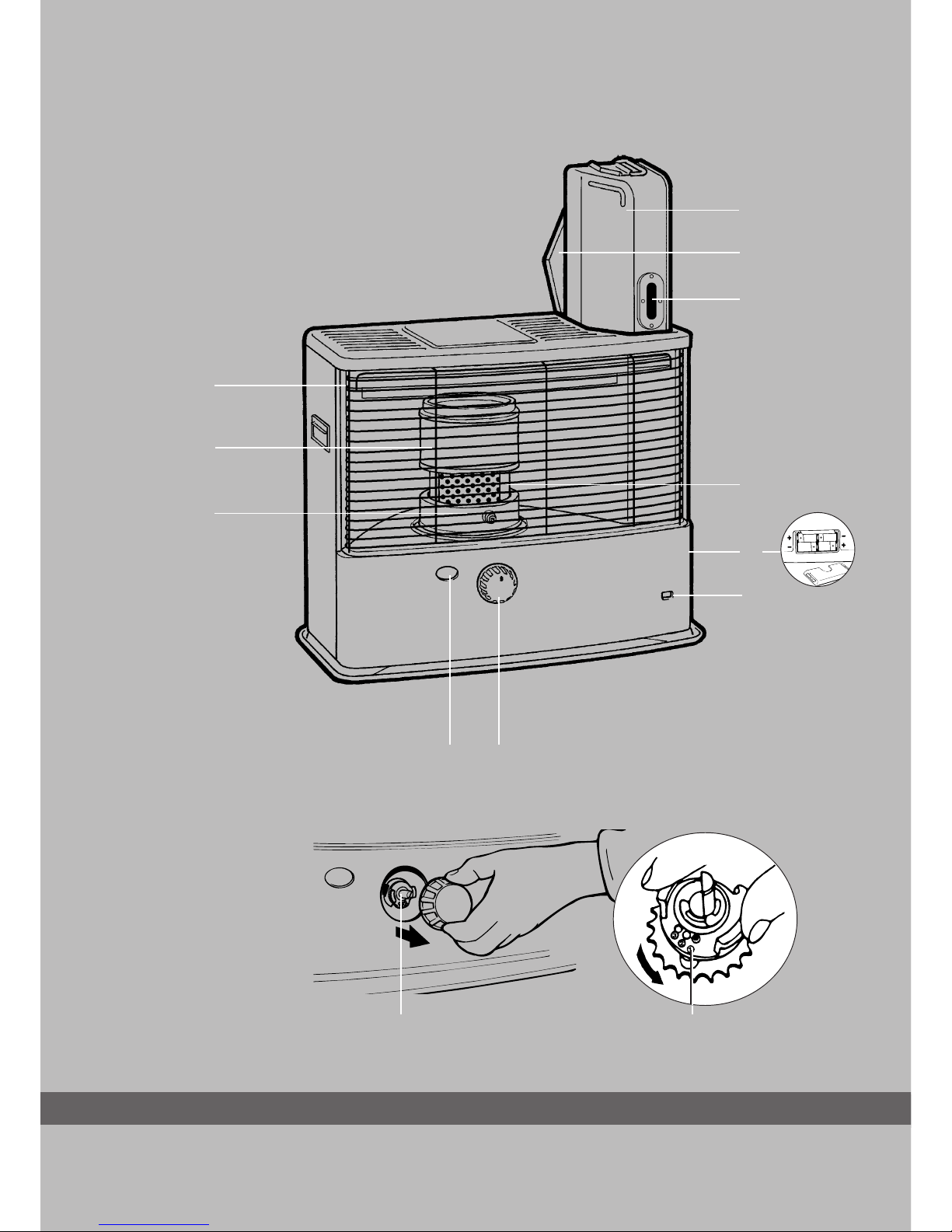

MAIN COMPONENTS
OFF Button
Knurled wick
adjustment knob
Battery holder
Combustion
chamber
Combustion
chamber handle
Fuel indicator
Grill
Lid for removable
tank
Removable tank
Fuel gauge
removable tank
Wick height lock
Spark ignition
A
B
C
4
E
F
G
H
I
J
K
L
E E E E E E E E E E E E E E E E E E E E E E E
Remove all packaging materials (refer to Section A, Fig. A).
Fill the removable tank Iand wait 30 minutes before you
ignite the heater (refer to Section B, Fig. I).
Insert the batteries into the battery holder 3
(refer to Section A, Fig. F).
Check whether the combustion chamber Dis fully upright
(refer to Section A, Fig. E).
Ignite the heater by turning the knurled wick adjustment
knob B as far to the right as possible
(refer to Section C, Fig. K).
After igniting the heater it will take 10 to 15 minutes before
you can check if the heater burns well (refer to Section D).
Switch off the heater (refer to Section E).
1
2
3
4
5
6
7
4
51

This transportation cap
is packed separately in
the box. Only this cap
ensures trouble-free
transportation of the
heater after use.
Store it well!
WHAT YOU NEED TO KNOW IN ADVANCE
ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION
For each model the minimum size of space is specified in which you can use the
heater safely, without additional ventilation (refer to Section K). If a particular
room is smaller than the specified space, always leave a window or door slightly
ajar (± 2.5 cm). We also recommend doing this in highly insulated or draught-free
rooms and/or at altitudes above 1,500 metres. However, if there is insufficient
ventilation (i.e. oxygen), the heater will automatically switch off. Do not use your
heater in cellars or other underground areas.
SAFE TOP
The heater is supplied with a safe top. This application decreases the temperature
of the top plate. In this way, the risk of harmful accidents at accidentally touching
the top plate is considerably decreased. However, be aware that the top plate still
becomes hot.
Avoid any contact with the top plate and grille.

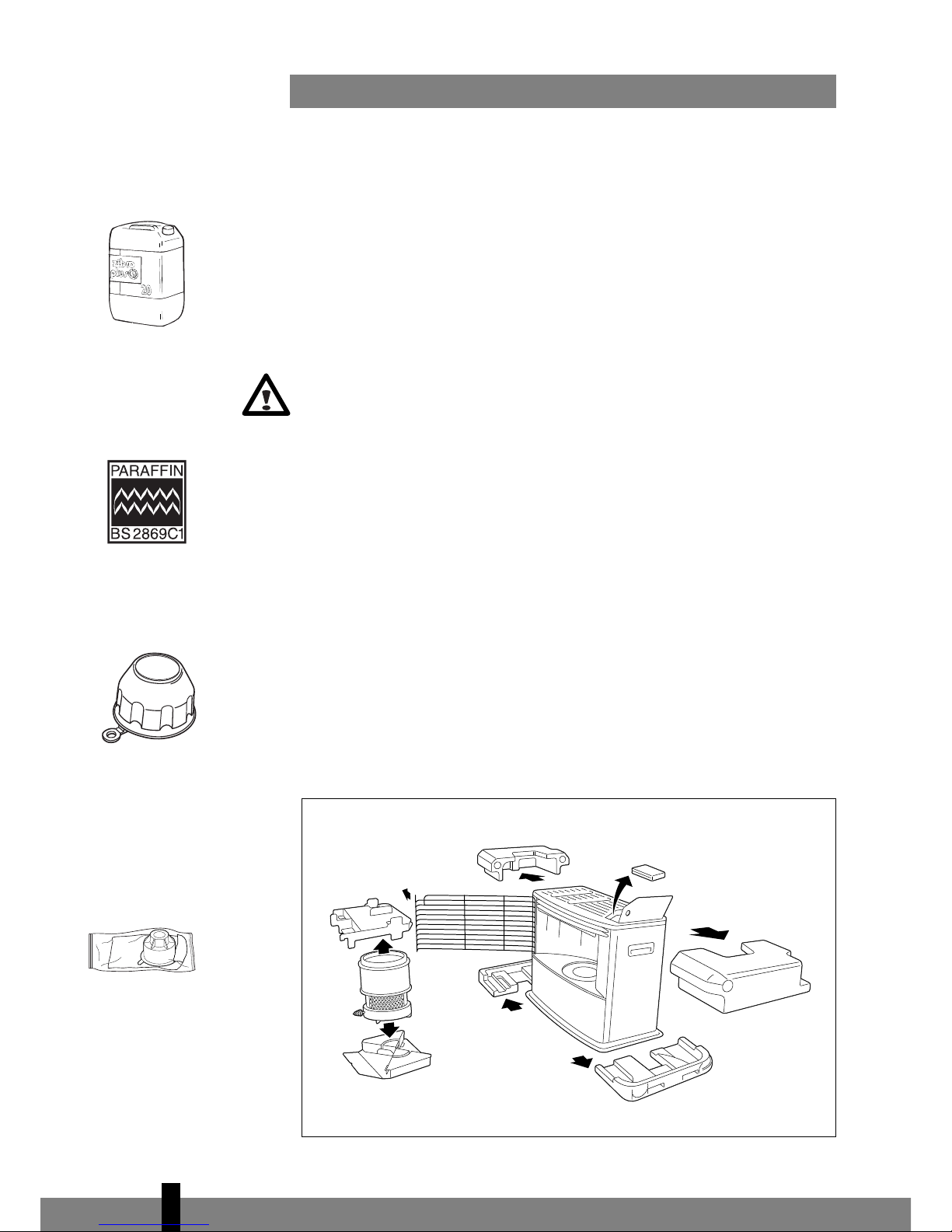

THE RIGHT FUEL
Only use Class C1 paraffin fuel in accordance with BS2869 Part two, or equivalent.
Your heater has been designed for use with high-quality water-free pure paraffin
oil, such as Zibro Plus. Only fuels of this kind will ensure clean and proper burning.
Lower quality fuel may result in:
Eexcessive tar deposits on the glass fibre wick
Eincomplete burning
Ereduced heater lifetime
Esmoke and/or smells
Edeposits on the grid or mantle
Using the right fuel is therefore essential for safe, efficient, and comfortable use
of your heater.
Always refer to your local dealer for the right fuel for your heater.
Only the use of the
correct fuel will ensure
safe, efficient, and
comfortable use of your
heater.
4
52
A
The fuel cap cover can
be found at the rear of
the heater. This cover
allows you to keep your
hands clean when
opening the fuel tank.

MANUAL
AINSTALLING THE HEATER
Carefully remove your heater from the box and check the contents.
In addition to the heater you also need to have:
Ethe batteries
Ea manual fuel pump
Ea transportation cap
Ea fuel cap cover
Ethese directions for use
Keep the box and the packaging materials (Fig. A) for storage and/or transportation.
Remove the other packaging materials:
ERemove the packaging material from the grill G. Lift the grill from the slot
(Fig. B) and pull it forward.
EPush the packing material on top of the combustion chamber D slightly
down and remove it (Fig. C). Remove the packaging materials from under
the combustion chamber as well (Fig. D).
EPut the combustion chamber back into its place. The combustion chamber
is positioned correctly when it can be smoothly moved a little to the left
and to the right by its handle E(Fig. E). Close the grill: Slightly lift it to
reposition it in its slot.
EOpen the lid of the removable tank Hand remove the piece of cardboard.
Fill the removable tank as indicated in Section B.

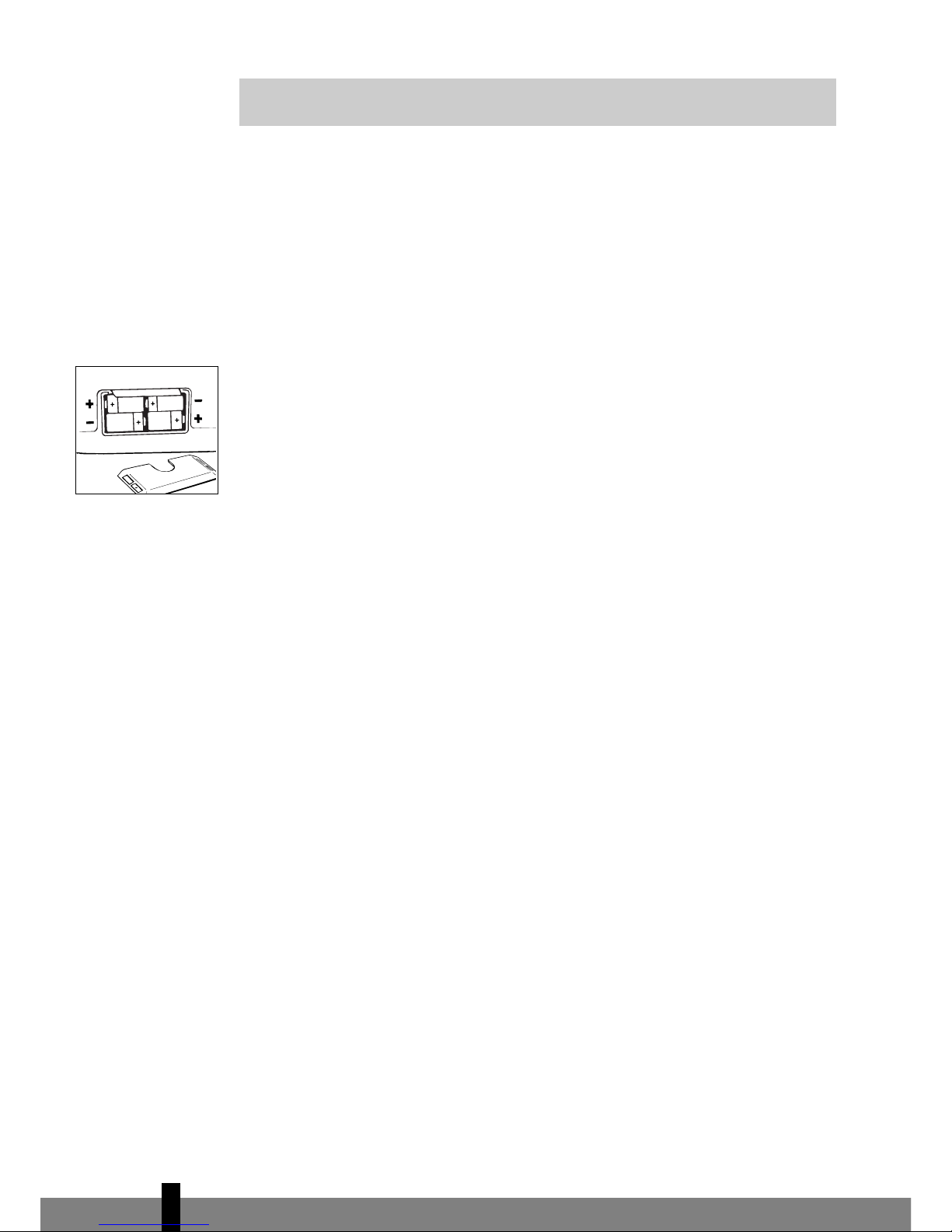

Insert the batteries into their holder 3at the back of the heater (Fig. F).
Ensure that the positive and negative poles match the + and - marks indicated
on the battery housing.
The floor should be firm and completely level. Reposition the heater, when it is
not level. Do not correct the situation by placing books or other goods under the
heater.
Please refer to the separate instructions in the carton box for fixing of
the heater.
Your heater is now ready for use.
BFILLING FUEL
Do not fill the removable tank in the living room, but in a more suitable place
(there can always be some spillage). Follow the procedure below:
Make sure that the heater is switched off.
Open the lid Hand lift the removable tank Iout of the heater (Fig. G).
Note: Some drops may leak from the tank. Put down the removable tank
(cap pointing upwards) and screw off the fuel cap using the fuel cap cover
(Fig. H).
2
1
6
5
4
3
2
1
4
53
E E E E E E
G
B
C
D
E
F
H

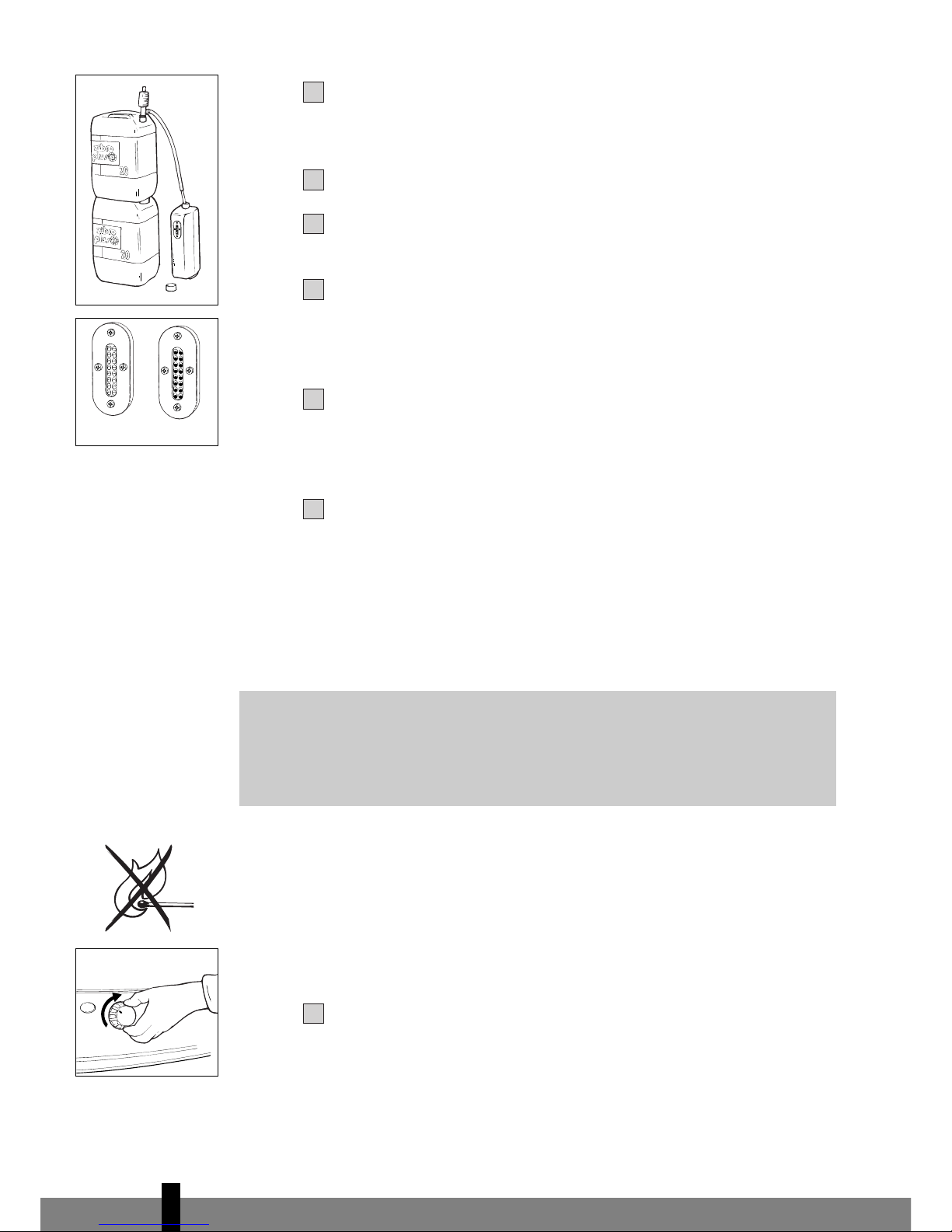

Take the manual fuel pump and insert the smooth, most rigid tube into the
jerrycan. Make sure that it is in a higher position than the removable tank
(Fig. I). Insert the ribbed hose into the opening of the removable tank.
Lock the valve on top of the pump (turn clockwise).
Squeeze the pump a few times, until fuel starts flowing into the removable
tank. As soon as this happens, there is no need to press any longer.
Check the removable tank fuel gauge Jwhile filling the tank (Fig. J). Stop
filling by loosening the valve on top of the pump (turn anti-clock-wise), once
the gauge indicates that the tank is full. Never overfill the tank, especially not
when the fuel is very cold (fuel expands when it heats up).
Let the remaining fuel in the pump flow back into the jerrycan and carefully
remove the pump. Carefully screw the fuel cap back on the tank using the
fuel cap cover. After use, re-store the cover at the rear of the heater. Clean
off any spilled fuel.
Check whether the fuel cap is straight and tightened properly. Reinstall the
removable tank in the heater (cap down). Close the lid.
CIGNITING THE HEATER
A new heater may give off some smells for a short while, when it is used for the
first time. You should therefore provide extra ventilation or ignite the heater
outside the living room.
When you use the heater for the first time, first put the filled removable tank into
place, and then wait approximately 30 minutes before you ignite the heater. This
allows the glass fibre wick to soak up the fuel. Follow the same procedure when you
have completely burnt up all fuel from the tank, and after the glass fibre wick has
been replaced.
Before igniting the heater, always check the fuel indicator Fto see whether the
removable tank needs filling up (Green=full, Red=empty).
Always ignite the heater with the knurled wick adjustment knob 2. Never use
matches or a cigarette lighter.
Follow the procedure below:
Turn the knurled wick adjustment knob 2clockwise to its stop (Fig. K). If you
apply more pressure you may turn it slightly further; however, it will automatically
return to the start position. When you have set the wick to its highest position,
this action will automatically activate the safety device.
1
8
7
6
5
4
3
4
54
J
I
empty full
K
☞

4
55
☞☞
E
☞
M
N

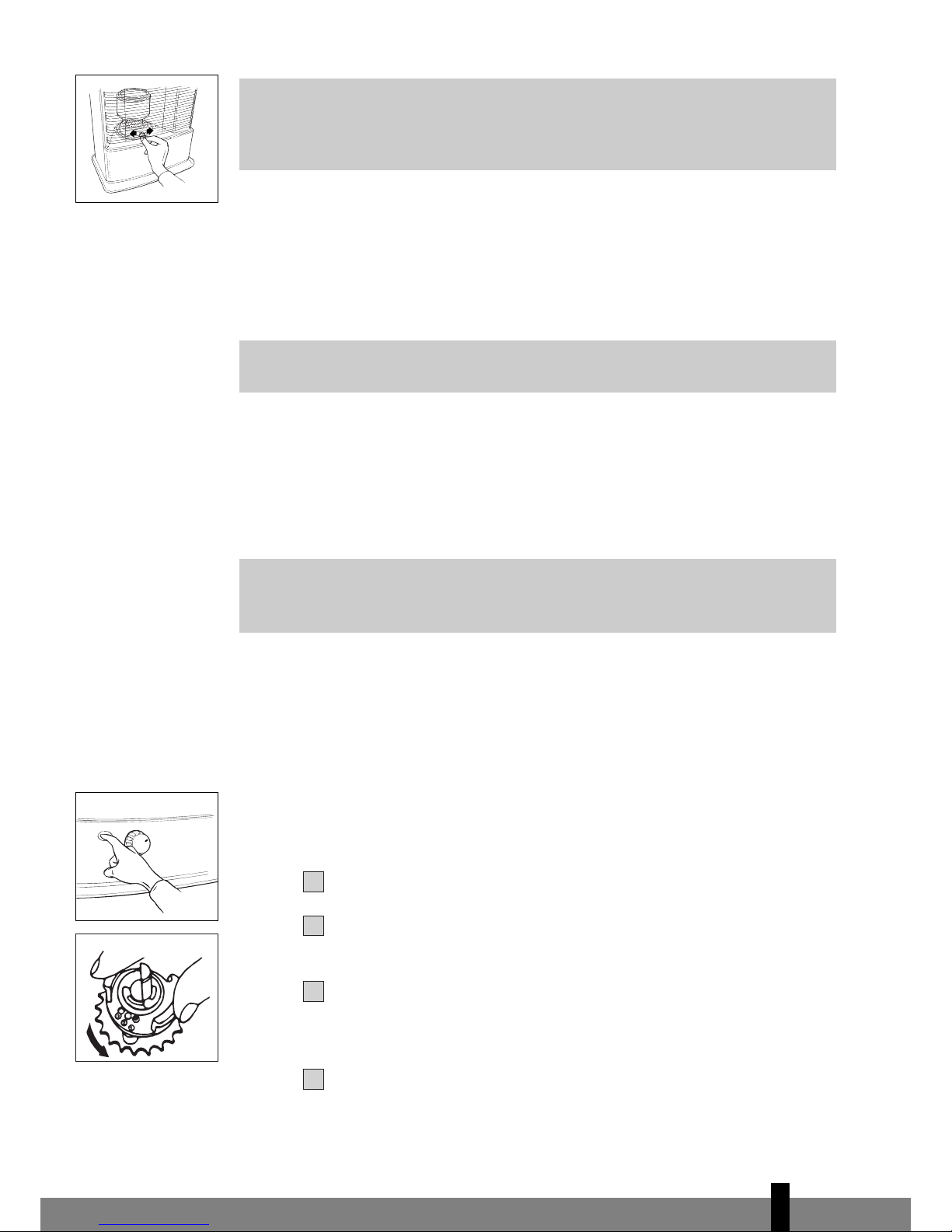

After having ignited the heater, always check whether the combustion
chamber Dis level, by sliding it slightly to the left and the right by its handle E
(Fig. E). This should be a smooth movement. If the combustion chamber is not
level, this will cause smoke and soot to develop.
DBURNING OF THE HEATER
After you have ignited the heater, it will take 10 to 15 minutes before you can
check whether the heater is burning well. Too high a flame may cause smoke and
soot, whereas too low a flame causes smells. The page opposite the folding page
shows the minimum and maximum permissible burning heights of the flame (Fig. R).
If the flame remains low after the adjustment, the wick height must be
adjusted (refer to Section F).
Burning that is too low may be caused by:
Einsufficient fuel (fill the tank)
Epoor fuel quality (contact your dealer)
Einsufficient ventilation (put window or door ajar)
Ewastage of the wick (contact your dealer or replace the wick,
refer to section M)
This heater is fitted with a safety system that ensures that it switches off if you
lift the exchange tank out of the heater for more than 5 seconds. To switch the
heater on again, put the exchange tank back and follow the steps in section C.
ESWITCHING OFF THE HEATER
Push the OFF-button A. The flame will extinguish after a little while.
FADJUSTING THE WICK HEIGHT
After a period of time the combustion may no longer be high enough (Section D). In
that case you can adjust the wick height to improve the flame. To do this, the heater
must have been switched off. Follow the procedure below:
Push the OFF button A(Fig. M).
Pull the knurled wick adjustment knob Boff the heater, so the wick height
lock Kwill be visible.
Take the plastic collar between your thumb and index finger and pull it out.
Turn the collar up one step, to either position 2 or 3 (Fig. N). Carefully push
the collar back, so the pin engages in the recess.
Carefully reinstall the knurled wick adjustment knob. This can be done in one
way only - check the rear of the cap for the correct position.
4
3
2
1

If adjustment of the wick height does not have the required effect, let the
heater burn until all fuel has been used up (Section H).
If the flame height is still too low and the wick is set on position 3, then contact your
dealer,
or replace the wick, refer to section M. If the flame gets too high after adjus-
ting (Fig R), the wick height lock should be placed one position lower again.
Otherwise smoke or soot may be caused.
GMALFUNCTION, CAUSES AND SOLUTIONS
If any malfunctioning cannot be solved from the directions below, please contact
your dealer.
THE HEATER DOES NOT IGNITE
EThe batteries are not positioned correctly in the holder. Check (Fig. O).
EThere is not enough power left in the batteries for the ignition. Replace (Fig. O).
EYou have run out of fuel from the tank or the wick has been replaced.
After having refilled and replaced the removable tank, wait for 30 minutes
before igniting the heater.
IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS
EThe combustion chamber Dhas not been positioned correctly.
Use the handle Eto put it level, until you can easily slide it slightly to the left
and to the right and the chamber is level.
EYou are using fuel which is past its ‘use by’ date.
Start every heating season with fresh fuel.
EYou are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
EDust has gathered in the lower part of the heater.
Contact your dealer.
EWick position wrong.
See Section F.
THE HEATER SLOWLY EXTINGUISHES
EThe removable tank is empty.
See Section B.
EThe fuel filter is contaminated by water.
Dry the fuel filter (Section H, Fig. P).
EThe lower reservoir is contaminated by water.
Contact your dealer.
EThe wick has hardened on the upper side.
Burn the heater until all fuel is used (Section H). Use the right fuel.
EYou are using fuel which is past its ‘use by’ date.
Start every heating season with fresh fuel.
THE HEATER REMAINS BURNING LOW
EWick position too low.
Reinstall the wick height lock (Section F).
EBefore you refilled the tank, the heater had burnt up almost all the fuel.
After having refilled and replaced the removable tank, wait for 30 minutes
before igniting the heater.
EYou are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
EThe room is insufficiently ventilated.
4
56
O
☞

Leave a window or a door wide open for a while.
THE HEATER IS BURNING TOO HIGH
EYou are using an incorrect, too volatile type of fuel.
Refer to THE RIGHT FUEL (See Section ’What you need to know in advance’).
EWick position too high.
Reinstall the wick height lock (Section F).
HMAINTENANCE
Your heater needs hardly any maintenance. It is, however, important that you
remove dust and stains in time with a damp cloth, because otherwise these may
cause stains that are hard to remove. Under normal conditions, only two
components are subject to wear:
1. THE BATTERIES
You may replace the batteries yourself. Do not dispose of old batteries along with
the other domestic waste. Follow the locally applicable regulations regarding the
disposal of domestic chemical waste.
2. THE WICK
To extend the glass fibre wick life, you must occasionally let the heater burn until
the tank is completely emptied and the heater extinguishes by itself. Do this when
you notice that the flame is weakening. The burn-out will cause some smells, so it
is recommended that you take the heater outside of the living room.
THE FUEL FILTER
Check the fuel filter regularly as well.
Remove the removable tank Ifrom the heater and take out the fuel filter (Fig. P).
Some drops of fuel may spill from the filter; keep a cloth at hand. Turn the fuel
filter upside down and clean it from all dirt deposits by tapping it on a hard
surface. (Never clean it with water!) Reposition the fuel filter in the heater.
Do not remove any heater components yourself. Always contact your dealer for
repairs.
Let the heater cool down first, before you start any maintenance or service work.
ISTORAGE (END OF THE HEATING SEASON)
We recommend that you burn up all the fuel in the fuel tank at the end of the heating
season and store the heater properly. Follow the procedure on the next page:
Ignite the heater outside the living room and let it burn until all fuel is used.
Let the heater cool down.
Clean the heater with a damp cloth and then dry it with a dry cloth.
Remove the batteries from the holder 3and store them in a dry place.
4
3
2
1
4
57
☞☞
P
fuel filter

Clean the fuel filter (refer to section H).
Store the heater in a dust-free place, if possible in its original packaging.
Unused fuel cannot be used for the next heating season. If there is still some
fuel left, do not throw it away, but dispose of it in accordance with the local
regulations for the disposal of domestic chemical waste. Always start the new
heating season with fresh fuel. When you start re-using the heater, follow the
instructions again (starting from Section A and as specified).
JTRANSPORTATION
Take the following measures to avoid fuel leakage during the transportation of
the heater:
Let the heater cool down.
Remove the removable tank Ifrom the heater and remove the fuel filter
(Fig. P). Some drops may leak from the filter; keep a cloth at hand. Store the
fuel filter and the removable tank outside the heater.
Place the transportation cap into the position of the fuel filter (Fig. Q).
Press it tight.
Always move the heater in an upright position.
KSPECIFICATIONS
Ignition electrical Dimensions (mm) width 562
Fuel paraffin (including base plate) depth 279
Capacity (kW)*3,0 height 502
Suitable space (m3)** 55-110 Accessories: manual fuel pump
Fuel consumption (l/hr)*0,313 fuel cap cover, transportation cap
Fuel consumption (g/hr)*250 batteries
Burning time per tank (hr)
*
17,5 Required batteries 4 x LR14,
Capacity removable tank (litres) 5,5 MN1400, 1,5V
Weight (kg) 11,5 Wick type C
* At maximum setting
** Specified values are indicative
LWARRANTY PROVISIONS
Your heater comes with a 24-month warranty starting on the date of purchase.
Within this period all defects in material or workmanship will be repaired without
any charge. The following provisions shall apply regarding this warranty:
We expressly dismiss all other claims for damages, including consequential
damages.
1
4
3
2
1
6
5
4
58
Q
Transportation cap
P
fuel filter

Any repairs or replacements of components within the term of warranty will
not result in an extension of the term of warranty.
The warranty will no longer apply, when the heater has been modified,
non-original parts have been used, or when it is repaired by third parties.
The warranty will not apply to parts that are subject to normal wear, such as
the batteries, the ignition coil, the wick and the manual fuel pump.
The warranty will only apply, when you present the original, dated proof of
purchase, provided no changes have been made to it.
The warranty will not apply to damages caused by actions not in compliance
with the Directions for Use, neglect, and the use of an incorrect type of fuel,
or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
Transportation costs and the risks involved during the transportation of the
heater or heater components will always be the responsibility of the
purchaser.
In order to avoid unnecessary costs, we recommend that you always read the
’Directions for Use’ carefully first. In case they offer no solution, please take the
heater to your dealer for repair.
* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this
happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases
of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder
extinguisher.
10 TIPS FOR SAFE USE
1Make sure that children are always aware of the presence of a burning
heater.
2Do not move the heater when it is burning or still hot. Do not refill nor
service the heater when it is burning or still hot.
3Position the front of the heater at a minimum distance of 1.5 metres
from walls, curtains, and furniture.
4Do not use the heater in dusty rooms or in very draughty places. In
both cases you will not have optimum burning.
5Switch off the heater, before you go to sleep.
6Store and move fuel only in suitable tanks and jerrycans.
7Make sure that the fuel is not exposed to heat or extreme temperature
changes. Always store the fuel in a cool, dry and dark place (sunlight
will affect the quality).
8Never use the heater in places where harmful gasses or fumes may be
present (e.g. exhaust gasses or paint fumes).
9The top plate of the heater becomes hot. Do not cover the heater
(there is a risk of fire). Avoid any concact with the top plate and grille.
10 Always make sure that there is sufficient ventilation.
7
6
5
4
3
2
4
59
150 cm
50 cm
50 cm 20 cm
100 cm

REPLACEMENT OF THE WICK
MENSURE THAT THE HEATER IS OFF AND COMPLETELY
COOL BEFORE STARTING TO REPLACE THE WICK.
Open the lid and remove the removable tank.
Remove the batteries from the battery holder.
Open the front grill. Remove the combustion chamber
from the heater. Close the grill.
Pull the knurled wick adjustment knob off the heater.
Unscrew the three cabinet screws on the back and sides
of the heater. Pull the cabinet forward slightly, and then
remove it from the base plate.
Unscrew the four wing nuts from the wick holder.
Lift up the wick holder and the wick mechanism.
Squeeze the wick to loosen the three wick pins and
remove the wick from the wick holder. Ensure that you
are wearing gloves and that you have a container in
which to put the old wick.
Put the wick holder back into position in such a way
that the holes in the wick holder are directly above the
inner sides of the recesses in the burner. Ensure that the
holes are facing down.
Fold a new wick and place it in the wick holder. Push
the three wick pins into the wick holder holes, and the-
refore also into the recesses inside the burner. Push the
wick with the wick holder up into the recesses as far as
possible. Push the pins firmly until you hear a clicking
sound. Ensure that the wick holder does not bend!
10
9
8
7
6
5
4
3
2
1
4
60
22
33
55aa55bb
77
11
44
99
1100aa
88
1100bb
66

4
61
Put the wick holder and the wick mechanism back into
position.
Screw the four wing nuts hand tight.
Place the knurled wick adjustment knob on the wick
mechanism. Turn the knob as far to the right as possi-
ble. Press the off switch. Check that the wick can be
lowered completely. Repeat this check a number of
times. If the wick cannot be lowered completely it has
not been placed correctly. If this is the case, repeat the
procedure from 10.
Remove the knurled wick adjustment knob and adjust
the wick position to 1.
Put the cabinet back into position and tighten the three
screws. Put the knurled adjustment knob back into
position. Now put the combustion chamber back into
position. Check that it is level by sliding it slightly to the
left and the right by its handle. Close the grill.
Put the filled removable tank back into position. Put
the batteries into the battery holder (ensure that the
positive and negative poles match the + and – marks
indicated on the battery housing). Wait 30 minutes
after replacing the tank and batteries before using the
heater.
16
15
14
13
12
11
11111122
1133aa1133bb
1144bb
1155aa
1155cc1155dd
1166aa1166bb
1144aa
1155bb

E E E E E E E E E E E E E E E E E E E E E E E E E E E E E
F R
✗✓✗
E

E E E E E E E E E E E E E E E E E E E E E E E E
K K
EEEEEEE E E E E E E E E E E E E E E E E E
A B
K
D
G
E
J
F
C
L
H
I
K

iÖSTERREICH
PVG Austria VertriebsgmbH
Salaberg 49
3350 HAAG
tel: [phone]
fax: [phone]
email: [email protected]
eBELGIË
PVG Belgium NV/SA
Industrielaan 55
2900 SCHOTEN
tel: [phone]
fax: [phone]
email: [email protected]
qSCHWEIZ
PVG Schweiz AG
Genuastrasse 15
4142 MÜNCHENSTEIN
tel: [phone]
fax: [phone]
email: [email protected]
2DEUTSCHLAND
PVG Deutschland GmbH
Beiersdorfstraße 4
46446 EMMERICH
tel: [phone]
fax: [phone]
email: [email protected]
6DANMARK
PVG Scandinavia A/S
Niels Bohrsvej 10
6100 HADERSLEV
tel: [phone]
fax: [phone]
email: [email protected]
5ESPAÑA
PVG España S.A.
Pol. Ind. San José de Valderas II
Comunidad ”La Alameda”
C / Aurora Boreal, 19
28918 LEGANÉS (Madrid)
tel: [phone]
fax: [phone]
email: [email protected]
3FRANCE
PVG France SARL
4, Rue Jean Sibélius
B.P. 185 - 76410
SOTTEVILLE SOUS LE VAL
tel: [phone]
fax: [phone]
email: [email protected]
4UNITED KINGDOM
Lister Gases
Bridge Street
Holloway Bank, Wednesbury
West Midlands WS10 0AW
Tel.: [phone]
Fax: [phone]
email: [e-mail]
>ITALIA
PVG Italy SRL
Via Niccolò Copernico 5
50051 CASTELFIORENTINO (FI)
tel: [phone]
fax: [phone]
email: [email protected]
uNORGE
Sunwind - Gylling A/S
Rudsletta 71-75 / P.O. Box 64
N-1309 RUD
tel: [phone]
fax: [phone]
email: [email protected]
1NEDERLAND
PVG International b.v.
P.O.Box 96
5340 AB OSS
tel: [phone]
fax: [phone]
email: [email protected]
9PORTUGAL
Gardena, Lda
Recta da Granja do Marquês
ALGUEIRÃO
2725-596 MEM MARTINS
tel: + 35 21 92 28 530
fax: + 35 21 92 28 536
email: [email protected]
:POLSKA
PVG Polska Sp. z. o. o.
Kolonia Promna 58
26-803 PROMNA
tel: [phone]
fax: [phone]
email: [email protected]
DISTRIBUTED IN EUROPE BY PVG INTERNATIONAL BV
PVG Traffic gsc©030603 man_R102C
New 7/03
Printed in Japan
7030000903
