Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01 Page 1 of 8
Zip Filter Tap
Cold Water filtration (unchilled)
Installation and Operating Instructions
Affix Model Number Label Here
82232

Page 2 of 8 Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01
# Read these Warnings First
# Installation Instructions

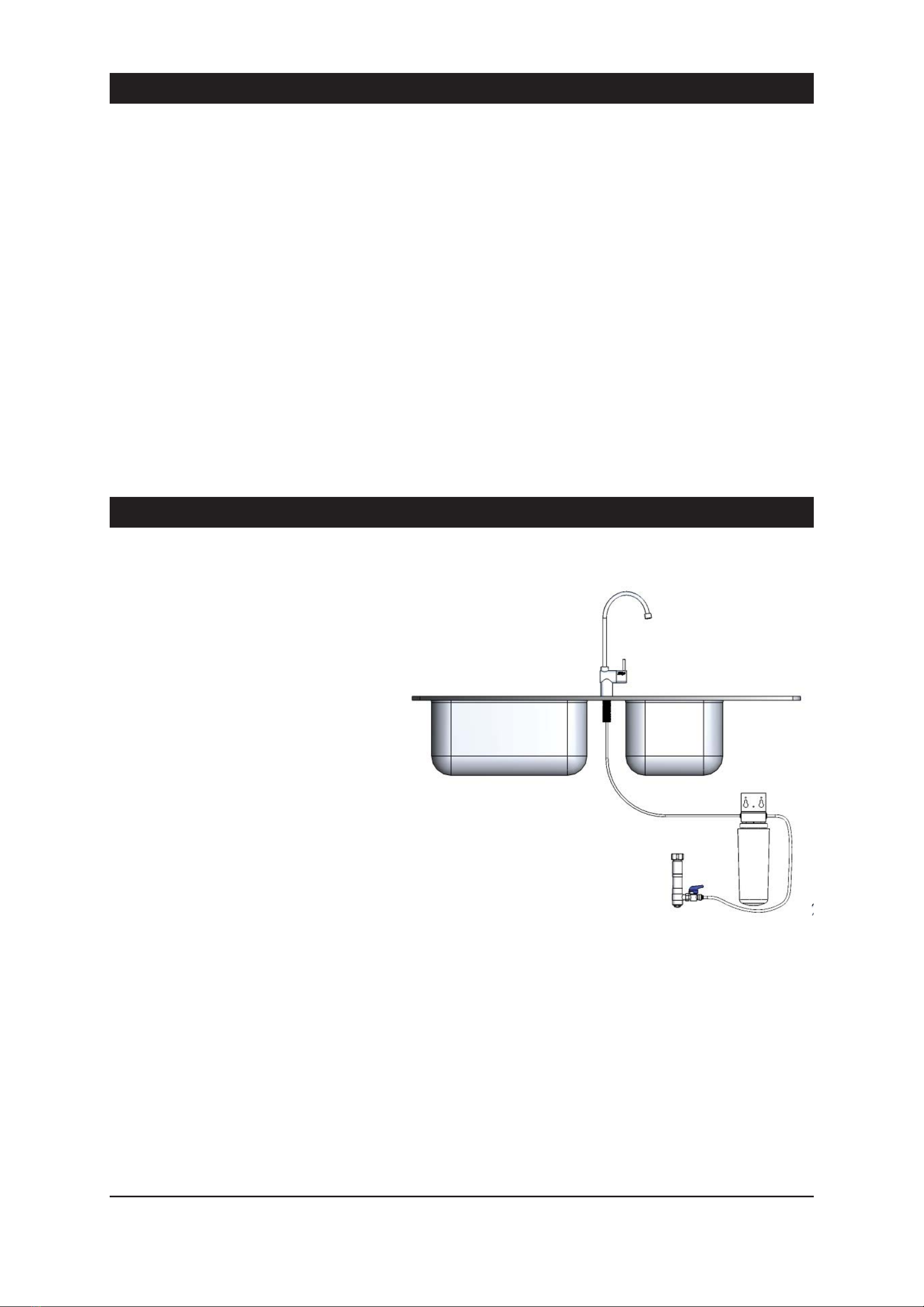

Install the Filtration Unit
The filtration unit (A) should be mounted
as close as possible to the front of the
cupboard, to allow for ready and easy
access during filter changes.
1. Usually the side of the cupboard, near
the door, is most suitable.
2. Using the two screws provided,
screw the filter head to the inside of the
cupboard, allowing 260 mm miniumum
between the underside of the filtration
head and any obstructions like shelves,
etc.
3. Write the installation date on the
filter cartridge. Fit the cartridge into
the housing. The model you have
may appear slightly different to that
illustrated, however, operation and function is identical.
4. Align the tabs of the cartridge with the filter housing and insert it into the socket. Turn the cartridge a quarter turn to
the right until it stops and locks into position.
5. Check that the direction of flow on the filter head is correct.
Install the Filter Tap
1. Position the filter tap at the back of the sink where there is a 45 mm wide flat area within the draining areas of the
sink. The recommended position is over one corner of the bowl. Make sure the selected position allows the spout to
overhang the sink bowl.
The cutout size is 25 mm. Mark the centre of the new Filter Tap position on the sink with a centre punch.
Please read all installation requirements, installation procedures and precautions before installing any Zip FilterTap.
Never attempt to install any Zip FilterTap without reading all of the applicable instructions.
The outlet from any Zip Filter must be connected directly to an outlet spout on the sink and must not be obstructed by a
tap or valve or in any other way.
These appliances ares not intended for use by persons (Including Children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use
of the appliances by a person responsible for their safety.
Children should be supervised to ensure they do not play with the appliances
The units are for indoor use only and must not be exposed to the elements of nature.
These units must not be positioned in an area that may be cleaned by a water jet and must not be cleaned by a water jet.
All plumbing connections must be made in accordance with AS/NZS3500.
Before installing, ensure there is cold water supply with a minimum working pressure of 50 kPa and a maximum working
pressure of 600 kPa. (A 600 kPa limiting pressure valve is supplied)
A

Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01 Page 3 of 8
2. Drill out the centre of the hole to allow the screw of a sheet metal punch to pass through the sink. Use a 25 mm sheet
metal punch to neatly open up the hole.
3. Remove the nut and washer from the base of the Filter Tap, and pass the tubing through the sink until the Filter Tap
sits upright within the hole you just created in the sink surround.
4. Orient the Filter Tap so that the activating lever is away from the sink bowl. Slide on the washer and nut from beneath
the sink, and tighten the nut to secure the Filter Tap firmly into place.
5. One blue tube hangs from the bottom of the Filter Tap. The blue tube connects to the outlet of the filter through a
push-fit John Guest fitting.
Take care, when bending plastic tubing, to prevent it from kinking or crushing on a bend. Please be careful to ensure the
colour and connection of the tubing on the Filter Tap are correct.
Do not connect the tubes in any other arrangement than that described here. The filter cartridge and the Filter Tap
have directional flow connections that will not work if connected incorrectly. Incorrect installation will void any product
warranty.
Note: the flow direction of the filter housing is indicated on the filter housing.
6. Measure and cut the blue tube to length so that it runs around the back of the cupboard to the (lower) outlet side of
the filter housing. Use a tube cutter to cut the end off the tubing neat and square, so that there are no dags or rough
edges. Shake the tube vertically to allow any debris to fall out of the tube before inserting it into the filter head.

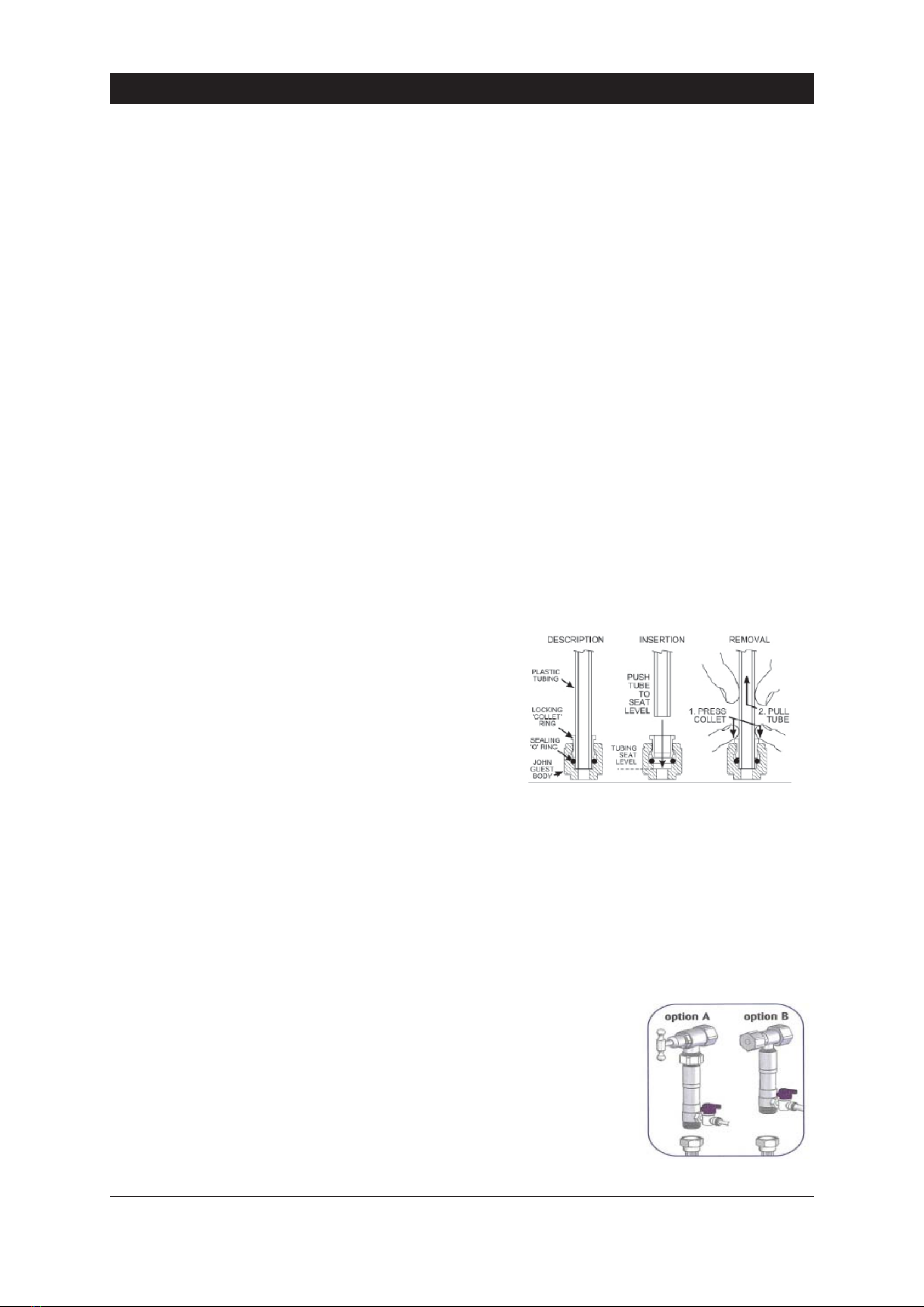

John Guest fittings
Insertion and removal details for JG fittings using plastic tubing.
1. Cut the tube squarely with a sharp knife or tube cutter. Shake
out and remove any swarf or debris.
2. Push this end of the blue tube firmly into the John Guest socket
on the (lower) outlet side of the filter head. It must push in at least
10 mm.
3. Test the connection by trying to pull the tube out. If it comes out,
re-insert it so that it won’t come out when pulled against.
4. To remove the tube, press the collet into the fitting and at the
same time pull back on the tube.
Install the DNR (Double Non-Return) Multifunction valve
1. Fit the MFV to an isolation valve as shown in option A and option B (isolation valved not supplied in this kit).
2. Take the one metre white tube from filter kit.
3. Cut the tube to length where the DNR valve is to be installed.
4. Insert the white tube end into the (JG) fitting on the outlet side of the DNR valve.
5. Insert the other end of white tube into the (JG) fitting on the inlet side of the filter head.
Note: the directional arrows on the body of the valve.
Fill the system
1. Turn on the water supply. Check the connections for leaks. Repair any found.
# Installation Instructions ctd

Page 4 of 8 Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01
The filter and
tubing are full of air until purged, and the filter cartridge requires activation when first installed.
2. Flip up the operating lever on the Filter Tap for a minimum of five minutes until all of the air has been purged from the
system, and the cartridge has time to become fully activated.
Every time the filter cartridge is replaced, repeat this procedure of a five minute flush to activate the new cartridge
properly.
NOTE: When flushing the system, some black particles may be released into the water. This is normal. The water will
become clear after the first few litres.
Complete the installation
Leave these instructions with client.
Installation Instructions ctd
Problem Cause Remedy
No water at outlets Water not connected Connect and turn on water
Poor flow at outlet Blocked filter Replace filter
Troubleshooting

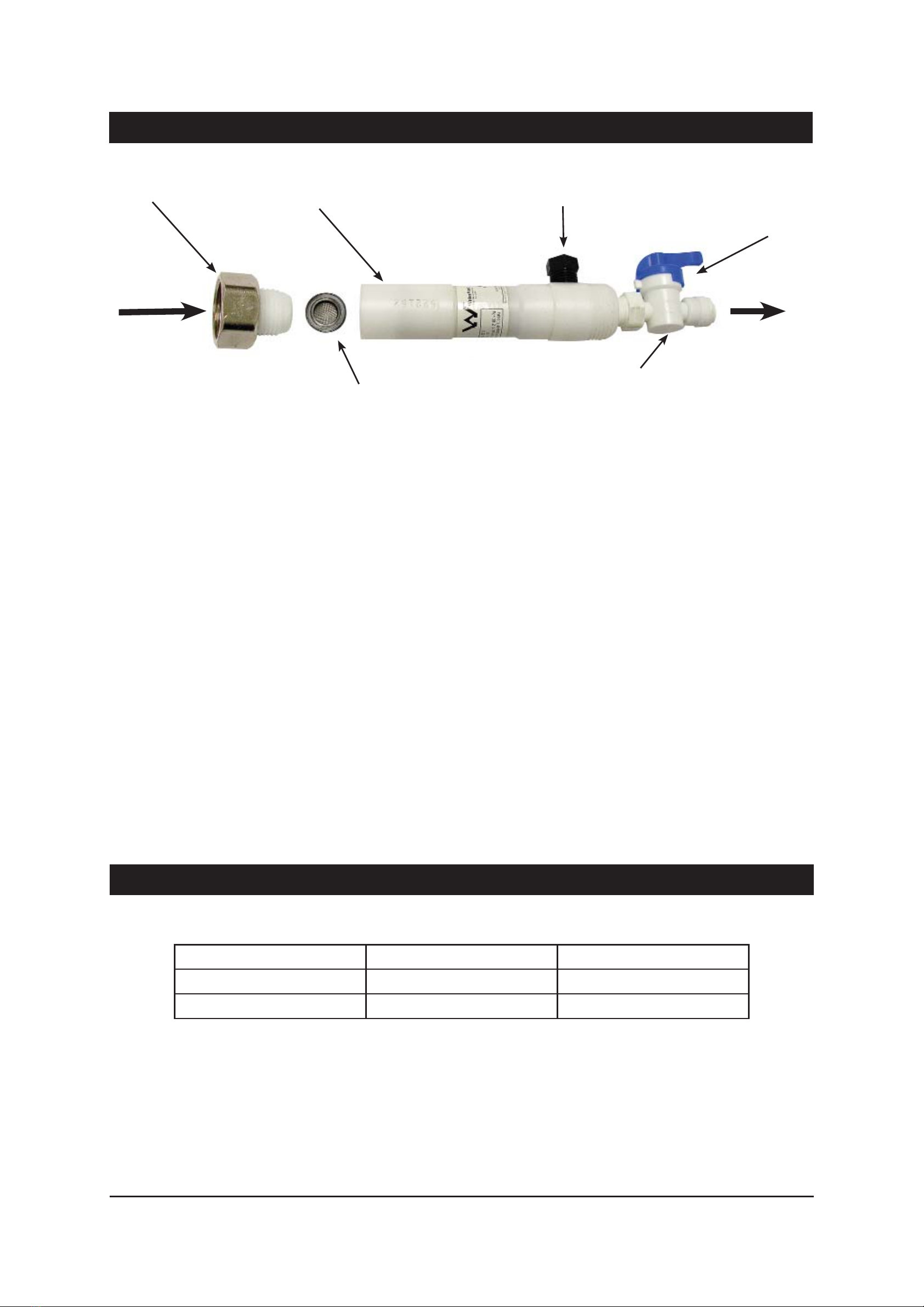

Pos.B ( Alternative outlet )
Pos. A
3/4” FBSP 1/2” FBSP
Filter and sealing
washer
Service valve
Water Inlet To filter

Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01 Page 5 of 8
Filter Replacement
Not changing cartridges when required may cause the water to become biologically
unsafe.
Thoroughly flush the water through, if the filter tap has not been used for more
than 12 hours. For safe operation, the filter cartridge should be replaced at least
every 6-12 months, or earlier if you notice a persistent reduction in water pressure
from the Filter Tap, or an unpleasant taste or odour in the water.
Use only a Zip filter cartridge to match that of your Filter Tap. Replacement
cartridges can be obtained through plumbing suppliers or directly from Zip.
Replacing a Zip Filtration cartridge is as easy as 1-2-3.
1. Unplug the old cartridge
2. Plug in the new cartridge.
3. Purge the filter system by flipping the Filter Tap lever open (on) for a few
minutes until the water runs clear.
High sediment water areas.
Zip Filter Tap 59087 is a single filter system suitable for areas in which water supply sediment is not a problem. In areas
with heavy sediment contamination, add the Zip Pre-Filter model 51000 with an additional filter housing 50001, for extra
sediment removal.
Operating
You can obtain filtered water within the rated capacity for as long as you rotate the lever.
In the upright position the tap is off, when the lever is rotated anticlockwise water will
flow. Water will continue to flow until the lever is returned to the upright position.
Cleaning
Never use strong, corrosive or abrasive cleaning materials on the Zip Filter Tap. Wipe the
outer surfaces clean with a sponge or a soft cloth using a mild soap and water.
Operating Procedures
ROTATE
Service
There are no user serviceable parts but there are dangerous voltages present within the unit. All service work must only
be carried out by a suitably qualified and experienced service person.
Before calling for service, check that both the water and electricity supplies are turned ‘ON’ and OK.
Call an electrican, a plumber, or Zip for a free call in Australia on
1800-638-633 for assistance, service, spare parts or enquiries.
Service

Page 6 of 8 Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01
SUBSTANCE REDUCTION
Zip Water Filter Model 52000 (Five Micron Double Action 150mm)
Performs in accordance with AS/NZS 3497 for reduction of chlorine, odour and taste as shown
below. The substances listed may not be in your water.
Class Treatment Type Function Pass
I Microbiological Status Will stop bacteria increasing, but will not remove them N/A
Bacteriostatic unless II (a) is passed
II Microbiological Treatment Will remove or inactivate bacteria N/A
II (a) Bacteria Removal
II (b) Virus Removal Will remove or inactivate virus N/A
II (c) Protozoa Removal Will remove or inactivate cryptosporidium and giardia. N/A
Will not remove or inactivate bacteria and viruses unless
II (a) and II (b) are passed
III Turbidity and Will reduce cloudiness ü
Particulate Reduction
IV Taste and Odour Reduction Will reduce tastes and odours 
V Chemical Treatment Will decrease chlorine compounds 
“This appliance may increase the bacterial content of water unless supplementary treatment is
provided”.
Legend: = Pass N/A = Not applicable
PERFORMANCE SPECIFICATION
Zip Water Filter Model 52000 (Five Micron Double Action Pre Filter 150mm)
The filter cartridge has been designed to perform to the following specifications
Chlorine, Taste/Odour Reduction (for 5678 litres approx): Class 1* (as tested in accordance with
ANSI/NSF Std 42)
Substance *Guidelines Average Maximum Minimum Average Average
or†USEPA Influent Effluent Percent Effluent Percent
SDWA MCL Concentration Concentration Removal Removal Removal
Chlorine** - 2mg/L 0.5 mg/L >75% N/A N/A
mg/L = milligrams per litre (1 mg/L = 1 part per million)
* Australian Drinking Water Guidelines - 1996
** Maximum levels AU= 3mg/L and NZ= 5mg/L
†United States Environmental Protection Agency (USEPA) Safe Drinking Water Act
REPLACEMENT FREQUENCY INSTRUCTION
Zip Water Filter Model 52000 (Five Micron Double Action Pre Filter 150mm)
Be sure to change the filter cartridge at least every 5678 litres or at least every 12 months or
whenever you detect a change in taste, odour, or a decrease in flow - 5678 litres is equal to using
approximately 15 litres daily for one year.
Performance Data Part Number 52000

Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01 Page 7 of 8
SUBSTANCE REDUCTION
Zip Water Filter Model 58000 (Sub Micron Triple Action)
Performs in accordance with AS/NZS 3497 for reduction of chlorine, cysts, odour, taste, particles and
turbidity. The substances listed may not be in your water.
Class Treatment Type Function Pass
I Microbiological Status Will stop bacteria increasing, but will not remove them N/A
Bacteriostatic unless II (a) is passed
II Microbiological Treatment Will remove or inactivate bacteria N/A
II (a) Bacteria Removal
II (b) Virus Removal Will remove or inactivate virus N/A
II (c) Protozoa Removal Will remove or inactivate cryptosporidium and giardia. ü
Will not remove or inactivate bacteria and viruses unless
II (a) and II (b) are passed
III Turbidity and Will reduce cloudiness ü
Particulate Reduction
IV Taste and Odour Reduction Will reduce tastes and odours 
V Chemical Treatment Will decrease chlorine compounds 
“This appliance may increase the bacterial content of water unless supplementary treatment is
provided”.
Legend: = Pass N/A = Not applicable
PERFORMANCE SPECIFICATION
Zip Water Filter Model 58000 (Sub Micron Triple Action)
The filter cartridge has been designed to perform to the following specifications
Particulate (Dirt/Rust) Reduction (for 7570 litres approx) Class 1* (*as tested in accordance with ANSI/NSF Std 42)
Chlorine, Taste/Odour Reduction (for 7570 litres approx) Class 1* (*as tested in accordance with ANSI/NSF Std 42)
Giardia & Cryptosporidium Cyst Reduction** >99.9% Removal
Turbidity Reduction** (**as tested in accordance with ANSI/NSF Std 53)
Substance *Guidelines Average Maximum Minimum Average Average
or†USEPA Influent Effluent Percent Effluent Percent
SDWA MCL Concentration Concentration Removal Removal Removal
Cysts 99.5% 99.9% N/A N/A
(3 - 4 micron reduction
Particles)
Turbidity 5NTU <0.2 NTU
Chlorine** - 2 mg/L 0.1 mg/L 95% N/A N/A
mg/L = milligrams per litre (1 mg/L = 1 part per million)
* Australian Drinking Water Guidelines - 1996
** Maximum levels AU= 3mg/L and NZ= 5mg/L
†United States Environmental Protection Agency (USEPA) Safe Drinking Water Act
REPLACEMENT FREQUENCY INSTRUCTION
Zip Water Filter Model 58000 (Sub Micron Triple Action)
Be sure to change the filter cartridge at least every 7570 litres or at least every 12 months or
whenever you detect a change in taste, odour, or a decrease in flow - 7570 litres is equal to using
approximately 20 litres daily for one year.
Performance Data Part Number 58000

Zip Filter Tap - Installation & Operating Instructions - 82232 - January 2012 v1.01 Page 8 of 8
Head Office
Zip Heaters (Aust) Pty. Ltd.
67 Allingham Street
Condell Park NSW 2200
Postal: Locked Bag 80
Bankstown 1885 Australia
Website: WWW.zipheaters.com
Facsimile(02) 9796 3858
Telephone[phone]
Free Call 1 800 638 633
Warranty
As Zip policy is one of continuous product improvement, changes to
specifications may be made without prior notice. Images in this booklet have
been modified and may not be true representations of the finished goods.
