Zip HydroTap 4-in-1 and
Zip HydroTap 3-in-1
Filtered Boiling and Chilled water plus Hot and Cold water for kitchens and tea rooms.
®
Installation and Operating Instructions
This Installation Instruction covers the following HydroTap models:
‘BCH’ 4-in-1 series and ‘BH’ 3-in-1 series.
®
®
Affix Model Number Label Here

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05

Page 3 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Installation Checklist
Before Installation:
A. Read the instructions
B. Check the water pressure to determine if you require a pressure
reduction valve or a flow restrictor added or removed from the kit.
C. Check the water quality to determine if extra filtration will be
required. A potable mains water supply must be used.
D. Check the appliance rating plate and ensure correct power is
available for the appliance.
E. Check the under counter cupboard supporting the appliance is
adequate for the total weight of the appliance, when full of water.
Before Commissioning:
1. Check the unit has been installed correctly.
2. Check all plumbing fittings have been tightened.
3. Ensure the outlet and vent pipes are positioned to drain correctly.
4. Ensure there is adequate ventilation.
5. Check all tubes from the undersink unit to the tap, have a constant
rise and there are no sags or kinks in the hoses.
6. Check all electrical connections are correct and there are no loose
wires.
Commission:
7. Flush the supply line before connecting.
8. Turn on the water and check for leaks.
9. Flush the filter.
10. Programme (select electronic models) to suit the customer’s
requirements.

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 4 of 24
Contents
Installation Check List .................................3
Product Description ...................................4
Read These Warnings First ..........................5 - 6
Specifications .......................................7
Installation Requirements ...........................7 - 8
Special Tools Required ................................8
Installation Procedure .............................8 - 13
Step A - Installing the HydroTap ...................8
Step B - Installing / Connecting the Mixer Tap ........9
Step C - Installing the Undersink Unit ...............9
Step D - Connecting the Hydrotap ................10
Step E - Connecting an External Filter ..........10 - 11
Step F - Connecting the Water Supply ..............12
Step G - Testing and Commissioning...............12
Step H - Set Point Adjustment ....................13
Font Installation Procedure ............................14
Operating the Mixer Tap ..............................14
Operating the Hydrotap ...............................15
External Filter Replacement ............................16
Internal Filter Replacement ........................16 - 17
Setting the Energy Saver Timer .....................17 - 18
Auxiliary Fan Attachment ..............................18
Boiling Water Isolation ................................19
Setting Boiling & Chilled Dispensing Times ................19
Cleaning and Disposal ................................19
3-in-1 Installation Options .............................21
4-in-1 Installation Options .............................21
Trouble Shooting ................................21 - 22
Notes.............................................23
Warranty / Contact Information .........................24
Hydrotap BH, 3-in-1 and BCH, 4-in-1 models employ the use of selected Hydrotap B and BC assemblies, which have
been factory modified to accept a secondary mixer tap. The mixer tap is connected so that it draws water directly from
the cold water mains as well as from the boiling water storage tank. In this way the combination of the two taps will
allow the user to select water at 4 different temperature ranges. (see estimates below)
For BCH, 4-in-1 models, the main Hydrotap outlet will deliver Boiling and Chilled water and the secondary mixer tap
outlet will deliver Hot and Cold water. Whereas the BH, 3-in-1 models will perform exactly the same, except there is no
chilled water option.
Product Description
NOTE:
Read all instructions and precautions before
proceeding. This unit must be installed in accordance
with water supply byelaws, current IEC regulations
and relevant local authority byelaws.
The estimated temperature ranges will be:
Boiling water: 68°C - 98°C
Mixed water: From ambient up to 20°C above ambient
Cold water: Ambient. (Approx. 15°C - 20°C)
Chilled water: 5°C - 15°C
NOTE: Read all instructions and precautions before proceeding.
If in doubt, or need further guidance, please call Zip on 0845 6 005 005.
Please leave these instructions with the end user after installation.
This unit must be installed in accordance with water supply byelaws, current IEE regulations and relevant local authority byelaws.

Page 5 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Read These Warnings First
Zip Hydrotap undersink assembly.
The appliance must be placed in a horizontal,
upright position, as shown above.
BCH Unit
BH Unit
Note:
Always ensure the tubes are
shortened so that any excess
is removed and their route is
the most direct line between
the tap assembly and the
HydroTap unit.
Do not allow the tubes to sag
or droop so water is trapped
within the hoses. Always
maintain a constant fall
Positioning of the tap assembly
must be within the following
parameters:
The height between the base of
the Hydrotap unit and the base
of the Tap assembly cannot be
greater than 900mm.
Safety
This appliance is not intended for use by persons (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
Refrigerant
The Zip HydroTap Chilling unit contains 134a refrigerant under pressure. No part
of the unit should be exposed to a naked flame. Maintenance of the refrigeration
unit must be carried out by an accredited service provider or qualified refrigeration
mechanic.
Qualifications
If the power cable is damaged it must be repaired only by a qualified technician. To
avoid hazards, all installation procedures must be carried out by a suitably qualified
tradesperson. The power cable and power outlet must be in a safe visible position for
connection.
The power supply cable must be adequately secured.
Do not remove the cover of the appliance under any circumstances without first
isolating the appliance from the power supply.
As the installer, it is your responsibility to supply (if necessary) and install all valves as
required by local regulations and relevant standards.
The plumbing installation must be done in accordance with local Water Authority
regulations and these Installation Instructions.
This appliance must be earthed.
Venting
Sometimes steam and / or boiling water may discharge through a vent outlet at the
mouth of the tap. If the tap is not installed using the Font pedestal, ensure the tap
body is located so the tap outlet safely drains into the sink bowl area.
NOTE: On startup, the controls take the system through a calibration process which
causes the unit to over-boil for a period of 90 seconds. Once this mode is completed
the system reverts back to normal operation.
Lifting
Take care when lifting the Zip HydroTap undersink unit. Some units may exceed safe
lifting guidelines. If you feel this is beyond your personal capabilities, please seek
assistance with the lift. The weights of the units are marked on the packaging and are
given in the table on page 7. Do not lift the unit by the doors.
Airflow
The ambient temperatures this unit should operate within are 5ºC - 35ºC.
Proper air circulation must be provided. The system will operate satisfactorily only
if the recommended air gaps are provided, these are 65mm min rear clearance
and 50mm side clearance. An air vent is provided with each unit for high usage
applications, this must be installed in the top half of the cupboard door as a matter of
course. An accessory exhaust fan kit is available and when supplied should always
be fitted to ensure adequate ventilation. Make sure that the ventilation grilles of the
undersink unit are not obstructed. Included in the installation pack are adhesive
backed silicon buffers. If air vents are not installed in the cupboards housing the
HydroTap, the buffers must be placed on the inside edge of the cupboard door to
create a slight gap ensuring a minimum airflow. Failure to do this may cause the
HydroTap to overheat and operate inefficiently.
Front View
Side View
Side View
Front View

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 6 of 24
Read These Warnings continued
Altitude
The Zip HydroTap is equipped with a self-calibrating program which caters for
altitude adjustment.
Filter Control
The Zip HydroTap filter control is preset to 6000 litres to provide trouble-free flow
and operation in most installations. Local water quality conditions may require an
alteration to this capacity. In areas where the water has a high concentration of
sediment, the preset litre capacity may be shortened to avoid poor flow, taste or
odour situations. In areas where the water quality is above average, lengthening
the preset capacity may be desirable, but not essential. If any of these changes is
needed, follow the instructions on page 16 or contact your Zip Service Provider.
Frost Protection
If this appliance is located where the ambient air temperature could fall below
5ºC when the heater is not in use, do not turn off the appliance electrically. This
safeguard does not offer the same protection to the connecting pipework and
fittings.
Environment Considerations
This unit is intended for indoor use only and should never be installed outdoors or
exposed to the elements of nature. This unit must not be positioned in an area that
may be cleaned by a water jet and must not be cleaned by a water jet.
Warning:
Zip HydroTaps are designed to operate within 1ºC to 2ºC of set point for boiling
water and at 5ºC to 15ºC for chilled drinking water. All boiling water units are
self calibrating to 98ºC, which is the recommended setting. Adjustments to the
recommended setting of 98ºC setting are not advised, however, under certain
circumstances adjustments may be made between 68º - 100ºC . The 100ºC setting
is not recommended as units may discharge or boil over more frequently.
For details see step G on page 12.
Caution must be observed when changing any settings within the Service
Menu as any changes may affect the normal operation of the unit.
Note:
Always ensure the silicone tubes are shortened so that any excess is removed
and their route is the most direct line between the tap assembly and the
HydroTap unit.
Do not allow the tubes to sag or droop so water is trapped within the hoses.
Always maintain a constant fall.
Positioning of the tap assembly must be within the following parameters:
The height between the base of the Hydrotap unit and the base of the Tap
assembly cannot be greater than 900mm.

Page 7 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
These Installation Instructions cover the 3-in-1 and 4-in-1HydroTap range. Use
the chart on the left to identify the model you are using:
Commercial Models:
BCH = Boiling / Chilled and Hot / Cold. Standard Tap (4-in-1)
BCHT = Boiling / Chilled and Hot / Cold. Tall Mixer Tap (4-in-1)
BCHS = Boiling / Chilled and Hot / Cold. Square Mixer Tap (4-in-1)
BH F = Boiling and Hot / Cold. Standard Tap (3-in-1)
BHT F = Boiling and Hot / Cold. Tall Mixer Tap (3-in-1)
BHS F = Boiling and Hot / Cold. Square Mixer Tap (3-in-1
Boiling Water Capacity:
160 = 160 cups in one hour** 200 = 200 cups in one hour**
** Capacity will be reduced by the volume of water used when operating the mixer tap.
Chilled Water Capacity: (BCH only)
125 = 125 glasses in one hour 175 = 175 glasses in one hour
Note: The Cup measurement = 167mls, the Glass measurement = 200mls.
+ signifies models are ‘freeflow’ ensuring cold water continues to flow when
chilled glasses per hour is exceeded during periods of high demand.
Installation Requirements
Before installing ensure that the following have been provided at the installation site:
• SufficientspaceinthecupboardtoinstalltheundersinkunitinaccordancewiththeseInstallationInstructions.
A table of dimensions is given above.
NOTE: Add 65mm to the Depth of the undersink unit to allow for Water and Electrical connections.
• Apotablemainswatersupplyconnectionwithisolatingvalveinsidethecupboardwithinreachofthe750mmflexible
connection and positioned so that the connection point and the stop cock will not be obstructed when the undersink
unit is installed.
• Powersupply220-240VoltAC,forconnectiontotheunitviaa13ampfusedspur.
• Thisswitchmustprovideall-poledisconnectionandacontactseparationofatleast3mminstalledinaccordancewith
wiring rules.
Specifications
Model
Max.
Boiling
Cups/hr
Max.
Chilled
Glasses/hr
Width
mm
Depth
mm
Height
mm
Weight
empty
kg’s
Weight
full
kg’s
Power
Rating
kW @
230V
BH160F
BHT160F
BHS160F
(Standard Tap)
(Tall Tap)
(Square Tap)
160 - 333 323 353 9.5 12.0 2.1
BH200F
BHT200F
BHS200F
(Standard Tap)
(Tall Tap)
(Square Tap)
200 - 364 340 409 10.0 14.0 2.6
BCH160/125+
BCHT160/125+
BCHS160/125+
(Standard Tap)
(Tall Tap)
(Square Tap)
160 125 440 473 337 28.0 35.0 2.3
BCH200/175+
BCHT200/175+
BCHS200/175+
(Standard Tap)
(Tall Tap)
(Square Tap)
200 175 500 508 395 29.5 38.0 2.8
BCH 160 125
Model
Cups of
Boiling
Water
per Hour
Glasses
of Chilled
Water
per Hour

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 8 of 24
Special Tools Required
In addition to normal tools, the following will be required:
• 35mm diameter sheet metal hole punch for sink tops. (not supplied)
• 35mm diameter hole saw for timber bench tops. (not supplied)
• Nut runner tube spanner (supplied) for fixing tap assembly.
• When installing a Font unit:
• 108mm diameter sheet metal or hole saw to suit surface being cut.
Step A - Installing the (Boiling / Chilled) HydroTap outlet
(see options P19)
1. Make sure that the tap location will allow the nozzle to drain into the
sink.
2. Cut a 35mm hole in the bench / sink top.
3. Ensure the black plastic spacer remains in place as this is the moisture
seal against the bench / sink top. A light smearing of silicon sealant
on the underside of the spacer will ensure a watertight fit.
4. Pass all three hoses through the 35mm hole and carefully locate the
Head Assembly and black spacer on the bench / sink area.
5. From the underside of the bench / sink area install the S/S washer
and “Spider Clamp” by feeding each of the three tubes and electrical
cable evenly in between the legs of the “Spider Clamp”. Slide it up
to meet the “All Thread”, and pass the “All Thread” through the centre
of the “Spider Clamp”.
6. Hold the “All Thread” steady and fit the 6mm nut to the “All Thread”
using the tube spanner supplied in the kit. Check the Tap Head position
before securing it tightly against the bench / sink top.
NOTE 1: The tap assembly must not be positioned more than 900mm
above the HydroTap unit.
Failure to do this may result in poor water delivery.
NOTE 2: Under no circumstances should the Tap be twisted after the
installation is complete.

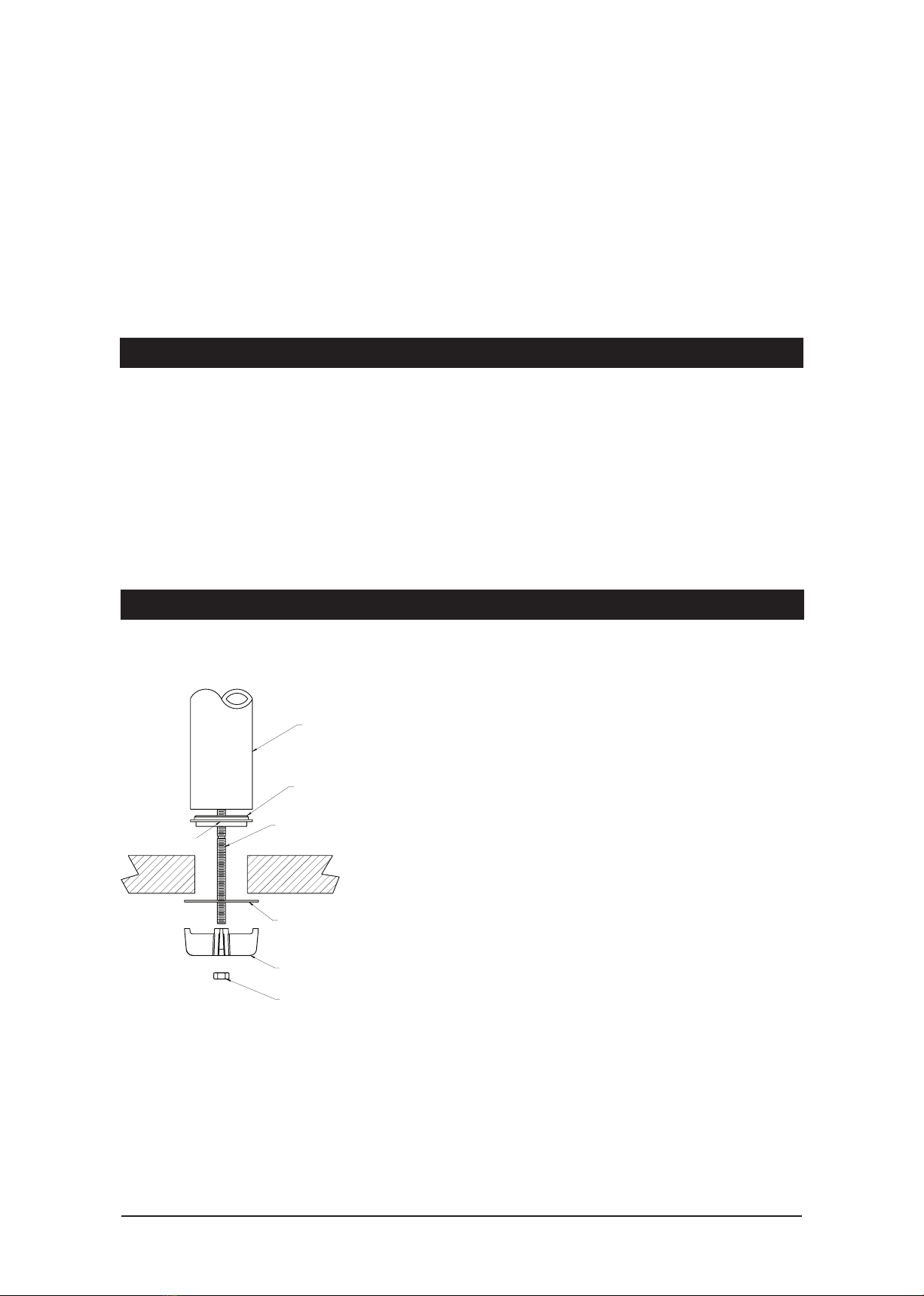

Installation Procedure
Black
Plastic
Spacer
See para 3.
Note:
A stainless steel washer is supplied to
go in between the Spider Clamp and the
underside of the sink top. See location
as shown.
Spider
Clamp
Fixing nut
S/S
Washer
Tap
All-thread rod
Benchtop
• Apotablemainscoldwatersupplywithaminimumworkingpressureof2bardynamicandamaximumworking
pressure of 7 bar connected via an isolation valve. If pressure is likely to exceed 7 bar, install a 3.5 bar Pressure
Limiting Valve.
• ThefittingofanairflowventcutintothetophalfofthecupboarddoorconcealingtheHydroTaprequiringacutsize
of approximately 100mm circular, to provide adequate warm air displacement. In installations where high volume
draw-off will occur, the fitting of the accessory exhaust fan is essential.
Important: Do not proceed with the installation if these requirements are not met.
CAUTION: In order to avoid a hazard due to the inadvertent resetting of the thermal cut out, this appliance must not be
supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on
and off by the utility

Page 9 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Installation Procedure continued
Step B - Installing the (Hot / Cold) Mixer tap outlet
(see P20 options)
The approved vented tapware, as supplied must be used. It is advisable to
fit the tap to the sink before installing the undersink unit. Do not dismantle
the assembled tap body during installation. Mixer taps are factory tested and
sealed to provide optimum performance.
The sqaure tap option will require the spout to be fitted to the the tap body.
Carefully insert the spout into the tap body and push fully home. Tighten the
grub screw using the supplied Hex Key. Do not overtighten the grub screw, the
spout should be able to swivel without interference from the grub screw.
Before connection, it is recommended to flush water supply pipes thoroughly
to remove any silt or fines.
1. Make sure the tap location will allow the nozzle to drain into the sink.
2. Cut a 35mm hole in the bench / sink top.
3. Screw the 2 Braided hoses to the underside of the mixer tap, ensure that
each are firmly attached and in the correct colour or marking sequence.
See the diagram below for correct orientation.
4. Fasten the mixer tap body to the sink using the bolt & plate system
provided.
5. After the tap has been secured in place, screw the ½” tube (Fig. A-6) into
the remaining position on the underside of the mixer tap.
6. Connect the unmarked braided hose to the incoming cold water supply
using the tee piece (Fig. A-3) and restrictaflow (Fig. A-4).
7. Connect the clear hose to the top of the venturi (Fig. A-1) and join the
other end to the check valve (Fig. A-5) and connection pipe (Fig. A-6).
8. Connect the braided hose with a BLUE band to the elbow (Fig. A-2) on the
lower end of the venturi (Fig. A-1).
Step C - Installing the undersink unit
SPECIAL NOTE: The HydroTap undersink units are heavy, take note of the
weights listed in the table on page 7. If you think you cannot lift the unit
safely, get help and avoid possible injury.
Before positioning the heater connect the braided water inlet hose (supplied)
from the cold water tee piece (see item 3 in Fig.A) to the cold water inlet at the
rear of the unit.
Position the Zip HydroTap undersink unit as close as possible to directly
beneath the Zip HydroTap tap head. The connection tubes supplied with the
tap head assembly CANNOT be lengthened.
Leave at least a 50mm air-gap without obstruction on each side of the unit
and 65mm at the rear
The following instruction is CRITICAL:
Adjust both cupboard door hinges and attach the supplied rubber door buffers
to the doors to create a 4mm air-gap between the doors and the cupboard.
This is the minimum ventilation requirement for low usage installations.
Proper air circulation must be provided for all Boiling and Chilled models. The
system will operate correctly only if the recommended air gaps are achieved
during installation. A ventilation hole measuring 100mm must be cut into the
top half of the cupboard door to accommodate the air vent provided.
Make sure that the undersink unit ventilation grilles are not obstructed in any
way.
Cupboard ventilation for Boiling only models is recommended.

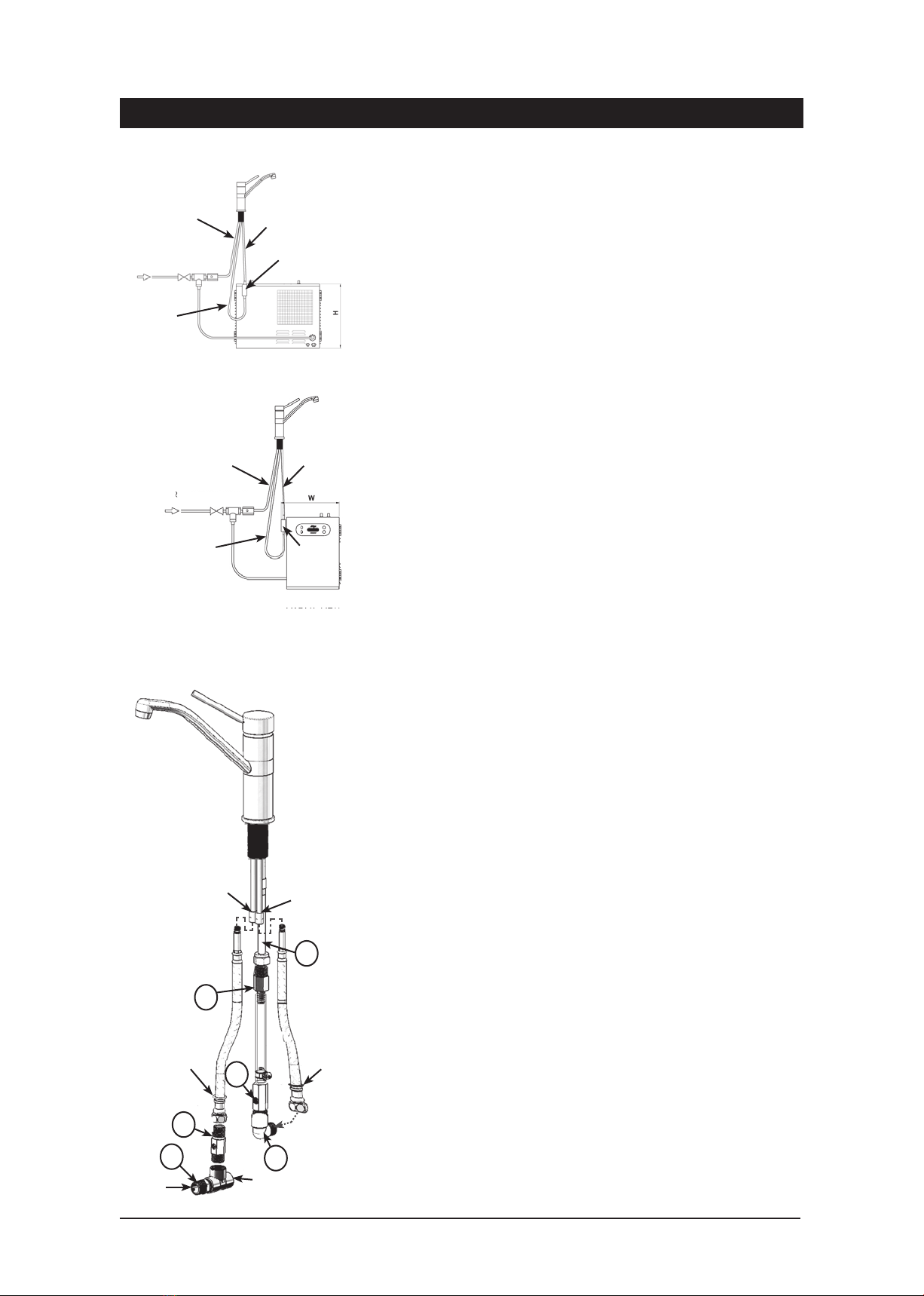

4-in-1 Mixer assembly
3-in-1 Mixer assembly
SERVICE VALVE
White or non
marked hose
White or non marked
hose
Clear hose
Venturi
Clear hose
Venturri
Blue marked
hose
Blue marked
hose
FRONT VIEW
SERVICE VALVE
MAINS WATER
SUPPLY
MAINS WATER
SUPPLY
REAR VIEW
1
4
5
6
32
Unmarked
hose
Unmarked
Fig.A
Mixer tap
connections
Mains IN
To
HydroTap
Unit
Blue Band
Blue
marking
NOTE :
New hose sets supplied with the unit
should be used. Do not use old hose
sets.
NOTE: The braided
hose with the blue
ring must be fitted
to the tap outlet
with a blue mark.
Fit the unmarked
braided hose from
mains supply to the
unmarked tap inlet.

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 10 of 24
Step D- Connecting the (Boiling / Chilled) HydroTap outlet
Note: Included in the installation pack are adhesive backed silicon buffers. If
air vents are not installed in the cupboards housing the HydroTap, the buffers
must be placed on the inside edge of the cupboard door to create a slight gap
ensuring a minimum airflow. Failure to do this may cause the HydroTap to
overheat and operate inefficiently.
Model BCH (4-in-1)
Measure and trim the blue tube and connect it to the chilled water outlet
located on the top front, right hand side of the undersink unit. Use spring
clamps provided to secure the hose.
Measure and trim the red marked tube and connect it to the hot water outlet
located on the top centre, right hand side of the undersink unit. Use spring
clamps provided to secure the hose.
Measure and trim the unmarked tube and connect it to the vent outlet located
on the top centre, left hand side the top of the undersink unit. Use spring
clamps provided to secure the hose.
NOTE: All tubes must have a continuous fall back to the undersink unit.
Connect the tap USB connector to the USB port on the undersink unit. Orient
the USB plug carefully and connect, do not force the plug. Once connected, fix
the cable to the wall, ensure it is away from any possible water splashes and
is off the floor.
NOTE: When trimming any silicon tubes trim to minimum length, do not loop
any excess or allow kinking of the tubes. When connecting, slide the tube over
the pipe at least 25mm. There are black plastic clamps provided on the boiling
and chilled hoses to choke the flow if required. Only choke the flow if it is
excessively strong.
Model BH (3-in-1)
Measure and trim the red marked tube and connect it to the hot water outlet,
on the top of the undersink unit. Use spring clamps provided to secure the
hose.
Measure and trim the unmarked tube and connect it to the vent outlet on the
top of the undersink unit. Use spring clamps provided to secure the hose.
NOTE: Both tubes must have a continuous fall back to the undersink unit.
Connect the tap USB connector to the USB port on the undersink unit. Orient
the USB plug carefully and connect, do not force the plug. Once connected, fix
the cable to the wall, ensure it is away from any possible water splashes and
is off the floor. Fasten the tap body to the sink using the bolt & plate system
provided.

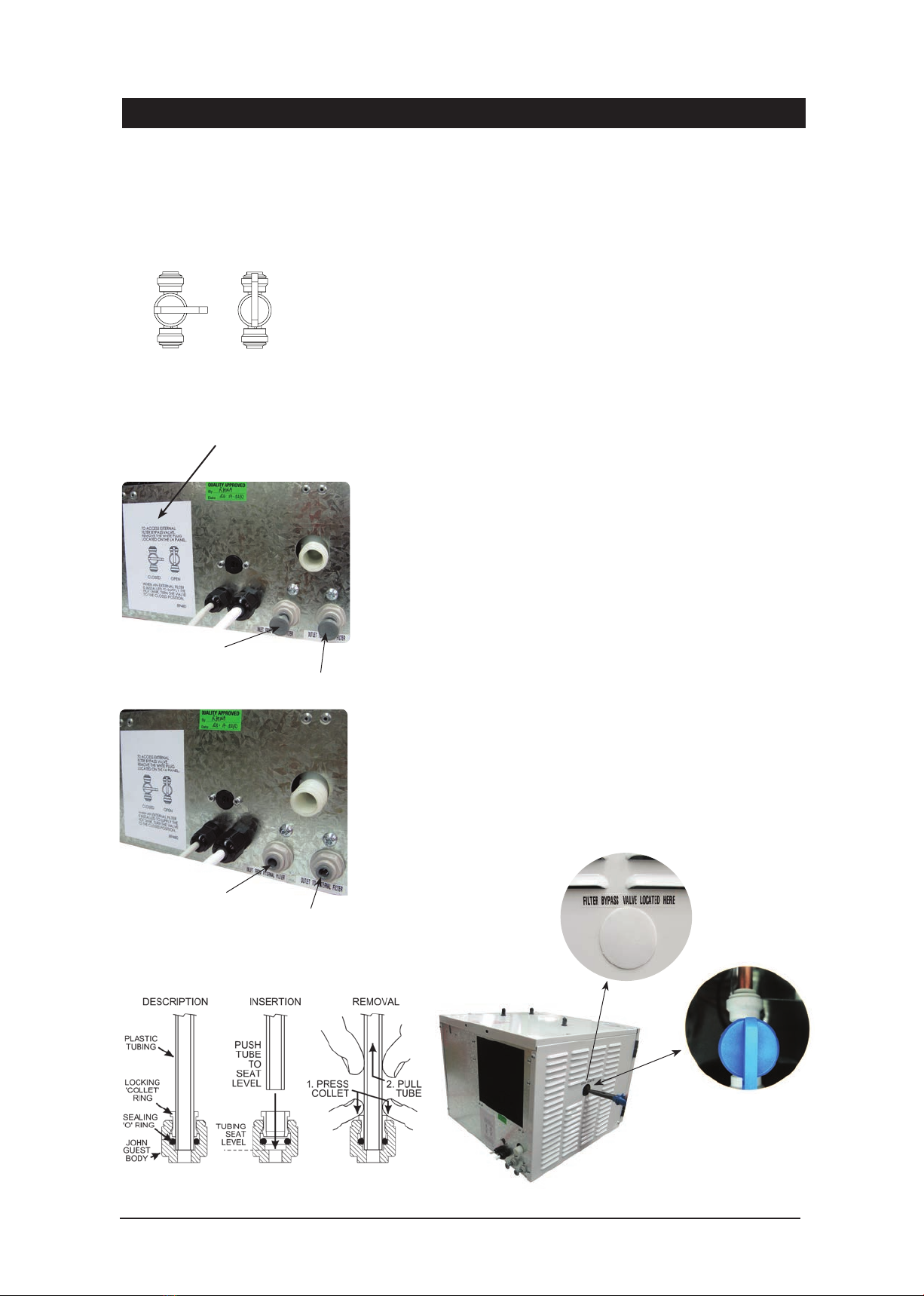

Step E - Connecting an external filter.
(Not supplied as standard equipment).
To combat the build up of lime scale, a high performance external filter kit
may be ordered from your Zip service provider.
NOTE:- When fitted, the external filter will supply filtered water only for the Hot
tank. The internal filter will continue to supply filtered water for the cold tank.
• The external filter may require the inlet water pressure to be regulated to
lower than 6 bar. In this case a 3.5 bar Pressure Reduction Valve will be
required.
Installation Procedure continued
Vent line Chilled OutletHot Outlet
4-in-1 HydroTap connections
Front
Vent
Hot Outlet
3-in-1 Hydrotap connections
Rear panel with external filter fittings
Venturi

Page 11 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
• The rear of the unit is fitted with, ¼” John Guest, inlet and outlet fittings,
specifically for the Zip high performance filter kit.
• These instructions must be read in conjunction with the filter fitting
instructions supplied with the high performance filter kit.
• The filter assembly must be located close to the appliance with sufficient
space for service access. Consult the instructions supplied with the filter kit.
To fit the external filter kit:

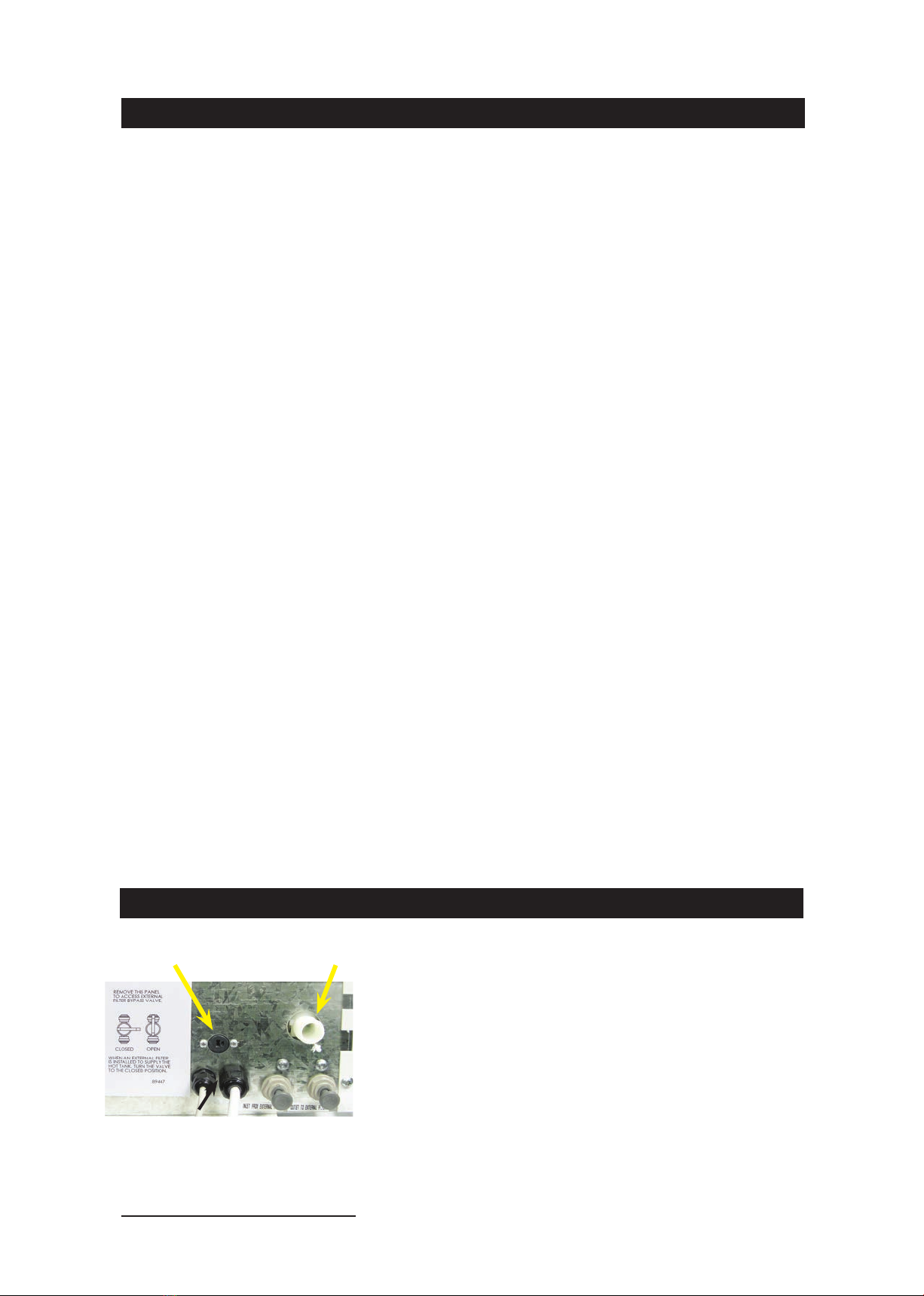

• Access the filter bypass valve, by removing the white plastic plug, located
on the Left hand side of the undersink unit (see Fig.5)
• Using a suitable set of pliers, close the filter bypass valve as instructed in
Figure 1.
• Remove the Inlet and Outlet plugs from the John Guest fittings as shown
in Figures 2, 3 and 4.
• After suitably mounting the filter assembly to an adjacent surface,
measure and trim the filter inlet and filter outlet tubes.
• Fit the tubes to their respective inlets and outlets, checking to ensure the
flow of water corresponds to the direction indicated by the arrow on the
filter head and by the instructions listed on the rear panel of the under
sink unit.
• Check the lower left hand John Guest fitting is the ‘Inlet from the external
filter’, and the right hand John Guest fitting is the ‘Outlet to the external
filter’.
• Refit the white plastic plug and relocate the undersink unit, ensuring all air
gaps and clearances are maintained. (see P5 Airflow details).
• Activate the filter programme within the service mode.
• After Testing and Commisioning (Step G).
• Set the external filter life - Refer to filter instructions..
• Set external filter use.
• Check all connections for leaks.
Installation Procedure continued
CLOSED
OPEN
WHEN AN EXTERNAL FILTER
IS INSTALLED TO SUPPLY THE
HOT TANK, TURN THE VALVE
TO THE CLOSED POSITION.
TO ACCESS EXTERNAL
FILTER BYPASS VALVE,
REMOVE THE WHITE PLUG
LOCATED ON THE LEFT HAND
PANEL.
89480
Inlet from external
filter with plug
removed
Outlet to external
filter with plug
removed
Outlet with plug
Inlet with plug
John Guest fittings: Insertion and removal Accessing the filter bypass valve
Fig.2
Fig.3
Fig.4
Fig.5
Fig.1
CLOSED
OPEN
WHEN AN EXTERNAL FILTER
IS INSTALLED TO SUPPLY THE
HOT TANK, TURN THE VALVE
TO THE CLOSED POSITION.
REMOVE THIS PANEL
TO ACCESS EXTERNAL
FILTER BYPASS VALVE.
89447

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 12 of 24
Installation Procedure continued
Step F - Connecting the water supply
To prevent sediment from entering the Zip HydroTap at connection, flush water
through the supply line thoroughly before connection to the Zip HydroTap.
Open the access door and check that the filter is in place and secure. Connect
the water supply to the undersink unit using the attached flexible hose.
Turn on water and check for leaks. If no leaks are evident turn the power on.

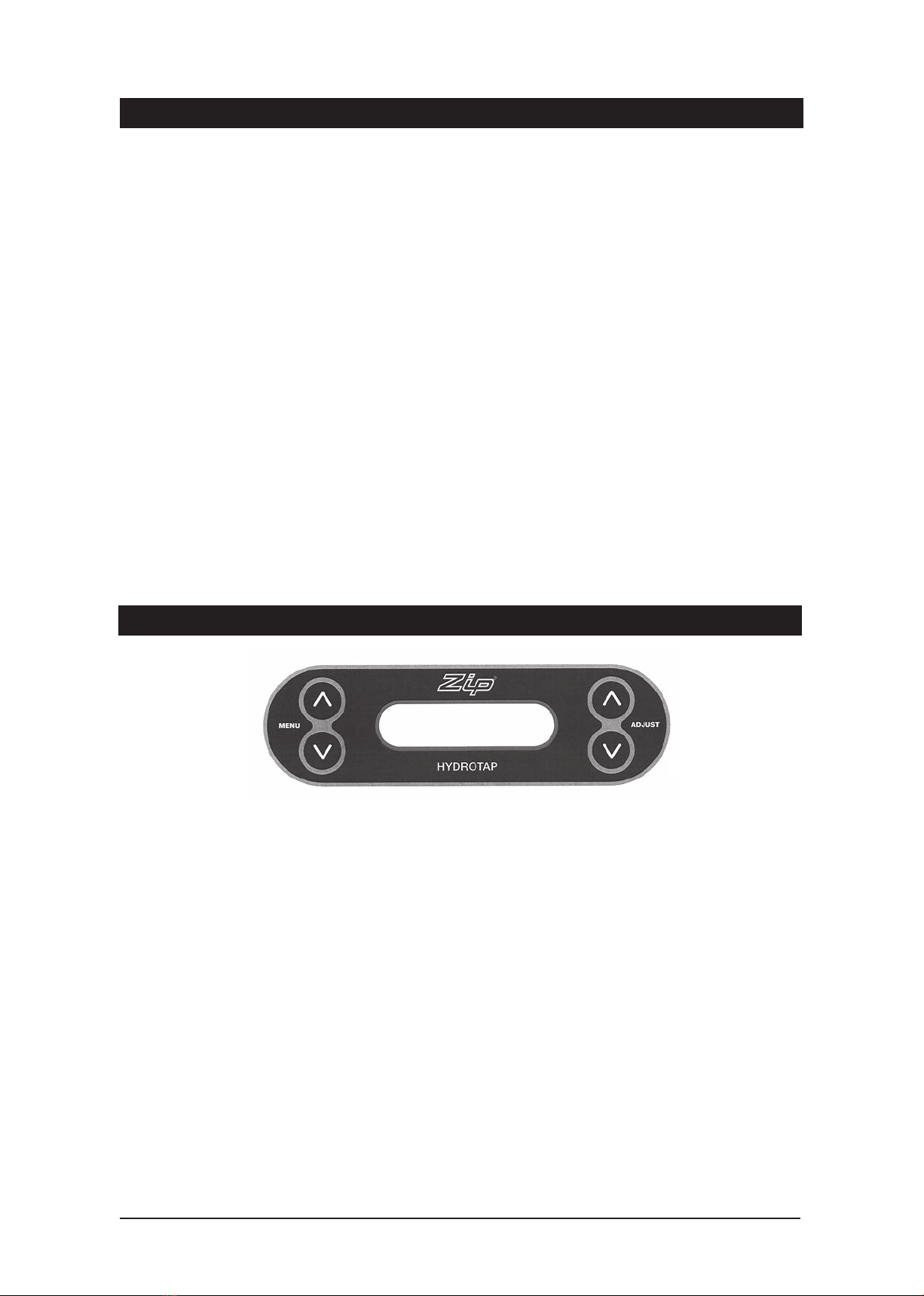

Step G- Testing and commissioning
Use these buttons to
scroll through the menu
Use these buttons to
activate and de-activate
the program selected

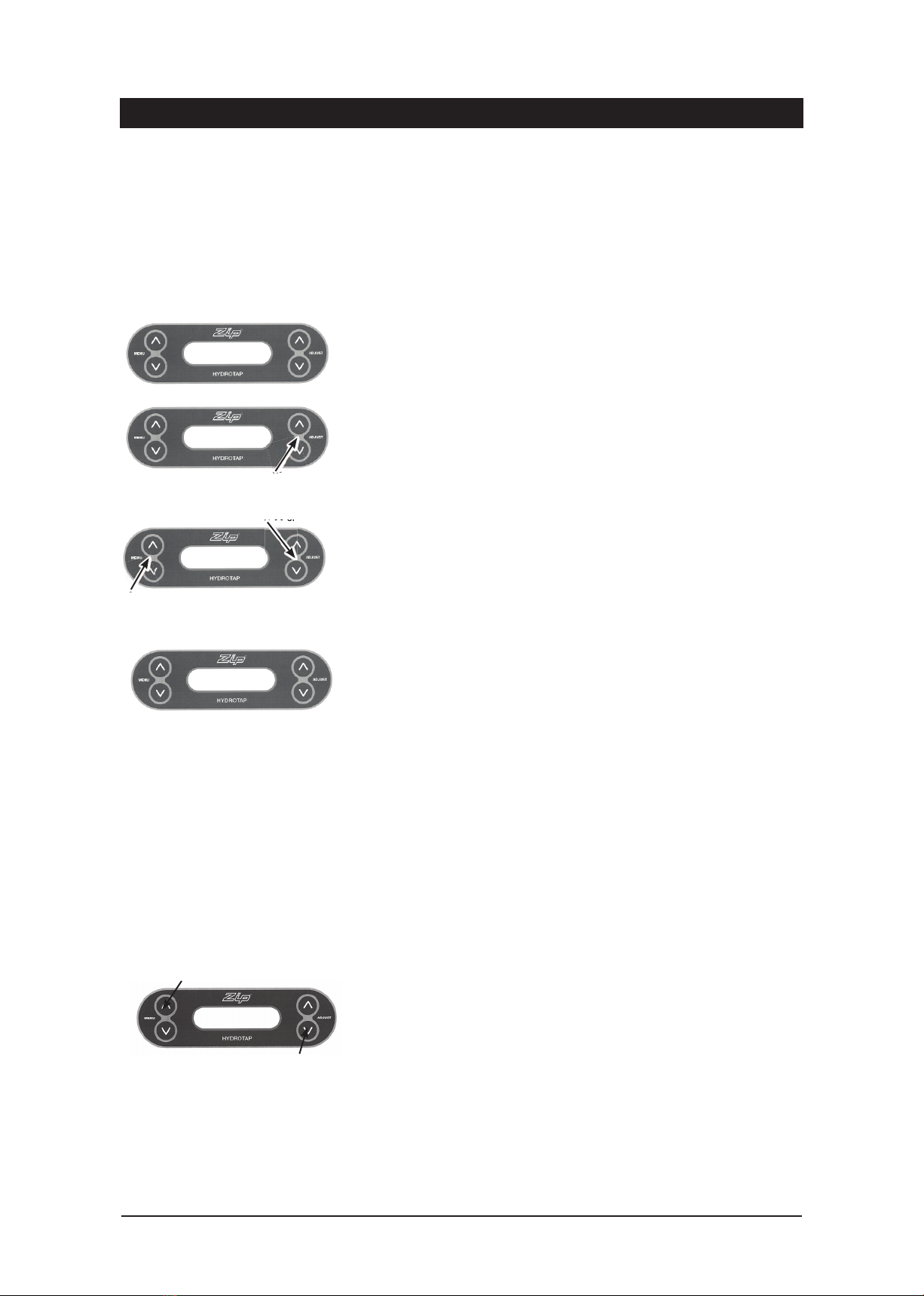

Model Selection
1. When first turned on, the screen will display general product information
for approximately 2 seconds (Fig.a).
2. The screen will then display ‘To Select Model Press ADJUST ->’. Press the
ADJUST
>
or
>
button once to check the model number (Fig.b).
3. The screen will now display ‘<-Scroll Exit->’ and the model
description (Fig.c). The factory default model description on the screen
should match the product model description on the front cover of this
instruction manual. If the correct model description is displayed, select
‘Exit’ by pressing ADJUST
> or
>
to confirm selection and exit model
description selection setting.
If the model description displayed is incorrect, select the ‘Scroll’
option by pressing MENU > or
>
button to scroll through the model
discription until the correct model description is displayed then select
‘Exit’ by pressing ADJUST > or
>
to confirm selection and exit model
description selection setting.
4. The model selection is now complete. The ‘Start Filt Flush’ will be
displayed (Fig.d).
Start Filt Flush
>Press Adjust
>
Fig.d
<- Scroll Exit->
BC160/125+
Press ADJUST > or
>
to exit
ADJUST
Press MENU
>
or
>
to scroll through the model numbers.
Press MENU
Press ADJUST
Press ADJUST
>
>
or
or
Zip Industries
HTAP BC 1.30E11S
Fig.a
To Select Model
Press ADJUST ->
Fig.b
Fig.c
ADJUST
Filter Flush Mode
Have a bucket or similar container (not supplied) at the ready to hold a
quantity of water that is ejected while the Filter Flush Mode is in operation.
Open the filter access door on the front of the HydroTap and the filter cartridge
will be exposed. Located to the rear RHS of the cartridge is a fixed flush line,
approx 600mm long and the flush line stop cock. Place the free end of the
flush line into the bucket or container (not supplied).
Turn “ON” water supply and open the flush line stop cock. The display will
show Filter Flush Mode. To activate press adjust
<
Run at least 7.5 Ltrs of
water through to activate the filter membrane.
Press the adjust
<
button again to stop the Filter Flush Mode. Turn OFF the
Filter Flush stop cock and re-locate the tube and stop cock in the filter
compartment. Turning OFF the Filter Flush Mode puts the HydroTap into
calibration mode. Press adjust
<
to start calibration. The element will now
cycle ON and heat the water to 90ºC maintaining it at that temperature for a
short stabilization period.
Once stabilized, the element will cycle ON, bring the water to boiling point and
hold it there for a short period.
The unit now carries out a self calibration function to ensure correct
temperatures are maintained. During this period the Red LED on the Tap Head
assembly flashes slowly until the calibration function is complete.

Page 13 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05

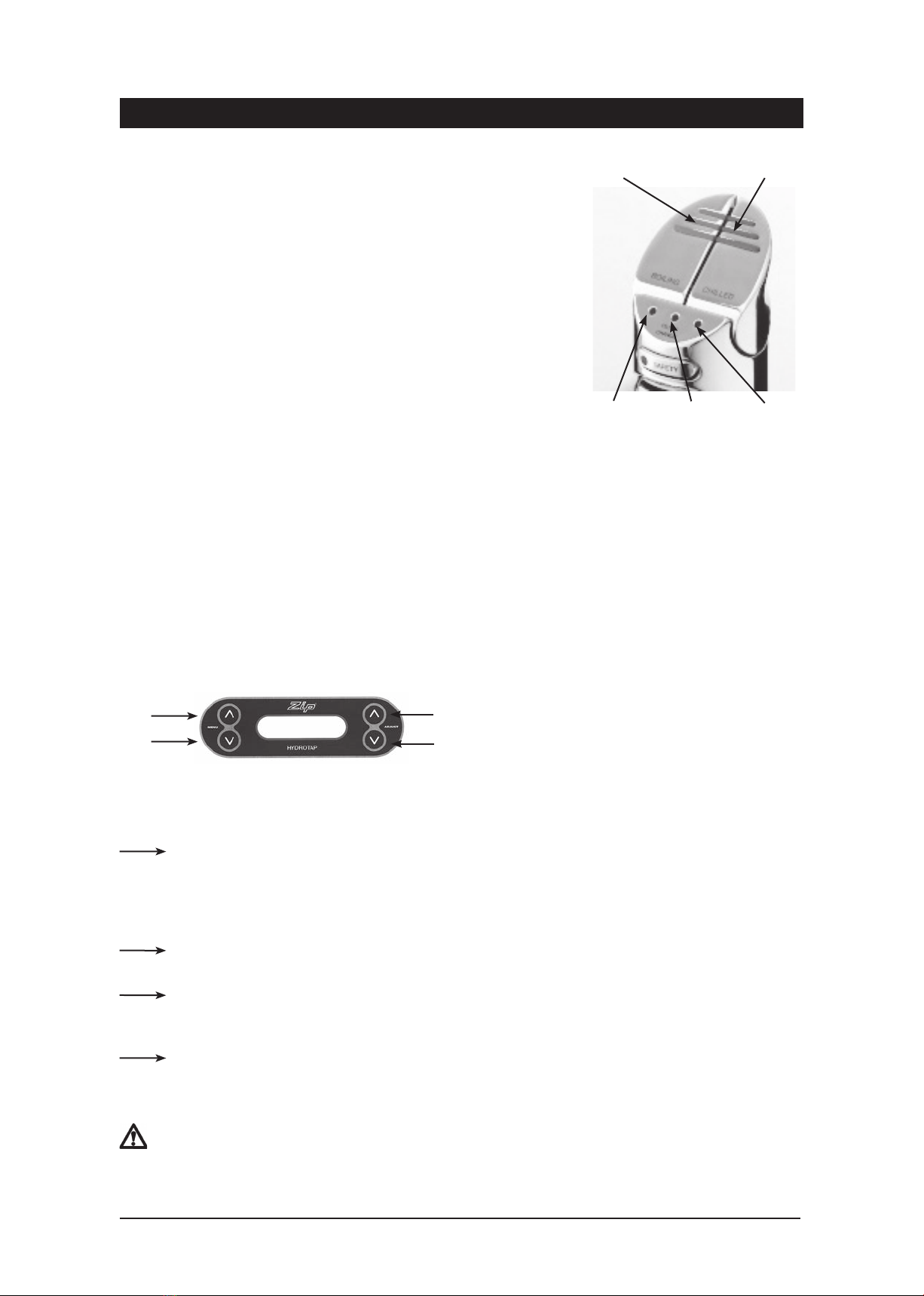

Step H - Temperature set point adjustment
(Not normally required)
Temperature and Water level screen: (Service Default Screen)
To access this default screen, on the right hand side of the screen, press the ‘A’ adjust buttons together until the screen
changes to Service Mode, it will show the following:
Hot Temp Lvl
Cold Temp Lvl
NOTE: The temperatures shown are actual, not the set temperatures. To revert back to the Normal Operation screen,
press the adjust buttons together again until screen changes.
Press the Menu plus button, once, to enter the Hot Temperature Adjustment Screen:
Here you can adjust the Hot temperature set point by pressing the Aadjust
> or
>
buttons.The Hot temperature set
point can be raised or lowered in 0.5ºC increments between 68º - 100ºC. Note: the Maximum setting of 100ºC is not
recommended for normal use. Do not raise temperature above 98.5ºC without consulting Zip first to discuss the service
issue.
Press the Menu minus button, once, to return to the service default screen:
NOTE: On the BCH models the cold temperature set point can be adjusted as follows:
Press the Menu minus button, once, to enter the Cold Temperature Adjustment Screen:
Here you can adjust the Cold temperature set point by pressing the adjust
> or
>
. The cold temperature set point can
be changed in 2ºC increments as follows: 5-9º ; 7-11º ; 9-13º or 11-15ºC.
Press the Menu minus button, once, to return to the service default screen:
To change the service default screen back to Normal Operation, press the adjust buttons together until the screen
changes back.
Warning:
Caution must be observed when changing any settings within the Service Menu as changes may affect the normal
operation of the unit.
Hot Temp Lvl
Cold Temp Lvl
Menu plus
Menu minus
A
A
Installation Procedure continued
Once this step is complete (approx 5 minutes) the unit will default to normal
operation.
When starting, both Boiling and Chilled cycles activate simultaneously after
calibration has taken place, the descriptions below indicate what happens during
each cycle.
Boiling
The unit is now running in normal operating mode. The Red LED will flash until
usable temperature is reached.
Before using the HydroTap wait 5 minutes after this point to allow adequate fill
time. The unit is now ready for use. Test water delivery from the tap and check for
appropriate temperatures. Use cable clips to tidy and secure wiring.
Chilled
When water and power is turned On, the Blue LED flashes slowly on the Tap Head assembly. The compressor activates
and water begins to fill the chiller tank at the prescribed rate. When the water is chilled to 15ºC the Blue LED on the Tap
Head assembly stops flashing and stays illuminated. The compressor continues to chill down to 5ºC when it will cycle Off.
Ensure that the clock matches your local time. If not refer to page 17. If Energy Saver Settings are required, the
instructions for installing these are described on page 17 “Setting the Energy Saver Timer”.
Boiling Water Lever Chilled Water Lever
Red Light White Light Blue Light
Boiling Filter Status Chilled

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 14 of 24

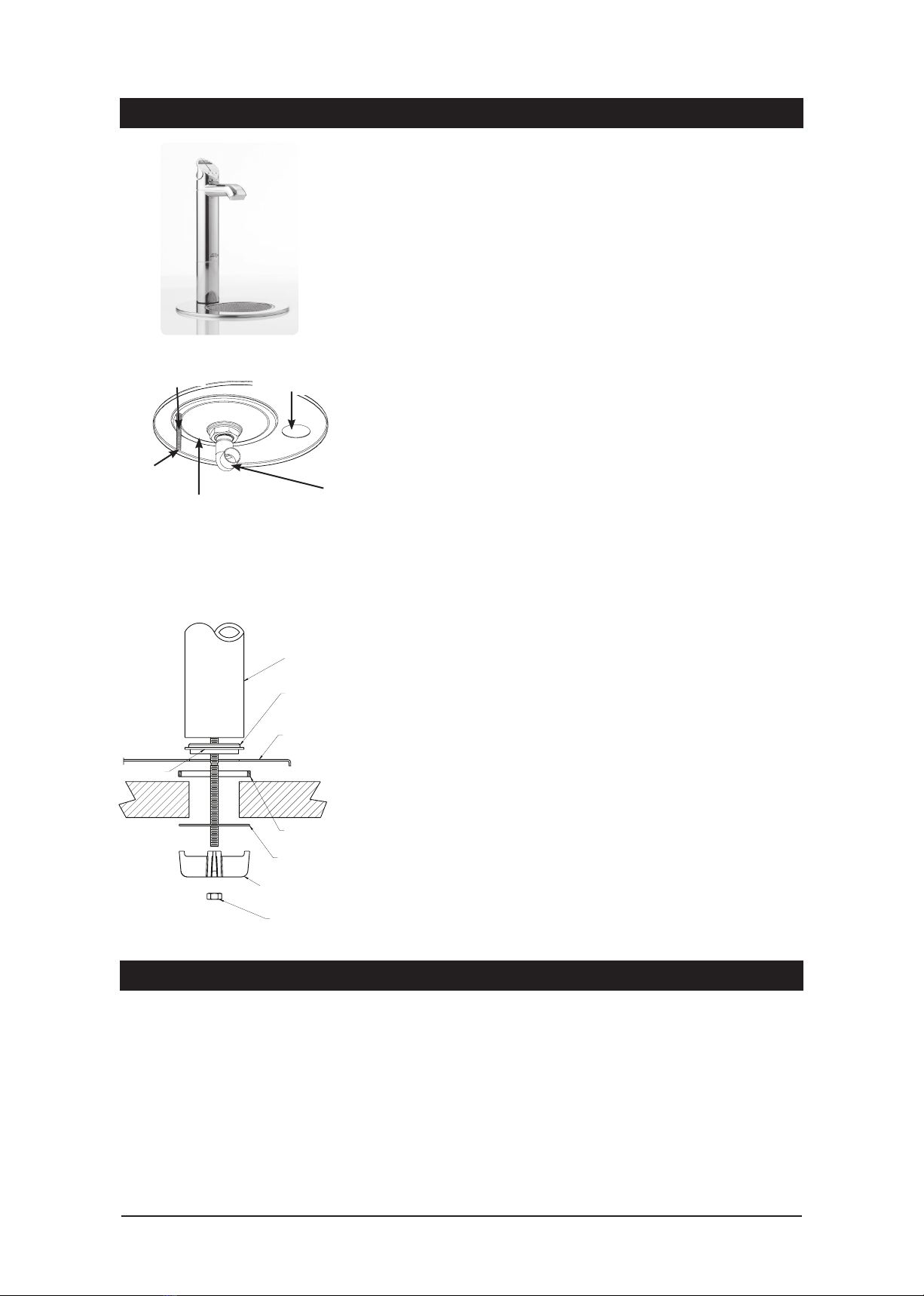

1. Position the Font template (provided) on the bench area. Ensure the
position you select is within the length of the supply tube and USB cable
fixed to the Tap Head Assembly. These cannot be extended.
2. Check again for correct positioning. The supply hoses must have
constant fall back to the tank assembly. Cut the holes as shown on the
template.
3. Once holes are cut, locate the Font base in position, from the underside,
lightly tighten the securing rod with the nut and washer provided.
4. Apply a light smear of silicon sealant to the underside of the black base
ring, this will provide a water tight seal against the Font base when
clamped. * Ensure the plastic spacer is correctly located under the Font.
5. Now take the Tap Head Assembly. Feed the hoses and USB cable
through the Font base, then through the plastic spacer that sits under
the font base but on the bench top. This stops warping of the base
plate. Ensure the Tap spout is directly centred over the Font drain. Fit
the “Spider Clamp”, nut and washer onto the “All Thread”. Have all the
supply tubes and USB cable located evenly between the “Spider Clamp”
legs. When satisfied with the positioning, tighten the fixing nut with the
Tube Spanner provided in the kit.
6. Tighten the securing pin so the Font base is flush with the bench top.
NOTE: The fixing nut above the drain elbow can be loosened to correctly
position the direction of the elbow. Ensure when the re-positioning is
complete the nut is re-tightened to ensure a water tight seal.
7. Connect a drain hose (22mm ID) from the Font base outlet elbow to the
closest drain trap spigot available. If a spigot is not available use the
snap on spigot and worm drive clamps supplied in the kit. (Instructions
and diagrams are supplied in the kit).
8. Ensure the positioning of the snap-on spigot is on the “sink” side of the
trap and not the “waste” side. Once positioned, a hole (13mm ID) will
need to be drilled to provide waste access to the drain line. The snap-on
unit will require suitable sealant to keep it water tight against the waste
pipe. Finish by fitting the worm drive clamps tightly on either side of the
spigot and fitting worm drive clamps to either end of the drain hose.
The drain hose from the Font must have constant fall
9. Connect the Tap head Assembly supply hoses and vent as per the
instructions contained in the installation procedure section of this
document.
NOTE: A stainless steel washer is supplied to go in between the Spider
Clamp and the underside of the benchtop. See location as shown.
Tap assy
hole 35mm
Hole required for Font
recess 108mm
Fixing stud
Drain elbow
View from underside
Cut a 10mm
slot for stud
Black
Plastic
Spacer
See note 4.
Spider
Clamp
Fixing nut
S/S Washer
Tap
All-thread rod
Benchtop
Font
Spacer
Under Font *
Operating the Mixer Tap
The Mixer tap is operated as a conventional ‘Flick Mixer’
Lifting the handle up will increase the flow rate and lowering the handle will
reduce the flow rate. Push the handle all the way down to turn the tap off. (For
Standard and Tall tap) For Square tap pulling the handle backwards away from
the tap body increases the flow and pushing forwards towards the tap body
decreases the flow.
When the handle is moved to the left, the temperature is increased and when
moved to the right the temperature is decreased. The final temperature will be
dependant on the temperature of the incoming cold water.
The spout may be swivelled, left or right, for convenience.
Font Installation Procedure

Page 15 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Blue Chilled Water Light
On all the time:
This indicates that the temperature of the chilled water is within the usable
temperature range.
Flashing slowly :
This indicates that the chilled water is not at the right temperature. Wait up to
20 minutes. When the chilled water is at the right temperature, the light will
stop flashing. Note: The Zip HydroTap is designed to dispense chilled water in
the temperature range 5°C to 15°C.
During heavy usage, the temperature can rise out of this range.
Red Boiling Water Light
On all the time: This indicates that the boiling water is ready.
Flashing slowly : This indicates that the boiling water is below usable
temperature.
Filter Change Light Off: This indicates the filter is operating within its normal
specified life span.
Filter Change Light Flashing slowly : The light will flash slowly when the
filter is due for replacement and the LCD will show “Filter Change”. Refer to
“Replacing the filter” section of this document.
Boiling Water Lever
Depressing the “Red” lever allows dispensing of Boiling water.
Pulling up the Red lever allows the tap to operate in a “no-touch” mode. Water
will flow from between 5 and 15 seconds (This is user adjustable). To reset,
return the handle to the “Off” position and repeat the step. The lever has to be
manually returned to the “Off” position.
Chilled Water Lever
Depressing the “Blue” lever allows dispensing of Chilled water. Pulling up the
Blue lever allows the tap to operate in a “no-touch” mode. Water will flow
from between 5 and 15 seconds (This is user adjustable). To reset, return the
handle to the “Off” position and repeat the step. The lever has to be manually
returned to the “Off” position.
Child Safety Lock (4 in 1)
The child safety lock can be activated to prevent boiling water flowing if the
hot lever is inadvertently activated.
To activate: First press the safety lock then depress the Blue Chilled water
lever for a period of approximately ten seconds. The safety lock indicator light
will now be illuminated.
To de-activate: First press the safety lock then depress the Blue Chilled water
lever for a period of approximately ten seconds. The safety lock indicator light
will now extinguish.
To operate when the lock is ON, depress both the Red lever and the safety
lock simultaneously.
Child Safety Lock (3 in 1 )
To activate the child safety lock , go to the LCD display, using menu
<
or <
scroll to the Safety Lock display. To turn ON adjust
<
to turn OFF adjust <
button. After about 10 seconds the screen will default to the selected mode.
When activated the LED on the safety lock will be illuminated. If de-activated
the LED will be OFF.
To operate when lock is ON, depress both the Red lever and the safety lock
simultaneously.
Note: On the Boiling only models
the Chilled LED is blank.
Boiling ChilledFilter Change
Operating the HydroTap
Press or pull lever
Child safety Lock

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 16 of 24
Theseinstructionsmustbereadinconjunctionwiththefilterfitting
instructionssuppliedwiththehighperformancefilterkit.
Depending on local water quality conditions and usage, the filter will require
changing when it has reached its rated capacity. You may also need to replace
the filter if you notice unpleasant odours or tastes.
To change the pre-set filter life, scroll through the menu to “External Filter
Life”, press adjust
> to reset litre counter. Press adjust > and it asks “are
you sure”. Press adjust > again to lock in the command.
To Change the external filter:
1. Scroll through the screen menu to “Filter Flush Off” this isolates the water
supply.
2. Relieve system pressure by lifting the Hot lever and allowing the water to
run until it shuts off automatically (15 secs.)
3. Remove and replace the spent external filter cartridge as described in the
filter kit instructions. Mop up any spills from the filter head.
4. Scroll through the menu to “External Filter Used”, press adjust
> to reset
the litres. Press adjust > and it asks “are you sure”. Press adjust >
again to lock in the command. After approx 10 seconds it will default to
the selected mode.
The Zip HydroTap notifies when filter replacement is due. The default setting
is 6000 litres, but this can be set in increments of 1000 litres from 1000 litres
to 10000 litres. When a filter change is due, the Change Filter light will flash
white once a minute and remain so until reset. A filter status light is located
between the Red and Blue Lights on the tap head assembly.
Depending on local water quality conditions and usage, the filter may require
changing anywhere from 1000 litres to 10000 ltres. You may also need to
replace the filter if you notice unpleasant odours or tastes.
Some water may drip from the filter head (socket) during replacement. Keep a
bucket and towel handy to catch drips and mop up any spills.
To change the Filter:
1. Scroll through the screen menu to “Filter Flush Off” this isolates the water
supply.
2. Open the left door
3. Relieve system pressure via the filter flush stop cock, a quick open and
close will do.
4. Grasp filter cartridge and twist right to left one quarter turn until it stops.
5. Ease cartridge downwards to detach it from the filter head (socket).
6. Do not tilt the cartridge as dirty water may spill from it if tilted.
7. Unpack replacement cartridge and write today’s date where shown on the
label.
External Filter Replacement
HydroTap filter location
Internal Filter Replacement
Boiling Unit - filter location

Page 17 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Setting the Energy Saver Timer
Normal Operation Set Time
To change time, press either Mode
<
or Mode < button until Set Time is on the display screen.
Press
<
Adjust button to increase time or < Adjust button to decrease time. Time increases
or decreases in increments of one minute. Hold the Adjust buttons down for rapid increases or
decreases. The time will be displayed in 24Hr mode.
Set Day
Press either Mode
<
or Mode < button until Set Day is displayed.
Press
<
Adjust or < Adjust to select day.
Filter Life ( factory set at 6000ltrs )
Press either Mode
<
or Mode < button until Filter Life is displayed.
Press
<
Adjust button to increase Filter Life or < Adjust button to decrease Filter Life.
Filter Life increases in 1000 Ltr increments to a maximum of 10000ltrs.
Reset Litres Filtered
This function is to reset the Filter Change display after a filter has reached the end of its life (refer
to “Replace Filter Instructions” section of this document).
Mode Plus Button
Mode Minus Button
Adjust Plus Button
Adjust Minus Button
Note:
Mode buttons
change the
screen options
Adjust buttons
select the
screen options
8. Avoid touching the filter “O” rings and filter opening as this may cause
bacterial contamination of the cartridge.
9. Align cartridge tabs with the slots on the under-side of the filter head.
10. Slide cartridge upward into head and rotate left to right until it stops.
11. Locate the filter flush hose situated behind the filter cartridge and run to a
container ready for flushing. Open the flush hose tap lever. On the control
panel press adjust
>
, this will start the water flushing the cartridge.
Allow at least 7.5 Ltrs of water to run through to activate the filter and
then press adjust
>
to stop the flow.
12. Isolate the filter flush stop cock and re-fit behind the filter cartridge.
13. Wipe up any spills and dispose of spent filter cartridge and packaging
thoughtfully.
14. Scroll through the menu to “Litres Filtered”, press adjust
> to reset litre
counter. Press adjust > and it asks “are you sure”. Press adjust > again
to lock in the command.
15. Scroll through the menu to “Filter Used (Days)”, press adjust
> to reset
the timer. Press adjust > and it asks “are you sure”. Press adjust >
again to lock in the command. After approx 10 seconds it will default to
the selected mode.
16. Close the door to secure the appliance.
Warning: If the Zip HydroTap is
switched off for a long period of
time (e.g. More than a weekend),
run water through the chilled water
outlet for at least 5 minutes before
consumption.
Internal Filter Replacement (Continued)

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 18 of 24
Press either Mode
<
or Mode < button until “Litres Filtered” is displayed.
Press
<
Adjust once and “Reset Counter” will be displayed, press
<
Adjust
button once and “Are You Sure” will be displayed.
Press
<
Adjust once and “Litres Filtered” will be reset to 0.
Activating Sleep Mode
This mode allows the HydroTap to go into Energy Saving mode. In this mode
the unit will go to “sleep” after a predetermined period of inactivity.
Press either Mode
> or Mode
>
button until “Sleep Mode” is displayed.
Press
> Adjust once to select.
Option 1: Sleep to 65ºC after 2 hours of NO USE
Press
> Adjust once to select.
Option 2: Auto OFF after 2 hours of NO USE.
When the period of inactivity passes, the display will show “Sleep Mode”.
During the “Sleep Mode” the Red LED on top of the tap lever will flash slowly.
Sleep to OFF means the Boiling and Chilled circuits will be switched OFF.
De-Activating Sleep Mode:
Momentarily operate the Hot lever on the HydroTap and then allow sufficient
time for the water to reach the set temperature.
Activating On / Off Mode
Press the Mode
<
or Mode < button until “Monday On” is displayed. To set
the time for the unit to turn on press
<
Adjust button until required time is
reached.
To set the time for the unit to turn Off press Mode
<
button once and “Monday
Off” will be displayed. Now press
<
Adjust until required time is reached.
If each individual day is to have an “On / Off” time, these steps need to be
repeated for each day and for each On / Off time.
Note:
The HydroTap may be temporarily activated during the On / Off Mode. By
operating the levers, the unit will go into normal operation and then remain in
an “ON” cycle, until the next “OFF” cycle.
Operating the Mixer tap will not De-Activate the sleep mode or the energy
saver On/Off timer mode.
Setting the Energy Saver Timer (continued)
Auxiliary Fan Attachment
The HydroTap is equipped with an auxiliary fan connection point on the rear
panel close to the cold water inlet / flex and plug area. The fan kit is available
as a spare part. The fan operates in parallel with the Condenser fan helping
to remove heat from the cupboard space. This fan should be purchased and
connected to the HydroTap if the airfow characteristics of the cupboard space
are inadequate for the effective removal of hot air, thereby adversely affecting
the operation of the HydroTap.
The fan can be installed so that it extracts air from, or forces air into the
cupboard space, whichever is the most effective for your installation.
Application of the fan is of paramount importance in situations where the
cupboard space reaches temperatures greater than 35ºC.
The exhaust fan kit must be fitted, when supplied with the appliance.
Note: 200/175 model is supplied with the auxiliary fan kit.
Auxiliary fan
connection
Cold water
connection
Electrical
connections

Page 19 of 24 HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05
Boiling Water Isolation
The HydroTap is equipped with an additional safety mode that allows
protection against accidental operation by Infirm or disabled persons.
1. On the LCD scroll through the menu to Hot Isolation.
2. Press adjust
>
to activate.
3. Now go to the Tap Head assembly and press the Safety Lock (3) three
times rapidly, the LED’s will scroll from left to right (3) three times.
This operation confirms the activation.
4. This isolates the boiling tap only. The LCD shows isolation mode is active.
5. To temporarily de-actvate and dispense boiling water, press the Safety
Lock (3) three times rapidly, the LED’s will scroll from right to left (3)
three times. This operation confirms de-activation and will temporarily
de-activated. After 30 seconds of no use the unit will revert to normal
active mode.
6. If permanent de-activation is required, de-activate by scrolling through
the menu and selecting de-activate when Hot isolation Mode is displayed
on the screen.
7. The LCD will show Normal Operation.
Set The Boiling & Chilled Water Dispensing Times
The ability to change the maximum dispensing time for both the Boiling and
Chilled water has been introduced. The default settings for the maximum
dispensing times is 15 secs. The ability to change both the Boiling and Chilled
dispensing times between 5 and 15 secs, in increments of 1 sec, is accessible
through the Menu screen on the LCD.
Scroll through the Menu until the Dispense Hot screen is displayed, then use
the adjust buttons to set the required dispensing time for the Boiling water.
Follow the same procedure to access the Dispense Cold (for Chilled water)
screens.
Cleaning
Do not use strong, corrosive, spray or abrasive cleaners. Clean with a soft
cloth or brush and mild soap and water.
Do not spray water over the tap as it may damage the low-voltage electronics.
Undersink units must never be located near, or cleaned with water jets.
In order to help preserve our environment we ask that you dispose of this
product correctly.
Please contact Zip Customer Service on 0845 6 005 005 for advice.
End of Life Disposal

HydroTap Installation and Operating Instructions_Commercial_BCH 4in1_BH 3in1_October 2012_V1.05 Page 20 of 24
3-in-1 Installation Options
4-in-1 Installation Options
NOTE:
The Venturi connection for the 3-in-1 Mixer tap is located on the Left Hand
side of the undersink unit.
The Mixer tap may be fitted (as shown above) to supply Cold or Hot water to
one or two sinks.
The HydroTap may be fitted to supply filtered Boiling water to any one sink or
may be fitted with a Font kit, when a sink is not available. The Font must be
connected to a suitable drain.
NOTE:
The Venturi connection for the 4-in-1 Mixer tap is located at the back of the
undersink unit. Connections to the Venturi should be made prior to fitting the
undersink unit in place
The Mixer tap may be fitted (as shown below) to supply Cold or Hot water to
one or two sinks.
The HydroTap may be fitted to supply filtered Boiling or Chilled water to any
one sink or may be fitted with a Font kit, when a sink is not available. The Font
must be connected to a suitable drain.
