Zip HydroChill HC45T130 Mounting instructions

1
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
Zip
HydroChill
Installation instructions and user guide
Model HC45T130

2Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
Table of contents
Read the
instructions
SECTION 1 Using these instructions ................................................................... 3
Before you start.................................................................................................. 3
Explanation of symbols ...................................................................................... 3
Introduction ....................................................................................................... 3
SECTION 2 IMPORTANT SAFETY INSTRUCTIONS............................................... 4
SECTION 3 WARNINGS & REGULATORY INFORMATION.................................... 5
SECTION 4 Technical data.................................................................................. 7
4.1 Technical data table....................................................................................... 7
SECTION 5 Parts supplied .................................................................................. 8
5.1 Supplied parts checklist ................................................................................. 8
5.2 Filter identification........................................................................................ 8
SECTION 6 Installing the appliance .................................................................... 9
6.1 Positioning and ventilation .......................................................................... 9
6.2 Installation layout and features ....................................................................11
6.3 Install the tap ............................................................................................... 12
6.4 Manifold connections and controls............................................................. 13
6.5 Push fit best practice....................................................................................14
6.6 Connect the water supply............................................................................14
6.7 Connect the electricity supply .................................................................... 17
6.8 Earth continuity test ....................................................................................18
SECTION 7 Commissioning and operation........................................................19
7.1 Switch on, commissioning and operation.....................................................19
SECTION 8 Maintenance.................................................................................. 20
8.1 Replace and flush the filter ......................................................................... 20
8.2 Cleaning....................................................................................................... 21
8.3 Troubleshooting .......................................................................................... 21
Environmental information...............................................................................22
Warranty............................................................................................................23

3
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 1 Using these instructions
Introduction
Dear Customer,
Congratulations on the purchase of your Zip appliance.
• Your new appliance is designed to give you years of trouble-free service
provided that the instructions contained in this manual are followed.
• All new Zip products are energy efficient, simple to operate and easy to
service.
• Find out more about Zip products at www.zipwater.co.uk.
Read and use the instructions supplied with individual kit
components for a safe installation.
Before you start
!
!
Explanation of symbols
Read the
instructions
WARNING
!
!
Danger of
electric shock
!
!
Hot surface
!UV
!
Highly
flammable

4Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 2 IMPORTANT SAFETY INSTRUCTIONS
Safety
This appliance is not intended for use by children under 8 years or persons
(including children under 8 years) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by
a person responsible for their safety. Children should be supervised to
ensure that they do not play with the appliance.
Refrigerant
WARNING! KEEP VENTILATION OPENINGS IN THE APPLIANCE
ENCLOSURE OR IN THE BUILT-IN STRUCTURE CLEAR OF
OBSTRUCTION.
The appliance uses HIGHLY FLAMMABLE R290 refrigerant under
pressure.
Check the rating plate or contact Zip before commencing work.
Maintenance of the refrigeration unit must be carried out by an accredited
service provider or qualified refrigeration technician.
Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
Qualifications
To avoid hazards, all installation procedures must be carried out by a
suitably qualified tradesperson. The power cable and power outlet must be
in a safe visible position for connection.
Lifting
Take care when lifting. The appliance may exceed safe lifting limits. If you
feel this is beyond your personal capabilities, please seek assistance with
the lift. Do not lift the appliance by the tap.
Airflow
The appliance operates within the ambient temperature range 10ºC -
32ºC. Proper air circulation must be provided. The system will operate
!
!
Compliance
In the UK the appliance must be installed in accordance with
water supply byelaws, current IEEE regulations and local authority
byelaws.
!UV
!

5
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 3 WARNINGS & REGULATORY INFORMATION
!
• The appliance must be earthed, earthing is provided via the power
cable. The resistance of the earth connection to each exposed metal
part must be less than 1Ω. It is the responsibility of the installer to ensure
the power point is earthed.
• All installation and service work must be completed by trained and
suitably qualified tradespeople. Faulty operation due to unqualified
persons working on this product may void warranty coverage.
!
• Electrical installation must conform to current IEEE wiring regulations.
• As the installer, it is your responsibility to supply and install all valves as
required by local regulations and relevant standards.
• The appliance is rated for 220-240V 50/60Hz AC operation.
• Do not remove the cover of the appliance under any circumstances
without first isolating it from the power supply.
• Connect only to a potable (wholesome, cat1) mains water supply.
• FOR CONTINUED SAFETY OF THIS APPLIANCE IT MUST BE INSTALLED,
OPERATED AND MAINTAINED IN ACCORDANCE WITH THE
MANUFACTURER’S INSTRUCTIONS.
SECTION 2 IMPORTANT SAFETY INSTRUCTIONS
satisfactorily only if the recommended air gaps are provided.
Installation
The appliance must be installed on a horizontal surface sufficiently robust
to support its weight. Locate in a space sufficient to use the appliance
safely (e.g. free from risk of congestion and tripping hazards).
Sanitising
Once your system is installed it is recommended that during the
commissioning process it is sanitised to the current guidelines before first
use. Please contact us on 0345 6 005 005 to book your commissioning
service visit.

6Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 3 WARNINGS & REGULATORY INFORMATION
• Never locate the system near, or clean with water jets.
• Do not expose the appliance to the elements of nature.
• A pressure limiting valve must be fitted for mains water pressures above
the max. limits stated.
• Use of tools can be hazardous, assess the risks before you start.
• A clearance envelope around the appliance must be provided to allow
adequate ventilation and service access for safe and effective use.
• Valve and fitting threads must be sealed appropriately with PTFE tape
where compression seals are not provided. Do not over tighten plumbing
and hose connections.
• The power cord and power outlet must be in a safe and accessible
position after installation. When positioning the appliance, ensure the
power supply cord is not trapped or damaged. If it is damaged it must be
replaced by a Zip service provider or a qualified electrician.
• Do not stand anything on top of the mains electrical connector casing.
• Ensure that the mains electrical connector casing is safety positioned
such that it is not in contact with water and does not present a trip
hazard.
• For UK, this appliance only contains materials that conform to the
requirements of BS6920:2014 ‘Suitability of non metallic materials and
products for use in contact with water intended for human consumption
with regard to their effect on the quality of water’.
• Zip cannot be held responsible for any appliance malfunction if the water
pressure exceeds that stated. If in doubt, consult your water supply
company.
• Zip cannot be held responsible for lime-scale related problems even
when a lime-scale reducer has been installed.
• As with all refrigeration systems, irreparable damage can be caused by
laying the chiller on its side or even transporting upside down.
• If the chiller has been transported incorrectly, it should be placed in the
correct upright position and left for 24hours before attempting to install
and commission it. Failure to observe these precautions could seriously
damage the refrigeration system.
• All appliances must be sanitised during installation or the commissioning

7
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
A pressure limiting valve must be fitted for mains water pressures
above the max. limits stated above in accordance with local
plumbing regulations.
!
SECTION 4 Technical data
Model Unit HC45T130
Width mm 181
Depth mm 344
Height mm 390*
Cooling capacity L/hr 30
Supply voltage V AC Single phase 220-240V
50/60Hz
Power rating kW 0.175
Rated current A 1.3
Inlet water temperature OC 10 - 32
Rated fuse A(T) 5
Inlet water pressure range bar 1.03 to 8.62
Refrigerant gas HFC R290 0.05Kg
Weight (empty) kg 15.6
Weight (full) kg 16
Water inlet connection mm 15
Climate class N
4.1 Technical data table
*Base to top of water out connection
SECTION 3 WARNINGS & REGULATORY INFORMATION
process, contact us on 0345 6 005 005 to book a commissioning service.
• For safe operation, the appliance is designed to be installed,
commissioned and used within 48 hours. Should it not be required for
an extended period of time, do not fill and commission until ready for
first use.
• If your HydroChill is left idle before use, for water taste and quality
reasons, any non-use of more than 48 hours, we recommend a system
flush be performed. On first use after a period of non-use, dispense
water from the tap for 60 seconds to flush the filter and system. Not
flushing the system may affect the water quality. If taste or water quality
issues persist, a filter change and sanitisation may be required.

8Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 5 Parts supplied
5.1 Supplied parts checklist
• Before starting installation check that you have the following parts.
Qty Description
1 HC45 Appliance
1 Heavy duty single lever tap kit
1 Installation and user instructions
Filter kit
1 Install Rail Inc Waterblock (15mm mains connection)
1m 1/4" Blue pipe
1m 1/4" White pipe
2 10mm x 5/8" Pozi Screw
1 3/4" BSP - 1/4" Push fit connector
1 1/4" push fit equal elbow
1 93705 Micropurity filter for chillers ,3 micron
1 Zip Filter Head side outlet external

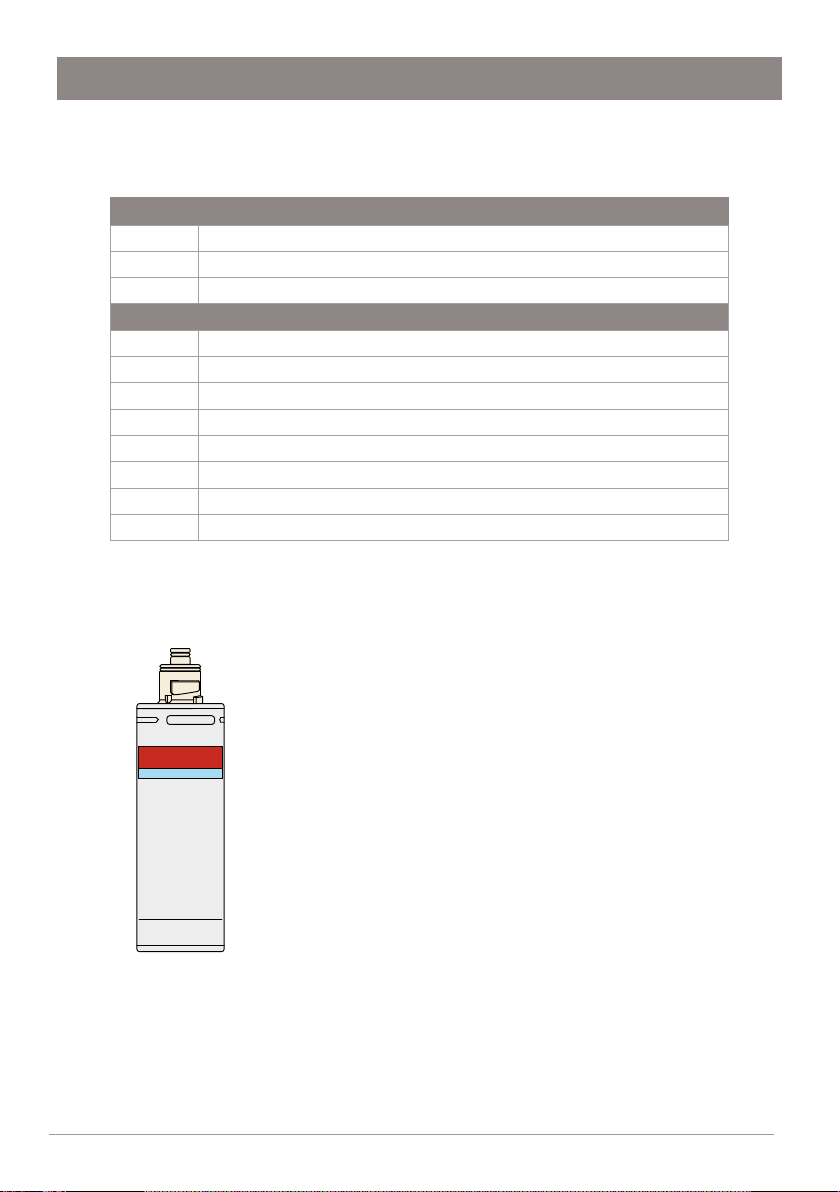

5.2 Filter identification
93705
• The filter is identified on its front label.

9
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
• A clearance envelope must be provided , both sides , behind and above
the appliance to allow service access, space for the safe and effective use
of the appliance and for cool air to flow into the ventilation inlet and warm
air to flow out of the ventilation outlet.
!
!
6.1 Positioning and ventilation
!
• Install the appliance within reach of a mains wholesome (cat 1) water
supply, and a 230V 50Hz mains electricity supply.
• Use the illustrations below & on page 10 & 11 as a guide, and follow the
steps through this section of the manual.

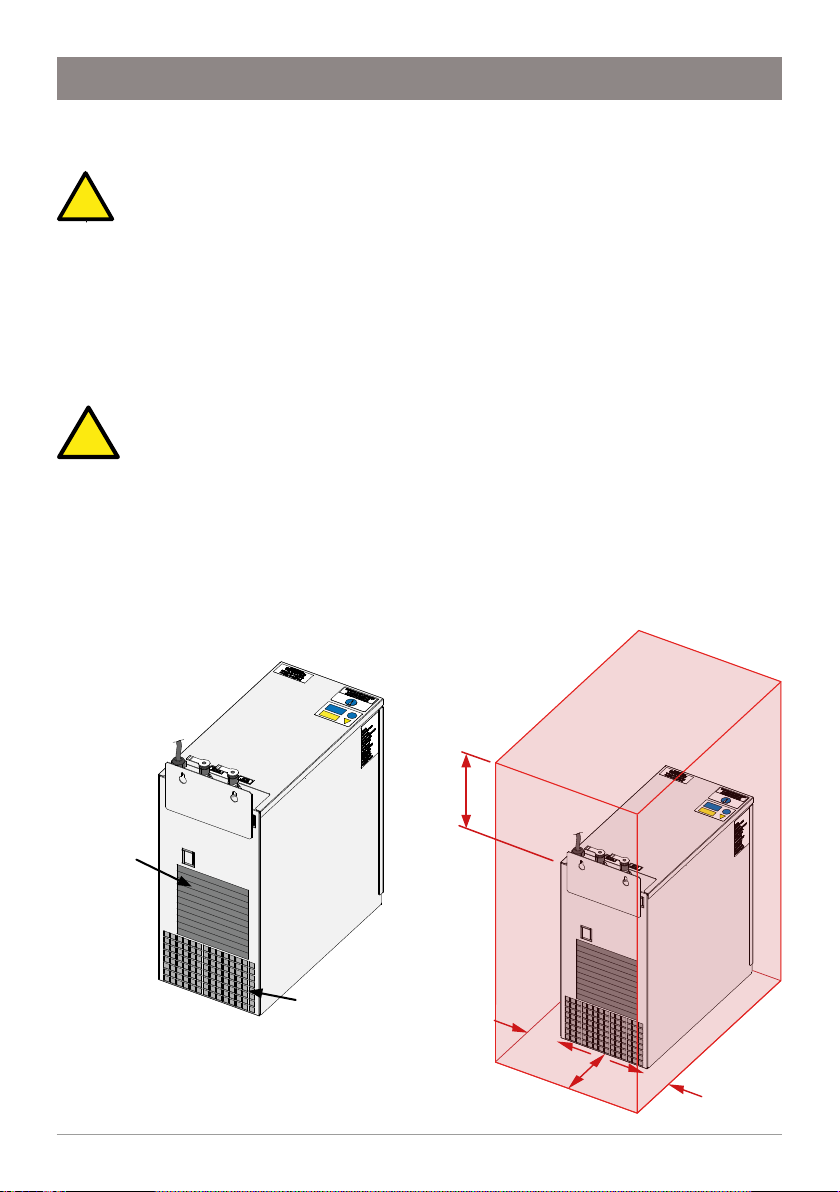

6.1.1 Clearance envelope
A clearance envelope must be provided.
If the appliance has been shipped horizontally or on an angle, stand
upright and allow 24 hours before the electricity supply is connected.
200mm
min.
50mm
100mm
50mm
Ventilation
inlet
Ventilation
outlet
Rear of appliance

10 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
6.1.2 Ventilation
!
• Adequate ventilation must be provided to allow cold air to be drawn into,
and hot air expelled from the appliance.
• Door buffers must be fitted to provide sufficient air flow.
• Cupboard temperatures should not exceed 32oC.
• It is essential that ventilation openings at the rear of the appliance remain
clear of obstruction, and that the clearance envelope is observed.
• If cupboard temperatures exceed 32oC call Zip on 0345 6 005 005 for
advice and guidance on ventilation improvement.

11
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
Mains water supply
1
Isolation valve (install rail)
2
Water block
3
4
51/4" blue & white pipes
6Filter & head
7
8
9
Dispensing tap
10
3/4" BSP - 1/4" adapter

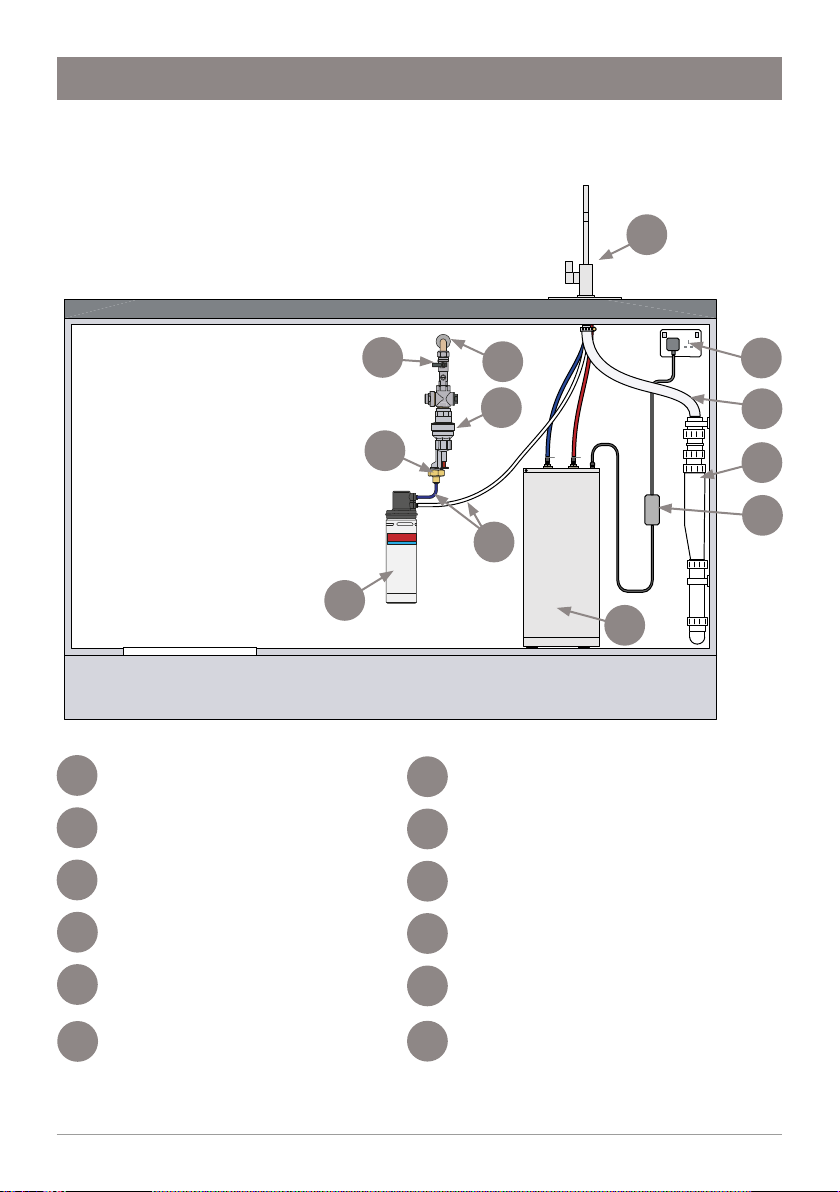

6.2 Installation layout and features
Font waste pipe, flexible drain
hose (if using a font)
11
Waste to drain
12
Mains electricity supply
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
4
5
6
HC45 chiller
7
8
9
10
11
Mains electrical connector casing
12

12 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
6.3 Install the tap
Nut
Washer
Red, white and blue
pipes
Worktop
• Cut a Ø22mm hole in the worktop / sink.
• Mount the tap on the hole. (see configuration below).
• Tighten tap nut to secure in place, do not over tighten.
Ø22mm
Position of components
Tap connections
Blue pipe - connect to
appliance outlet
Red pipe - connect to
appliance inlet
White pipe - connect to
water filter outlet

13
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
6.4 Manifold connections and controls
• Using the installation diagrams, see page 11-12 as a guide, connect the
system together.
Red
pipe
Blue
pipe Cable
!
!
WATER
INLET
WATER
OUTLET

14 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
!
!
Use instructions supplied with the individual system components.
Valves and fittings must be sealed with PTFE
tape if compression seals are not included.
6.6 Connect the water supply
!
!
Water supply pressure range 1.0 - 8.6 bar.
If the mains water pressure is below 1.0 bar a fault could arise.
If the mains water pressure exceeds 8.6 bar a suitable water
pressure reducing valve must be fitted.
Zip cannot be held responsible for any appliance malfunction if the water
pressure is not within the range stated. If in doubt, consult your water
supply company.
2. Pull pipe
out
1. Press collet
down
Insert Remove
2. Push pipe to
end stop
1. Cut pipe
clean & square
6.5 Push fit best practice
!
!
Always use new pipes, fittings and connectors when installing the
appliance.

15
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
6.6.1 Mains water connection
(Using the filter, install rail & Water block)
15mm mains water
connection
Isolation
valve
Water
Block
Install rail
Use instructions supplied with the individual system components.
3/4” BSP - 1/4"
push fit adapter
• Water purification filters ensure fresh tasting water.
• The Water Block limits the amount of water flowing to a predetermined
flow rate, lowering the
risk of harm to people
and damage to property.
• Use the arrangement
shown in the adjacent
diagram for water supply
including a Water Block
system.
• See next page for
Water Block installation
requirements.
• See the installation
instructions supplied with
the filter & head to install.
• See page 20 to fit and
flush the filter.
1/4" blue pipe
Filter & head
1/4" White pipe from
tap

16 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
This device must be installed vertically with
the direction of flow downwards (inlet at
the top, outlet at the bottom). See Fig. 1.
• The Water block should be installed in a convenient
location on the water supply line to the appliance.
• Rotate Pointer ‘P’ (see Fig.3) until in line with the max.
required flow. The number scale corresponds to 5 litres
of flow i.e. 1 = 5 litres, 10 = 50 litres.
• The key (see Fig.2) should be used to adjust the pointer.
• The inlet should be connected via a 15mm copper tail or
install rail.
• The outlet shall be connected via the 3/4” BSP - 1/4”
push fit brass fitting supplied.
• Ensure that the direction of flow through the Water block is correct and
that the filter screen (see Fig.2) is inserted correctly with the convex
surface facing towards the water supply.

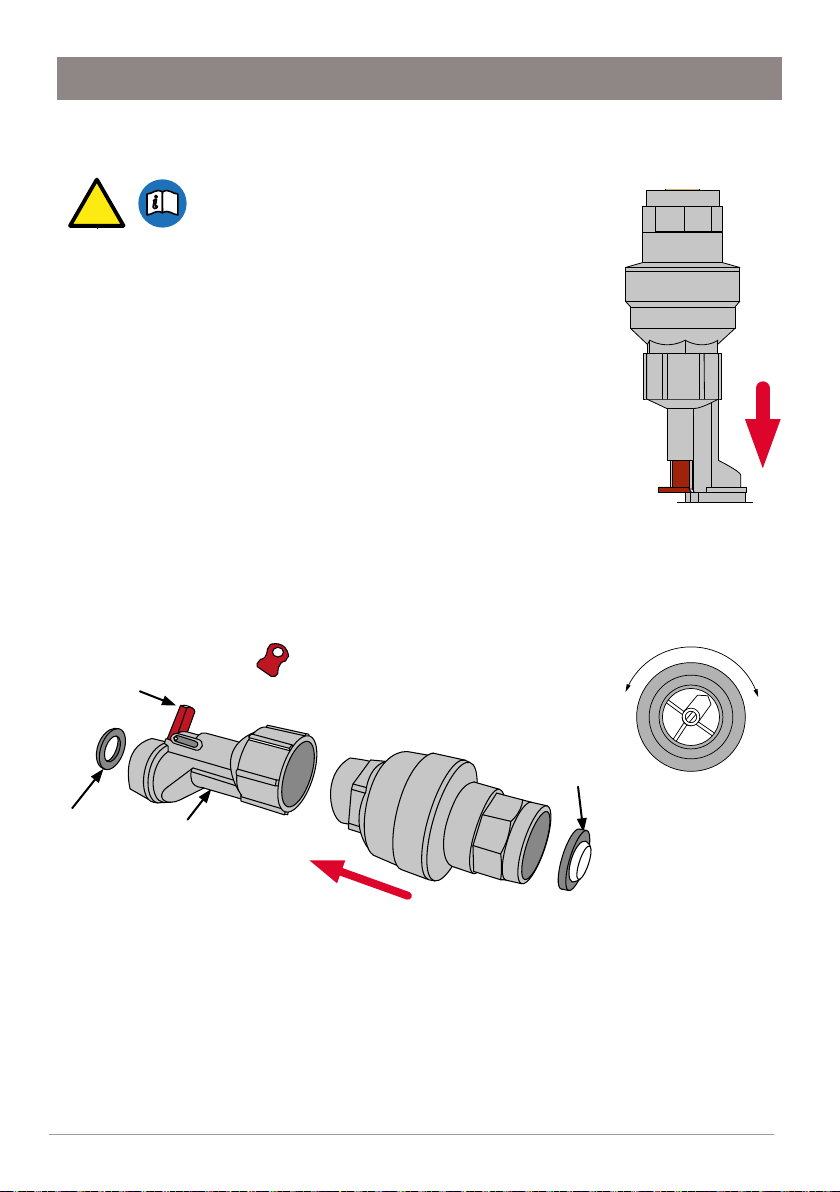

6.6.2 Water block
6.6.3 Reset Procedure
• The Water block will activate and shut off the supply if more water than the
set amount is drawn off at one time.
• In this event isolate the water supply to the Water block.
• Identify and repair the leak then press the reset lever (Fig. 2).
• Tripping issues, contact Technical support on 0345 6 005 005 for advice.
Fig. 1
Fig. 3
Direction of flow
0
1
2
3
4
5
6
7
8
9
Fig. 2
Fit key to adjust flow
Reset lever
Seal Reset
device
Direction of
flow
Filter
screen
0
1
2
3
4
5
6
7
8
9
SECTION 6 Installing the appliance
0
1
2
3
4
5
6
7
8
9
!
!

17
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance
!
Before you start, read :
SECTION 2 IMPORTANT SAFETY INSTRUCTIONS.
SECTION 3 WARNINGS & REGULATORY INFORMATION.
Do not switch on the mains electricity supply until installation is complete,
The system earth must be verified once the mains electricity supply
connection has been established.

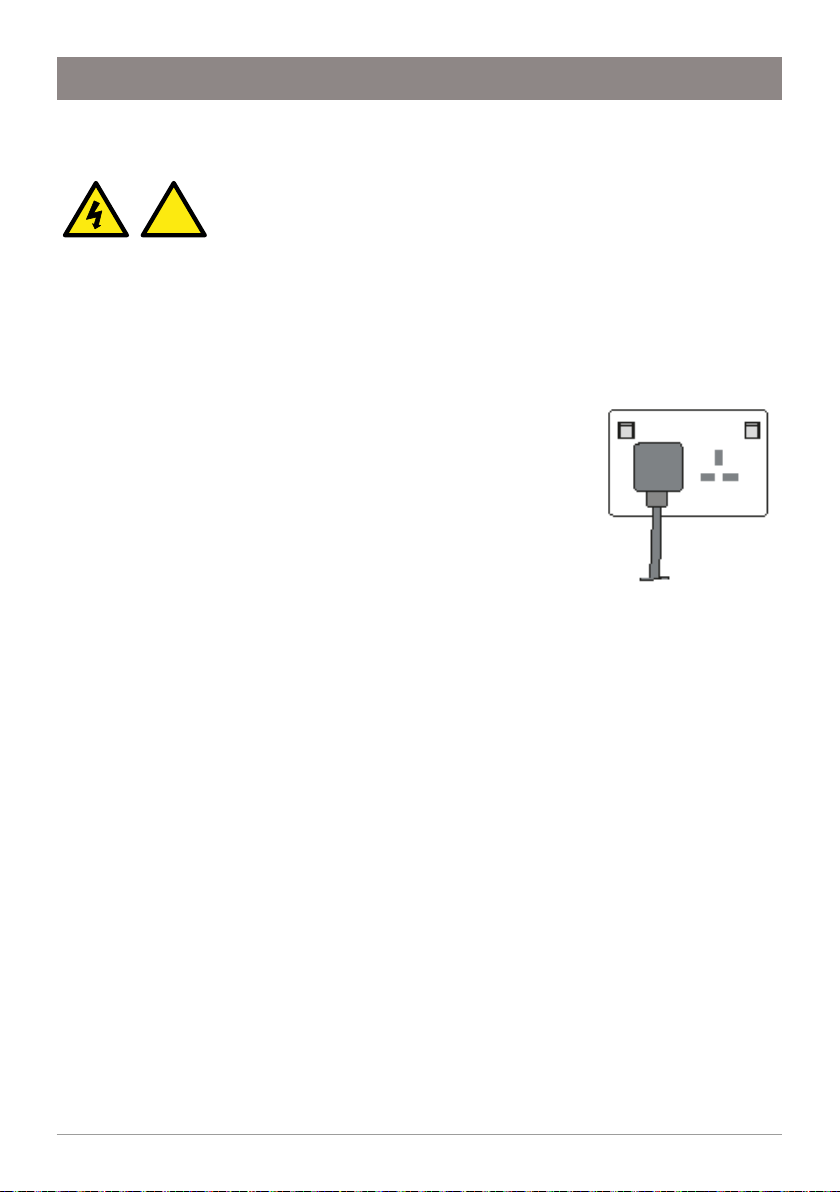

6.7 Connect the electricity supply
All models
• Connect the mains plug to a 230V 50Hz 13A socket.

18 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 6 Installing the appliance

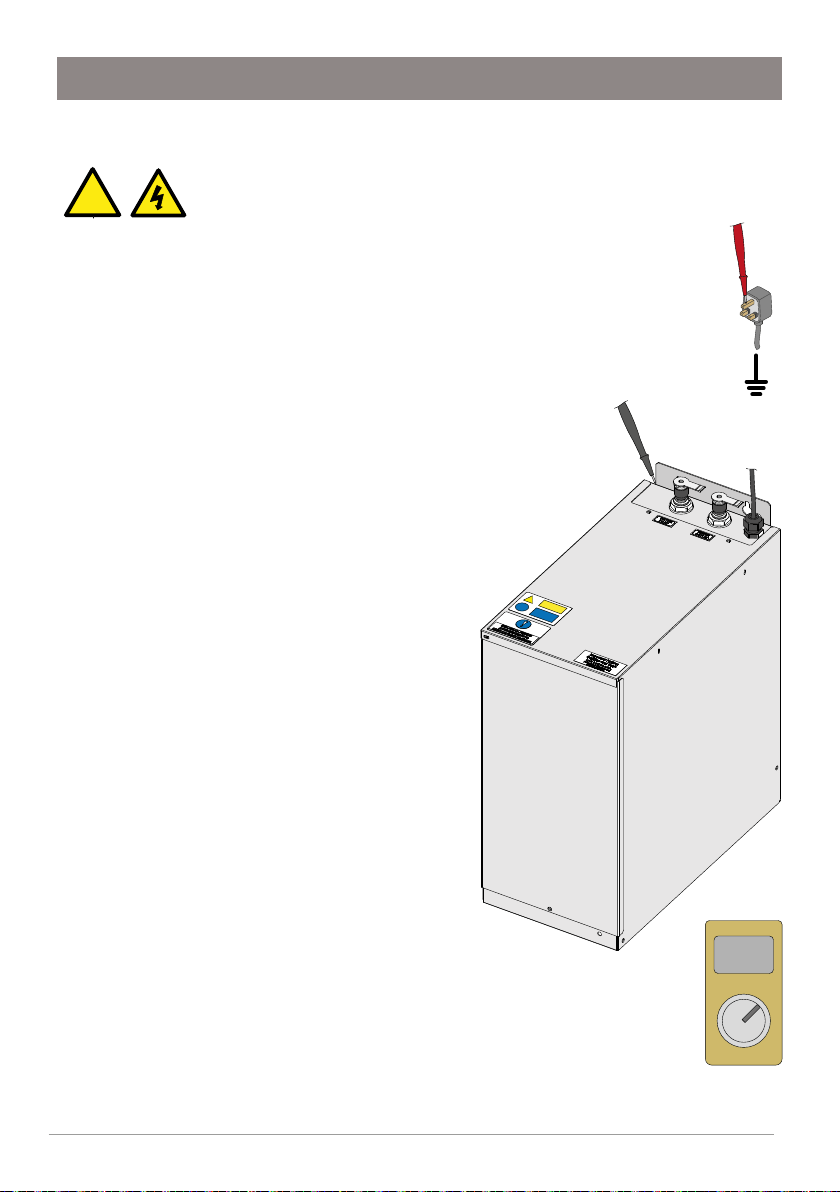

6.8 Earth continuity test
6.8.1 To test the earth continuity
• Isolate the appliance from the
electricity supply.
• Set the meter to the lowest ohms (Ω)
scale and set to a reading of 0Ω with
the meter probes connected together.
• Connect one of the meter probes
to the earth pin of the mains 13A plug
(or earth wire of the mains cable).
• Connect the second meter probe to a
One probe connected
to the mains cable
earth wire / pin
One probe
connected
to chassis
DMM
• At installation, the earth
continuity must be checked.
Use an insulation tester,
appliance tester , DMM or
continuity tester with an
accuracy of Class 5 or better
(±5% at full-scale deflection).
<1.0
Ω
!UV
!
!
!
All accessible metal
parts must be earthed.
bare patch of metal or a screw (the
edge is best) on the appliance and
read the display.
• All readings should be less than 1Ω.
• If any of the reading are above this
value, check the earth connection
inside the appliance.

19
Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 7 Commissioning and operation
7.1 Switch on, commissioning and operation
• Secure all pipes and cables.
• Turn on the mains water supply and check
for leaks.
• Switch on the mains power supply.
• Due to the factory sanitisation process,
residue from the sanitisation liquid
might remain in the appliance, which
requires the appliance to be flushed with
fresh water at installation. So the first
few glasses of water may look soapy with
presence of bubbles.
• As part of the sanitising process press
the tap lever to flush the filter through
with 10 litres of water before first use.
• Check that the water is clear.
• Wait 10mins for the appliance to reach
the correct temperature.
• Pull the tap lever forward to manually
dispense water from the tap.
• The lever is spring loaded, and returns to
the closed position automatically.

20 Installation instructions & user guide
T210055 HC45T130 installation instructions & user guide v1.01 Aug 2022
SECTION 8 Maintenance

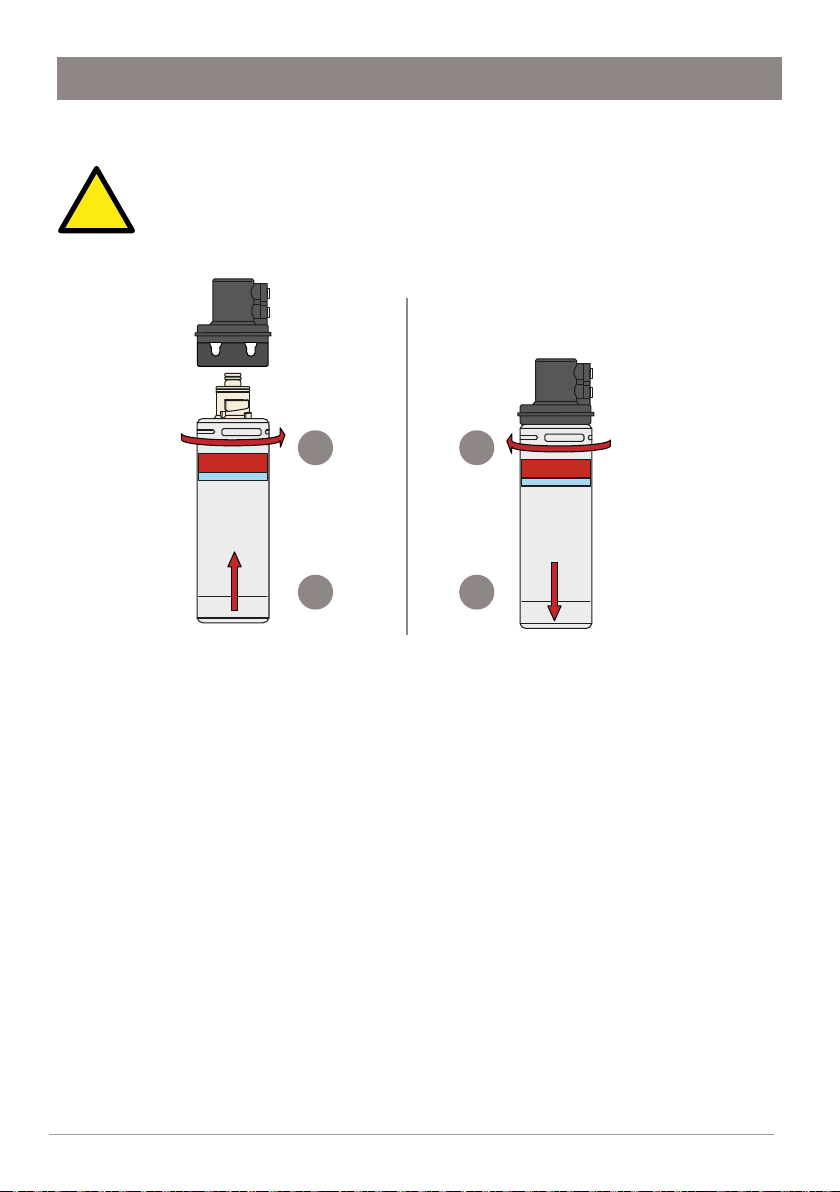

8.1 Replace and flush the filter
• Turn off the mains water supply isolation valve.
• Turn off the electrical power supply to the appliance.
• Remove the old filter (see above). Water may drip from the filter head.
• Remove the sanitary cap from the new filter, do not touch the connector.
• Moisten the new filter connector with clean tap water & insert the new
filter (see above).
• Turn on the mains water supply isolation valve.
• Turn on the power supply to the appliance.
Dispense 10 litres of water from the tap to flush the filter.
• Wait 10 minutes for the chiller to cool.
• The system is ready to use.
Insert Remove
1
2 1
2
!
The filter must be replaced every six months, or earlier if there is a
noticable reduction in the flow rate of the dispensed water.
