Zip Celsius HydroTap G4 range User manual

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 1 of 28
Zip HydroTap G4
Celsius
Installation instructions
Filtered boiling, chilled and chilled sparkling drinking water with unfiltered mixed hot and cold
water for residential kitchens.
®
Affix model number label
here
802149UK

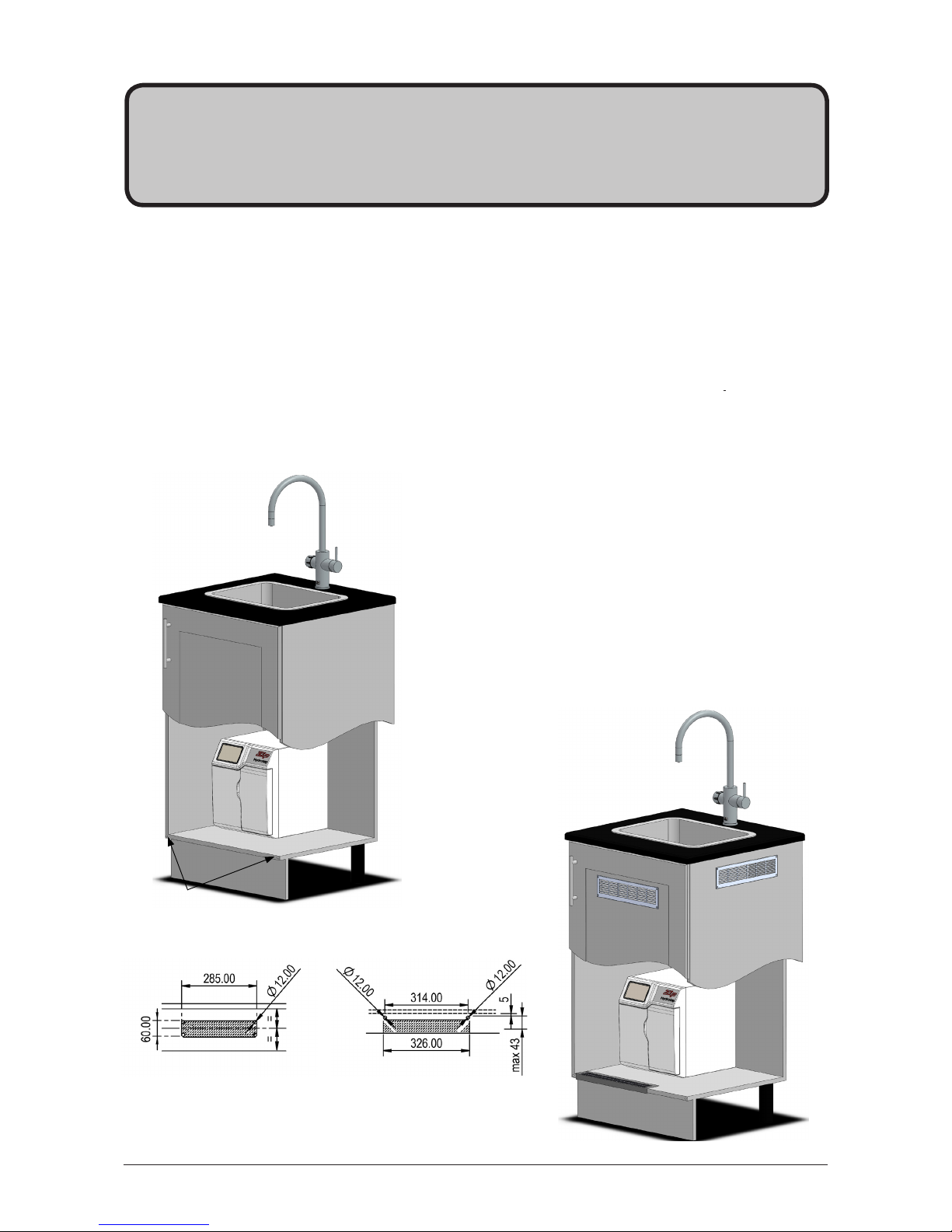

VENTILATION IS
ESSENTIAL
SECTION 2 'VENTILATION'
READ BEFORE YOU START
!
READ

Page 2 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
The Celsius residential series offers a complete range of features and functionality to suit the customer's
needs
Celsius Arc range
Celsius Cube range

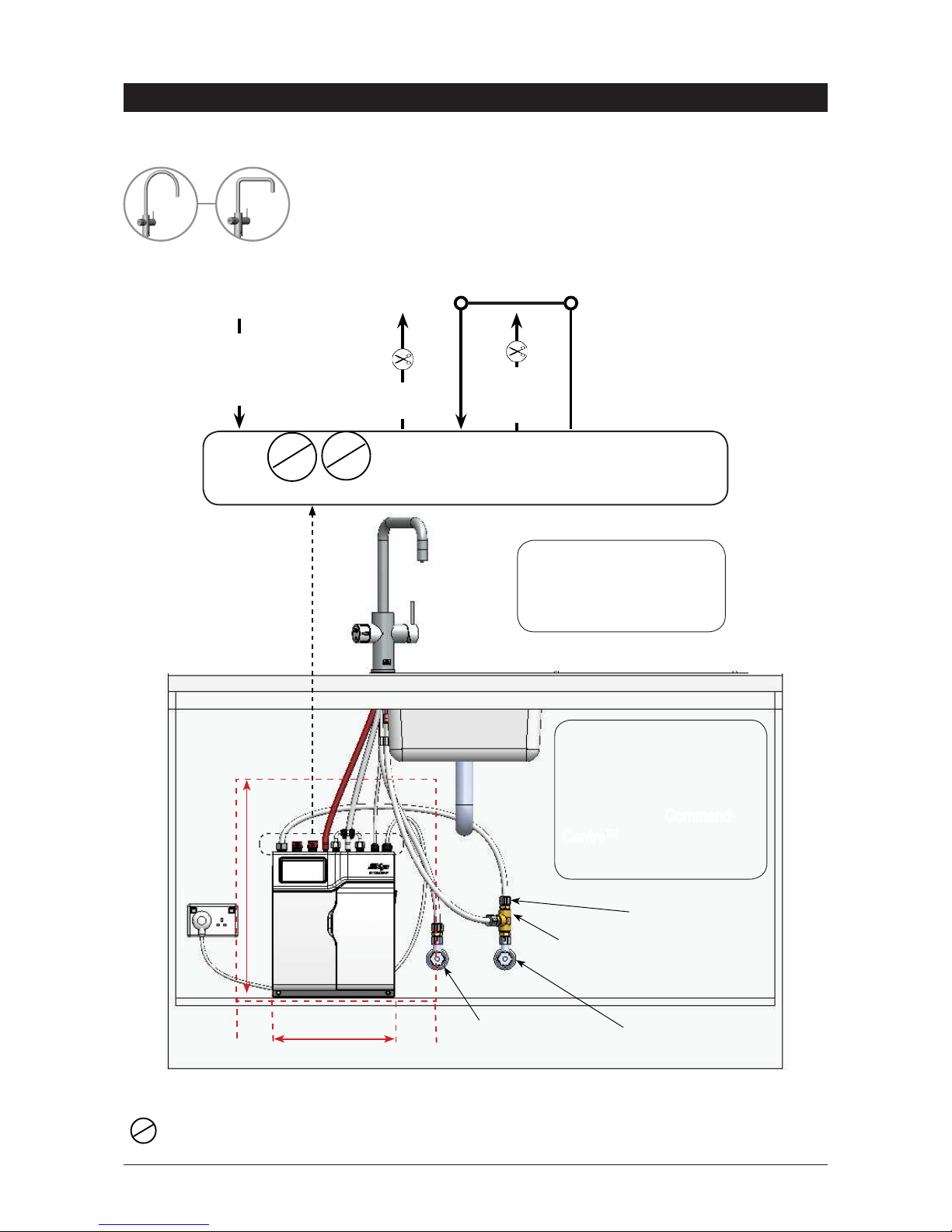

Boiling + mixed hot & cold
These taps are directly compatible with the G4
residential Command-CentreTM.
Residential G4 Command-CentreTM Celsius options
Chilled + mixed hot & cold
Chilled / Sparkling + mixed hot & cold

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 3 of 28
Index

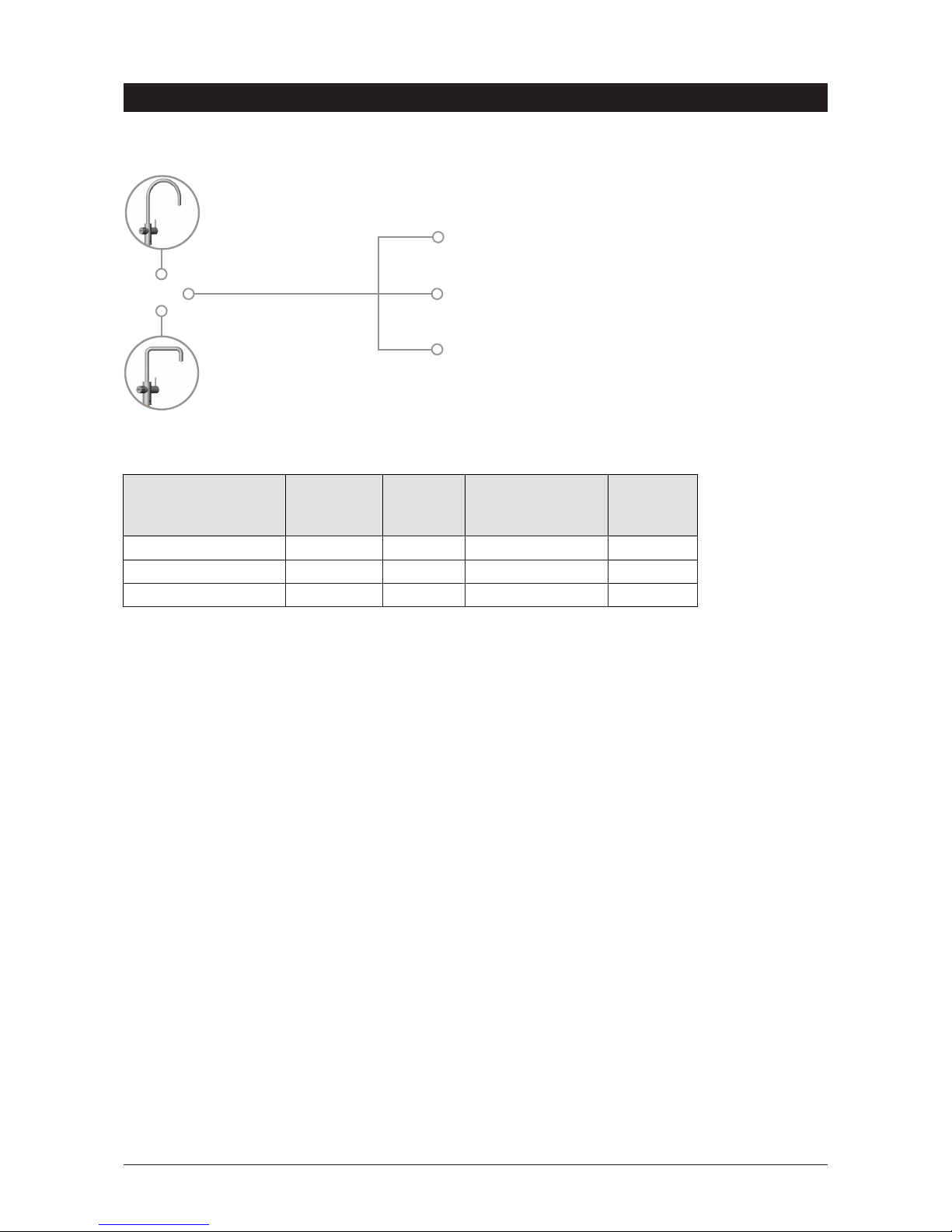

HydroTap®G4 specifications
Installation check list .................................................................................................................... 4
General product features ............................................................................................................. 5
Important safety instructions ........................................................................................................ 6
Warnings and regulatory information ........................................................................................... 7
Major components and accessories............................................................................................. 8
Technical specification................................................................................................................. 9
Before installation and site requirements..................................................................................... 10
Installation instructions
Step 1 - Measure and cut all the tap holes before fitting the taps.
Section 1 - Celsius tap installation.
1.1 - Tools, hole positioning and hole size....................................................................... 11
1.2 - Chilled sparkling + mixed hot & cold tap installation................................................ 12
1.3 - Chilled (or boiling) + mixed hot & cold tap installation ............................................. 13
Step 2 - Check for adequate ventilation.
Section 2 - Ventilation.
2.1 - Ventilation on all models........................................................................................... 14
Step 3 - Mount the external filter / softener (if required)
3.1 - Mounting the filter head and cartridge installation .................................................... 15
3.2 - Cartridge installation and flush.................................................................................. 15
Step 4 - Fit the CO2gas cylinder
Section 4 - CO2cylinder and regulator
4.1 - Connect, secure and test the CO2cylinder............................................................... 16-17
Step 5 - Install the Command-CentreTM.
Section 5 - Command-CentreTM installation
5.1- 5.2 Check the external bypass valve setting & Mains water supply hose.................. 18
5.3- Boiling, and mixed hot and cold models .................................................................... 19
5.4- Chilled and mixed hot and cold models .................................................................... 20
5.5- Chilled and sparkling and mixed hot and cold models .............................................. 21
Step 6 Commission the HydroTap®G4 Celsius
Section 6 - Commissioning
6.1- CO2purge.................................................................................................................. 22
6.2- Filter flush .................................................................................................................. 22
6.3- Boiling calibration....................................................................................................... 23
Trouble shooting
Trouble shooting table.................................................................................................................. 24
End of life disposal....................................................................................................................... 25
Warranty....................................................................................................................................... 26
Contact details ............................................................................................................................. 28

Page 4 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Installation checklist
Before installation
• Read the instructions and check if there is adequate space to mount all of the components.
• Note Not all fittings are supplied with the appliance kit. Isolation valves are not supplied.
• Check the mains water pressure is within min / max requirements (see page 9).
• Check the water quality to determine if extra filtration will be required.
• Note This product must be fitted to a potable water supply.
• Check the appliance rating plate and ensure correct power is available for the appliance.
• Check the under counter cupboard supporting the Command-CentreTM is adequate for the total
weight of Command-CentreTM, when full of water.
Before commissioning
• Check the Command-CentreTM has been installed correctly.
• Check all plumbing fittings have been tightened.
• Ensure the outlet and vent pipes are positioned to drain correctly.
• Ensure there is adequate ventilation.
• Check all tubes and pipes from the Command-CentreTM to the tap have a constant rise and
there are no sags or kinks in the hoses.
• Check all electrical connections are correct and that there are no loose wires.
Commissioning (see section 6)
• Flush the supply line before connecting.
• Turn on the water and check for leaks.
• Purge CO2.
• Flush the filters (this commences auto calibration).
• Where applicable, programme the Command-CentreTM to suit the customer’s requirements.

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 5 of 28
General product features
CS Command-CentreTM
Thank you for purchasing a Zip HydroTap®G4 Celsius. Please read and follow these instructions carefully to
ensure safe and trouble free service. If service is required, please call 0845 6 005 005 or 0345 6 005 005
What is the Zip HydroTap®G4 Celsius?
The Zip HydroTap®G4 Celsius is an electronically controlled drinking water system for the home, all systems
dispense mixed hot and cold water, and different options can be purchased to dispense filtered boiling,
filtered chilled and filtered chilled and sparkling water as standard.
The Command-CentreTM is an under counter drinking water appliance with a Celsius tap mounted on the
sink or worktop, which has been designed for residential applications. These utilise a conventional refrigerant
compressor to chill the water (for chilled models) and an immersion heating element to boil the water (for
boiling models). Chilled sparkling models utilise a CO2gas cylinder to carbonate the chilled water. Boiling
water systems will dispense boiling water (factory set to 98°C). Chilled water systems will dispense chilled
water (factory set to 6 - 10°C) and chilled and sparkling water (factory set to 3-5°C) all models also dispense
mixed hot and cold water.
The boiling water models are fitted with a tap mounted safety lock. In addition, there are various energy
saving options accessible via the main menu. Each boiling model is equipped with a self-calibrating program
which caters for altitude adjustment. The water filter and CO2cylinder are disposable items which will require
periodic replacement and are covered by a limited OEM warranty.
It is important that the installation be done safely, correctly and completely, in order to utilise all the benefits
that the HydroTap®G4 can provide.
Usage
The Zip HydroTap®G4 Celsius is intended for use in residential kitchens and not for commercial use.

Page 6 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Important safety instructions
This manual contains important safety and installation instructions for the Zip HydroTap®G4.
Please read all warnings, installation requirements and installation instructions before
installing any Zip HydroTap®G4. This model must be installed in accordance with water supply
byelaws, current IEE regulations and relevant local authority bylaws.
Safety
This HydroTap®G4 is not intended for use by children under 8 years old or persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the HydroTap®G4 by a person responsible for their
safety. Children should be supervised to ensure that they do not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Refrigerant
The Command-CentreTM contains R134A refrigerant under pressure. Maintenance of the refrigeration unit
must be carried out by an accredited service provider or qualified refrigeration technician.
Qualifications
If the power cable is damaged it must be repaired only by a qualified technician. To avoid hazards, all
installation procedures must be carried out by a suitably qualified trades-person. The power cable and power
outlet must be in a safe visible position for connection.
Venting
Sometimes steam and / or boiling water may discharge through a vent outlet at the tap. If the tap is not
installed using the font pedestal, ensure the tap body is located so the tap outlet safely dispenses into the
sink bowl area.
Lifting
Take care when lifting the Command-CentreTM which may exceed safe lifting limits. If you feel this is beyond
your personal capabilities, please seek assistance with the lift. The weight of the Command-CentreTM is
marked on the packaging. Do not lift the Command-CentreTM by the front cover or any connections at the top
rear of the Command-CentreTM. Refer to the table on page 9 ‘Technical specification’ for the weight of the
Command-CentreTM.
Airflow
The ambient temperatures this unit should operate within are 5ºC - 35ºC. Proper air circulation must be
provided. The system will operate satisfactorily only if the recommended air gaps are provided. See section 2
,’Ventilation’ for correct installation to prevent overheating. The door buffers supplied must be fitted.
Altitude
Water boils at varying temperatures at different altitudes. The HydroTap®G4 adjusts for this during startup
calibration and will recalibrate itself on a regular basis.
Frost protection
If this appliance is located where the ambient air temperature could fall below 5ºC when the heater is not in
use, do not turn off the electrical power. This safeguard does not offer the same protection to the connecting
pipework and fittings.
Positioning
It is important to ensure that the Command-CentreTM is positioned in an accessible area close to the floor
level. It’s base must be mounted in a horizontal position with all inlets and outlets facing up. The tap must be
located above the Command-CentreTM see section 5 ‘Command-CentreTM installation’ for details.
Note As with all refrigeration products the Command-CentreTM must not be turned on its side during
transport, installation or use.

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 7 of 28
Warnings and regulatory information
WARNINGS
• The Zip HydroTap®G4 must be earthed. The resistance of the earth
connection from each exposed metal part must be less than 1 ohm.
• All installation and service work must be completed by trained and
suitably qualified trades-people. Faulty operation due to unqualified
persons working on this product, or any other Zip product may void
warranty coverage.
• As the installer, it is your responsibility to supply (if necessary)
and install all valves as required by local regulations and relevant
standards.
• This HydroTap®G4 is rated for 230V 50Hz AC operation.
• Do not remove the cover of the appliance under any circumstances
without first isolating the appliance from the power supply.
• The Command-CentreTM must never be located near, or cleaned with
water jets.
• Do not expose the HydroTap®G4 to the elements of nature.
• Due to the process of continuous improvement, Zip reserves the right
to change details mentioned in this manual, without notice.
Visit www.zipwater.com/uk to ensure you have the latest copy.
CO2cylinder warnings
• Pressurised container.
• Protect from sunlight.
• Contains gas under pressure, may explode if heated.
• Donotexposetotemperaturesexceeding50˚C.
• Do not pierce or burn, even after use.
• Do not refill – non rechargeable.
• Ensure cylinder is empty before disposal.
• Do not expose to naked flame or any incandescent material.
• Keep out of reach of children.
• High concentration of gas may cause asphyxiation.
• Use only in ventilated areas.
• Store in an area no less than 38 cubic meters.
• Use only in an upright position.
• This cylinder must be used with the approved pressure regulator.
• Avoid shock.
• Use according to MSDS (material safety data sheet).
CO2- Disposable cylinder
Compressed carbon dioxide, food grade
Cylinder specifications
•UNNo.1013 •Class2.2
•CodeZT400 •Volume:2.2litres
•Contents1,000g •Tare1,745g
•Testpressure12MPa(120bar). •Boilingpoint:-78.5°C
•Nonflammablegas •Nontoxicgas
•Std:EN12205 •Temprange:-20°Cto+65°C

Page 8 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Major components and accessories
Accessories Description
Scale filter
installation kit
*ZT200G4
Filter not included.
Replacement
internal 0.2 micron
filter
ZT402
1 X
CO2gas cylinder
ZT400
Recommended
water block
HE45004
Parts supplied Description
Tap options
1 x
Celsius Arc
Boiling or chilled or
chilled sparkling tap
1 x
Celsius Cube
Boiling or chilled or
chilled sparkling tap

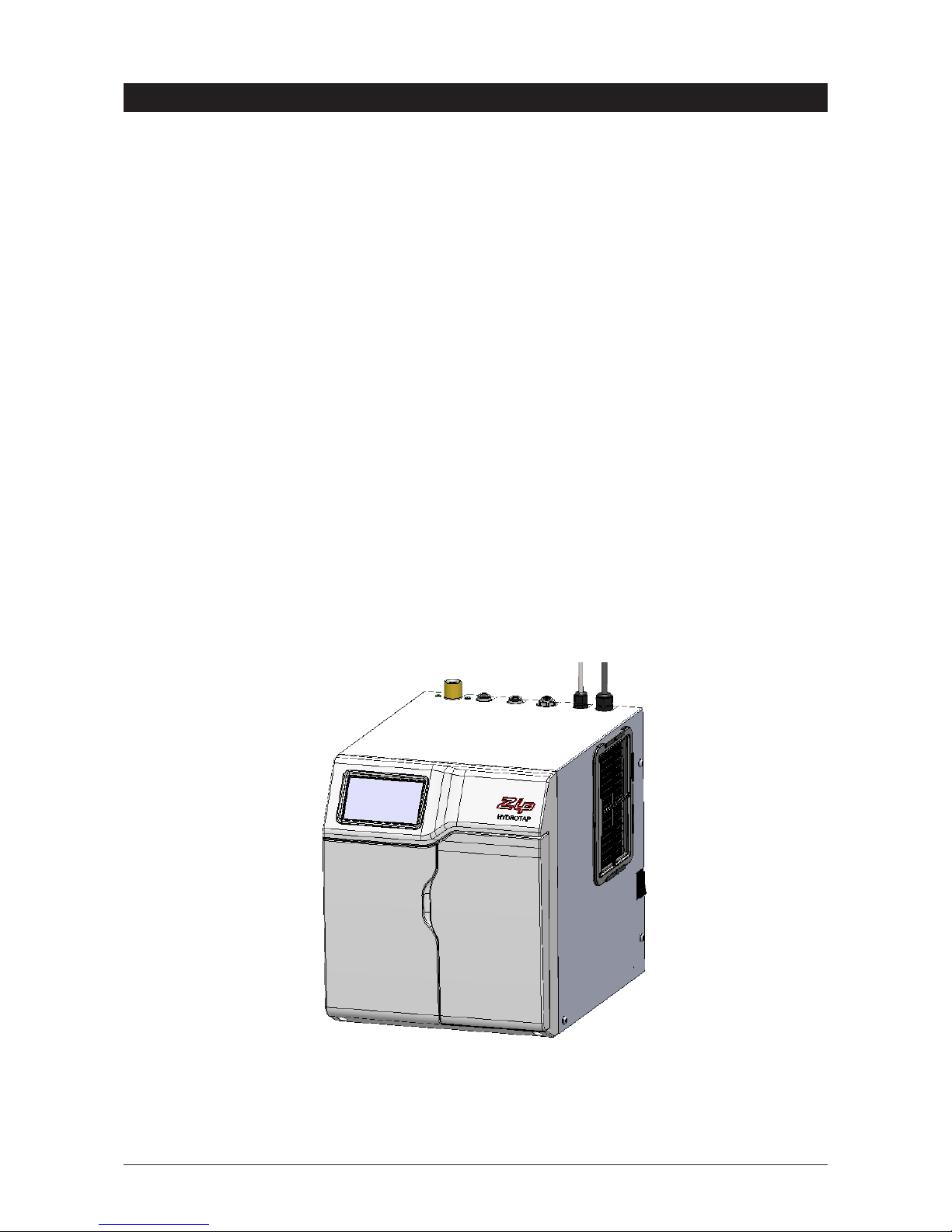

Command-CentreTM and components
Vent kit
(C ,CS models only)
1 x Outlet vent (C)
2 x Outlet vent (CS)
1 x Inlet vent
1 x
Command-CentreTM
with air and water
filters
1 x Mains water
connection hose
1 x T-piece &
adaptor
1 x User guide and
1 x Quick start
guide
1 x Installation
instruction
1 x
CO2gas cylinder
assembly
(CS models only)
801599-HydroTap User Guide - Nov 2013 UK - V1.05 Page1of 20
ZIP HydroTap
User Guide
®
• Tap Operation...................(Pages 2-5)
• LCD Screen & Menu .......(Pages 6-18)
• Maintenance.................... (Pages 18-20)
• Date of Installation.........
Affix Model Number Label
Here
801599
BC160/125G4
BC240/175G4
BCH160/125G4
BCH240/175G4
AV160/125G4
AN160/125G4
AV240/175G4
AN240/175G4
801600 - Zip Quick Start Guide - October 2013 - V1.06
Parts Supplied Description Parts Supplied Description
1 off
Hydrotap Tap
and hoses
Duct kit
1x Air Duct
1 x Mounting
plate
1 off
Undersink Unit
with air and water-
filter
Vent kit
1 x Kickboard
louvre
1 x Door vent
louvre
1 x front vent grill
1 x Restrictaflow
valve and Tee
piece for Mixer
Taps
1 off
HydroTap
Booster heater
and hoses
(Supplied with
240/175 models)
1 off Mains water
connection hose
QUICK START GUIDE
Note: This quick start guide must be read in conjunction with
the main installation and user instructions
• Before proceeding, read the installation and user instructions
• Check all the components are present and correct.
• Check that you have all the necessary tools
•
Ensure the underbench can support the product weight when full of water,
(Check the specifications in the main book and allow an extra 5-8kg when full. )
Before installing ensure the following have been provided at
the installation site:
• Sufficient space in the cupboard to install all of the undersink units in accordance
with these Installation Instructions. Refer to technical specification for dimensions. If
required, make allowance for a booster heater. (Refer to the main book, for detailed
installation instructions).
• A potable water supply connection with isolating valve inside the cupboard within
reach of the flexible braided hose and positioned so that the connection point and the
stop cock will not be obstructed when all the undersink units are installed.
• For Zip HydroTap 160/125 &160/175 models, a 220-240Vac, 10A GPO will be
required. For Zip HydroTap 240/175 models, two 220-240Vac, 10A GPOs will be
required. (One GPO is for the Zip HydroTap and the other for the Booster heater).
NOTE: Check the cable lengths and outlet positions before proceeding.
• A potable cold water supply with a minimum working pressure of 172kPa and a
maximum working pressure of 700kPa connected via an isolation valve.
• For the mains pressure All-IN-ONE, both a hot and cold water supply will be required.
• The undersink appliances must be mounted in upright positions as shown in the
diagrams.
IMPORTANT! Do not proceed with the installation if these
requirements are not met.
STEP 1- Prepare and fit the Taps
Hole positioning: Position the tap such that it dispenses into
the sink bowl with ample clearance for a cup or tea pot. Alternatively,
the tap could be mounted away from the sink using a Zip Font, avail-
able as an accessory.
Apply a light smearing of silicon sealant
on the underside of the upper spacer to
ensure a watertight fi t.
For HydroTap and Mixer taps
cut a 35mm hole in the bench / sink top.
BENCH TOP
Ø35mm
HydroTap Tap
Mixer Tap 4-in-1
(If required)
NUT
LOWER RUBBER
WASHER
UPPER
RUBBER
WASHER
WASHER
BRAIDED
HOSE x 3
UPPER RUB-
BER WASHER
LOWER RUB-
BER WASHER
WASHER
NUT
White Hose
Ext. Mains
Blue band
Mixer IN
Red band
Mixer Out
O-RING
BASE
BLOCK
SPIDER
BASE
BLOCK
NUT USB
CABLE
ALL
THREAD
ROD
NOTE: feed each of
the tubes and elec-
trical cable evenly in
between the legs of
the BASE BLOCK
SPIDER.
All-In-One Tap (If required)
For AIO mains and vented Taps
Cut a 50mm hole in the bench / sink top.
NOTE: make sure the tap location will allow the nozzle to drain into the sink.
SINK TOP
50mm
ALL THREAD
ROD
STAINLESS
STEEL
WASHER
SPIDER
CLAMP
NUT
BLACK
PLASTIC
SPACER
NOTE: feed each of the three tubes and
electrical cable evenly in between the legs of
the SPIDER CLAMP when installing.
Fit the
STAINLESS STEEL
WASHER,
SPIDER CLAMP,
AND 6mm NUT.
6mm
NUT
SPIDER
CLAMP
Stainless
washer
Black plastic
spacer
35mm dia hole
Sink
O-RING SINK TOP
Fit the O-ring to the underside of the AIO tap
then pass all hoses through the 50mm hole.
Chiller
connection
BLUE
From Mixer OUT to Tap - Vented version only
Boiler
connection
RED
Blue ring on
RHS mains IN to
Mixer IN
White ring
on LHS to
Mains in
Tap
O ring Base
Clear tube to Vent
*ZT200G4 kit to fit filters FL1100

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 9 of 28
Technical specifications
* Add an extra 2.5 - 3.0 kg when full of water
Model 13A sockets
required
Power
rating (kW)
230V
Unit Dimensions
W x D x H (mm)
with air duct
*Dry weight
(kg)
Boiling 1x13A 1.43 280 x 313 x 335 11kg
Chilled 1x13A 0.13 280 x 389 x 335 18kg
Chilled and sparkling 1x13A 0.30 280 x 389 x 335 26kg
Note Chilled water will continue to be dispensed after the rated capacity has been used, although this may
affect the dispense temperature.
Min / Max water supply pressure
Celsius Boiling + mixed hot & cold .............................0.17 MPa (1.7 bar) - 0.7 MPa (7 bar)
Celsius Chilled + mixed hot & cold .............................0.17 MPa (1.7 bar) - 0.7 MPa (7 bar)
Celsius Chilled and sparkling + mixed hot & cold .......0.25 MPa (2.5 bar) - 0.7 MPa (7 bar)
Scale filtration...............................................................0.20 MPa (2.0 bar) - 0.7 MPa (7 bar)
Residential HydroTap®G4 Celsius range
Arc
Cube
OR
Chilled, sparkling and filtered together with mixed hot
& cold.
Chilled and filtered together with mixed hot & cold.
Boiling and filtered together with mixed hot & cold.

Page 10 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Before installing ensure that the following have been
provided at the installation site
• Review all the technical specifications.
• Ensure the under counter can support the product weight when full of
water (allow an extra 2.5- 3.0 kg when full).
• Sufficient space in the cupboard to install all of the Command-CentreTM
plus related hardware in accordance with these installation instructions.
Refer to technical specification for dimensions. Make allowance for
a water softener if required. Refer to sections 3 to 5 for installation
instructions.
• For all Celsius residential models a single 220-240V AC, 13A socket will
be required.
• The Command-CentreTM must be installed in accordance with IEE
regulations. See Technical specification, page 9 for power ratings.
Note Check all cable and hose lengths against inlet /outlet
positions before proceeding (See section 5 for general layout).
• A potable water supply connection with isolating valve inside the
cupboard within reach of the braided hoses and positioned so that the
connection point and the stop cock will not be obstructed when the
Command-CentreTM is installed.
• For mains pressure Celsius taps an external hot and cold water supply
will be required.
• If an external filtration or water softening device is required, then it is
important to allow extra space for these items.
• Apotablecoldwatersupplywithaminimumworkingpressureof:
(see min / max water supply pressure on page 9).
• If pressure is likely to exceed 0.7 MPa (7 bar), install a 0.35 MPa (3.5
bar) pressure limiting valve.
• The appliance must be placed with its base in a horizontal position.
IMPORTANT! Do not proceed with the installation if these requirements are
not met.
Before installation and site requirements

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 11 of 28
Section 1
Celsius tap installation
1.1 Tools, hole positioning and hole size
Special tools required
In addition to normal tools, the following will be required.
For the HydroTap®G4 and mixer taps.
• 35mm diameter sheet metal hole punch for sinks (not supplied).
• 35mm diameter hole saw for worktops (not supplied).
• 42mm AF nut runner (not supplied) for fixing the tap assembly.
Hole size and positioning
Position the tap such that it dispenses into the sink bowl with ample clearance for a jug, cup or tea pot.
Ø35mm hole required in mounting surface.
Tap positioning
220
330
251
Ø23
Ø49
220
402
257
Ø23
Ø49
Arc
Cube
Note Celsius taps have spouts that swivel. All images are for illustrative purposes, to aid
understanding of the system configuration, and are not prescriptive of tap positioning. Ensure that
the taps are mounted in a position that allows the water to safely drain to waste throughout the
complete positional range.

Page 12 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Celsius taps require a Ø35mm hole.
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Ø35mm
Fit the brass and
rubber washers
and secure with
brass nut.
Installation instructions
Ø35mm hole
1.2 Chilled and sparkling + mixed hot & cold tap installation
Nut
Brass
washer
Lower
rubber
washer
Upper
rubber
washer
USB
lead
Chilled
pipe
Sparkling
pipe
Mains hot
and cold
braided
hoses
Vent

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 13 of 28
Installation instructions
Ø35mm
1.3 Boiling + mixed hot & cold tap installation
Chilled + mixed hot & cold tap installation
Nut
Brass
washer
Lower
rubber
washer
Upper
rubber
washer
USB
lead
Chilled (blue) or
Boiling (red) pipe
depending on model
Vent (clear)
pipe
Mains hot
and cold
braided
hoses
Vent
Celsius taps require a Ø35mm hole.
Note Make sure the tap location will allow
the tap spout to drain into the sink.
Fit the brass and
rubber washers
and secure with
brass nut.

Page 14 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Section 2
Ventilation
2.1 Ventilation for all models
• The clearance envelope dimensions stated in the specification sheets and installation instructions must
be observed.
• Adequate ventilation must be provided to ensure that the cupboard space temperature does not exceed
350C.
Preferred arrangement
• 4mm door buffers (at the four corners of each door) supplied with the Command-CentreTM should be used
to provide adequate ventilation in normal usage, see diagram below left.
Note The vent kit has to be installed in a way that allows
air to be drawn in from the bottom of the cupboard and
expelled through the top of the cupboard. The outlet vent A
should be towards the top of the door (position A1) or side
of the cupboard (position A2). (Where possible air inlet vent
and the air outlet vent should be positioned at opposite ends
of the same
cupboard
space).
Vent cut-out details
*AAir outlet vent B Air inlet vent
Alternative arrangement
For chilled sparkling models in high use applications where
the cupboard space temperature is near 350C or higher, the
vent kit (supplied with chilled and chilled sparkling models)
can be used to provide further ventilation by convection.
* For dual
exhaust
fan cut-out
dimensions
see the
instructions
provided with
the kit.
Door buffers
A1
A2
B
Note Flat outlet vent shown in adjacent diagram, louvred
vent also supplied with CS models.

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 15 of 28
Filter / softener installation
An external filter / softener may be fitted to reduce the incidence of scale build up in the hot tank or may be
supplied at the customer’s request. (Scale filter head fitting kit order code ZT200G4).
• Choose a suitable location, (cupboard back or side wall)
within the reach of the braided hoses.
• Mount the filter head bracket in an upright position, using
the screws supplied in the kit.
• Ensure there is enough headroom for the filter cartridge
to be easily fitted and removed. *Allow a min. 80mm
base clearance.
• Attach the hoses as adjacent diagram, noting the flow
directions as marked on the filter head.
3.1 Mounting the filter head
3.2 Cartridge installation and flush
• Remove the sanitary cap from the new cartridge and make sure
the o-rings are correctly positioned.
• Moisten o-rings with water. Do not use any petroleum products
to lubricate the o-rings.
• Install cartridge with a quarter turn anticlockwise until cartridge
comes to a complete stop.
• Cartridge installation is complete.
Note The following instructions to flush the filter must be
undertaken AFTER commissioning of the complete HydroTap®G4
system, see section 6, Commissioning, page 22.
• Disconnect the braided hose from the filter outlet on the filter
head (out arrow) & insert the filter flush pipe (JG plastic hose).
Direct the pipe into a container of greater than 10 litre capacity.
• Turn the mains water supply on.
• Use the HydroTap®G4 to dispense boiling water. After a short
time water will flush through the filter into the container.
• Allow 10 litres of water to flush through.
• Turn the mains water supply off.
• Remove the filter flush pipe (JG plastic hose) from the filter
outlet, and refit the braided hose from the Command-CentreTM..
• Turn the mains water supply on.
• If a booster is fitted, turn the power to the booster off and
use the HydroTap®G4 boiling lever to dispense water for 30
seconds, allow the tank to refill.
• Turn the power to the booster on and dispense boiling water for
a further 30 seconds.
• The filter / softener flush is complete.
*Min. 80mm
Clearance to cabinet
oor.
Filter Label
Inlet
Outlet

Page 16 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Section 4
CO2cylinder
WARNING! The cylinder ( containing 1kg of CO2) should be installed in a well ventilated area of area
no less than 38m3.
If more than 1 gas cylinder containing 1kg of CO2is present within the same location, the
recommended ventilation area should be in proportion to the number of gas cylinders stored in that
location. A ventilated area in a non-enclosed area which could include the kitchen, living room etc.
See gas cylinder and MSDS sheet for complete list of warnings.
4.1 Secure the cylinder
Secure the gas cylinder supplied to a suitable wall, within 1 metre of the Command-CentreTM, in an upright
position. This is undertaken by screwing the metal bar holding the Velcro strap to a cupboard wall, 200mm
above the floor or base of the cupboard. Make sure the gas cylinder can stand in place before securing to the
wall. Due to regulatory requirements the gas cylinder must be stored securely and in an upright position.
4.2 Connect the regulator
Remove the gas cylinder from the strap. Make sure the regulator knob is turned fully anti-clockwise to the
end-stop before fitting. Screw on the regulator (clockwise). Be aware that some CO2may be discharged
from the connection to the regulator as the cylinder and the regulator are be assembled together. Any CO2
released will be cold. Screw on the regulator to stop this leakage. Note The leaking CO2will be cold.
Note Two plastic seals are supplied with a new regulator. Only one is required, the other is supplied as a
spare part.
4.3 Connect the gas hose
Connect the threaded end of the braided gas hose to the regulator, then connect to the John Guest fitting on
the top of the Command-CentreTM via the connection marked ‘CO2IN’
To turn the gas on, rotate the black knob on top of the cylinder clockwise. Then adjust the outlet pressure, by
rotating the regulator knob clockwise to between 2.7- 3.0 bar (green zone).
Note The arrow should sit in the green zone of the regulator gauge; it should not fall in the red or yellow
zones.
4.4 Test for gas leaks
Using soapy water perform a leak test. Apply the soapy water to the gas connections using a sponge or
brush. If any bubbles appear and grow, there is a gas leak at the connection. Clean away the soapy residue
and tighten or refit the leaking connection. Make sure the gas is turned off when tightening or refitting the
leaking connection.
Refit the gas cylinder to the velcro strap. Ensure the cylinder is in an upright position.
Note Care must be taken when working with high pressure CO2, and in no cases should the normal
operating pressure of between 2.7- 3.0 bar be exceeded.

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 17 of 28
After replacing a cylinder or after making a
gas connection, perform a leak test
Stage1
1. Turn the gas OFF
2. Using soapy water applied with a sponge, or with a
brush, cover all of the gas joints with a liberal
amount of suds.
Stage 2
1. Turn the gas ON
2. Adjust the pressure to between 2.7- 3.0 bar
3. Inspect the joint for leaks.
4. If any bubbles appear, the joint will need to
be resealed and tested again.
Faulty seal joint
CO2regulator
ON - OFF knob
Leak test
Note When removing hose, take care not to
lose plastic olive from the nut.
Green indicator

Page 18 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Section 5
Command-CentreTM installation
If an external filter is installed, select position B
B
Rotate 90°
only
1
2
3
4
Check the table below to determine which filter bypass position you need for your product.
Leave in position Auntil after commissioning (section 6). Select position Bif a scale filter is fitted, before
flushing the scale filter as described on page 22.
5.2 Braided hose fitting
Install the mains water braided hoses to the Command-CentreTM before locating in place.
Ifnoexternallterisinstalled,selectpositionA
A
Rotate 90°
only
1
2
3
4
5.1 External bypass valve
The diverter bypass valve allows the user to choose to have the boiling feed water bypass the internal
filter and only be filtered by the external filtration. This diverter valve is located at the rear panel of the
Command-CentreTM, see the diagram below.

802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 19 of 28
Installation instructions
Note The connection tubes supplied with the tap head assembly and cold inlet CANNOT be lengthened.
Not required for these models.
RED
CLEAR
BRAIDED
POWER
CABLE
USBMAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
280mm 50mm
50mm
535mm
COLD isolation valve
(not supplied)
Clearance
Envelope
Note All plastic pipes / silicon
tubes must be trimmed to size.
They must have a constant fall
to the Command-CentreTM.
Note Mains hose length is
750mm.
Electrical power cable length is
3.0m nom.
Position the Command-
CentreTM according to the hose
and cable lengths supplied.
5.3 Boiling and mixed hot & cold
Arc Cube
T-piece
(supplied)
HOT isolation valve
(not supplied)
Male to male adaptor
to T-piece
(supplied)

Page 20 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Installation instructions
Note The connection tubes supplied with the tap head CANNOT be lengthened, chilled pipes must be
insulated with the insulation provided.
External HOT and COLD
isolation valves
(not supplied)
280mm 50mm
50mm
535mm
Male to male adaptor
to T-piece
(supplied)
T- piece
(supplied)
Clearance
Envelope
Note All plastic pipes
/ silicon tubes must be
trimmed to size. They
must have a constant
fall to the Command-
CentreTM.
Note Mains hose length is 750mm.
Electrical power cable length is 3.0m nom.
Position the Command-CentreTM according to the
hose and cable lengths supplied.
5.3 Chilled and mixed hot & cold
Arc Cube
BRAIDED
POWER
CABLE
USBMAINS
IN
CHILLED
OUTLET
BLUE
