Zip HydroTap G5 Touch-Free Wave User manual

806835US v1.07 11.22 G5 User guide 1
User Guide
HydroTap G5®
Visit our website to download the manuals - scan
the relevant QR code above.
For a more detailed version of this guide refer to
the comprehensive ‘online’ user guide.
English French

806835US v1.07 11.22 G5 User guide
2

806835US v1.07 11.22 G5 User guide 3
Table of contents
SECTION 1: SAFETY ....................................5
1.1 Explanation of symbols .......................................... 5
1.2 Before you start ..................................................... 5
SECTION 2: Using the HydroTap.................6
2.1 Classic Plus, Elite Plus............................................. 7
2.2 Touch-Free Wave ................................................. 8
2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius........... 10
2.4 Classic ................................................................... 11
2.5 HydroTap Mixer faucets........................................ 12
SECTION 3: Command Center Screen..........13
3.1 How to use the Command Center screen ............. 13
3.2 Home screen......................................................... 15
3.3 Main menu ............................................................ 16
3.4 General settings ................................................... 16
3.5 System settings ..................................................... 18
3.5.1 Filter settings....................................................... 19
3.5.2 Temperature settings ......................................... 22
3.5.3 COsettings ........................................................ 24
3.5.4 Dispense times ................................................... 26
3.5.5 Light sensor ........................................................ 26
3.5.6 Quiet mode ........................................................ 27
3.5.7 Advanced settings 1 ............................................ 27
3.5.8 Advanced settings 2 (Wave Faucet only)............ 28
3.5.9 System restart..................................................... 28
3.6 Safety & security.................................................... 29
3.6.1 Boiling safety....................................................... 29
3.6.2 Passcode protect ............................................... 30
3.7 Energy saving ........................................................ 30
3.7.1 Sleep mode ......................................................... 30
3.7.2 On/Off Timer...................................................... 32
3.7.3 Energy Use.......................................................... 33
3.8 Info & logs ............................................................. 33
3.9 Product serial number........................................... 34
3.10 Service technician................................................ 35
SECTION 4: User maintenance....................36
4.1 Changing the internal filter ................................... 36
4.2 Air inlet filter maintenance .................................. 38
4.3 Cleaning ................................................................ 39
4.4 COcylinder and regulator................................... 40
4.4.1 G5 COregulator ................................................ 41
4.4.2 Changing the 5.0lb (2.27kg) COcylinder.......... 42
4.4.3 Changing the 1.5lb (0.67 kg) CO cylinder......... 43

806835US v1.07 11.22 G5 User guide
4
• Navigate to the register product menu.
• Scan the QR code and follow the on screen steps to
register your product.
[ ]
[ ]
Register product
**The screens referenced in this manual are current as per firmware v0.3.14B.
REGISTER PRODUCT 12:12 PM
Congratulations on
purchasing a HydroTap
system.
Scan the QR code on your
phone to register your
product.
Congratulations on
purchasing a HydroTap
system.
Scan the QR code on your
phone to register your
product.
®

806835US v1.07 11.22 G5 User guide 5
!
!
1.1 Explanation of symbols
Read the instructions
WARNING
!
!
Danger of electric shock
!
!
Hot surface
SECTION 1: SAFETY
1.2 Before you start
Read the WARNINGS and PRECAUTIONS.
Download & read the complete
Command Center installation instruction
manual and user guide.
!
Read and use the instructions supplied
with individual kit components for safe
use and installation of replacement
consumables.

806835US v1.07 11.22 G5 User guide
6
SECTION 2: Using the HydroTap
SAFETY
BOILING
CHILLED
CHANGE FILTER
SAFETY
Touch-free
Classic
Arc, Arc Plus, Cube,
Cube Plus and Celsius
HydroTap Mixer
Touch-Free Wave
Classic Plus, Elite Plus
See page 7
See page 8
See page 10
See page 11
See page 12

806835US v1.07 11.22 G5 User guide 7
SECTION 2: Using the HydroTap

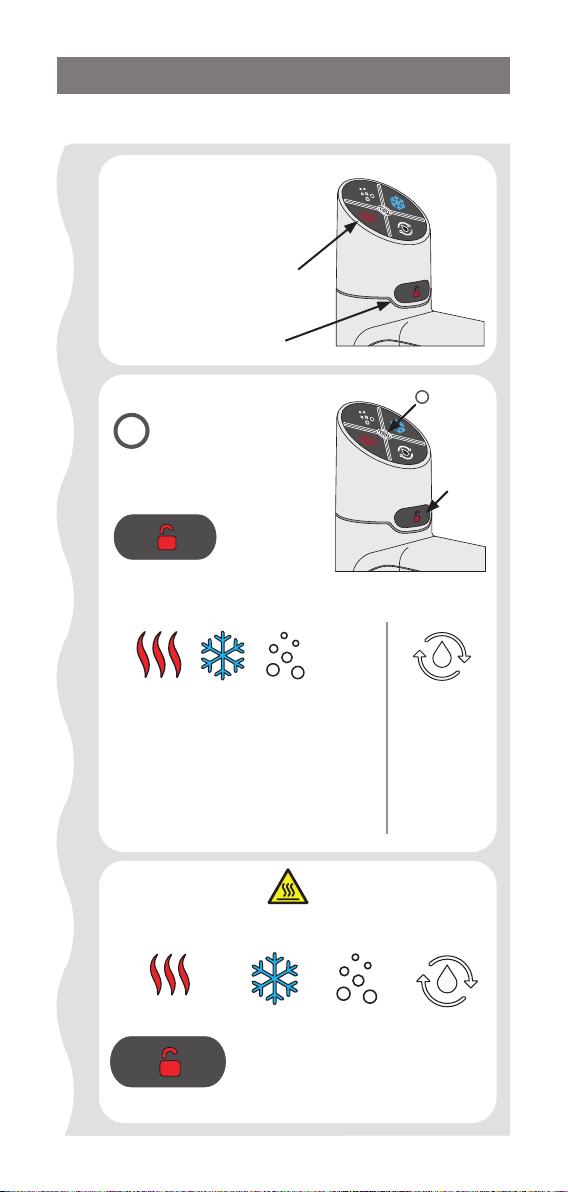

2.1 Classic Plus, Elite Plus
Controls Press to dispense
Dispense options
Press the icons to dispense water choice.
Chilled Sparkling
+
Boiling
ON
Ready to dispense.
FLASHING SLOWLY
Water temperature not at set point.
FLASHING QUICKLY
System fault.
Simply press to dispense
chosen water type
Safety lock
Safety
lock
Service
ON Safety lock active.
(Safety lock is always active).
ON
Bottle fill
enabled
FLASHING
Activated,
(press water
choice)
Lights
!UV
!
Bottle fill
(then
press water
choice)
!
FLASHING
Change filter or CO.
!

806835US v1.07 11.22 G5 User guide
8
SECTION 2: Using the HydroTap
2.2 Touch-Free Wave
Touch-free
Controls Touch-Free
sensors on the faucet
top, back and sides.
Touch-free
Lights
Dispense
sensors
Safety
sensor
(at back)
Light
Touch-free
Touch-free
Clearance requirements
(3.9”)
100mm
100mm
100mm
RED Boiling & safety
sensors activated, water
dispensed.
BLUE Chilled sensor
activated, water dispensed.
WHITE Sparkling sensor
activated, water dispensed.
PURPLE Lock mode on (when faucet is idle).
Flashing RED Sensor activated incorrectly; hand
may be too close to sensor, sensor has been
touched or covered.
WHITE / BLUE / RED Cycling 5 to 10 seconds
Filter needs replacing, CO warning (G5), unit
is in an error mode (refer to Command Center
screen).
WHITE Flashing rapidly Sensors calibrating when
power is first applied to the tap. Allow 10 seconds.
100mm
(3.9”)
(3.9”)
3.9”

806835US v1.07 11.22 G5 User guide 9
SECTION 2: Using the HydroTap

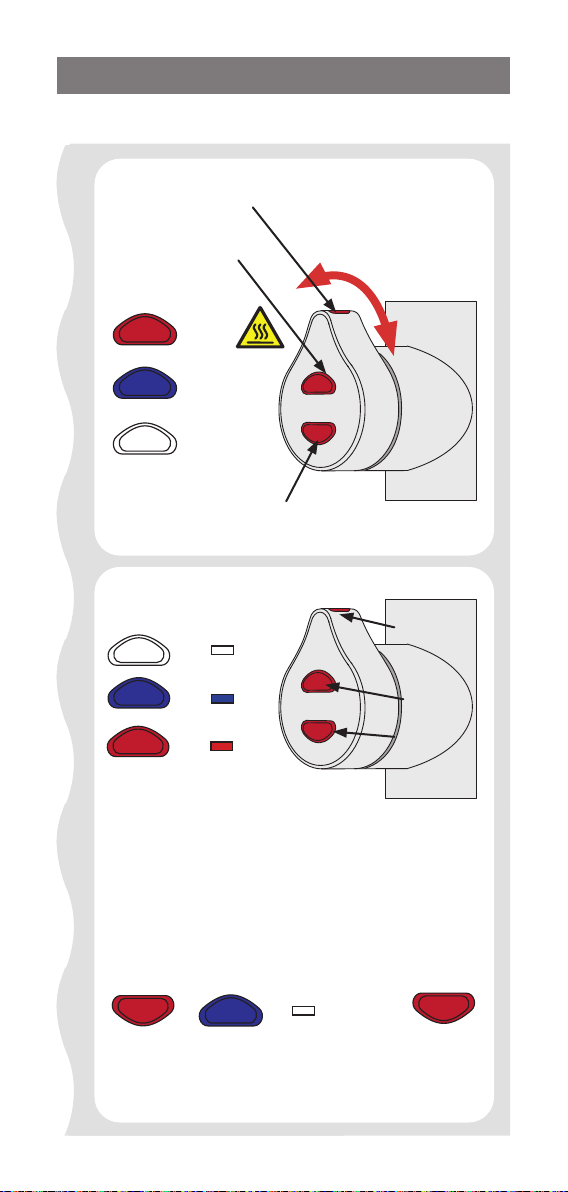

2.2 Touch-Free Wave continued
Dispense options
Sensor range 0.39” -1.57” (1 - 4cm).
To dispense, hold hand within range of the
sensors.
Tap will not operate and light will flash if the
sensors are touched or if your hand is too close.
+
Boiling Water
!
!
Chilled
Sparkling
!
!
1 – 4cm
Boiling
Side + Rear sensor:
Bottle fill
(timed dispense)
Top + Rear sensor:
Bottle fill
(timed dispense)
(0.39”-1.57”)

806835US v1.07 11.22 G5 User guide
10
SAFETY
SECTION 2: Using the HydroTap
2.3 Arc, Arc Plus, Cube, Cube Plus and Celsius
SAFETY
Controls
Manual
dispense
Bottle fill
(timed dispense)
Indicator displays
system status.
Select touch to
select water type.
Lights
Indicator
Select
Safety
SAFETY
SAFETY
+
SAFETY
SAFETY
+
SAFETY
SAFETY
+
SELECT
SELECT
SELECT
SAFETY
SAFETY
+
SAFETY
SAFETY
+
ALL LIGHTS FLASH EVERY 10
SECONDS
Filter change due.
SELECT
SAFETY
SAFETY
Boiling
Chilled
Sparkling
SELECT
SELECT
SELECT
!
!
Safety Touch twice to flash. Turn to dispense
boiling water.
ON
Ready to dispense.
SINGLE COLOR FLASHING SLOWLY
Water temperature not at set point.
SINGLE COLOR FLASHING QUICKLY
System fault, refer to Command Center LCD.
SAFETY
SAFETY
SAFETY
LOCK ON

806835US v1.07 11.22 G5 User guide 11
BOILING
CHILLED
CHANGE FILTER
SAFETY
SECTION 2: Using the HydroTap
2.4 Classic
BOILING
CHILLED
CHANGE FILTER
SAFETY
Controls
Push for manual
dispense.
Pull for bottle fill
(timed dispense).
Lights
BOILING
CHILLED
CHANGE FILTER
SAFETY
Dispense options
Boiling ready
Chilled / sparkling
ready
Filter
Use boiling or chilled,
sparkling lever to
dispense your water
choice.
BOILING
CHILLED
CHANGE FILTER
SAFETY
SAFETY
BOILING
CHILLED
CHANGE FILTER
SAFETY
SAFETY
ON
Ready to dispense.
FLASHING SLOWLY
Water temperature is not
at set point.
FLASHING QUICKLY
System fault.
BOILING
CHILLED
CHANGE FILTER
SAFETY
SAFETY
FILTER
Safety
lock
OFF
Filter within lifespan.
FLASHING SLOWLY
Change filter.
ON active (safety lock
is always active).
!
!

806835US v1.07 11.22 G5 User guide
12
SECTION 2: Using the HydroTap

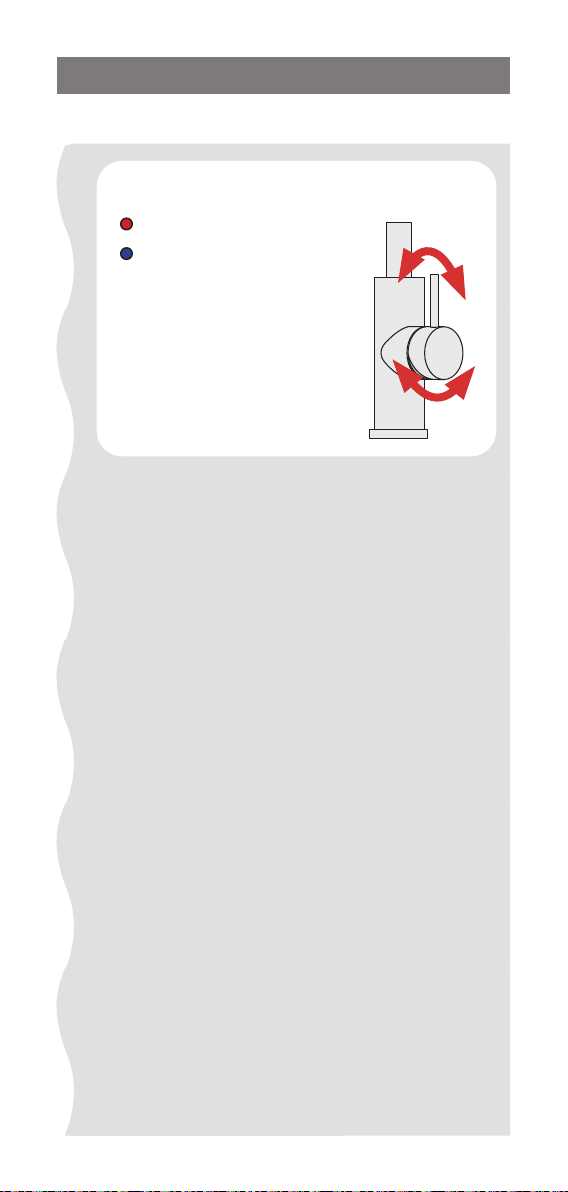

2.5 HydroTap Mixer faucets
Controls mixed water
Hot
Cold
Lift and rotate the lever
to dispense mixed
warm water.

806835US v1.07 11.22 G5 User guide 13
SECTION 3: Command Center Screen

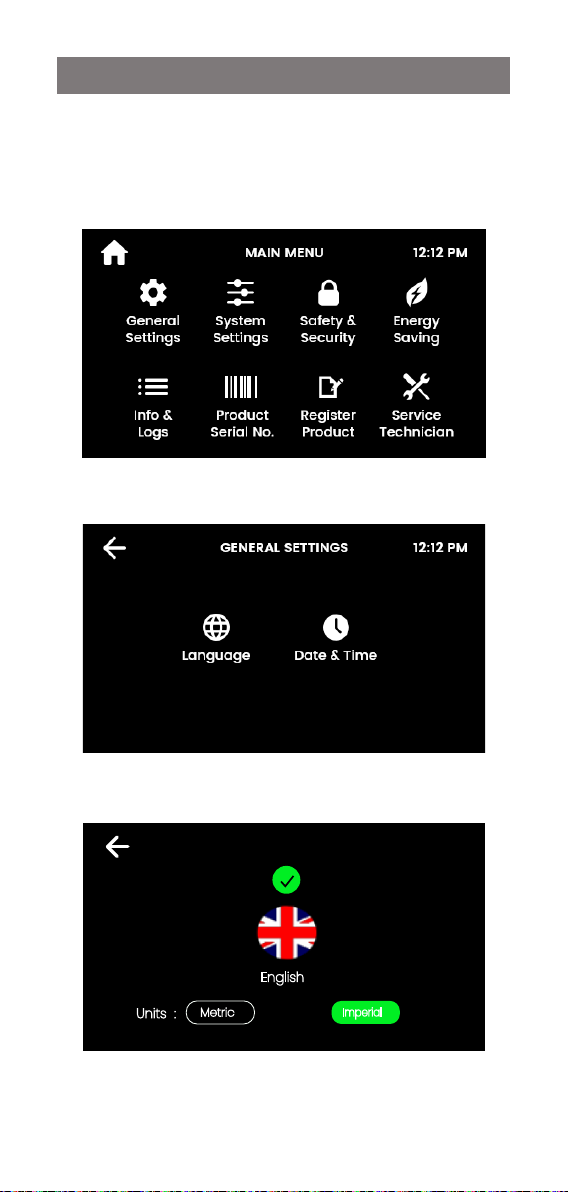

3.1 How to use the Command Center screen
The Command Center has a color touch screen liquid
crystal display.
The screen turns OFF after 5 minutes of non-use. Touch
the screen to reactivate.
Navigate to the required screen. Here's an example :
Set the language - from the home screen
Touch the ‘top left’ icon to navigate to the main menu.
Then touch the general settings icon to navigate to the
general settings menu.
MAIN MENU 12:12 PM
General
Settings System Settings Safety & Security Energy Saving
Info &
Logs Product Serial No. Register Product Service Technician
[ ] [ ]
[ ]
LANGUAGE 10:50 PM
Imperial
Metric
Units :
English
(To go back)
(To return to the home screen)
[ ]
[ ]
[ ]
Touch the language icon to navigate to the language screen.
Touch the relevant language icon to select the language.
Touch the metric or imperial icon to select the units.

806835US v1.07 11.22 G5 User guide
14
SECTION 3: Command Center Screen
OFF screen
Touch the power button to turn the Command Center ON
or OFF. The LCD screen visually shows OFF when it is non-
operational.
You will hear the sound of an internal “click” as the
HydroTap Command Center turns ON or OFF.
When OFF, all functions are disabled including heating,
chilling, filling and dispensing.
Turning the power back ON will reset the system of any
faults.

806835US v1.07 11.22 G5 User guide 15
SECTION 3: Command Center Screen

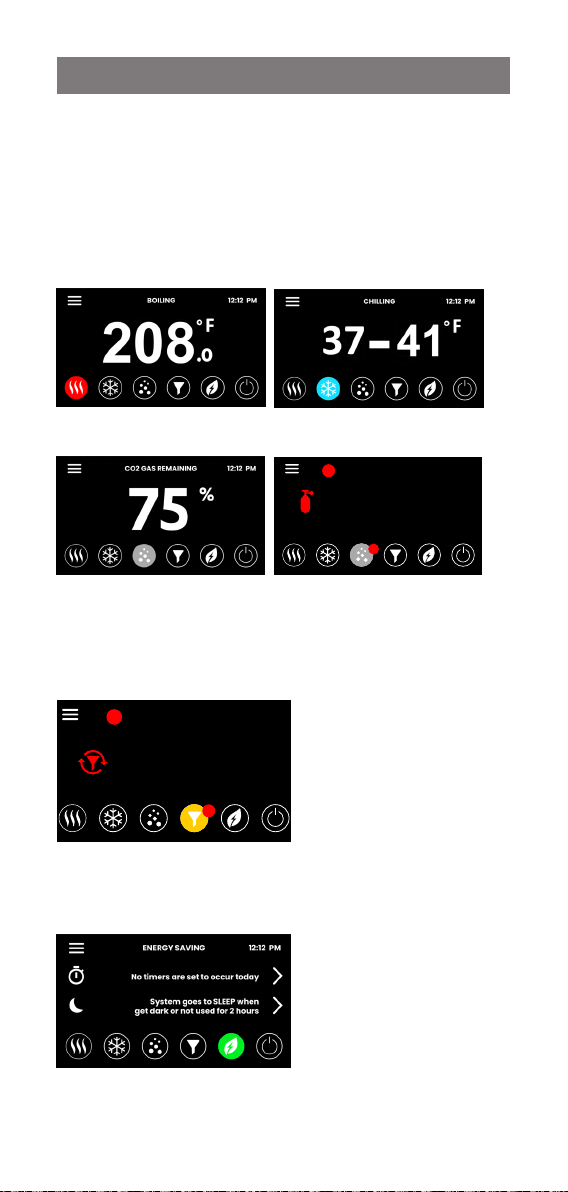

3.2 Home screen
Status screens shown here are representative and may vary.
Use the home screen to monitor the HydroTap status.
Touch each icon to view the system status.
Boiling temperature
set point
Chilled temperature set
point (Chilled models)
CO gas remaining (Sparkling models)
12:12 PM
0
%
CO2 GAS REMAINING
REPLACE
CO2 GAS
!
!
When the CO cylinder has approximately 20% remaining,
a warning appears to encourage you to prepare a
replacement cylinder.
Filter life remaining
A warning icon is shown when the filter needs to be
replaced. See page 36.
Energy saving settings
View or modify the current active timers and sleep mode
actions. See page 30.
12:12 PMFILTER LIFE REMAINING
External %
EXT FILTER
DISABLED
!
!
REPLACE
FILTER
Internal %
100

806835US v1.07 11.22 G5 User guide
16
SECTION 3: Command Center Screen

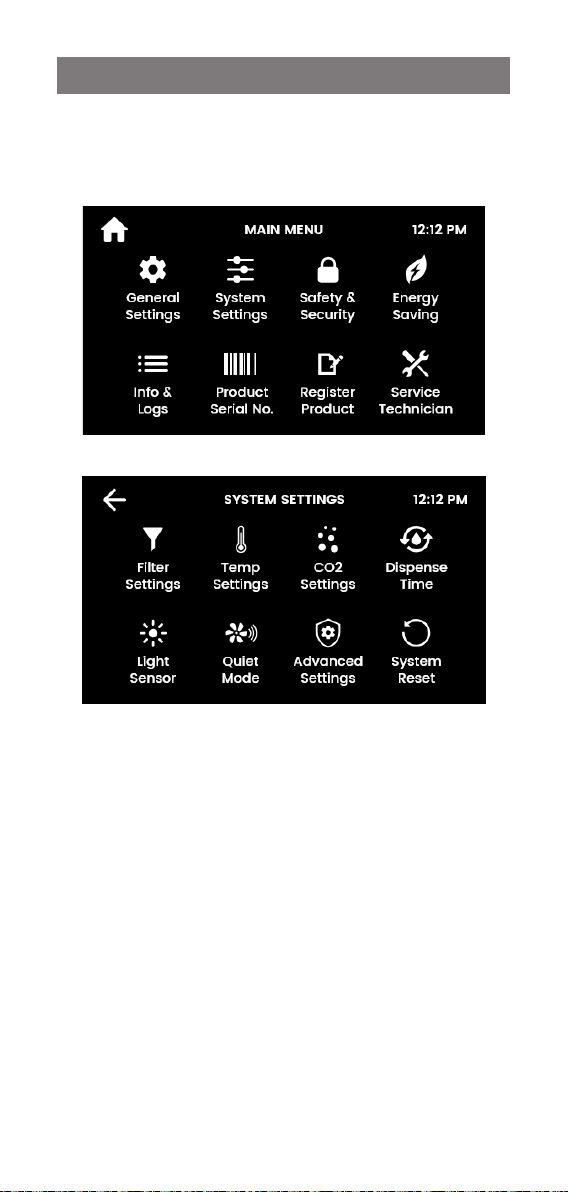

3.3 Main menu
Use the Main menu to configure your HydroTap and
access features and settings. Touch each icon to access
further options.
3.4 General settings
Language
LANGUAGE 10:50 PM
Imperial
Metric
Units :
English
[ ]

806835US v1.07 11.22 G5 User guide 17
SECTION 3: Command Center Screen

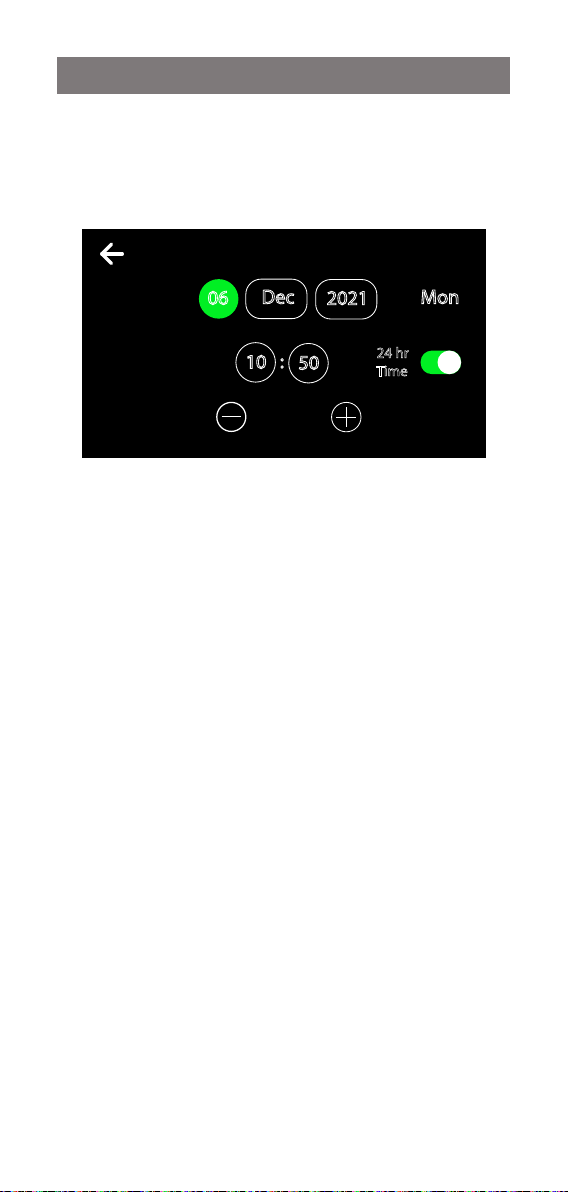

Date and time
Touch the text boxes on the screen and then press + and -
to set the current date and time. Press the tick to confirm
and save.
DATE & TIME
2021
Dec
06
10 50
:24 hr
Time
Mon
12:12 PM

806835US v1.07 11.22 G5 User guide
18
3.5 System settings
Configure your HydroTap to suit your needs.
Navigate to system settings screen for all system settings.
SECTION 3: Command Center Screen
[ ]

806835US v1.07 11.22 G5 User guide 19
SECTION 3: Command Center Screen
Filter flush
Use Filter flush during commissioning of a new installation,
and after every filter change.
See page 36 for filter change instructions.
3.5.1 Filter settings
FILTER SETTINGS 12:12 PM
Filter
Reset Filter Life
Filter
Flush Tank Flush
Open filter door, uncoil flush line.
Direct flush line into bucket.
Open shut-off valve.
Shut-off valve
Shut-off valve open

806835US v1.07 11.22 G5 User guide
20

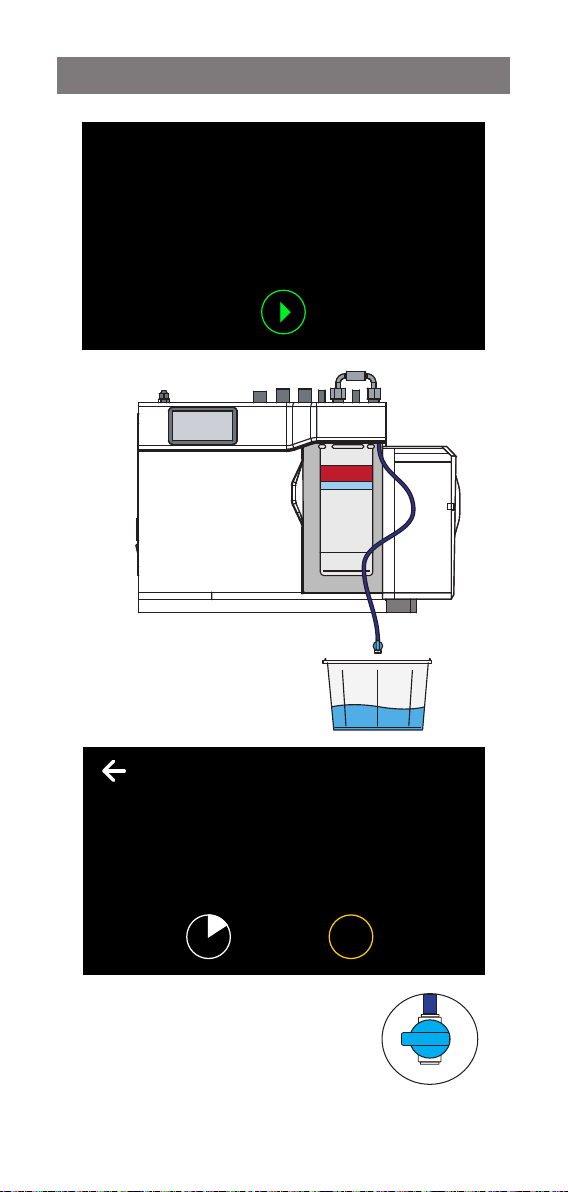

SECTION 3: Command Center Screen
12:12 PMFILTER FLUSH
STEP 1.
Open the filter access door and turn the flush line
SHUT-OFF VALVE to the ON position.
STEP 2.
Place a 3 gal. bucket under the flush line valve to catch
the water flushed through the filter.
Start flush.
Shut-off valve
closed
| |
FILTER FLUSH
RUNNING.....
Water is now being flushed through the filter.
This process is automatic and will take 2 minutes.
Press pause to pause filter flush.
12:12 PM
Approximately 3 gal (10L) of
water will flow, for 2 minutes.
The screen will show the filter has
been flushed.
Close the shut-off valve, return the
flush line to the filter compartment
and close door.
Reset the filter counter (see page 21).
