User Manual
Walk Through Metal Detector: ZK-D1065S
Version: 1.2
Date: December 2019

Contents I
Contents
Notes......................................................................................................... 1
Product Specification.................................................................................2
Installation Environment............................................................................3
Performance and Features.........................................................................5
Application................................................................................................ 7
Parts...........................................................................................................8
Installation................................................................................................. 9
Control Panel........................................................................................... 11
Detection Zones...................................................................................... 12
Operation................................................................................................ 13
Detection Adjustment............................................................................. 16
Brief Maintenance....................................................................................18
Technical Parameters............................................................................... 19
Packing List.............................................................................................. 20
Warranty Card.......................................................................................... 21

ZK-D1065S User Manual 1
Notes
PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE
OPERATION:
1. It's available for both indoor and outdoor use, if need use outdoor,
please use canopy to protect it against rain.
2. Choose the smooth and stable installation place, don't touch the
detector during security checking to avoid false alarm.
3. Make sure there's no big metal object or strong magnetic field
around the detector within 2 meters.
4. Detector probe mustn't install in high temperature or wet
circumstance.
5. Please wait 1 minute for its self-diagnosing when machine starts.
6. Do not disassemble the control units except the professional
technician.
7. Follow the user manual and make sure the right wire connection
when the device starts.

2 ZK-D1065S User Manual
Product Specification
Walk Through Metal Detector is mainly used to check the metal items
hidden on the body. When the passengers pass through the device, if
they carried metals more than preset parameters value, the device
would immediately alarms, and display alarm location, let the security
guard find the people with the prohibited metal articles timely.

ZK-D1065S User Manual 3
Installation Environment
1. Stationary Metallic Items
When installing walk through metal detector, it should stay away from
the stationary or fixed bulk metal items 50cm; otherwise it will affect the
sensitivity, causing false alarm. Metal items such as: aluminum alloy /
stainless steel doors and windows, etc.
2. Movable Metallic Items
The big metal items can be moved, should stay away from the device
about 2 meters to avoid false alarm.
3. Floor Vibration
The floor should be flat and fixed, to avoid false alarm after installation by
the movement of people walking or moving and shaking of metal
objects.
4. Electromagnetic Radiation And Electromagnetic Interference
Because the device uses bilateral transceiver technology, therefore, any
electromagnetic interference sources and electromagnetic radiation
source is not allowed to close the device, the recommended distance is
1 meters. The parameters of the distance are determined by the
installation environment, and different installation environments with

4 ZK-D1065S User Manual
different parameters.
The electromagnetic interference sources and electromagnetic radiation
sources as following:
Electrical Control Box, Radio Equipment, Interphone, High Power Motor,
Power Transformer, Ac Power Lines, Thyristor Control Circuit (High Power
Switching Power Supply, Inverter Welder), Engine, Motor etc.
5. Side-By-Side Using
When installing the devices side by side, the distance between two walk
through metal detectors cannot be less than 50cm and the device work
frequency must be different. Specific distance parameters according to
the actual environment and the selection of the work frequency to
adjust.

ZK-D1065S User Manual 5
Performance and Features
Accurate Positioning: 6 overlapping network detection zone,
bilateral transmit and receive, can be accurately positioned to detect
objects, intuitive display of the target location.
Micro Processor Technology: the scanning electromagnetic wave
generated by the microcomputer control circuit, the scanning rate
can be precisely controlled.
Sensitivity Adjustable: each detection zone has 100 sensitivity
levels (0 ~ 99). Preset metal size, you can exclude the coins, keys,
jewelry, belt buckle etc.
Digital Pulse Technology: digital signal processing and filtering
system, has excellent anti-interference ability.
Password Protection: only the correct password can change the
sensitivity and other parameters. Password with five digital, can be
set by the user.
Count Statistics: pass count and alarm count.
Harmless to human body: harmless to heart pacemaker, pregnant
women, magnetic floppy disk, recording tapes etc.
Power Supply Security: the power supply on the top of the control
box, waterproof.

6 ZK-D1065S User Manual
Waterproof Foot Cover: not only can fixed the device, but also
waterproof.
Waterproof: using PVC synthetic material, special technology,
waterproof, fireproof, shockproof.
Easy to install: the system is integrated design, just 15 minutes to
complete the installation or disassemble.

ZK-D1065S User Manual 7
Application
1. Airport, customs, port, stations and other places for.
2. Security inspection of prohibited metal items in court, public
security, prison and detention center.
3. Entrance inspection for important places, exhibition hall, exhibition,
business event, celebration, stadium and other important public
places.
4. Important industrial and mining enterprises such as hardware,
electronics, jewelry, mint to prevent the loss of precious metal
goods.
5. Nightclubs, theaters, dance hall, bars and other entertainments
where to prevent carrying dangerous metal objects.
6. Banks, postal, hospitals, public buildings, schools, private houses and
other places to prevent carrying dangerous metals.

8 ZK-D1065S User Manual

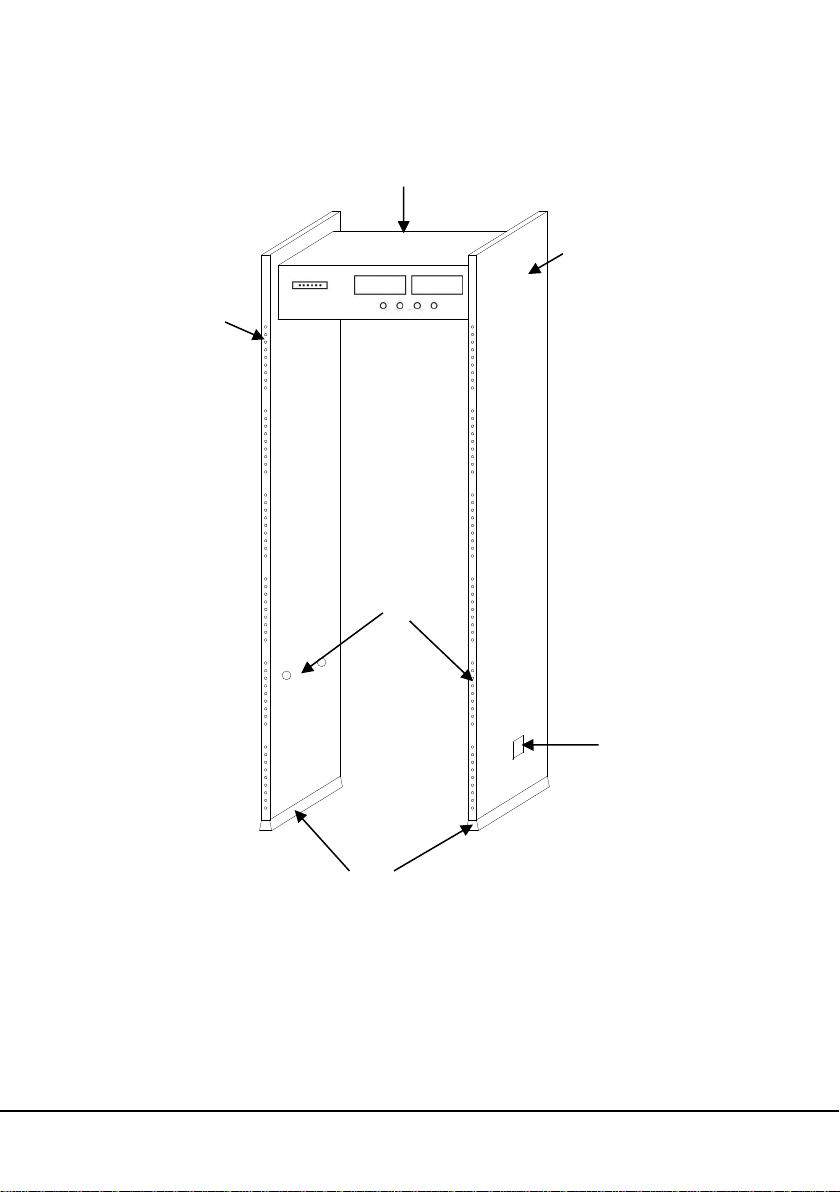

Parts
1. Control Unit Case 2. Alarm zone LED
3. Built-in Probe 4. Infrared Sensors
5. Waterproof Foot Cover 6. Power Line Interface
1
2
4
5
3
6

ZK-D1065S User Manual 9

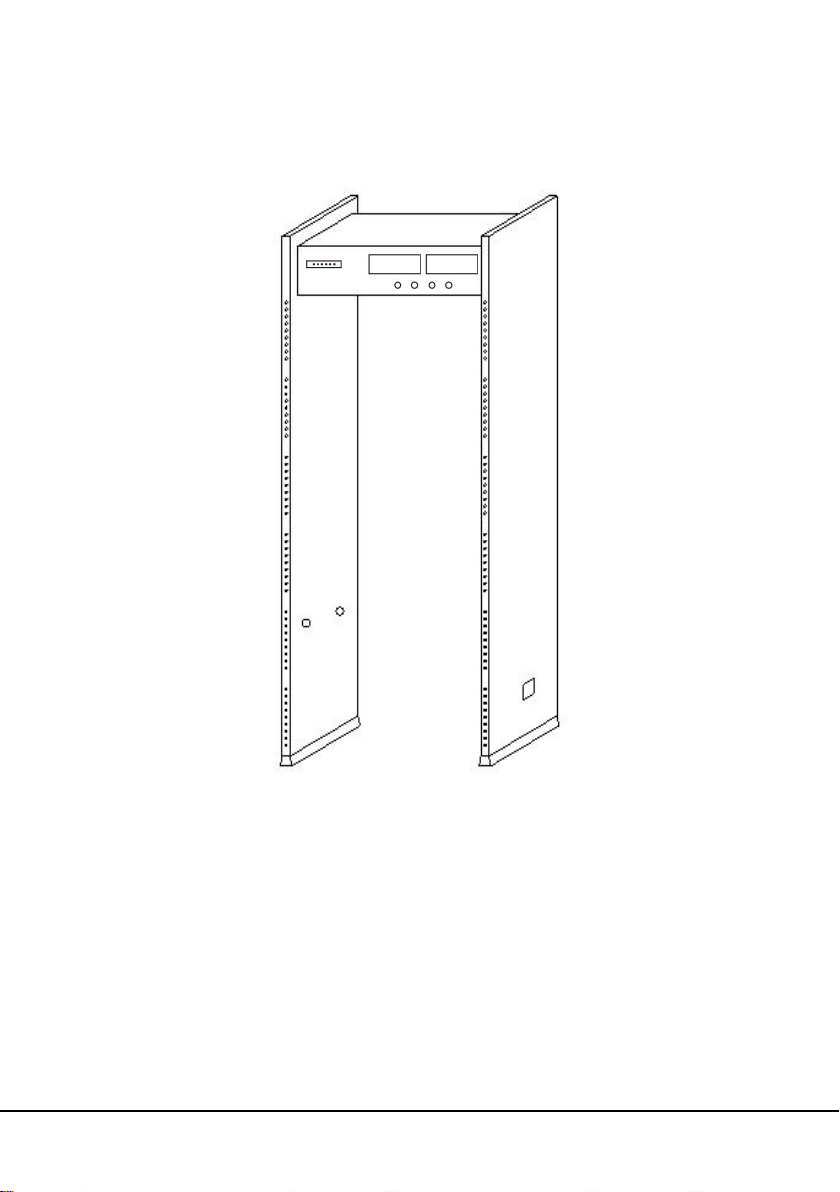

Installation
Left door panel Right door panel
1. Remove the package of control unit and door panel.
2. Put the control unit case and door panels as above picture shown,
and then connect the left and right door panel with the control unit
case by bolts. Tightening screws.
3. Probe line of the left and right door panel tight inserted into the
motherboard corresponding socket respectively.

10 ZK-D1065S User Manual
4. Lift the walk through metal detector to the vertical position and
move to the assigned position.
5. Plug power cable.

ZK-D1065S User Manual 11
Control Panel
1. ENTER: confirm the data after adjusting, and change the single digit
when setting the zone sensitivity level.
2. SETUP: Switch to various data, and change the tens digit when
setting the zone sensitivity level. If press“SETUP”for 5 seconds, you
can adjust the frequency. From frequency 1 to frequency 12 is
optional.
3. SELECT: choose each program and increase the numerical value
when input password.
4. RESET: reset PASS CNT and ALARM CNT. In addition, press ”RESET”
for 5 seconds to startup or shutdown.
PASS COUNT
ALARM COUNT
0 0 0 0 0
0 0 0 0 0
1 2 3 4

12 ZK-D1065S User Manual
Detection Zones
A. LED counter: Indicate pass count and alarm count
B. Alarm zones display
There are six unique sets of precise
positioning LED evenly distribution on the
door panels, means 6 detection zones
(from bottom to top is zone 1, zone
2,zone 3, zone 4, zone 5, zone 6) zone 7
means whole sensitivity and the
sensitivity levels higher the sensitivity
higher. If the metal reaches or exceeds
preset value, the red LED alarm. If there
are multiple alarm targets, the LED light of
each target location would be lit and with sound alarm.
C. Infrared sensor
After connected power supply, the metal detector starts to work. When
there is no person or object passes the device, the infrared sensors can
effectively stop alarming to avoid false alarm. And accurate count
passengers and alarm times.

ZK-D1065S User Manual 13
Display
ENTER
ENTER
SELECT
ENTER
SETUP
Press“ENTER”
then press“RESET”
Remark ①
Press“SELECT”
Operation
SENSITIVITY：
Remark ①: ”1”means zone 1,press“SELECT”to select zone 2-7 to adjust
corresponding zone sensitivity, especially zone 7 is whole sensitivity, ”xx”
is sensitivity level, press“SETUP”to adjust tens digit, press ”ENTER”to
adjust unit digit.(the bigger sensitivity levels the higher sensitivity )
Remark ②: Press ”SETUP”to adjust alarm time, the bigger value the
longer alarm time.
12345
00000
d-0X
1-XX
d-0X
Remark ②
Finish

14 ZK-D1065S User Manual
Display
SETUP
Press“SETUP”
five seconds
Remark ③
SELECT
Press ”SELECT”
Display
Press“SETUP”
to shift”-”
FREQUENCY :
Remark ③: ”xx”means working frequency ,press“SETUP”to select
frequency, the scope for working frequency is 1-12 can be selected.
Startup & Shutdown :
Press“RESET”five seconds to startup or shutdown.
Password input:
F-XX
Press“ENTER”
then press“RESET”
12345
1-345
ENTER
E0000
00000
Increase the
number of”-”
Input the correct
password again
Finish
Finish

ZK-D1065S User Manual 15
SELECT
Input
password
Display
Press“SETUP”
to shift”-”
ENTER
ENTER
Change password:
Remark ④: If you forgot the password, you can input the universal
password“88888”to reset a new password.
00000
0-000
Increase the
number of”-”
d-0X
Finish

16 ZK-D1065S User Manual
Detection Adjustment
1. The device must be in a stable status to achieve the best detection
effect (refer to the "Installation Environment"), to check whether the
device in a stable status, the steps as follows:
a. The device is not shaking after power ON for 1 minute.
b. The device would not alarm when the tester did not carry any
metal items walk through the detector.
2. Excluding small portable metal objects such as rings, key, belt
buckle, shoes and so on, according to the following steps to adjust:
a. Choose a small metal as the sample, such as keys.
b. Increasing the sensitivity, so that when the tester carry the
sample and pass through the device, the detector would
alarms.
c. Decreasing the sensitivity a little, carry the sample pass through
the device again, if it still alarms, once again to reduce the
sensitivity, until the device not alarm when the sample passed
through.
Note: If you want to decrease the sensitivity in a certain zone, only have
to adjust the sensitivity of relative zone. After finished the above
adjustment, the metal which smaller than the sample will not alarm, but

ZK-D1065S User Manual 17
the metal objects bigger than the sample can be detected accurately.
If need decrease total sensitivity, you can adjust zone 7.
3. Traffic regulations:
a. Draw a waiting line for 50cm away from the device, so that the
passengers can line up and pass one by one.
b. Before the passengers walk through the device, they should
remove all the carried metal objects (such as keys, mobile
phone, watch, coins, etc.), place on the side of security chute or
a table, and pick it up after security checking.
c. Passengers should line up one by one to pass the device, do not
crowd, walk through with normal speed, cannot intentionally
rush or postponed, and do not crash the door panel.
d. If the devices alarms when someone pass through, that means
there are some metal objects were hidden in his body. The
security guard can use a hand-held metal detector accurately
detect the hidden position according to the alarm zones.

18 ZK-D1065S User Manual
Brief Maintenance
1. Infrared sensor cannot count:
a. Check the probe cables were well connected with the door
panels.
b. Check whether there are some infrared interferences beside the
device, such as: infrared surveillance system, infrared remote
control (when press button), outdoor sunlight, etc.
c. If both a and b are OK, please replace the Infrared sensor.
2. False alarm
a. After installation, if the device gives false alarms frequently, firstly,
check the installation environment. Make sure there is no
movable or stationary large metal objects around in 1.5 meters.
If any, try to make the device away from the large metal objects.
In addition, make sure the installation location no wind cause
shaking.
b. If the false alarm not caused by the environment, please reduce
the sensitivity of all zones.
c. Change the frequency
d. Change the installation location
