ZKTeco ZK-MD6000 Series User manual

ZK-MD6000 Series User Manual and Installation Guide
Page | 1 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Thank you for choosing our product. Please read the instructions
carefully before operation. Follow these instructions to ensure that the
product is functioning properly. The images shown in this manual are for
illustrative purposes only.
For further details, please visit our Company’s website
www.zkteco.com.
User Manual and Installation Guide
Walk through Metal Detector with Turnstile
ZK-MD6000 Series
Date: October 2022
Doc Version: 1.2
English

ZK-MD6000 Series User Manual and Installation Guide
Page | 1 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Without the prior written consent of ZKTeco, no portion of this manual can be
copied or forwarded in any way or form. All parts of this manual belong to
ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
Trademark
is a registered trademark of ZKTeco. Other trademarks involved
in this manual are owned by their respective owners.
Disclaimer
This manual contains information on the operation and maintenance of the
ZKTeco equipment. The copyright in all the documents, drawings, etc. in
relation to the ZKTeco supplied equipment vests in and is the property of
ZKTeco. The contents hereof should not be used or shared by the receiver
with any third party without express written permission of ZKTeco.
The contents of this manual must be read as a whole before starting the
operation and maintenance of the supplied equipment. If any of the content(s)
of the manual seems unclear or incomplete, please contact ZKTeco before
starting the operation and maintenance of the said equipment.
It is an essential pre-requisite for the satisfactory operation and maintenance
that the operating and maintenance personnel are fully familiar with the
design and that the said personnel have received thorough training in
operating and maintaining the machine/unit/equipment. It is further essential
for the safe operation of the machine/unit/equipment that personnel has
read, understood and followed the safety instructions contained in the
manual.

ZK-MD6000 Series User Manual and Installation Guide
Page | 2 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
In case of any conflict between terms and conditions of this manual and the
contract specifications, drawings, instruction sheets or any other
contract-related documents, the contract conditions/documents shall prevail.
The contract specific conditions/documents shall apply in priority.
ZKTeco offers no warranty, guarantee or representation regarding the
completeness of any information contained in this manual or any of the
amendments made thereto. ZKTeco does not extend the warranty of any kind,
including, without limitation, any warranty of design, merchantability or
fitness for a particular purpose.
ZKTeco does not assume responsibility for any errors or omissions in the
information or documents which are referenced by or linked to this manual.
The entire risk as to the results and performance obtained from using the
information is assumed by the user.
ZKTeco in no event shall be liable to the user or any third party for any
incidental, consequential, indirect, special, or exemplary damages, including,
without limitation, loss of business, loss of profits, business interruption, loss
of business information or any pecuniary loss, arising out of, in connection
with, or relating to the use of the information contained in or referenced by
this manual, even if ZKTeco has been advised of the possibility of such
damages.
This manual and the information contained therein may include technical,
other inaccuracies or typographical errors. ZKTeco periodically changes the
information herein which will be incorporated into new
additions/amendments to the manual. ZKTeco reserves the right to add,
delete, amend or modify the information contained in the manual from time
to time in the form of circulars, letters, notes, etc. for better operation and
safety of the machine/unit/equipment. The said additions or amendments are
meant for improvement /better operations of the machine/unit/equipment
and such amendments shall not give any right to claim any compensation or

ZK-MD6000 Series User Manual and Installation Guide
Page | 3 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
damages under any circumstances.
ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment
malfunctions due to any non-compliance of the instructions contained in this
manual (ii) in case of operation of the machine/unit/equipment beyond the
rate limits (iii) in case of operation of the machine and equipment in
conditions different from the prescribed conditions of the manual.
The product will be updated from time to time without prior notice. The latest
operation procedures and relevant documents are available on
http://www.zkteco.com.
If there is any issue related to the product, please contact us.
ZKTeco Headquarters
Address ZKTeco Industrial Park, No. 32, Industrial Road,
Tangxia Town, Dongguan, China.
Phone +86 769 - 82109991
Fax +86 755 - 89602394
For business related queries, please write to us at: [e-mail].
To know more about our global branches, visit www.zkteco.com.

ZK-MD6000 Series User Manual and Installation Guide
Page | 4 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
About the Company
ZKTeco is one of the world’s largest manufacturer of RFID and Biometric
(Fingerprint, Facial, Finger-vein) readers. Product offerings include Access
Control readers and panels, Near & Far-range Facial Recognition Cameras,
Elevator/Floor access controllers, Turnstiles, License Plate Recognition (LPR)
gate controllers and Consumer products including battery-operated
fingerprint and face-reader door locks. Our security solutions are multi-lingual
and localized in over 18 different languages. At the ZKTeco state-of-the-art
700,000 square foot ISO9001-certified manufacturing facility, we control
manufacturing, product design, component assembly, and logistics/shipping,
all under one roof.
The founders of ZKTeco have been determined for independent research and
development of biometric verification procedures and the productization of
biometric verification SDK, which was initially widely applied in PC security
and identity authentication fields. With the continuous enhancement of the
development and plenty of market applications, the team has gradually
constructed an identity authentication ecosystem and smart security
ecosystem, which are based on biometric verification techniques. With years
of experience in the industrialization of biometric verifications, ZKTeco was
officially established in 2007 and now has been one of the globally leading
enterprises in the biometric verification industry owning various patents and
being selected as the National High-tech Enterprise for 6 consecutive years. Its
products are protected by intellectual property rights.
About the Manual
This manual introduces the operations of Walk through Metal Detector with
Turnstile ZK-MD6000 Series.
All figures displayed are for illustration purposes only. Figures in this manual
may not be exactly consistent with the actual products.

ZK-MD6000 Series User Manual and Installation Guide
Page | 5 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Document Conventions
Conventions used in this manual are listed below:
GUI Conventions
For Software
Convention Description
Bold font Used to identify software interface names e.g. OK, Confirm, Cancel.
> Multi-level menus are separated by these brackets. For example, File >
Create > Folder.
For Device
Convention Description
< > Button or key names for devices. For example, press <OK>.
[ ] Window names, menu items, data table, and field names are inside
square brackets. For example, pop up the [New User] window.
/ Multi-level menus are separated by forwarding slashes. For example,
[File/Create/Folder].
Symbols
Convention Description
This represents a note that needs to pay more attention to.
The general information which helps in performing the operations
faster.
The information which is significant.
Care taken to avoid danger or mistakes.
The statement or event that warns of something or that serves as a
cautionary example.

ZK-MD6000 Series User Manual and Installation Guide
Page | 6 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Table of Contents
1NOTE.......................................................................................................7
2PRODUCT SPECIFICATION.....................................................................8
3INSTALLATION ENVIRONMENT ...........................................................10
4PERFORMANCE AND FEATURES .........................................................11
5PARTS ...................................................................................................12
6INSTALLATION .....................................................................................13
7DETECTION ZONES ..............................................................................17
8OPERATION ..........................................................................................18
SYSTEM MENU BAR…………………………………………………………...198.1
MAIN MENU SETTINGS………….……………………………………………..208.2
9PRODUCT CONFIGURATION................................................................26
10 PACKING LIST ...................................................................................29
11 WARRANTY CARD ............................................................................29

ZK-MD6000 Series User Manual and Installation Guide
Page | 7 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
1Note
PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE
OPERATION:
1. This walk through metal detector can be used indoors, and be
careful to avoid long-term outdoor work affecting the service life of
the equipment.
2. It must be used in an indoor environment with a temperature
between 10°C and 35°C.
3. To avoid the thermal imaging temperature measurement function
malfunctioning, do not operate in an environment where the
reflection or light is not strong enough to affect face recognition.
4. Choose a stable installation location to avoid false alarms caused by
excessive shaking of the product.
5. Make sure that there are no large metal objects or strong magnetic
fields within 2 meters of the detector.

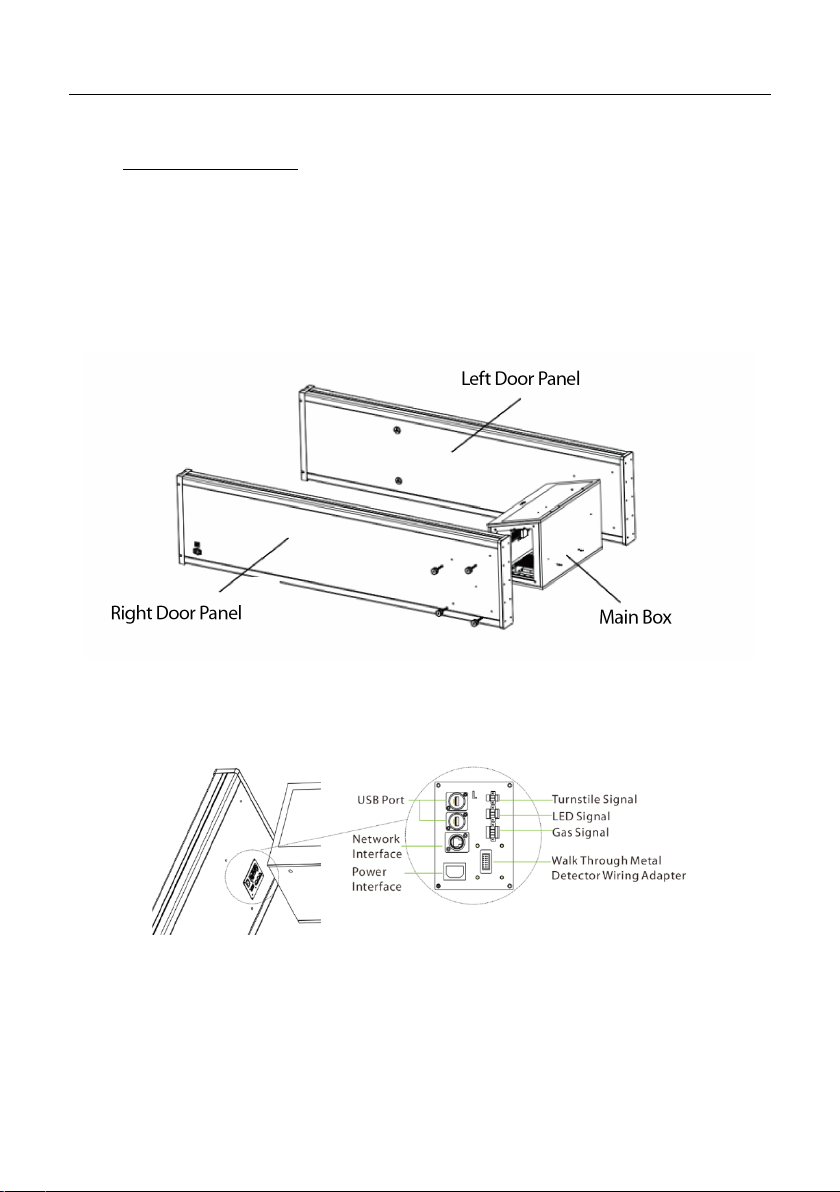

6. Before installation, make sure that the left and right door panels are
placed at the correct location.
7. Please tighten the bolts and screws of the connection part of the
product to make sure that the overall installation is stable and free
from shaking.
8. Please check if the product wiring is properly connected and not
loose.
9. The operating frequency cannot be the same when multiple
products are installed and used simultaneously.

ZK-MD6000 Series User Manual and Installation Guide
Page | 8 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
10.Wait for 1 minute and perform self-diagnosis after the metal
detection function is activated.
11.Do not hit the device, as it may cause false alarms.
12.This is not a medical device and the data cannot be used for medical
purposes. It is just used to check your body temperature.
2Product Specification
ZK-MD6000 series Walk through Metal Detector with Turnstile is a new
product independently developed by ZKTeco Co., Ltd.
The ZK-MD6000 series is based on the Android platform and with various
kinds of functions, including metal detection, thermal imaging

ZK-MD6000 Series User Manual and Installation Guide
Page | 9 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
temperature measurement, real-time monitoring, entrance control, face
and RFID verification, ambient gas detection.
Instructions to Pedestrians:
1) A line must be drawn at 50cm away from the detector. The
pedestrians must pass through the detector one-by-one.
2) Pedestrians should line up one-by-one to ensure the smooth
operation of the detector.
3) Pedestrians should walk at their normal speed. They must not
intentionally form a crowd, rush, walk slowly, or crush the door panel.
4) Before passing through the metal detector, the pedestrians must
remove all the carried metal objects (such as keys, mobile phone,
watch, coins, etc.), and place it on the security chute or a table, and
pick them up after the security check.
5) After the pedestrian verifies the identification successfully, the
turnstile will open. The pedestrian needs to wait about 3 seconds, and
the device will automatically measure the temperature of the
pedestrian.
6) If the detector alarms when someone passes through, it indicates
there is/are some metal object(s) hidden in the body. The security
guard can use a hand-held metal detector to accurately detect the
hidden position according to the alarm zones.

ZK-MD6000 Series User Manual and Installation Guide
Page | 10 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
3Installation Environment
1) Stationary Metallic Items:
When installing the product, keep it at least 1 meter away from
stationary or fixed heavy metal items; otherwise, the sensitivity
will be affected, resulting in false alarms. Metal items such as doors
and windows made of aluminum alloy or stainless steel, etc.
2) Movable Metallic Items:
Large metal items can be relocated, but they should be kept at
least 2 meters away from the device to avoid false alarms.
3) Floor Vibration:
The floor should be flat and fixed, to avoid false alarm after
installation by the movement of people walking or moving and
shaking of metal objects.
4) Electromagnetic Radiation and Electromagnetic Interference:
As the device uses bilateral transceiver technology, therefore, any
electromagnetic interference sources and electromagnetic
radiation source is not allowed to close the device; the
recommended distance is 1 meter. The installation environment
determines the distance parameters, and various installation
environments have different parameters.
The electromagnetic interference sources and electromagnetic
radiation sources are as follows:
Electrical Control Box, Radio Equipment, Interphone, High Power
Motor, Power Transformer, Ac Power Lines, Thyristor Control Circuit
(High Power Switching Power Supply, Inverter Welder), Engine,
Motor etc.

ZK-MD6000 Series User Manual and Installation Guide
Page | 11 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
5) Side-By-Side Using:
When installing multiple products side by side, the distance
between the products cannot be less than 50cm; the working
frequency cannot be the same. The specific distance parameters
should be adjusted according to the actual environment and the
operating frequency selected by the walk through metal detector.
4Performance and Features
Enhanced Detection:33 detection zones and 500 sensitivity
levels.
Thermal Imaging:Screen people with abnormal body
temperature quickly and trigger an alert.
29 inches Monitor:Real-time display and video recording.
Integrated Design:Includes turnstile which restricts pedestrian
access.
Face and RFID Verification: Verify pedestrian identification
information.
Gas Detection: Real-time monitoring of ambient gases.

ZK-MD6000 Series User Manual and Installation Guide
Page | 12 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
5Parts
1. Door Panel 2. Main Box
3. Access Control Device 4. Entrance Control Device
5.
Cameras and Thermal
Imaging Probes 6. One Key Switch

ZK-MD6000 Series User Manual and Installation Guide
Page | 13 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
6Installation
Please follow the installation steps below after reading the installation
precautions and checking the packing list:
Step 1: Unpack the package, and place the left and right door panels on
the ground, with the power boards of the two door panels facing outward,
as shown in the figure below.
Step 2: Insert the wires inside the machine head into the corresponding
positions.
Left door panel internal interface identification:

ZK-MD6000 Series User Manual and Installation Guide
Page | 14 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Right door panel internal interface identification:
Step 3: Connect the chassis to the left and right door panels with the bolts,
and then tighten the bolts.
Step 4: Place the walk through metal detector on the rear of the turnstile
and insert the wires protruding from the lower part of the walk through
metal detector into the left and right chassis from the back of the turnstile.
Step 5: Connect the wires inside the turnstile chassis, which are marked
with 1, 2, 3, and other line marks numbers, and connect the wires with the
same numbers.
Step 6: Insert the terminal head marked 4 on the left walk through metal
detector into the terminal block on the upper right of the control board, as
shown in the figure.

ZK-MD6000 Series User Manual and Installation Guide
Page | 15 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
Step 7: Find the 12V-3A adapter power on the chassis of the turnstile,
loosen the three screws on the side, connect the U-shaped interface
cables in the order of brown, blue and yellow-green from left to right, and
then tighten the screws.
Step 8: Push the walk through metal detector into the groove of the
turnstile and fix it with screws. At the same time, install the acrylic side
plate to the plate armor and lock the side plate with screws.
Brow Blue Yellow-green

ZK-MD6000 Series User Manual and Installation Guide
Page | 16 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
On /Off
1) Before plugging in the power, check whether the cables are properly
connected and not loose.
2) Connect the power plug of the console to 220V commercial power.
3) Press the "one key switch" button to switch on and off.
Access Control Device Walk Through Metal Detector

ZK-MD6000 Series User Manual and Installation Guide
Page | 17 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
7Detection Zones
A. Detection zone display:
There are four unique sets of precise
positioning LEDs evenly distributed on
the door panels, showing the status of
33 detection zones, as shown on the
right. The zone indicators can be turned
on or off. If the metal detector detects
metals of the size that reach or exceed
the preset value, the alarm indicator of
the detection zone turns on, and an
alarm is generated (No alarm is
generated if the device is in mute state).
B. Infrared sensor:
The metal detector starts to function
once it is linked to a power supply.
When no person or object passing
through the device, the infrared sensors
stop alarming to avoid false alarm and
accurately count passengers and alarm
times.
A
B
B

ZK-MD6000 Series User Manual and Installation Guide
Page | 18 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
8Operation
The menu bar of the main interface of the system is: company Logo, walk
through metal detector name, time display area, and menu bar.
The functional module is the primary section of the system's main
interface:
Monitor Temperature Measurement: These features Include camera
real-time preview, surveillance video, video duration, face capture and
display of binding measurement of human body temperature, thermal
imaging preview screen, face capture and display of temperature
measurement and high temperature alarm.
Walk through Metal Detector Information: Displays the number of
persons who pass by the metal detector every day, number of alarms,
and real-time metal detection display. The bottom shows the intensity of
nearby interference to the metal detection function and the
concentration of surrounding gases.
Status of Traffic: Displays if the turnstile is open or closed. The
turnstile opens after the access control device and face verification

ZK-MD6000 Series User Manual and Installation Guide
Page | 19 Copyright © 2022 ZKTECO CO., LTD. All rights reserved.
are successful. The blocklist is closed if the verification is unsuccessful.
Identity Verification: Display the card number, photo, and name etc.
System Menu Bar8.1
Click the menu bar to display the buttons for login, registration, password
modification, and user logout.
Login
Enter the super administrator account and password, and click the
Login button.
Account: 211985(default)
Password: 95278341(default)
The menu bar will be displayed after successful login, and the menu
bar will not be displayed if the login fails.
