ZKTeco ZK-D2180S User manual

Contents 1
User Manual
Walk Through Metal Detector: ZK-D2180S
Version: 1.2
Date: December 2019

Contents I
Contents
Notes......................................................................................................... 1
Product Specification.................................................................................2
Installation Environment............................................................................3
Performance and Features.........................................................................5
Parts...........................................................................................................7
Installation................................................................................................. 8
Control Panel........................................................................................... 10
Detection Zones...................................................................................... 11
Operation................................................................................................ 12
Detection Adjustment............................................................................. 18
Brief Maintenance....................................................................................20
Technical Parameters............................................................................... 21
Packing List.............................................................................................. 22
Warranty Card.......................................................................................... 23

ZK-D2180S User Manual 1
Notes
PLEASE READ THE FOLLOWING INSTRUCTION CAREFULLY BEFORE
OPERATION:
1. It's available for both indoor and outdoor use, if need use outdoor,
please use canopy to protect it against rain.
2. Choose the smooth and stable installation place, don't touch the
detector during security checking to avoid false alarm.
3. Make sure there's no big metal object or strong magnetic field
around the detector within 2 meters.
4. Detector probe mustn't install in high temperature or wet
circumstance.
5. Please wait 1 minute for its self-diagnosing when machine starts.
6. Do not disassemble the control units except the professional
technician.
7. Follow the user manual and make sure the right wire connection
when the device starts.

2 ZK-D2180S User Manual
Product Specification
Walk Through Metal Detector is mainly used to check the metal items
hidden on the body. When the passengers pass through the device, if
they carried metals more than preset parameters value, the device
would immediately alarms, and display alarm location, let the security
guard find the people with the prohibited metal articles timely.

ZK-D2180S User Manual 3
Installation Environment
1. Stationary Metallic Items
When installing walk through metal detector, it should stay away from
the stationary or fixed bulk metal items 50cm; otherwise it will affect the
sensitivity, causing false alarm. Metal items such as: aluminum alloy /
stainless steel doors and windows, etc.
2. Movable Metallic Items
The big metal items can be moved, should stay away from the device
about 2 meters to avoid false alarm.
3. Floor Vibration
The floor should be flat and fixed, to avoid false alarm after installation by
the movement of people walking or moving and shaking of metal
objects.
4. Electromagnetic Radiation And Electromagnetic Interference
Because the device uses bilateral transceiver technology, therefore, any
electromagnetic interference sources and electromagnetic radiation
source is not allowed to close the device, the recommended distance is
1 meters. The parameters of the distance are determined by the

4 ZK-D2180S User Manual
installation environment, and different installation environments with
different parameters.
The electromagnetic interference sources and electromagnetic radiation
sources as following:
Electrical Control Box, Radio Equipment, Interphone, High Power Motor,
Power Transformer, Ac Power Lines, Thyristor Control Circuit (High Power
Switching Power Supply, Inverter Welder), Engine, Motor etc.
5. Side-By-Side Using
When installing the devices side by side, the distance between two walk
through metal detectors cannot be less than 50cm and the device work
frequency must be different. Specific distance parameters according to
the actual environment and the selection of the work frequency to
adjust.

ZK-D2180S User Manual 5
Performance and Features
Accurate Positioning: 18 overlapping network detection zone,
bilateral transmit and receive, can be accurately positioned to detect
objects, intuitive display of the target location.
Micro Processor Technology: the scanning electromagnetic wave
generated by the microcomputer control circuit, the scanning rate
can be precisely controlled.
Sensitivity Adjustable: each detection zone has 256 sensitivity
levels (0 ~ 255). Preset metal size, you can exclude the coins, keys,
jewelry, belt buckle etc.
Digital Pulse Technology: digital signal processing and filtering
system, has excellent anti-interference ability.
Password Protection: only the correct password can change the
sensitivity and other parameters. Password with four digital, can be
set by the user.
Count Statistics: pass count and alarm count.
Harmless to human body: harmless to heart pacemaker, pregnant
women, magnetic floppy disk, recording tapes etc.
Power Supply Security: the power supply on the top of the control
box, waterproof.

6 ZK-D2180S User Manual
Waterproof Foot Cover: not only can fixed the device, but also
waterproof.
Waterproof: using PVC synthetic material, special technology,
waterproof, fireproof, shockproof.
Easy to install: the system is integrated design, just 15 minutes to
complete the installation or disassemble.

ZK-D2180S User Manual 7

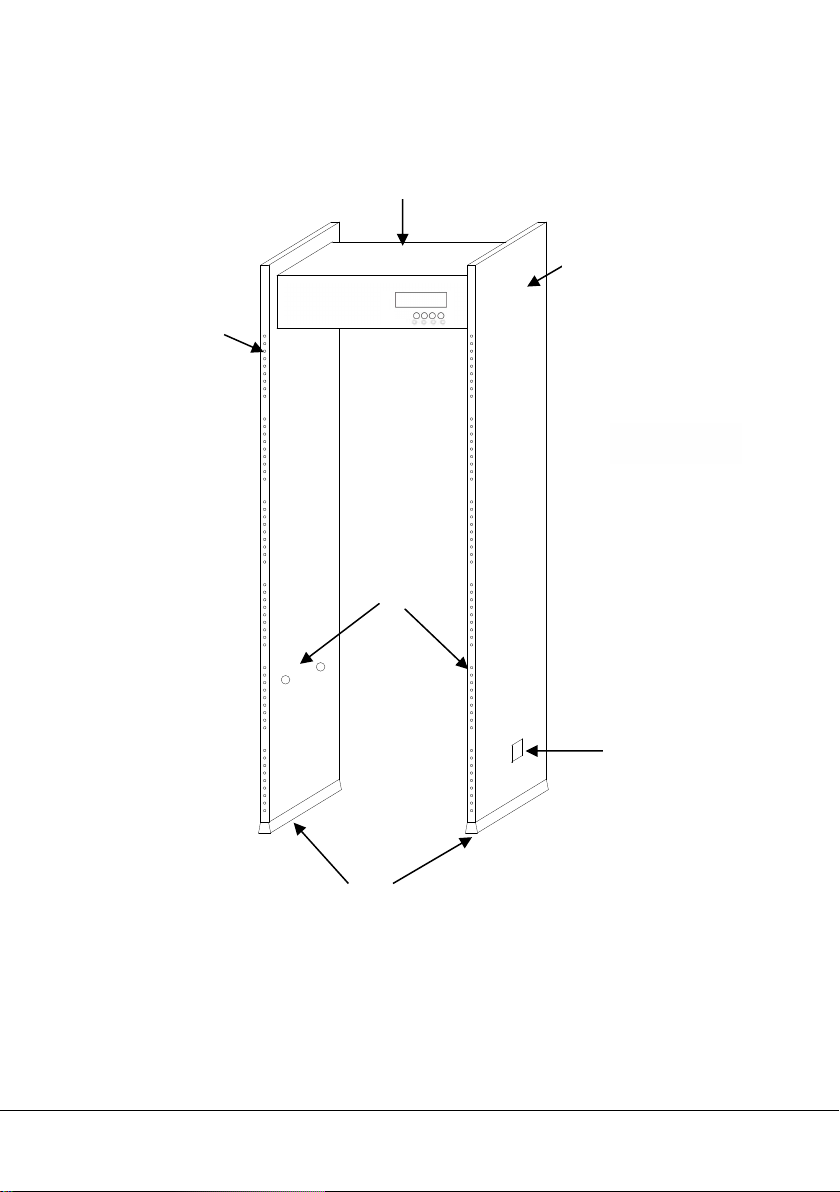

Parts
1. Control Unit Case 2. Alarm zone LED
3. Built-in Probe 4. Infrared Sensors
5. Waterproof Foot Cover 6. Power Line Interface
1
2
4
5
3
6

8 ZK-D2180S User Manual
Installation

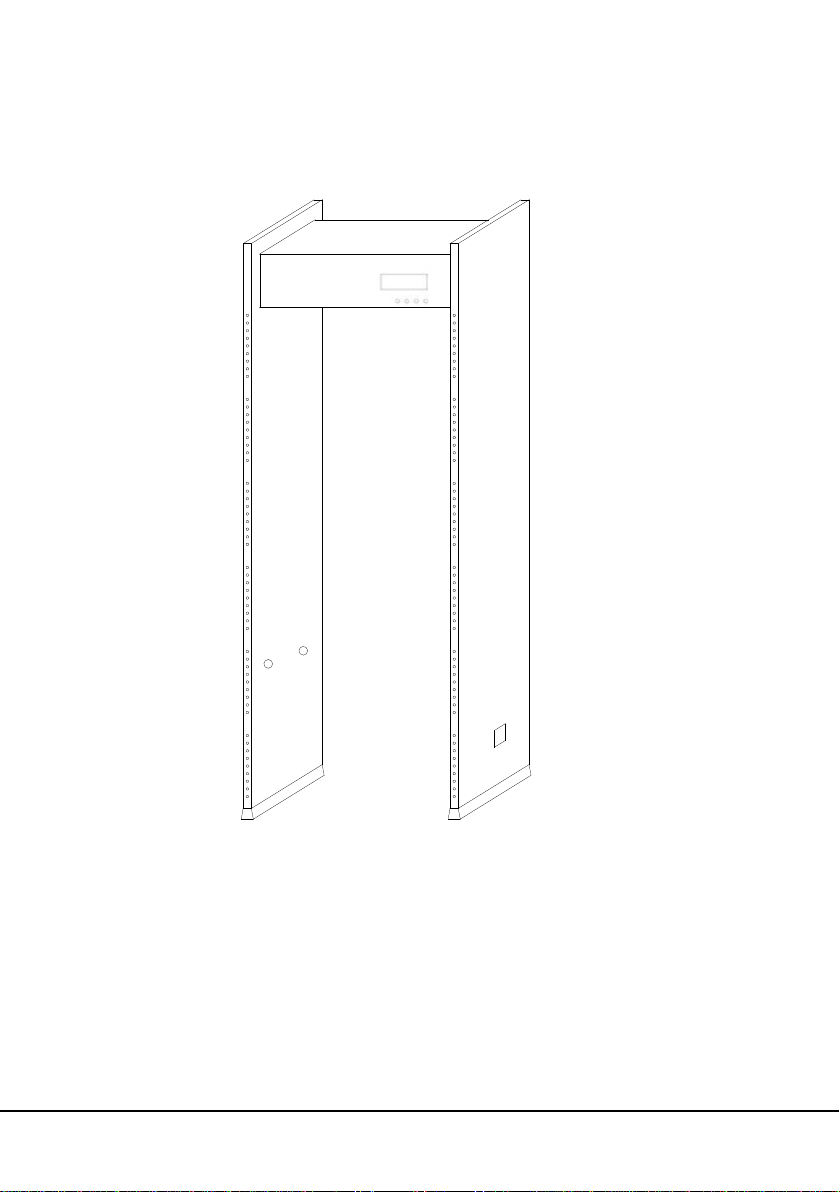

Left door panel Right door panel
1. Remove the package of control unit and door panel.
2. Put the control unit case and door panels as above picture shown,
then connect the left and right door panel with the control unit
case by bolts. Tightening screws.
3. Probe line of the left and right door panel tight inserted into the
motherboard corresponding socket respectively.

ZK-D2180S User Manual 9
4. Lift the walk through metal detector to the vertical position and
move to the assigned position.
5. Plug power cable.

10 ZK-D2180S User Manual
Control Panel
1. Alarm signal strength indicator
2. PASS CNT and ALARM CNT
3. ENTER: in the debugging process can be confirmed password, zone
sensitivity.
Factory settings: Menu password: 1234, Alarm time: 1 second
The sensitivity of zone 1 to zone 18: 215, whole sensitivity: 220,
Language: English
4. SETUP: change the parameters
5. SELECT: choose and enter to debugging interface. Switch to the next
sensitivity setting and password digit etc.
6. RESET: Reset PASS CNT and ALARM CNT. In addition, press ”RESET”for
5 seconds to startup or shutdown.
PASS CNT 000001
ALARM CNT 000000
3 4 5 6
1 2

ZK-D2180S User Manual 11
Detection Zones
A. LCD Display: Display pass count, alarm count, sensitivity settings and
other information
B. Alarm zones display

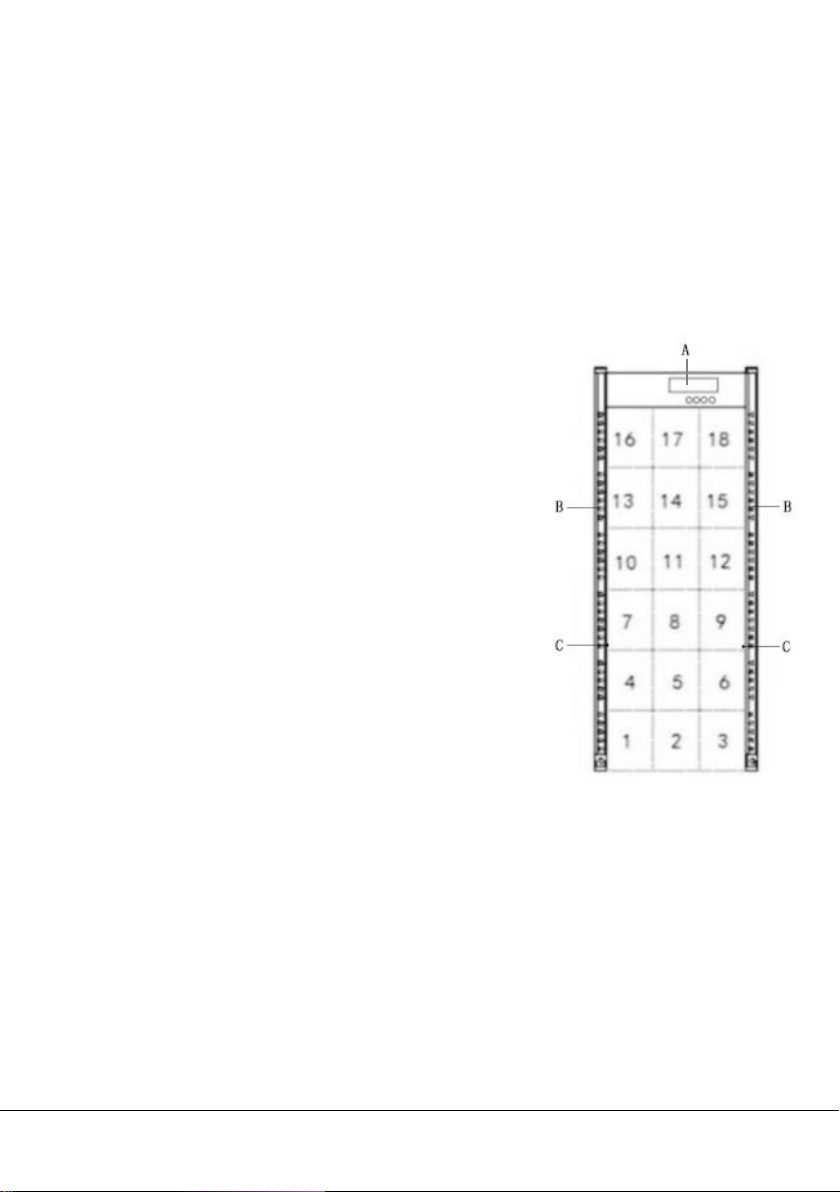

There are Eighteen unique sets of precise
positioning LED evenly distribution on the door
panels, means 18 detection zones (from bottom
to top is zone 1-3, zone 4-6,zone 7-9, zone 10-12,
zone 13-15, zone 16-18). If the metal reaches or
exceeds preset value, the red LED alarm. If there
are multiple alarm targets, the LED light of each
target location would be lit and with sound
alarm (mute except).
C. Infrared sensor
After connected power supply, the metal detector starts to work. When
there is no person or object passes the device, the infrared sensors can
effectively stop alarming to avoid false alarm. And accurate count
passengers and alarm times.

12 ZK-D2180S User Manual
Operation
Connect the power supply. After 2 seconds into the working status, the
operation method as follows:
A. Showing PASS CNT and ALARM CNT
B. If you want to entering menu to set the product parameters, press
“SELECT”button and input the password. After entered the menu,
you can adjust sensitivity, alarm time, quick settings, frequency,
password, etc.
a. Entering menu interface only when the password is correct. The
initial password is 1234. For the new device, only need press
“SELECT”—“ENTER”.
PASS CNT 000001
ALARM CNT 000000

ZK-D2180S User Manual 13
SETUP
INPUT PASSWORD interface as follows:
b. If the password was wrong, press any key to return, then input
the correct password. If you have forgot the password, you can
input the universal password“8888”to reset a new password.
INPUT PASSWORD -
1***
INPUT PASSWORD -
12**
INPUT PASSWORD -
121*
INPUT PASSWORD -
123*
INPUT PASSWORD -
1231
SELECT
SETUP
INPUT PASSWORD -
11**
SELECT
SELECT
INPUT PASSWORD -
1234
SETUP
ENTER
1. SENSITIVITY
2. ALARM DELAY
3. QUICK SETTINGS

14 ZK-D2180S User Manual
1. SENSITIVITY
e.g. If you want to change zone 1-3 sensitivity from 220 to 230, change
zone 4-6 sensitivity from 250 to 200, you can press“SETUP”to change the
values, method as follows:
V
Sensitivity setting for ZONE 7-9, ZONE 10-12, ZONE 13-15, ZONE 16-18,
are similar as above method. After adjusted, press“ENTER”to save all the
settings, and back to the main menu.
2. ALARM DELAY
Under main menu interface, press“SELECT”to choose ALARM DELAY,
then press“ENTER”. The alarm time is 1 second, 2 seconds and 3 seconds.
If you want to change the alarm time from 1 second to 2 seconds,
method as follows:
ENTER
ENTER
SETUP
ZONE 1-3 SENS.- 220
ZONE 4-6 SENS.- 250
ZONE 7-9 SENS.- 200
ZONE 1-3 SENS.- 230
ZONE 4-6 SENS.- 250
ZONE 7-9 SENS.- 200
ZONE 1-3 SENS.- 230
ZONE 4-6 SENS.- 250
ZONE 7-9 SENS.- 200
ZONE 1-3 SENS.- 230
ZONE 4-6 SENS.- 200
ZONE 7-9 SENS.- 200
SETUP
1. SENSITIVITY
2. ALARM DELAY
3. QUICK SETTINGS
ZONE16-18SENS.- 230
SENS.BASE- 215
SAVE & EXIT
ENTER

ZK-D2180S User Manual 15
SETUP
Press“ENTER”to save the settings, and back to the main menu.
3. QUICK SETTINGS
Under main menu interface, press“SELECT”to choose QUICK SETTINGS,
then press“ENTER”. Including the quick settings parameters of
Electronics Factory, Hardware Factory, Cable Factory, Court, Airport,
Gymnasium, Night Club etc., which can be easily set the required
parameters of the environmental.
Setting the application to Hardware Factory as follows:
Press“ENTER”to save the settings, and back to the main menu.
1.SENSITIVITY
2.ALARM DELAY
3.QUICK SETTINGS
1. SENSITIVITY
2. ALARM DELAY
3. QUICK SETTINGS
SELECT
ALARM DELAY- 1SECOND
ENTER
ALARM DELAY-2SECONDS
SELECT
ENTER
SELECT
1. SENSITIVITY
2. ALARM DELAY
3. QUICK SETTINGS
1. ELECTRONICS FACTORY
2. HARDWARE FACTORY
3. CABLE FACTORY
1. SENSITIVITY
2.ALARM DELAY
3. QUICK SETTINGS
1. ELECTRONICS FACTORY
2. HARDWARE FACTORY
3. CABLE FACTORY

16 ZK-D2180S User Manual
4. FREQUENCY
Under main menu interface, press“SELECT”to choose FREQUENCY
(FREQUENCY 1-12 are available), then press“ENTER”. Change the
frequency from frequency 1 to frequency 4 as follows:
Press“ENTER”to save the settings, and back to the main menu.
5. CHANGE PASSWORD
Under main menu interface, press“SELECT”to choose CHANGE
PASSWORD, then press“ENTER”.
E.g. Change the password to“5678”(for new machine, initial password is
1234) as follows:
SELECT
FREQUENCY- 1
ENTER
FREQUENCY- 4
SETUP
2.ALARM DELAY
3. QUICK SETTINGS
4. FREQUENCY
2.ALARM DELAY
3. QUICK SETTINGS
4. FREQUENCY

ZK-D2180S User Manual 17
Press“ENTER”to save the settings, and back to the main menu.
6. EXIT
Under main menu interface, press“SELECT”to choose EXIT, esc.
3. QUICK SETTINGS
4. FREQUENCY
5. CHANGE PASSWORD
SELECT
NEW PASSWORD-
1 * * *
NEW PASSWORD-
5 * * *
ENTER
NEW PASSWORD-
5 2 * *
SETUP
SELECT
NEW PASSWORD-
5 6 * *
SETUP
NEW PASSWORD-
5 6 3 *
SELECT
NEW PASSWORD-
5 6 7 *
SETUP
NEW PASSWORD-
5 6 7 4
NEW PASSWORD-
5 6 7 8
SETUP
SELECT
3. QUICK SETTINGS
4. FREQUENCY
5. CHANGE PASSWORD

18 ZK-D2180S User Manual
Detection Adjustment
1. The device must be in a stable status to achieve the best detection
effect (refer to the "Installation Environment"), to check whether the
device in a stable status, the steps as follows:
a. The device is not shaking after power ON for 1 minute.
b. The device would not alarm when the tester did not carry any
metal items walk through the detector.
2. Excluding small portable metal objects such as rings, key, belt
buckle, shoes and so on, according to the following steps to adjust:
a. Choose a small metal as the sample, such as keys.
b. Increasing the sensitivity, so that when the tester carry the
sample and pass through the device, the detector would
alarms.
c. Decreasing the sensitivity a little, carry the sample pass through
the device again, if it still alarms, once again to reduce the
sensitivity, until the device not alarm when the sample passed
through.
Note: If you want to decrease the sensitivity in a certain zone, only have
to adjust the sensitivity of relative zone. After finished the above
