User Manual
UHF RFID Standalone Terminal
Version: 1.0
Date: December, 2017

I
Connet
1. Product Summarize..................................................................................................................................................................1
2. UHF RFID Standalone Terminal .........................................................................................................................................1
3. Parameters Specifications.....................................................................................................................................................2
4. Safety Precautions.....................................................................................................................................................................3
5. Modifying Setting via Demo...............................................................................................................................................3
6. Access to Software....................................................................................................................................................................5
6.1. Access to ZKAccess ...................................................................................................................................................5
6.2. Access to ZKBioSecurity .........................................................................................................................................8
7. Solution............................................................................................................................................................................................8
8. Note ................................................................................................................................................................................................ 10

1
1. Product Summarize
U1000E, U1000F, U2000E, U2000F is a new generation of RFID UHF series products for our
company's independent research and development of the long distance RFID Standalone
Terminal in the parking lot and access control system.
The product uses the industry's most cost-effective UHF card reader chip, and the part of swing
card adopts the module integrated design, making the product to meet the technical
requirements of the parking lot and access control system. Meanwhile, the utility model has the
advantages of stable reading performance, good consistency, low working current and
temperature, long service life, and small external influence, and the product adopts the
waterproof outer shell design.
The product is also a fully meet the CE, FCC technology requirements of the product, and to
obtain CE, FCC and other security certification.
2. UHF RFID Standalone Terminal
Overview:
Lateral View and Interface:
Dimension
250mm*250mm*70mm (U1000E, U1000F)
445mm*445mm*70mm (U2000E, U2000F)
Cables
Mounting
Bracket
Cables
RJ45
USB
2PIN
4PIN Green
6PIN Green
4PIN Black
6PIN Black

2
Cable Definition:
3. Parameters Specifications
Model U1000E，U1000F U2000E，U2000F
Logo&Color ZKTeco logo, black (standard)/White logo, white(optional)
Card Capacity 5000 cards
Log Capacity 30,000 Transactions
Reading Distance 0-6m(Stable is 0-5meters) 0-12m(Stable is 0-10meters)
Communication TCP/IP ,USB,Wiegand26/34
Access Control
Interface
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm
Wiegand Signal Wiegand input & output
Working Frequency F:902Mhz-928MHz; E:865MHz-868MHz
Support Card Tag1,Tag2,Tag3,Tag4,DF01Card,DF02 Card
UHF Interface Protocol EPC global UHFClass1Gen2/ISO18000-6c
Antenna Gain 8dBi 12dBi
Output Power 18dBm-26dBm
Maximum power
consumption
<2W(RF output 26dBm,single tags)
Ingress Protection Rate IP 66
Supporting Software ZKAccess3.5;ZKBiosecurity3.0
Working Voltage DC 9V-12V
Working Current 150mA (always reading )
Working Temperature -20℃-+60℃
Working Humidity <95% (25℃)
Dimension 250mm*250mm*70mm(±5) 445mm*445mm*70mm(±5)
6PIN Green
6PIN Black
4PIN Green
4PIN Black

3
4. Safety Precautions
1) The Standalone Terminal working voltage ranges from DC9V to DC16V, it is recommended to
use DC12V /3A power supply.
2) Please wire according to the cable definition.
5. Modifying Setting via Demo

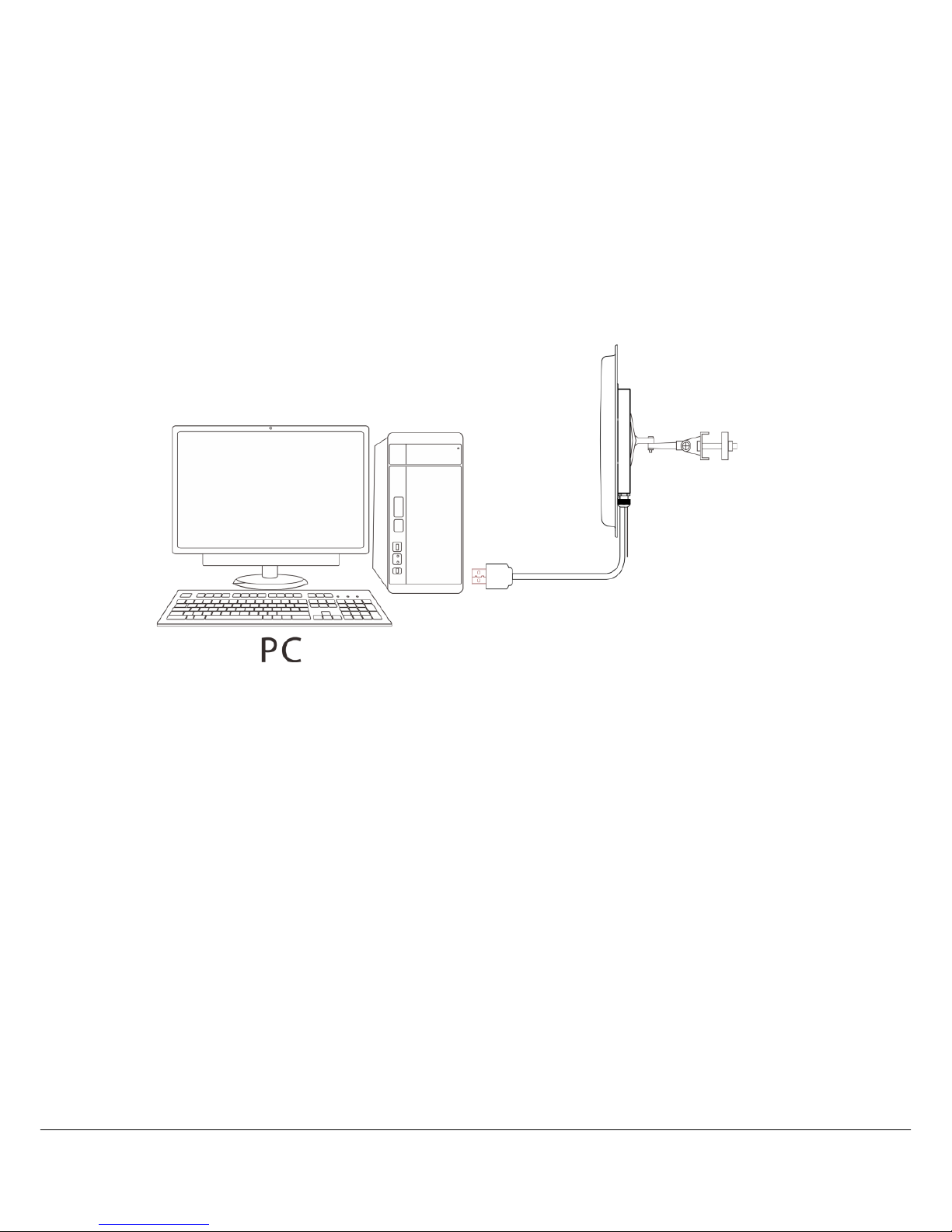

1) USB Connection

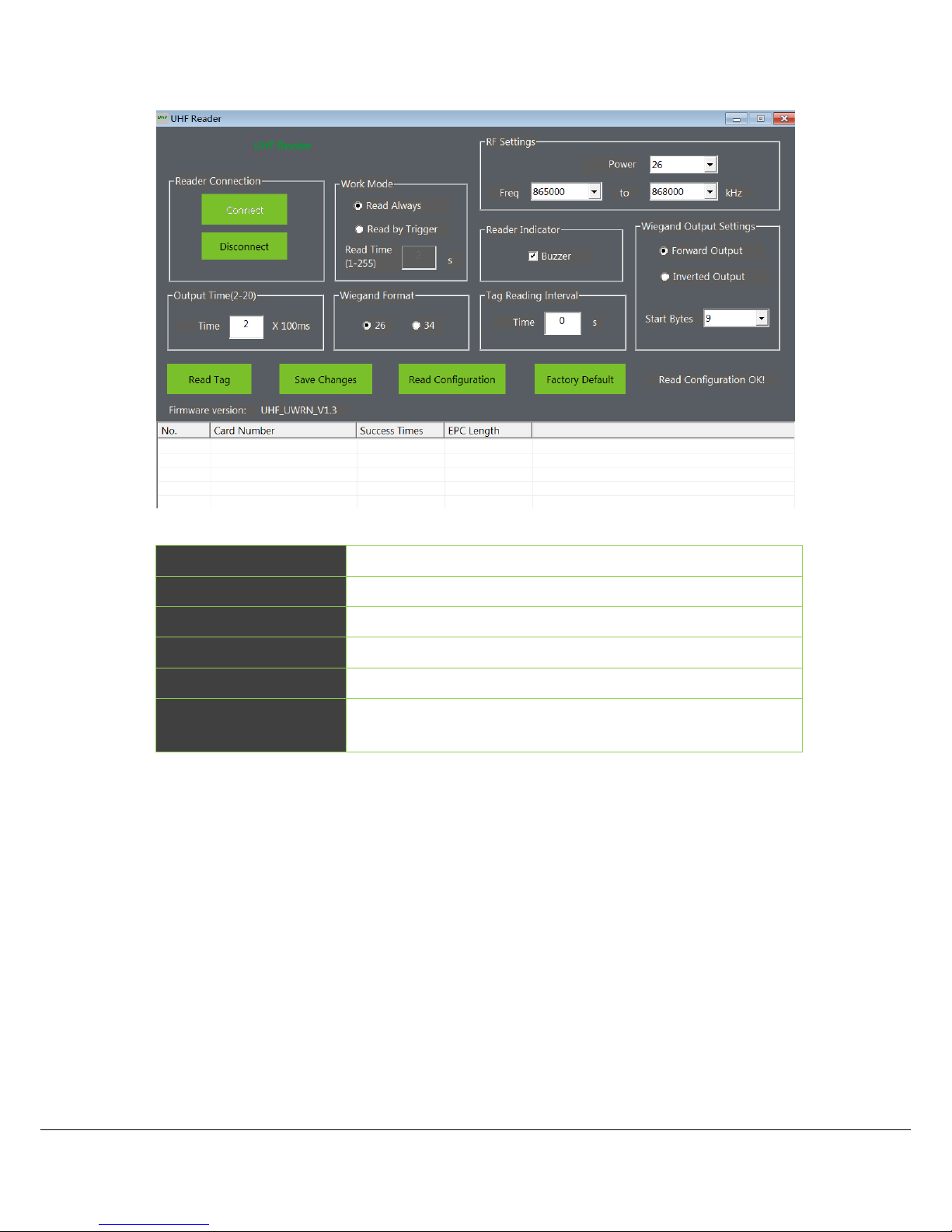

2) Software Introduction
Our company provides Demo, used to set the working parameters of the Standalone Terminal.
Demo interface as shown below:
Standalone Terminal

4
The default configuration of the Standalone Terminal is as follows:
Demo Using Instructions:
Connect the USB port of the Standalone Terminal to the USB port of the computer.
The power adapter is recommended to use the DC12V/3A specification. Power supply to the
Standalone Terminal and the buzzer sounds once.
In the computer to open Demo, click ’Connect’, on the right side of the middle will show
‘Connect Successful’, and machine and demo connection success.
Wiegand Interval Time: Sets the time interval between adjacent wiegand data.
Reader Indicate: Set whether the buzzer rings when the machine is on the electricity and
brush the card.
Work Mode: Set the working mode of the machine, and including always read mode, trigger
mode. Under trigger mode, time of reading card can be set when it is triggered once.
RF Setting: Set the RF parameters of the machine, including power, spectrum. Power range is
Work Mode Always Read
Read Tag Interval Time 0s (Default)
Wiegand Out Setting wiegand 26; Forward Output; 9th Start Byte(Default);
Wiegand Interval Time 2s (Default)
Output Power 18dBm~26dBm
Working Frequency 902MHz ~928MHz (American Standard);
865MHz ~ 868MHz (European standard)

5
18~26dBm.
Wiegand Setting: Set the machine's wiegand output format.
Setting Wiegand Out Bytes: Sets the forward or reverse output of the machine's Wiegand
Data, and start output from the first few bytes.
Read Tag Interval Time: Set the machine to read the card interval. Read card interval is the
time when from the card is read within the scope of the card to the card is left out of the
scope of the card to read the second time card.
6. Access to Software
RJ45 Connection
Connect the RJ45 port of the Standalone Terminal to the Ethernet port of the computer. The
machine supports access to ZKAccess 3.5.3 build 0009 and ZKBioSecurity 3.0.5.0 software.
6.1. Access to ZKAccess
1) Add Device:
Search the Standalone Terminal
Click [Device] > [Search Panels], click [Start Search] to search the Standalone Terminal by TCP/IP.
Standalone Terminal

6
Add Device
After searching, select the Standalone Terminal and click [Add Device], and a dialog box will open.
Enter self-defined device name, device type set to Standalone Device and click [OK] to complete
device adding.
Note: The default IP address of the Standalone Terminal may conflict with the IP of a device on the
Internet. You can modify its IP address: Click [Modify IP Address] behind the device and a dialog box
will open. Enter the new IP address and other parameters (Note: Must configure the gateway and IP
address in the same network segment).
2) Register the UHF tag
Connect the UHF Card Issuer to a computer; click the Personnel Profile tab to register the UHF
tag, as shown in the figure below:

7
3) Set Access Control Parameters
The Access Control Parameters include time zones, holidays, door settings, access levels,
anti-passback, personnel group, multi-card opening and so on. For more details about how to set
the access control parameters, please see the software user manual.

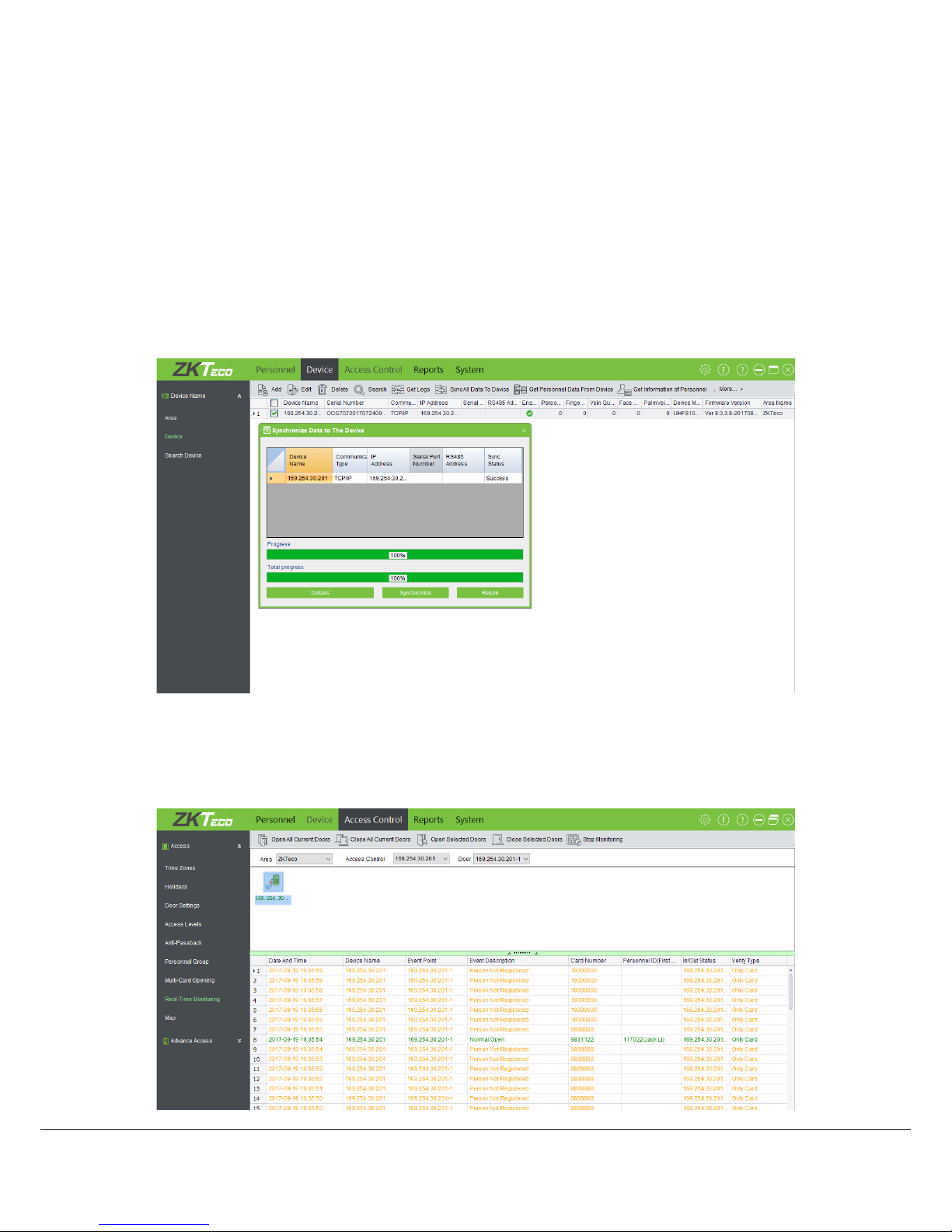

4) Sync All Data to Device
Select device, click [Synchronize All Data] and click [OK] to complete synchronization. The system
will synchronize the data to the device, including door information, access control levels
(personnel information, access control time zones), anti-pass back settings, interlock settings,
linkage settings, first-card normal open settings, multi-card normal open settings and so on.
5) Real-time Monitoring
Monitor the statuses and real-time events of doors under the access control panels in the system
in real-time, including normal events and exceptional events (including alarm events).

8
6.2. Access to ZKBioSecurity
The procedure to access to ZKBioSecurity is basically the same as 6.1. Access to ZKAccess; for
more details, please see the software user manual.
7. Solution

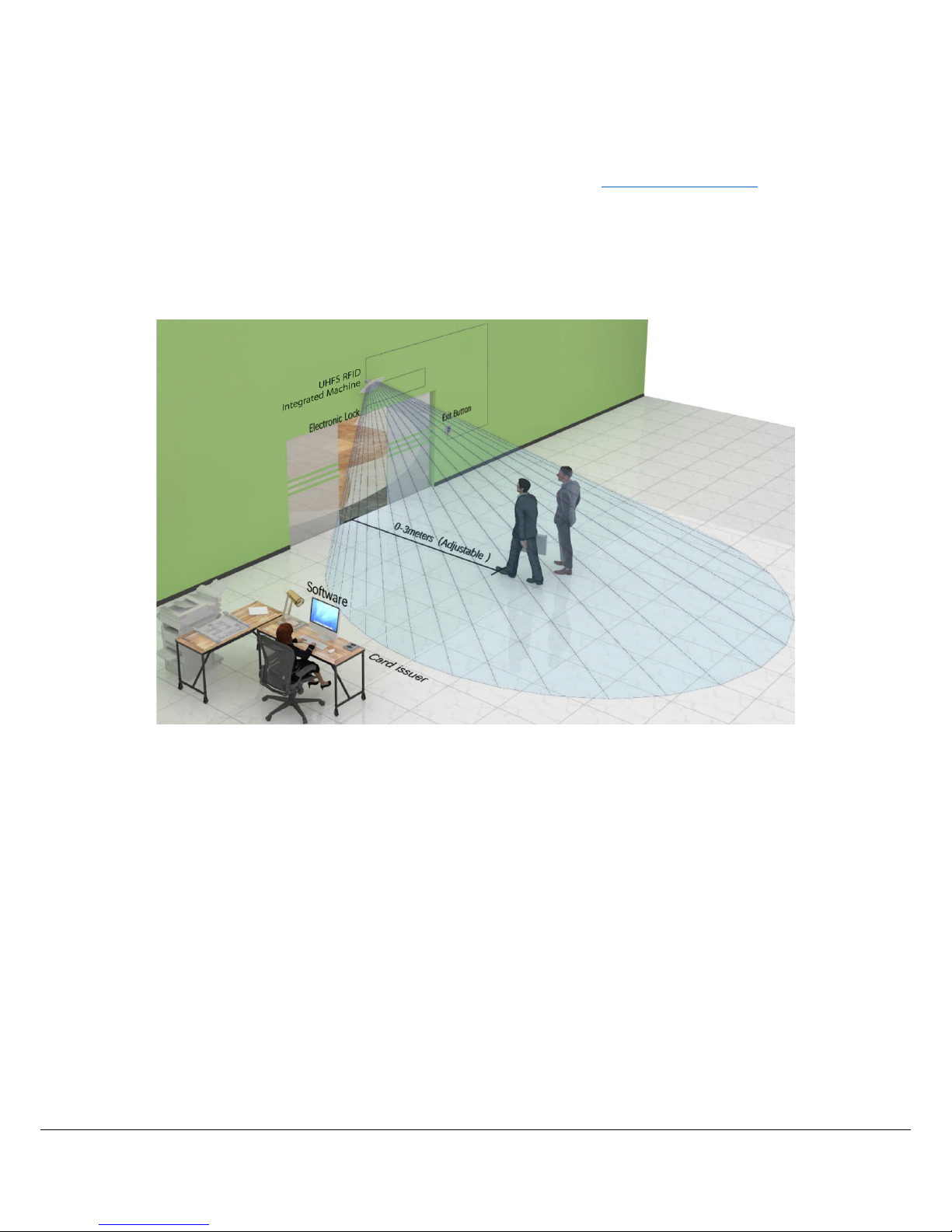

1) Long Distance Access Control Management
Compared with the traditional access control close proximity recognition mode, long distance
access control gets rid of the passive recognition of the shackles, really realize the “Hand Free”
model. Remote sensing, automatic reading card, automatic identification, will greatly improve the
convenience of personnel access.
The long distance access control system consists of U1000 series Standalone Terminal, UHF tag1,
tag2 or DF cards, UR10Rseries card issuer, electronic lock and door.
2) The Long Distance Fixed Vehicle Access Management for Parking Lots

9
This solution provide user with a non-stop, no card, quick access to parking lots experience. The
system consists of U2000 series Standalone Terminal, UHF tag3 (installed on the upper or lower
edges of the license plate) or tag4 (pasted on the interior windshield of car), and parking barrier.
When the car pulls up the range of the U2000 Standalone Terminal, the authorized tag mounted
on car will be identified, then reading information is transmitted to the Standalone Terminal, after
identification correctly, Standalone Terminal outputs an “open” signal to the barrier, then the gate
is open. At last, the car can easily have access to parking lots.

10

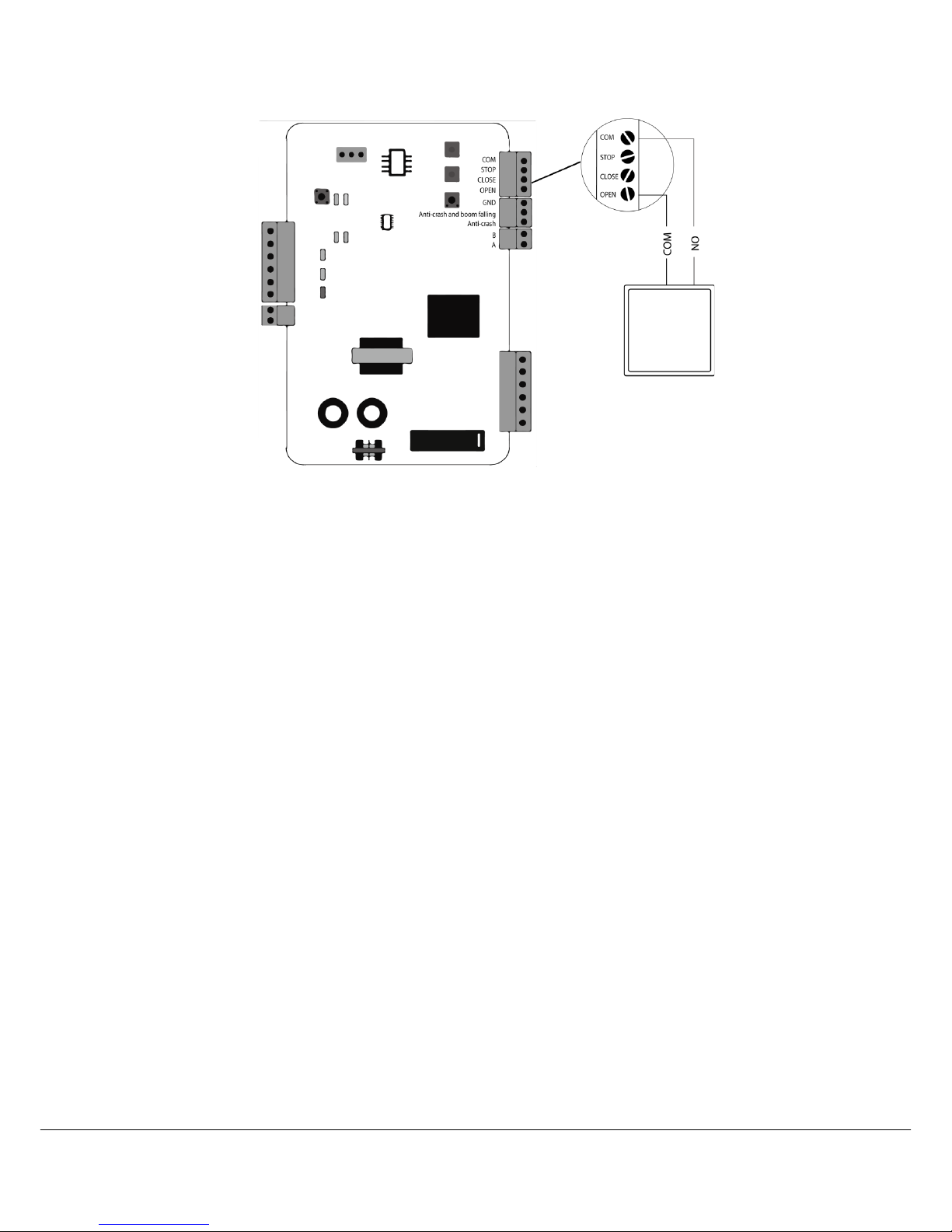

U2000 Standalone Terminal connect with parking barrier
8. Note
The Standalone Terminal cannot be installed in a high-voltage environment, for example,
high tension wires and high-voltage transformers.
The Standalone Terminal cannot be installed near strong magnetic field.
If the Standalone Terminal is installed at a T-junction or a 90° corner or in other unfavorable
environment, the Standalone Terminal may fail to read the card due to the overlarge reading
angle. You can install an additional Standalone Terminal at the corner to solve the problem.
For such terrains as slopes, adjust where the Standalone Terminal faces, turning it downwards
within the effective range of card reading.
Remote card reading by the UHF Standalone Terminal is affected by the protective film
(explosion-proof film) on car windows to some extent.
Remote card reading by the UHF Standalone Terminal is affected on rainy, snowy or windy
days to some extent.
