ZMODO 8000 Series User manual

H.264 Network Digital Video Recorder User Manual
第1页

H.264 Network Digital Video Recorder User Manual
Welcome
Thank you for purchasing our DVR!
This manual is designed to be a reference tool for the installation and operation of your system.
Here you can find information about this series DVR features and functions, as well as a detailed menu tree.
Before installation and operation please read the following safeguards and warnings carefully!
Important Safeguards and Warnings
Do not place the heavy object on the DVR.
Do not let any solid or liquid fall into or infiltrate the DVR.
Please brushing the printed circuit boards, connectors, fans, machine box and so on regularly. Before the
dust cleaning please switch off the power supply and unplug it.
Do not disassemble or repair the DVR by yourself. Do not replace the electronic components by yourself.
Environment
Please place and use the DVR between 0 and 40 .A℃℃void direct sunlight. Stay away from heat source.
Do not install the DVR in damp environment.
Do not use the DVR in smoky or dusty environment.
Avoid collision or strong fall.
Please insure the DVR level installation in a stable workplace.
Please install in ventilated place. Keep the vent clean.
Use within the rating input and output scope.
第2页

H.264 Network Digital Video Recorder User Manual
Contents
1Production Introduction........................................................................................................................................5
1.1 Product overview ..........................................................................................................................................5
1.2 Main functions ..............................................................................................................................................5
2 Open-package check and cable connection..........................................................................................................6
2.1 Open-package check .....................................................................................................................................6
2.2 Frame installation..........................................................................................................................................7
2.3 Front panel ....................................................................................................................................................7
2.4 Rear panel .....................................................................................................................................................9
2.5 Installation connections sketch map..............................................................................................................9
2.6 Audio and video input and output connections ...........................................................................................10
2.6.1 Video input connections...................................................................................................................10
2.6.2 Video output connections and options .............................................................................................10
2.6.3 Audio signal input ............................................................................................................................11
2.6.4 Audio signal output ..........................................................................................................................11

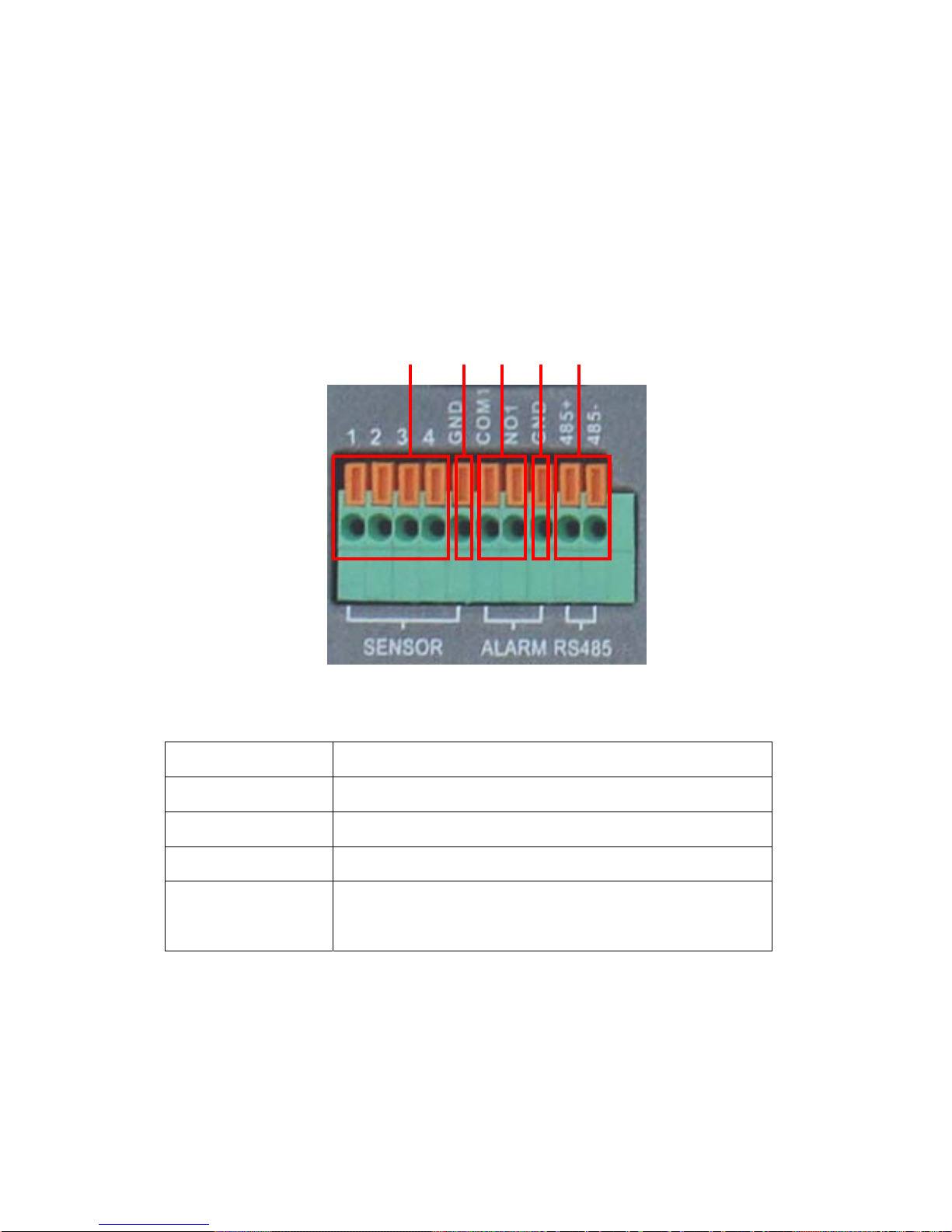

2.7 Alarm input and output connections ...........................................................................................................11
2.7.1 Alarm input port specification..........................................................................................................12
2.7.2 Alarm output port specification........................................................................................................13
2.7.3 Alarm output port relay parameters..................................................................................................13

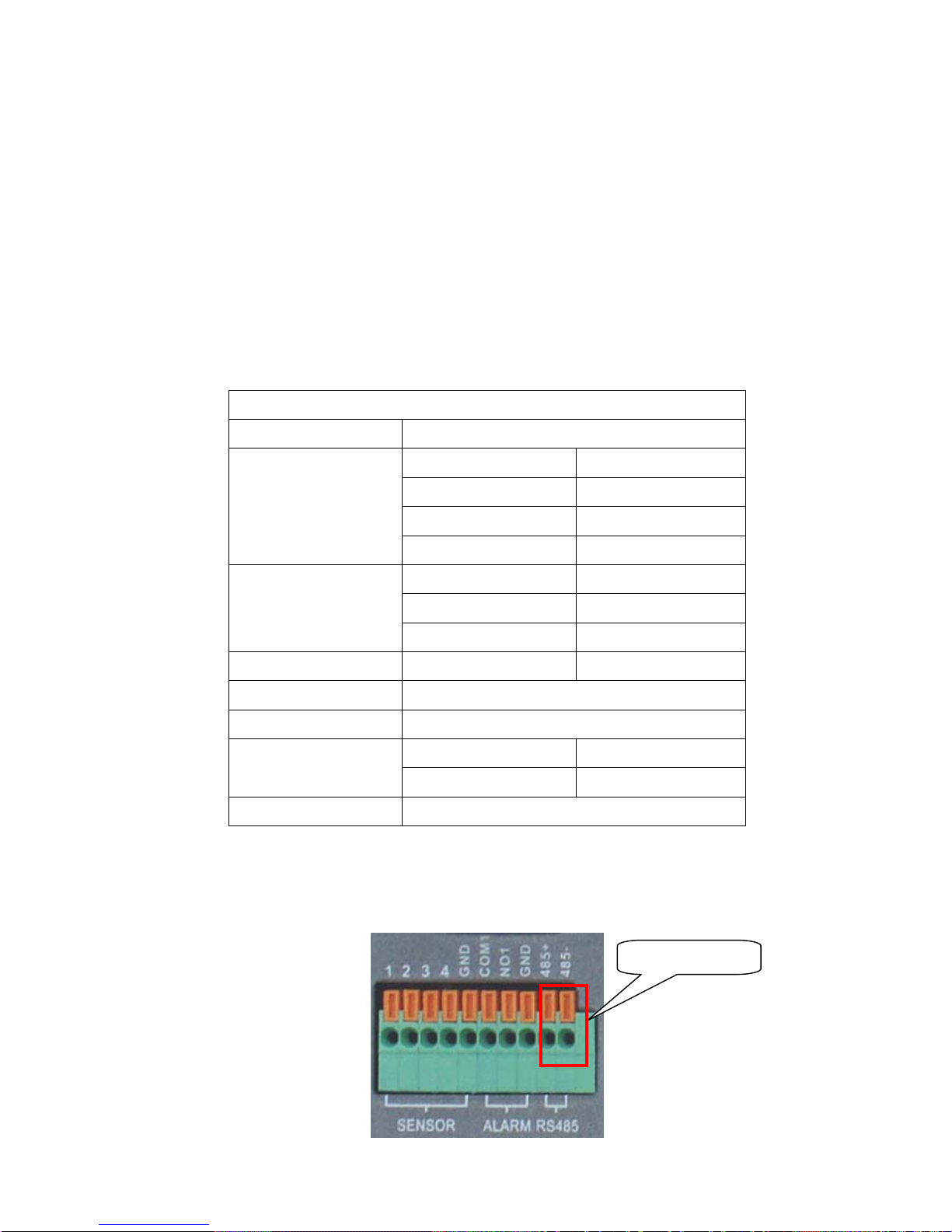

2.8 Speed dome connections.............................................................................................................................13
3 Basic operation.....................................................................................................................................................14
3.1 Turn on ........................................................................................................................................................14
3.2 Turn off .......................................................................................................................................................14

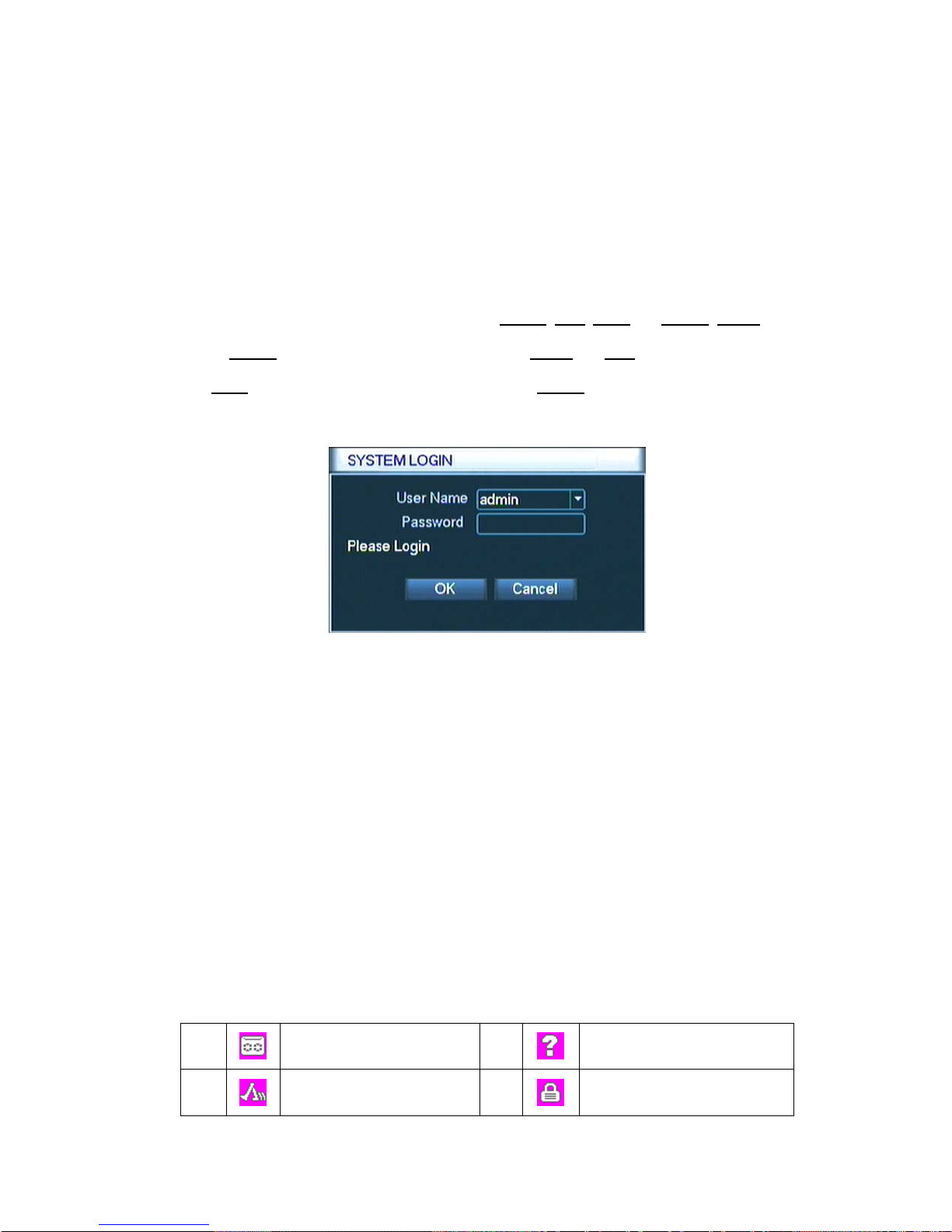

3.3 Login...........................................................................................................................................................15
3.4 Preview .......................................................................................................................................................15

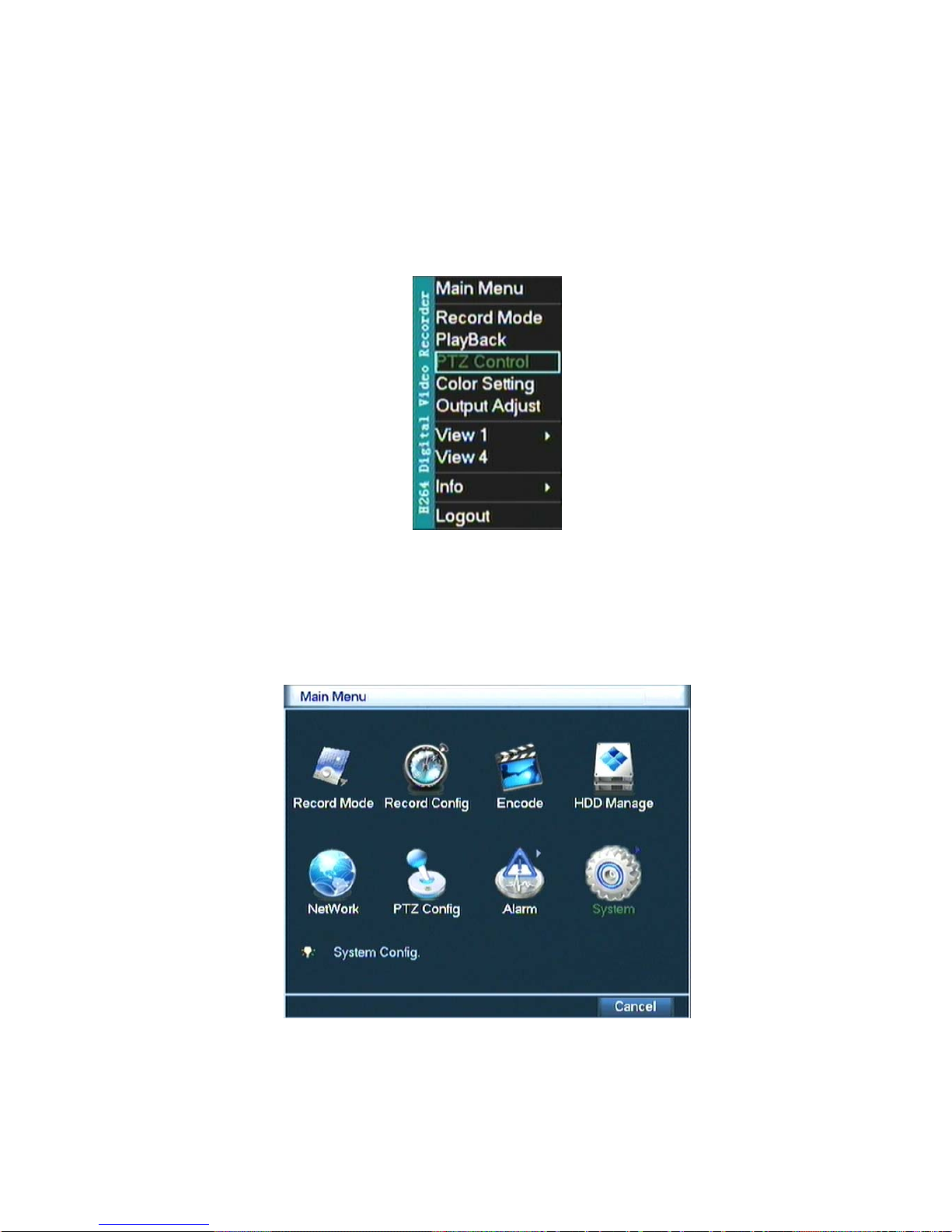

3.5 Desktop shortcut menu................................................................................................................................16
3.5.1 Main menu .......................................................................................................................................16

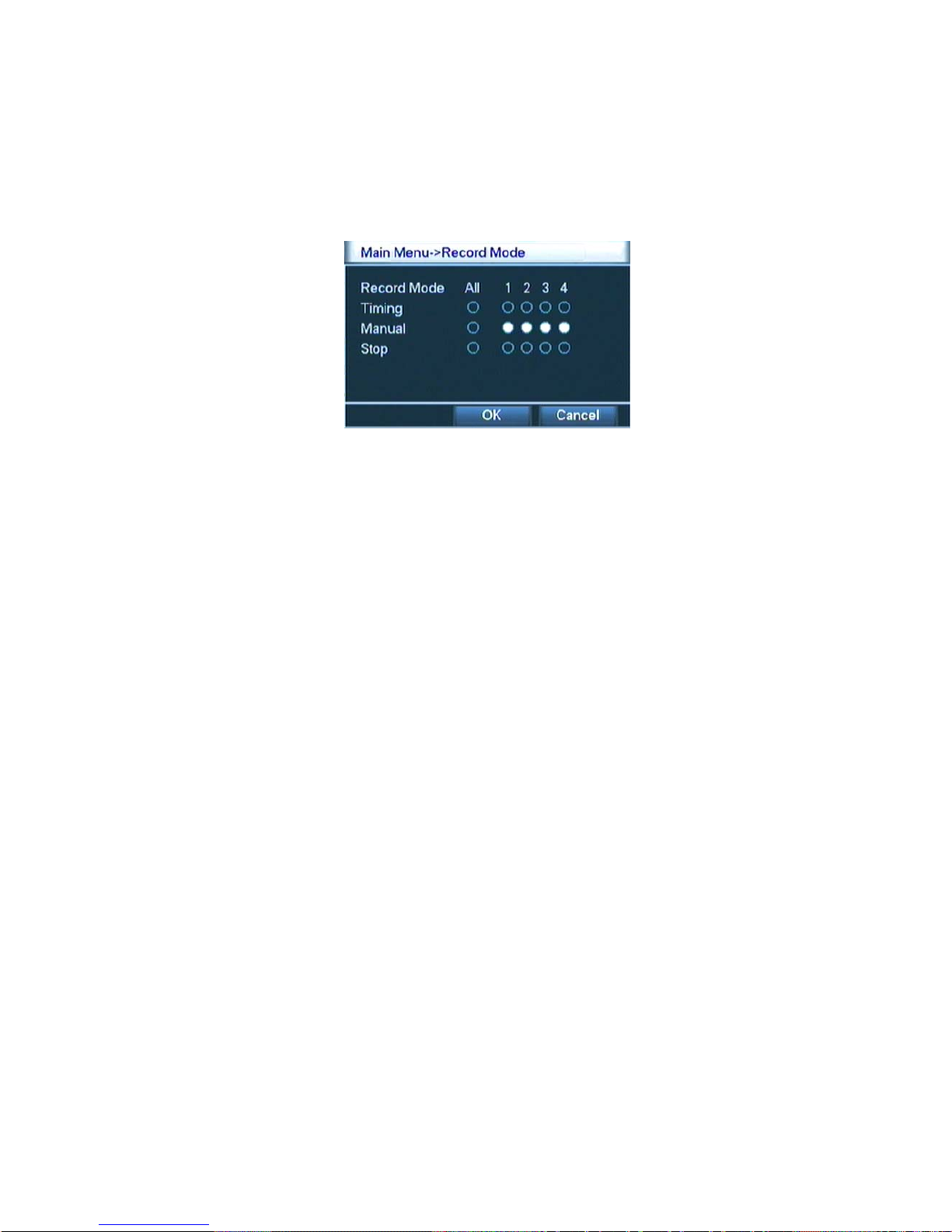

3.5.2 Record Mode....................................................................................................................................17
3.5.3 Video playback.................................................................................................................................17
3.5.4 PTZ control ................................................................................................................................…..20
3.5.5 Color setting.....................................................................................................................................20
3.5.6 Output adjust....................................................................................................................................26
3.5.7 Window switch.................................................................................................................................26
3.5.8 System information ..........................................................................................................................26
3.5.8.1 Hard disk information…………………………………………………………………… 26
3.5.8.2 Log information………….……………………………………………………………… 27
3.5.8.3 Code stream statistics…………………………………………………………………… 28
3.5.8.4 Online user……………………………………………………………………………… 28
3.5.8.5 Edition information……………………………………………………………………… 28
3.5.9 Logout ..............................................................................................................................................29
4 Main menu............................................................................................................................................................30
4.1 Main menu navigation ................................................................................................................................30
4.2 Record mode ...............................................................................................................................................31
4.3 Record config..............................................................................................................................................39
4.4 Encode setup ...............................................................................................................................................32
第3页

4.5 HDD manage ..............................................................................................................................................33
4.6 Network setup .............................................................................................................................................34
4.6.1 Network service ...............................................................................................................................34
4.7 PTZ config ..................................................................................................................................................38
4.8 Alarm setup .................................................................................................................................................39
4.8.1 Motion detect ...................................................................................................................................33
4.8.2 Video blind.......................................................................................................................................45
4.8.3 Video loss .........................................................................................................................................41
4.8.4 Alarm input ......................................................................................................................................42
4.8.5 Alarm output ....................................................................................................................................42
4.9 System setup ...............................................................................................................................................43
4.9.1 General setup....................................................................................................................................43
4.9.2 GUI display......................................................................................................................................44
4.9.3 Account management.......................................................................................................................45
4.9.4 Upgrade............................................................................................................................................48
4.9.5 Restore config ..................................................................................................................................48
4.9.6 Backup .............................................................................................................................................49
5 Netview and Management ...................................................................................................................................50
5.1Web network control....................................................................................................................................53
5.2 Client SNS software operation....................................................................................................................59
6 FAQ and maintenance .........................................................................................................................................50
6.1 FAQ.............................................................................................................................................................53
6.2 Maintenance................................................................................................................................................59
Appendix 1.Remote controller operation..................................................................................................................59
Appendix 2.Mouse operation....................................................................................................................................60
Appendix 3.Hard disk capability calculation............................................................................................................61
Appendix 4.Technique parameters............................................................................................................................61
第4页

H.264 Network Digital Video Recorder User Manual
1 Production Introduction
1.1 Product overview
The series DVR is designed specially for security and defence field which is an outstanding digital
surveillance product. It introduces embedded LINUX operating system which is more stable. It introduces
standard H.264mp video compressed format and G.711A audio compressed format which insures the high quality
image, low error coding ratio and single frame playing. It introduces TCP/IP network technology which achieves
the strong network communication ability and telecommunication ability.
The series DVR can be used individually or online applied as a part of a safety surveillance network. With the
professional network video surveillance software it achieves the strong network communication ability and
telecommunication ability.
The series DVR can be applied in the bank, telecom, electric power system, judicial system, transportation,
intelligent housing, factory, storehouse, water conservancy and so on.
1.2 Main functions
Real-time surveillance
·analog interface and VGA interface (VGA interface is equipped selectively)
·surveillance function through monitor or display
Storage
·non-working hard disk dormancy processing which is convenient to radiate heat, reduce power and extend the
life-span
·special storage format which insures the data safety
Compression
·real-time compression by individual hard disk which insures the audio and video signal stable synchronization
Backup
·through SATA interface and USB interface such as USB equipment, removable hard disk and so on
·through net download the files in the hard disk
Playback
·individual real-time video recording as well as searching, playback, network surveillance, recording check,
第5页

第6页
downloading and so on
·multi-playback mode
·zoom at arbitrary region
Net operating
·through net tele-surveillance in the real time
·tele-PTZ control
·tele-recording check and real-time playback
Alarm linkage
·multi-route relay alarm output which is convenient for the alarm linkage and light control at the spot
·protecting circuits at the alarm input and output interface which protects the main machine from damage
Communication interface
·RS485 interface which fulfills the alarm input and PTZ control
·standard ethernet network interface which fulfills the telecommuting function
Intelligent operating
·mouse action function
·fast copy and paste operating for the same setting
2 Open-package check and cable connection
2.1 Open-package check
When you receive the DVR, please check first .
First, please check whether there is any visible damage to the package appearance. The protective materials
used for the package of the DVR can protect most accidental clashes during transportation.
Then, please open the box and get rid off the plastic protective materials. Check whether there is any visible
damage to the DVR appearance.
At last, please open the machine crust and check the data wire in the front panel, power wire, the connection
between the fan power and the main board.
1.Front panel and rear panel
The key function specification in the front panel and the interface specification in the real panel are in
the specification.
Please check the product type in the front panel whether is accordant with the product type you order.

The label in the real panel is very important for the after service. Please protect it carefully. When you
contact us for after service, please provide the product type and serial number in the label.
2. After open the case should be checked
In addition to checking whether there are obvious signs of external damage, please note that before the
inspection panel data lines, power lines and motherboard connection is loose.
2.2 Frame installation
The specification of machine box is standard 1U.It can be installed in the standard frame.
Installation approach and notice:
1、Mare sure the house temperature under 35℃(95°f).
2、Keep the DVR away from other equipments at least 15 centimeters(6 inches).
3、Frame installation from bottom to top.
4、If installing multiple components in the frame, take precaution to avoid the overload of the jack.
2.3 Front panel (Below just as the 4CH DVR for example,Specifically please refer to practical product.)
1 2 3 4 5 6 7
8 9 10 11 12 13 14 15 16 17 18 19
(1) recording search button / 7 (2) PTZ control button / 8 (3) recording button / 0
(4) shift function button (5) cancel button (6) menu & confirm button
(7)upbutton (8)playpreviousfile/1 (9)playnextfile/2
(10) slow play / 3 (11)fast play / 4 (12) playback or pause / 5
(13) play or pause / 6 (14) left button (15) down button
(16) right button (17) IR remoter receiver (18) hard disk indicator light
(19) power indicator light
Front panel button operation function table
Num. Button name Mark Function
第7页

1 Shift function button SHIFT Shift in the number button, character button and other function button
during the user under input state
Remove the cursor
Add or decrease number during the user edit state
Change the setting in the menu
Enter 1 channel or 4 channels surveillance during surveillance image
< >
After pressing the shift button, press this button can enter 1 or 4 during edit
state
Remove the cursor when the main menu or submenu is popped
Remove the cursor during the playback state
Enter 2 channel or 3 channel surveillance during surveillance image
Direction button
< >
After pressing the shift button, press this button to enter 2 or 3 during edit
state
Confirm
2
Confirm button ENTER Enter main menu
Back to the above level menu or cancel operation in the operation menu
3 Cancel button ESC Back to the real-time surveillance during the playback state
4 Play previous file
button IPlay previous video during the playback state Enter 1 during edit state
5 Play next
file button
I Play next video during the playback state
Enter 2 during edit state
6 Slow play
►Play in the multi-low or regular speed video during the playback state
Enter 3 during edit state
7 Fast play Play in the multi-fast or regular speed video during the playback state
Enter 4 during edit state
8 Playback/pause
button II/Playback the video or pause during the playback state Enter 5 during edit state
9 Play/pause button \II Play the video or pause during the playback state
Enter 6 during edit state
10 Recording button REC Start/stop the video recording manually
With the direction button choose the channel in the recording control menu
第8页

2.4 Rear panel (Below just as the 4CH DVR for example,Specifically please refer to practical product.)
(1) (2)(3) (4) (5) (6) (7) (8) (9) (10)
(1) power jack (2) network interface (3) USB interface for backup
(4) USB Mouse interface (5) alarm & RS-485 interface (6) video VGA output
(7) video output (8) audio output (9) audio input (10) video input
Note: Some models have front panel USB interface,this interface with the top of the rear panel USB port are
mutually exclusive,only one interface at the same time effective.The bottom of a rear panel USB as an independent
and effective.
2.5 Installation connections sketch map (Below just as the 4CH DVR for example,Specifically please
refer to practical product.)
第9页

2.6 Audio and video input and output connections
2.6.1 Video input connections
The video input port is BNC connector plug. The demand of input signal is PAL/NTSC BNC(1.0VP-P,75Ω).
The video signal must be accorded with the state standard which has the high signal to noise ratio, low
aberration and low interference. The image must be clear and has natural color in the appropriate brightness.
Insure the camera signal stable and credible
The camera should be installed in the appropriate location where is away from backlighting and low
illumination or adopts the better backlighting and low illumination compensation.
The ground and power supply of the camera and the DVR should be shared and stable.
Insure the transmission line stable and credible
The video transmission line should adopt high quality coaxial pair which is chosen by the transmission
distance. If the transmission distance is too far, it should adopt shielded twisted pair, video compensation
equipment and transmit by fiber to insure the signal quality.
The video signal line should be away from the electro magnetic Interference and other equipments signal
lines. The high voltage current should be avoided especially.
Insure the connection stable and credible
The signal and shield lines should be firm and connected credible which avoid false and joint welding and
oxidation.
2.6.2 Video output connections and options
The video output is divided into PAL/NTSC BNC(1.0VP-P,75Ω) and VGA output(selective configuration).
When replace the monitor by the computer display, there are some issues to notice.
1、Do not stay in the turn-on state for a long time.
2、Keep the computer display normal working by demagnetizing regularly.
3、Stay away from the electro magnetic Interference.
TV is not a credible replacement as a video output. It demands reducing the use time and control the power
supply and the interference introduced by the nearby equipments strictly. The creepage of low quality TV can lead
to the damage of other equipments.
第10 页
