ZMODO ZP-NE14-S User manual

1

2

3
!Before using this product... ......................................... 1.1!1
1.1!Understanding the manual..............................................................................................1.1!
How this manual is organized .............................................................................................. 1.1!
Manual Conventions ................................................................................................................1.2!
1.2!Safety Precautions...............................................................................................................1.3!
1.3!Minimum Requirements ...................................................................................................1.3!
!Product Introduction ................................................... 2.1!2
2.1!Product Overview ................................................................................................................2.1!
2.2!Technical Specifications ....................................................................................................2.2!
NVR (ZP-NE14-S).......................................................................................................................2.2!
IP Camera (ZP-IBT15-S)...........................................................................................................2.3!
2.3!Package Contents................................................................................................................ 2.4!
2.4!Getting Familiar with your NVR .....................................................................................2.6!
Main Functions & Features....................................................................................................2.6!
Front Panel .................................................................................................................................. 2.7!
Rear Panel.....................................................................................................................................2.7!

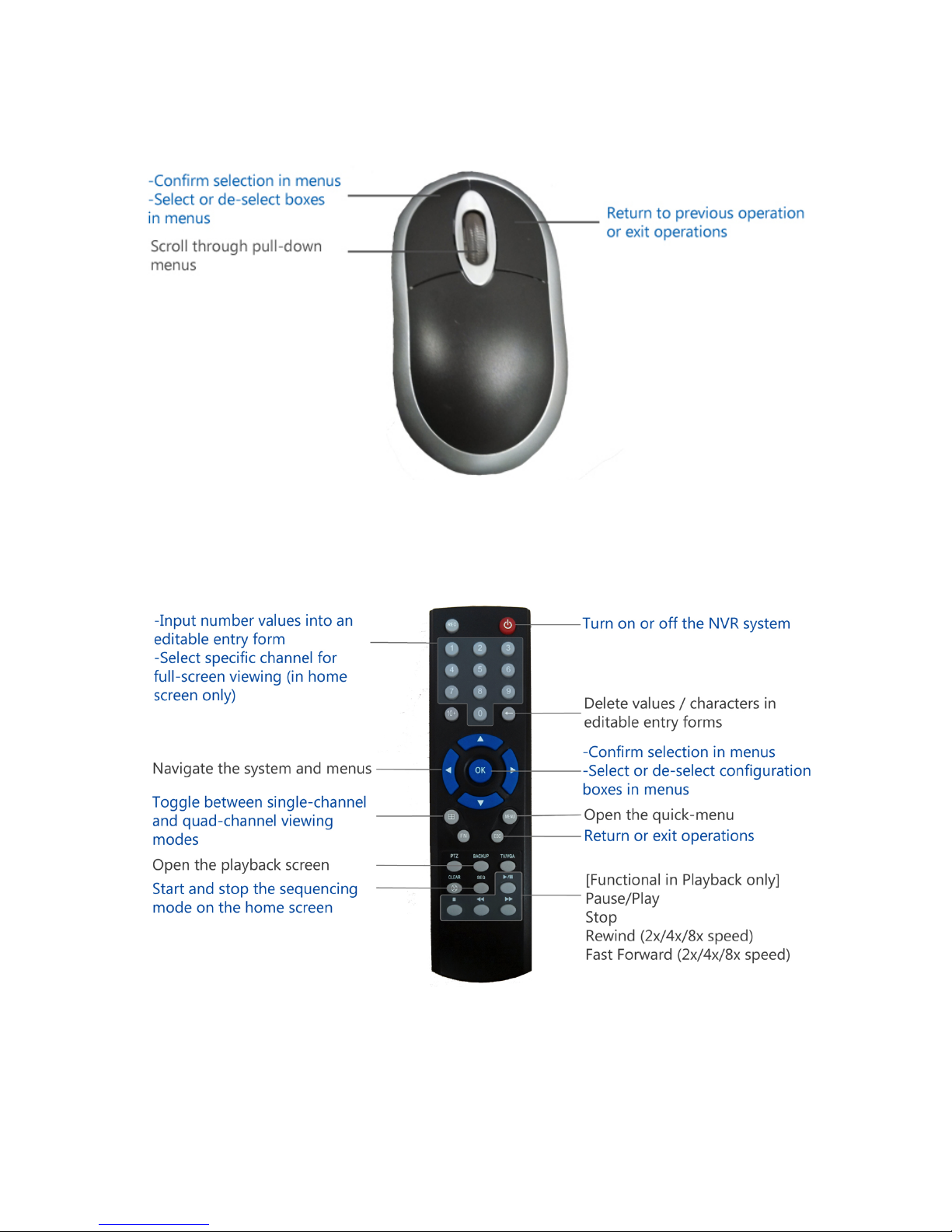

Mouse ............................................................................................................................................2.8!
Remote Control.......................................................................................................................... 2.8!
!First-time Setup ............................................................ 3.1!3
3.1!NVR Installation....................................................................................................................3.1!

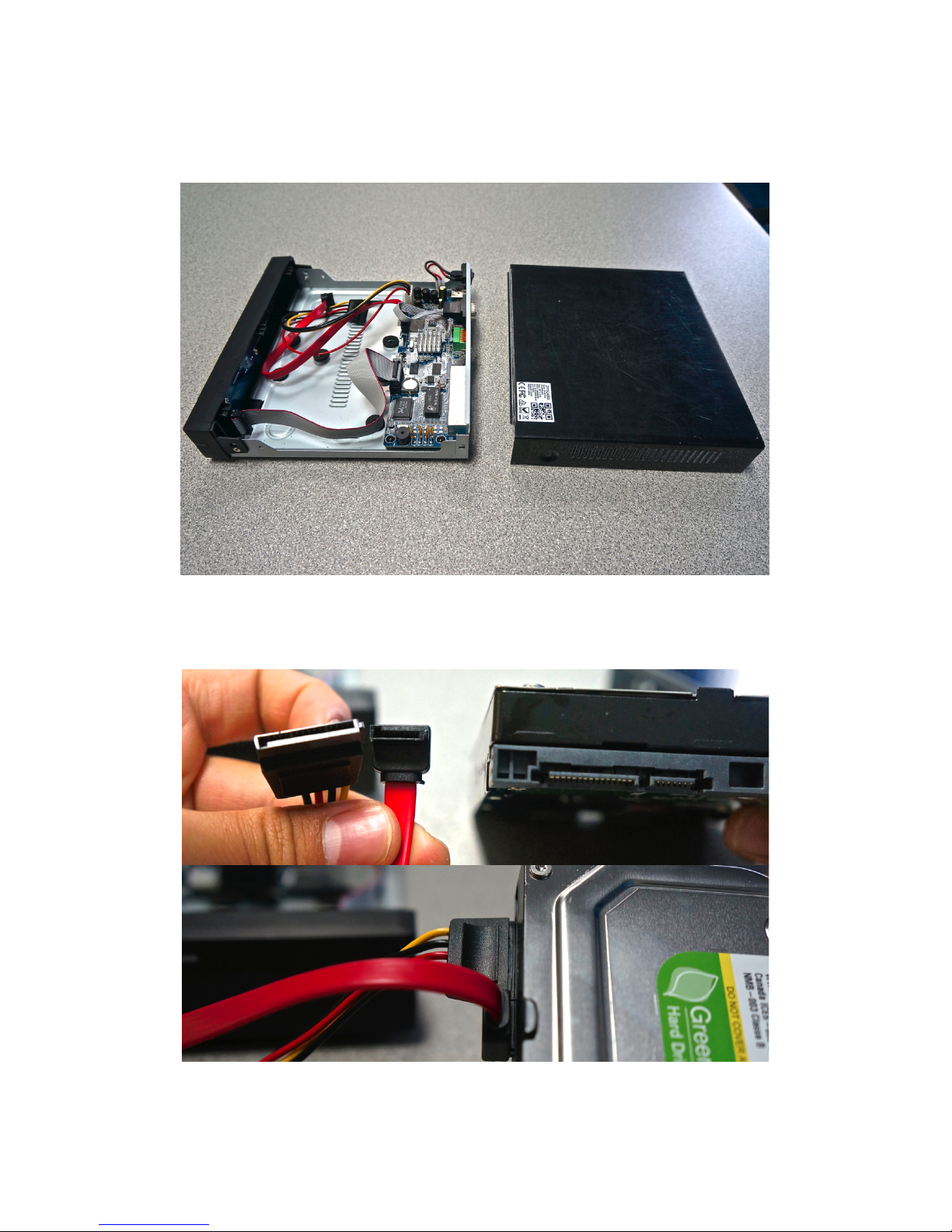

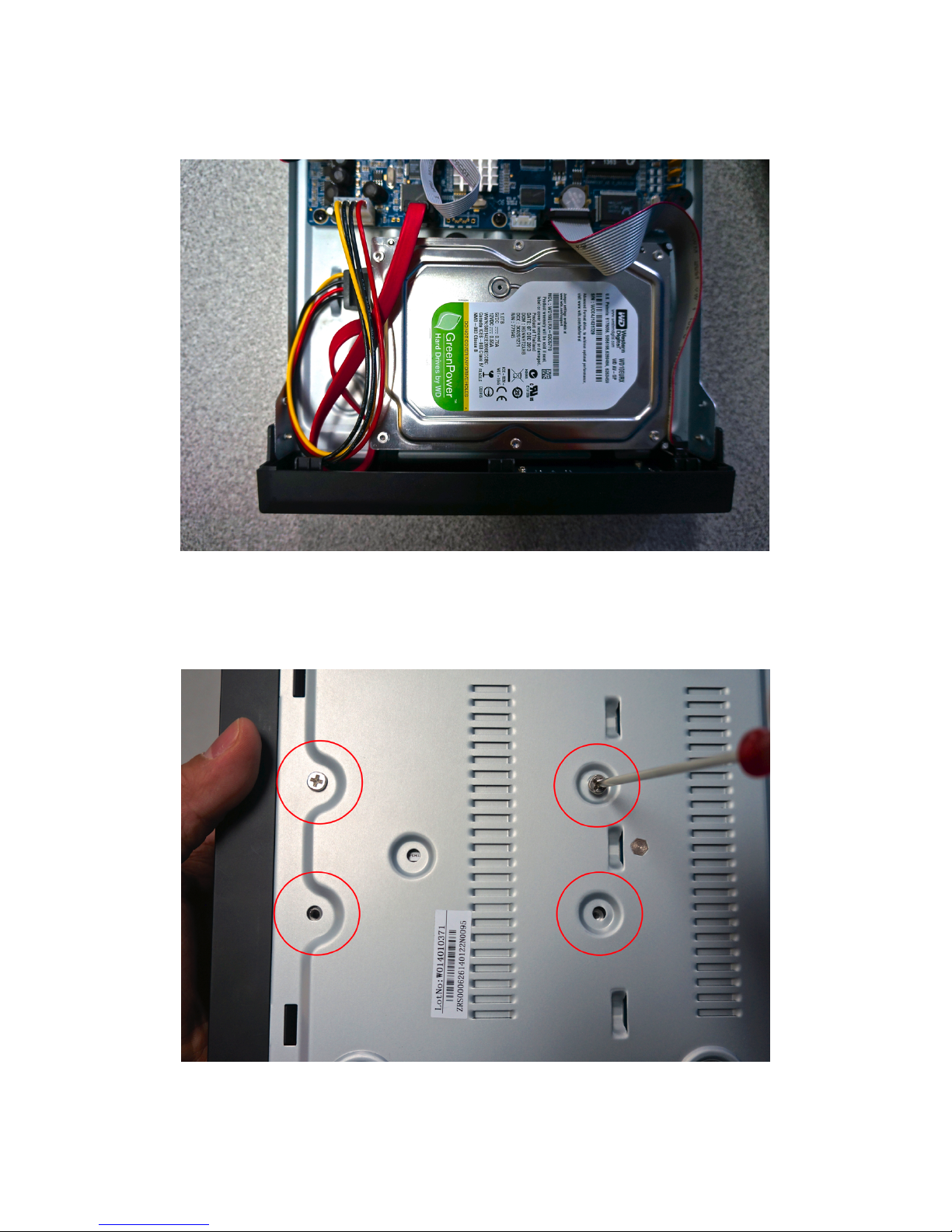

HDD Installation.........................................................................................................................3.1!
Connecting your NVR.............................................................................................................. 3.5!
Connecting an External Alarm.............................................................................................. 3.6!
3.2!Camera Installation .............................................................................................................3.6!
Connecting the cameras to the NVR .................................................................................3.6!
Mounting the Camera ............................................................................................................. 3.9!
3.3!NVR First-Time Startup....................................................................................................3.10!
Startup Guide Explained .......................................................................................................3.11!
3.4!Home Screen Introduction.............................................................................................3.12!
Main Menu.................................................................................................................................3.13!
New Notification......................................................................................................................3.13!
Single View.................................................................................................................................3.13!
Quad View..................................................................................................................................3.13!
Playback ......................................................................................................................................3.13!
Logout / Shutdown.................................................................................................................3.13!
!Using the NVR............................................................... 4.1!4
4.1!Main Menu Detailed........................................................................................................... 4.1!
General Settings......................................................................................................................... 4.1!
Device Management ................................................................................................................4.8!

4
Network Settings .....................................................................................................................4.11!
Event Management.................................................................................................................4.13!
4.2!Camera Controls ................................................................................................................4.18!
Image Setting............................................................................................................................4.18!
Zoom ............................................................................................................................................4.19!
Playback ......................................................................................................................................4.20!
4.3!Remote-viewing Setup....................................................................................................4.22!
4.4!Updating your NVR...........................................................................................................4.26!
From your NVR (via USB)......................................................................................................4.26!
From your computer (via shared internet connection).............................................4.26!
!Support ..............................................................................1!5
5.1!Troubleshooting.......................................................................................................................1!
5.2!Warranty......................................................................................................................................3!
5.3!Zmodo Support........................................................................................................................6!

Before using this product...
1.1
Before using this product...1
1.1 Understanding the manual
How this manual is organized
This manual is specifically organized to provide comprehensive instructions for
full setup and basic operation of your NVR when read front-to-back. The
contents of the manual are conveniently organized for quick reference after you
have read through the entire manual. For further instructions, please visit our
knowledge base at http://kb.zmodo.com/ or our website at
http://www.zmodo.com/support-software.
•Chapter 1 Before using this product...
This chapter contains important information prior to reading the manual
and installing the system. It overviews the manual purpose and
conventions to aid in installation, and covers minimum system
requirements to ensure successful setup and use. It is essential that you
read this chapter before reading the manual and installing the system.
•Chapter 2 Product Introduction
This chapter describes the package contents and overviews some of the
features and capabilities of the NVR system.
•Chapter 3 First-time Setup
This chapter covers the initial setup procedures of the NVR. This includes
hardware setup procedures such as NVR wiring, HDD installation, alarm
installation and camera installation. It also covers basic setup procedures
to configure your NVR when setting it up for the first time.

Before using this product...
1.2
•Chapter 4 Using the NVR
The NVR's full features can be utilized through the new and revolutionary
user-friendly menu system. This chapter covers detailed instruction on
the functions and navigation of each menu element, use of the camera
control interface, live remote-viewing setup, and firmware update
procedures for the NVR and IP cameras. Refer to this chapter for specific
instructions for advanced functions of the NVR.
•Chapter 5 Support
This chapter covers common troubleshooting issues that can be easily
resolved, warranty information, and information for Zmodo support and
other resources. Please refer to this chapter before calling technical
support.
Manual Conventions
This manual uses several symbols, typographies and abbreviations that carry
specific definitions. In order to properly follow instructions, please familiarize
yourself with the following conventions.
[Text]
Text enclosed in square [brackets] indicates a menu or an item to
select.
IMPORTANT:
Denotes information or instructions that you MUST follow to
complete instructions.
NOTE:
Denotes additional information or tips to aid you in completing
instructions.
NVR
Abbreviation for network video recorder. This is the main control
component of your system.
IPC
Abbreviation for internet protocol camera. These are the
recording and surveillance devices attached to the system.
HDD
Abbreviation for hard disk drive. This is the storage component
of your NVR system.

Before using this product...
1.3
1.2 Safety Precautions
Please read and follow these instructions for your safety while operating and
setting up the equipment.
•Use only the provided power adapter to power the NVR.
•Do not insert any objects into the NVR case or openings.
•Do not place heavy objects on top of the NVR.
•Keep the NVR surfaces clean and dry.
•Do not operate in wet or dusty environments.
•Keep the NVR away from all fluids.
•Operate and keep the NVR in temperatures between -10°C~50°C.
•Do not install the NVR near any heat sources and avoid direct sunlight.
•Make sure there is good air circulation where the NVR is installed.
•Install the NVR in a stable environment.
•Handle the NVR carefully and avoid collisions and strong falls.
1.3 Minimum Requirements
Minimum requirements must be met for full and proper functionality of the NVR.
•External display with VGA input and VGA cable.
•A wireless router with one empty port.
•A physical internet connection such as Cable / DSL / Fiber—no satellite,
3G/4G hotspots, or city-wide wireless.
•A minimum upload speed of >256kbps at the location of the NVR.
•Android (v.2.3 and up) or iOS (v.5 and up) mobile device (for remote
viewing).

Product Introduction
2.1
Product Introduction2
2.1 Product Overview
This Zmodo NVR system is specially designed to safeguard your home or
business by providing cutting-edge video surveillance and monitoring. With a
2.8mm wide-angle lens and full 720p high definition video, the security cameras
are able to monitor more space in greater detail. The 24 infrared LEDs eliminate
low light problems, capturing HD videos from up to 80ft away. Instant email
notifications and multiple live streaming and recording options make your NVR
available and accessible anywhere at anytime.
Using next generation plug-and-play technology and a revolutionized user
interface, this system delivers a revolutionarily user-friendly experience that is
accessible to anybody. Achieving security and peace of mind has never been
easier. With top products at low prices and setup procedures that anybody can
follow, our goal is to bring security and safety to all people; making your security
our priority.

Product Introduction
2.2
2.2 Technical Specifications
NVR (ZP-NE14-S)
Video Input / Output
IP Video Input
4 Channel
VGA Output
1 channel
Recording Resolution
720P
Compression
Record Rate
H.264
120fps
Multi screen Display
1024x768@60Hz, 1280x1024@60Hz
Record Mode
Manual / Time Scheduled / Alarm Triggered / Motion Detect
Playback Options
Fast forward / Rewind / Slow motion
Hard Disk Drive
Interface Type
1 SATA (3.5”)
Capacity
Up to 2TB
External Interface
Network Interface
1 RJ45 10M/100M self-adaptation & 4 independent 10/100 Mbps
Ethernet interfaces
USB Interface
2 USB 2.0 inputs
Alarm Inputs / Output
4 channel sensor inputs / 1 channel alarm output
General
Application Support
Remote configuration, video browsing, local recording, local and
remote playback
Motion Detection
Yes
Protocol Support
TCP/IP, UDP, DNS/DDNS, SMTP, UPNP, DHCP, HTTP, etc.
Alarm Notification
Yes
Operation System
Linux-based
Power Supply
DC 19V, 3A
PoE ports
4
Power consumption
<12W (without hard disks)
Operating Temperature
-10 °C to 50 °C
Dimensions
220 x 205 x 42mm (8.6” x 8.1” x 1.7”)
Weight
1.49lbs (without HDD)
Language Support
English, Chinese

Product Introduction
2.3
IP Camera (ZP-IBT15-S)
Camera
Image Sensor
¼" color CMOS sensor
Minimum Illumination
0.1 Lux (IR LED On) / F 1.2
Shutter Speed
Auto
Lens
2.8mm
Viewing Angle
90°
Night-Vision
Electronic (IR-CUT with auto switch)
Compression Standard
Video Compression
H.264
Bit Rate
16Kbps~2Mbps
Dual Stream
Yes
Image Resolution
720P (1280x720), VGA (640x480), QVGA (320x240)
Frame Rate
25fps real-time
White Balance
Auto
Backlight Balance
Auto
Image Setting Options
Brightness, contrast, saturation
Network
Alarm Trigger
Intelligent motion detection
Alarm Response
Email notification, video recording, snapshot, buzzer
Network Protocols
TCP/IP, UDP, DNS/DDNS, SMPT, UPNP, DHCP, HTTP, etc.
ONVIF
ONVIF Ver. 2.0
Wireless
No
Security
User authentication, software encryption
Interface
Communication
Interface
RJ45 10 / 100M self-adaptive
General
User Management
Multi-level user management, support up to 16 users
Weather proof
IP65
WDR
No
Operating Temperature
-10 °C to 50 °C
Color / Material
White / Aluminum
Power Supply
Power over Ethernet (PoE)
Power Consumption
2W~4W
IR Distance
Night visibility up to 20m (60ft)
Dimensions
52 x 52 x 72mm (2.1" x 2.1" x 2.8")
Weight
0.44lb
