Zte BLADE V7 LITE User manual

1
1

2

1
ZTE BLADE V7 LITE
Quick Start Guide .........................................2
ZTE BLADE V7 LITE
Kurzanleitung..............................................17
ZTE BLADE V7 LITE
Hızlı Başlangıç Kılavuzu.............................34
ZTE BLADE V7 LITE
Guía de Inicio Rápido.................................49
079584509195

2
ZTE BLADE V7 LITE
Quick Start Guide

3
LEGAL INFORMATION
Copyright © 2017 ZTE CORPORATION.
All rights reserved.
No part of this publication may be quoted,
reproduced, translated or used in any form
or by any means, electronic or mechanical,
including photocopying and microlm,
without the prior written permission of ZTE
Corporation.
Notice
ZTE Corporation reserves the right to make
modications on print errors or update
specications in this guide without prior
notice.
We offer self-service for our smart terminal
device users. Please visit the ZTE ofcial
website (at www.ztedevice.com) for more
information on self-service and supported
product models. Information on the website
takes precedence.
Visit http://www.ztedevice.com to download
the user manual. Just click Support from the
home page and then select your location,
product type, and name to search for related
support information.

4
Disclaimer
ZTE Corporation expressly disclaims any
liability for faults and damages caused by
unauthorized modications of the software.
Images and screenshots used in this guide
may differ from the actual product. Content in
this guide may differ from the actual product
or software.
Trademarks
ZTE and the ZTE logos are trademarks of
ZTE Corporation.
Google and Android are trademarks of
Google, Inc.
The Bluetooth®trademark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such trademarks by ZTE Corporation
is under license.
microSDHC Logo is a trademark of
SD-3C, LLC.
Other trademarks and trade names are the
property of their respective owners.

5
Getting to Know Your Phone
Proximity &
light sensor
Front camera
nano-SIM /
microSDHC
card slot
Power key
Menu key
Back camera
Fingerprint
sensor
Microphone
Charging/
micro-USB
jack
Speaker
Back ash
Home key
Back key
Touch screen
Volume key
Earpiece
Front ash
Headset jack

6

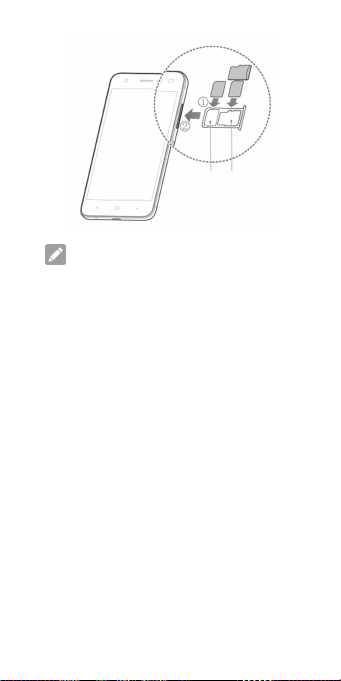

Installing the nano-SIM
Card(s) and the microSDHC™
Card(Optional)
The nano-SIM card can be installed or
removed while the phone is turned on.
WARNING!
To avoid damage to the phone, do not use
any other kind of SIM cards, or any non-
standard nano-SIM card cut from a SIM card.
You can get a standard nano-SIM card card
from your service provider.

7
Slot1 Slot2
NOTE:
Slot 1 only supports nano-SIM card. Slot
2 supports nano-SIM card or microSDHC
card.
The two nano-SIM slots support 4G/3G/
2G networks. When one nano-SIM card
is set to connect with 4G/3G networks,
the other installed nano-SIM card can
only connect with 2G networks.

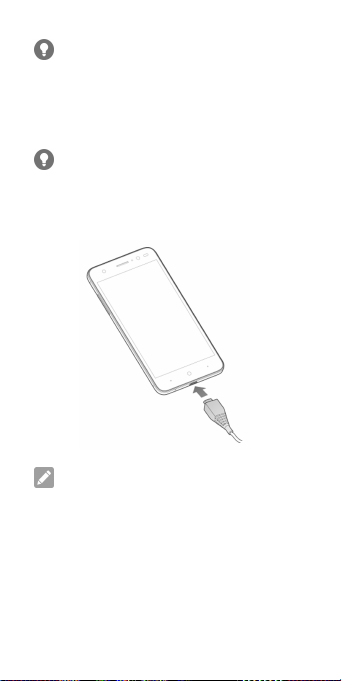

Charging the Phone
Your phone’s battery should have enough
power for the phone to turn on, nd a signal,
and make a few calls. You should fully charge
the battery as soon as possible.

8
WARNING!
Use only ZTE-approved chargers and cables.
The use of unapproved accessories could
damage your phone or cause the battery to
explode.
WARNING!
Do not remove the back cover. The battery
is not removable. Removal may cause re
or explosion.
NOTE:
If the screen freezes or takes too long to
respond, try pressing and holding the Power
key for about 10 seconds to power off the
phone, then press the Power key to start.

9
Product Safety Information
Don’t make or receive phone
calls while driving. Never text
while driving.
Keep your phone at least 5
mm away from your ear or
body while making calls.
Small parts may cause
choking.
Your phone can produce a
loud sound.
To prevent possible hearing
damage, do not listen at
high volume levels for long
periods.
Avoid contact with anything
magnetic.
Keep away from pacemakers
and other electronic medical
devices.
Turn off when asked to
in hospitals and medical
facilities.
Turn off when told to on
aircraft and at airport.
Turn off when near explosive
materials or liquids.

10
Don’t use at gas stations.
Your phone may produce a
bright or ashing light.
Don’t dispose of your phone
in re.
Avoid extreme temperatures.
Avoid contact with liquids.
Keep your phone dry.
Do not attempt to
disassemble your phone.
Only use approved
accessories.
Don’t rely on your phone as a
primary device for emergency
communications.
Specic Absorption Rate (SAR)
Your mobile device is a radio transmitter
and receiver. It is designed not to exceed
the limits for exposure to radio waves
recommended by international guidelines.
These guidelines were developed by the
independent scientic organization ICNIRP
and include safety margins designed
to assure the protection of all persons,
regardless of age and health.

11
The guidelines use a unit of measurement
known as Specic Absorption Rate, or SAR.
The SAR limit for mobile devices is 2 W/kg
and the highest SAR value for this device
when tested at the head was 0.467 W/kg*
and when tested at the body was 1.130 W/
kg*. with 5 mm distance. As mobile devices
offer a range of functions, they can be used
in other positions, such as on the body as
described in the user manual
As SAR is measured utilizing the device’s
highest transmitting power, the actual SAR of
this device while operating is typically below
that indicated above. This is due to automatic
changes to the power level of the device
to ensure it only uses the minimum power
required to communicate with the network.
The tests are carried out in accordance
with EN 50360, EN 50566, EN 62479, EN
62209-1 and EN 62209-2.
Please see body worn operation in the user
manual.

12
Specication
EUT supports
radios
application
GSM850/900/1800/1900
WCDMA Band 1,8
FDD LTE Band1,3,7,8,20,40
802.11b/g/n
Bluetooth V4.0+LE
GPS
WCDMA Version Rel.8
LTE Version Rel.10
Maximum RF
output power
GSM850: 33.28dBm
GSM900: 33.72dBm
GSM1800: 30.08 dBm
GSM1900: 30.54 dBm
WCDMA Band 1: 22.26 dBm
WCDMA Band 8: 23.95 dBm
FDD LTE Band1: 22.69 dBm
FDD LTE Band3: 22.69 dBm
FDD LTE Band7: 23.97 dBm
FDD LTE Band8: 24.68dBm
FDD LTE Band20: 24.49
dBm
FDD LTE Band40: 24.75
dBm
802.11b/g/n: 16.6dBm
Bluetooth EDR: 7.0 dBm
Bluetooth LE: -1.3 dBm
GPS(RX Only)

13
CE Caution
Battery Caution
Risk of explosion if battery is replaced by
an incorrect type. Dispose of used batteries
according to the instructions.
Proper Use
As described in this guide, your device can
be used only in right location. If possible,
please do not touch the antenna area on
your device.
Do not expose your device to extreme
temperatures lower than - 10 °C and higher
than + 55 °C.

14
Declaration of RoHS
Compliance
To minimize the environmental impacts
and take more responsibilities to the earth
we live on, this document shall serve as a
formal declaration that ZTE BLADE V7 LITE
manufactured by ZTE CORPORATION is in
compliance with the Directive 2011/65/EU of
the European Parliament - RoHS (Restriction
of Hazardous Substances) with respect to
the following substances:
1. Lead (Pb)
2. Mercury (Hg)
3. Cadmium (Cd)
4. Hexavalent Chromium (Cr (VI))
5. Polybrominated biphenyls (PBBs)
6. Polybrominated diphenyl ethers (PBDEs)
ZTE BLADE V7 LITE manufactured by ZTE
CORPORATION meets the requirements of
Directive 2011/65/EU.

15
Disposal of Your Old Appliance
1. When this crossed-out
wheeled bin symbol is
attached to a product,
it means the product
is covered by the
European Directive
2012/19/EU.
2. All electrical and
electronic products
should be disposed
of separately from
the municipal waste
stream via designated
collection facilities
appointed by the
government or the
local authorities.
3. The correct disposal
of your old appliance
will help prevent
potential negative
consequences for
the environment and
human health.
For this product’s recycling information based
on WEEE directive, please send an e-mail to
[email protected]

16
EU DECLARATION OF
CONFORMITY
Hereby, ZTE Corporation declares that the
radio equipment type ZTE BLADE V7 LITE
is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of
conformity is available at the following
Internet address:
http://certication.ztedevice.com

17
ZTE BLADE V7 LITE
Kurzanleitung

18
RECHTLICHE INFORMATIONEN
Copyright © 2017 ZTE CORPORATION.
Alle Rechte vorbehalten.
Kein Teil dieser Publikation darf ohne die
vorherige schriftliche Zustimmung der
ZTE Corporation in irgendeiner Form oder
auf irgendeine Weise zitiert, vervielfältigt,
übersetzt oder verwendet werden, weder
elektronisch noch mechanisch, einschließlich
Fotokopie und Mikrolm.
Hinweis
Die ZTE Corporation behält sich das
Recht vor, Änderungen an Druckfehlern
vorzunehmen oder die Spezikationen
in diesem Handbuch ohne vorherige
Ankündigung zu aktualisieren.
Wir bieten eine Selbstbedienung für Nutzer
unserer Smart-Terminal-Geräte an. Bitte
besuchen Sie die ofzielle Website von
ZTE (unter www.ztedevice.com) für weitere
Informationen zur Selbstbedienung und
zu den unterstützten Produktmodellen.
Informationen auf der Website haben
Vorrang.
Besuchen Sie http://www.ztedevice.com,
um die Bedienungsanleitung herunterzuladen.
Klicken Sie einfach auf Support auf der
Startseite und wählen Sie dann Ihren Standort,
den Produkttyp und Namen aus, um nach den
