Zte BOOST B795 User manual

BOOST B795
3G MOBILE PHONE
USER MANUAL
Copyright © 2014. All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilised in
any form or by any means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE Corporation.
The manual is published by ZTE Corporation. We reserve the right to make
modifications on print errors or update specifications without prior notice.
Version 1.0 April 2014

2
WHAT’S INSIDE
A QUICK LOOK AROUND YOUR DEVICE2
GETTING STARTED.............................. 4
PHONE CALLS ................................... 20
CONTACTS ........................................ 26
MESSAGES........................................ 26
GETTING CONNECTED...................... 43
CONNECT TO A COMPUTER ............. 46
USING THE BROWSER ...................... 47
BLUETOOTH...................................... 48
USING MULTIMEDIA FUNCTIONS..... 53
PLAY VIDEOS .....................................57
GALLERY............................................57
SOUND RECORDER............................57
SECURITY ..........................................62
UPDATING YOUR DEVICE ..................64
TECHNICAL SPECIFICATIONS: ............64
TROUBLESHOOTING .........................66
WARRANTY INFORMATION...............70
SAFETY ..............................................71

3

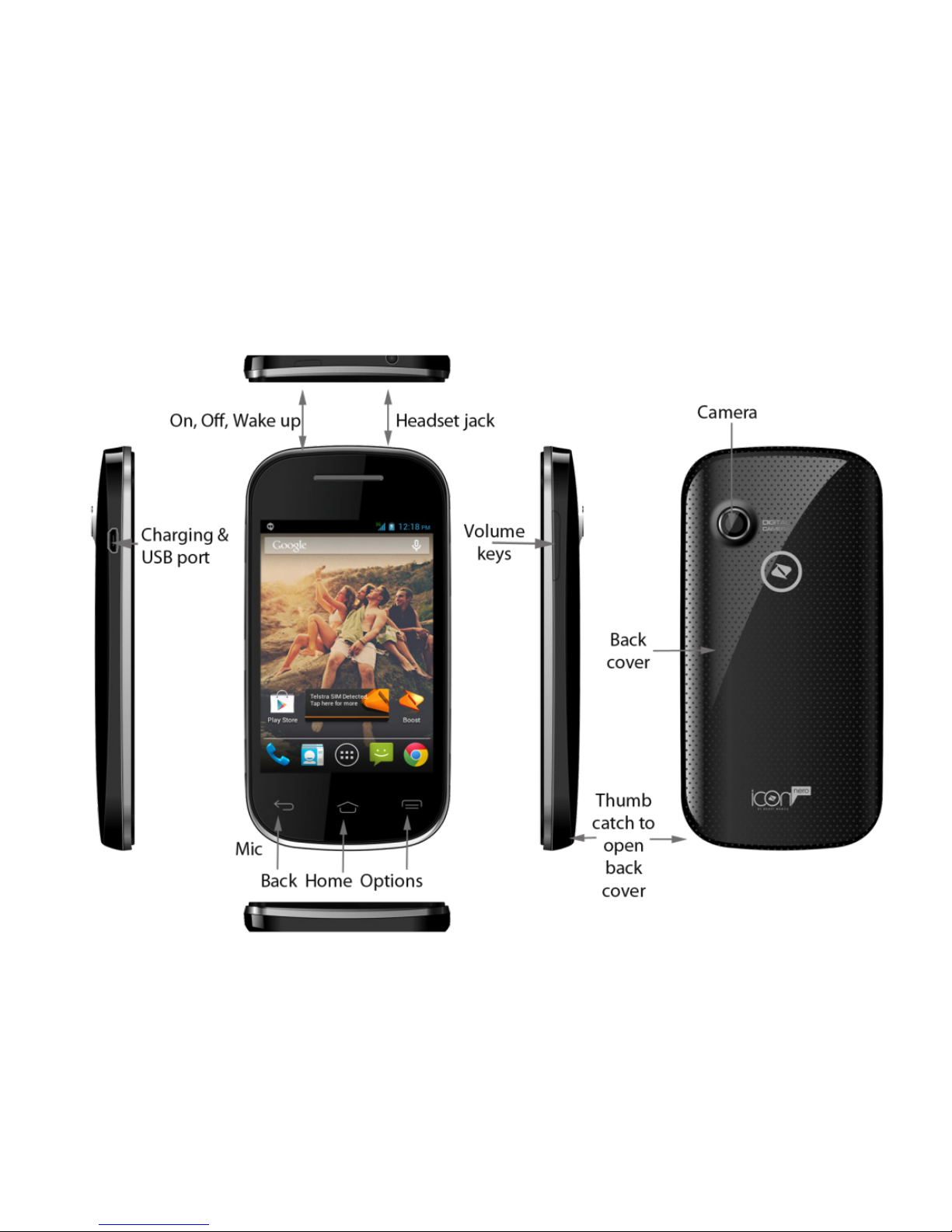

A QUICK LOOK AROUND YOUR DEVICE

4
GETTING STARTED
INSERT YOUR SIM CARD
1. Open the back cover using the thumb notch in the bottom left
corner:

5
2. Insert your SIM card carefully into the SIM slot as shown:
3. The handset memory can be expanded using a microSD(HC) cardup
to 32GB.
4. The battery will only fit one way, just check the gold pads on the
battery line up with the gold springs in the phone.
5. Replace the battery cover and press to click into place.

6
SWITCH YOUR DEVICE ON OR OFF
•Press and hold the Power Key to turn on your phone.
•To turn it off, press and hold the Power Key to
open the options menu.
•Touch Power off and then touch OK.
CHARGE THE BATTERY
•Ensure the plug has the correct orientation.
•Insert the charger lead carefully.
•Do not force the connector into the charger jack.
•Connect the charger to a standard AC wall outlet.
•Disconnect the charger when the battery is fully
charged.
•If the phone is on, the charging icon / is shown on the status bar.
•A pop-up message on screen warns you when the battery is low.
•As you charge your phone, the lock screen displays the battery level.
•It is better to keep your battery topped up than to let it fully discharge.
SHOW BATTERY % LEVEL ON THE NOTIFICATIONS BAR

7
Go to Settings > Battery > Enable the Battery Percentage check box to
display the current charge level on the Notifications bar.
Important Notes for Charging:
Only use the AC charger and USB lead supplied.
Insert the charger lead carefully.
Check the plug and socket are aligned correctly.
Do NOT use excessive force which may damage the USB port.
Be careful to avoid tripping on the lead whilst it is plugged in.
Physical damage to the USB port is NOT covered by warranty.
Normal charge time is 3-4 hours.
Do not leave on charge for more than 24hrs.
To maximise battery life limit multimedia functions.
Charge the battery between 0°C~45°C. Charge the battery
promptly when flat.
With poor network conditions (less than 2 bars) battery life is
reduced.
When not using the phone for long periods remove the
battery.

8
TIPS TO MAXIMISE BATTERY LIFE
•After 2-3 charge / discharge cycles the battery life will improve. From
then on use top up charging to recharge frequently and always charge
promptly when flat.
•To avoid the battery entering a deep discharged state charge the
battery promptly when flat.
•If the battery is deeply discharged it can take 30 minutes to start
charging. Leave it on charge to recover the battery.
•Keep your handset and battery cool. High temperatures degrade the
battery more quickly.
•Normal charge time is 3-4 hours. Do not charge more than 24hrs.
•When not using the phone for long periods charge to approx 40% and
remove the battery.
•With low network signal conditions battery life is reduced.
•Turn off Bluetooth and Wi-Fi when not in use, and set the screen
brightness to automatic to maximise battery life.

9
GOOGLE ACTIVATION WIZARD: CREATE OR LOG IN TO A GOOGLE ACCOUNT
We recommend you log in or create a new Google account to enable
on line services.
Follow the on screen wizard to create or log in to an existing Google
account.
TIP
If you set a lock code on your device and then forget the pattern or PIN
number it can be reset using your Google Account. After entering the
PIN, Pattern or Password incorrectly a number of times, the device will
ask you to enter your Google Account details to unlock your device.

10
WAKE UP FROM SLEEP MODE
•Press the Power key to activate the
display.
•Drag the padlock icon right to unlock.
SWITCH YOUR HANDSET TO SLEEP MODE
Press the Power key to activate sleep
mode.
Sleep Mode activates automatically with
the timeout set from Options > Settings >
Display > Screen timeout.
TIP
If you set an unlock pattern, PIN or password you need to enter it to
unlock the screen. If you forget your pattern or PIN use your Google
Account password to reset the phone. This will only work if you
register a Google account with this handset.
