AC2787
User Guide

Copyright Statement
Copyright © 2011 by ZTE Corporation
All rights reserved.
No part of this publication may be excerpted, reproduced, translated or utilized in
any form or by any means, electronic or mechanical, including photocopying and
microfilm, without the prior written permission of ZTE Corporation.
ZTE Corporation reserves the right to make modifications on print errors or update
specifications in this manual without prior notice.

Table of Contents
1. Introduction...................................................................................................... 1
2. Precautions ...................................................................................................... 1
3. Appearance ......................................................................................................3
4. Install and Uninstall.........................................................................................4
4.1 System Requirements..................................................................................4
4.2 Installation and Uninstallation Procedure for Windows.................................5
4.3. Installation and Uninstallation Procedure for MAC OS .............................. 11
4.4. Installation and Uninstallation Procedure for Linux.................................... 14
5. Dialer Features............................................................................................... 20
5.1 Run the Application .................................................................................... 20
5.2. Connect/Disconnect.................................................................................. 23
5.3. Upgrade.................................................................................................... 23
5.4. My Account ............................................................................................... 24
5.5. Settings..................................................................................................... 24
5.6. Help .......................................................................................................... 26
5.7. Options ..................................................................................................... 27

6. Trouble-shooting ........................................................................................... 28
6.1 Common Problems and Troubleshooting for Windows............................... 28
6.2 Common Problems and Troubleshooting for Mac ...................................... 30
6.3 Common Problems and Troubleshooting for Linux .................................... 31

1
1. Introduction
Thank you for choosing AC2787 Photon Plus Wireless USB Modem (hereinafter
referred to as USB Modem) of ZTE Corporation.
The USB Modem equips with a standard USB interface and supports Photon Whiz,
Photon Plus network.
The USB Modem adopts two designing options: R-UIM and Built-in UIM, which
make your operation more flexible.
The pictures in this guide are only used to demonstrate your USB Modem’s
functions, so they are maybe different from what you see on your USB Modem.
Please refer to your USB Modem if they are differences.
2. Precautions
●Use the original accessories or those authenticated by the manufacturer.
Using any unauthenticated accessories may affect the USB Modem’s
performance, violate the warranty provisions or relevant national regulations
about telecom terminals, or even cause body injury.
●Do not disassemble, modify, frequently pull/plug the antenna, stretch, rotate
or bend the antenna with great force.
●Before pulling out the USB Modem, please use Windows safely removing
the hardware and make sure to exit the application. Do not directly pull out
the terminal to avoid the damage of USB Modem or the influence on the

2
normal operation of operating system.
●Do not forcefully plug/pull the USB Modem to avoid the damage of
connector.
●Do not use your USB Modem near weak signal or high-precision electronic
devices. Radio wave interference may cause misoperation of electronic
devices or other problems.
●Turn off your USB Modem on airplane where it’s forbidden to use it. The
USB Modem may affect the normal operation of electronic devices,
therefore please follow the relevant regulations when using your USB
Modem on airplane.
●Turn off your USB Modem in hospital where it’s forbidden to use it. The USB
Modem may affect the normal operation of medical apparatus, therefore
please follow the relevant regulations when using your USB Modem in
hospital.
●Please do not use the USB Modem near flammable or explosive materials;
otherwise it might cause failure or fire.
●Keep your USB Modem away from water. This may cause overheating or
failure if water or any other kind of liquid enters your USB Modem. Please
do not use your USB Modem near high temperature, damp or dusty place.
●Keep your USB Modem away from children to avoid shock, plunge or
impact. It may cause body injury when the USB Modem is used as a toy.

3
3. Appearance
USB Plug
LED light
MEID

4
4. Install and Uninstall
4.1 System Requirements
The USB Modem supports the following operating system:
¾Windows XP(32/64)/ Vista(32/64)/ 7(32/64)/ 8(32/64)
¾MAC10.5.X, MAC10.6.X, Mac10.7.X, Mac 10.8/10.8.1/ 10.8.2
¾Linux(Ubuntu10.4/9.04/9.10, Fedora 9/10/12/13/14, OpenSUSE 11.1)
PC minimum configurations:
CPU Pentium-II/233MHz
USB interface 2.0 (USB1.0 and 1.1 compatible)
Optical Drive CD-ROM (for installation only)
Memory 128 MB
Disk Space 80MB (used for installation of application)

5
4.2 Installation and Uninstallation Procedure for Windows
Install
a. Connect the USB Modem with PC via USB port.
b. Install the Dialer & Driver.
The installation will automatically start. Please follow installation wizard. If not,
please go to the CD as shown in the figure below and open it and double click the
“AutoRun.exe” file or right click and click on Auto play.

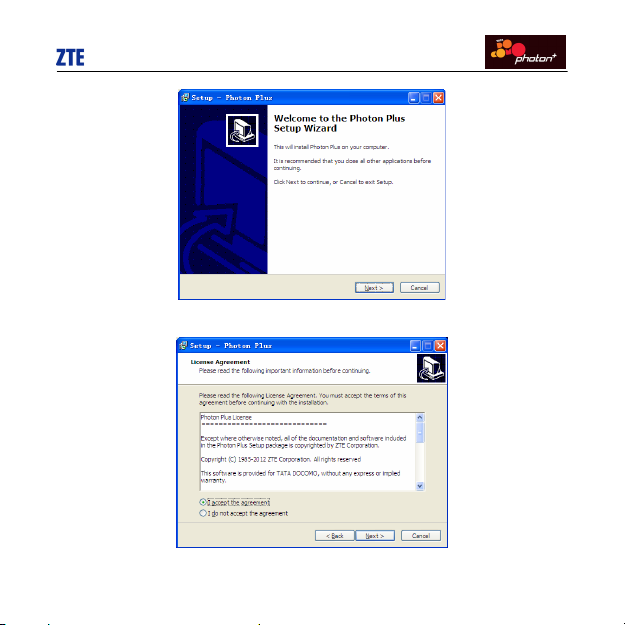

Please refer to the following screenshots for the further steps of installation.

6
Click “Next” and then to accept agreement.

7

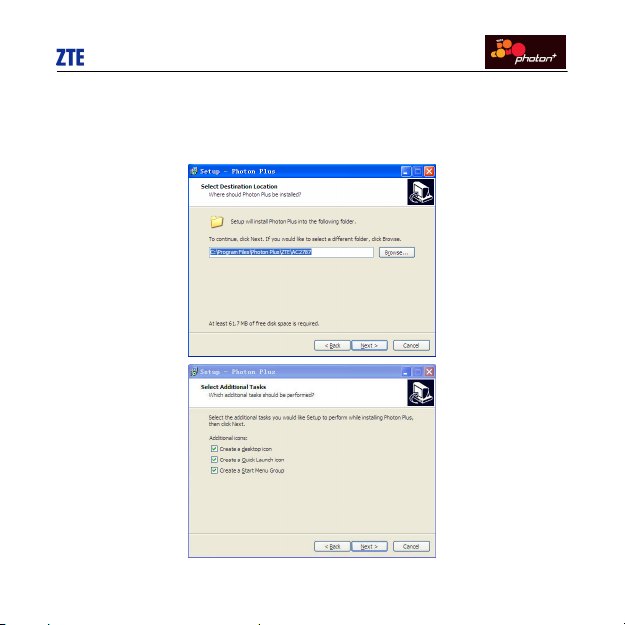

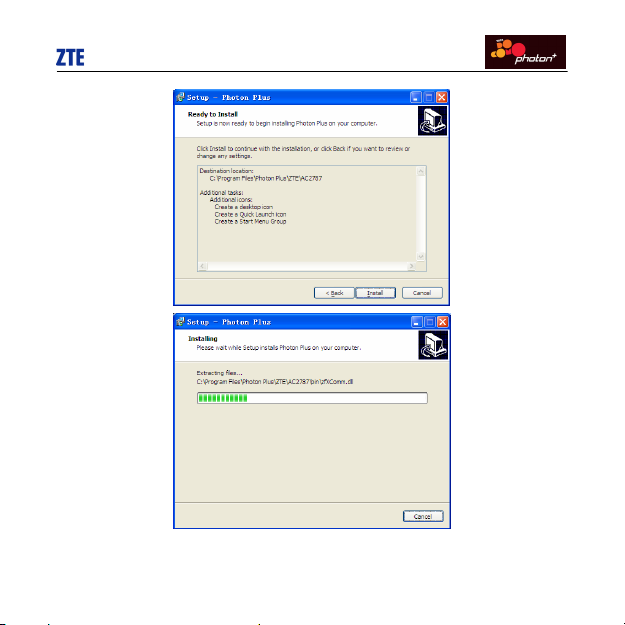

Click “Next” and then choose a location path for installation and click “Install”. In
case you do not have any specific location preference you may choose to continue
with the default location and click “Install”.

8

9
After finished, you will see a prompt to install an application called Tata Photon TV.
This is an application which will enable you to watch Live TV Online anytime,
anywhere.
“Setup” will only install the application on your system. To subscribe, please visit
the website http://www.tataphoton.com/tata-photon-photontv.aspx
After installation of Photon TV, your system should be restarted to complete the
installation.

10
Uninstall
a. Select Start All Programs Photon Plus ZTE AC2787
Uninstall , and you will be asked if you want to remove the program.
Click “yes”.
b. Please wait and then click “OK” when un-installation is completed.

11
4.3. Installation and Uninstallation Procedure for MAC OS
Install
a. Connect the USB Modem with PC via USB port.
b. Install the Dialer & Driver
Open the CD-Rom, double click the dmg file:CrossPlatformUI-Vx.x.x.dmg。
Double click the icon of pkg file:
Please click “Continue” to start the installation.

12

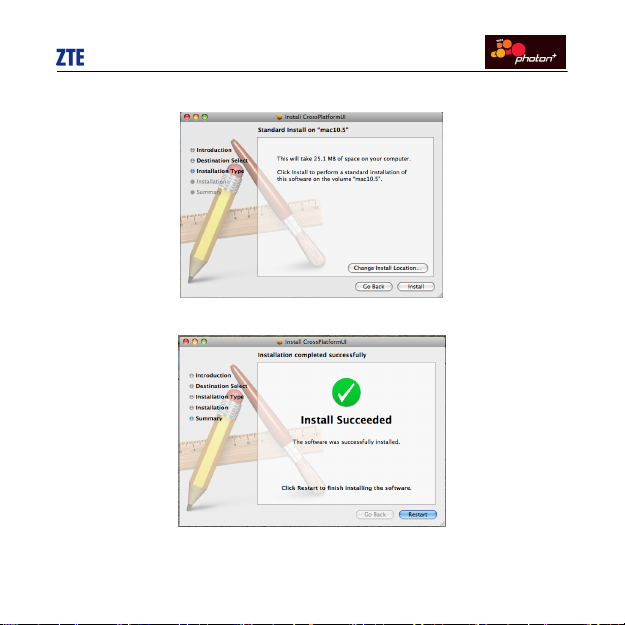

Select the install location and the click “Install” button.
When installation is successful click on the “Restart” button.
Click the icon on the desktop and begin surfing.

13
Uninstall
a. Select Finder Applications ZTEMT UI CrossPlatform UI
Uninstall.pkg, and you will be asked if you want to remove the program. Click
“Yes” to uninstall.
b. Please wait and then click “OK” to complete uninstallation.

14
4.4. Installation and Uninstallation Procedure for Linux
Description of installation procedure
The UI software setup package under Linux (Ubuntu, openSUSE, Fedora,…)
system contains the driver of USB data card and offers different driver source
codes according to different Linux kernel versions. They are put under the setup
path: /usr/local/bin/ztemtApp/zteusbserial, and saved in different sub-folders.
The setup package will automatically compile the corresponding driver version and
load the driver (insmod ztemt.ko) during the installation.
Therefore, you need to install gcc compiler and kernel development package
(kernel-devel) in advance.
Ubuntu9.04 system is an exception because the USB driver module already exists in
the system kernel. The setup package will omit the step of compiling the driver after
confirming that the system version is Ubuntu9.04; instead, it would modify the system
pilot configuration (menu.lst) in order to support different ZTE USB data cards.

15
Note: You need insert USB data card when installing UI software under Ubuntu9.04
system, otherwise you will be unable to install the drivers for the USB modem
a. Install the Dialer & Driver
Open new terminal go to the path where the packets is, for example:
cd ‘/home/ztemt/Desktop/ZTEMT USB MODEM/’.
Type the command below to install the dialer and press enter.
¾sudo sh ./install_linux

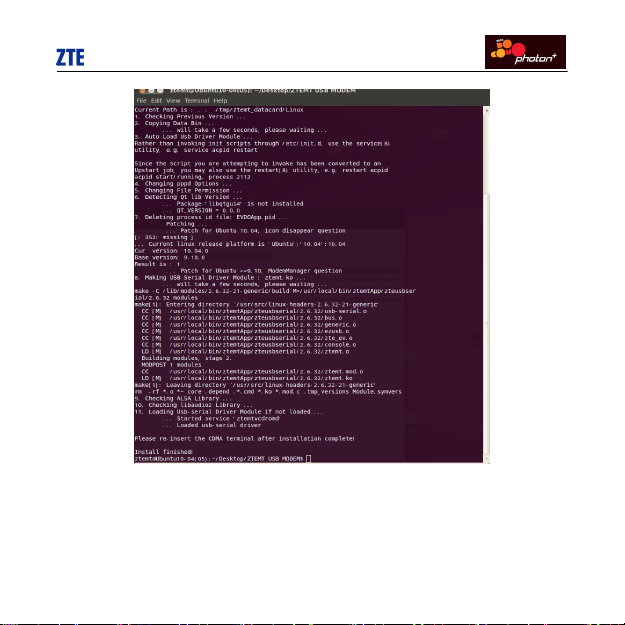

After pressing the Enter key you will get the below terminal as shown below.

16
Get Started to Run UI
When the installation is complete, you can run UI software.
Re-insert the usb modem into USB port, wait for the driver to recognize USB
