ZURN Alamere Z6954-XL User manual

Zurn Industries, LLC
511 W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax [phone]
In Canada |Zurn Industries Limited
7900 Goreway Drive Unit 10, Brampton, Ontario L6T5W6 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
Rev. -
Date: 11/1/2017
C.N. No. SAN007810
Prod. | Dwg. No. FV636
®
Alamere Series™
Faucet
Sensor-Operated Lavatory Faucets
for Battery or Plug-In Installations.
Installation, Operation, Maintenance,
and Parts Manual
Patented and Patents Pending
Z6954-XL
Alamere Series
NOTICE: READ ENTIRE MANUAL PRIOR TO INSTALLING PRODUCT.
NOTE: The information in this manual is subject to change at any time without notice. Installations may
be performed at different times of construction by different individuals. For this reason, these instructions
should be left on-site with the facility or maintenance manager.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
ADVERTENCIA: Cáncer y daño reproductivo - www.P65Warnings.ca.gov
AVERTISSEMENT: Cancer et effets néfastes sur la reproduction - www.P65Warnings.ca.gov
LIMITEDWARRANTY
All goods sold hereunder are warranted to be free from defects in material and factory workmanship for a period of three years from the
dateofpurchase.Decorative finisheswarranted forone year. Wewillreplace atno costsgoods thatprove defectiveprovided weare
notified in writing of such defect and the goods are returned to us prepaid at Sanford, NC, with evidence that they have been properly
maintainedand used inaccordance with instructions.We shall notbe responsible forany labor chargesor any loss, injury or damages
whatsoever, includingincidental or consequential damages. The sole and exclusive remedyshall belimited tothe replacementof the
defectivegoods. Before installationand use, thepurchaser shall determinethe suitabilityofthe productforhis intendeduse and the
purchaserassumes all riskand liability whateverin connection therewith. Where permitted by law, the implied warranty of merchantability
isexpressly excluded.If the products sold hereunderare “consumerproducts,” the implied warranty ofmerchantability islimited toa
period ofthree yearsand shall belimited solelyto thereplacement ofthe defective goods.All weightsstated inour catalogs andlists are
approximateandarenotguaranteed.
Sensor-Operated Battery-Power or Plug-in
Lavatory Faucets

FV636 Rev. - 10/3/2017
Page2
Overview:
Specifications: Voltage: 6 VDC Series [4 “AA” (Alkaline) and/or external power option]
Sensor Range: Self-calibrated.
Operating Water Pressure: 10-125 psi
Operational Water Temperature: 33°F to 140°F (1°C to 60°C)
Aerator: 0.5 GPM (Standard)
Important Safety Information:
• Installer is responsible for ensuring the product is installed and conforms to all plumbing codes and ordinances.
• Do not convert or modify this Zurn product yourself. All warranties will be voided.
• Water supply lines must be sized according to building designer in order to provide adequate water supply for each fixture.
• Flush all water lines prior to making connections.
Required Tools:
Alamere Series Faucet Package Contents
Z6954-XL
Prior to Installation:
Before installing your Zurn®Alamere Series Faucet: the items listed below should already be installed on site.
• Lavatory/sink
• Drain Line
• Hot and cold water supply line or pre-tempered water supply line.
• Installer/Servicer should not use pipe dope or teflon/thread sealant anywhere on this product, most notably threads and
connection points.
• Care shall be taken when installing this product to prevent marring of any exposed or decorative surfaces.
Spout
Assembly
Base
Gasket
Aerator
and Key
Electronics Box
with Solenoid
Batteries
Filter
Shank
Mounting Kit
Allen Wrench: M3
(Supplied)
Non-toothed
Wrench

FV636 Rev. - 10/3/2017
Page3
2.2. Open battery module using supplied Allen wrench and install
supplied batteries in the electronics module.

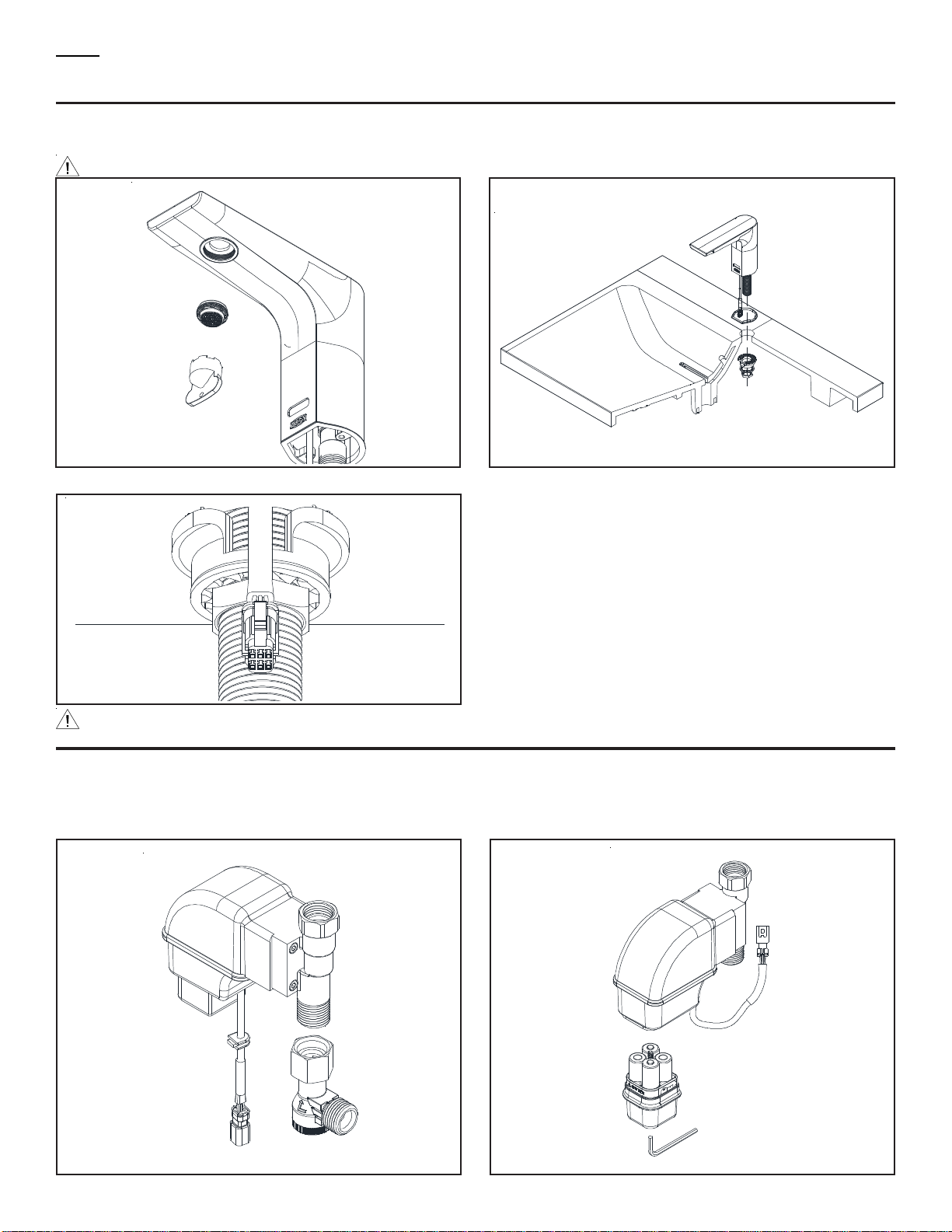

Spout Installation - Step 1
Electronics Module Installation - Step 2
1.1. Carefully screw aerator into spout using included tool.
Take care to not pinch blue o-ring
1.2.Install spout to sink using spout base gasket, plastic
mounting washer, star washer and mounting nut (and cover plate
for versions that are included).
1.3. Ensure that slot in plastic washer is facing forward.
2.1. Assemble the electronics module
NOTE: Before installation, turn off water supplies to existing faucet and remove faucet if replacing an existing
device. Clean the faucet basin and clear away debris. Flush all supply lines before connecting the faucet. Failure
to do so may result in debris clogging the inlets and/or internal control and mixing valve
Take care passing sensor cable through hole. Cable passes
through front of plastic mounting washer

FV636 Rev. - 10/3/2017
Page4
2.2a. OptionalACAversion: Connect supplied inline connector
and AC adapter. 2.2b. Optional HW6 (Hardwired 6V) version: Connect supplied inline connector and hardwire adapter. When securing the CWB
wires to the screw terminals on HW6 unit, the BLACK WITH
DASHED MARKINGS should be connected to the Positive (+)
terminal, and the SOLID BLACK wire should be connected to the
Negative (-) terminal.
MJ unit (sold separately)
Note:Donotconnectmorethan8solenoidstoasingletransformer 2.3. Tighten electronics module assembly to shank and connect water line(s).
2.4. Ensure that sink is clear of tools/debris and is in normal
operating condition.
2.5. Turn on water supply(ies). Water supply must be turned on
in order for sensor to perform wet calibration step.
Donot engage the sensor for 30 seconds after the connection
is made. The sensor will perform automatic calibration.
ACA
INLINE
CONNECTOR
-CWB
-HW6
-MJ-HW6
18AWG(MIN)
MAXLENGTH40’

FV636 Rev. - 10/3/2017
Page5
TROUBLESHOOTING GUIDE:
Care and Cleaning Instructions:
• Do not use any abrasive or chemical cleaners to clean the faucets.
• If abrasives or chemicals are used it can lead to dulling of luster, attacking of chrome plating or decorative finishes.
• ONLY use mildly warm soapy water, and then wipe the device dry with a clean/soft towel or cloth.
• Upon cleaning other areas of the restroom be sure the sensor lenses are protected from other cleaning chemicals/solvents to
prevent potential damages to the sensor and/or electronics.
Forfurther assistancewith troubleshootingvisit http://www.zurn.com
POTENTIAL SITUATIONS POSSIBLE CAUSES SUGGESTED SOLUTION TIPS
Battery voltage low or no power. Change out batteries or verify power provided by HW6 or ACA
Sensor and electronic connector
cable has bent or broken pins.
Check to see if pins are missing, bent, or broken. If yes, then the
electronic box needs replaced
damage, scratches, or deposit
build ups.
Inspect the sensor lens underneath the spout tip. May require
cleaning with a damp cloth or sensor replacement
Sensor may not have had enough
time to calibrate prior to a user or
target trying to initiate activation.
Check if protective film was
removed from lens.
Water does not stop Electronics box cable connector
has bent pins that are shorted
Check to see if pins are missing, bent, or broken. If yes, then the
electronic box needs replaced.
Ghost Activation Sensor lens could be obstructed
or environmental factors such as
high reflective surfaces and/or
bright sunlight conditions.
Check/clean sensor lens of any debris or buildup If sunlight or IR
interference is a factor.
Mounting hardware is not
tightened sufficiently (faucet
shank, electronic box, supply
hoses, etc)
Check and ensure the nuts and joints are tight and secure from
the supply stop all the way to the faucet shank.
Missing the washer located in the
solenoid box nut where it
assembles to the faucet shank.
Make sure the water supply stops are shut off. Check to ensure
the washer is installed or damaged. If not, install washer. If a
washer is damaged, replace with new.
Faucet is non-responsive
Faucet does not activate
after initial installation
Disconnect the sensor and electronic box cables and wait for 30
seconds. Reconnect the cables, but allow for another 30 seconds
before placing hands or a target within the sensor range. You
should hear a click of the solenoid once calibration is complete.
Sensor faucet is leaking
underneath the sink or
counter

Zurn Industries, LLC
511 W. Freshwater Way, Milwaukee, WI U.S.A. 53204 · Ph. 1-855-ONE-ZURN, Fax [phone]
In Canada |Zurn Industries Limited
7900 Goreway Drive Unit 10, Brampton, Ontario L6T5W6 · Ph. 905-405-8272, Fax [phone]
www.zurn.com
Rev. -
Date: 11/1/2017
C.N. No. SAN007810
Prod. | Dwg. No. FV636

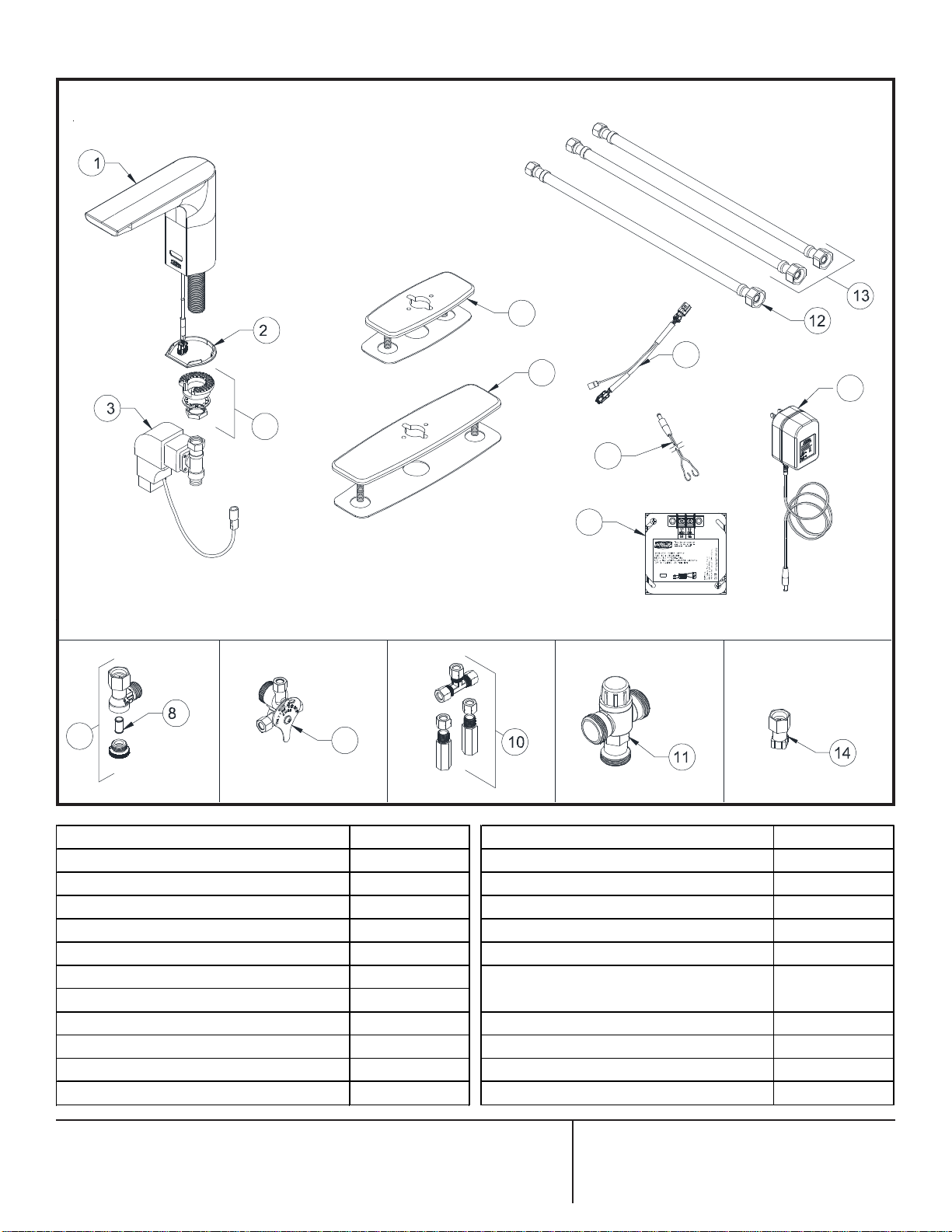

Z6954-XL Parts List
Product No.
1 Z6954 SpoutAssemblywith Sensor P6954-XL-1
2 Z6954 Spoutbase gasket P6950-XL-42
3 Electronics Boxwith Solenoid P6950-XL-B-L
4 4” CastCover Plate w/Gasket P6900-CP4
5 8” CastCover Plate w/Gasket P6900-CP8
6 Mounting Kit P6900-43
7 Filter Kit P6900-120
8 Filter Screen P6900-MV-7
9 Mixing Valve w/Filter P6900-XL-MV
10 Mixing Tee w/Filters and Back Checks P6900-XL-MT
Description Product No.
11 Thermostatic Mixing Valve P6900-TMV
12 Single Stainless SupplyHose (XL) P6900-SSH
13 Stainless SupplyHoses (XL) P6900-SSH-2
14 Composite Mixing Valve Adaptor P6900-MV-ADAP
15 Shank Connection Gasket P6900-SG
16 Solenoid Rebuild Kit
(Diaphram,plunger and plunger spring) P6900-SRK
17 Sensor Inline Connector P6950-XL-DC
18 -CWB Pigtail P6900-CWB
19 -HW6 PowerSupply P6900-HW6
20 Optional Plug-in Power Converter P6900-ACA
Description
9
7
6
20
17
BLUE(-)
GREEN/YELLOW
FRAME/SAFETY GROUND
P6000-HW6 WIR ING
IN
VAC
(LINE)
BLACK
(NEUTRAL)
WHITE
RED(+)
5
4
18
19
